Description

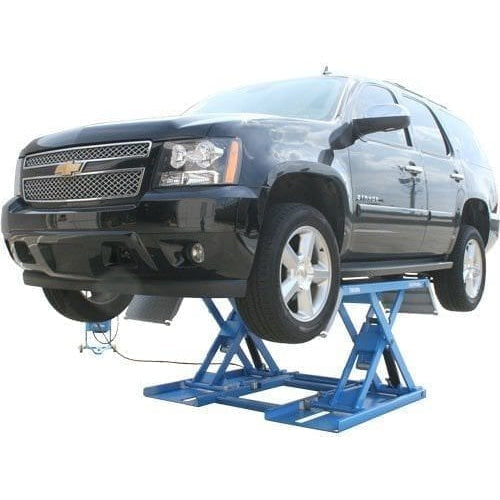

The Atlas® 7K Kwik Bay is a 7,000 lb. capacity open-center portable mid-rise scissor lift designed for commercial quick-service bays, tire and brake shops, and professional wheel service technicians who need extra lifting height and fast setup.
This free-standing portable lift provides a stable, heavy-duty lifting solution that quickly raises vehicles to a comfortable working height without the need to position swing arms under the lifting points. Simply drive the vehicle onto the ramps, place the heavy-duty rubber block assemblies under the manufacturer’s lifting points, and elevate the vehicle using the convenient control unit. This efficient design saves time and minimizes the risk of contact or damage to the vehicle’s underbody.

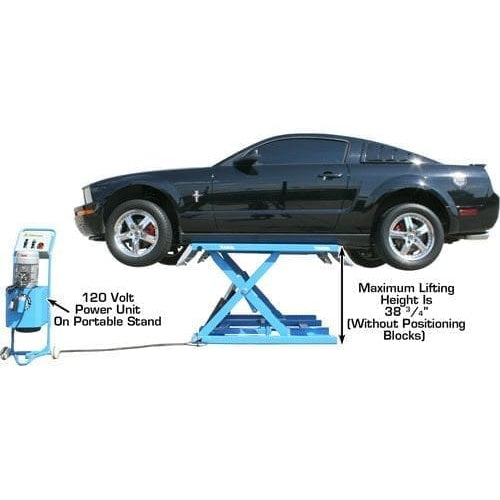

The Atlas® 7K Kwik Bay offers a maximum lifting height of over 39 inches and remains rock solid at every safety lock position. Its wide footprint ensures exceptional platform stability, even under heavy loads.

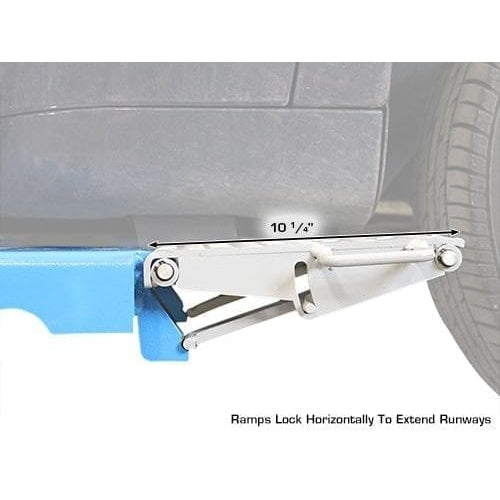

The open-center platform design provides superior access to the vehicle’s underside—ideal for bodywork, brake jobs, and general maintenance tasks. Each approach ramp locks horizontally, extending the platform by an additional 10 inches on both ends, increasing the total effective lifting surface from 57 inches to 78 inches.
Dual hydraulic cylinders and solid mechanical safety lock bars deliver secure, balanced lifting performance and make the 7K Kwik Bay one of the most versatile and user-friendly mid-rise lifts available in North America.

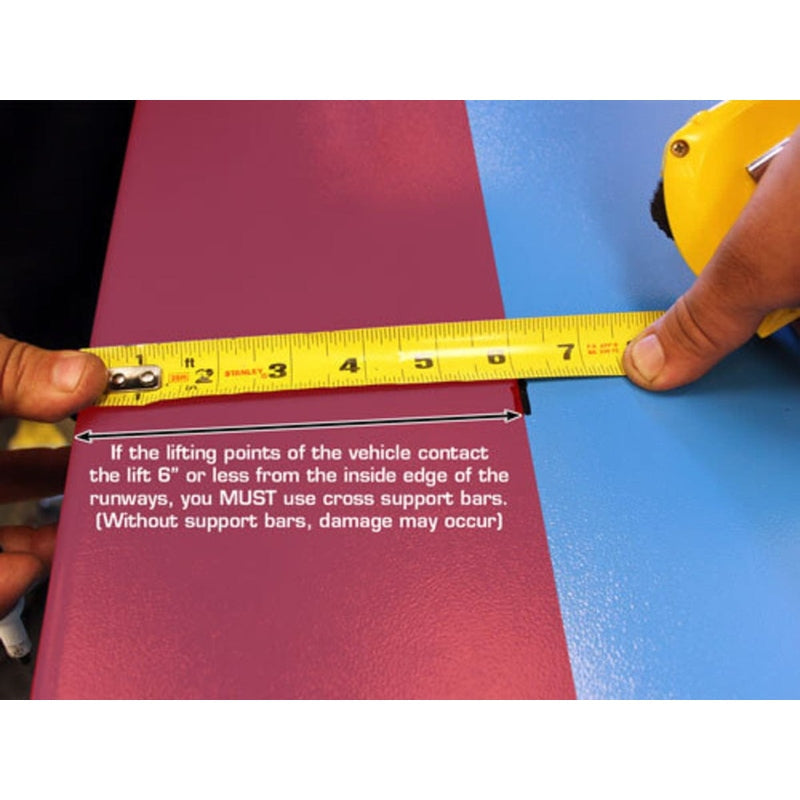

As with all open-style scissor lifts, operators should position the vehicle’s frame at least 6 inches from the inside edges of the platforms to ensure proper balance. Placing too much weight near the edges may cause the platforms to angle inward (“pigeon toe”) and potentially result in damage.

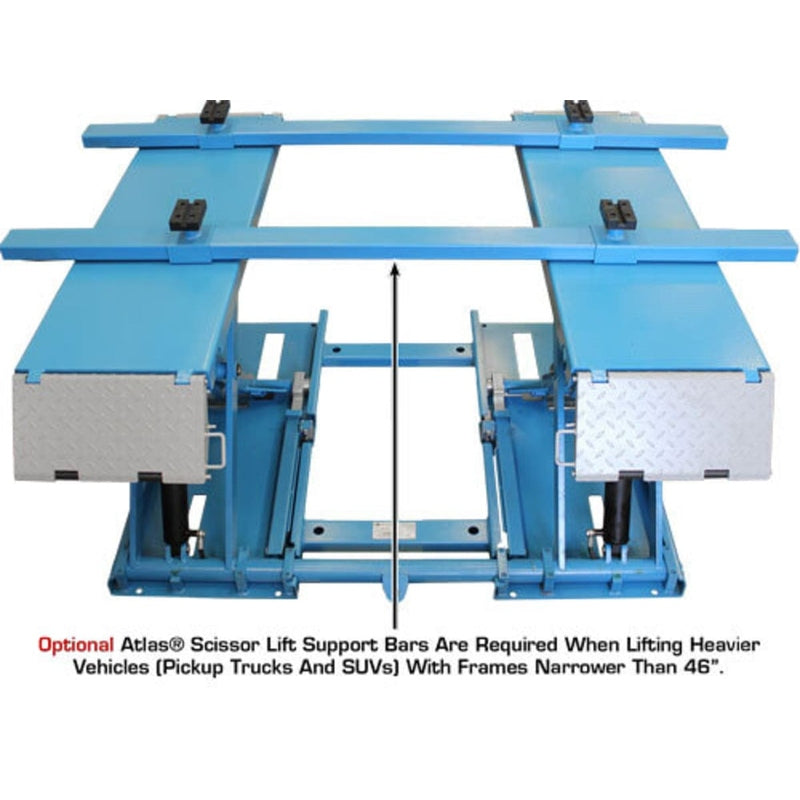

For lifting narrow-frame vehicles or heavy trucks, Atlas® recommends using the optional Scissor Lift Support Bar Kit, which distributes weight evenly across the lifting surface. Additionally, due to the horizontal cylinder configuration, maintaining a 2–6 inch gap between the lift surface and the vehicle’s lifting points ensures proper operation and safety.
Durable, stable, and designed for speed, the Atlas® 7K Kwik Bay is the ideal lift for shops that demand high productivity, fast setup times, and dependable performance in tight spaces.
Features
-
7,000 lb. lifting capacity
-

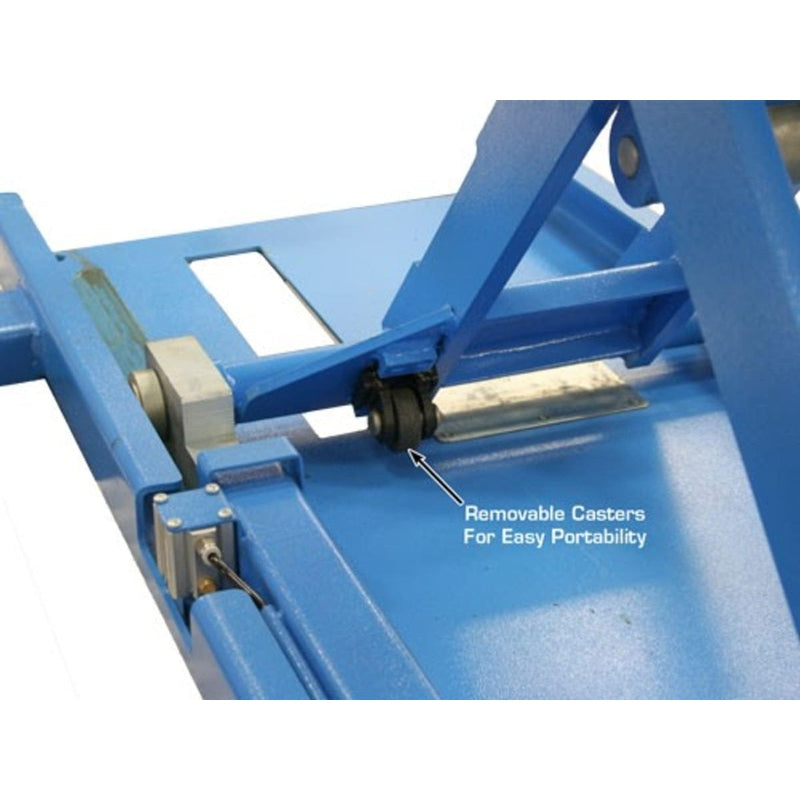

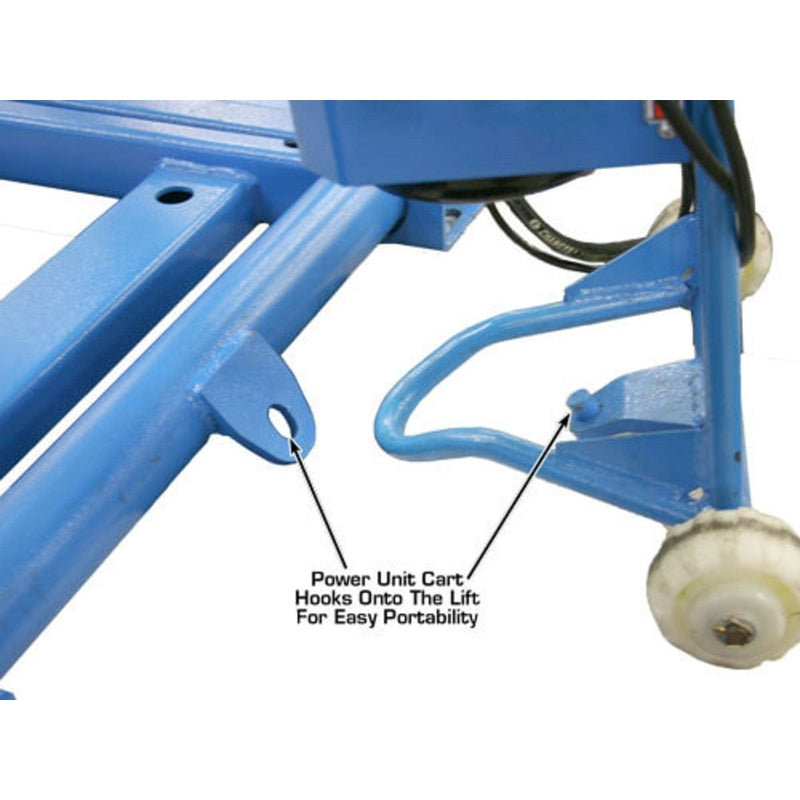

Free-standing, portable design for flexible shop placement
-
Open-center configuration for unobstructed undercarriage access
-
Built to commercial-grade standards for durability and reliability
-
Drive-over ramps for fast vehicle positioning
-

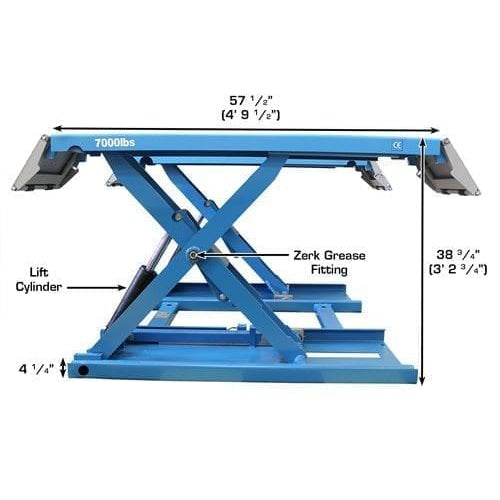

Grease zerk fittings at each hinge point for smooth, long-term operation
-
Ideal for tire, brake, and general service work
-

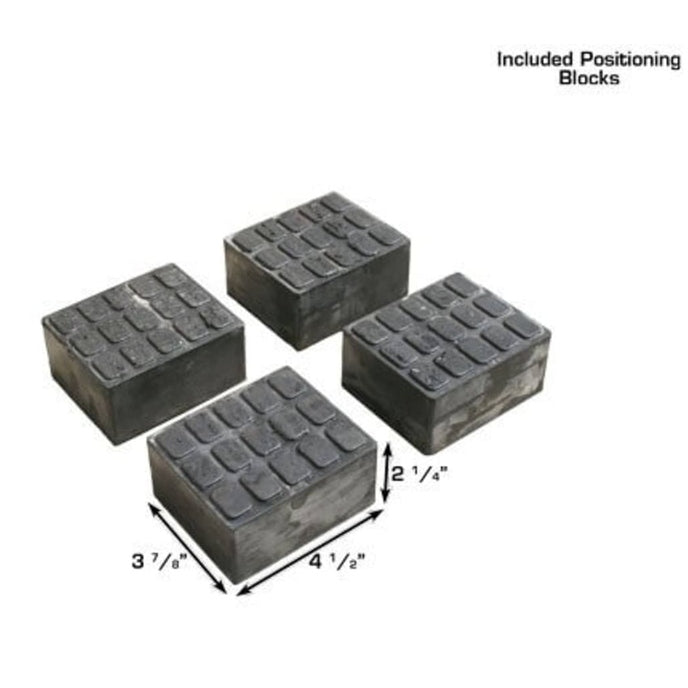

Includes heavy-duty rubber lifting blocks for vehicle protection
-

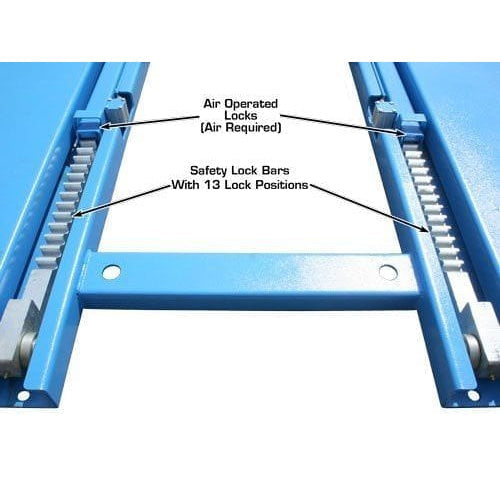

Air-operated single-point lock release (requires external air supply)
-

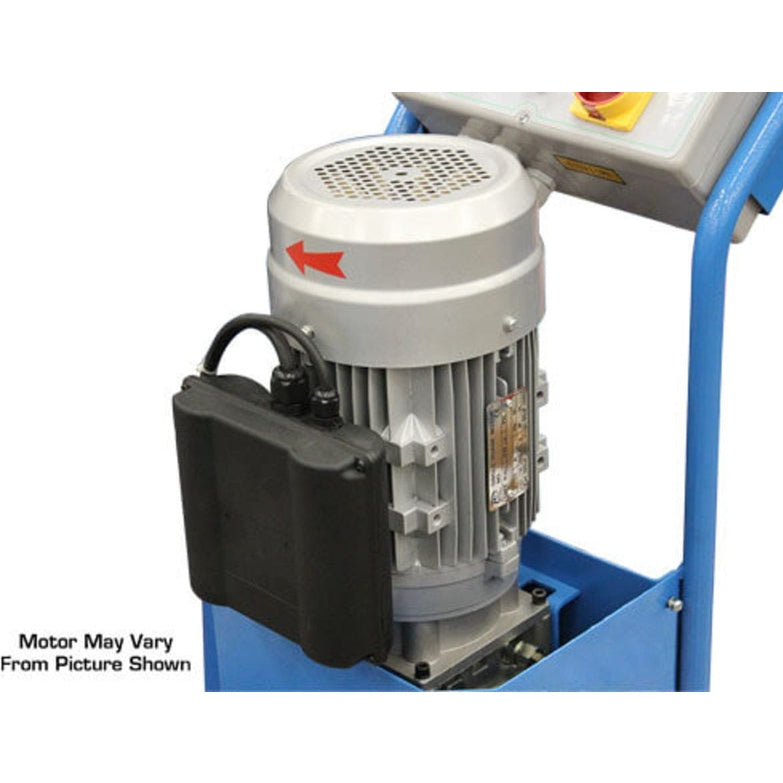

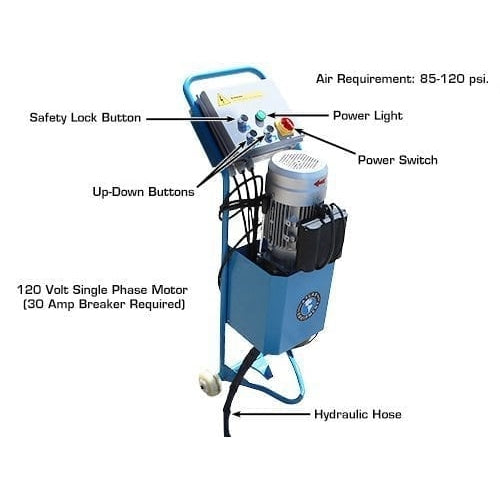

110V electric operation (30-amp breaker required)
-

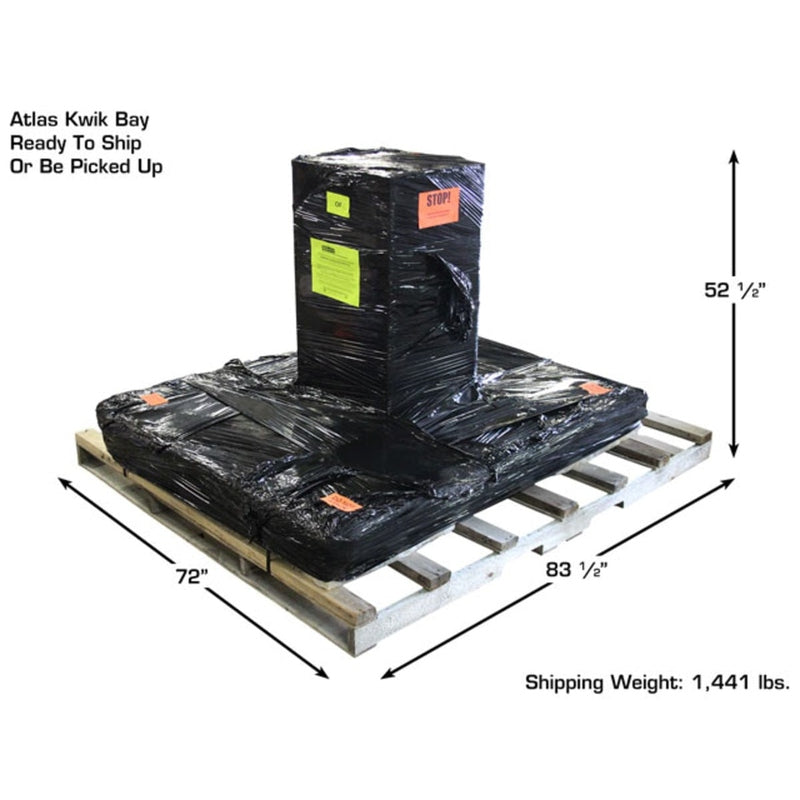

Shipping weight: 1,441 lbs
-
Warranty: 2-year structural / 2-year hydraulic (parts only)
Specifications
Atlas® 7K Kwik Bay
| Specification | Measurement |
|---|---|
| Load Capacity | 7,000 lbs |

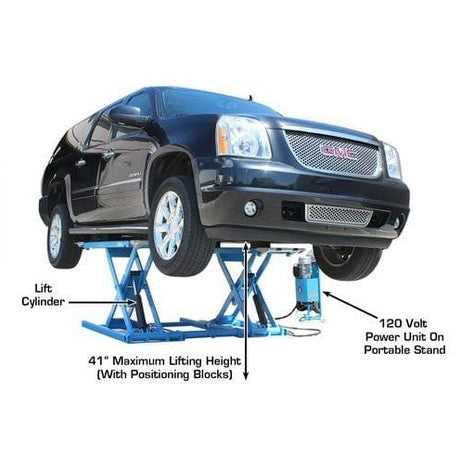

| Maximum Lifting Height (with rubber blocks) | 41" (3' 5") |
| Minimum Lifting Height | 4¼" |

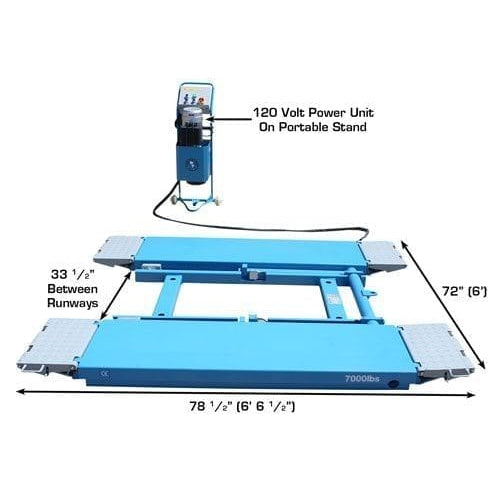

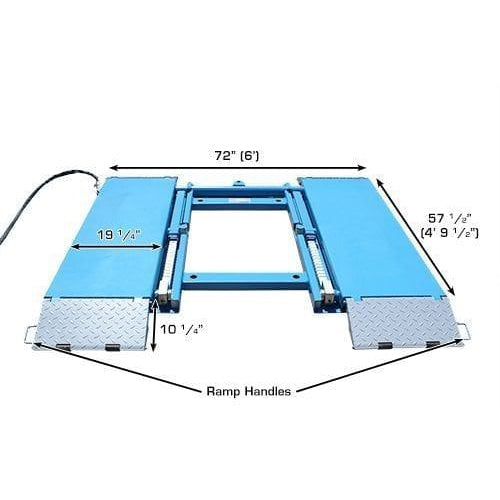

| Overall Dimensions | 85½" L × 72" W (7' 1½" × 6') |
| Platform Dimensions | 56" L × 19¼" W (4' 8" × 1' 7¼") |
| Ramp Dimensions | 14½" L × 19¼" W |
| Width Between Runways | 33½" (2' 9½") |
| Air Requirement | 90–120 PSI |
| Motor / Electrical Requirement | 110V, 30A breaker required (plug not included) |
| Shipping Weight | 1,441 lbs |
