Atlas Automotive EquipmentSKU: ATEXH-9KOHX

At a Glance

  • Automatic Arm Restraints; Dual-Point Lock Release
  • Max Lifting Height: 74.5"
  • Drive-Thru Clearance: 90.5"
Price:
$2,599.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

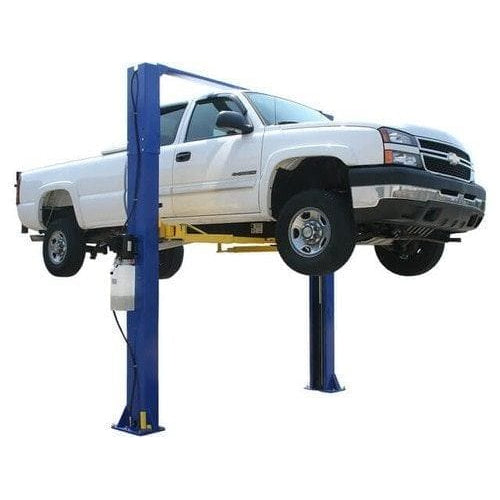

Atlas® 9KOHX – 9,000 lb. Capacity Overhead 2-Post Lift

The Atlas® 9KOHX is a light-duty, clear-floor two-post lift designed for homeowners and small repair shops who want professional-grade lifting power at an affordable price. With a 9,000 lb. lifting capacity, it’s ideal for servicing cars, SUVs, and light-duty trucks, combining reliability, versatility, and value in one efficient package.

This economy-style overhead lift features chain-drive hydraulic cylinders and a dual safety lock system for dependable operation. The lift can be configured at two height settings — 11′ 6″ or 11′ 10″ — allowing installation in most standard garage environments.

The symmetric column design includes EZ-Metric arms that can be positioned in either symmetric or asymmetric configurations, giving operators the flexibility to lift both compact vehicles and full-size pickups. The low pad height makes it easy to reach low-profile lifting points, while the spring-loaded Secondary Lock System (SLS) automatically engages in the event of a slack or broken chain, adding an extra layer of safety.

Durable, dependable, and cost-effective, the Atlas® 9KOHX delivers exceptional lifting performance for anyone who needs maximum capacity at minimal cost.

Key Features

  • 9,000 lb. Lifting Capacity

  • Overhead, Open-Floor Design for easy vehicle access

  • Adjustable Overall Height: 138″ (11′ 6″) or 142″ (11′ 10″)

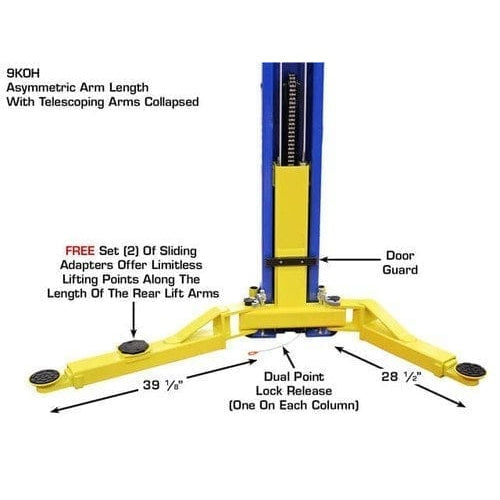

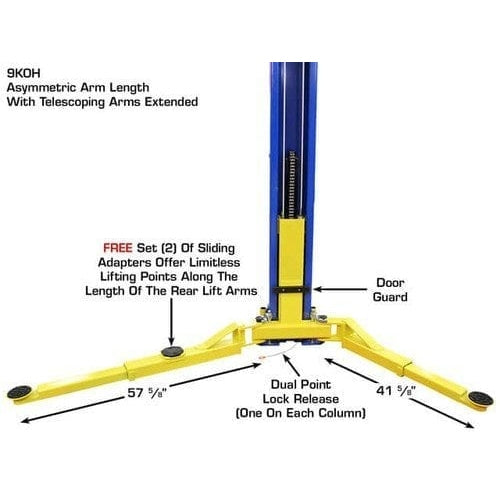

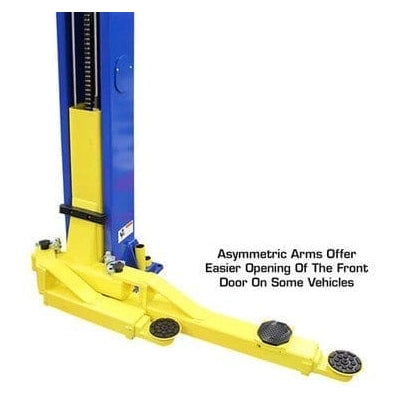

  • Asymmetric/Symmetric Arm Configuration for versatile lifting options

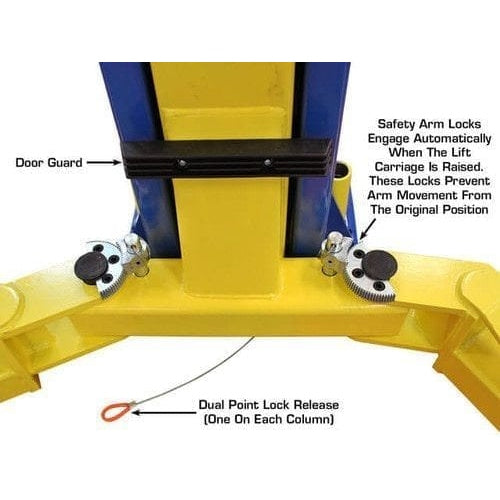

  • Automatic Arm Restraints for added safety

  • Dual-Point Lock Release for simple operation

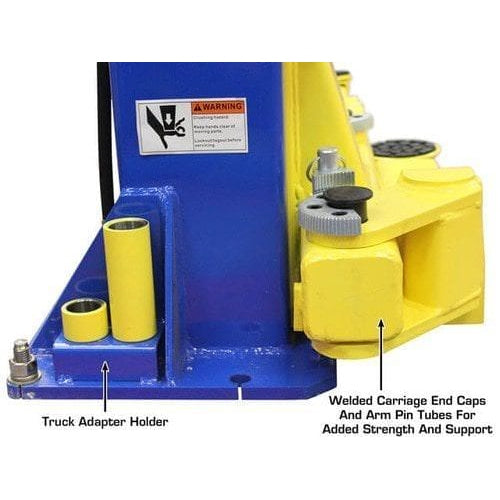

  • Rubber Door Guards on Carriages to protect vehicle panels

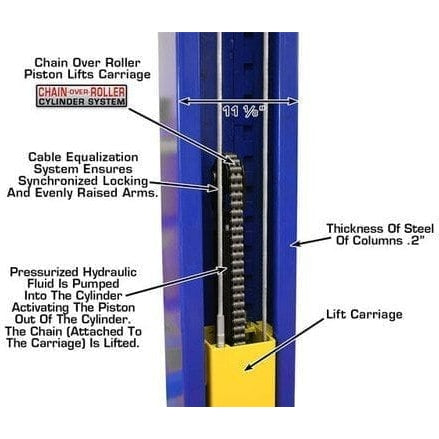

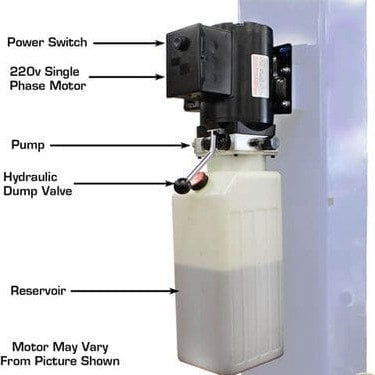

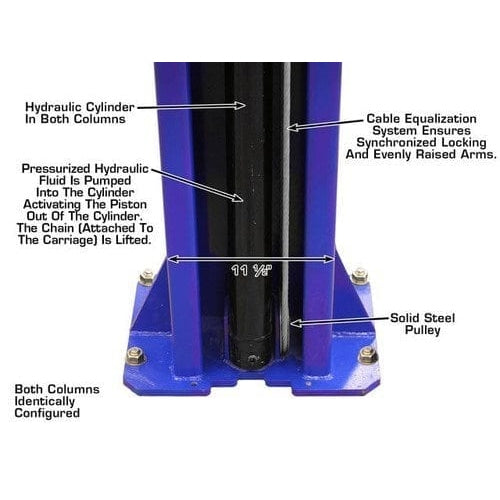

  • Dual Hydraulic Chain-Drive Cylinders for smooth, reliable performance

  • Secondary Lock System (SLS) automatically engages if slack or chain failure occurs

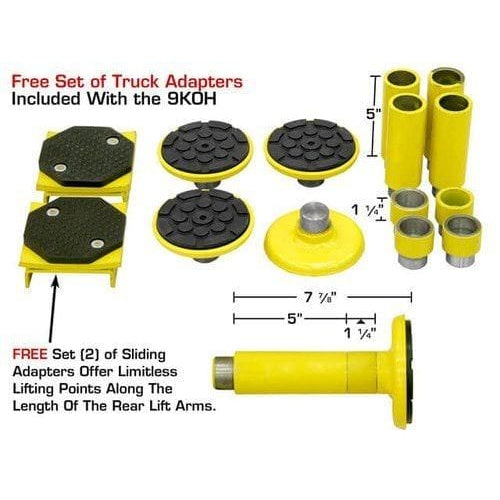

  • Includes Free 8-Piece Truck Adapter Set

  • Includes Free Sliding Arm Adapters

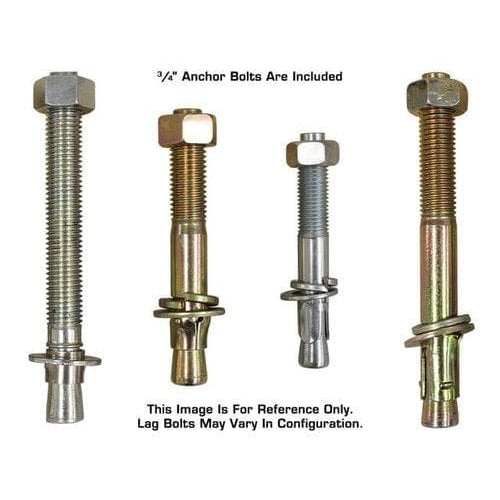

  • Mounting Hardware Included

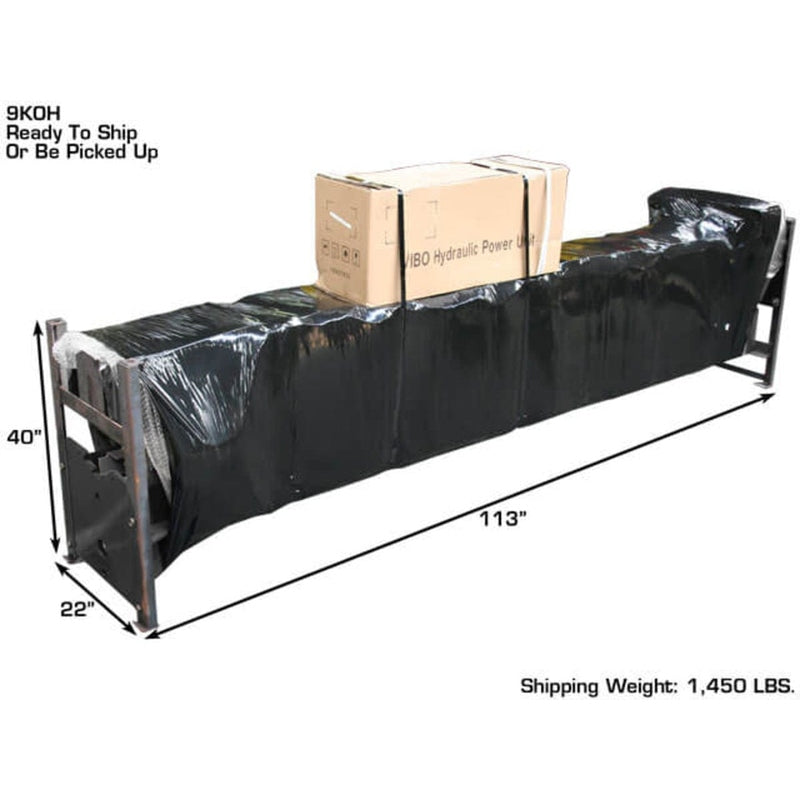

  • Shipping Weight: 1,450 lb.

  • Warranty: 2-Year Structural | 1-Year Hydraulic (Parts Only)

Specifications

Specification Measurement
Lifting Capacity 9,000 lb.

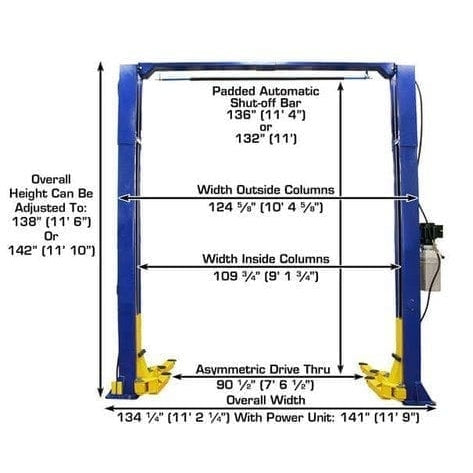

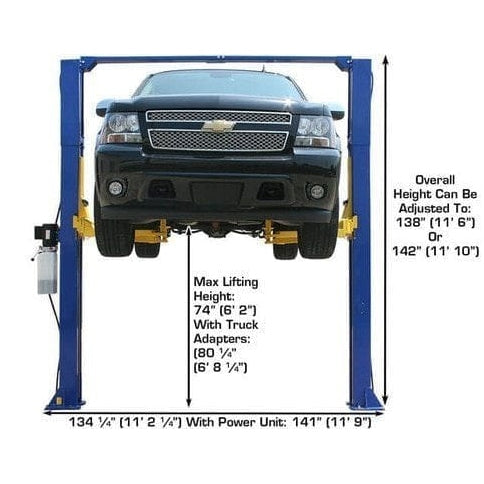

Overall Height 138″ (11′ 6″) or 142″ (11′ 10″)
Overall Floor Width 134 ½″ (11′ 2 ½″)
Outside Column to Outside Column 124 ⅞″ (10′ 4 ⅞″)

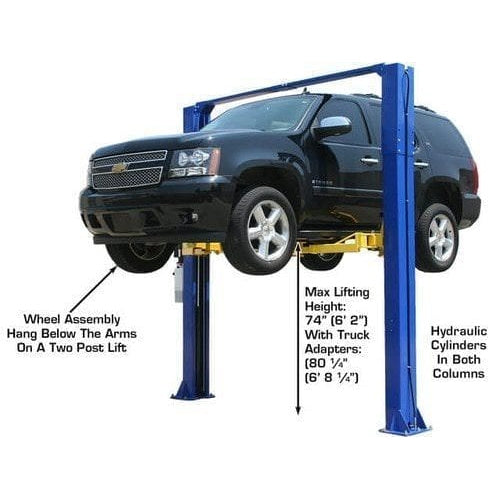

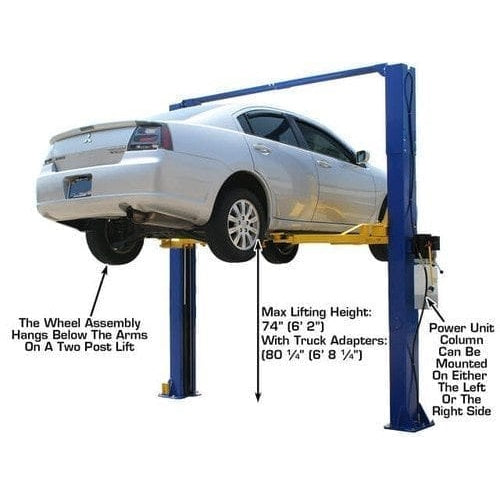

Maximum Lift Height (Without Adapters) 74 ½″
Maximum Lift Height (With Adapters) 81″
Minimum Arm Height 4″
Inside Column Width 110″ (9′ 2″)

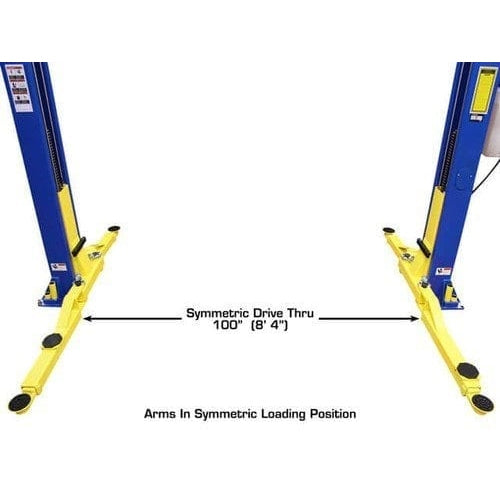

Drive-Through Clearance 100″ (8′ 4″) Symmetric / 90 ½″ (7′ 6 ½″) Asymmetric
Column Size 7 ¼″ × 11″
Column Steel Thickness 5 mm
Base Plate Dimensions 14 ¼″ × 18″
Electrical Requirement 220V single-phase (30A breaker recommended)
Oil Requirement 3–5 gallons AW32/AW46 (not included)
Shipping Weight 1,450 lb.
Adapter Heights Four each: 1.5″ and 5″
Arm Hole/Adapter Peg Size 1.5″
Concrete Requirement Minimum 4″ thick slab rated at 3,000 PSI

Documents

Atlas 9KOHX Manual

Atlas 9KOHX Cylinder Bleeding Procedure(Do this immediately after installation)
