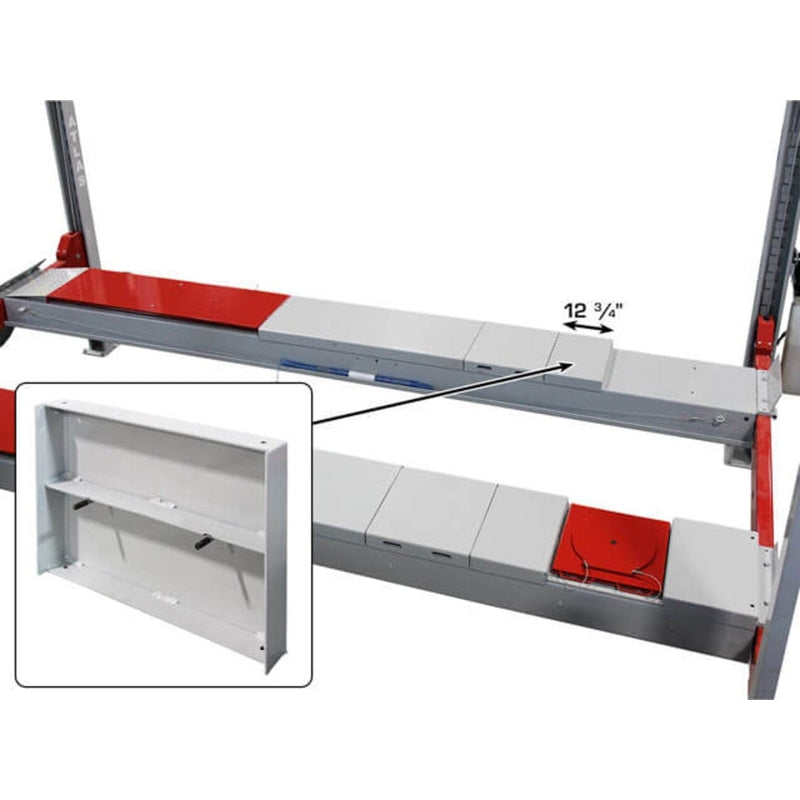

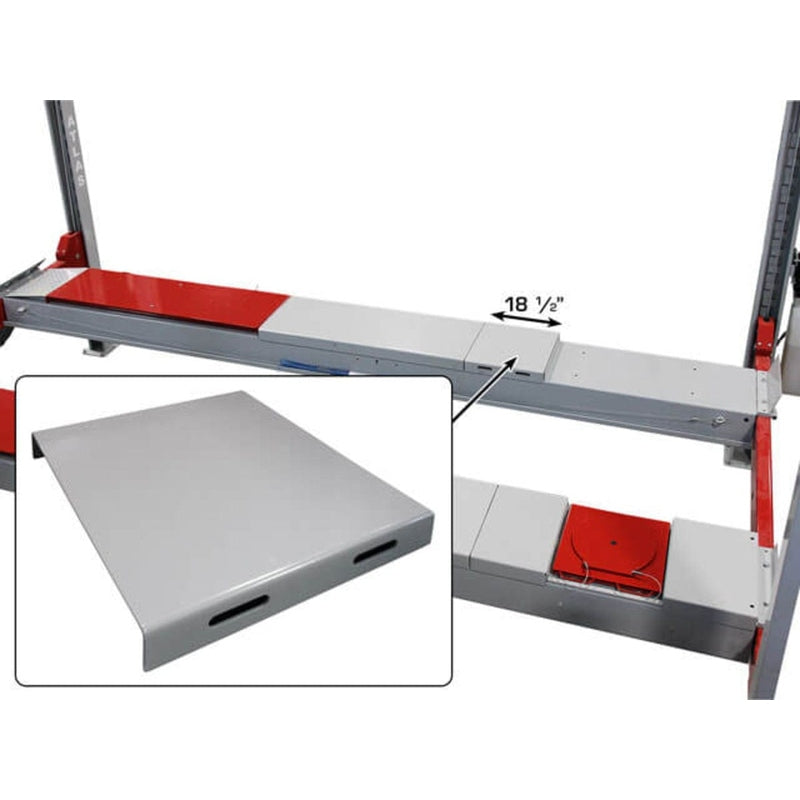

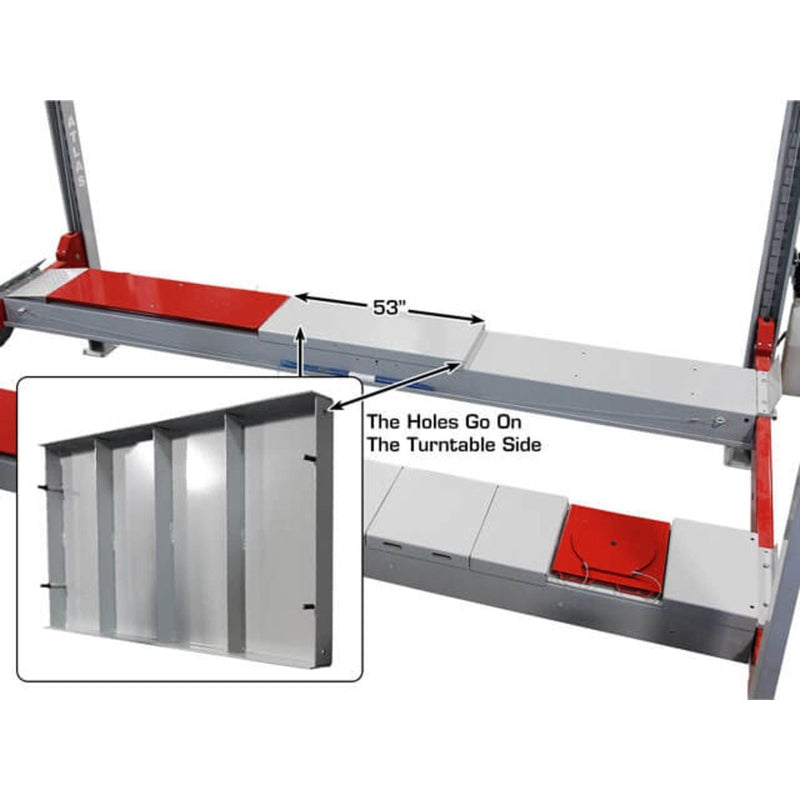

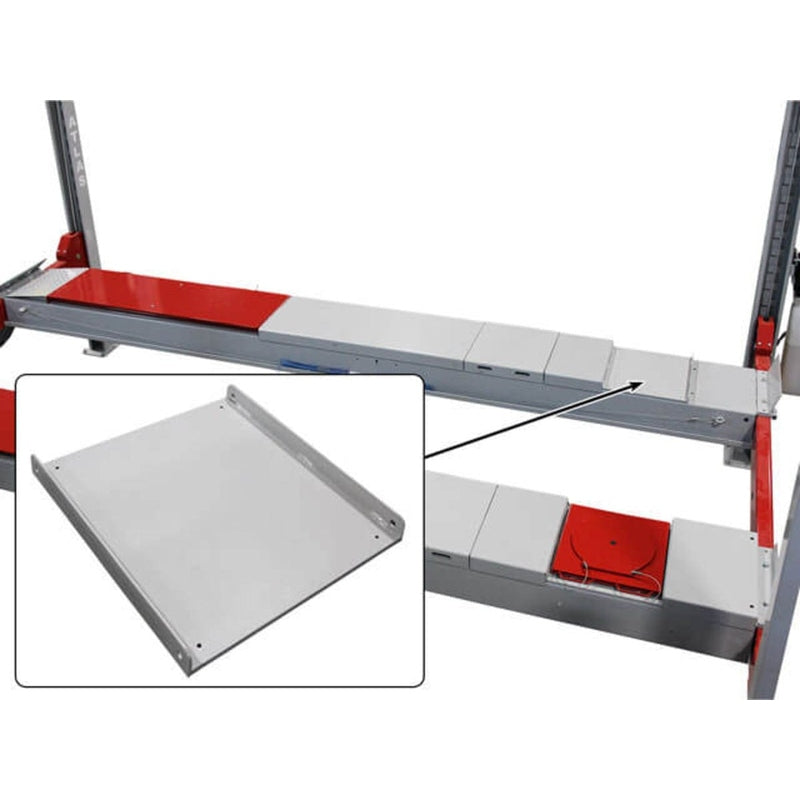

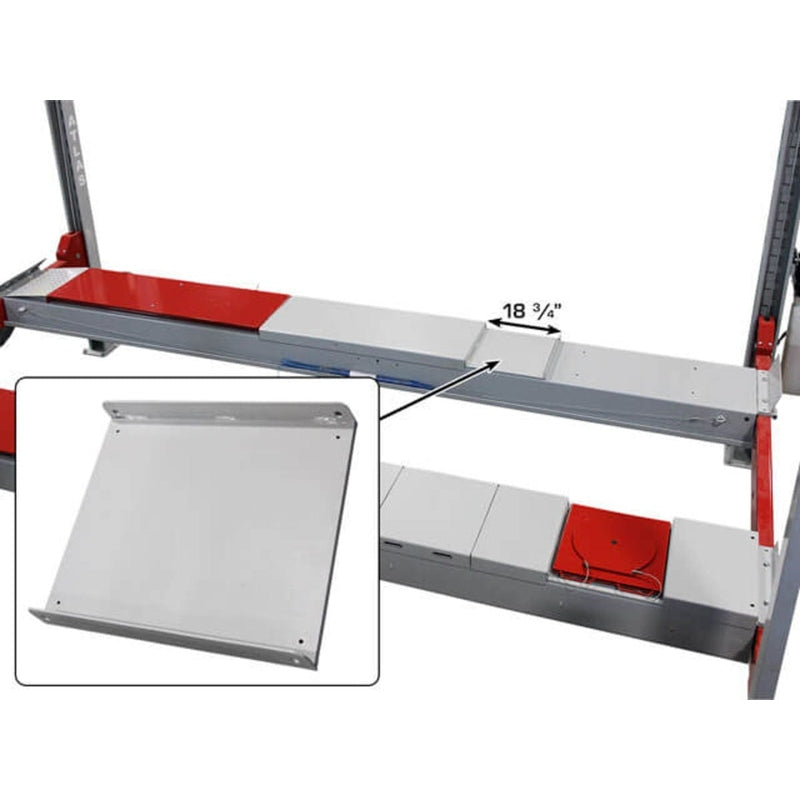

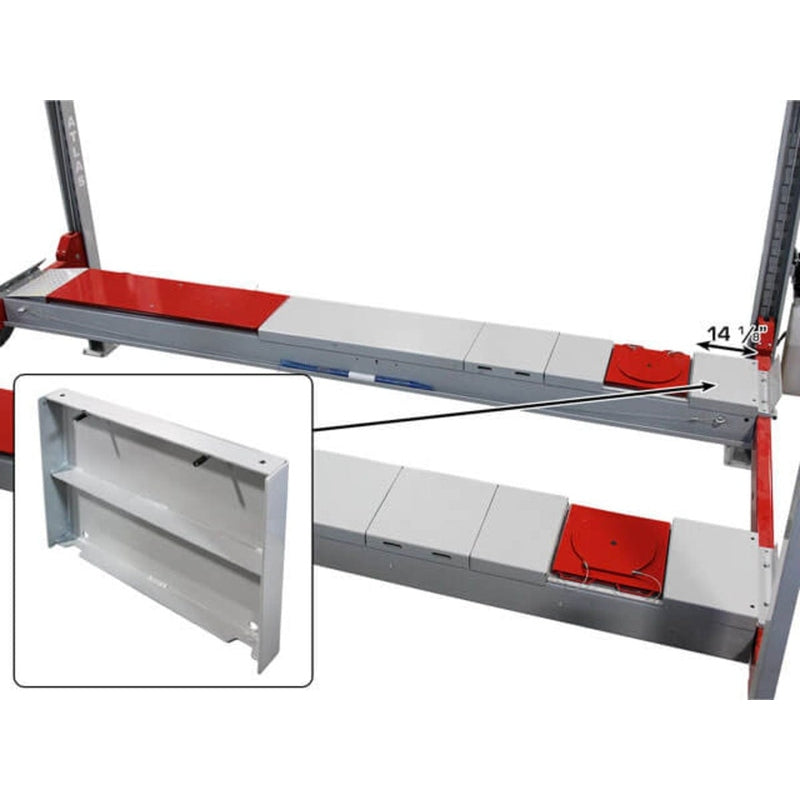

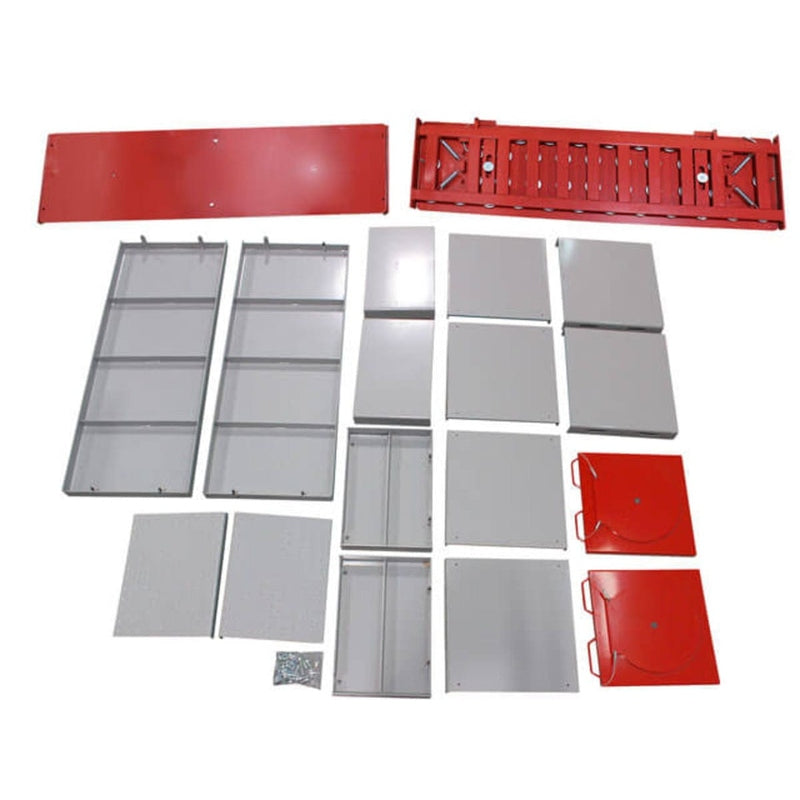

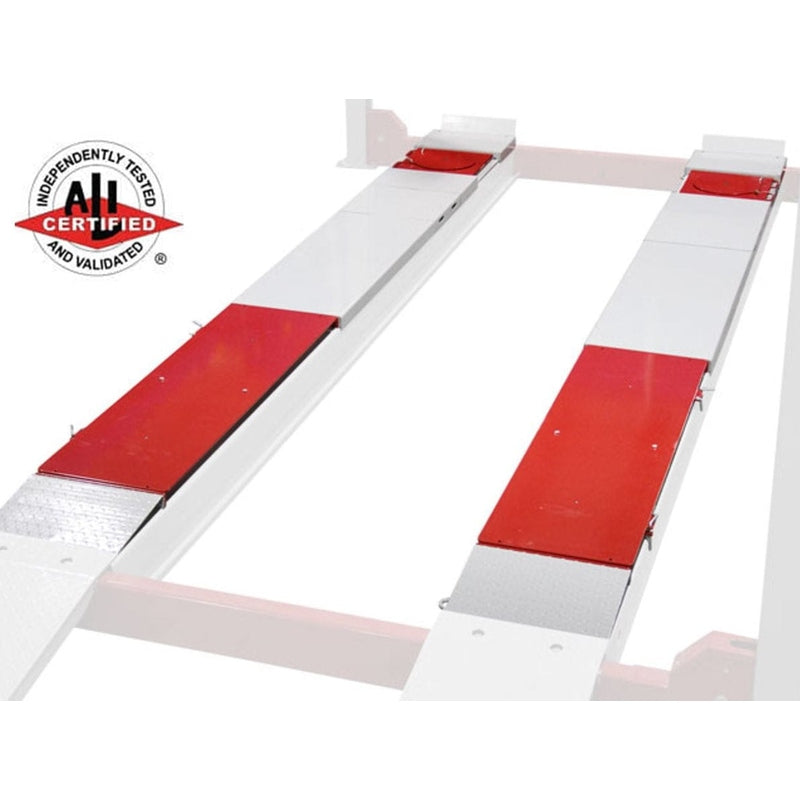

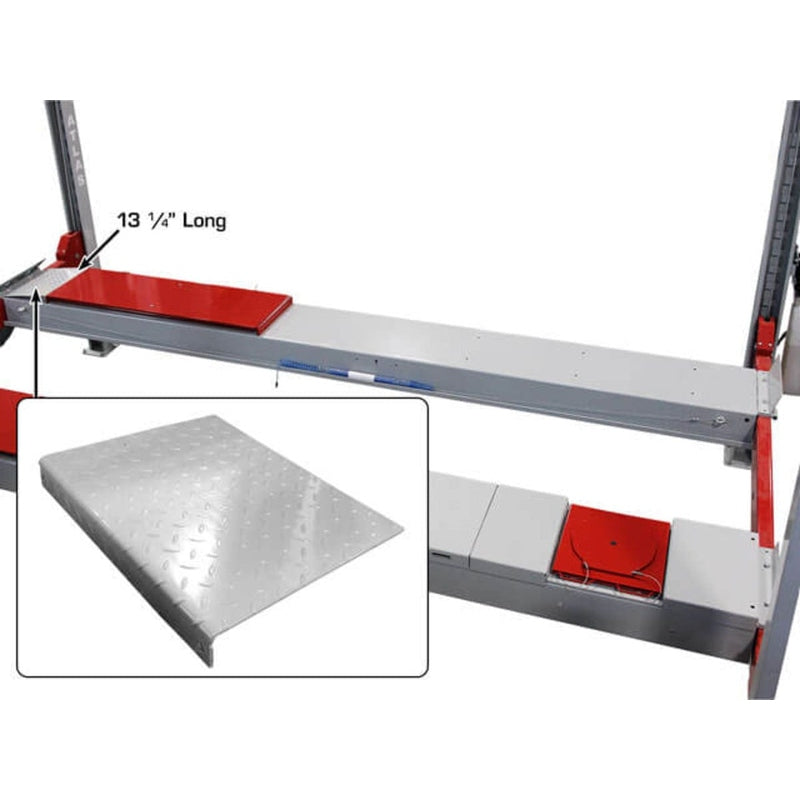

The Atlas® ALI Certified Complete Alignment Kit is designed to transform your Atlas® Platinum PVL14 Four-Post Lift—or any compatible commercial-grade 4-post lift—into a professional-grade alignment system. This kit includes heavy-duty ball bearing slip plates, two precision alignment turntables, and all the required ramps and spacers for installation.
Unlike traditional recessed alignment systems, which can accumulate dirt, salt, and debris in their sliding or rolling components, the Atlas® Platinum Alignment Kit is mounted above the runways for easier cleaning and maintenance. This design provides full accessibility for servicing while ensuring reliable, long-term performance. Even if permanently installed, the kit can be unbolted and removed periodically for thorough inspection and upkeep.
Key Features
-
ALI Certified Accessory
-
Includes heavy-duty slip plates and turntables
-

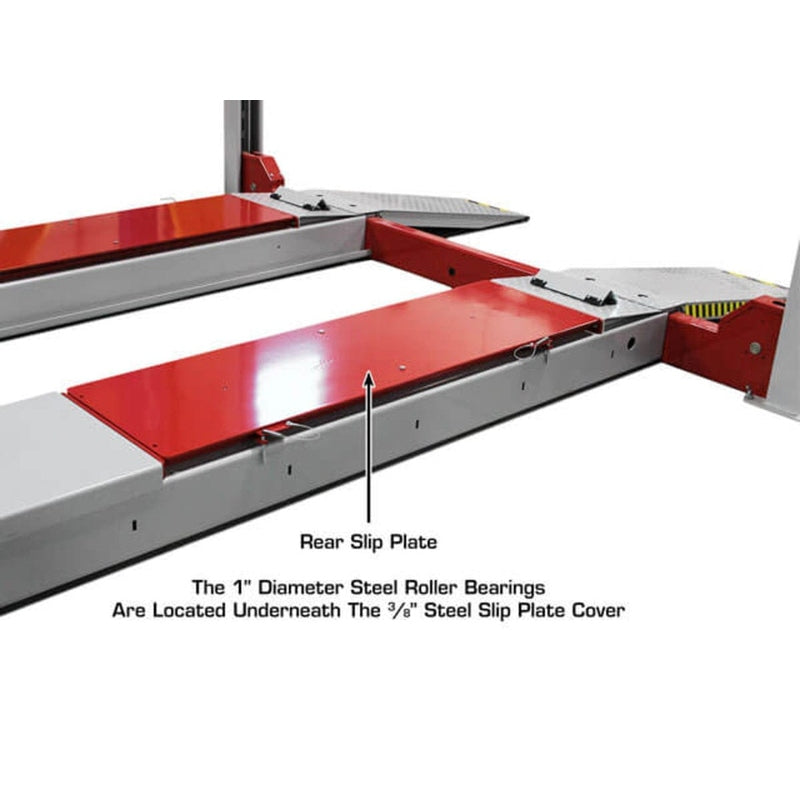

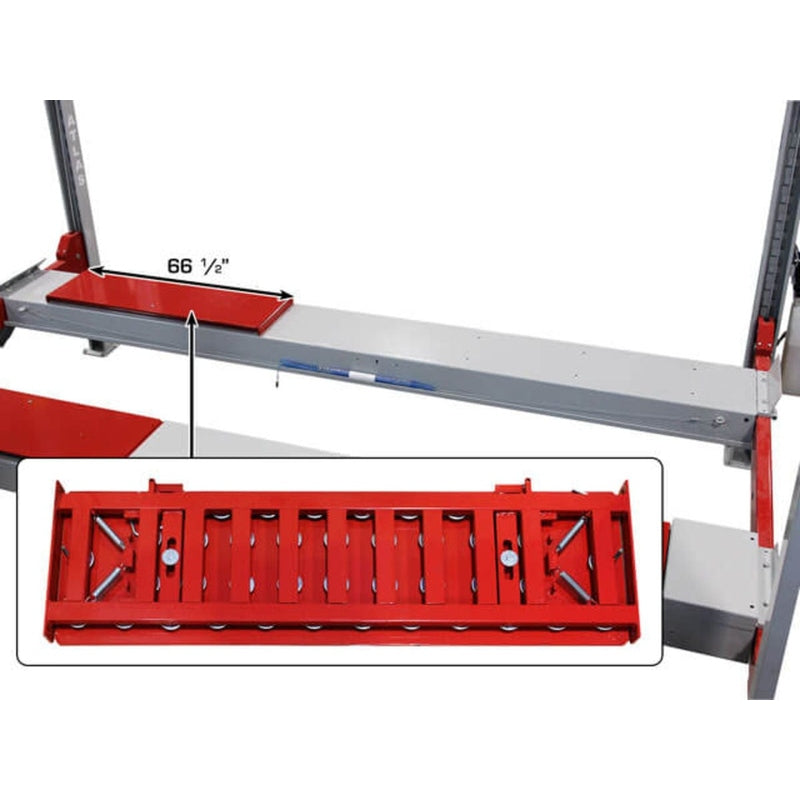

1″ diameter steel roller bearings on rear slip plate for smooth operation
-
Can be installed or removed as needed for maintenance or flexibility
-
Shipping Weight: 1,000 lbs
-
Warranty: 1-Year Parts Only
Specifications
| Specification | Detail |
|---|---|
| Maximum Capacity | 14,000 lbs |
| Overall Length | 199 ⅓″ (16′ 7 ⅓″) |
| Overall Width (Each Side) | 20 ⅝″ |
| Minimum Wheelbase | 75 ⅖″ (6′ 3 ⅖″) |
| Maximum Wheelbase | 148 ⅔″ (12′ 4 ⅔″) |
| Minimum Turntable Recess | 1 ½″ |
| Maximum Turntable Recess | 2″ |

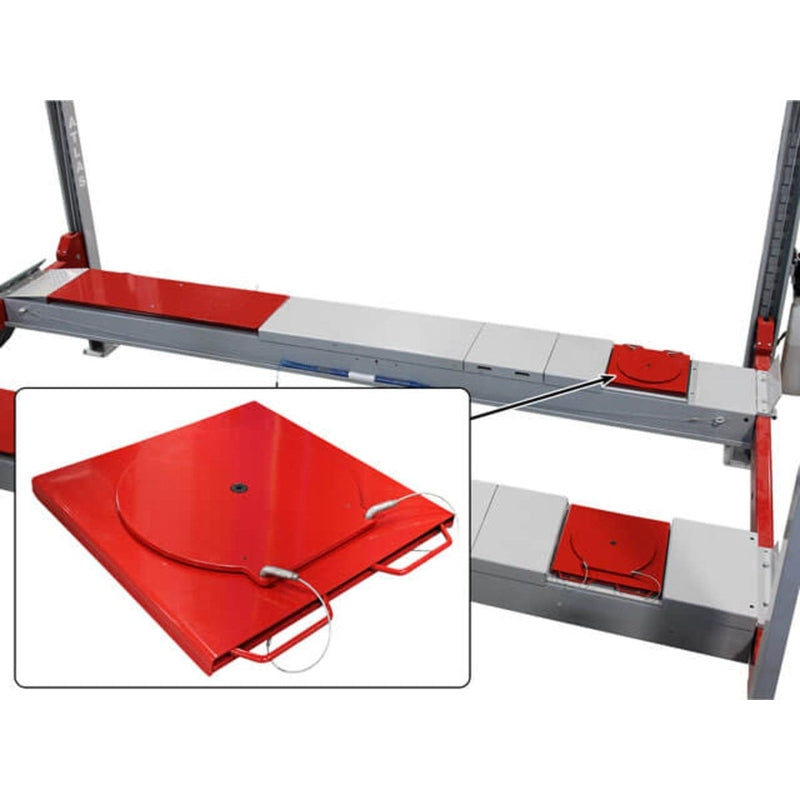

| Turntable Dimensions | 17 ½″ × 17 ½″ × 1 ½″ |

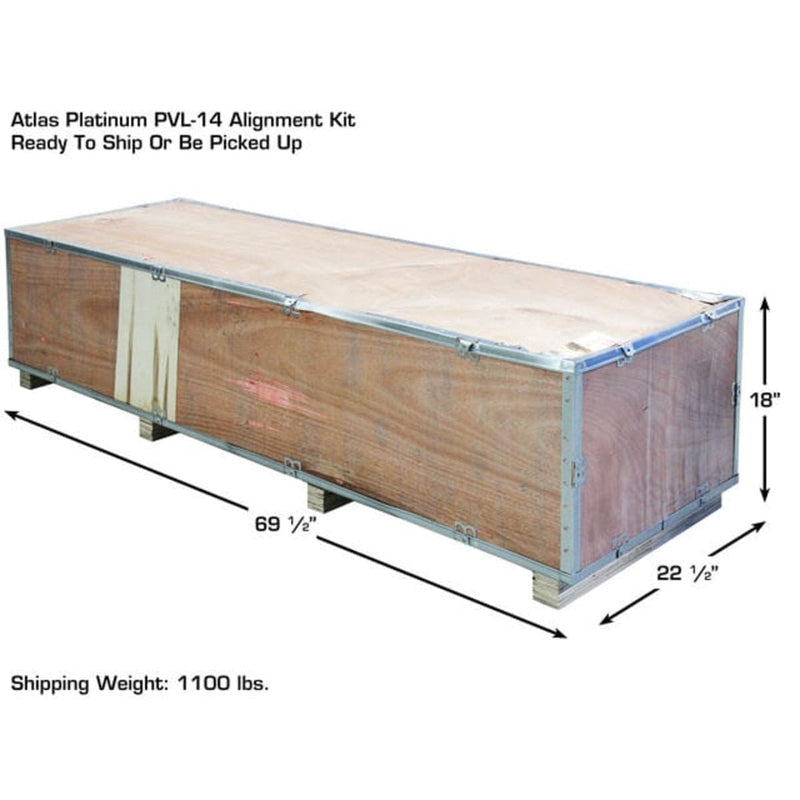

| Shipping Weight | 1,100 lbs |
