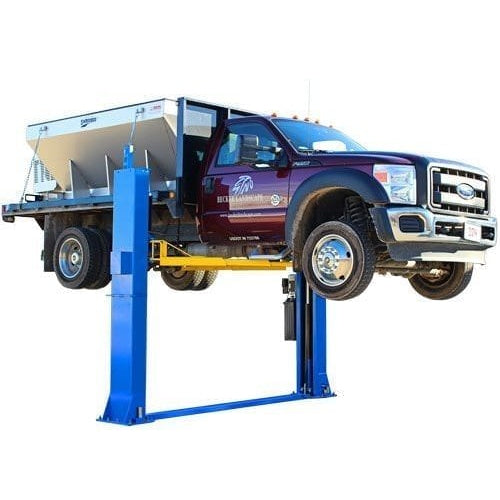

Atlas® BP12000X – 12,000 lb. Capacity Commercial-Grade Baseplate 2-Post Lift

The Atlas® BP12000X is a heavy-duty, commercial-grade two-post lift designed for professional shops that need to lift larger vehicles in facilities with limited ceiling height. With a 12,000 lb. lifting capacity, this baseplate-style lift combines strength, versatility, and durability to handle everything from service trucks to wide vehicles and trailers.

Built with oversized steel columns, three-stage symmetric arms, and a single-point lock release system, the BP12000X delivers exceptional stability, operator convenience, and long-term reliability. Its baseplate design eliminates the need for an overhead crossbar, making it ideal for garages where ceiling clearance is restricted.

For added versatility, the Atlas® BP12000X can be installed at two different width configurations to accommodate wider vehicles or allow for easy drive-through access between the columns — a valuable feature for high-traffic service bays and fleet maintenance facilities.

Rugged, adaptable, and built to professional standards, the Atlas® BP12000X is the perfect lift for shops that require heavy-duty lifting power in low-ceiling environments.


Features

  • 12,000 lb. Lifting Capacity

  • Heavy-Duty, Commercial-Grade Construction

  • Baseplate, Open-Top Design — ideal for low-ceiling garages

  • Overall Height: 122 ½″ (10′ 2 ½″)

  • Adjustable Width Configuration to accommodate larger vehicles and drive-through setups

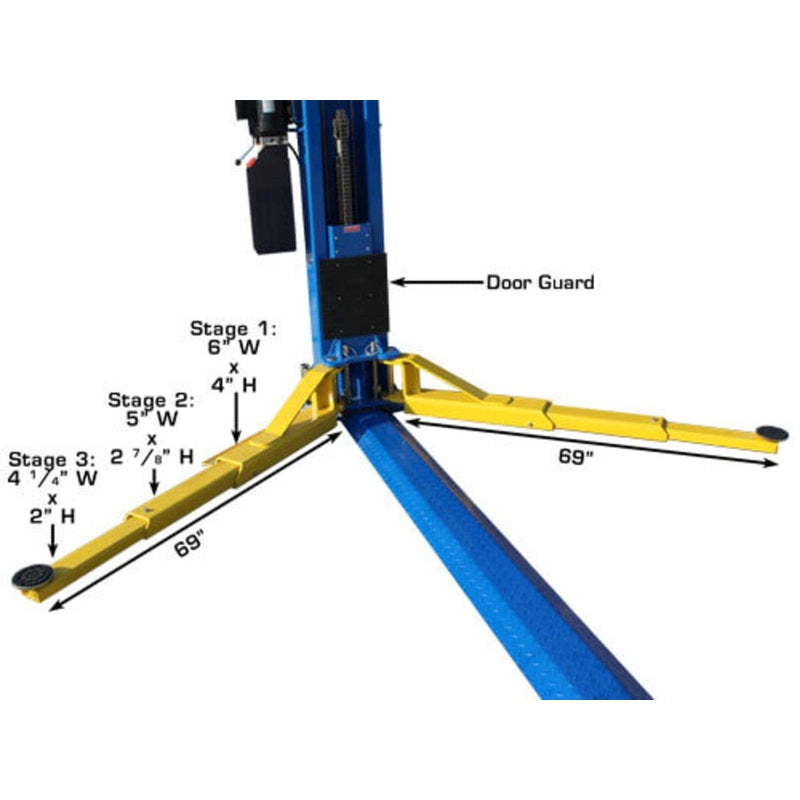

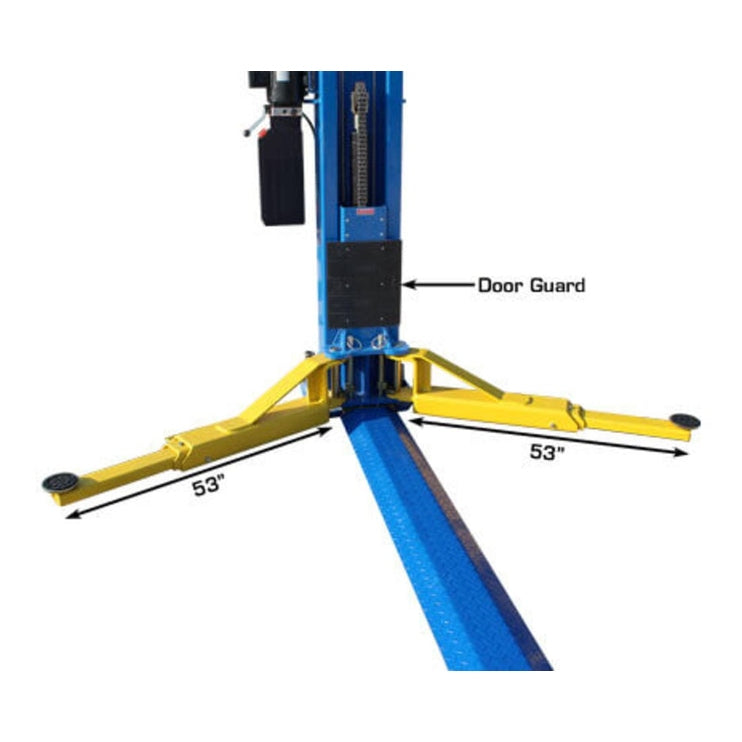

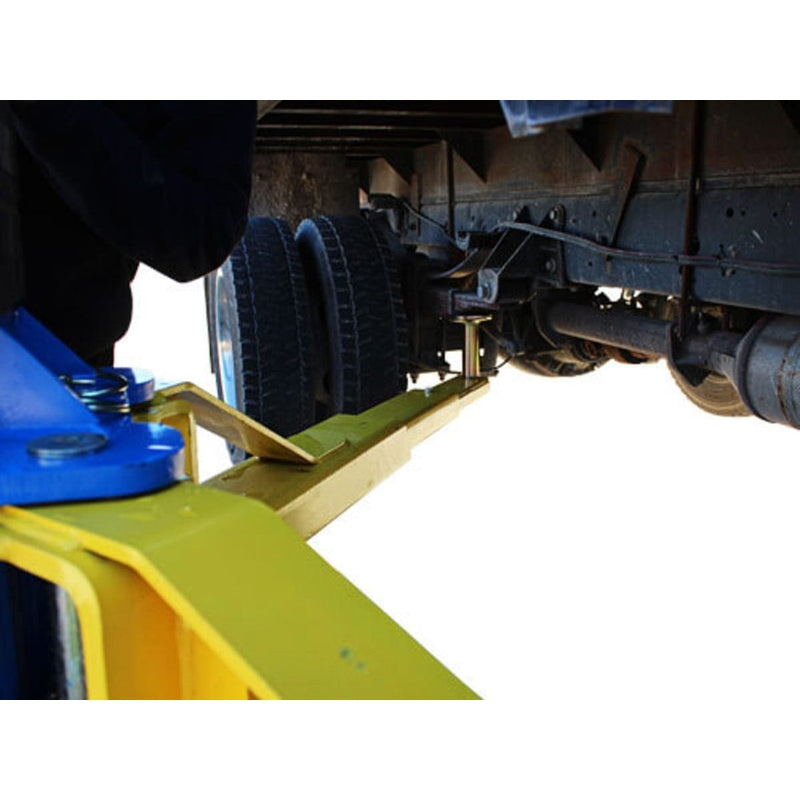

  • 3-Stage Symmetric Arms for optimal reach and balance

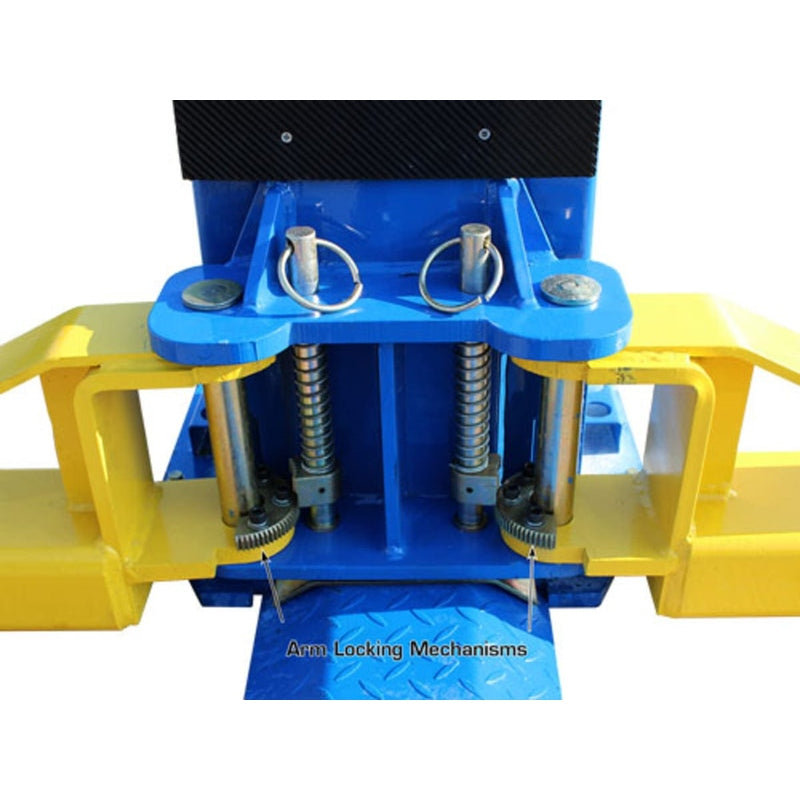

  • Automatic Arm Restraints ensure secure vehicle positioning during lift

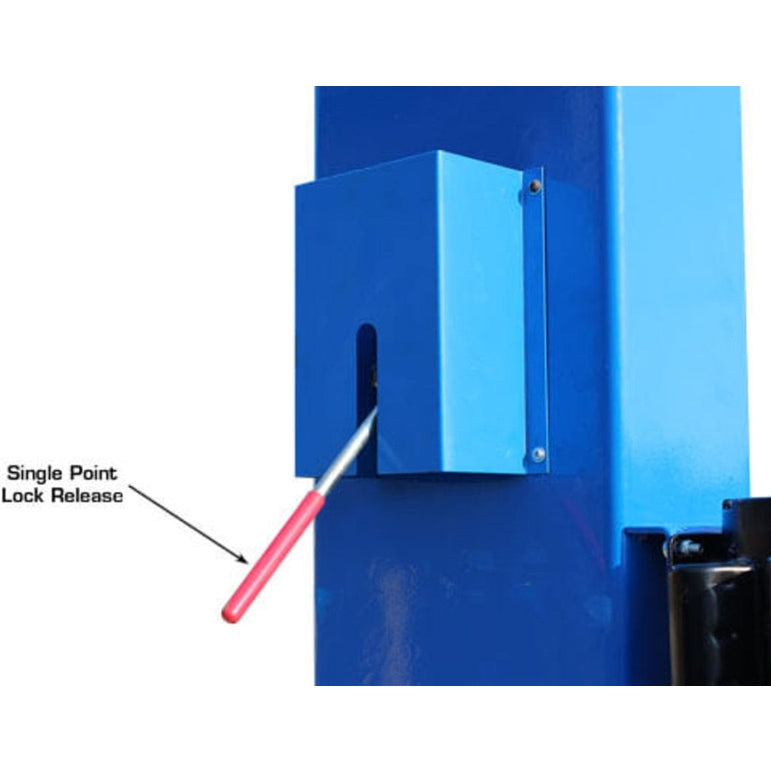

  • Single-Point Lock Release for quick and efficient operation

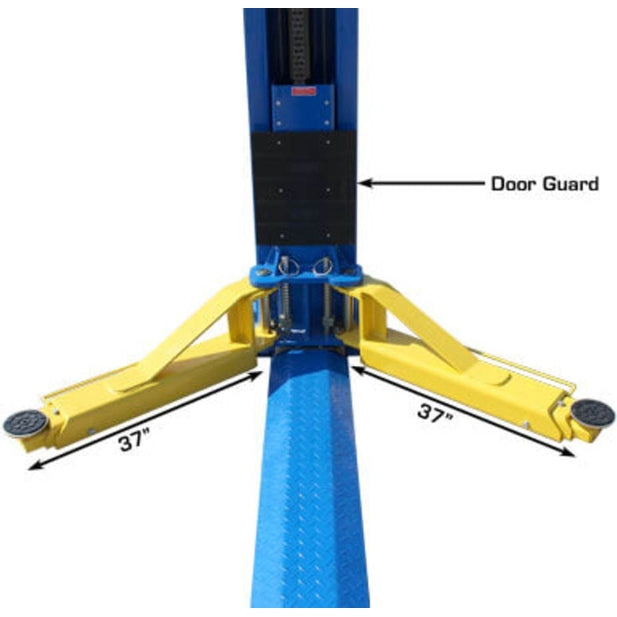

  • Rubber Door Guards on Carriages protect vehicles from accidental contact

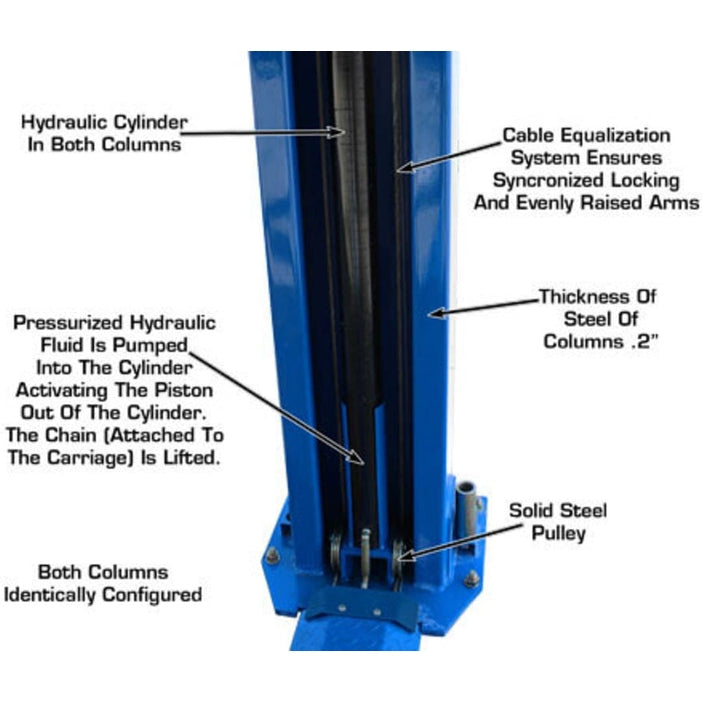

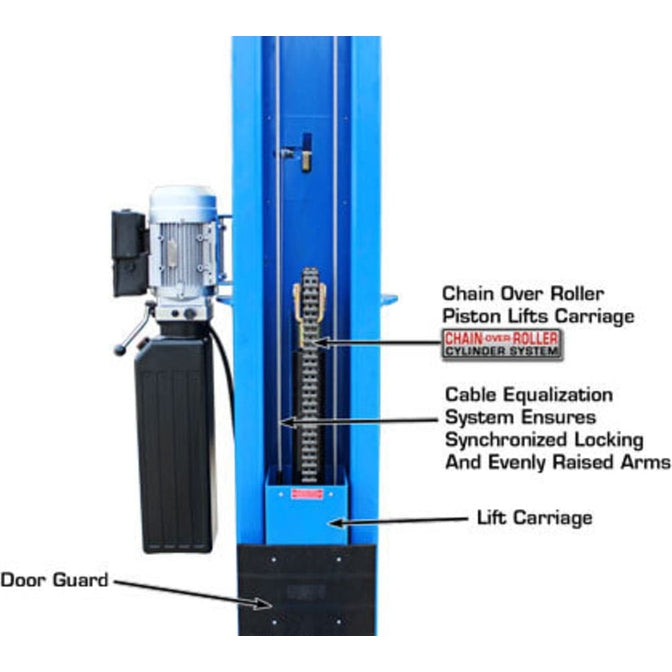

  • Dual Hydraulic Chain-Over Cylinders for smooth, reliable lifting performance

  • Durable Powder-Coated Finish resists corrosion and wear

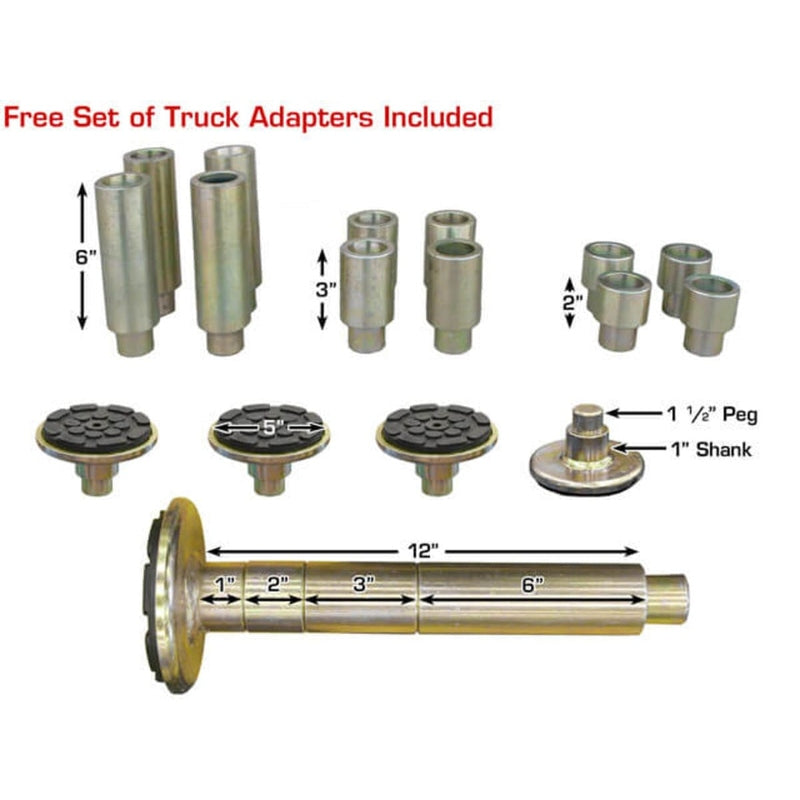

  • Free 12-Piece Truck Adapter Set (Included)

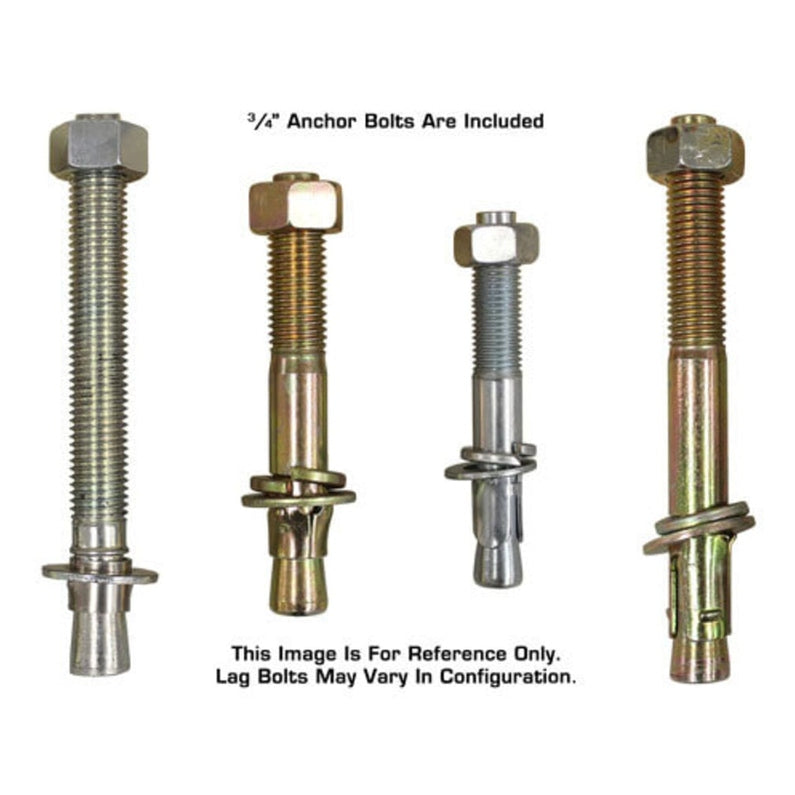

  • Mounting Hardware Included

  • Shipping Weight: 2,130 lb.

  • Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)

Specifications

Specification Measurement
Lifting Capacity 12,000 lb.

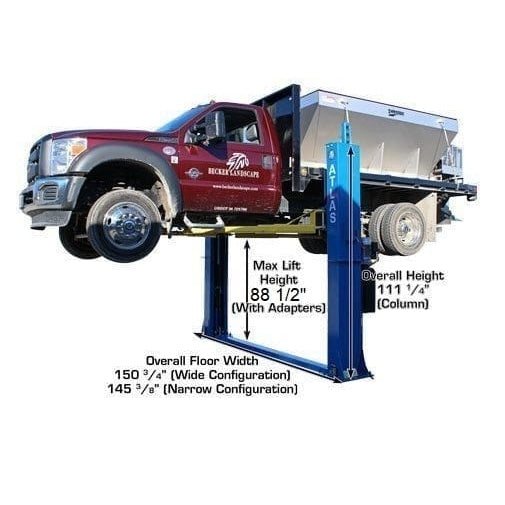

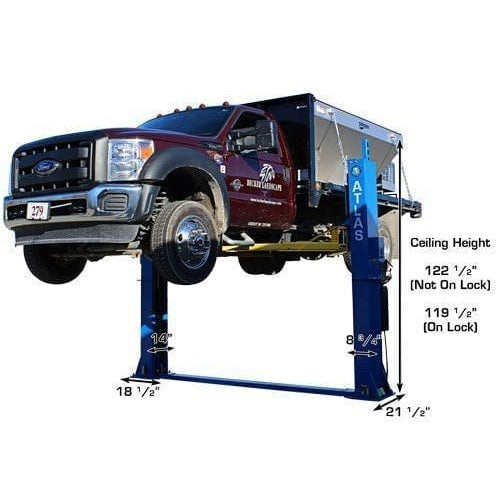

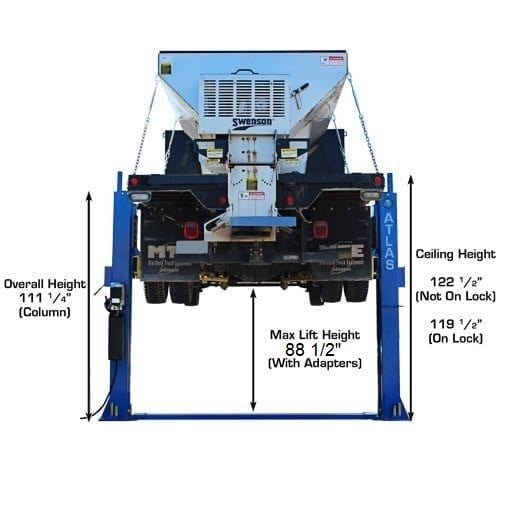

Overall Height 122 ½″ (10′ 2 ½″)

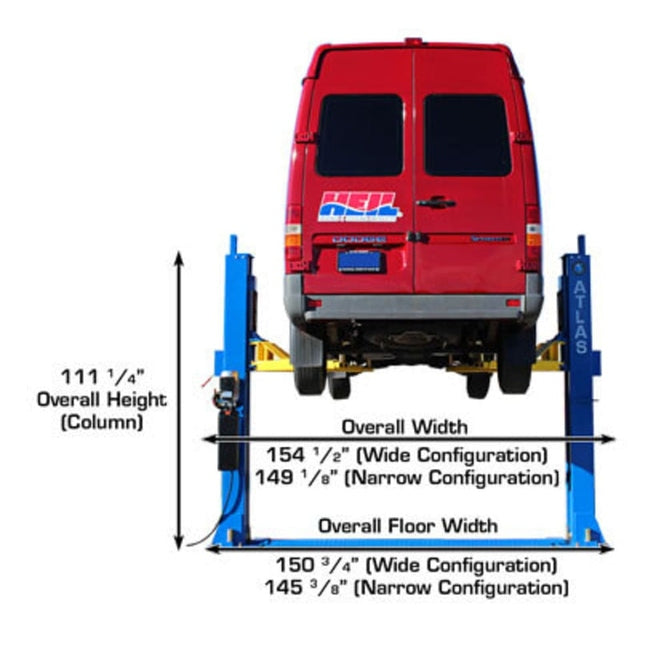

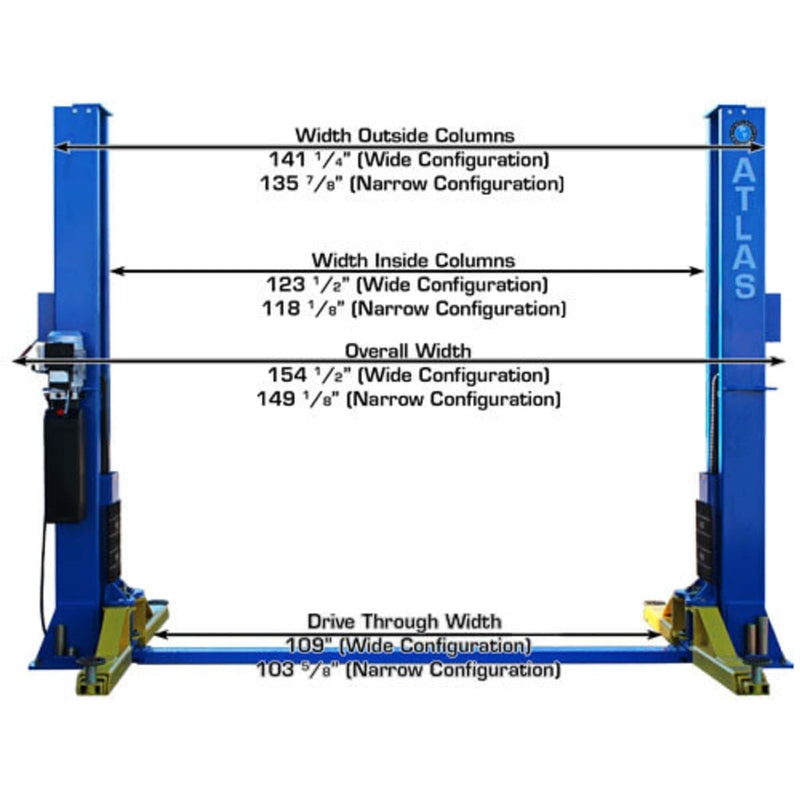

Overall Floor Width 149 ⅜″ (12′ 5 ⅜″) or 154 ½″ (12′ 10 ½″)

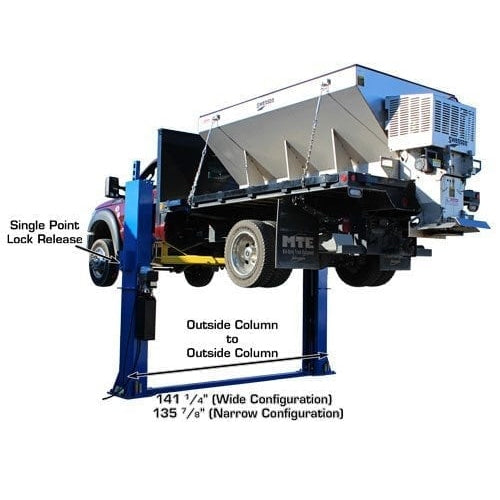

Outside Column to Outside Column 135 ⅞″ (11′ 3 ⅞″) or 141 ¼″ (11′ 9 ¼″)

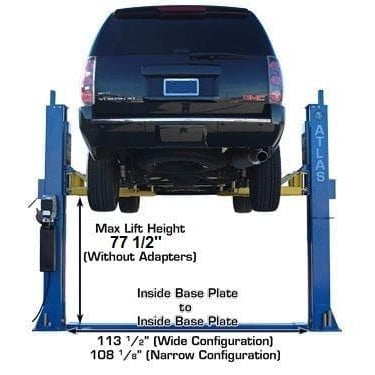

Maximum Lift Height (Without Adapters) 77 ½″

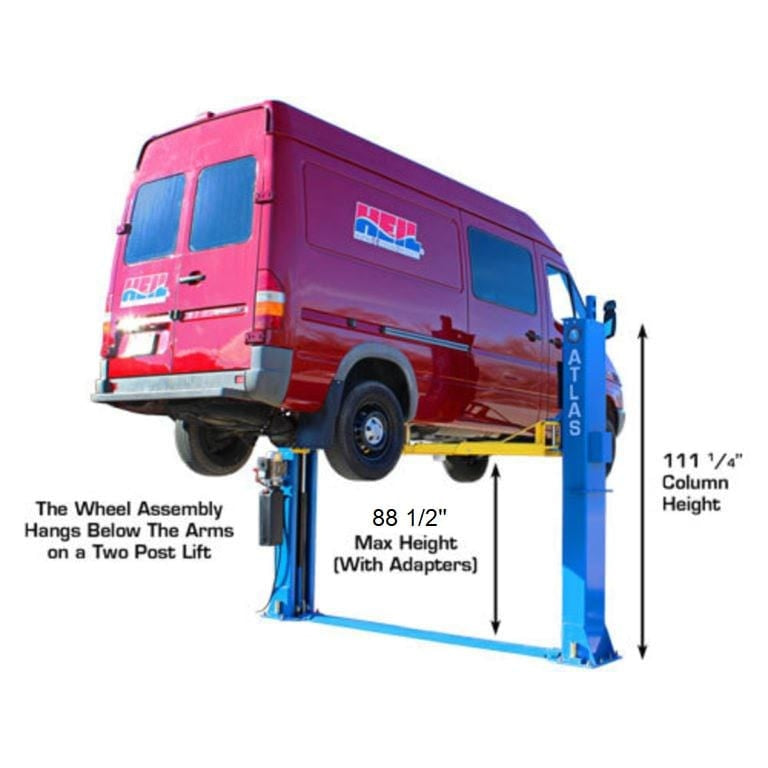

Maximum Lift Height (With Adapters) 88 ½″

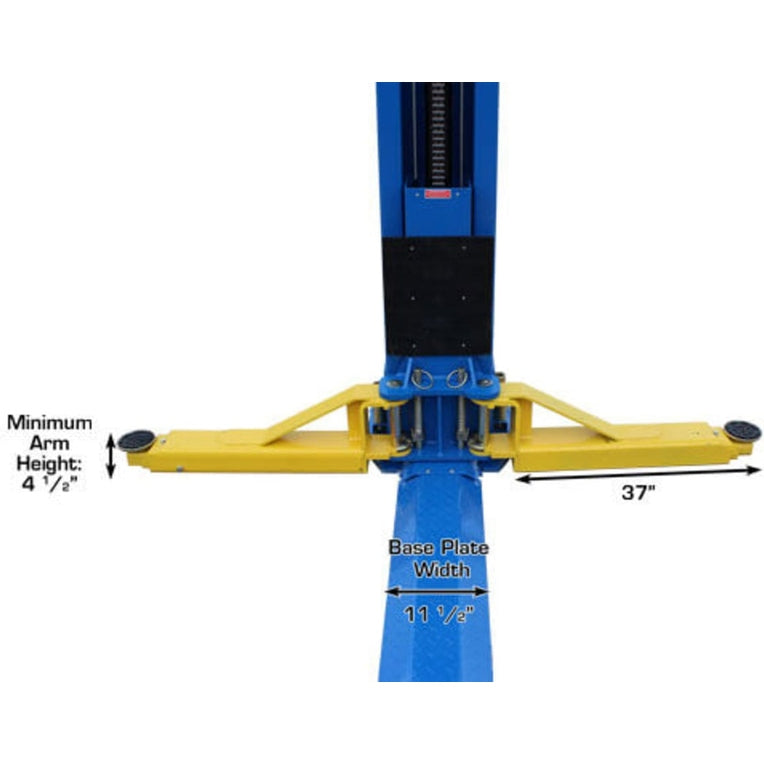

Minimum Arm Height 4″

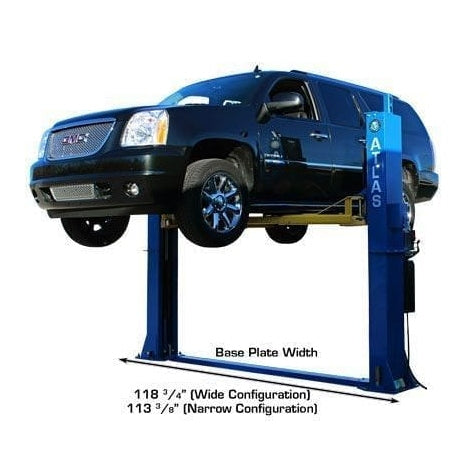

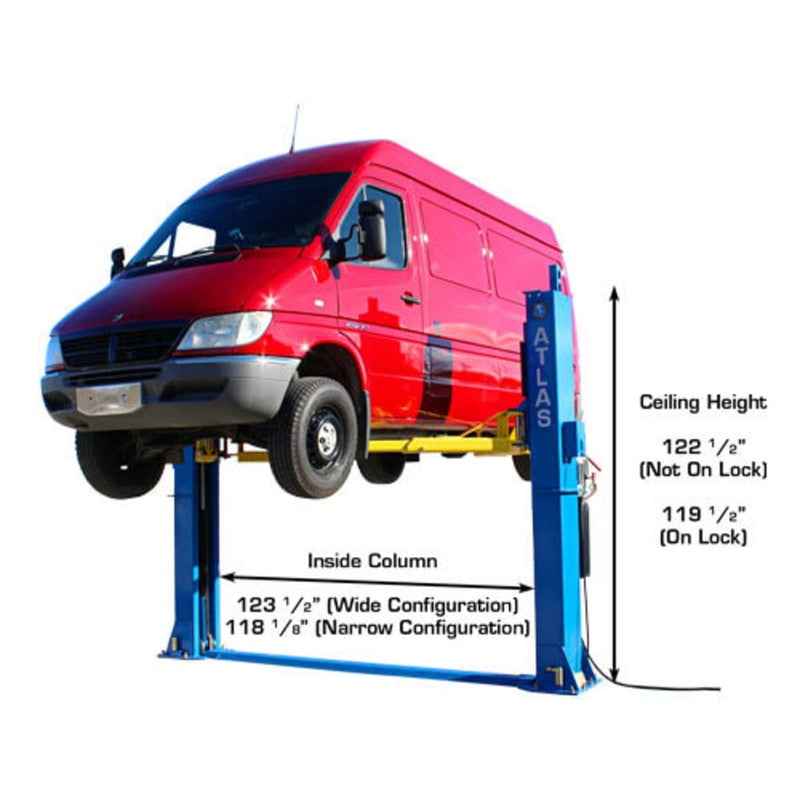

Inside Column Width 118 ⅛″ (9′ 10 ⅛″) or 123 ½″ (10′ 3 ½″)

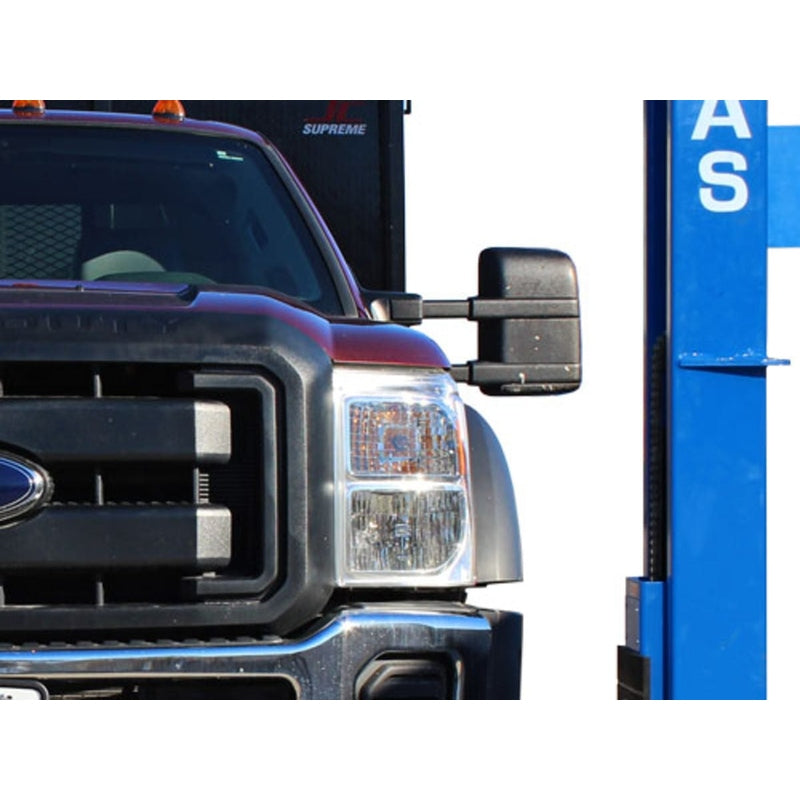

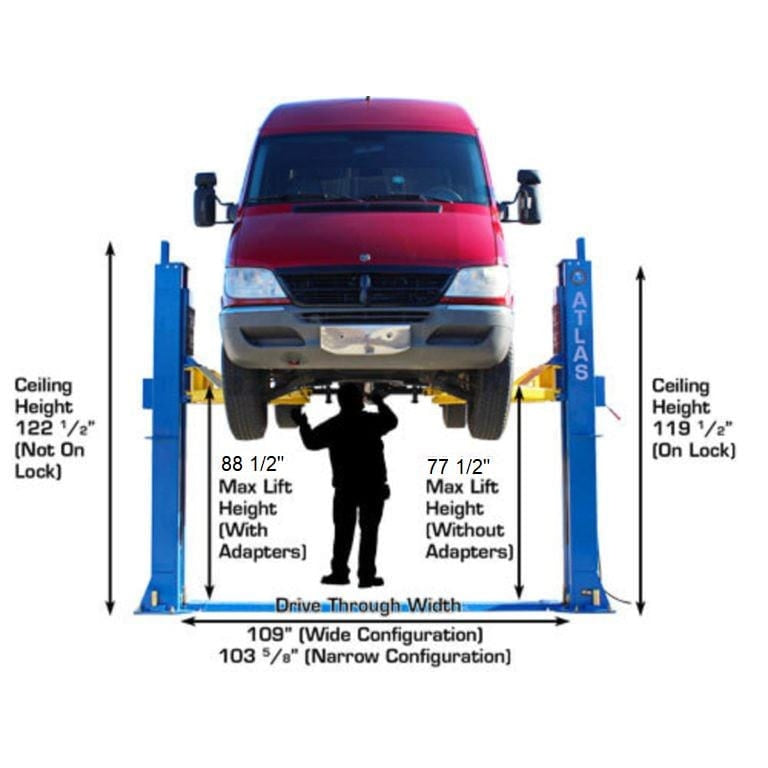

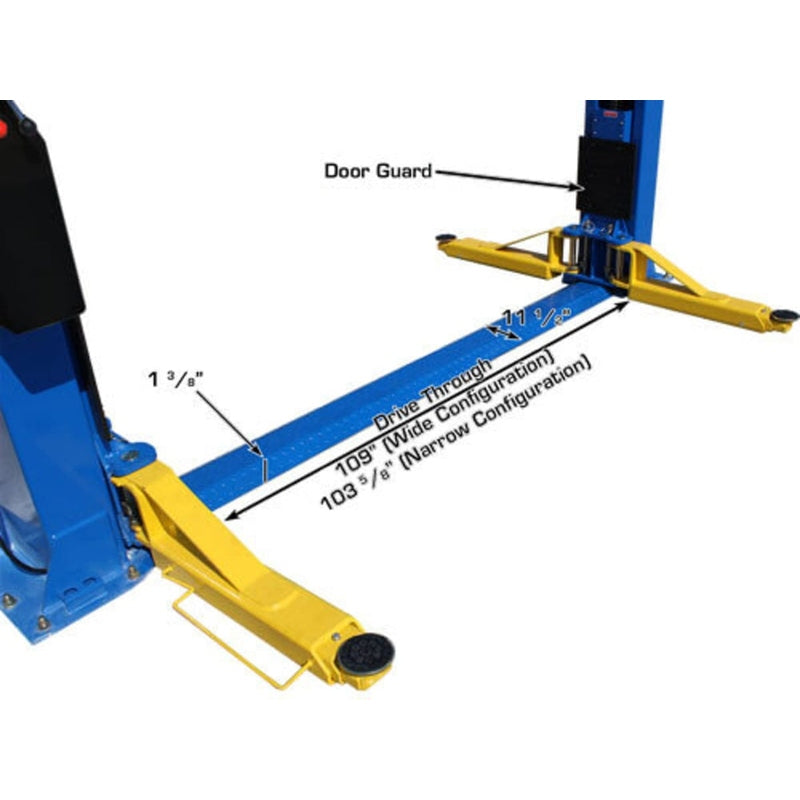

Drive-Through Clearance 103 ⅝″ (8′ 7 ⅝″) or 109″ (9′ 1″)
Column Size 8 ¾″ × 14″
Column Steel Thickness 6 mm

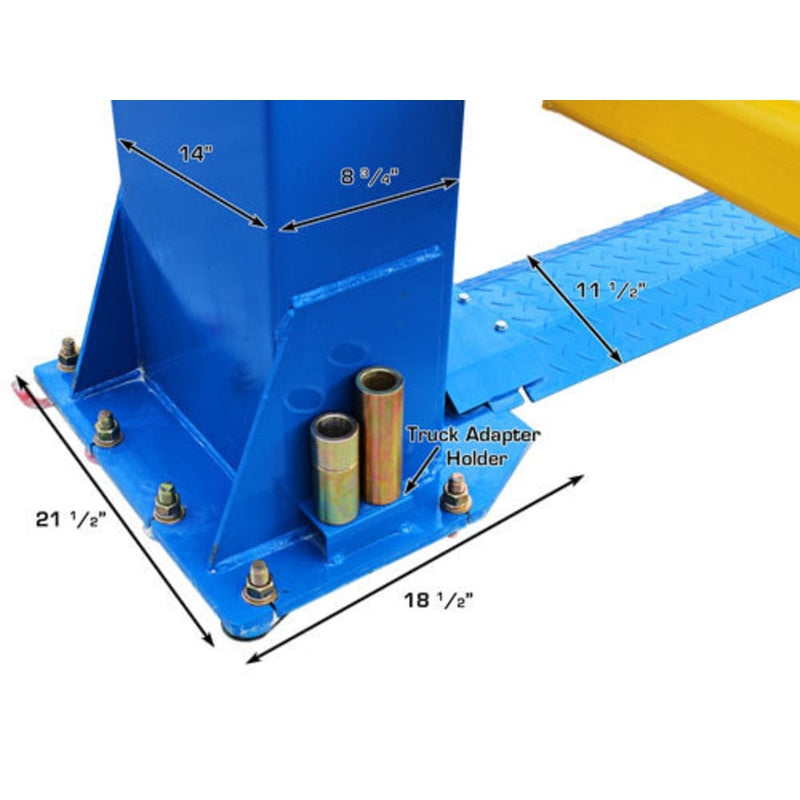

Base Plate Dimensions 18 ½″ × 21 ½″
Electrical Requirement 220V single-phase (30A breaker recommended)
Oil Requirement 3–5 gallons AW32/AW46 (not included)

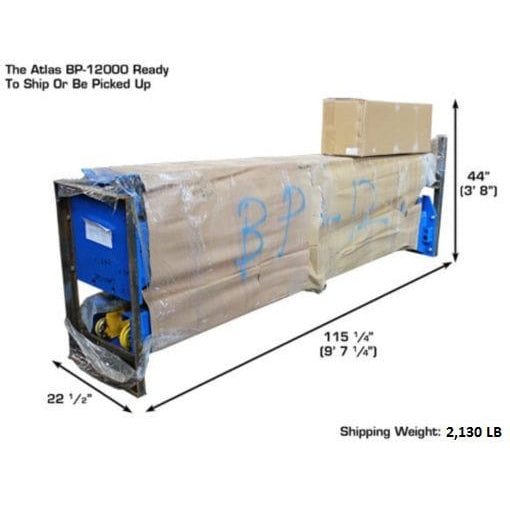

Shipping Weight 2,130 lb.

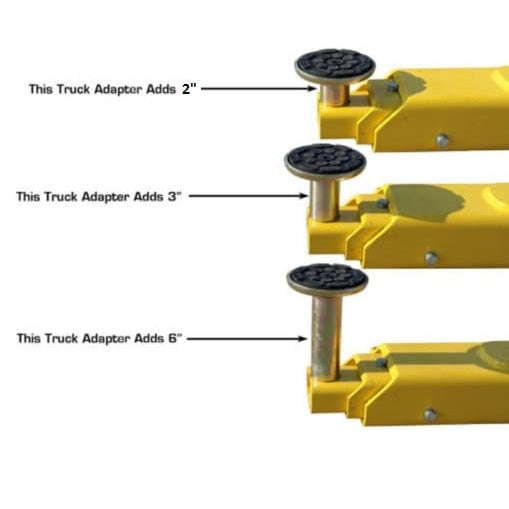

Adapter Heights Four each: 2″, 3″, 6″
Arm Hole/Adapter Peg Size 1.5″
Concrete Requirement Minimum 6″ thick slab rated at 3,000 PSI

Documents

Atlas® ATTD-BP12000X Manual

Atlas® BP12000 Cylinder Bleeding Procedure (Do this immediately after installation)
