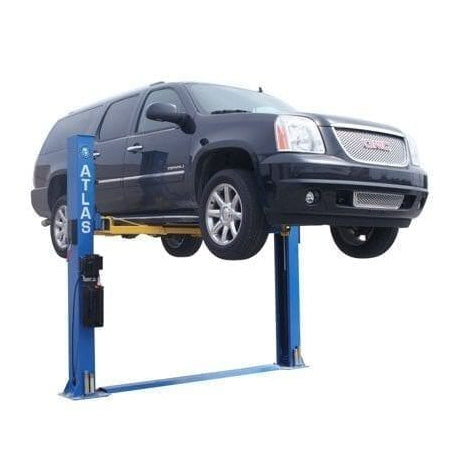

Atlas® BP8000 – 8,000 lb. Capacity Baseplate 2-Post Lift
The Atlas® BP8000 is a low-ceiling, baseplate-style two-post lift engineered for both professional and home garage environments with limited overhead clearance. Standing at just 108″ (9′) tall, this lift is perfect for spaces with ceilings as low as 9′ 3″, making it an ideal solution where traditional overhead lifts cannot be installed.
Despite its compact size, the BP8000 delivers true 8,000 lb. lifting capacity and includes many premium features typically found on larger commercial models — such as Super-Symmetric arms, a single-point lock release, and a 12-piece truck adapter set for added versatility.
This lift’s open-top, baseplate design ensures unobstructed ceiling space, while its dual hydraulic chain-drive cylinders provide smooth, reliable lifting operation. Built with precision and durability in mind, the Atlas® BP8000 offers outstanding value for mechanics, hobbyists, and restoration enthusiasts who need professional performance in a limited space.
Key Features
-
8,000 lb. Lifting Capacity
-
Hobbyist-Grade Lift (not intended for heavy commercial use)
-
Baseplate, Open-Top Design ideal for low-ceiling garages
-

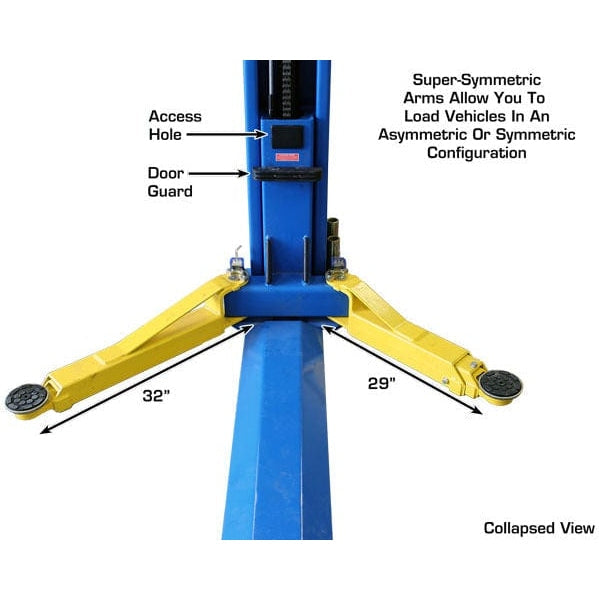

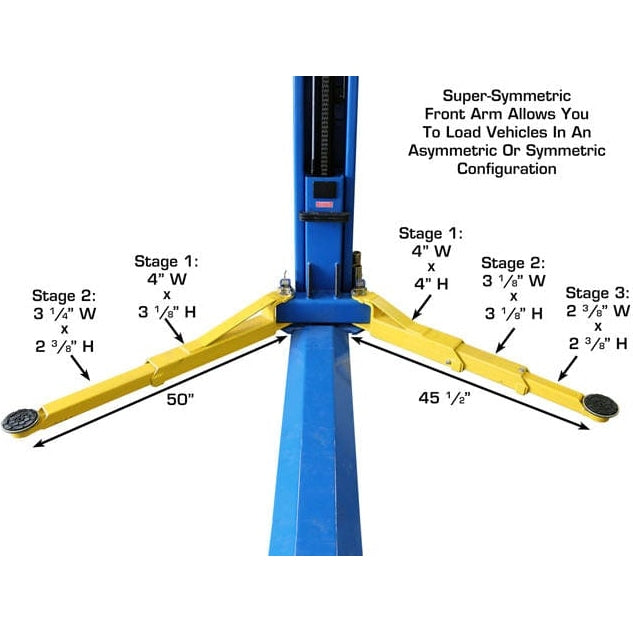

3-Stage Front Arms / 2-Stage Rear Arms for flexible vehicle positioning
-

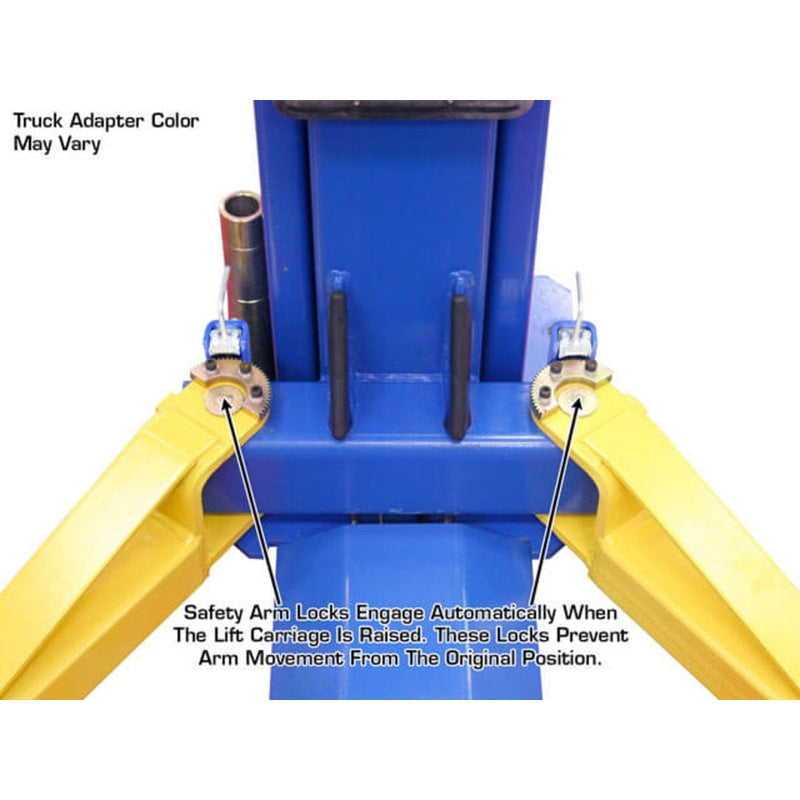

Automatic Arm Restraints ensure safety and stability
-

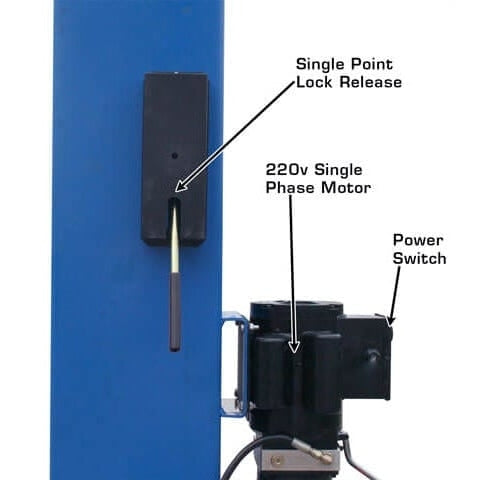

Single-Point Lock Release for easy operation
-
Double Safety Lock System for enhanced protection
-

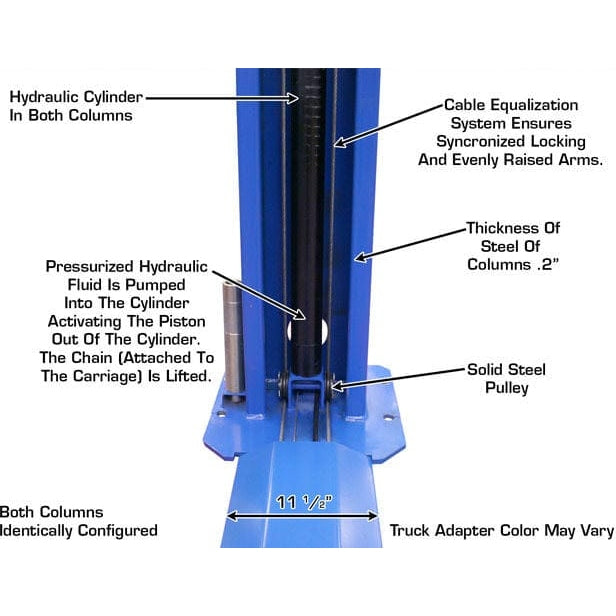

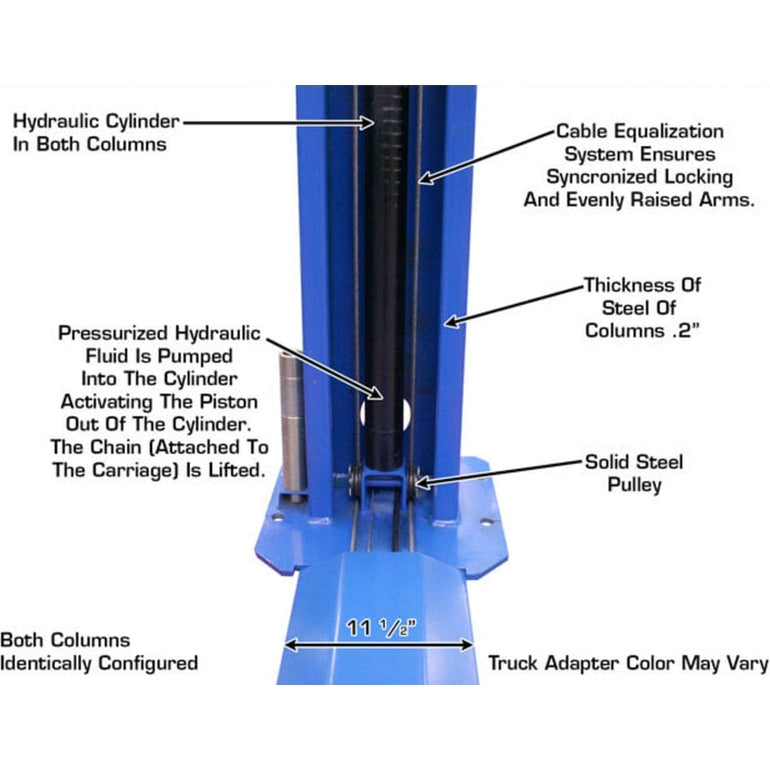

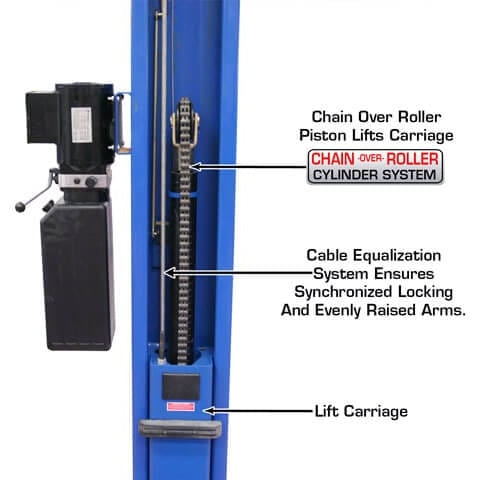

Dual Hydraulic Chain-Drive Cylinders for smooth and consistent lifting
-

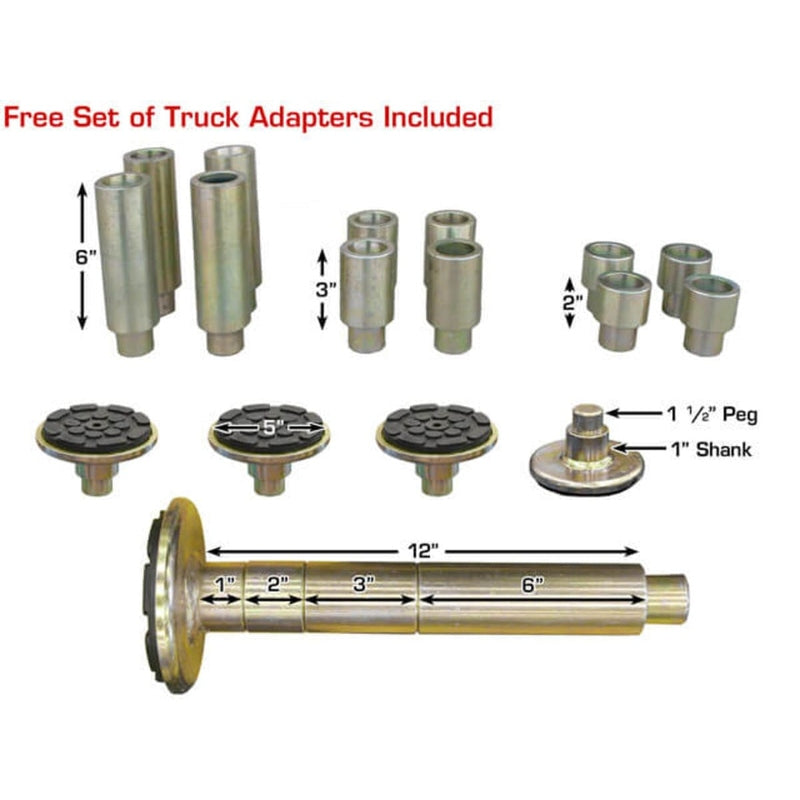

Free 12-Piece Truck Adapter Set (Included)
-
Mounting Hardware Included
-

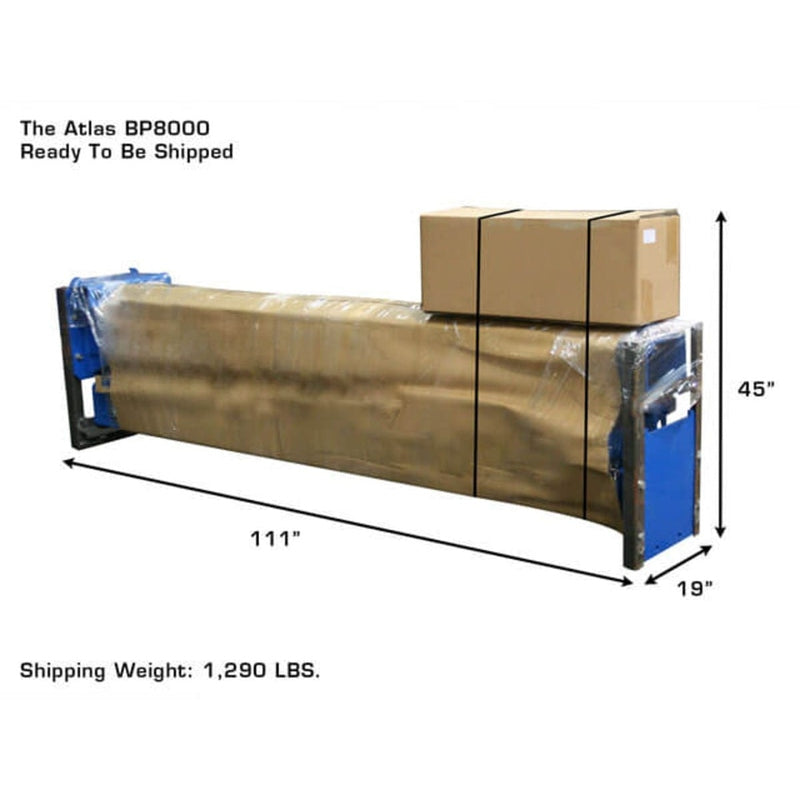

Shipping Weight: 1,300 lb.
-
Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)
Specifications
| Specification | Measurement |
|---|---|
| Lifting Capacity | 8,000 lb. |

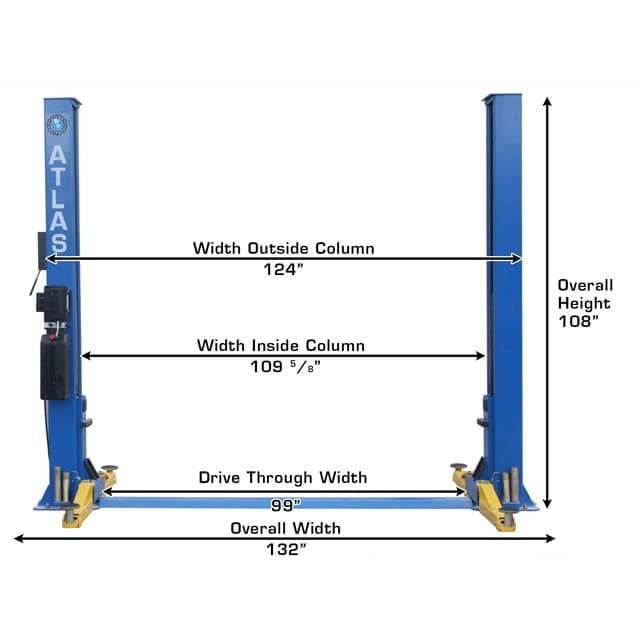

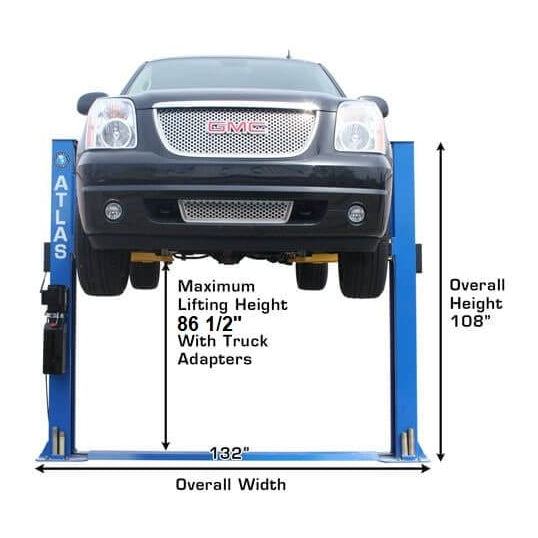

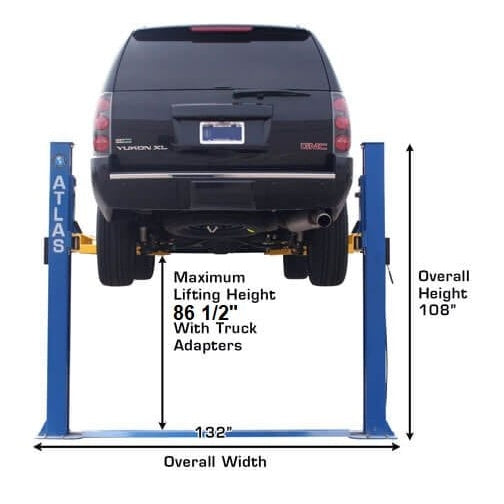

| Overall Height | 108″ (9′) |
| Overall Floor Width | 132″ (11′) |
| Outside Column to Outside Column | 124″ (10′ 4″) |

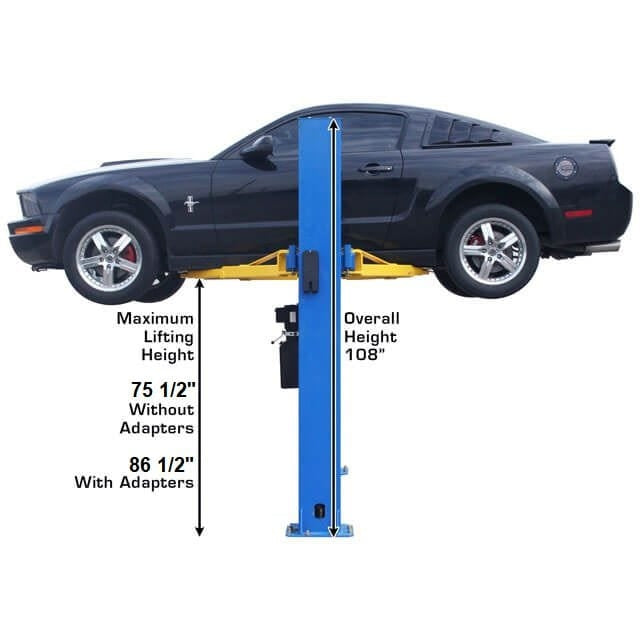

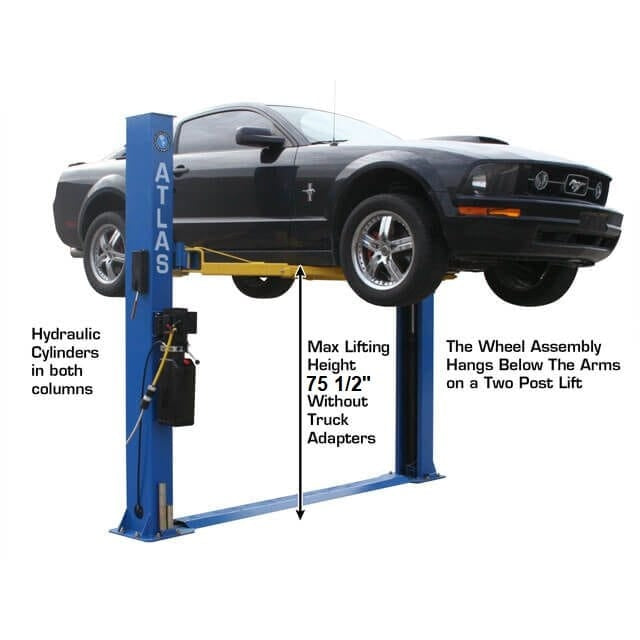

| Maximum Lift Height (Without Adapters) | 75 ½″ |

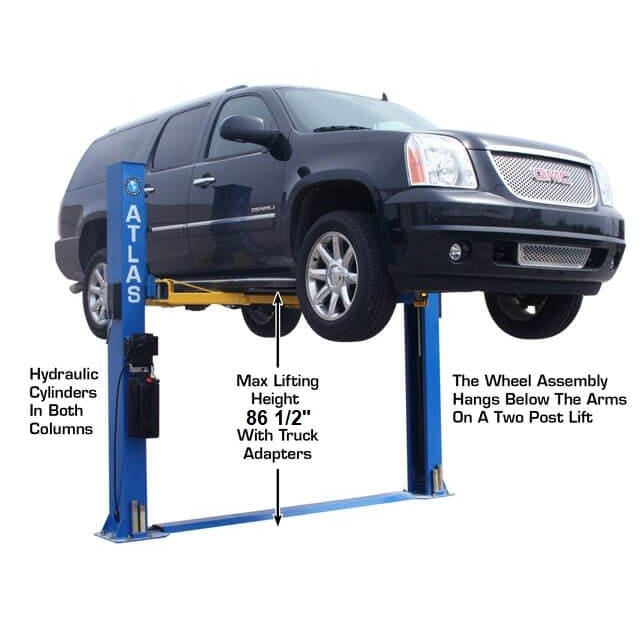

| Maximum Lift Height (With Adapters) | 86 ½″ |
| Minimum Arm Height | 4″ |
| Inside Column Width | 109 ⅛″ (9′ 1 ⅛″) |

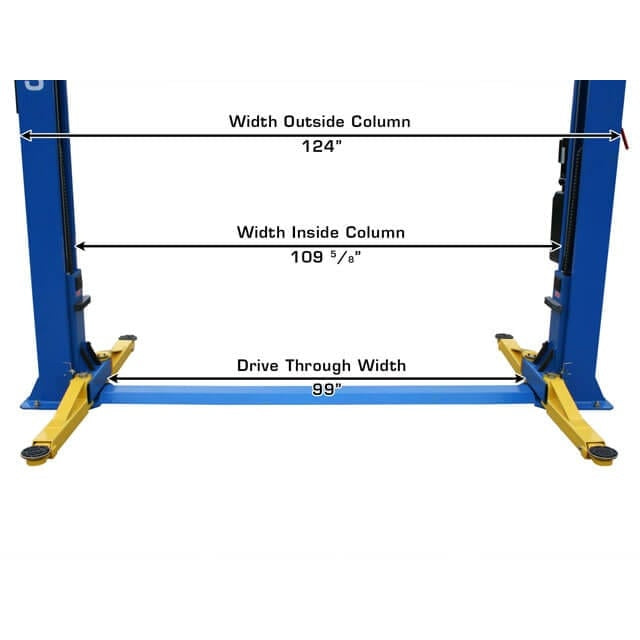

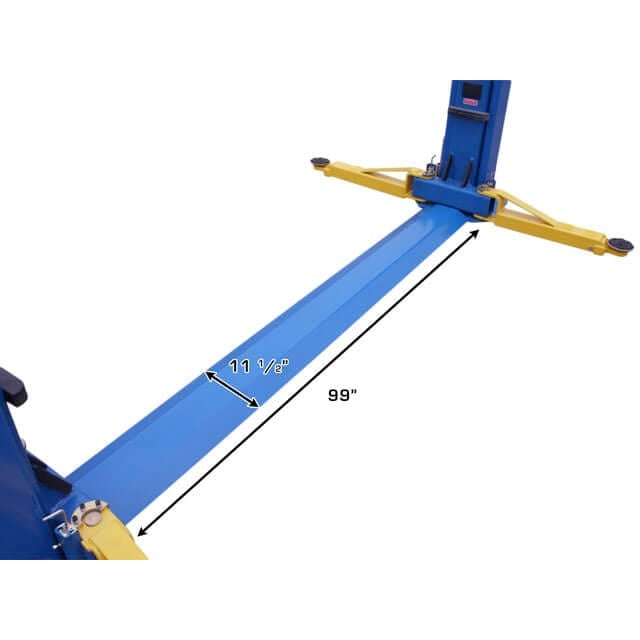

| Drive-Through Clearance | 99″ (8′ 3″) |

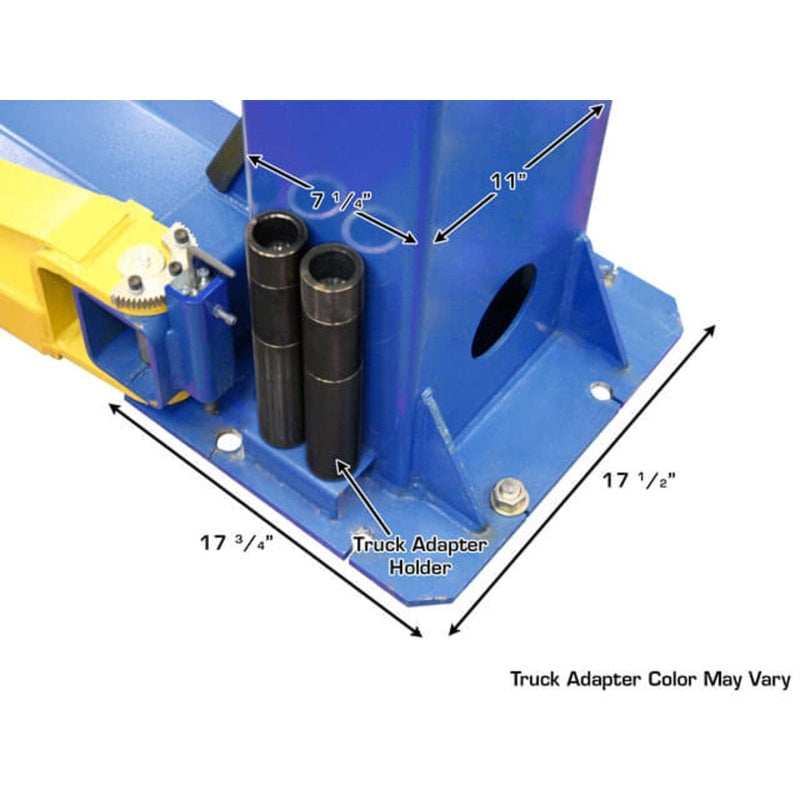

| Column Size | 7 ¼″ × 11″ |
| Column Steel Thickness | 6 mm |

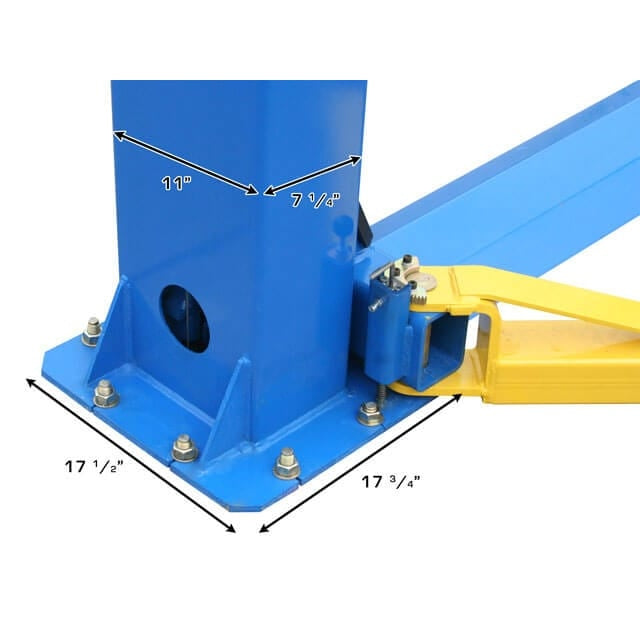

| Base Plate Dimensions | 17 ½″ × 17 ¾″ |

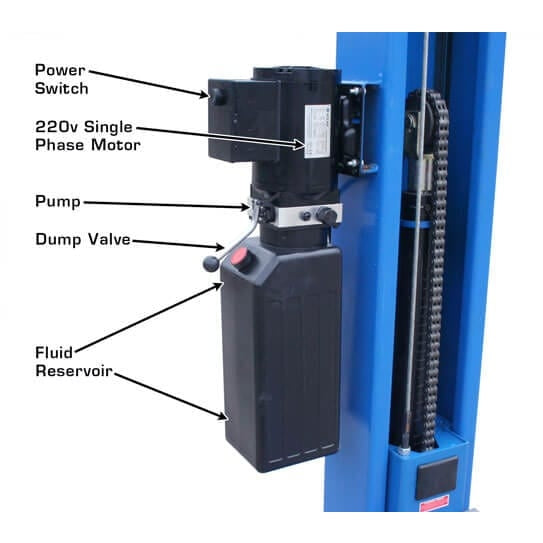

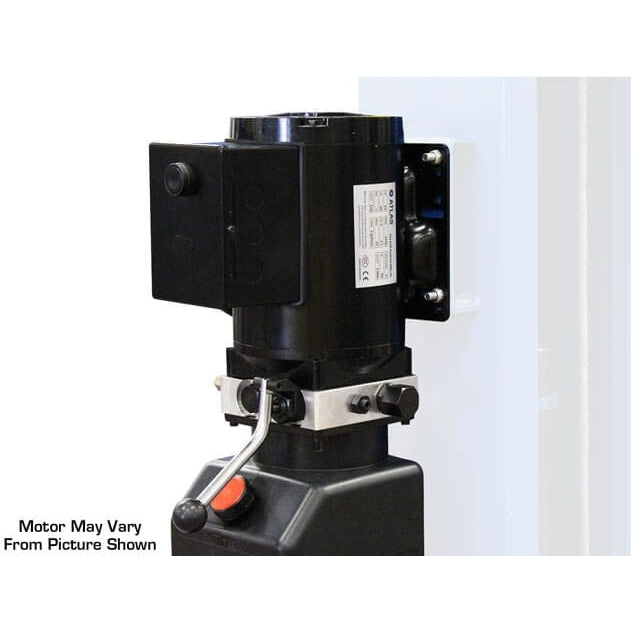

| Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 1,300 lb. |

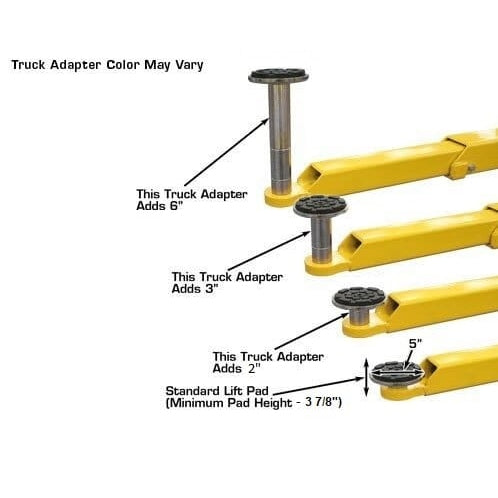

| Adapter Heights | Four each: 2″, 3″, 6″ |
| Arm Hole/Adapter Peg Size | 1.5″ |
| Concrete Requirement | Minimum 4″ thick slab rated at 3,000 PSI |
Documents
Atlas® BP8000 Cylinder Bleeding Procedure (Do this immediately after installation)
