Description
Description

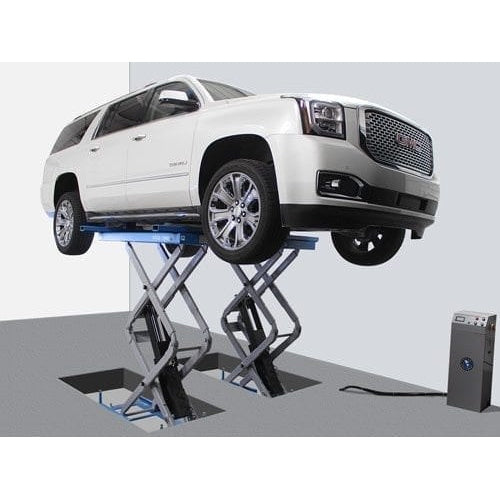

The Atlas® FM9SL is a 9,000 lb. flush-mounted in-ground scissor lift engineered for service facilities that need to maximize workspace efficiency without sacrificing lifting performance. Perfect for shops that prefer a clean, open-floor design, the FM9SL eliminates above-ground obstructions while maintaining full lifting capability for passenger cars, SUVs, and light-duty trucks.
Unlike traditional “old-style” in-ground lifts, the Atlas® FM9SL requires only minimal excavation during installation. Its electric/hydraulic power unit is conveniently located for easy access during routine maintenance, ensuring reduced downtime and simplified service.
The flush-mounted platform design allows vehicles to drive over the lift from any direction, making it ideal for compact service bays or high-traffic areas where space optimization is critical. Both the front and rear platform extensions can be engaged when servicing long-wheelbase vehicles such as pickup trucks.

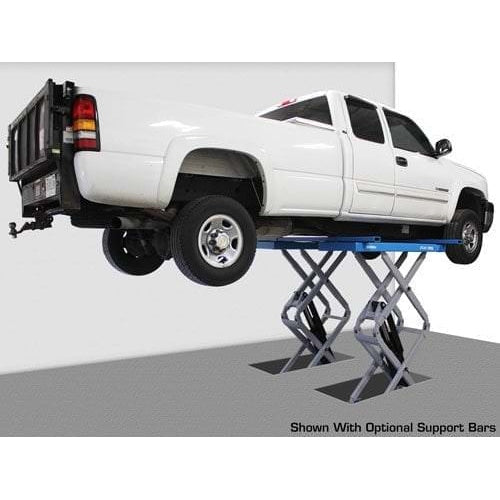

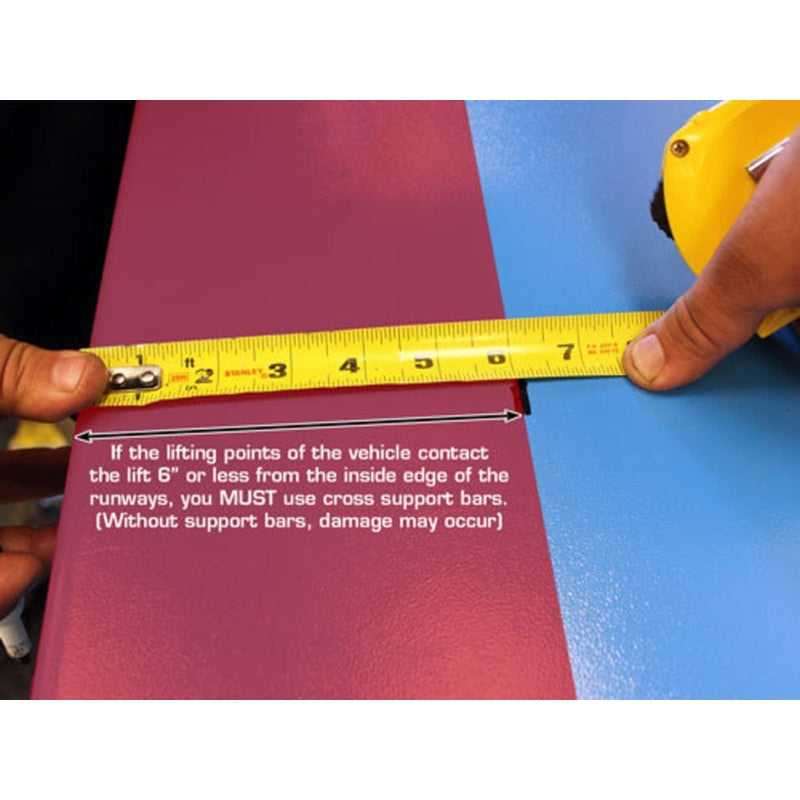

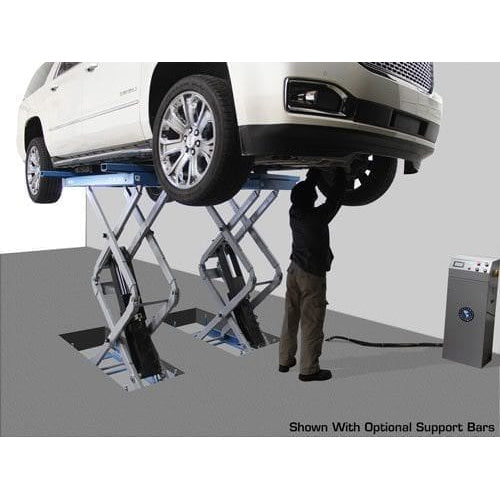

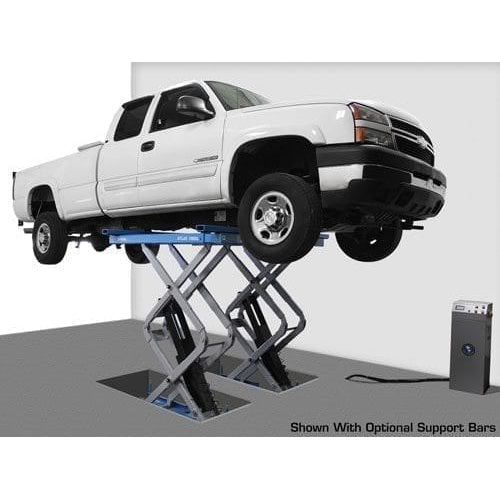

Because the lift features an open-center, crossbar-free design, operators must ensure proper vehicle placement — keeping the frame at least six inches from the inside edges of each platform. This helps distribute weight evenly and prevents “pigeon toe” platform distortion. For additional safety and stability when lifting narrow-frame vehicles, Atlas® recommends using the optional Scissor Lift Support Bar Kit, which spreads the load evenly across the lifting surface.
With its space-saving layout, durable construction, and clean floor integration, the Atlas® FM9SL offers the perfect balance of form and function for modern automotive service facilities.
Features
-
9,000 lb. lifting capacity
-
Heavy-duty commercial-grade construction
-
Full-rise in-ground scissor lift design
-
Adjustable platform width to accommodate various vehicle types
-
Extendable platforms on both ends for long wheelbase vehicles
-

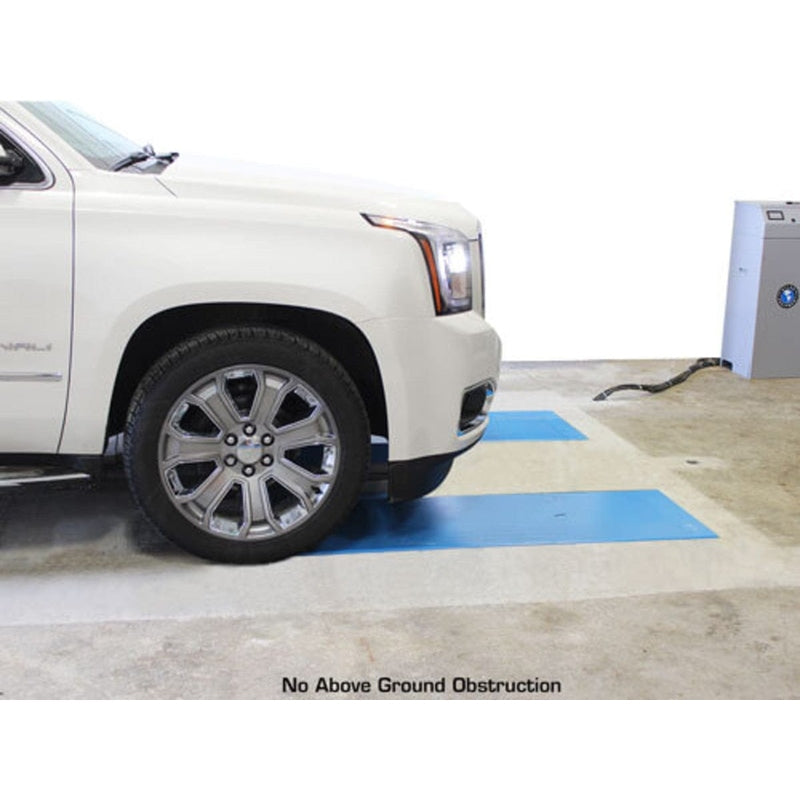

Flush-mounted design — no above-ground obstructions
-
CE certified for safety and performance compliance
-

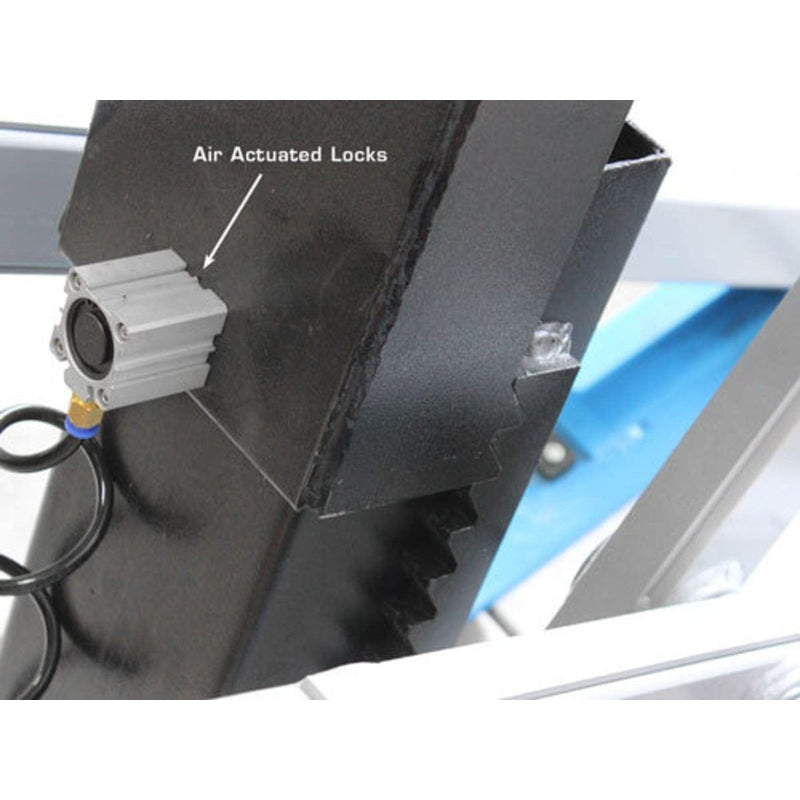

Air-operated single-point lock release (requires external air supply)
-
Open-center configuration for unobstructed underside access
-

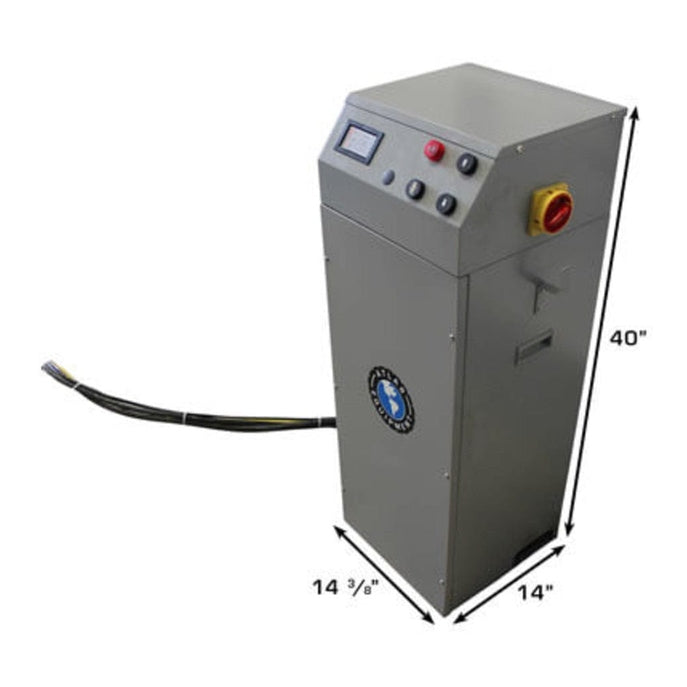

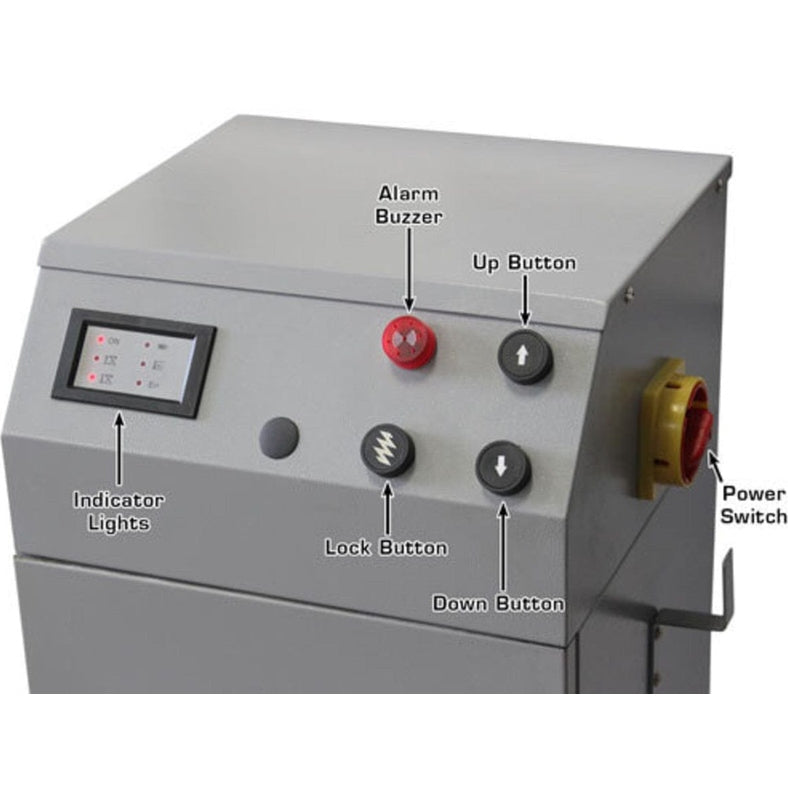

Separate, self-contained control unit for operator convenience
-
Grease zerk fittings at every hinge point for smooth operation and long service life
-

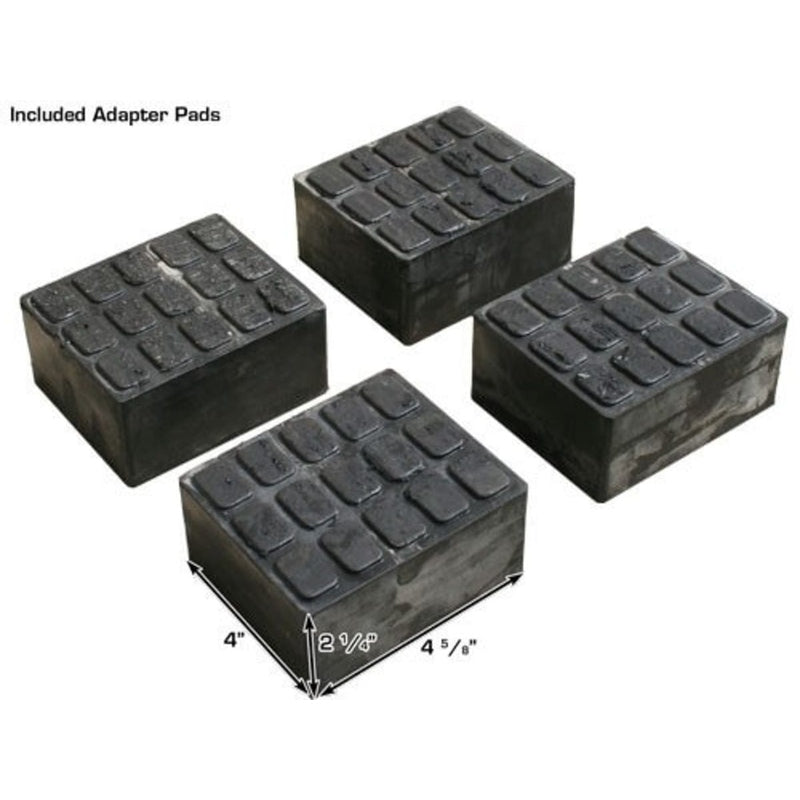

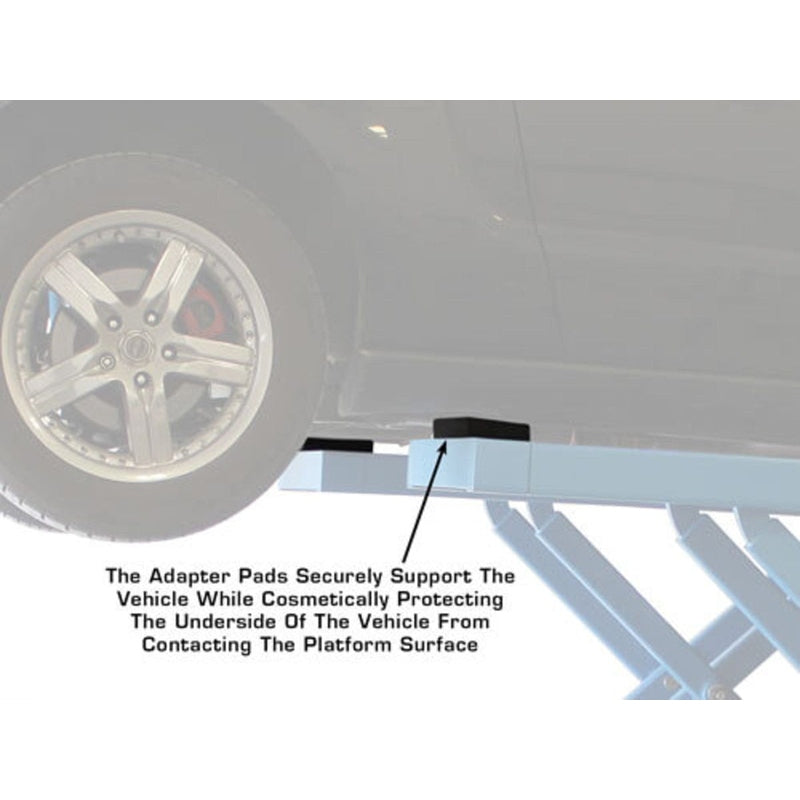

Includes heavy-duty rubber lifting blocks
-
Mounting hardware included
-
220V single-phase electric operation (requires 30-amp breaker)
-

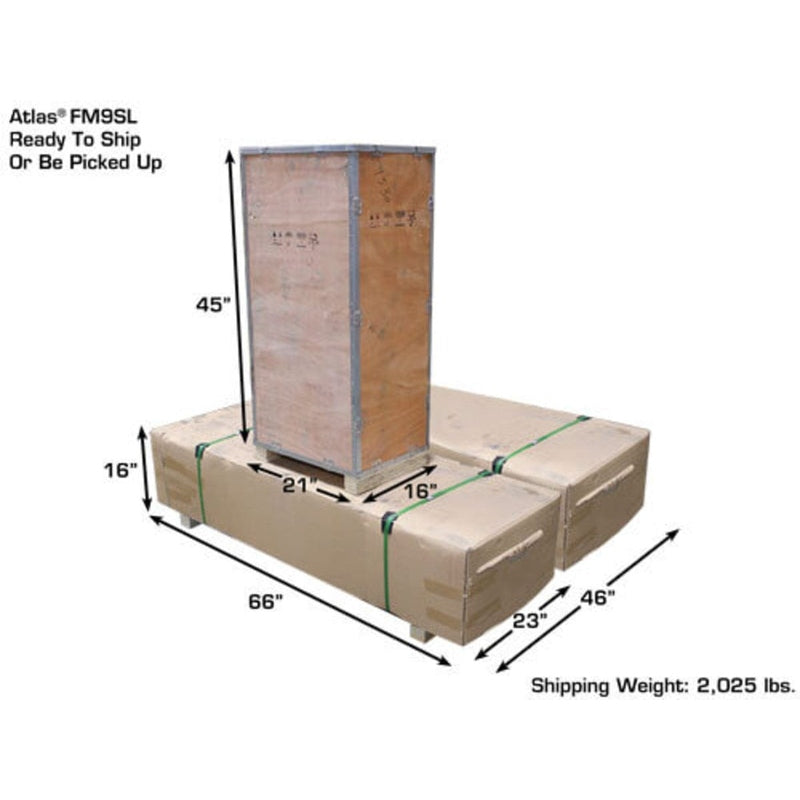

Shipping weight: 2,025 lbs
-
Warranty: 1-year structural / 1-year hydraulic (parts only)
Specifications
Atlas® FM9SL
| Specification | Measurement |
|---|---|
| Lifting Capacity | 9,000 lbs |

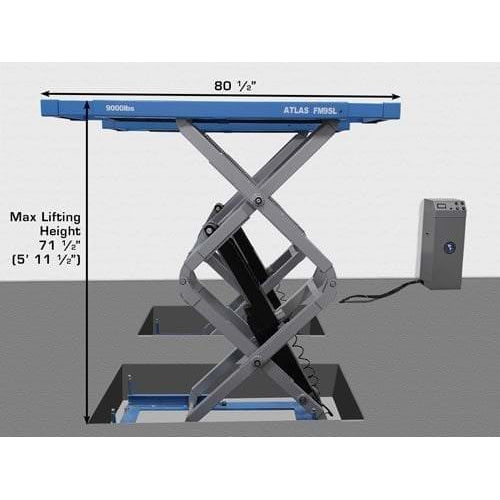

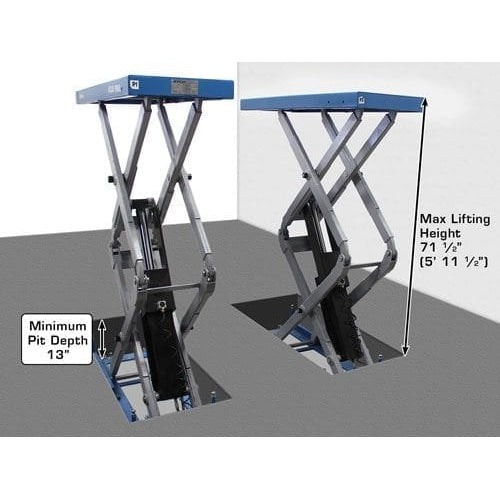

| Maximum Lifting Height (with standard lifting blocks) | 73¾" (6' 1¾") |
| Maximum Lifting Height (without lifting blocks) | 71" (5' 11") |

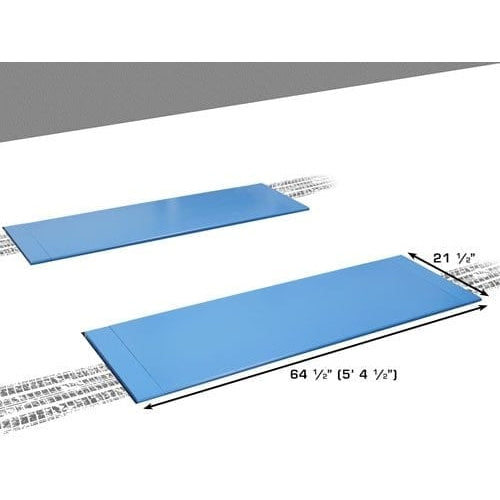

| Overall Length (extensions out) | 80" (6' 8") |
| Overall Length (extensions in) | 64" (5' 4") |

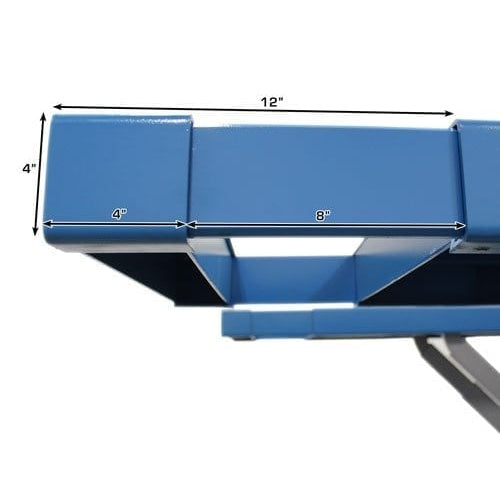

| Platform Width | 21" |
| Platform Thickness | 4" |
| Minimum Lowered Height (in-ground) | 13" |

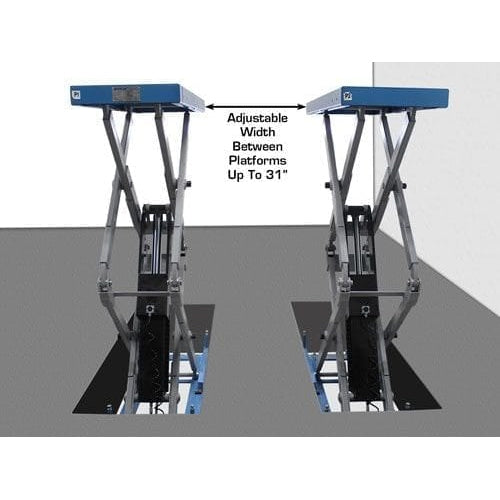

| Width Between Platforms | Adjustable up to 31" |
| Air Requirement | 90–120 PSI |
| Power Unit | 220V ±5% (209–231V) single-phase — requires 30A breaker |
| Oil Requirement | 3–5 gallons AW32 or AW46 (not included) |
| Shipping Weight | 2,025 lbs |
