Atlas OHX10000X 10,000 lb Extra Tall 2-Post Lift

Atlas Automotive EquipmentSKU: ATEATTD-OHX10000X

At a Glance

  • Overall Height: 152"; Symmetric Arm Design; Single-Point Lock Release
  • Max Lifting Height: 74.75"
  • Drive-Thru Clearance: 106.88"
Price:
$4,449.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

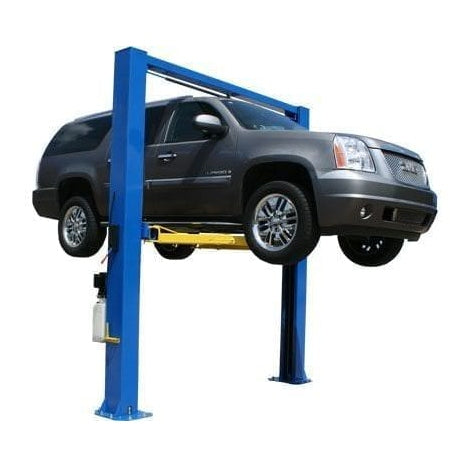

Atlas® OHX10000X – 10,000 lb. Capacity Extra-Tall Commercial 2-Post Lift

The Atlas® OHX10000X is a commercial-grade, true 10,000 lb. capacity two-post lift engineered for professional automotive facilities and serious enthusiasts who demand superior strength, capacity, and value. Built for versatility, this lift is ideal for servicing a wide range of vehicles — from compact cars to extended-wheelbase trucks such as one-ton diesel duallies.

Designed with extra height and width between columns, the OHX10000X provides maximum working clearance and flexibility. The lift’s generous drive-through width and long arm reach make it easy to position larger vehicles or “drive through” when repositioning in a shop. For taller operators or those working on high-roof vans, the longer hydraulic cylinders raise vehicles approximately 3 inches higher than many comparable models — a welcome advantage when extra headroom matters.

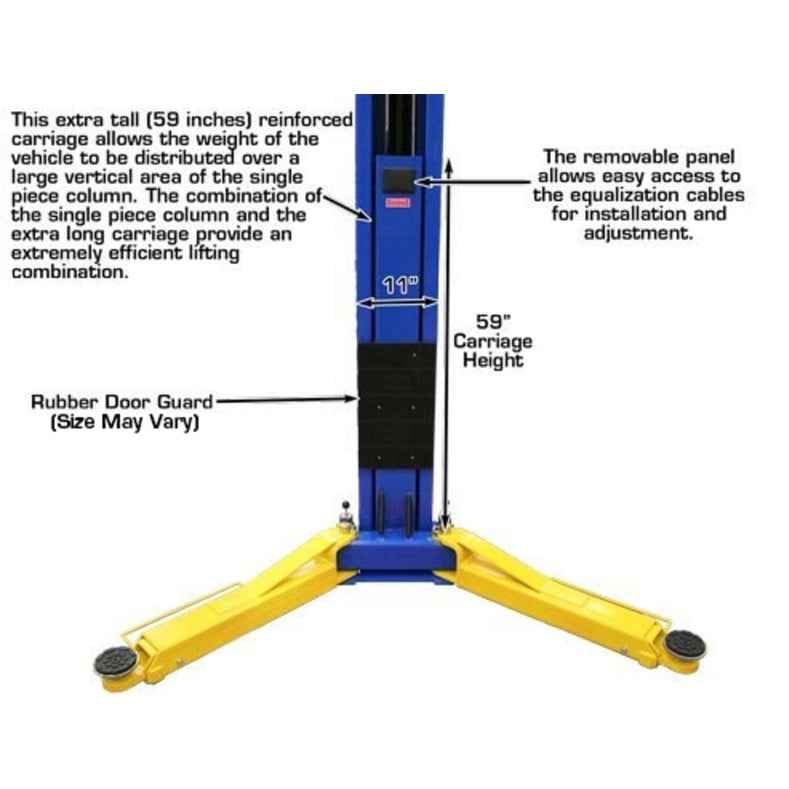

Constructed with single-piece 12′ 7″ formed steel columns and an extra-long carriage assembly, the Atlas® OHX10000X delivers exceptional column strength, arm stability, and lifting precision. Because of its full-height column design, a minimum ceiling height of 13 feet is required for installation.

Whether you’re operating a large-scale commercial service department or a private workshop, the Atlas® OHX10000X combines durability, lifting power, and professional-grade safety in a design that exceeds expectations.

Key Features

  • 10,000 lb. Lifting Capacity

  • Commercial-Grade Construction for long-term reliability

  • Extra Tall & Extra Wide Design accommodates larger vehicles

  • Overall Height: 152″ (12′ 8″)

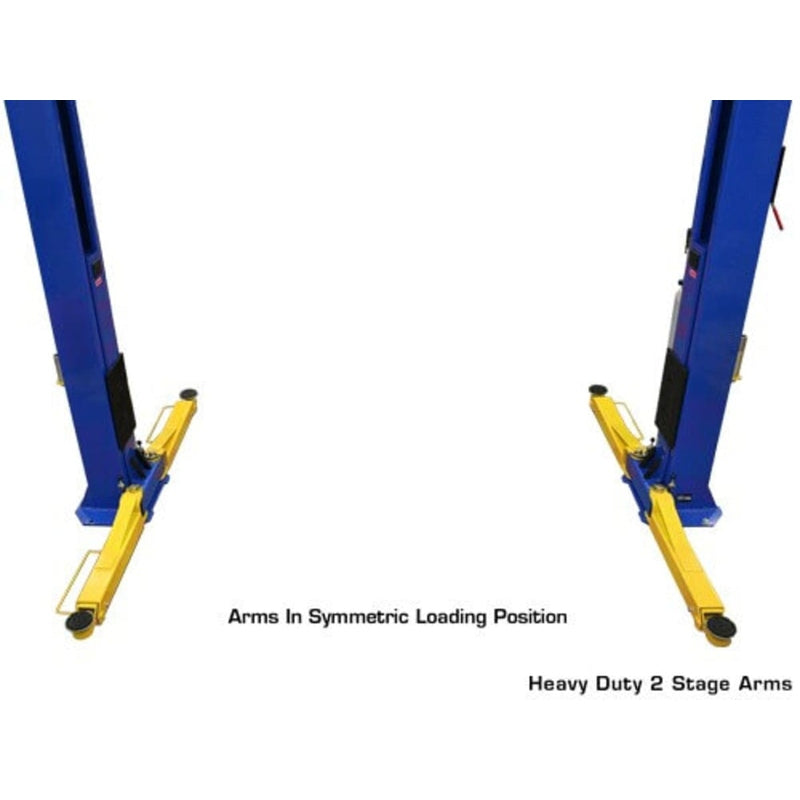

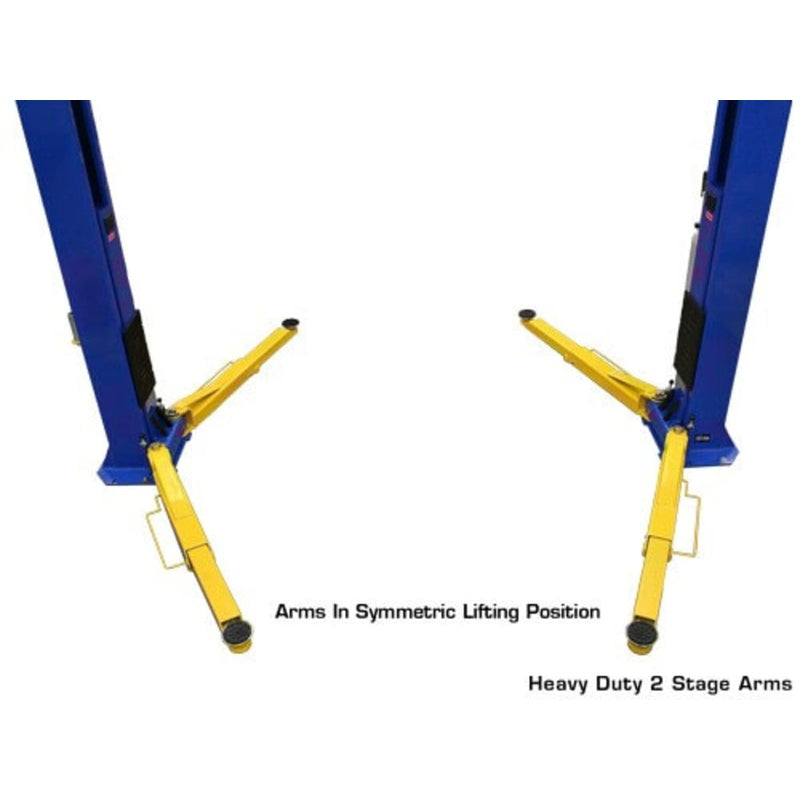

  • Symmetric Arm Design for balanced lifting

  • Automatic Arm Restraints for secure positioning

  • Padded Overhead Shut-Off Bar prevents vehicle contact with the crossbeam

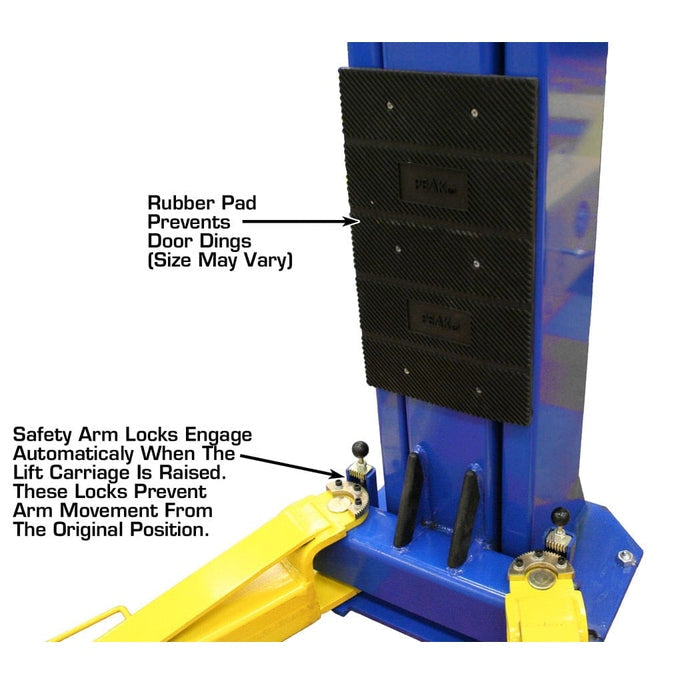

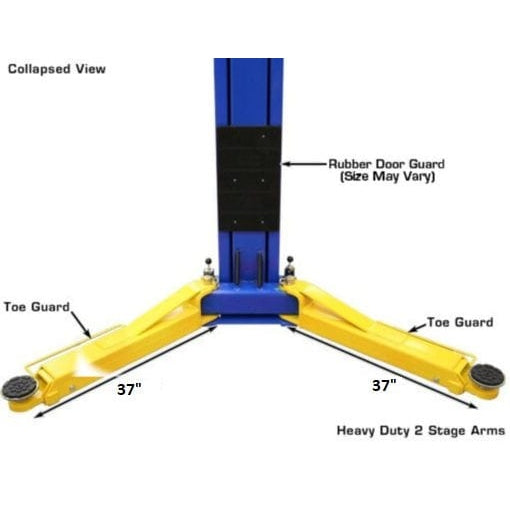

  • Rubber Door Guards on Carriages protect vehicle panels during operation

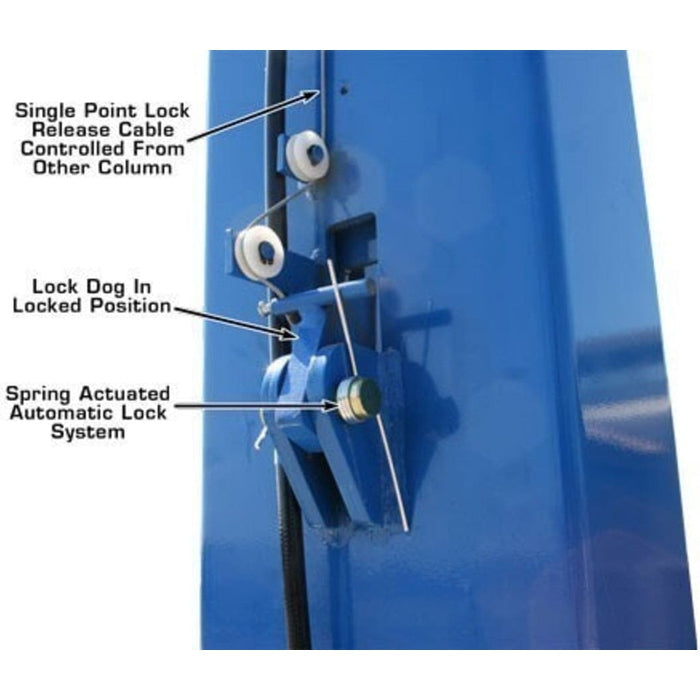

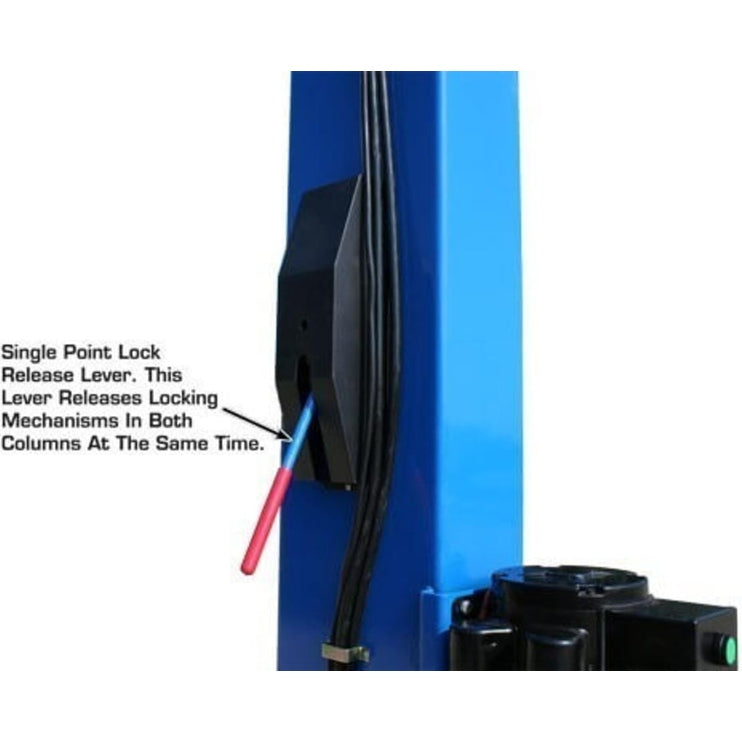

  • Single-Point Lock Release for simple control

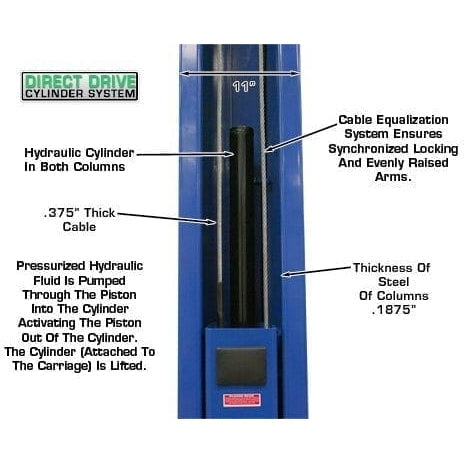

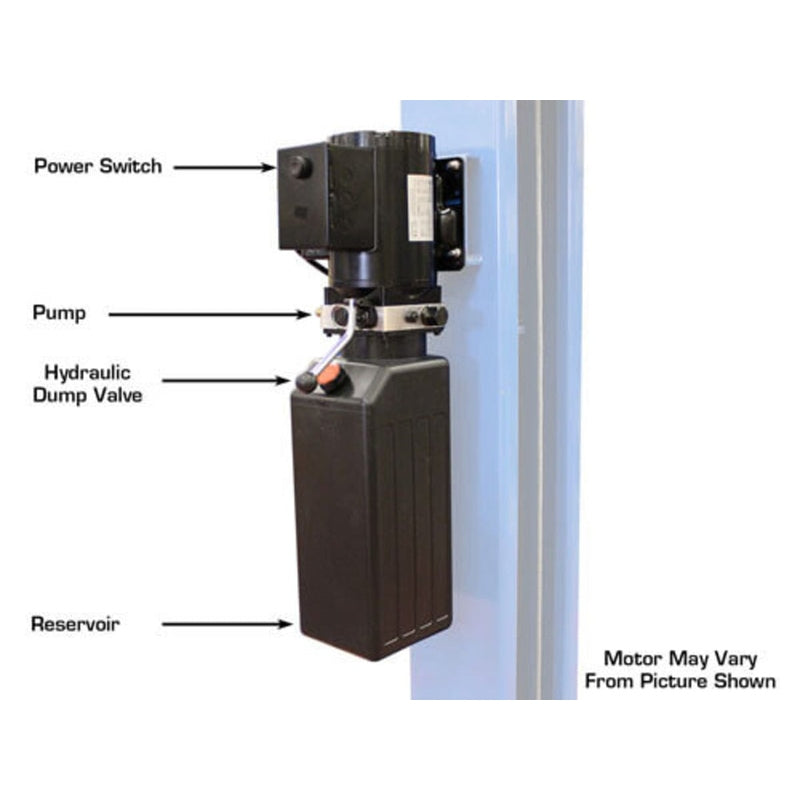

  • Dual Direct-Drive Hydraulic Cylinders for smooth, efficient lift performance

  • Durable Powder-Coated Finish

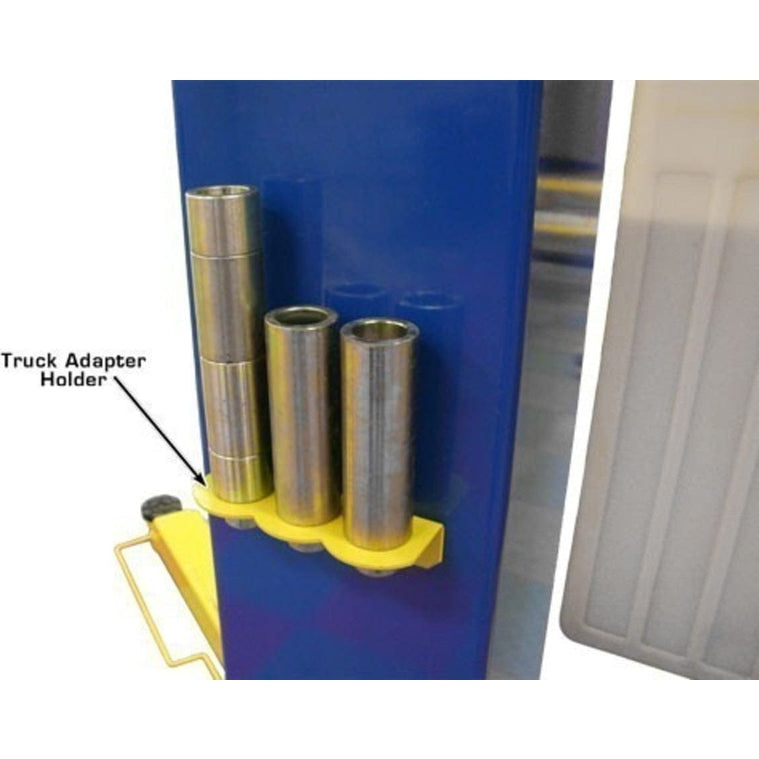

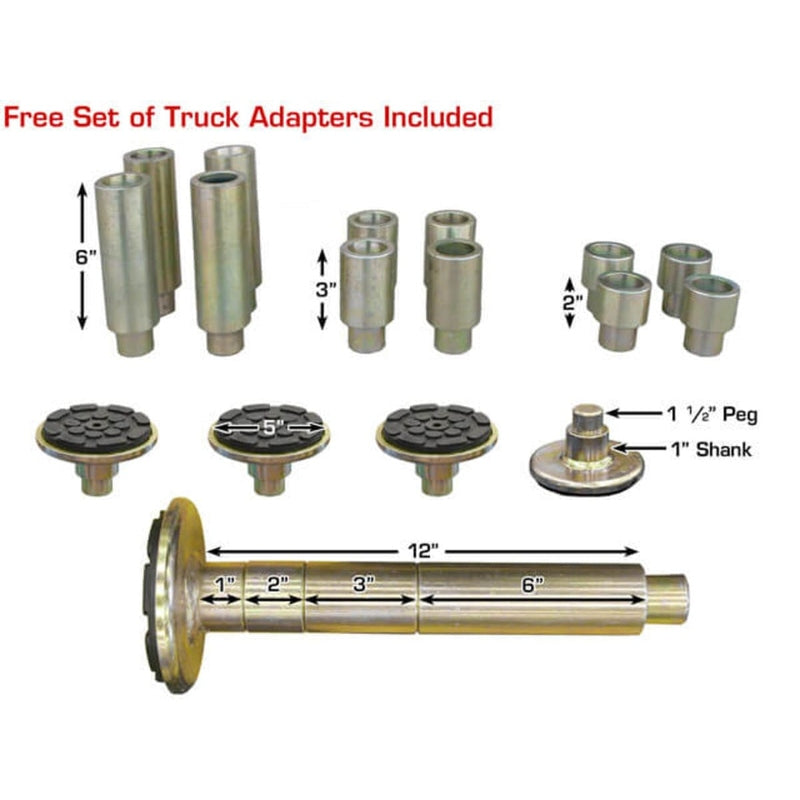

  • Includes Free 12-Piece Truck Adapter Set

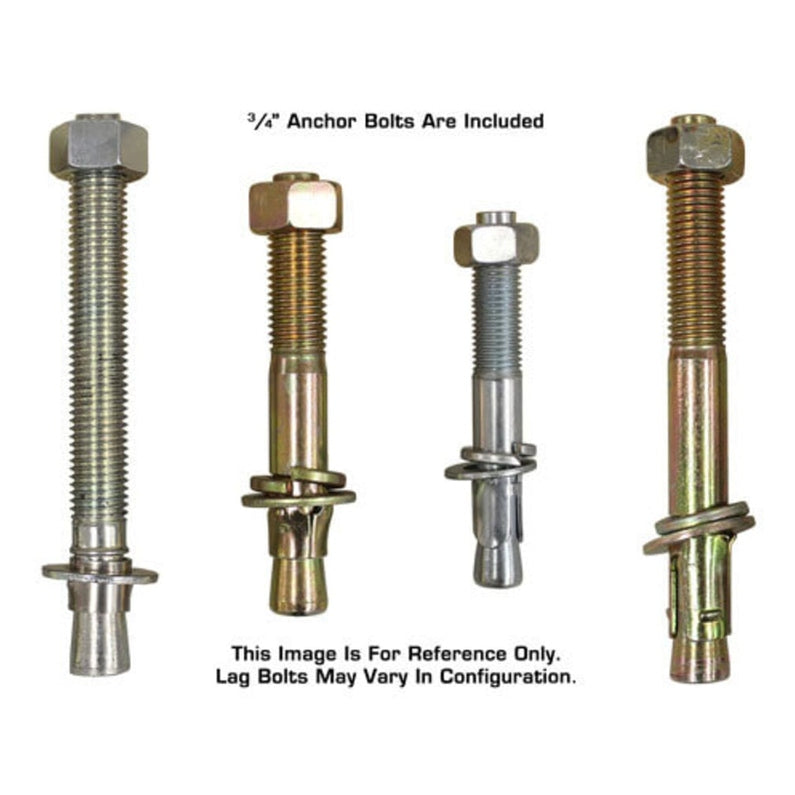

  • Mounting Hardware Included

  • Shipping Weight: 1,665 lb.

  • Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)

Specifications

Specification Measurement
Lifting Capacity 10,000 lb.

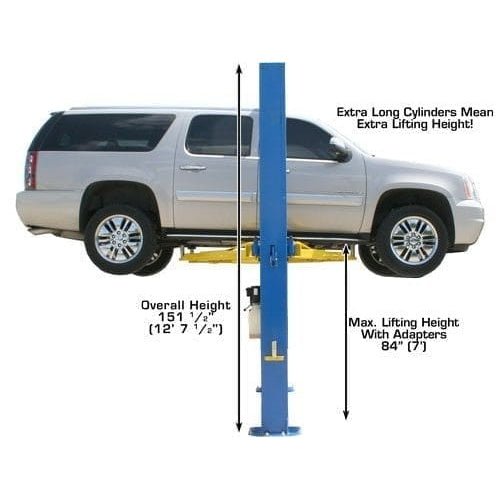

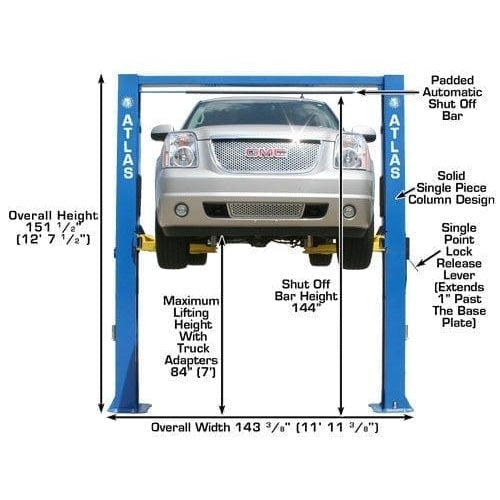

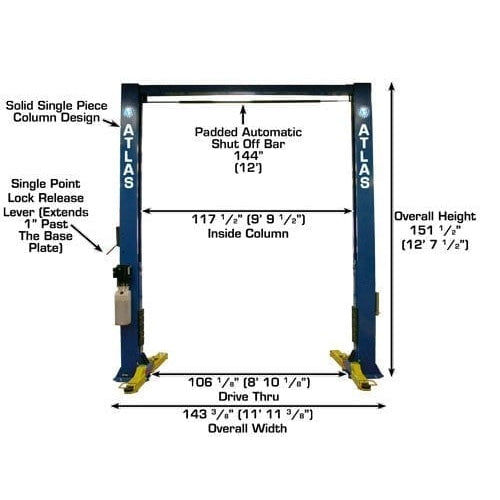

Overall Height 152″ (12′ 8″)

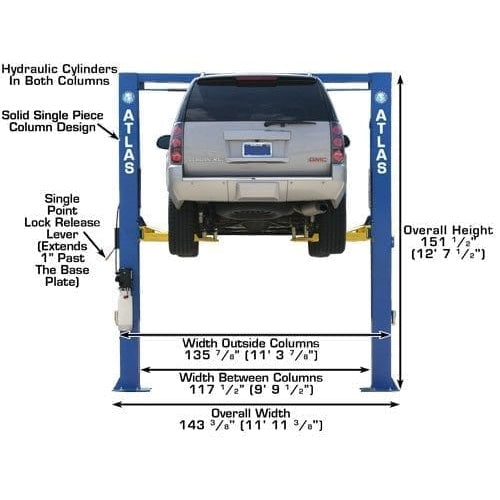

Overall Floor Width 144 ⅜″ (12′ ⅜″)
Outside Column to Outside Column 136″ (11′ 4″)

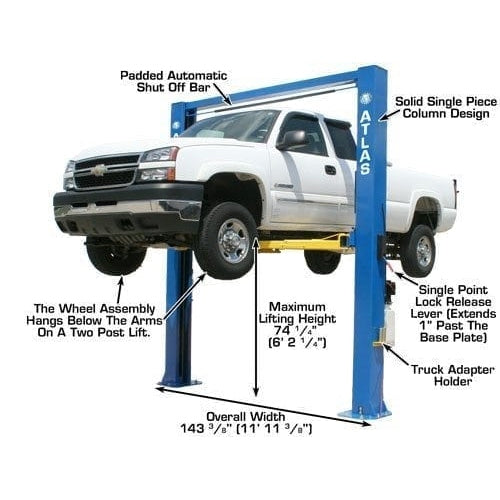

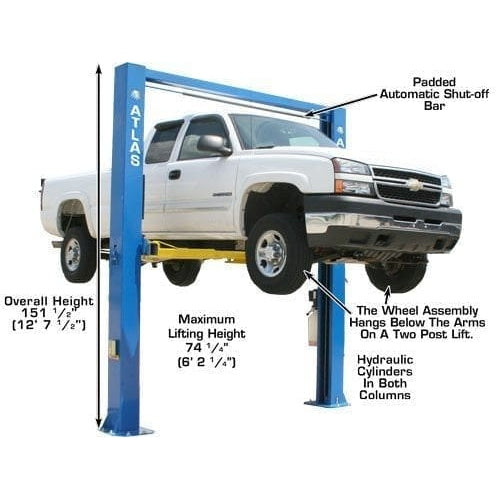

Maximum Lift Height (Without Adapters) 74 ¾″

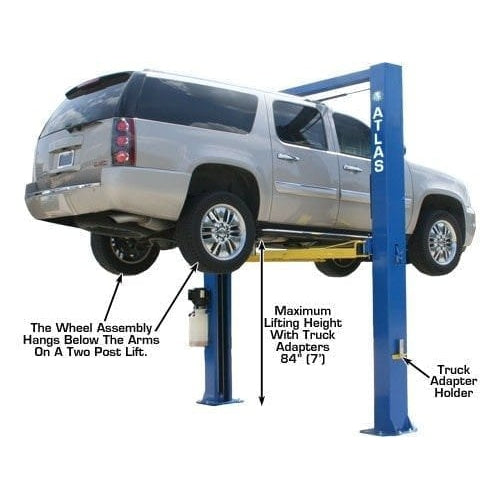

Maximum Lift Height (With Adapters) 85 ¾″
Minimum Arm Height 4 ½″
Inside Column Width 118 ¼″ (9′ 10 ¼″)
Drive-Through Clearance 106 ⅞″ (8′ 10 ⅞″)
Column Size 9 ⅛″ × 11″
Column Steel Thickness 5 mm

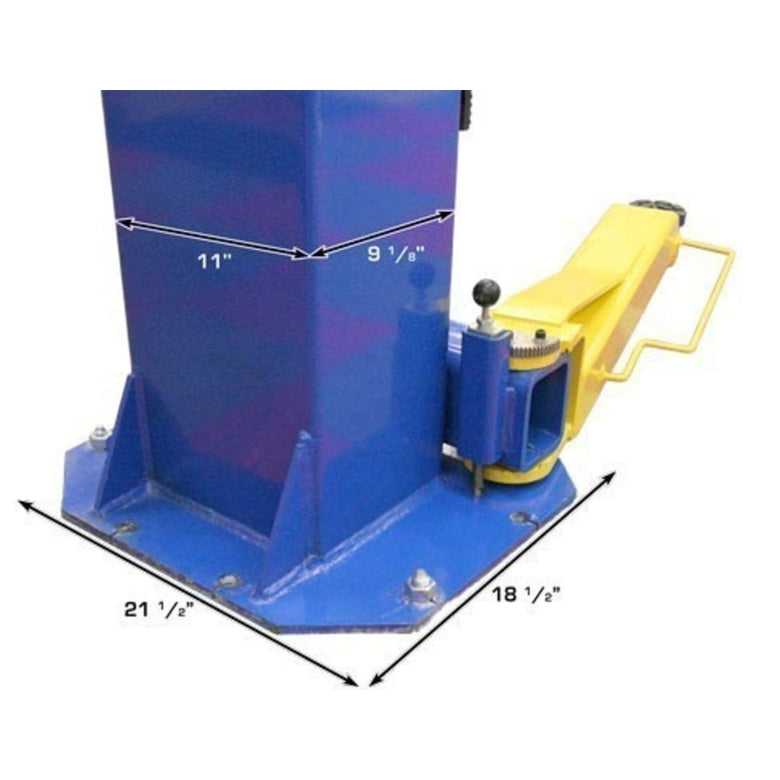

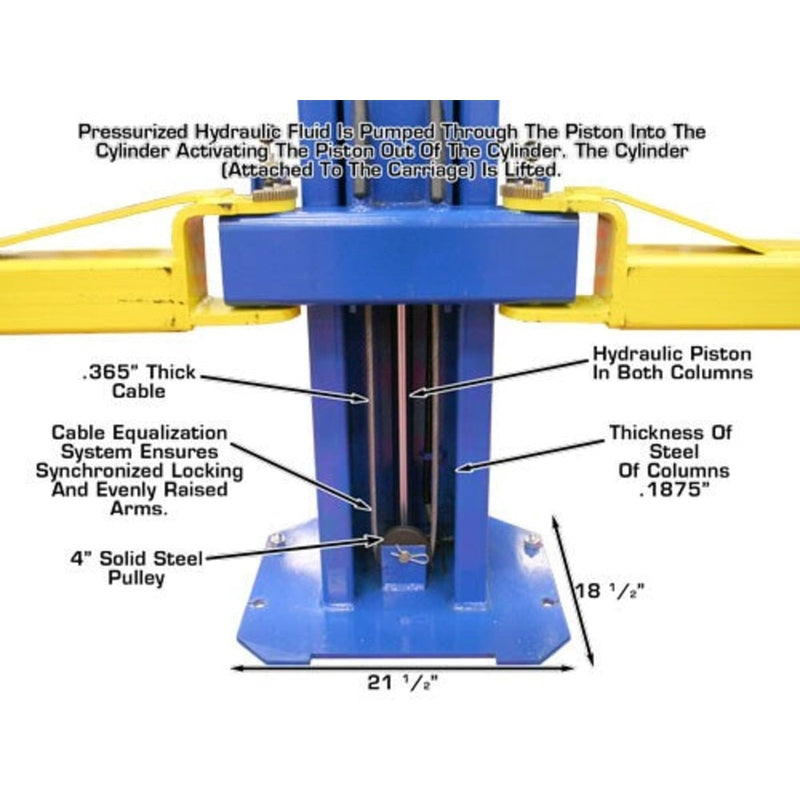

Base Plate Dimensions 18 ½″ × 21 ½″
Electrical Requirement 220V single-phase (30A breaker recommended)
Oil Requirement 3–5 gallons AW32/AW46 (not included)

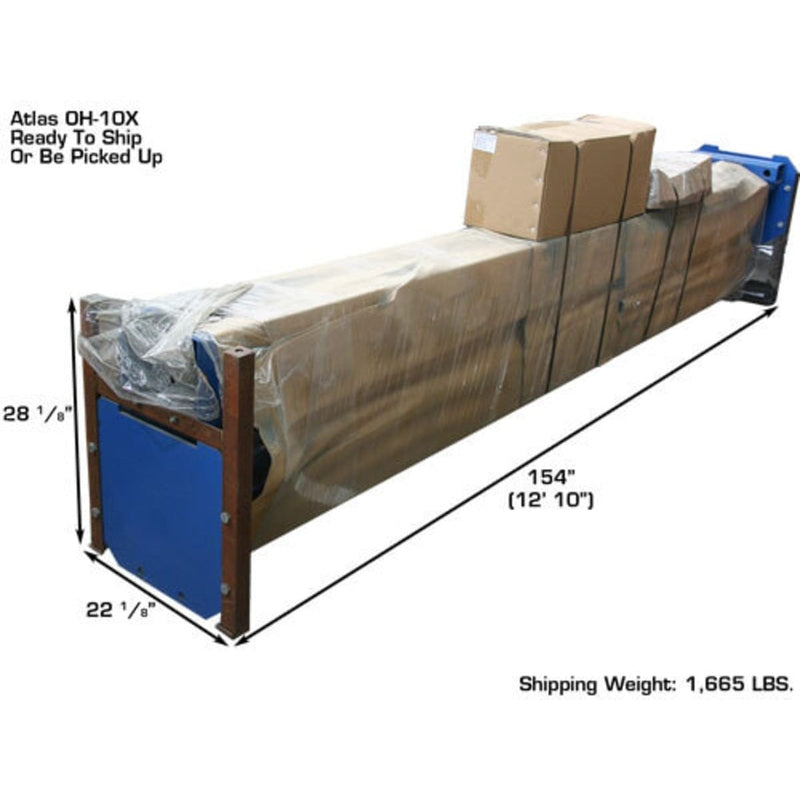

Shipping Weight 1,665 lb.

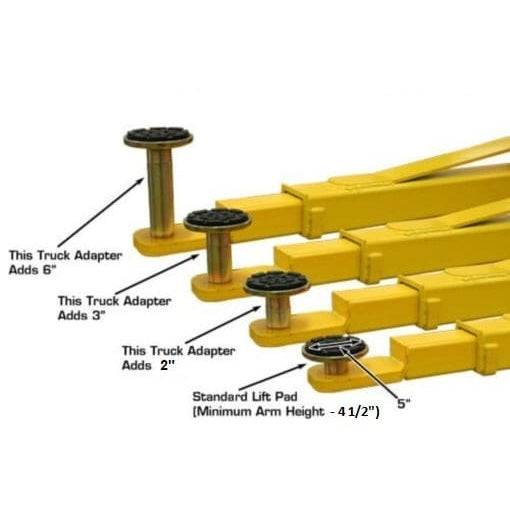

Adapter Heights Four each: 2″, 3″, 6″
Arm Hole/Adapter Peg Size 1.5″
Concrete Requirement Minimum 4″ thick slab rated at 3,000 PSI

Documents

Atlas® ATTD-OHX10000X Manual
