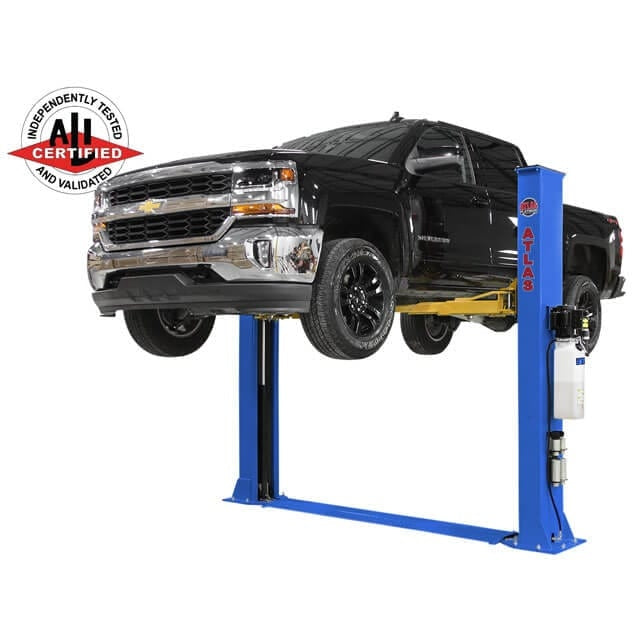

Atlas® Platinum PVL9BP – 9,000 lb. Capacity Base-Plate Two-Post Lift
The Atlas® Platinum PVL9BP is a professional-grade, 9,000 lb. capacity two-post lift designed for commercial service centers and high-performance garages. Its base-plate, open-top design makes it ideal for facilities with low ceiling clearance or for users who prefer a lift without a restrictive top beam. With a total column height of 111 1/8" (9' 3 1/8"), the PVL9BP provides ample lifting capability while remaining compact enough for standard-height workshops.
This versatile lift accommodates a wide range of foreign and domestic vehicles, from compact cars and SUVs to full-size trucks and light commercial vehicles. Built to ALI certification standards, it meets rigorous safety and performance requirements and is backed by one of the best warranties in the industry for added peace of mind.

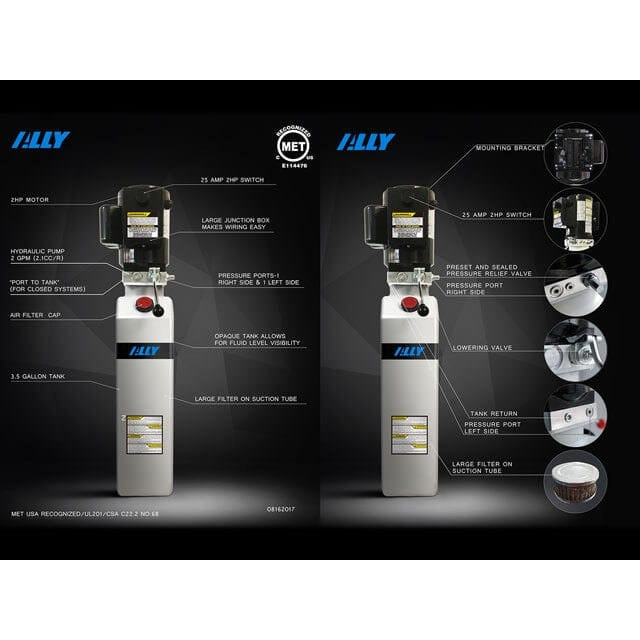

At its core, the PVL9BP features the premium ALLY Hydraulic Power Unit, certified by MET Laboratories Inc. for electrical compliance in the U.S. and Canada. This advanced power system includes heavy-duty armatures and enhanced motor windings with increased silver content for reduced heat generation and consistent torque throughout the lifting cycle. The ALLY power unit also comes with an industry-leading two-year limited warranty.
With its low-ceiling design, robust build quality, and certified performance, the Atlas® Platinum PVL9BP is an excellent choice for professional technicians and automotive enthusiasts who demand reliability, versatility, and long-term value.
Key Features
-
ALI Certified for proven safety and reliability
-
9,000 lb. Lifting Capacity
-
Commercial-Grade Construction for professional use
-

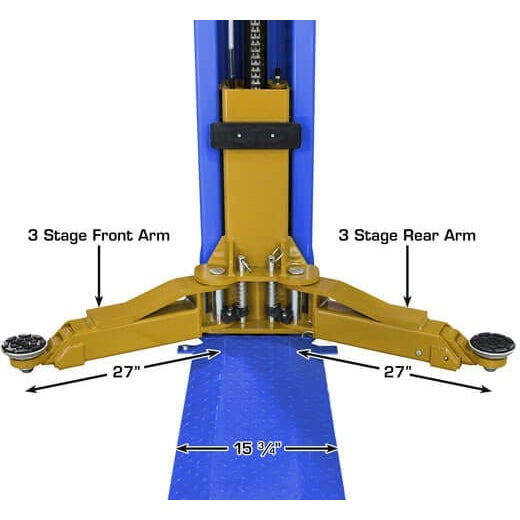

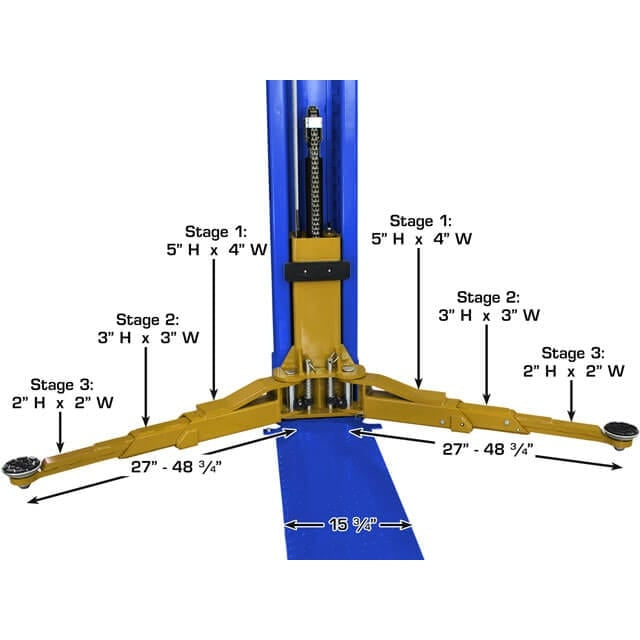

3-Stage Symmetric Arms for versatile vehicle positioning
-
Base-Plate, Open-Top Design ideal for low-ceiling garages (9' 3 1/8" column height)
-

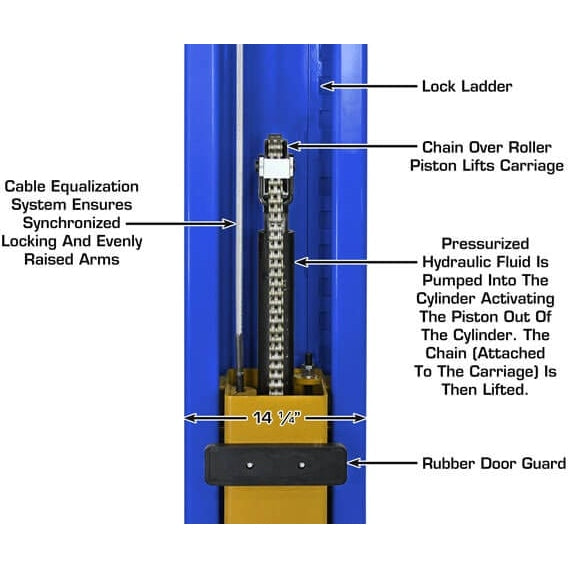

Dual Hydraulic Chain-Drive Cylinders for smooth, balanced lifting
-
Secondary Lock System (SLS) for added safety
-

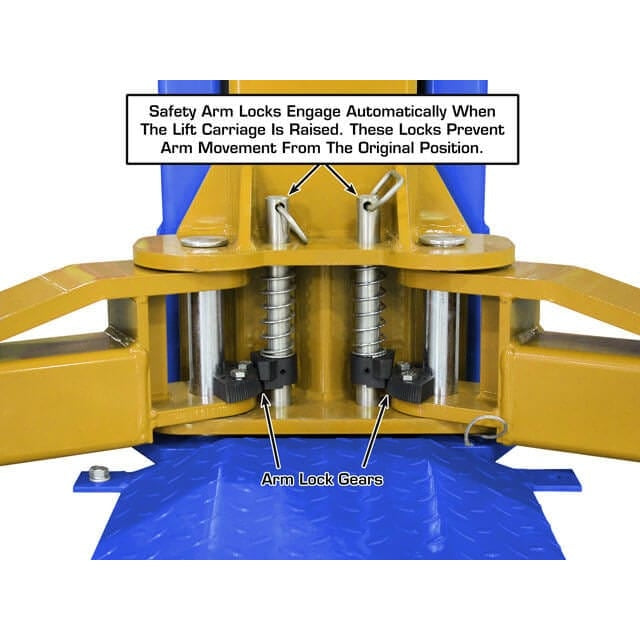

Automatic Arm Restraints ensure stability during lifting
-

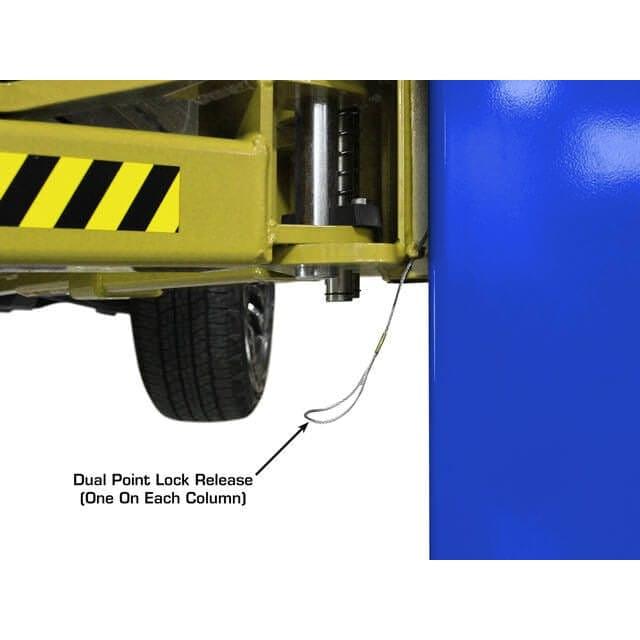

Dual-Point Lock Release for efficient operation
-

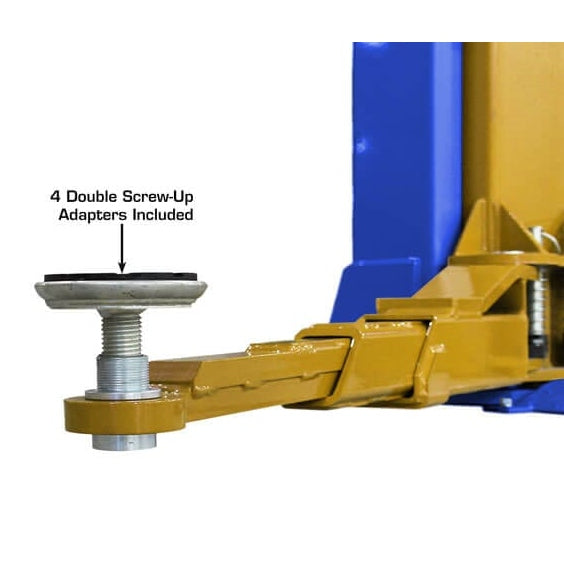

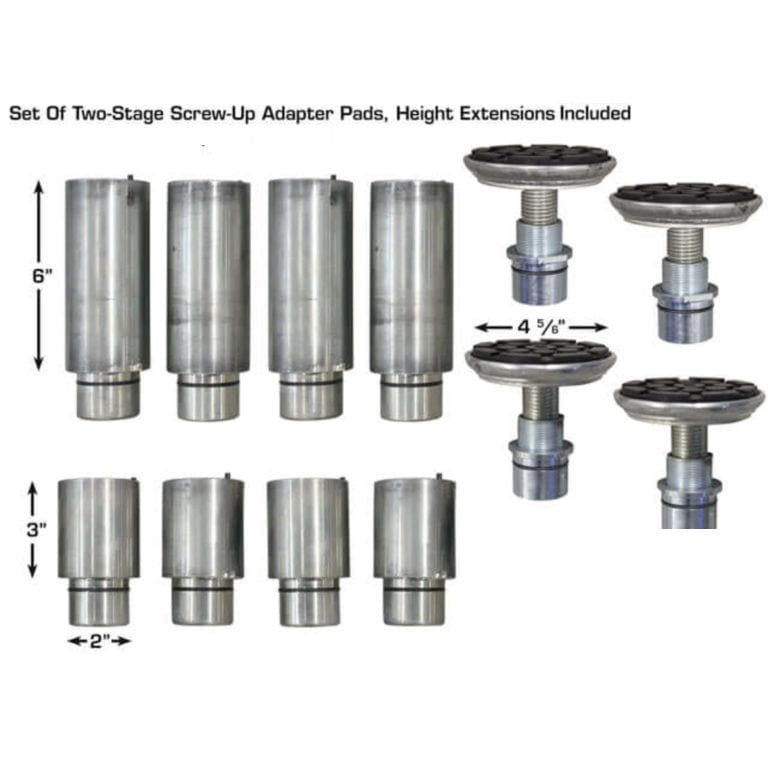

Includes Double Screw-Up Adapters for precise height adjustments
-

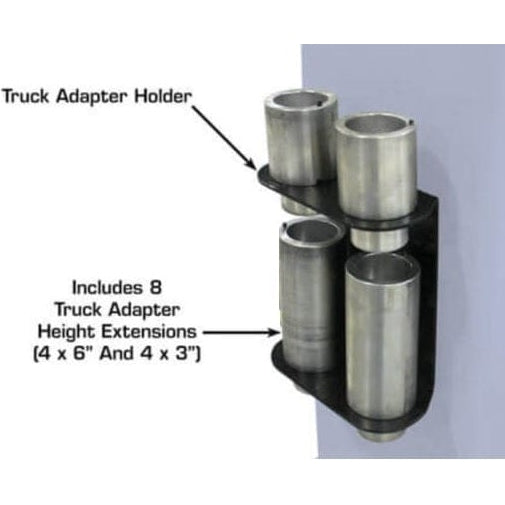

Free 8-Piece Truck Adapter Set included
-

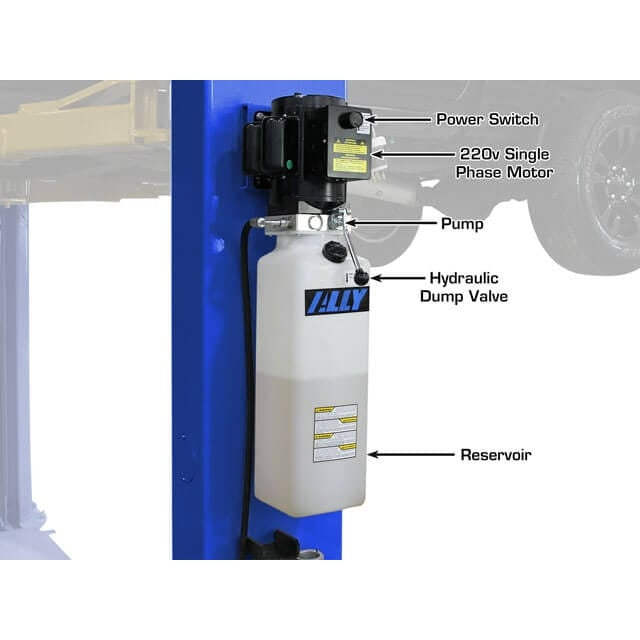

Equipped with Premium ALLY Hydraulic Power Unit
-

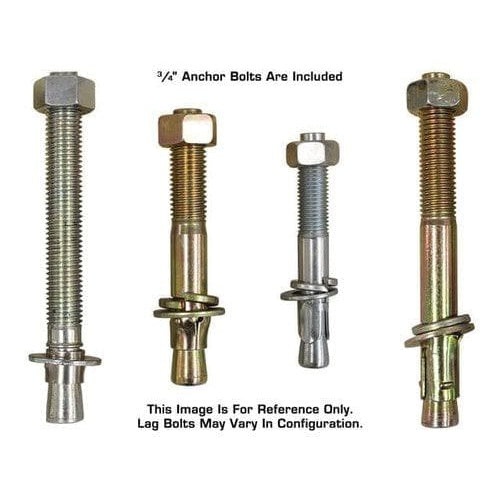

Mounting Hardware Included
-

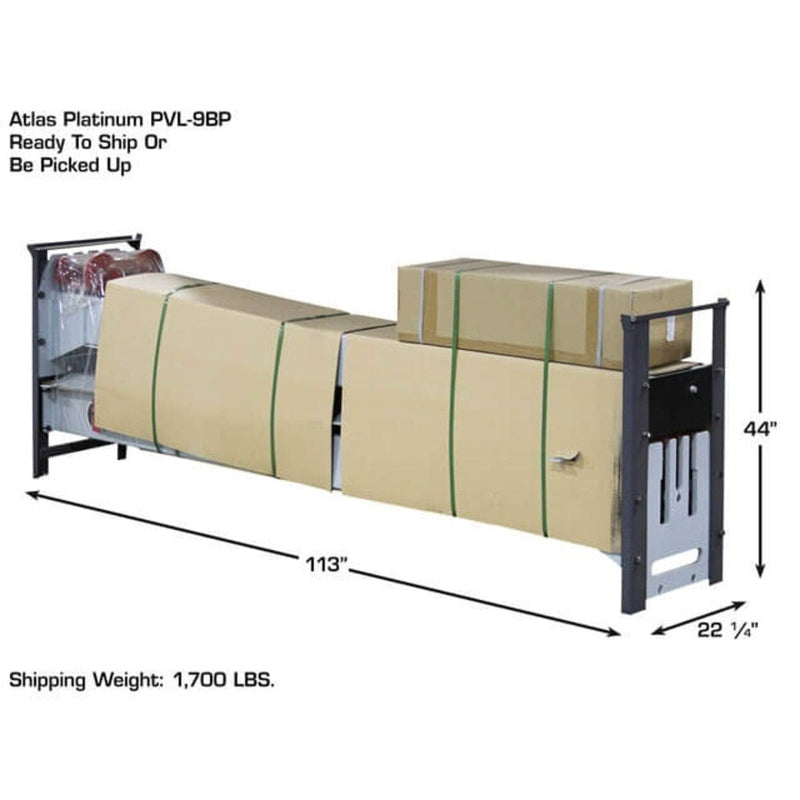

Shipping Weight: 1,700 lb.
-
Warranty: 5-Year Structural | 2-Year Hydraulic | 2-Year Power Unit

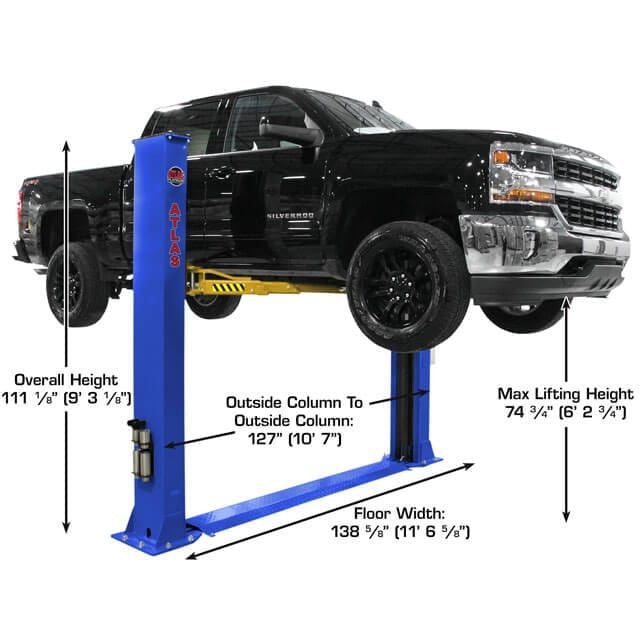

Specifications
| Specification | Measurement |
|---|---|
| Lifting Capacity | 9,000 lb. |

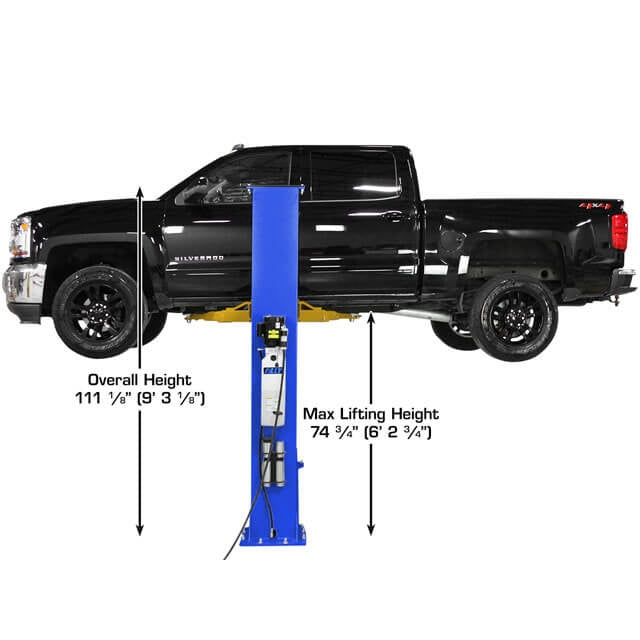

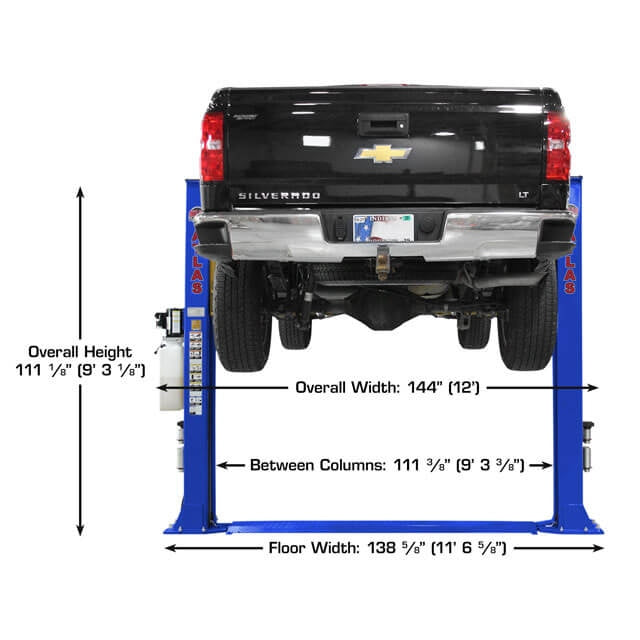

| Overall Height | 111 ⅛" (9' 3 ⅛") |

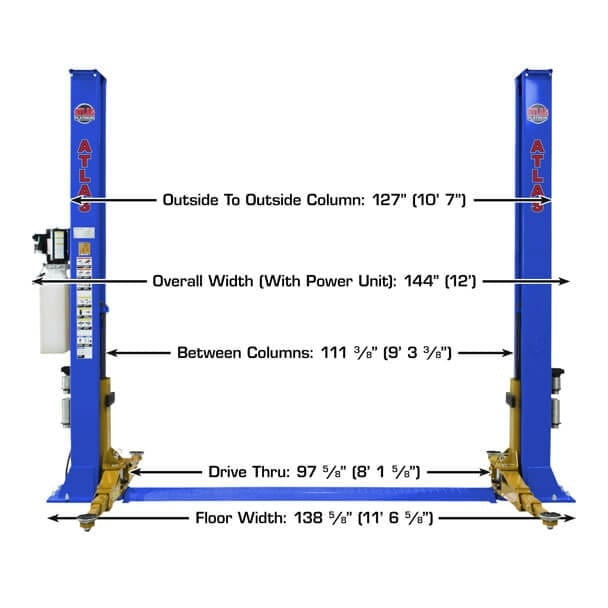

| Overall Floor Width | 138 ⅝" (11' 6 ⅝") |
| Outside Column to Outside Column | 127 ½" (10' 7 ½") |
| Maximum Lift Height (Without Adapters) | 74 ¾" |
| Maximum Lift Height (With Adapters) | 83 ¾" |
| Minimum Arm Height | 4 ½" |
| Inside Column Width | 111 ⅜" (9' 3 ⅜") |
| Drive-Through Clearance | 97 ⅝" (8' 1 ⅝") |
| Column Size | 7 ⅝" x 14 ¼" |
| Column Steel Thickness | 6 mm |

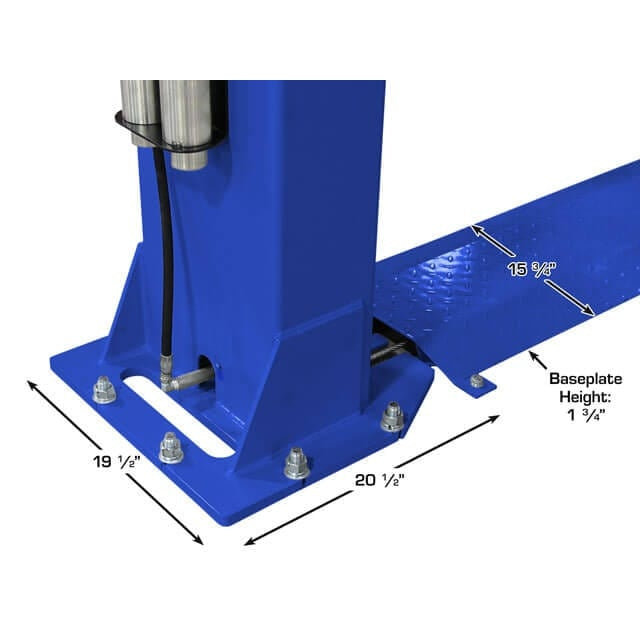

| Base Plate Dimensions | 19 ½" x 20 ½" |
| Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 1,700 lb. |
| Adapter Heights | Four each: 3", 6" |
| Arm Hole/Adapter Peg Size | 2" |
| Concrete Requirement | Minimum 4" thick slab rated at 3,000 PSI |
