Save $720.00
Atlas Automotive EquipmentSKU: ATEXH-PRO-9D
Price:
$3,179.00 $3,899.00

Why Shop with Us?

  • Free shipping and No Sales Tax* Certain products qualify for free shipping. No sales tax except for CT residents.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; your information is 100% secure.

Description

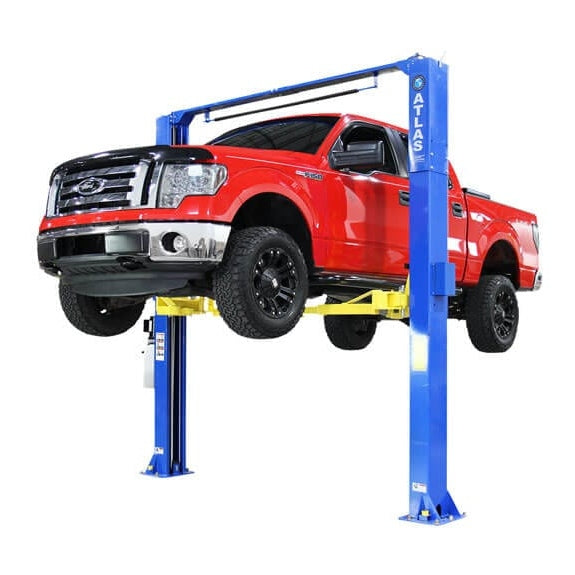

Atlas® PRO-9D – 9,000 lb. Capacity Two-Post Lift

The Atlas® PRO-9D is a true 9,000 lb. capacity two-post lift engineered to deliver commercial-grade performance and unbeatable value. Ideal for smaller professional repair facilities or homeowners who demand top-tier quality at an affordable price, this lift combines robust construction, flexibility, and long-term reliability in one versatile package.

Standing at 12 feet tall, the PRO-9D features symmetric columns with adjustable arms that can be configured for either symmetric or asymmetric operation. This hybrid arm design provides maximum versatility — offering excellent reach for larger trucks while maintaining a low lift pad height that easily accommodates compact vehicles with lower pickup points.

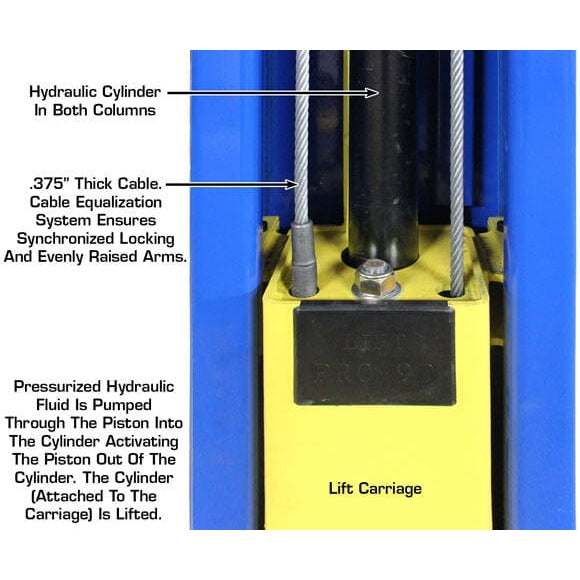

The lift utilizes a dual direct-drive hydraulic system, eliminating the need for chains and pulleys. This simplified design reduces wear, minimizes maintenance, and ensures smooth, consistent lifting performance for years of dependable service.

With its combination of professional engineering, flexible arm configuration, and proven reliability, the Atlas® PRO-9D is the perfect choice for technicians, small repair shops, or dedicated hobbyists who want commercial-grade performance without compromise.


Features

  • 9,000 lb. Lifting Capacity for a wide range of vehicles

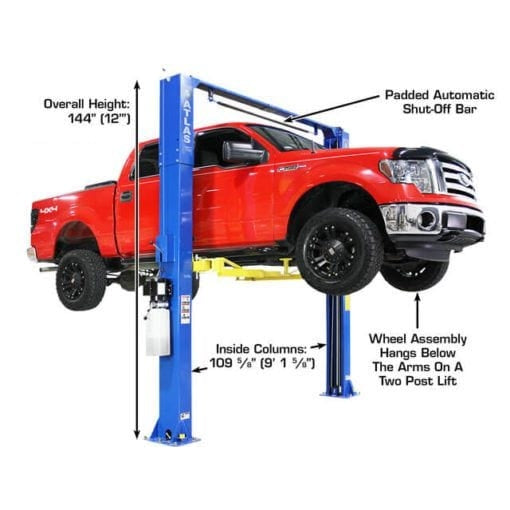

  • Overhead, Open-Floor Design providing easy undercar access and a clean workspace

  • Overall Height: 144″ (12′) – suitable for standard shop ceilings

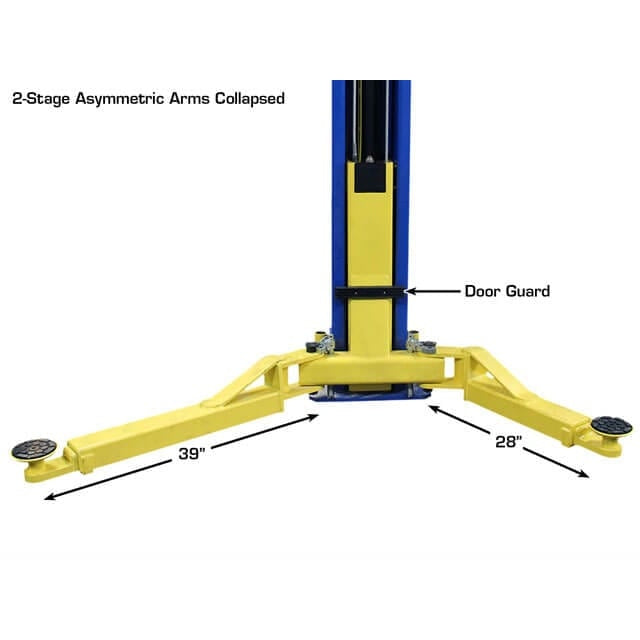

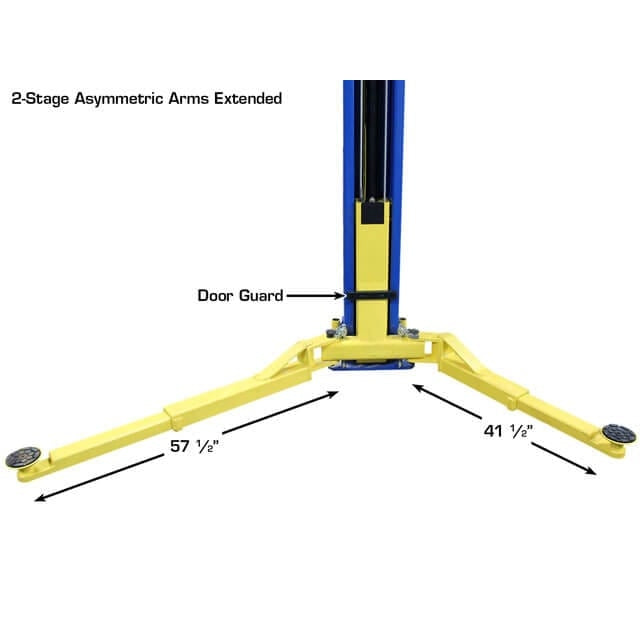

  • Asymmetric/Symmetric Arm Configuration for flexible vehicle positioning

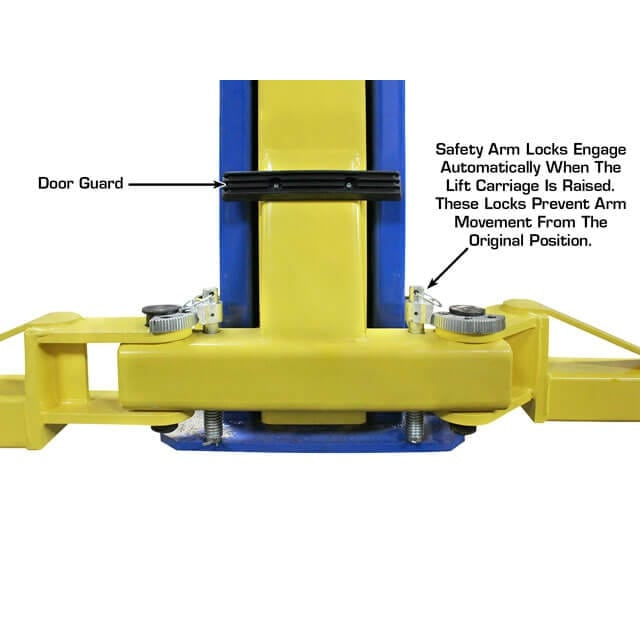

  • Automatic Arm Restraints enhance operator safety

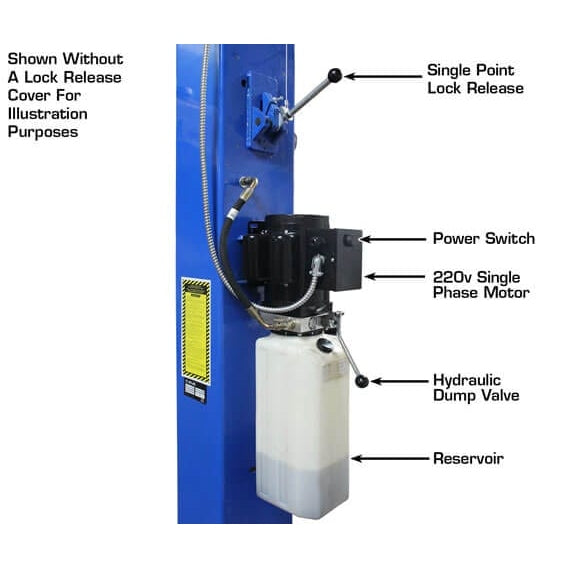

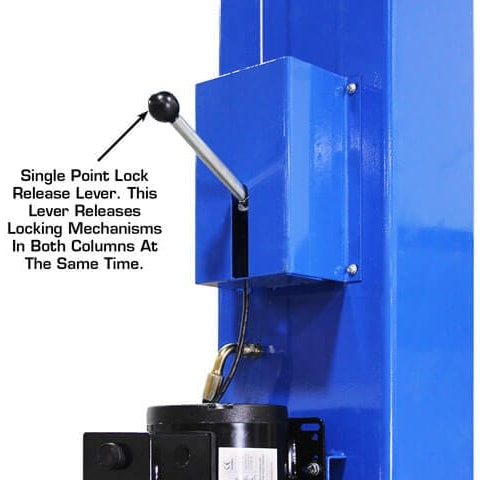

  • Single-Point Lock Release for quick and convenient operation

  • Rubber Door Guards on Carriages to protect vehicle panels during lifting

  • Dual Direct-Drive Hydraulic Cylinders for smooth, maintenance-free operation

  • Durable Powder-Coated Finish for corrosion resistance and professional appearance

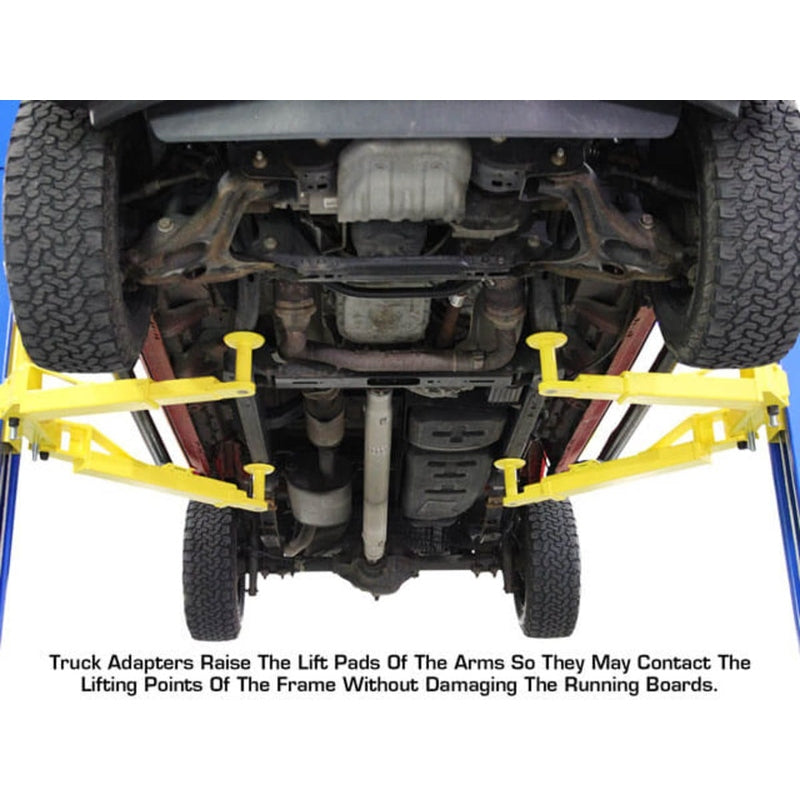

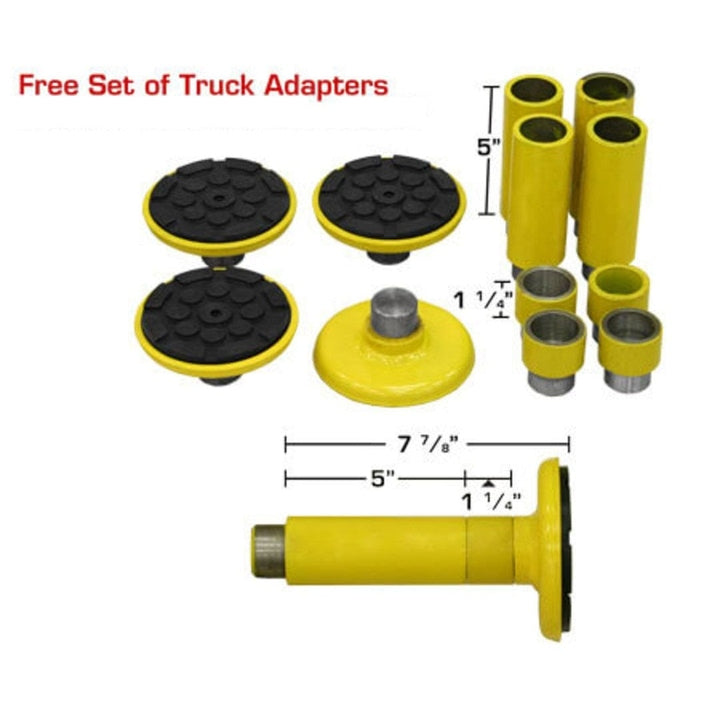

  • Free 8-Piece Truck Adapter Set (Included) for lifting larger vehicles

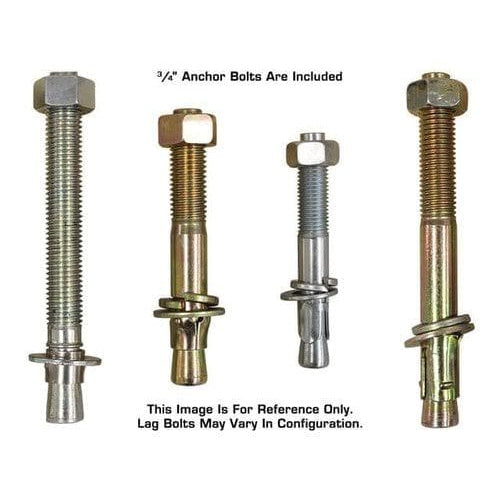

  • Mounting Hardware (Included) for secure installation

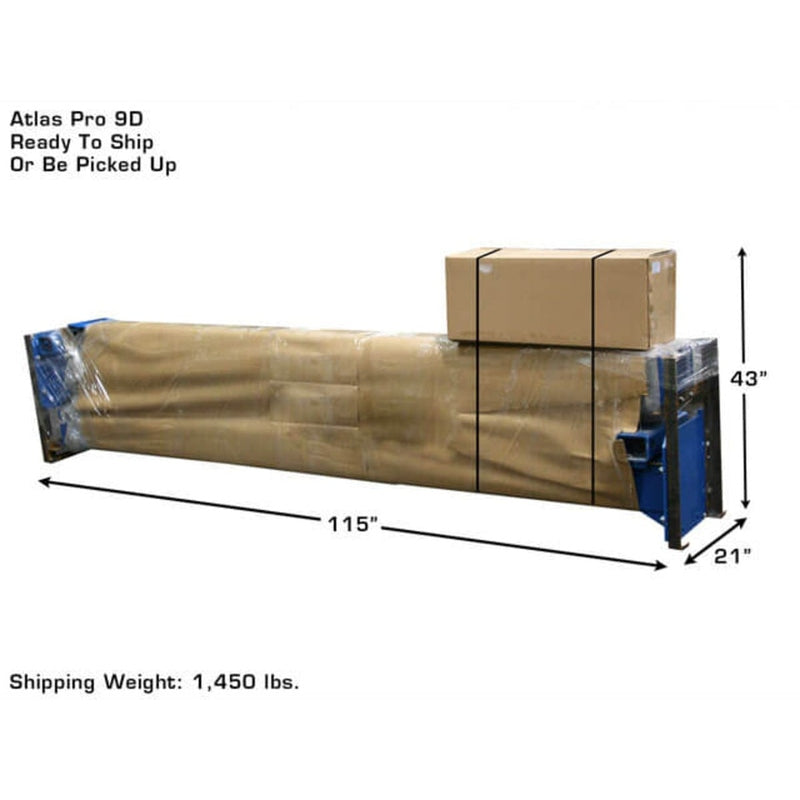

  • Shipping Weight: 1,450 lb.

  • Warranty: 5-Year Structural | 2-Year Hydraulic/Power Unit

Specifications

Specification Measurement
Lifting Capacity 9,000 lb.

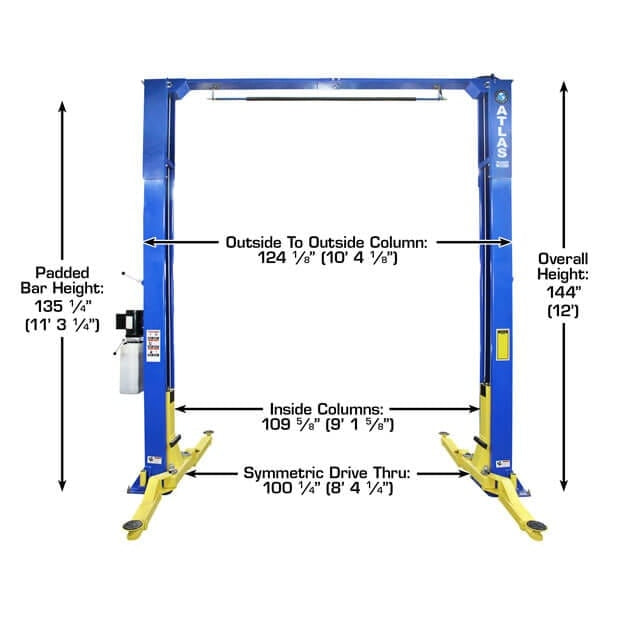

Overall Height 144″ (12′)

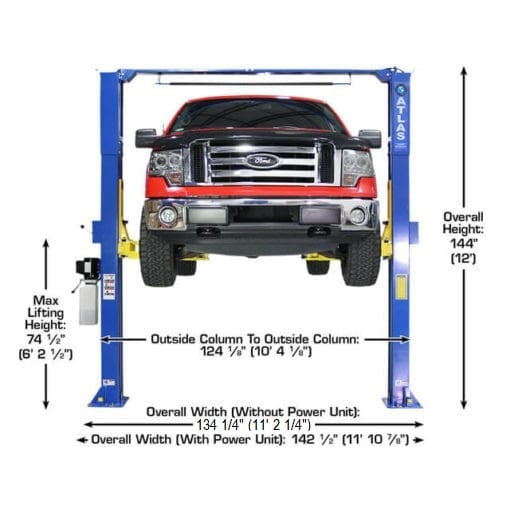

Overall Floor Width 134 ½″ (11′ 2 ½″)
Outside Column to Outside Column 124 ⅞″ (10′ 4 ⅞″)
Maximum Lift Height (Without Adapters) 68″

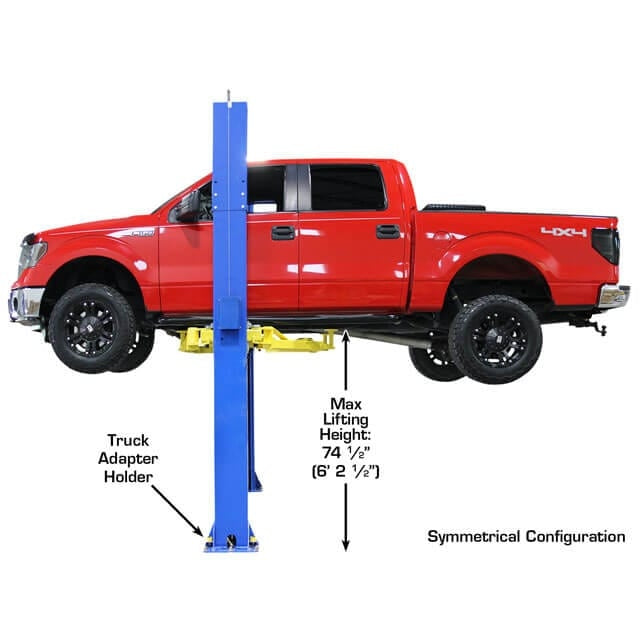

Maximum Lift Height (With Adapters) 74 ¼″

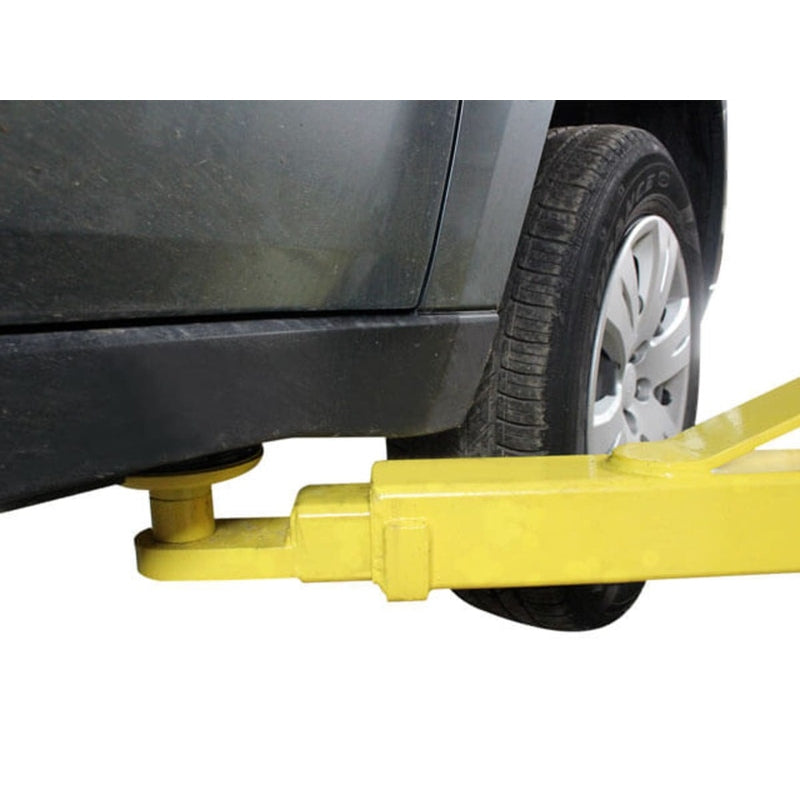

Minimum Arm Height 4 ½″
Inside Column Width 110″ (9′ 2″)

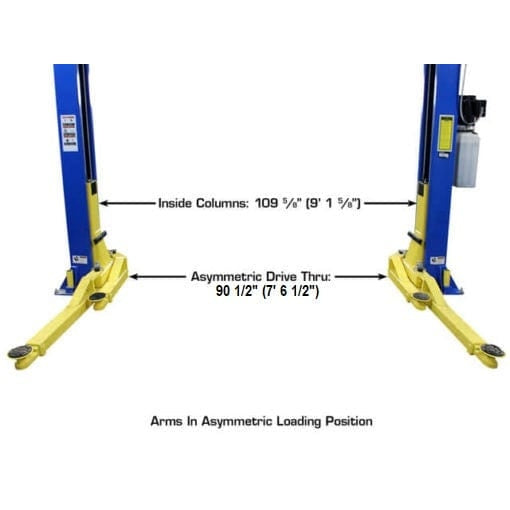

Drive-Through Clearance 100″ (8′ 4″) Symmetric / 90 ½″ (7′ 6 ½″) Asymmetric

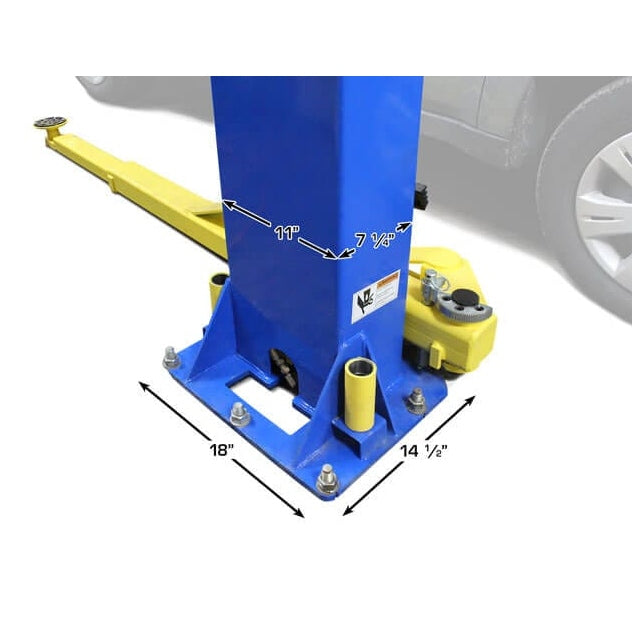

Column Size 7 ¼″ × 11″
Column Steel Thickness 5 mm
Base Plate Dimensions 14 ¼″ × 18″
Electrical Requirement 220V single-phase (30A breaker recommended)
Oil Requirement 3–5 gallons AW32/AW46 (not included)
Shipping Weight 1,450 lb.

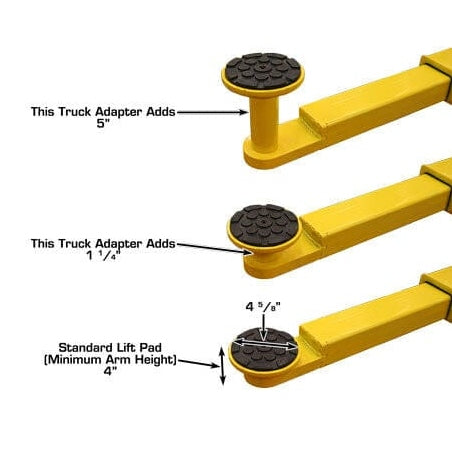

Adapter Heights Four each: 1.5″ and 5″
Arm Hole/Adapter Peg Size 1.5″
Concrete Requirement Minimum 4″ thick slab rated at 3,000 PSI

Documents

Atlas® Pro-9D Manual
