Atlas Automotive EquipmentSKU: ATEXH-PV10PX

At a Glance

  • Free 12-Piece Truck Adapter Set
  • Max Lifting Height: 72.5"
  • Drive-Thru Clearance: 96.25"
Price:
$4,099.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

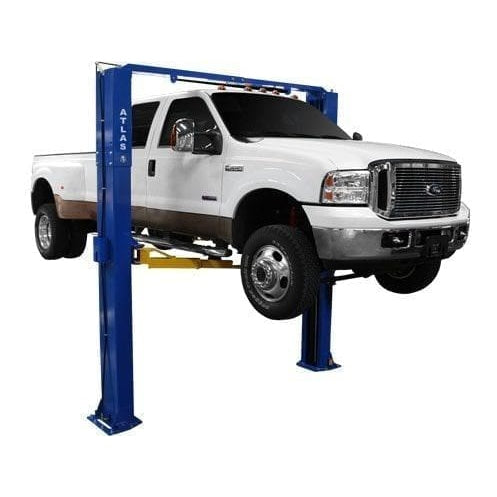

Atlas® PV10PX – 10,000 lb. Capacity Professional-Grade 2-Post Lift

The Atlas® PV Series delivers unbeatable value for customers who demand a heavy-duty, professional-grade two-post lift at a highly competitive price. With over a decade of proven performance and thousands of units sold worldwide, these lifts have earned a reputation for exceptional strength and reliability—often described as “bulletproof,” “tough as nails,” and “built to last.”

The Atlas® PV10PX is the industry standard in its class—trusted by professional automotive shops and serious home mechanics alike. Built for commercial-grade performance, it combines robust engineering with thoughtful enhancements that make it one of the most popular above-ground lifts in the world.

Perfect for both high-volume service departments and dedicated hobbyist garages, the PV10PX is engineered to safely lift everything from compact cars to one-ton diesel dually trucks. Its padded overhead shut-off bar prevents vehicle contact with the top crossbeam, while the rubber-protected carriages help shield vehicle doors from accidental impact.

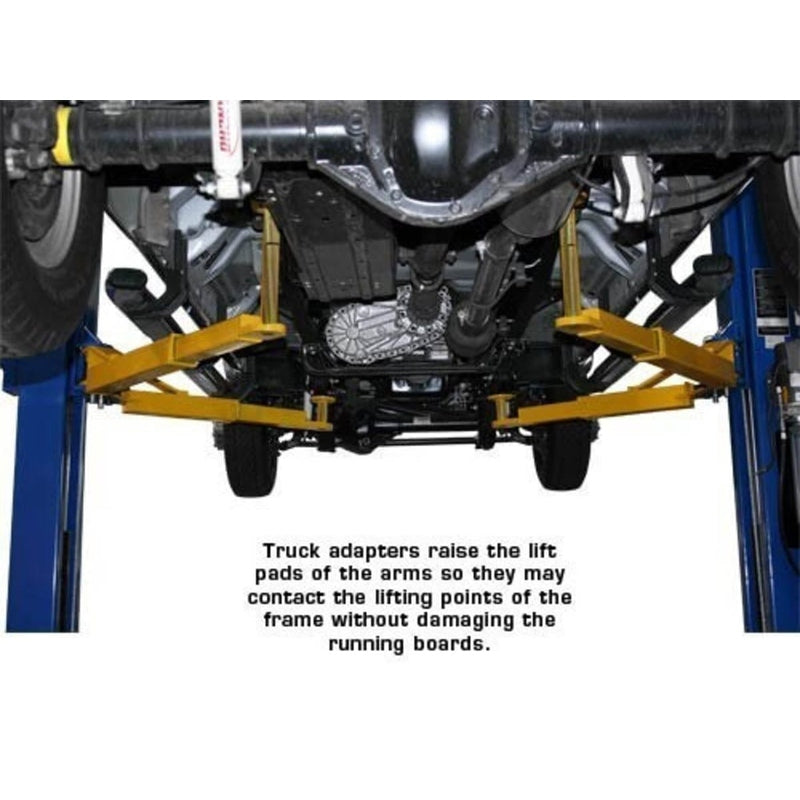

For added versatility, the PV10PX includes a deluxe 12-piece truck adapter set (an upgrade from the standard 8-piece set) and reinforced rubber lift pads, ensuring stable, secure contact with vehicle lifting points on a wide variety of models.

With its combination of commercial strength, operator safety, and proven durability, the Atlas® PV10PX is the ultimate choice for professionals and enthusiasts who want a lift that performs flawlessly in any environment—from a full-service repair shop to a personal workshop.




Features

  • 10,000 lb. Lifting Capacity

  • Commercial-Grade Construction for professional and heavy-duty applications

  • Adjustable Height Options: 11′ 11 ⅛″ or 12′ 3″ configurations

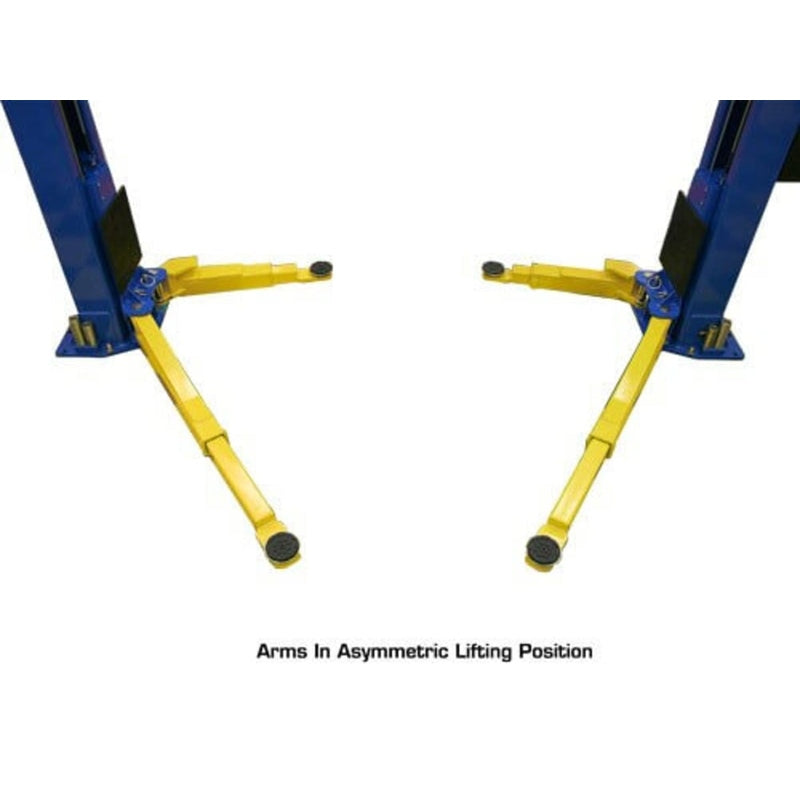

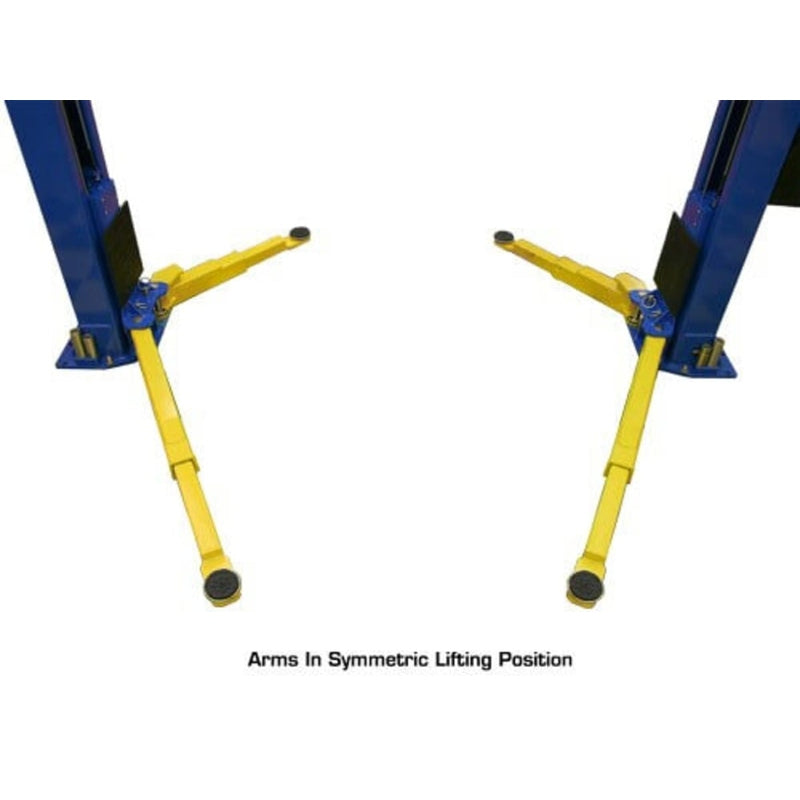

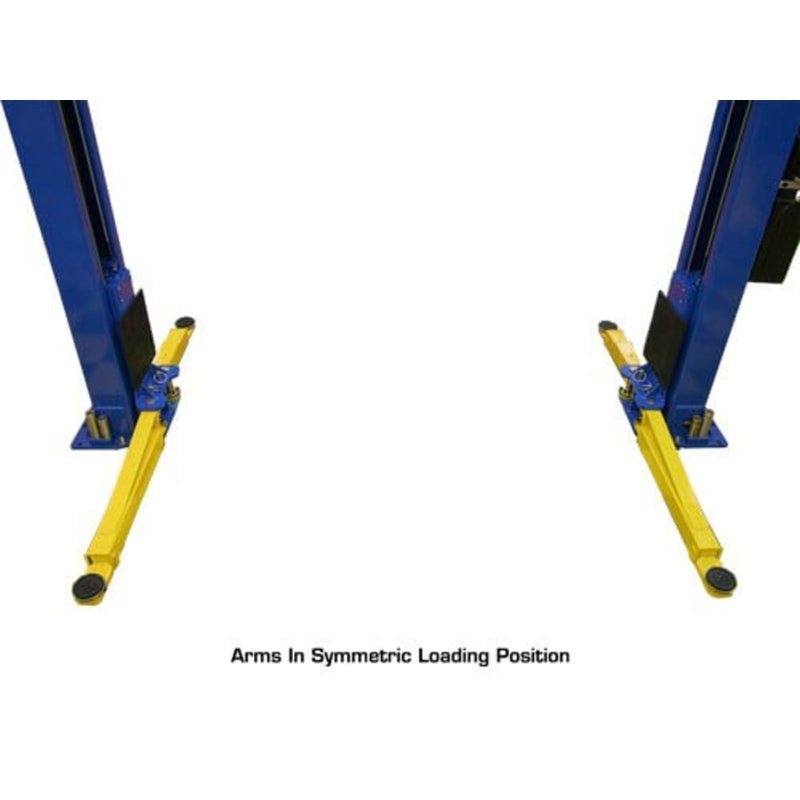

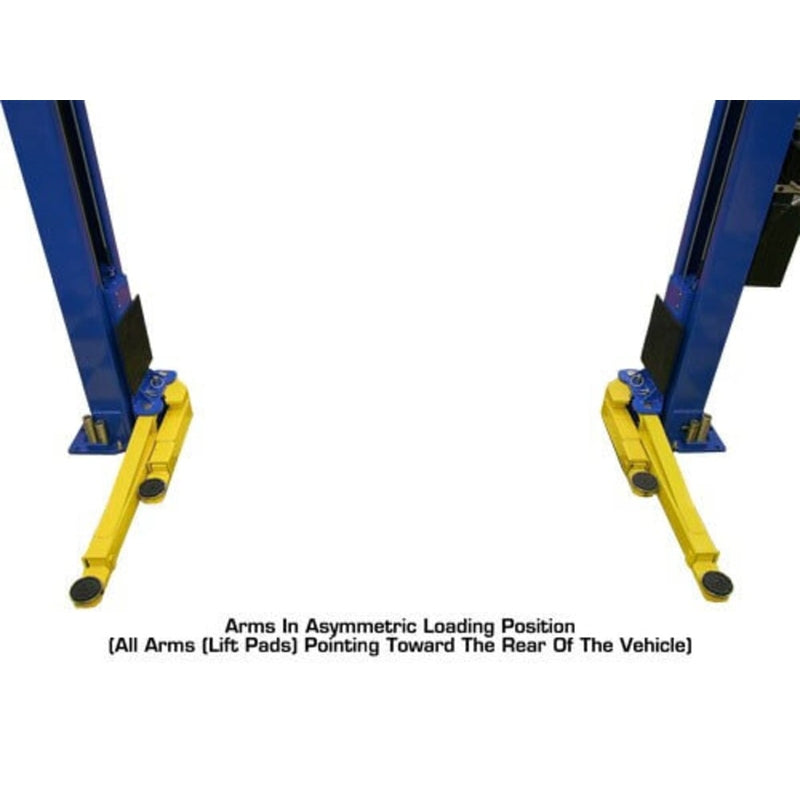

  • Asymmetric/Symmetric Arm Design for versatile vehicle positioning

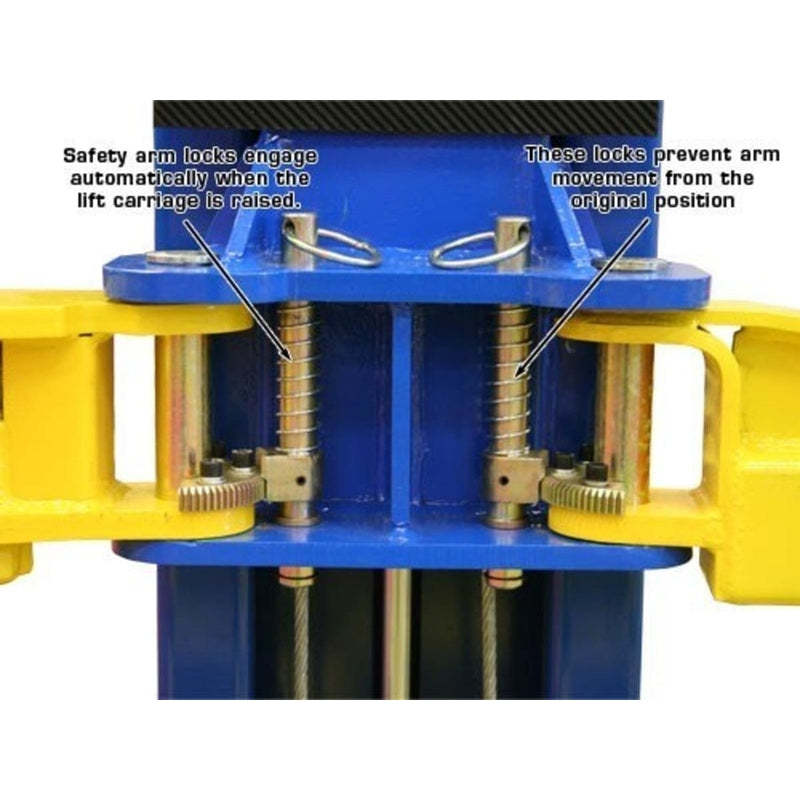

  • Automatic Arm Restraints for enhanced operator safety

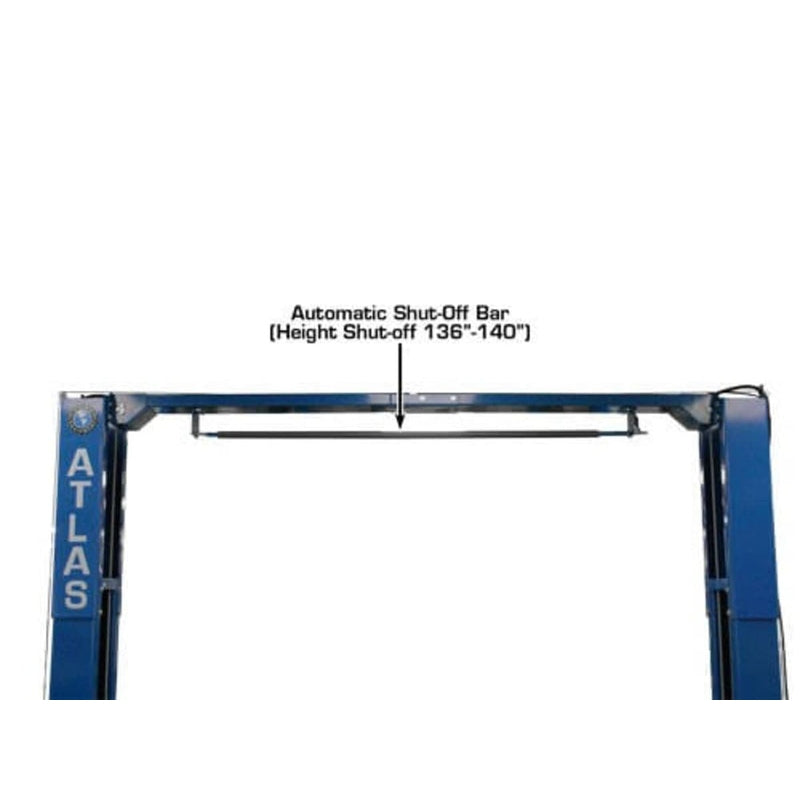

  • Padded Overhead Shut-Off Bar prevents vehicle contact with the top beam

  • Padded Carriages to protect vehicle doors from impact

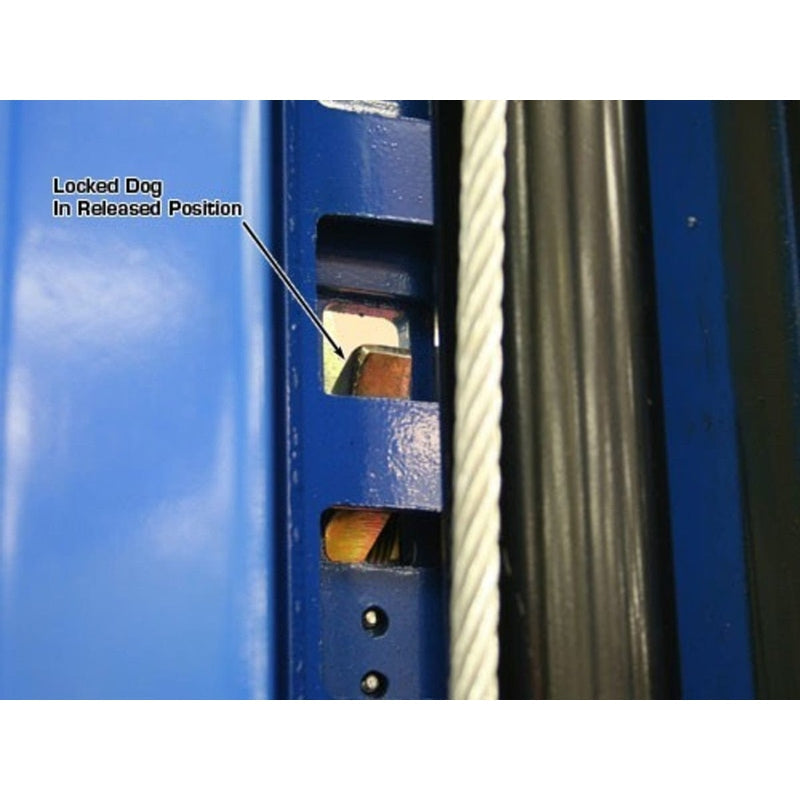

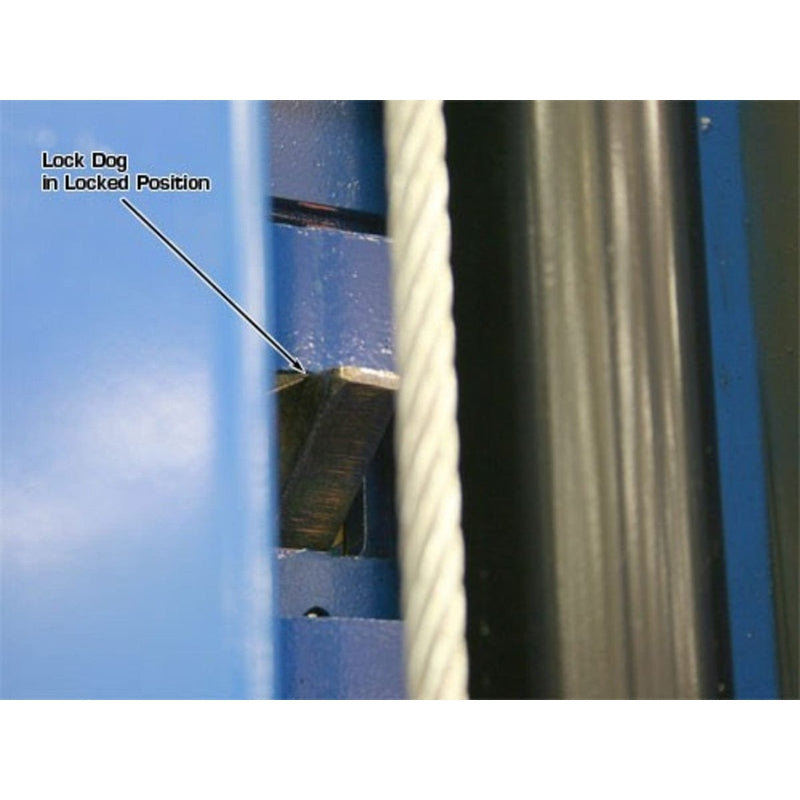

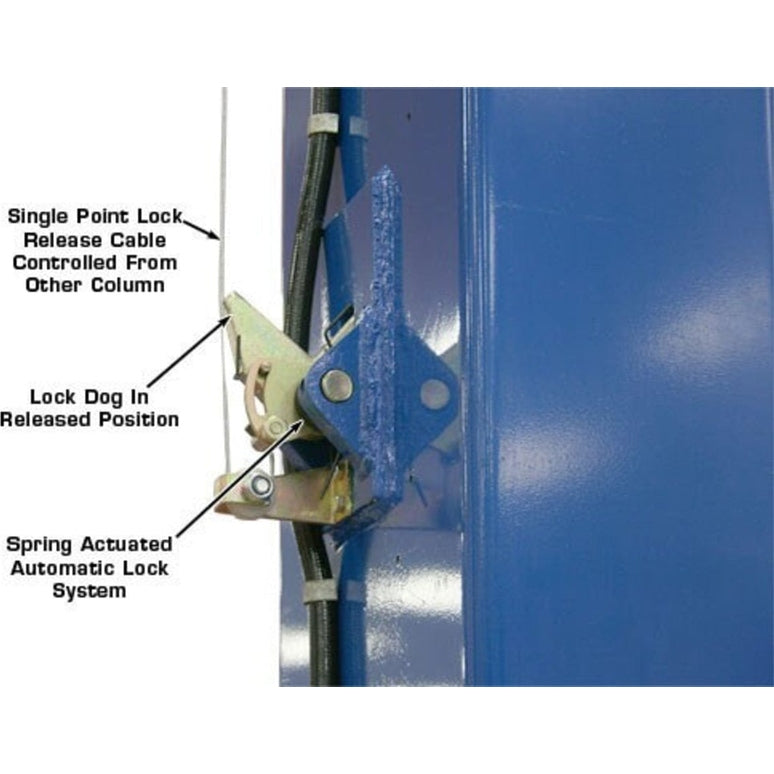

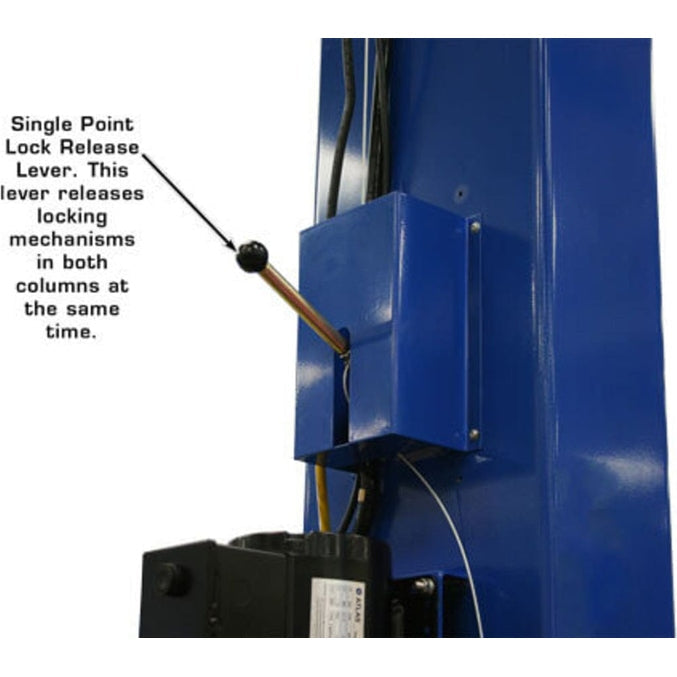

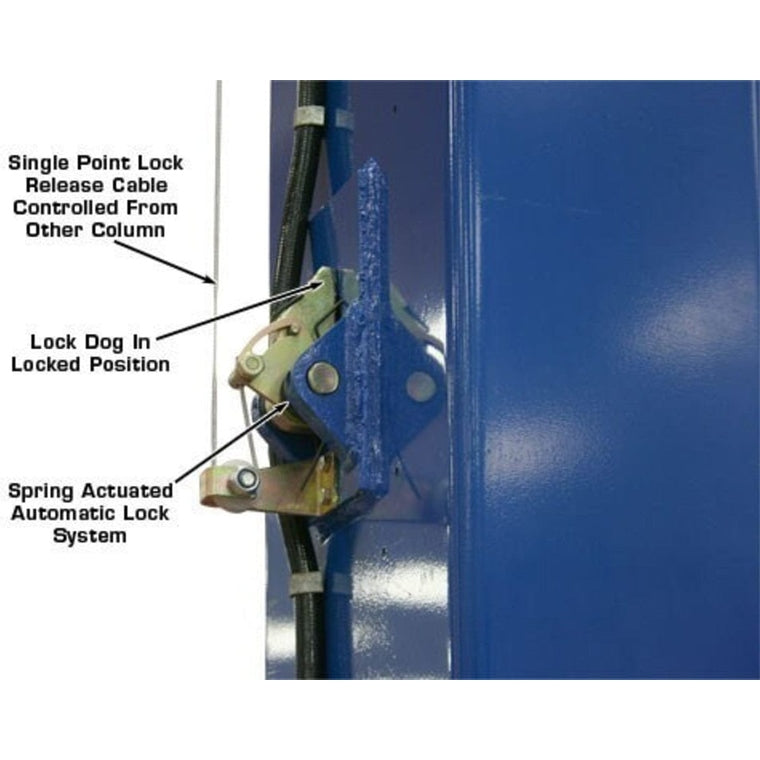

  • Single-Point Lock Release for simple and efficient operation

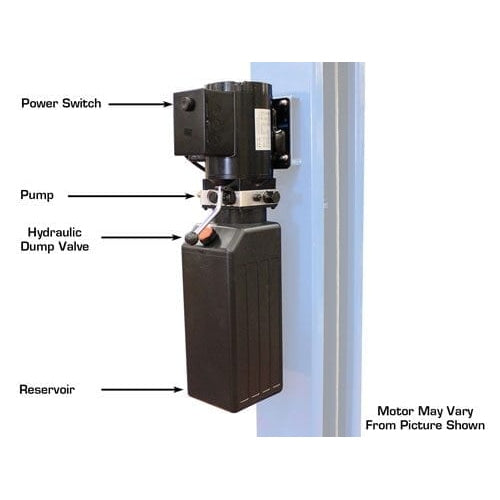

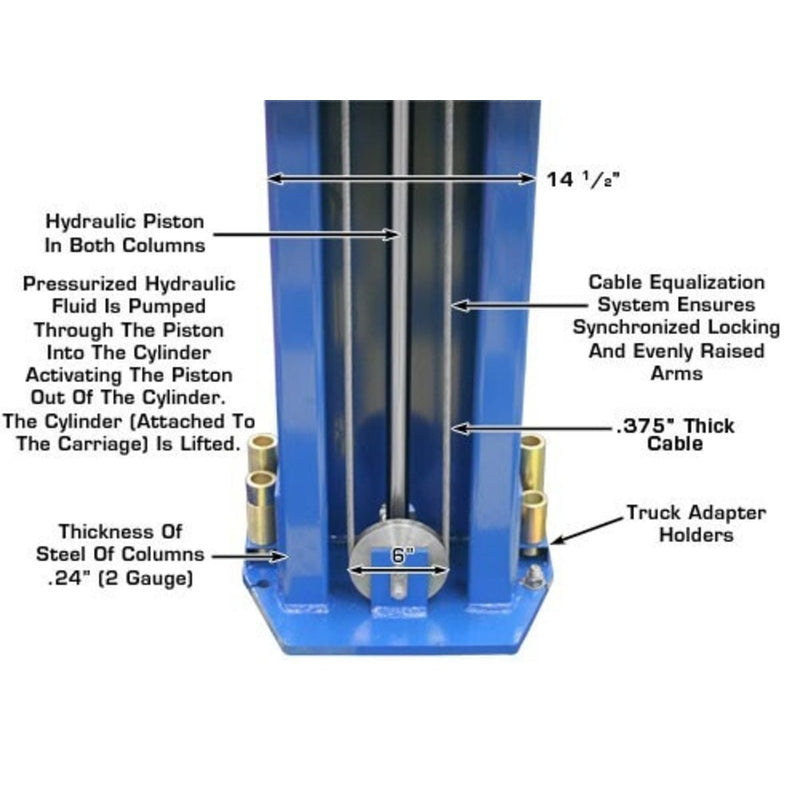

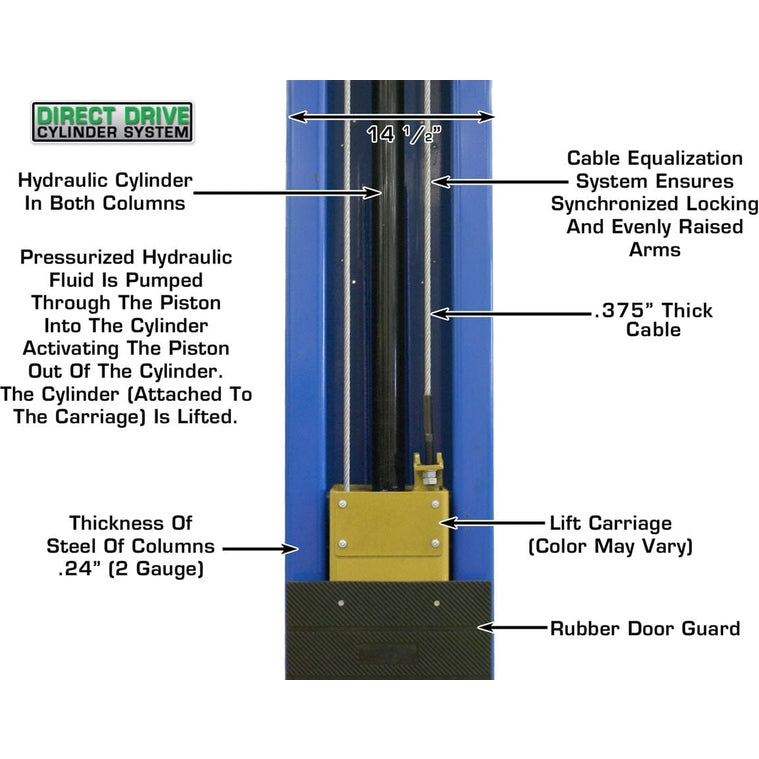

  • Direct-Drive Hydraulic Cylinders for smooth, reliable lifting performance

  • Durable Powder-Coated Finish for long-lasting protection

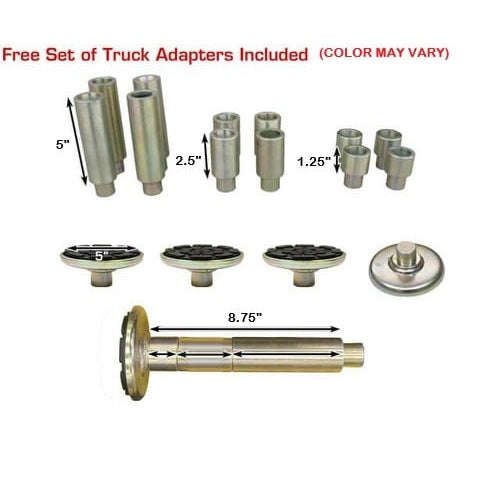

  • Free 12-Piece Truck Adapter Set (Included)

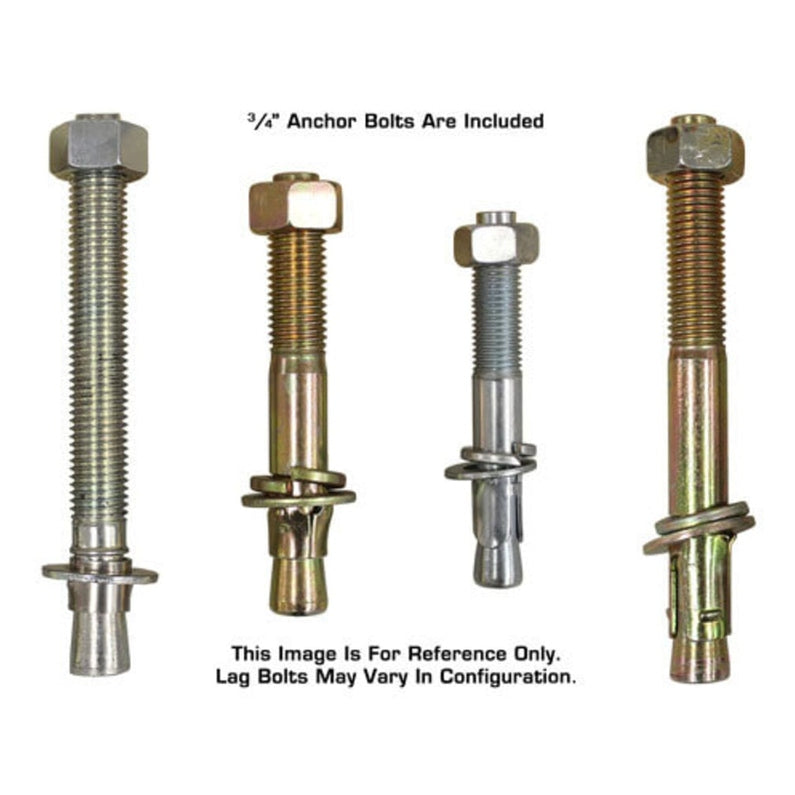

  • Mounting Hardware (Included) for quick and secure installation

  • Shipping Weight: 1,875 lb.

  • Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)

Specifications

Specification Measurement
Lifting Capacity 10,000 lb.

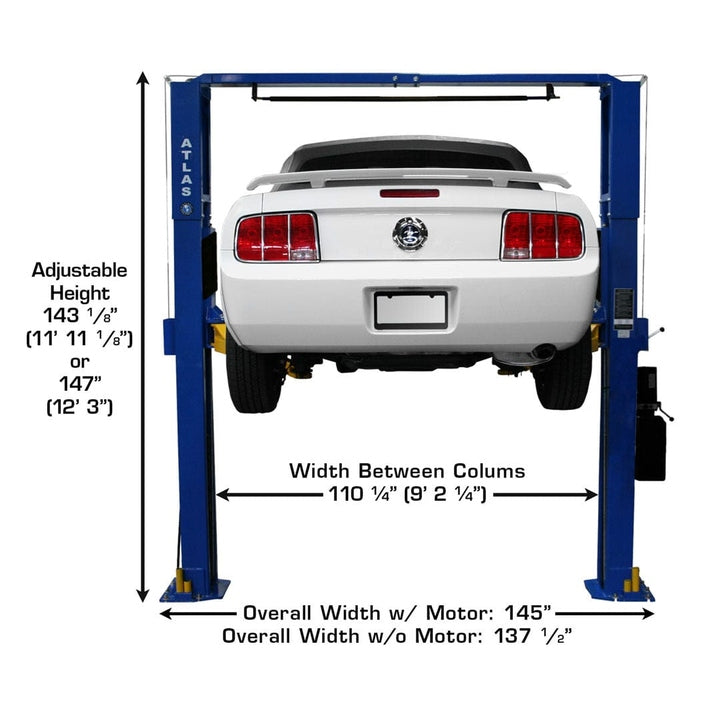

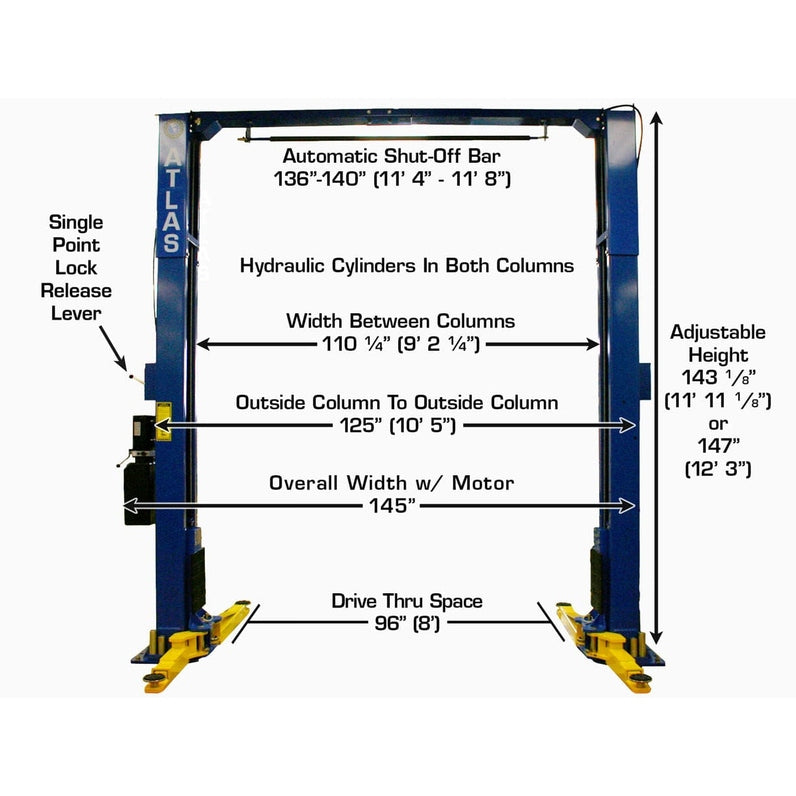

Overall Height 143 ⅛" (11′ 11 ⅛″) or 147" (12′ 3″)
Overall Width (with Motor) 145" (11′ 11″)
Outside Column to Outside Column 125 ½" (10′ 5 ½″)
Maximum Lift Height (Without Adapters) 72 ½"

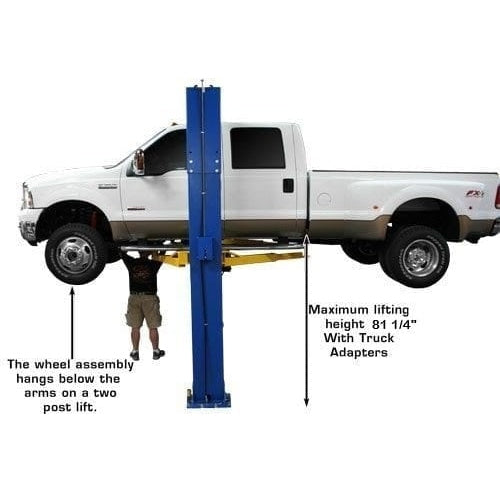

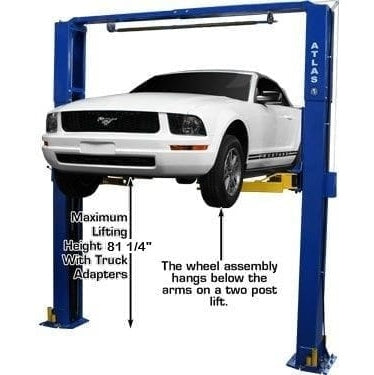

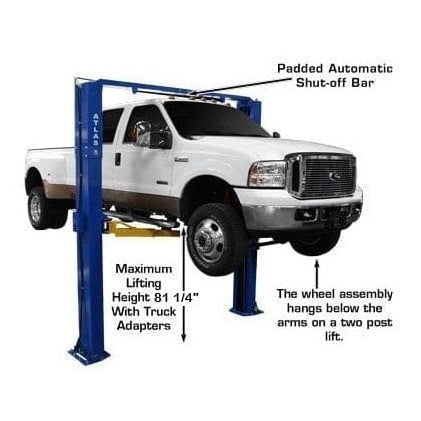

Maximum Lift Height (With Adapters) 81 ¼"
Minimum Arm Height 4 ½"
Inside Column Width 110 ⅛" (9′ 2 ⅛″)
Drive-Through Clearance 96 ¼" (8′ ¼″) Symmetric / 90 ¼" (7′ 6 ¼″) Asymmetric

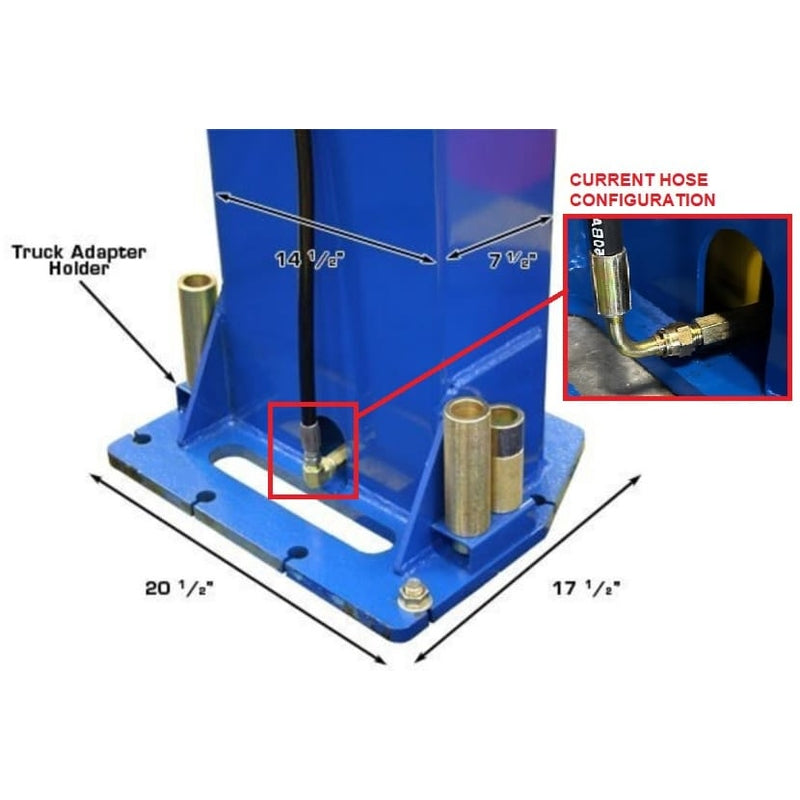

Column Size 7 ½" × 14 ½"
Column Steel Thickness 6 mm
Base Plate Dimensions 17 ½" × 20 ½"
Electrical Requirement 220V single-phase (30A breaker recommended)
Oil Requirement 3–5 gallons AW32/AW46 (not included)

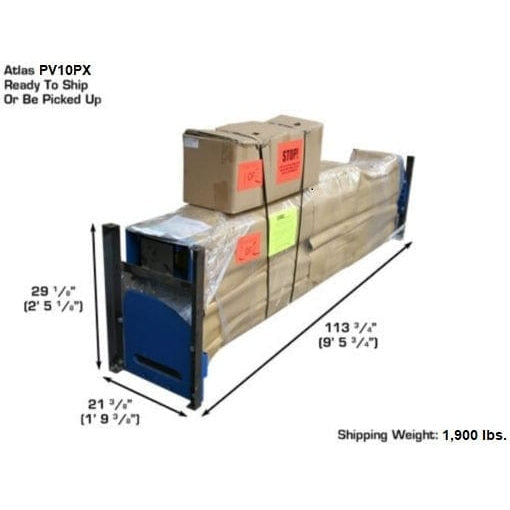

Shipping Weight 1,900 lb.
Adapter Heights Four each: 1.25", 2.5", and 5"
Arm Hole/Adapter Peg Size 1.5"
Concrete Requirement Minimum 4" thick slab rated at 3,000 PSI

Documents

Atlas® XH-PV10PX Manual
