Atlas Automotive EquipmentSKU: ATEXH-PV12PX-3

At a Glance

  • Low Height Option: 150"; Durable Powder-Coated Finish; Free 12-Piece Truck Adapter Set
  • Max Lifting Height: 72.25"
  • Drive-Thru Clearance: 109.5"
Price:
$5,249.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

Atlas® PV12PX – 12,000 lb. Capacity Extra-Tall, Extra-Wide Commercial 2-Post Lift

The Atlas® PV Series delivers unbeatable value for those who demand a heavy-duty, professional-grade two-post lift at an exceptional price. With over a decade of proven reliability and thousands of lifts in operation worldwide, the PV Series is celebrated for its strength, durability, and performance — often described as “bulletproof,” “tough as nails,” and “built to last.”

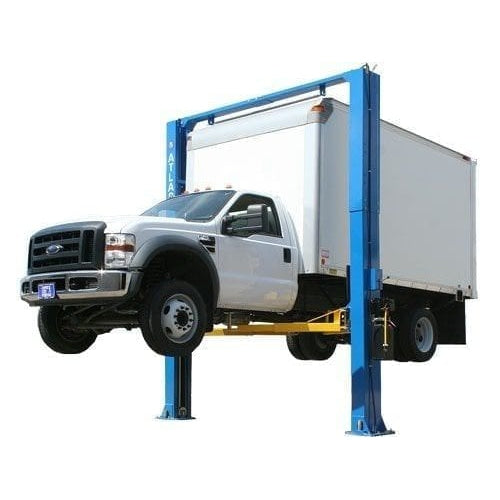

The Atlas® PV12PX is a commercial-grade lift engineered to handle everything from standard passenger cars to long-wheelbase trucks and commercial vehicles. Thanks to its low pad height, the PV12PX can safely lift smaller vehicles, while its extra-tall, wide-column design easily accommodates larger trucks and vans. The 123″ space between columns and 109″ drive-through clearance provide ample room for wide vehicles, including those with oversized mirrors or extended bodies.

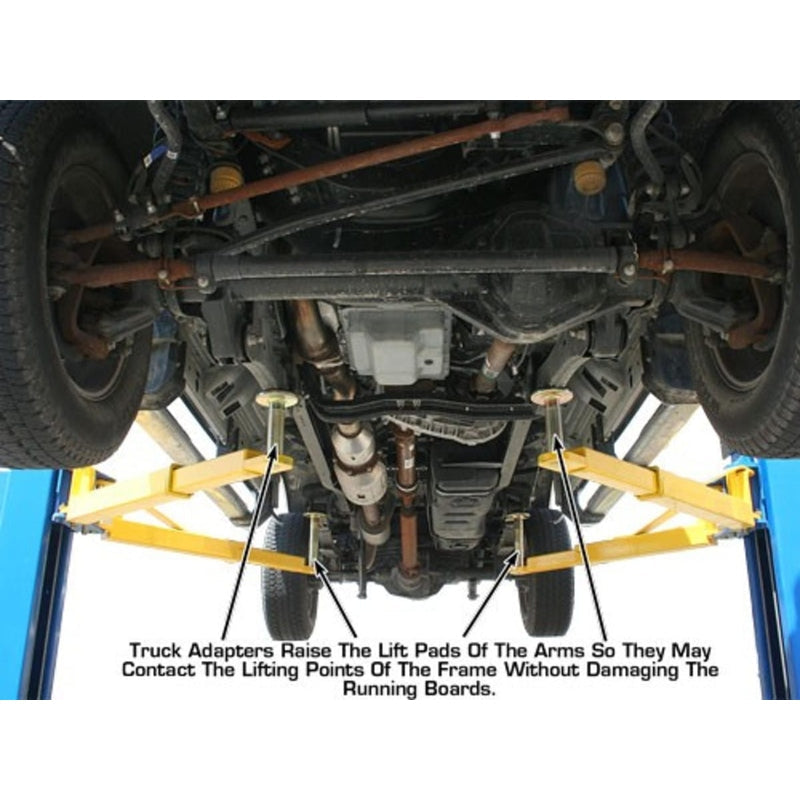

Its longer symmetrical arms and included peg-style truck adapter set make it ideal for long-wheelbase vehicles with various running board configurations. The increased column height provides additional clearance for vans, service vehicles, and box trucks, giving operators the flexibility to work safely and efficiently on a diverse range of vehicles.

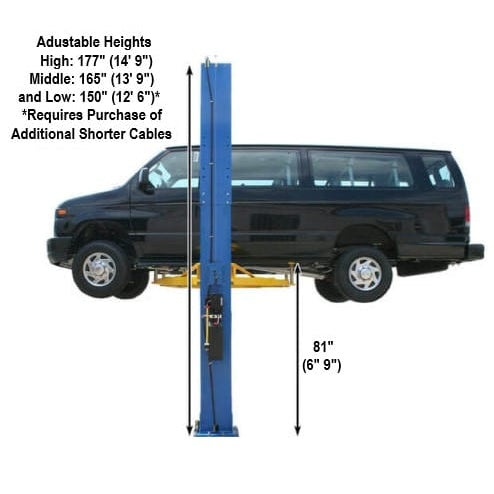

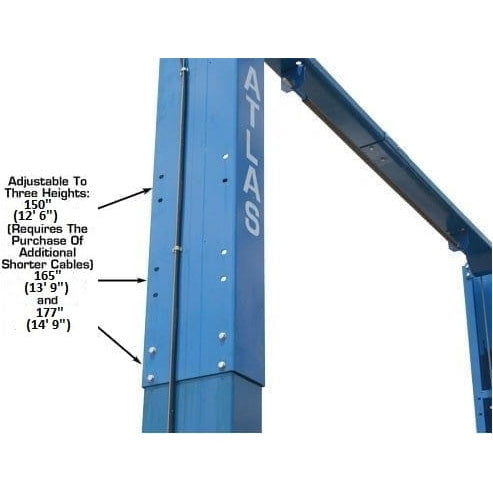

The Atlas® ATEXH-PV12PX offers three adjustable height configurations — 150" (12′ 6″), 165" (13′ 9″), and 177" (14′ 9″). The 150" low-ceiling option requires optional short cables, making this model adaptable to a variety of shop environments.

Built for commercial performance and longevity, the Atlas® PV12PX combines strength, versatility, and safety — making it an ideal lift for professional service centers, fleet garages, and serious automotive enthusiasts.

Key Features

  • 12,000 lb. Lifting Capacity

  • Extra-Tall and Extra-Wide Commercial-Grade Construction

  • Adjustable Height Options: 150" (12′ 6″), 165" (13′ 9″), or 177" (14′ 9″)

  • Low Height Option: 150" (12′ 6″) (requires purchase of short cables)

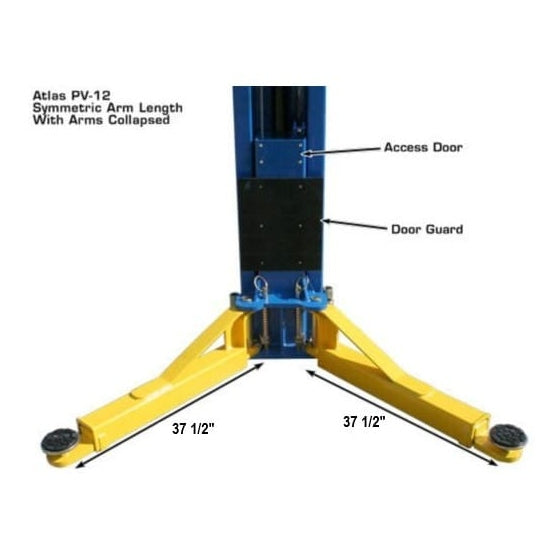

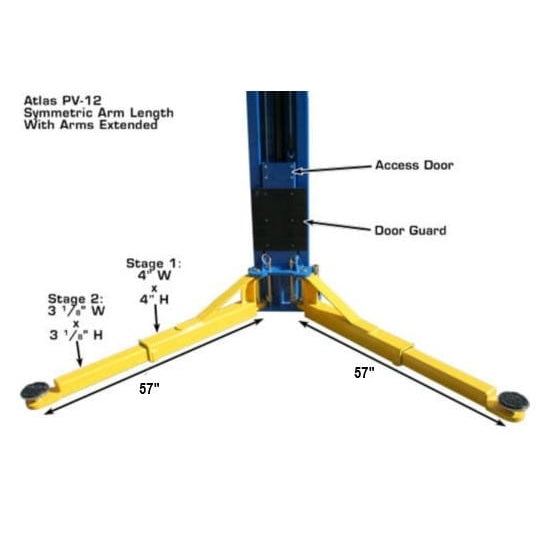

  • Symmetric Arm Design for balanced vehicle lifting

  • Automatic Arm Restraints ensure secure operation

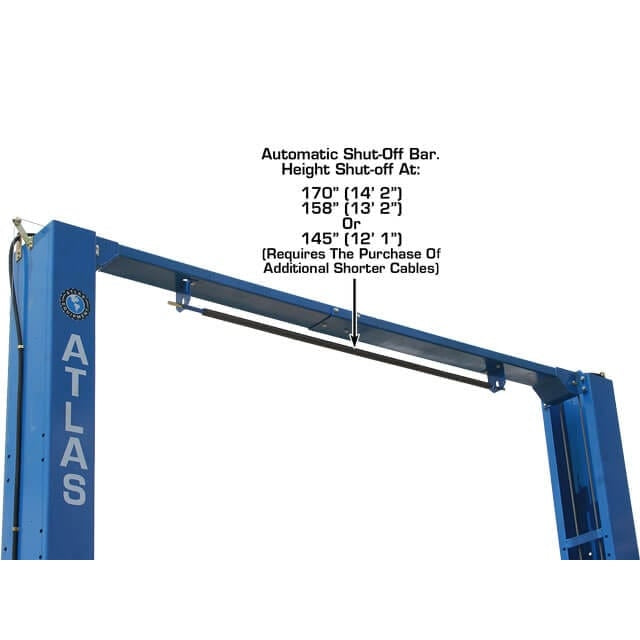

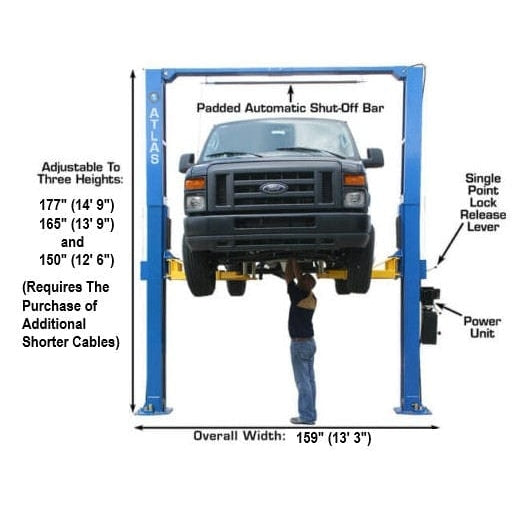

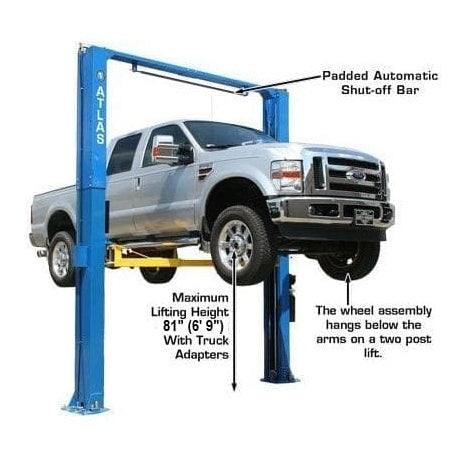

  • Padded Overhead Shut-Off Bar prevents vehicle contact with crossbeam

  • Door Guards on Carriages protect vehicle doors from impact

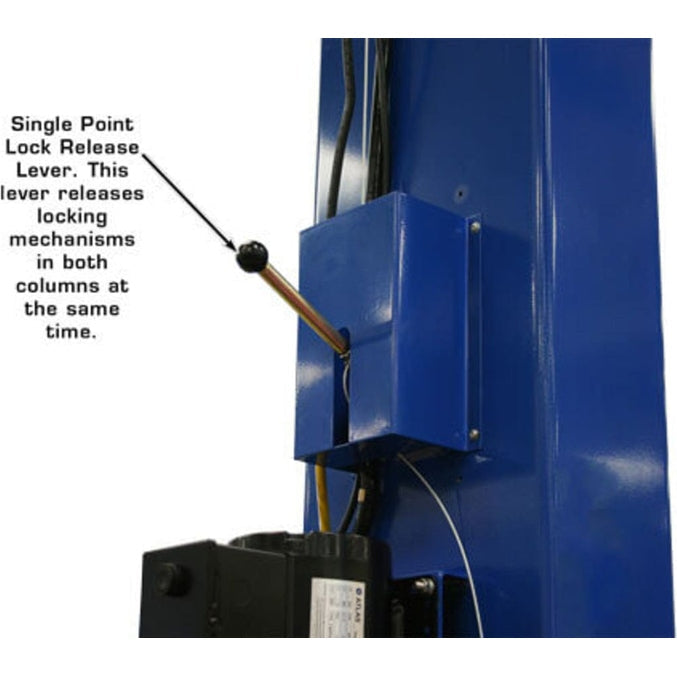

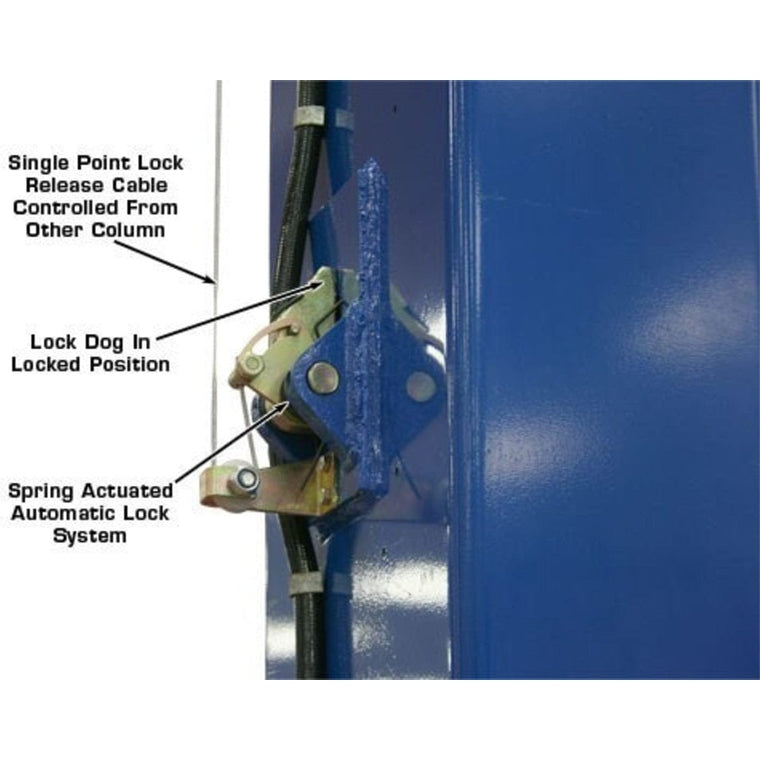

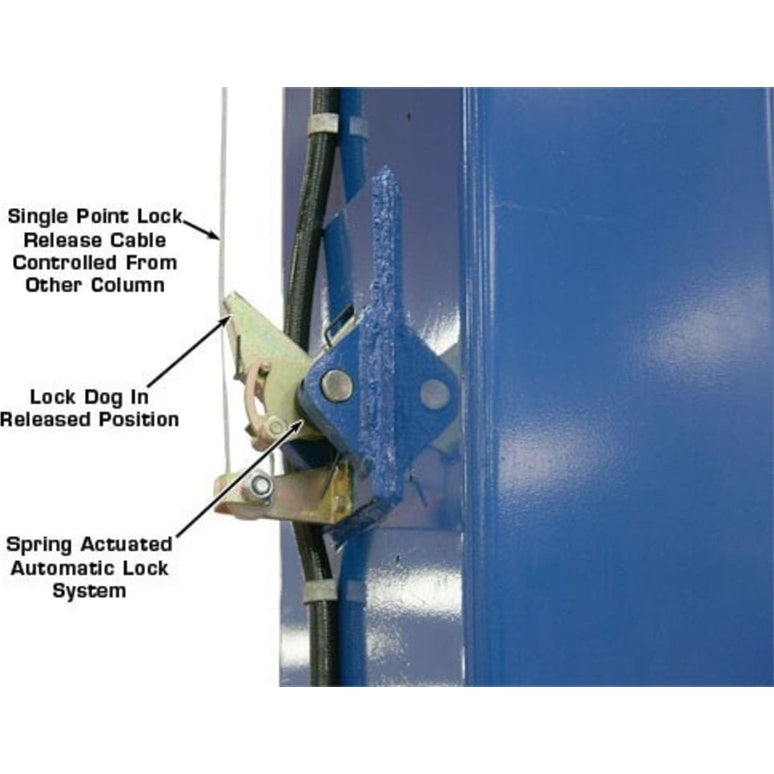

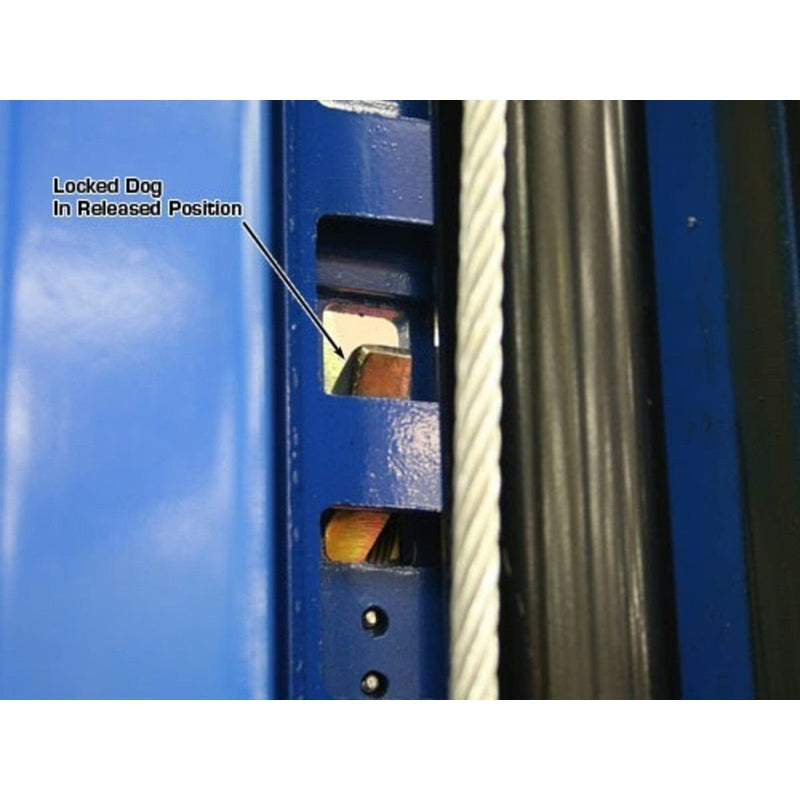

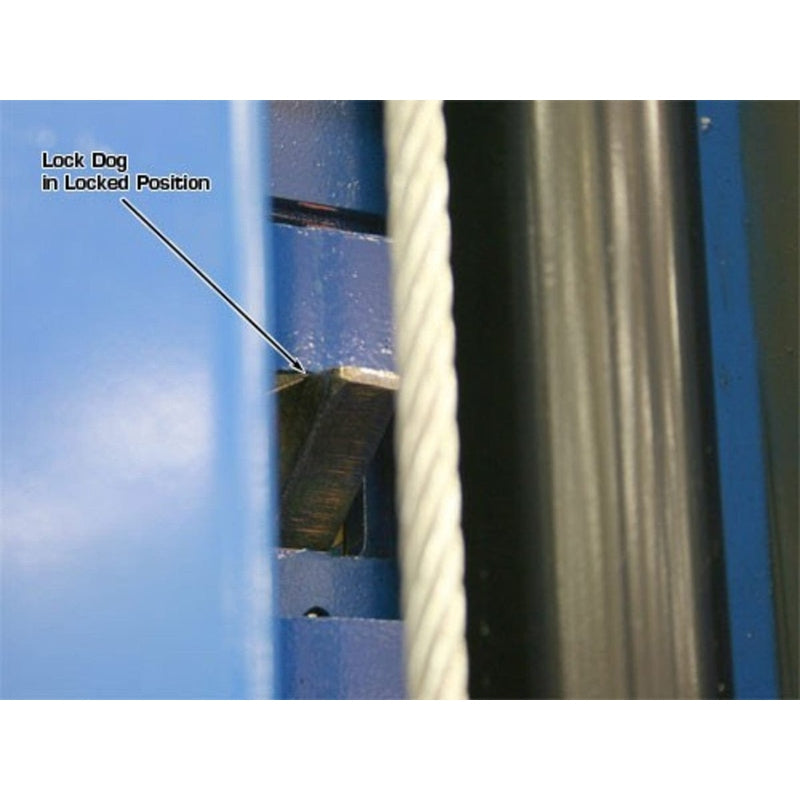

  • Single-Point Lock Release for smooth, easy operation

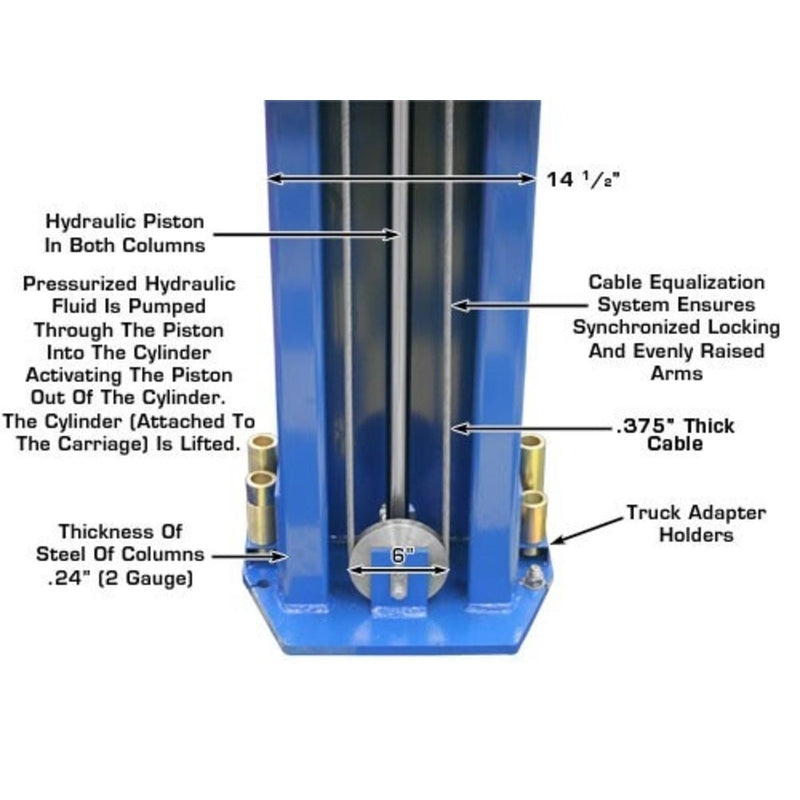

  • Direct-Drive Hydraulic Cylinders for consistent performance

  • Durable Powder-Coated Finish

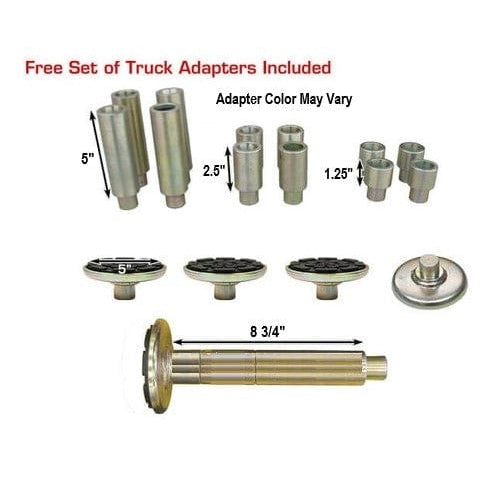

  • Free 12-Piece Truck Adapter Set (Included)

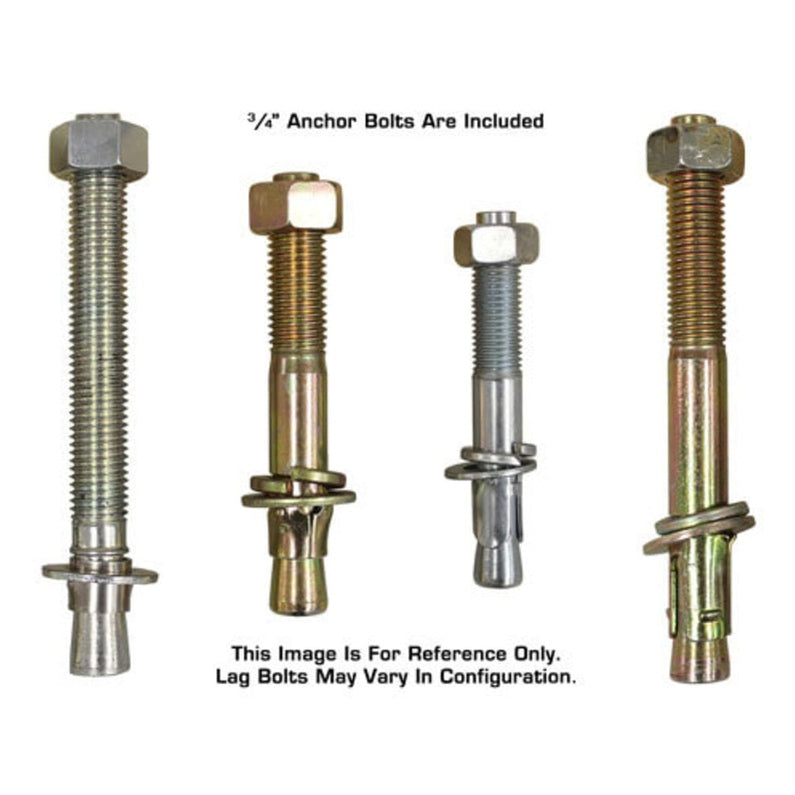

  • Mounting Hardware (Included)

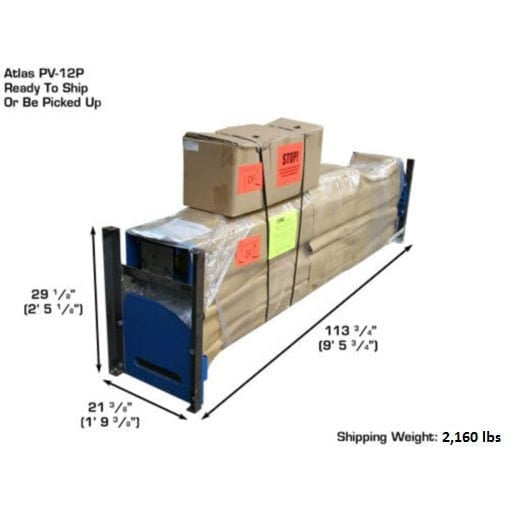

  • Shipping Weight: 2,160 lb.

  • Warranty: 5-Year Structural | 2-Year Hydraulic | 1-Year Power Unit (Parts Only)

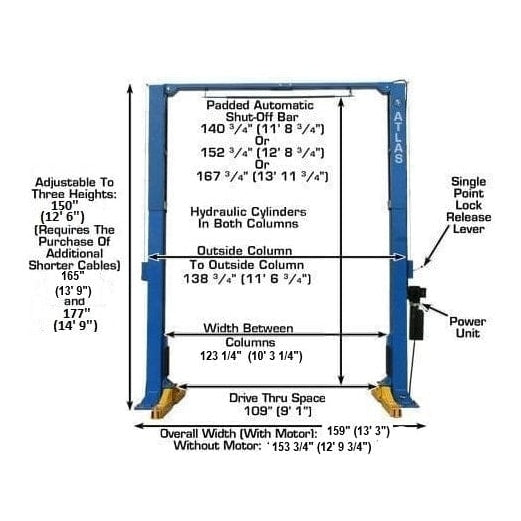

Specifications

Specification Measurement
Lifting Capacity 12,000 lb.
Overall Height 165" (13′ 9″) or 177" (14′ 9″)
Low Height Option 150" (12′ 6″) (requires purchase of short cables)
Overall Floor Width 150 ¾" (12′ 6 ¾″)
Outside Column to Outside Column 139 ⅛" (11′ 7 ⅛″)
Maximum Lift Height (Without Adapters) 72 ¼"

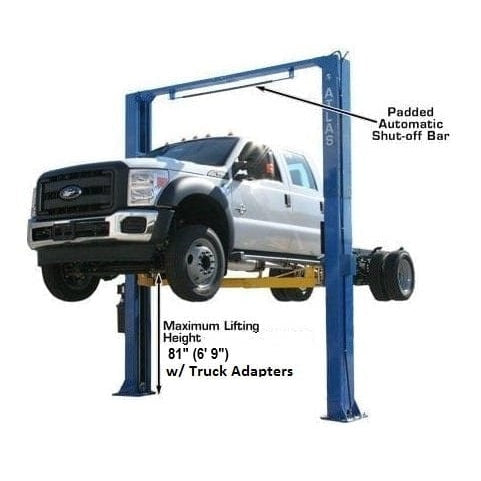

Maximum Lift Height (With Adapters) 81"
Minimum Arm Height 4 ½"
Inside Column Width 123 ½" (10′ 3 ½″)
Drive-Through Clearance 109 ½" (9′ 1 ½″)

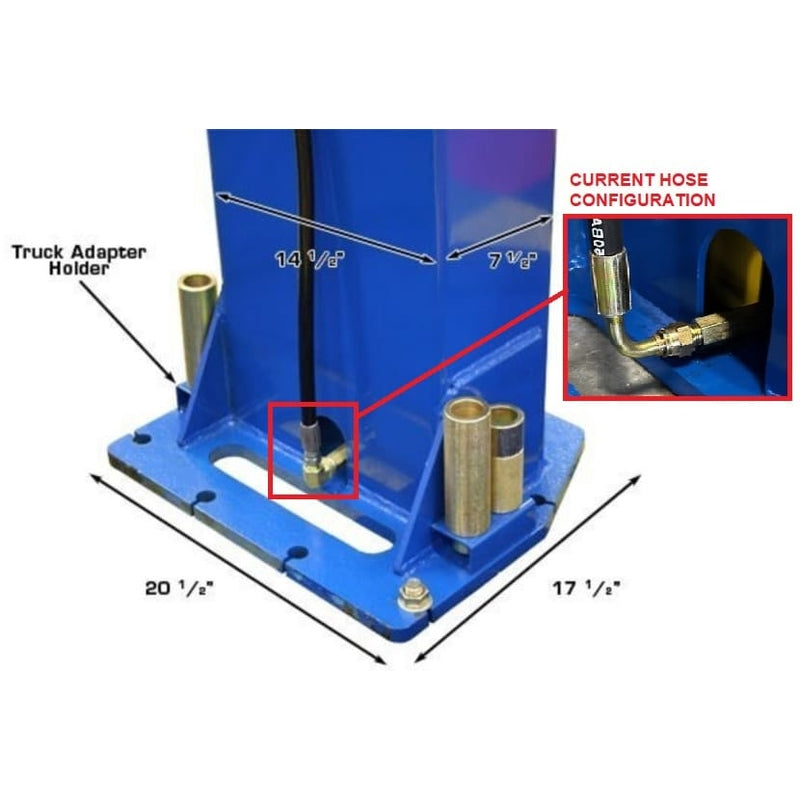

Column Size 7 ½" × 14 ½"
Column Steel Thickness 6 mm
Base Plate Dimensions 17 ½" × 20 ½"
Electrical Requirement 220V single-phase (30A breaker recommended)
Oil Requirement 3–5 gallons AW32/AW46 (not included)
Shipping Weight 2,160 lb.

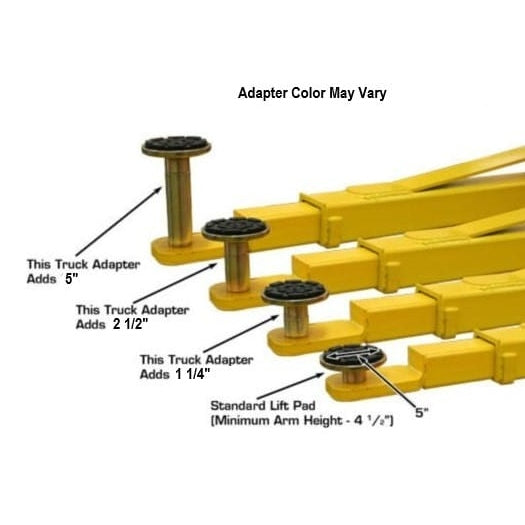

Adapter Heights Four each: 1.25", 2.5", and 5"
Arm Hole/Adapter Peg Size 1.5"
Concrete Requirement Minimum 6" thick slab rated at 3,000 PSI

Documents

Atlas® XH-PV12PX Manual
