Atlas PV15PX 15,000 lb Overhead 2-Post Lift

Atlas Automotive EquipmentSKU: ATEXH-PV15PX

At a Glance

  • Optional Low Height Setting: 150"; Symmetric Arm Design; Automatic arm restraints
  • Max Lifting Height: 72.25"
  • Drive-Thru Clearance: 109.5"
Price:
$6,499.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

Atlas® XH-PV15PX – 15,000 lb. Capacity Extra-Tall, Extra-Wide Commercial 2-Post Lift

The Atlas® PV Series delivers exceptional performance, strength, and value for customers who demand a professional-grade, heavy-duty two-post lift at a competitive price. With over a decade of proven reliability and thousands of units sold, the PV Series has earned a reputation for being “built like a tank” — rugged, dependable, and engineered for serious lifting applications.

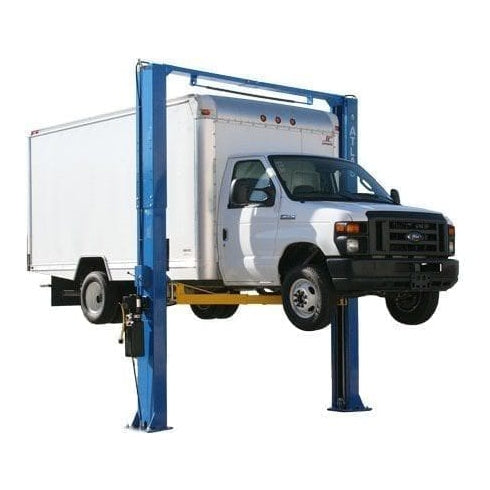

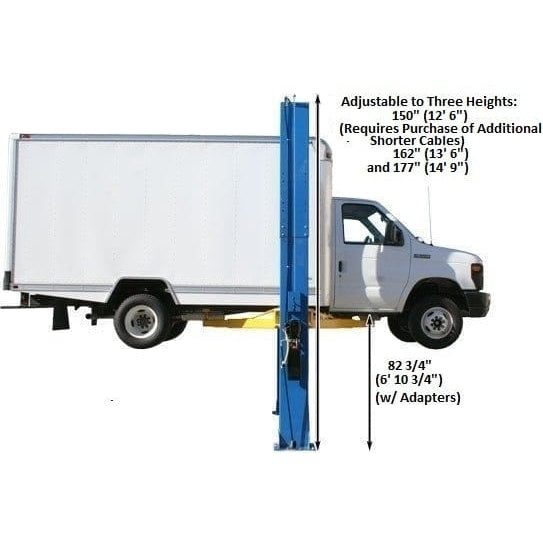

The Atlas® XH-PV15PX is a true commercial-grade lift designed to handle everything from passenger vehicles to large service trucks. With nearly 123 inches between the symmetrical columns and a 109-inch drive-through clearance, it easily accommodates wide vehicles, extended mirrors, and oversized truck bodies. The extra-long arms and included peg-style truck adapters provide exceptional flexibility for servicing long-wheelbase vehicles and trucks with running boards, while the taller column design offers the additional clearance needed for vans, utility trucks, and box vehicles.

This model includes three adjustable height configurations — 165" (13' 9"), 177" (14' 9"), or a special low height of 150" (12' 6"), which requires optional short cables. This adjustability allows shop owners to customize installation to their ceiling height while maintaining maximum lifting performance and safety.

Built for demanding commercial environments, the Atlas® XH-PV15PX combines strength, precision, and versatility to meet the needs of professional service centers, fleet garages, and heavy-duty vehicle operators.

Key Features

  • 15,000 lb. Lifting Capacity

  • Extra Tall and Extra Wide design accommodates large commercial vehicles

  • Commercial-Grade Construction for professional use

  • Adjustable Height Options: 165" (13' 9") or 177" (14' 9")

  • Optional Low Height Setting: 150" (12' 6") (requires extra short cables)

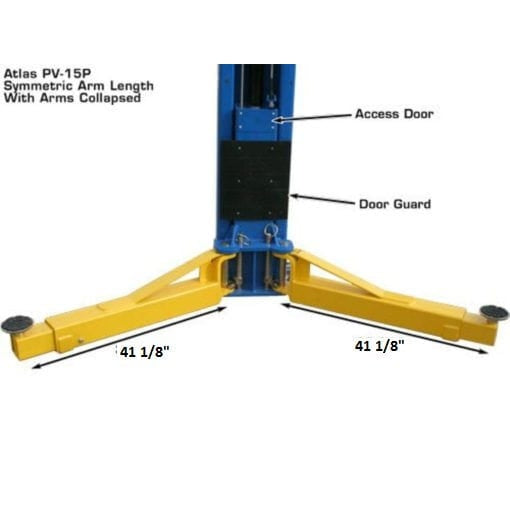

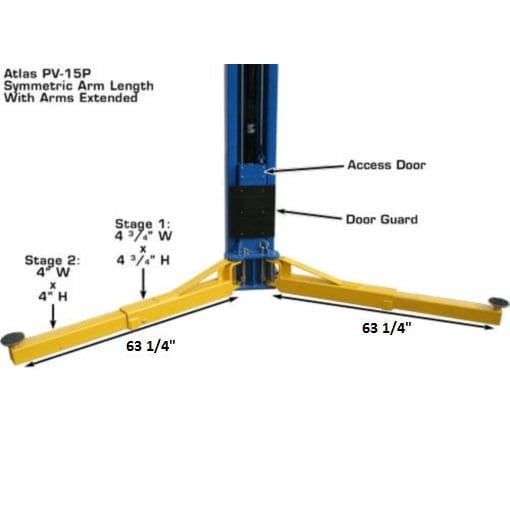

  • Symmetric Arm Design for balanced lifting

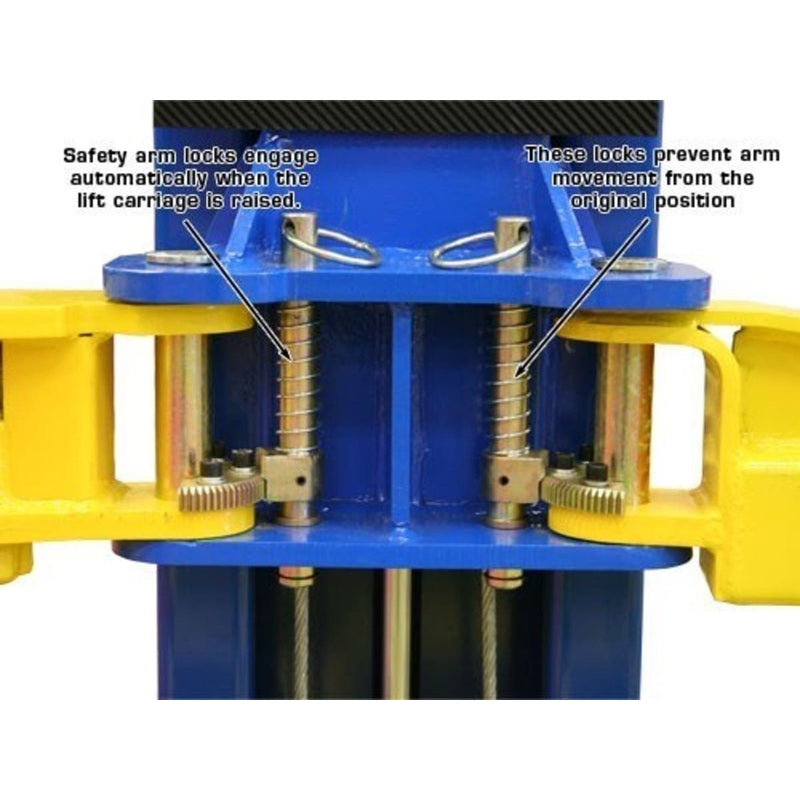

  • Automatic Arm Restraints for operator safety

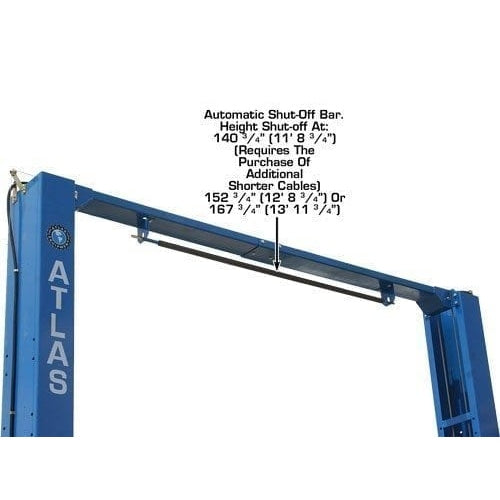

  • Padded Overhead Shut-Off Bar prevents vehicle damage

  • Door Guards on Carriages protect vehicle panels during lifting

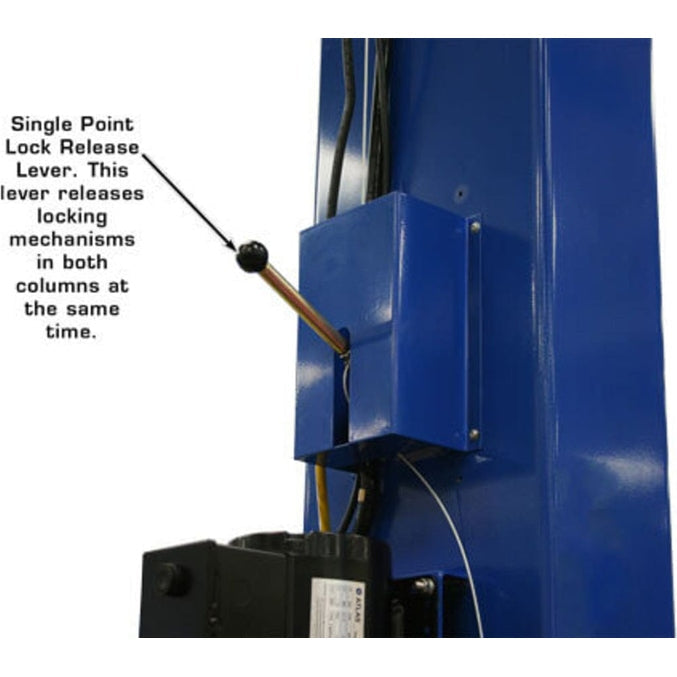

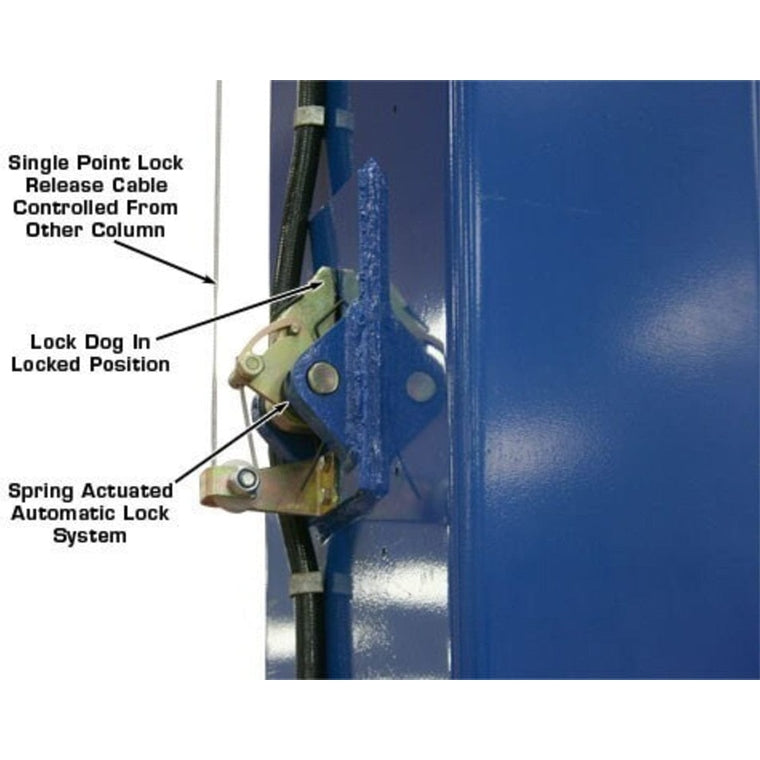

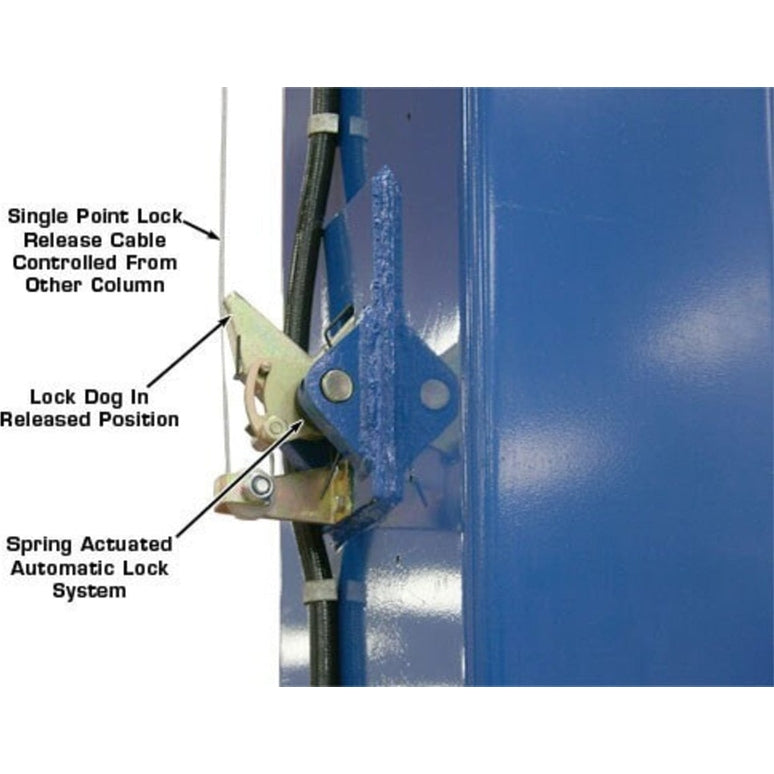

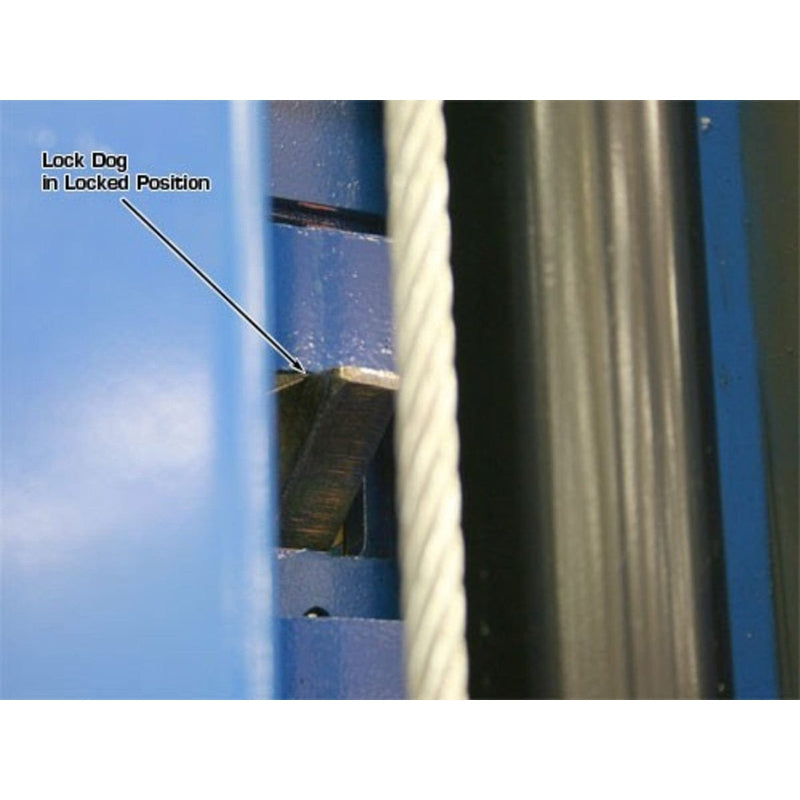

  • Single-Point Lock Release for easy operation

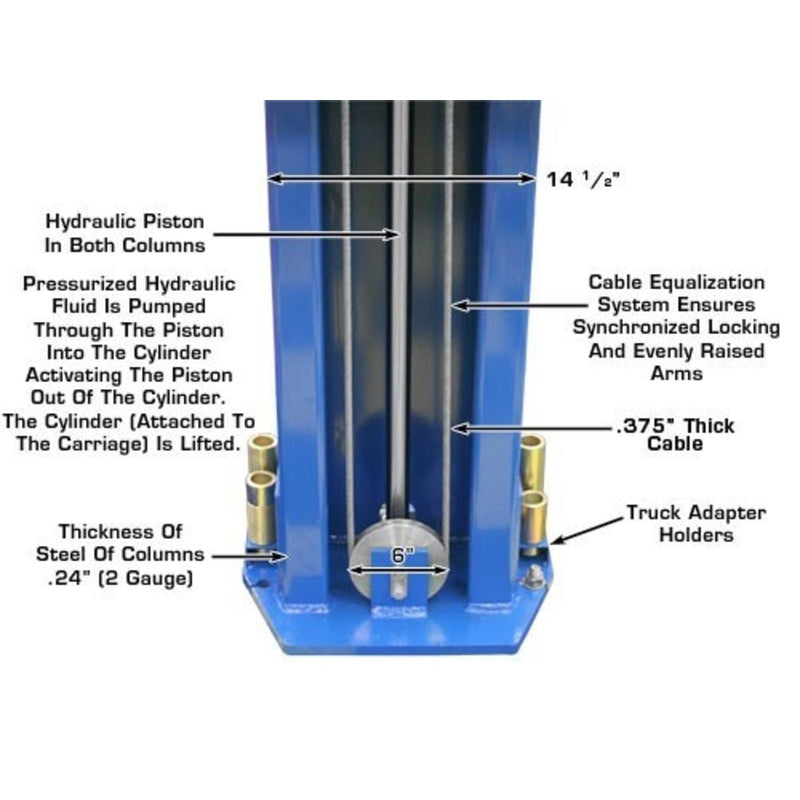

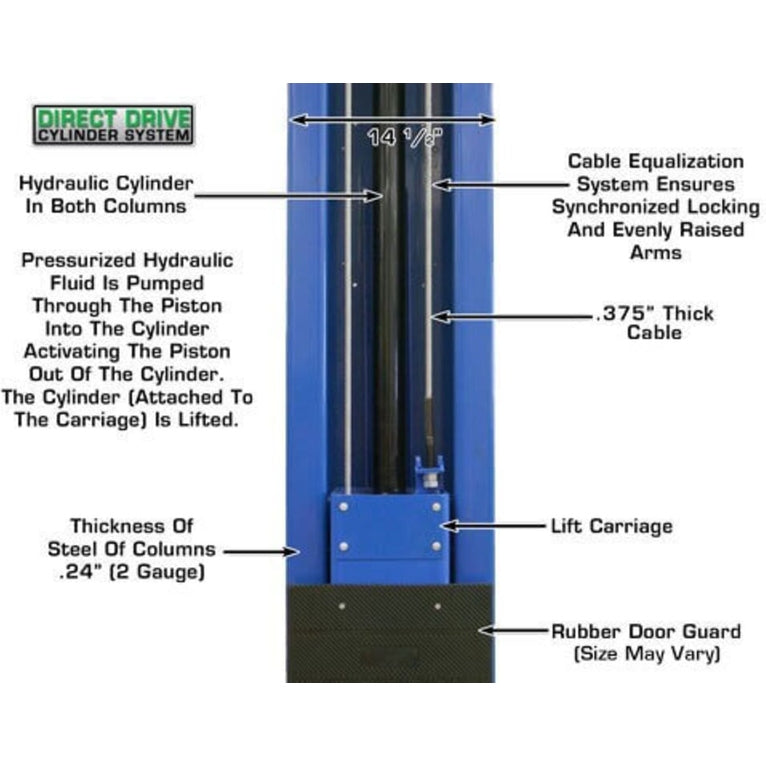

  • Direct-Drive Cylinders for smoother, more efficient lifting

  • Durable Powder-Coated Finish for long-lasting protection

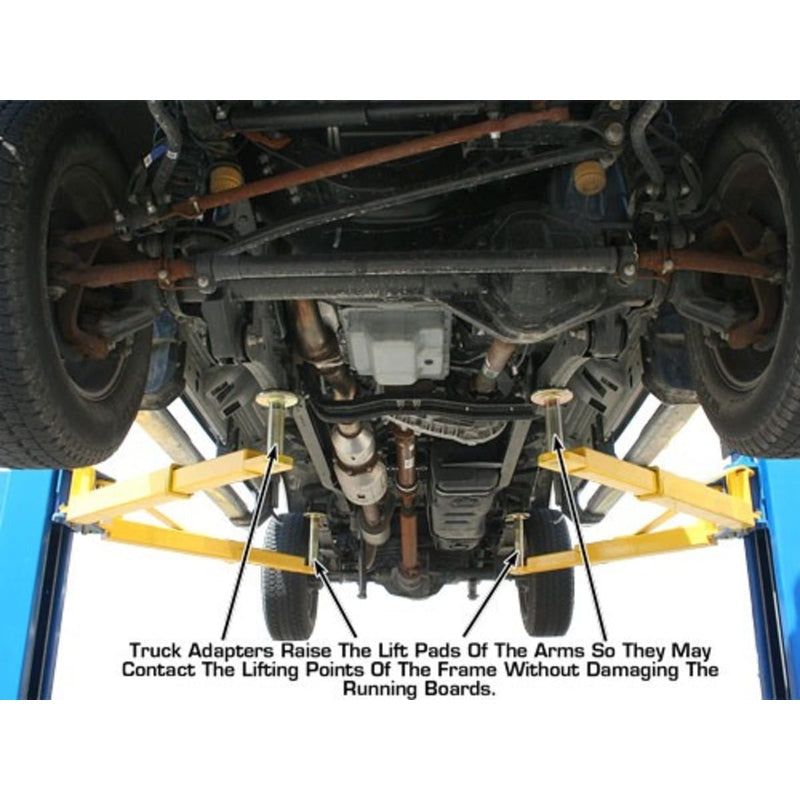

  • Free 12-Piece Truck Adapter Set (Included)

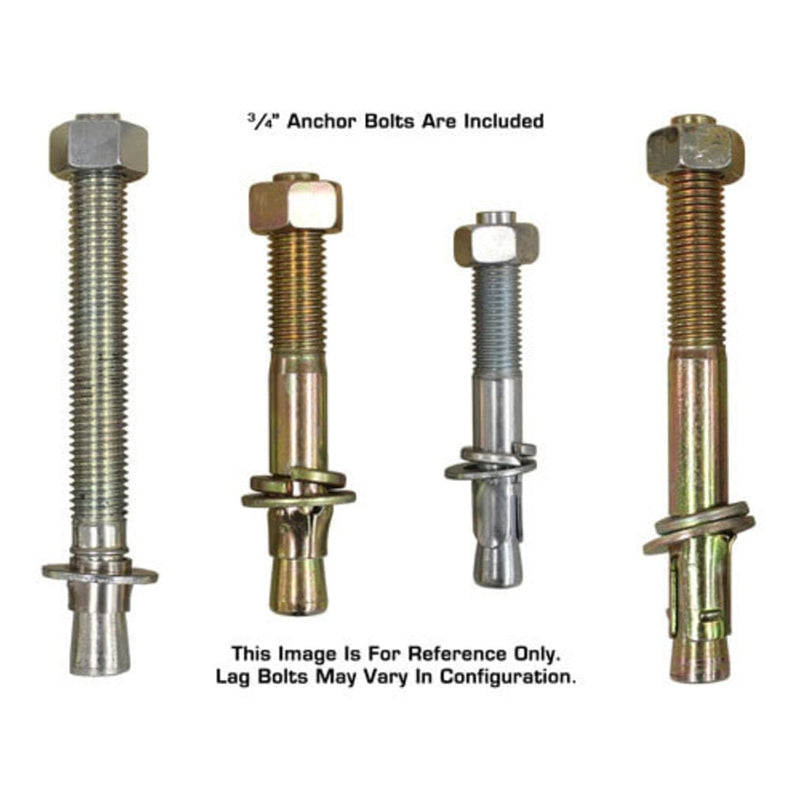

  • Mounting Hardware (Included)

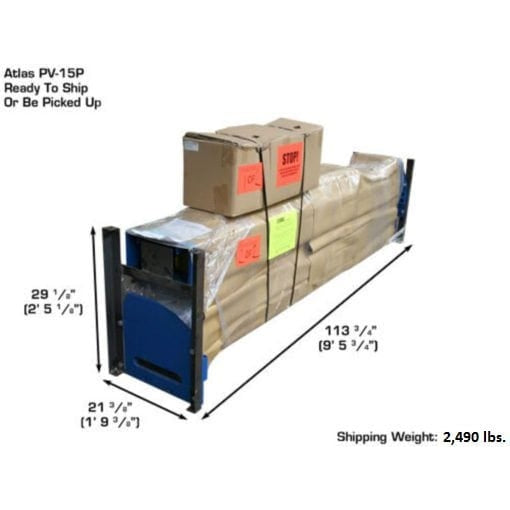

  • Shipping Weight: 2,490 lb.

  • Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)

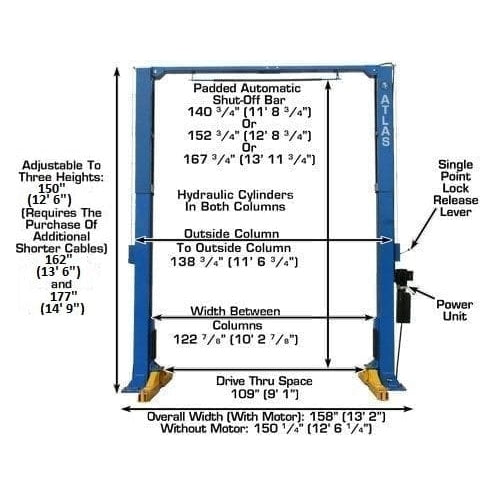

Specifications

Specification Measurement
Lifting Capacity 15,000 lb.

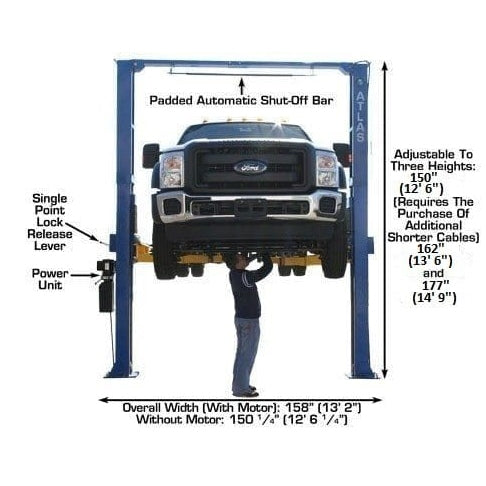

Overall Height 165" (13' 9") or 177" (14' 9")
Optional Low Height 150" (12' 6") (requires short cables)
Overall Floor Width 150 ¾" (12' 6 ¾")
Outside Column to Outside Column 139 ⅛" (11' 7 ⅛")

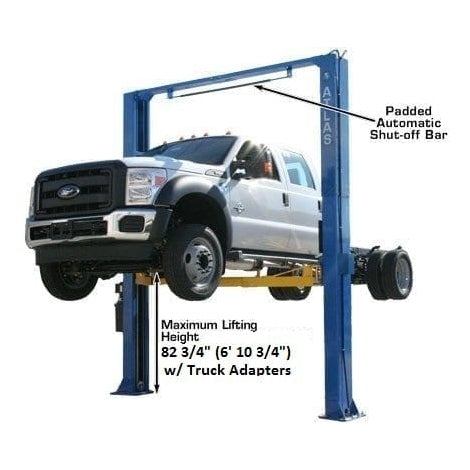

Maximum Lift Height (Without Adapters) 72 ¼"
Maximum Lift Height (With Adapters) 81"
Minimum Pad Height 7 ¼"
Inside Column Width 123 ½" (10' 3 ½")
Drive-Through Clearance 109 ½" (9' 1 ½")

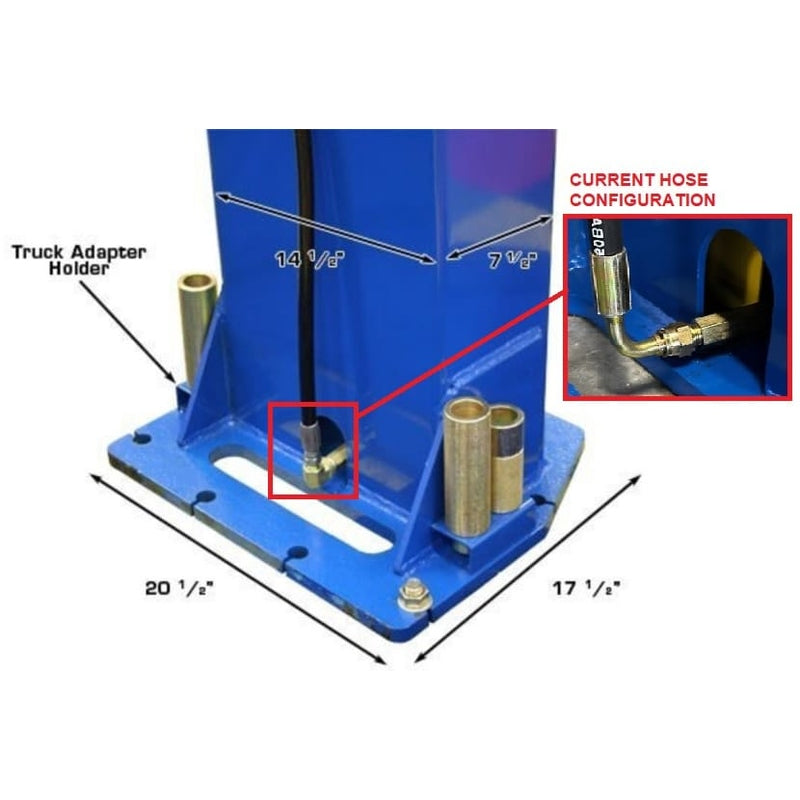

Column Size 7 ½" x 14 ½"
Column Steel Thickness 6 mm
Base Plate Dimensions 17 ½" x 20 ½"
Electrical Requirement 220V single-phase (30A breaker recommended)
Oil Requirement 3–5 gallons AW32/AW46 (not included)
Shipping Weight 2,490 lb.
Adapter Heights Four each: 1.25", 2.5", 5"
Arm Hole/Adapter Peg Size 1.5"
Concrete Requirement Minimum 6" thick slab rated at 3,000 PSI

Documents

Atlas® XH-PV15PX Manual
