Description
Description

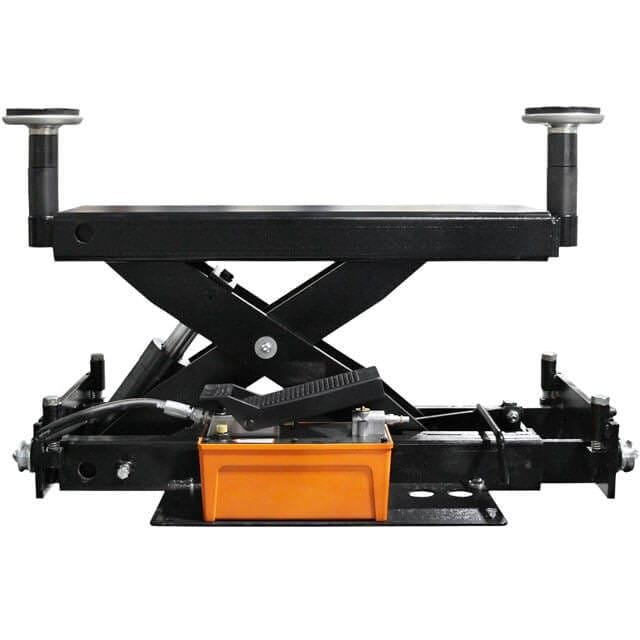

The Atlas® RJ6 Air/Hydraulic Rolling Jack is designed for use with four-post lifts and features telescoping arms that extend across the runways, allowing the lift pads to be positioned directly under the vehicle’s lifting points. This makes it ideal for accessing various service areas while maintaining vehicle balance and stability.

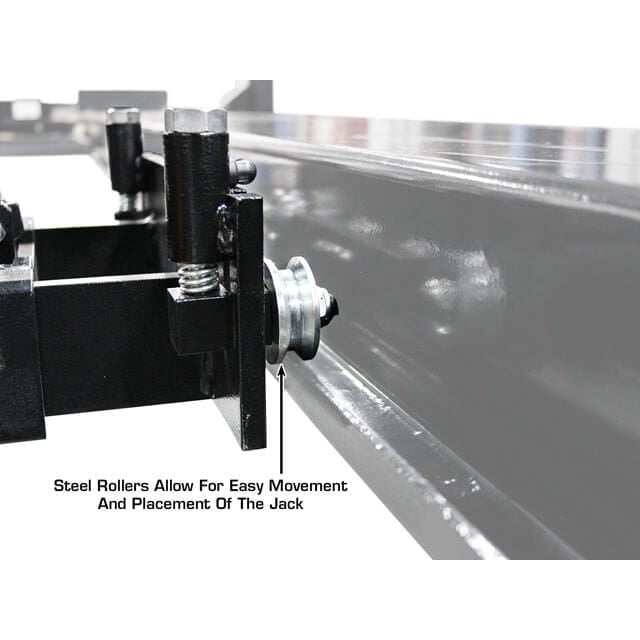

The RJ6 includes expandable rail supports that adjust to fit a wide range of four-post above-ground lifts. Its smooth-rolling design, supported by a unique roller system, allows the jack to glide easily beneath the vehicle along the full length of the lift.

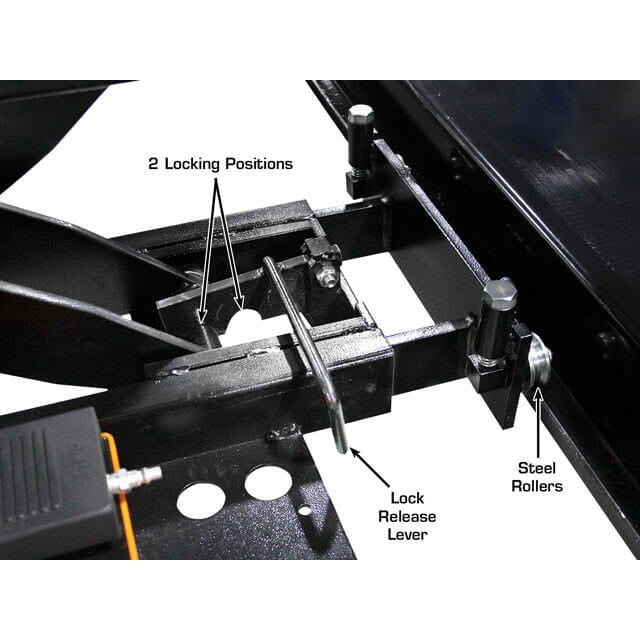

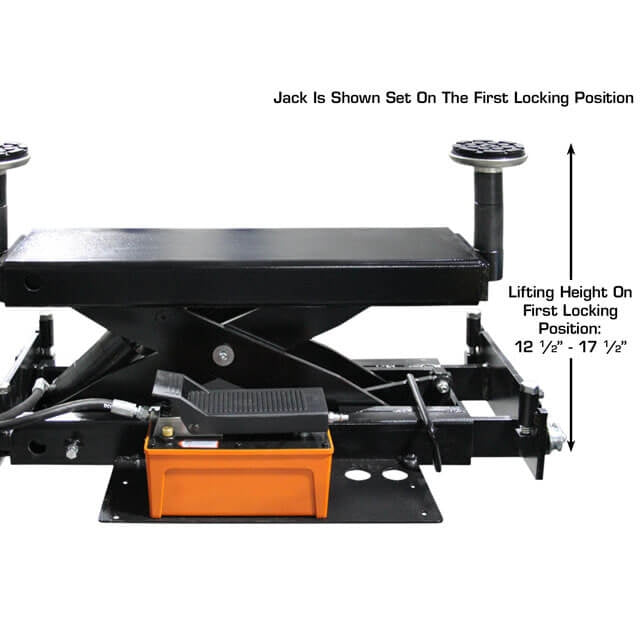

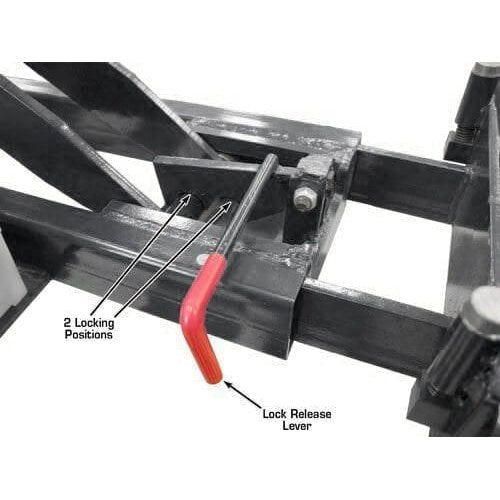

This model also comes standard with a set of peg-style truck adapters, increasing the lifting height to accommodate larger vehicles such as pickup trucks and SUVs. For safety, the RJ6 features two solid mechanical locking positions, which engage once the vehicle is raised—eliminating hydraulic pressure and providing secure support similar to jack stands.
Important: The Atlas® RJ6 is designed to operate on air pressure between 70–115 PSI. Exceeding 115 PSI may cause damage to the unit.
Key Features
-
6,000 lb. lifting capacity
-
Air/hydraulic operation (requires external air supply)
-
Multiple safety lock positions for secure lifting
-
Compact, low-profile design for easy placement
-
Smooth rolling movement along the runways
-
Scissor mechanism ensures level and stable lifting
-
Durable powder-coated finish
-
Includes 4-piece truck adapter set
-
1-Year Parts-Only Warranty
Specifications
| Specification | Detail |
|---|---|
| Maximum Capacity | 6,000 lbs |

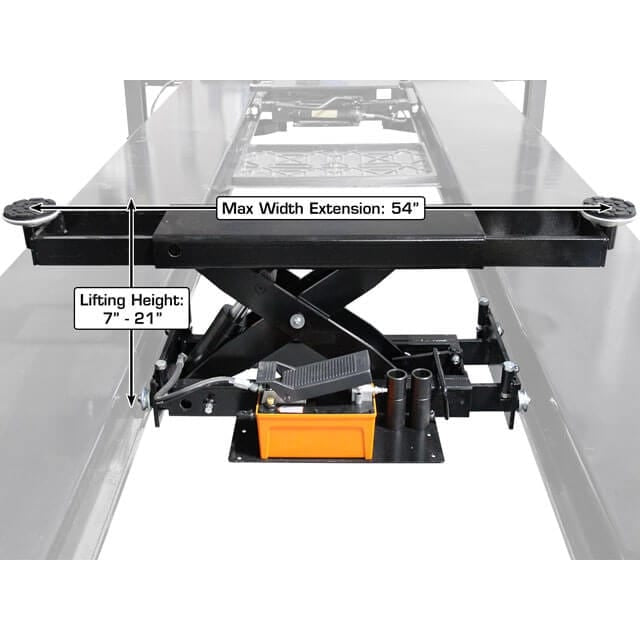

| Maximum Width | 55″ (4′ 7″) |

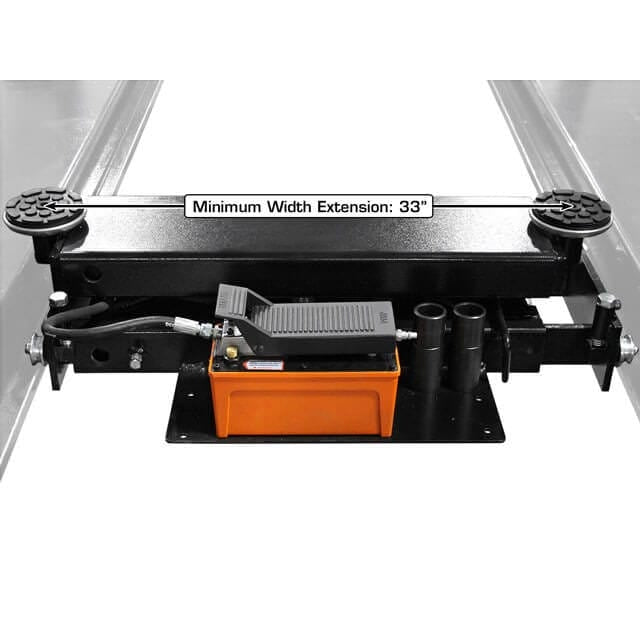

| Minimum Width | 35″ (2′ 11″) |
| Distance Between Runway Capability | 32″ – 50″ |

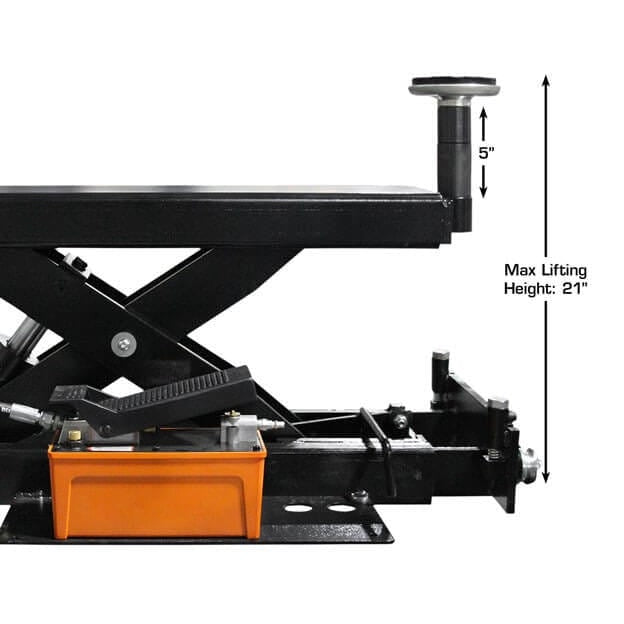

| Maximum Lifting Height (with Adapters) | 21″ (1′ 9″) |
| Air Requirement | 70–115 PSI |

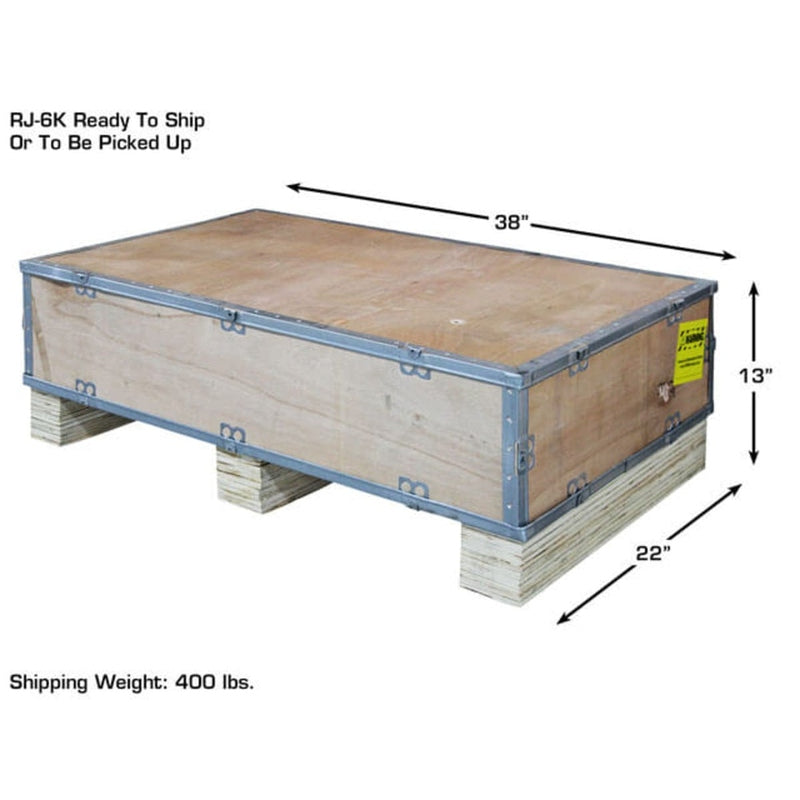

| Shipping Weight | 350 lbs |
| Adapter Heights | Two at 2″, Two at 3″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
