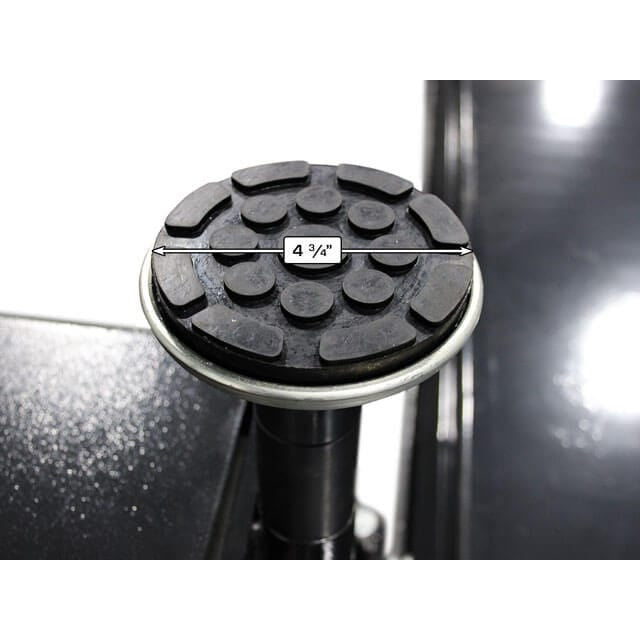

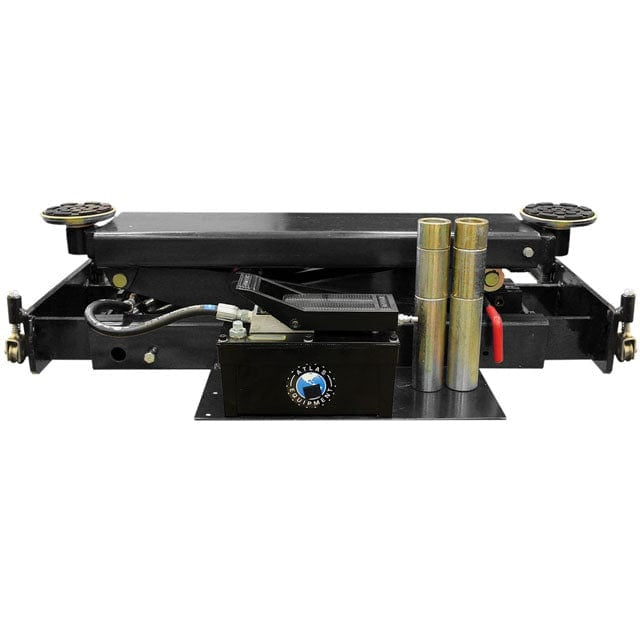

The Atlas® RJ8000 Air/Hydraulic Rolling Jack is built for four-post lift applications, featuring telescoping arms that extend across the runways to reach vehicle lifting points with precision. The lift pads at the ends of these arms can be easily positioned for safe and balanced lifting.

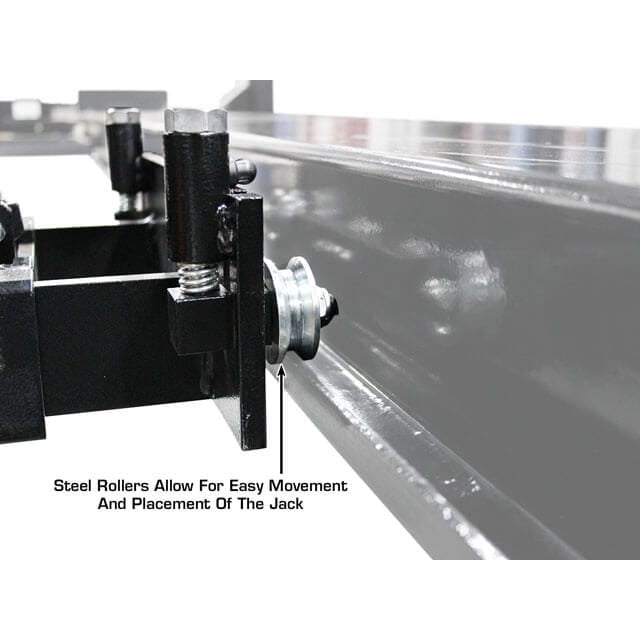

This model includes expandable rail supports, allowing it to fit a wide range of four-post above-ground lifts. Its smooth-rolling design enables the jack to glide effortlessly beneath the entire vehicle length, ensuring easy positioning and operation.

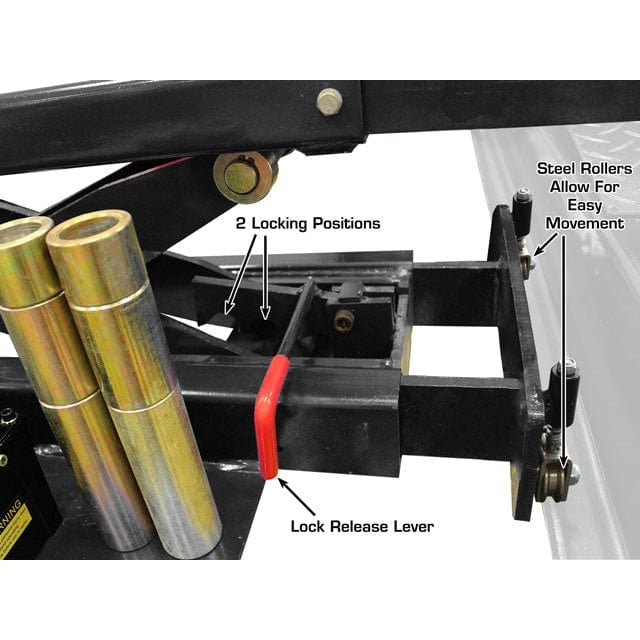

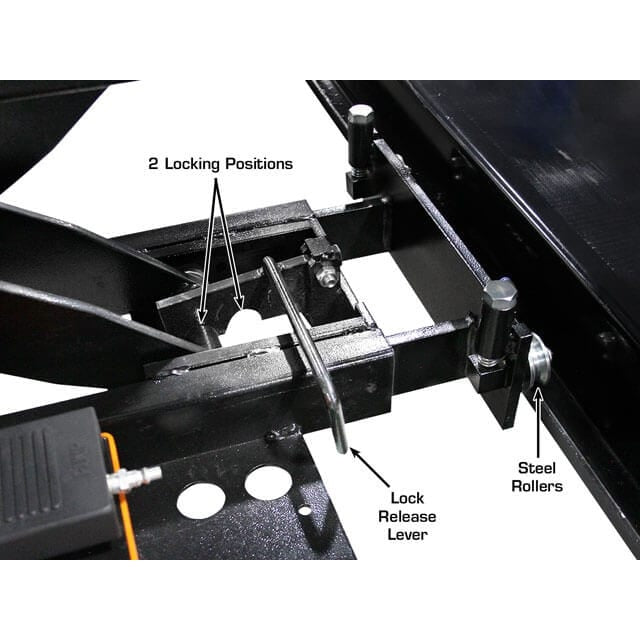

The Atlas® RJ8000 comes standard with a set of peg-style truck adapters, which increase the lift pad height for handling larger vehicles such as pickup trucks and SUVs. It also features two solid locking positions that secure the vehicle in place when raised. When engaged, these locks remove hydraulic pressure from the lifting cylinder, functioning similarly to jack stands for added safety.

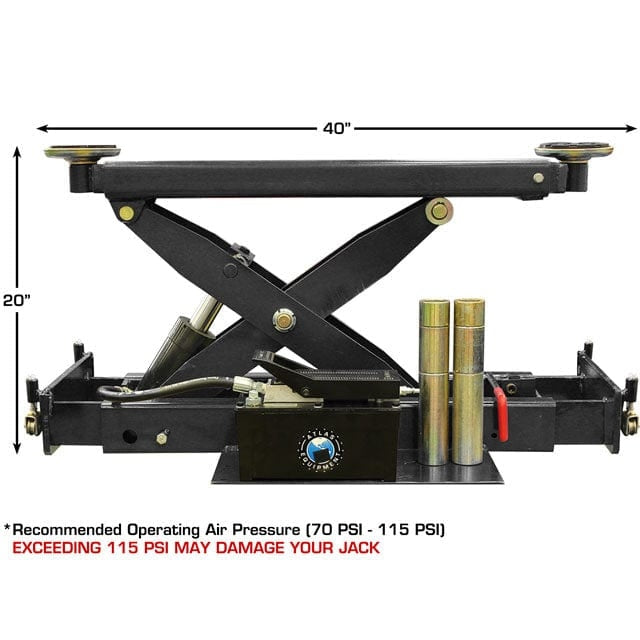

Important: The Atlas® RJ8000 is designed to operate on air pressure between 70–115 PSI. Exceeding 115 PSI may cause damage to the equipment.
Key Features
-
8,000 lb. lifting capacity
-

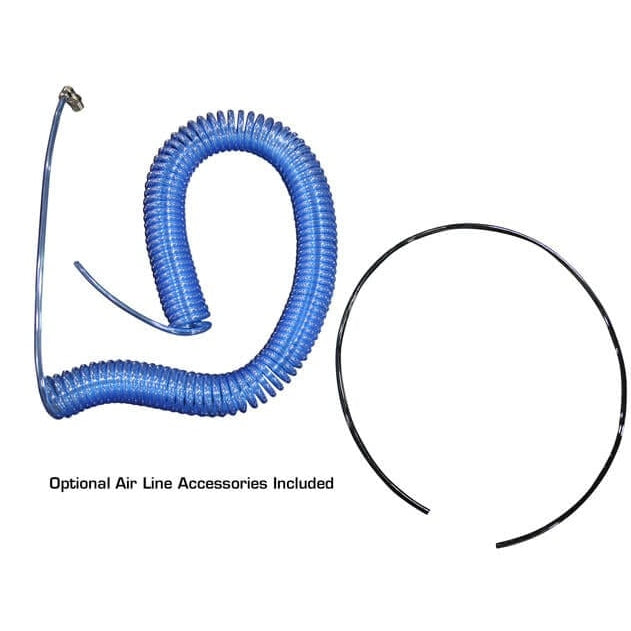

Air/hydraulic operation (requires external air supply)
-
Multiple safety lock positions for secure lifting
-
Compact, low-profile design for versatility
-
Smooth rolling action for effortless movement
-
Scissor mechanism ensures level, stable lifting
-
Durable powder-coated finish
-
Includes 4-piece truck adapter set
-
1-Year Parts-Only Warranty
Specifications
| Specification | Detail |
|---|---|
| Maximum Capacity | 8,000 lbs |

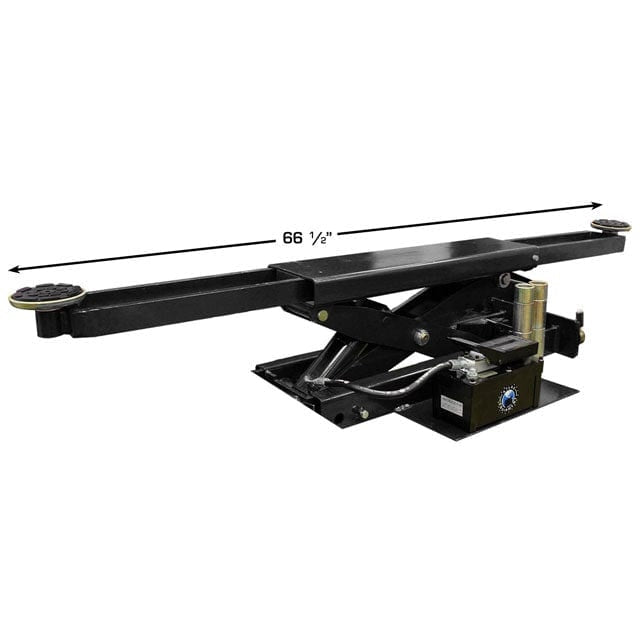

| Maximum Width | 68″ (5′ 8″) |

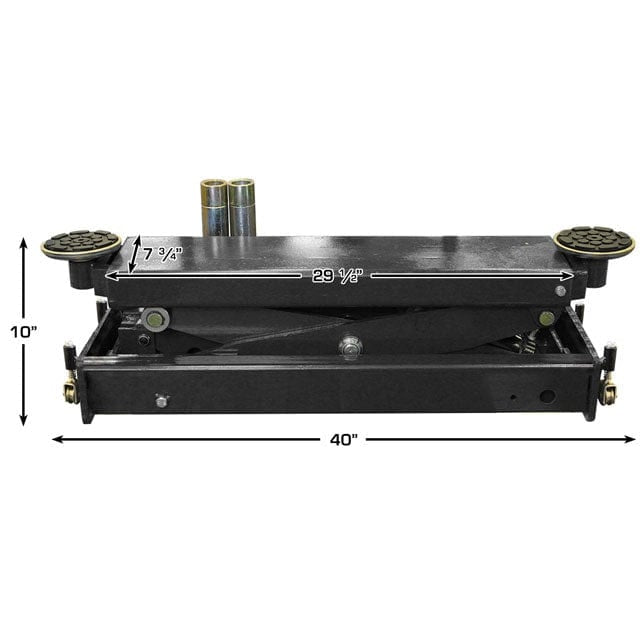

| Minimum Width | 40″ (3′ 4″) |
| Distance Between Runway Capability | 33″ – 53″ |
| Maximum Lifting Height (with Adapters) | 27″ |
| Air Requirement | 70–115 PSI |

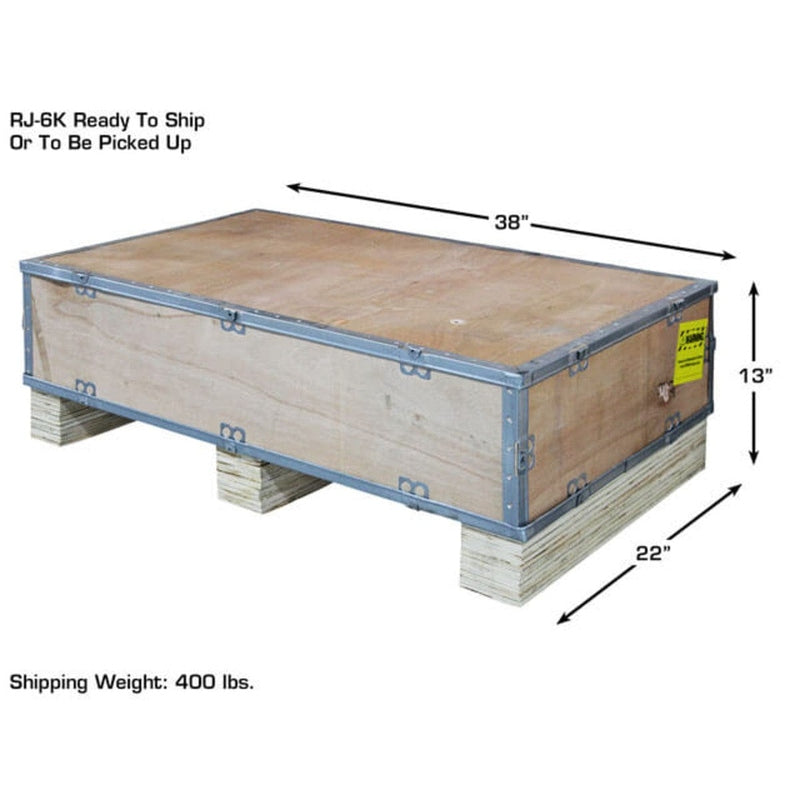

| Shipping Weight | 390 lbs |

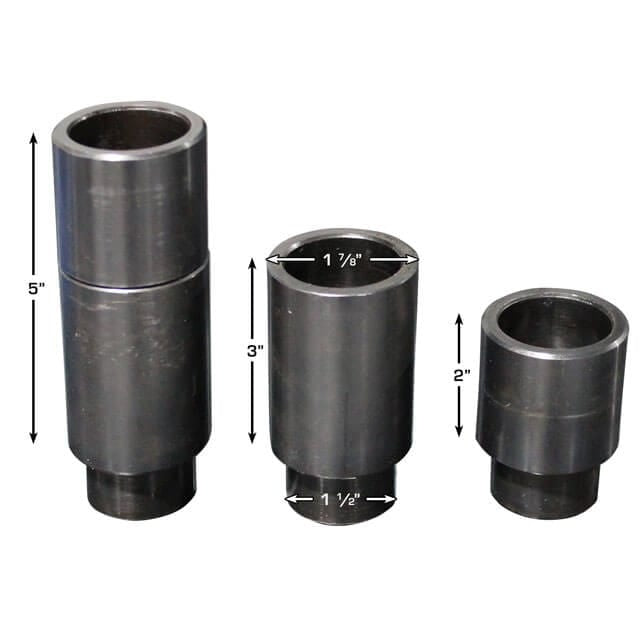

| Adapter Heights | Two at 2″, Two at 3″ |
| Arm Hole / Adapter Peg Size | 1.5″ |
