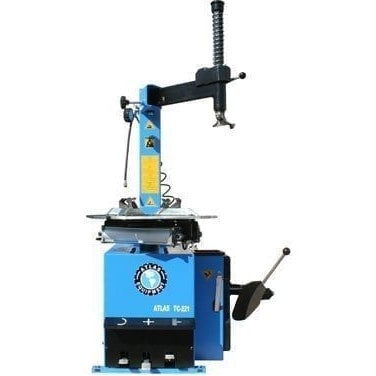

The Atlas® TC221 Rim Clamp Swing Arm Tire Changer is a dependable, easy-to-use machine designed for homeowners, small automotive garages, and ATV or motorcycle service shops. It shares the same high-quality components and construction as the Atlas® TC229 but does not include the built-in “Beadblaster” inflation system.
Engineered for versatility and protection, the Atlas® wheel clamp tire changers are built to handle both high-end alloy and standard steel wheels without causing damage. The side-mounted bead breaker delivers strong, consistent power to separate even rusted or stubborn beads safely. The turntable jaws, which can be fitted with optional plastic covers, grip rims securely while protecting their finish. These jaws offer three adjustable positions, allowing users to expand or reduce the clamping range to accommodate a wide variety of tire sizes.
Some assembly is required upon delivery.
Key Features
-

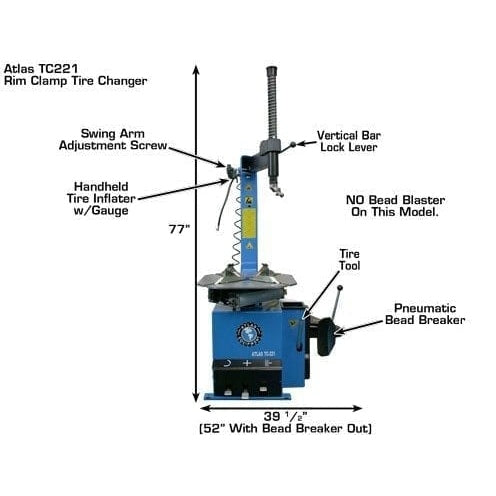

Rim Clamp / Swing Arm Tire Changer
-

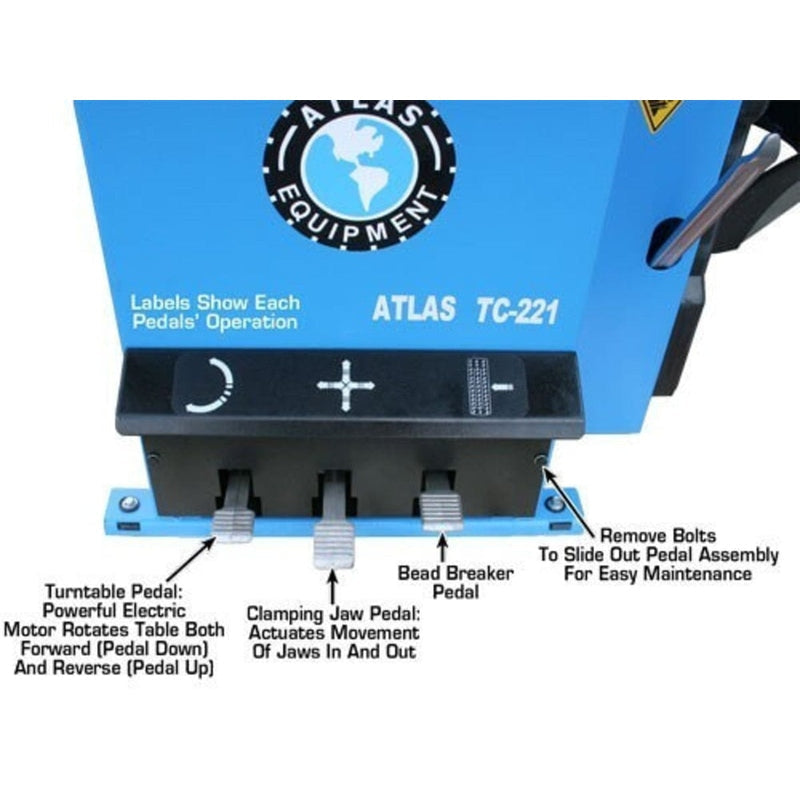

Air-operated jaws and bead breaker (requires external air supply)
-

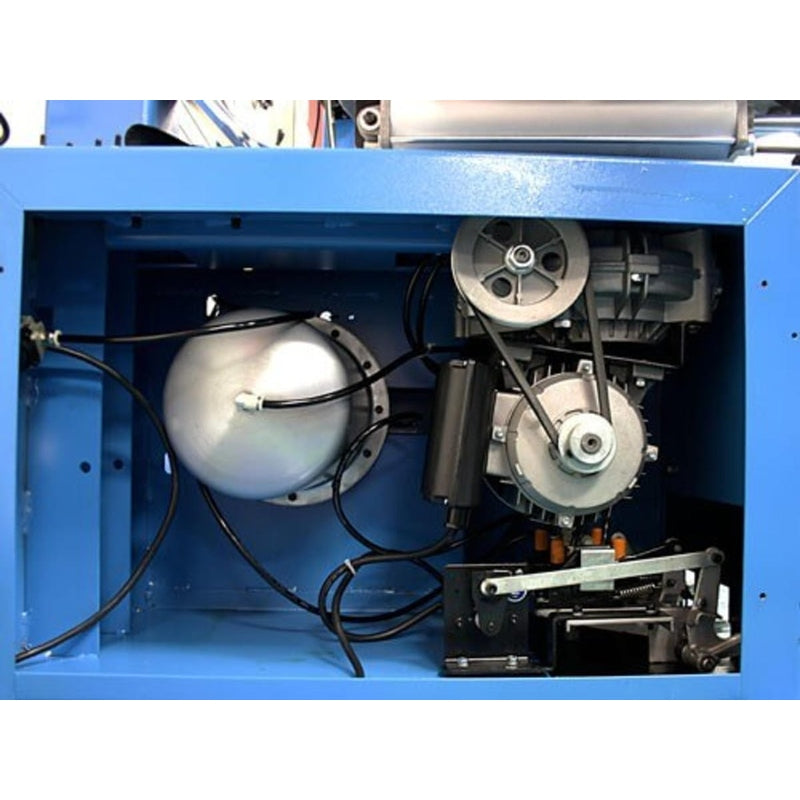

Electric-powered turntable
-

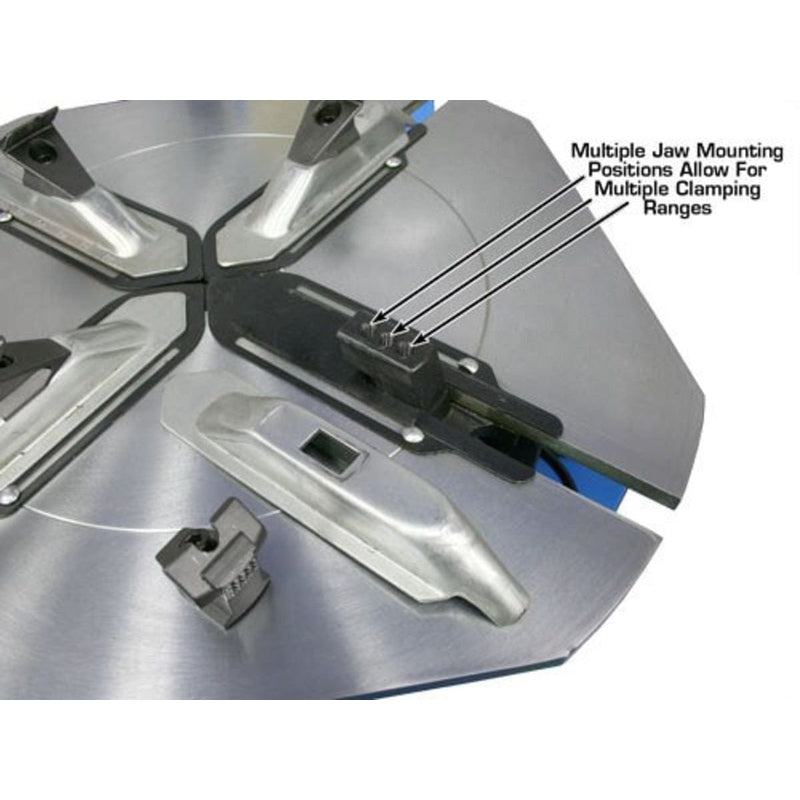

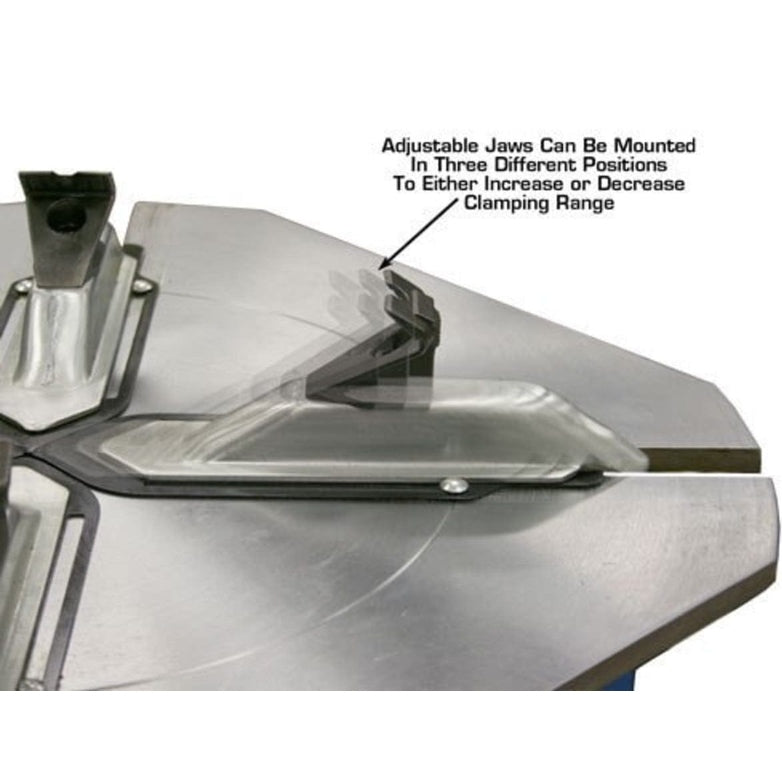

Adjustable jaws with three mounting positions
-

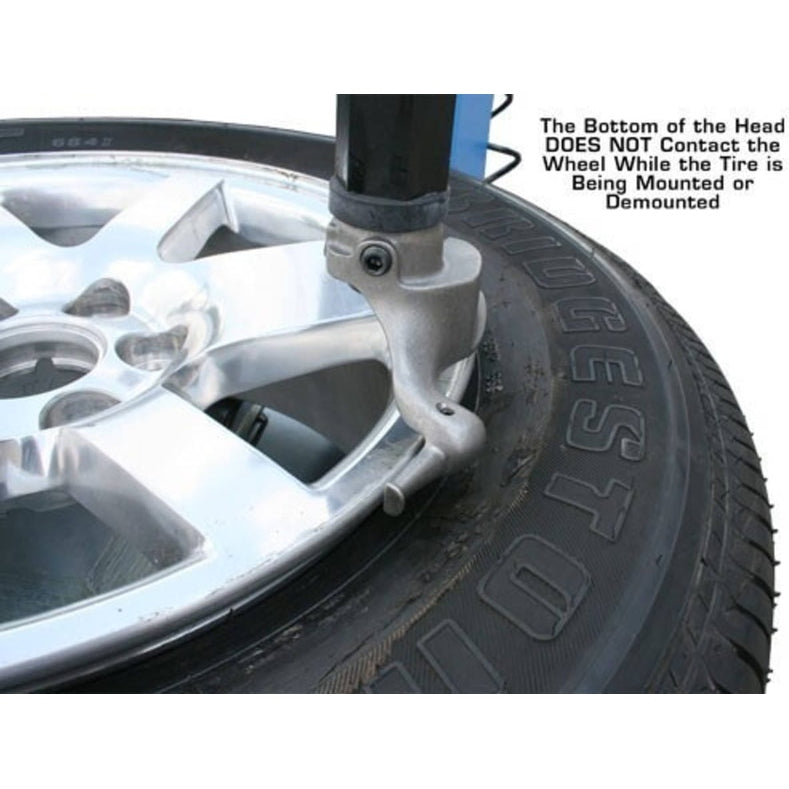

Metal mount/demount head with metal roller or replaceable plastic inserts
-
Inflation gun with integrated pressure gauge
-

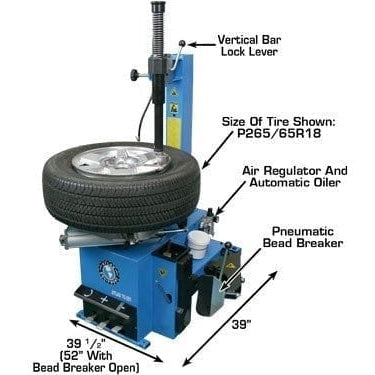

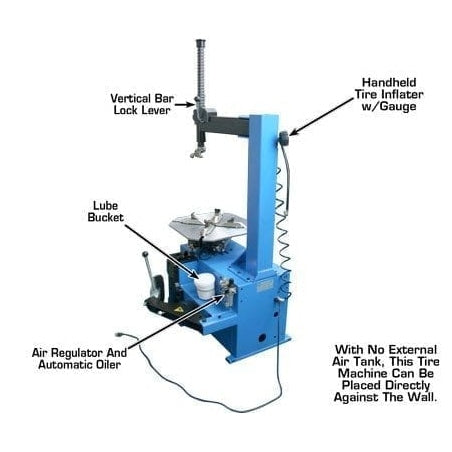

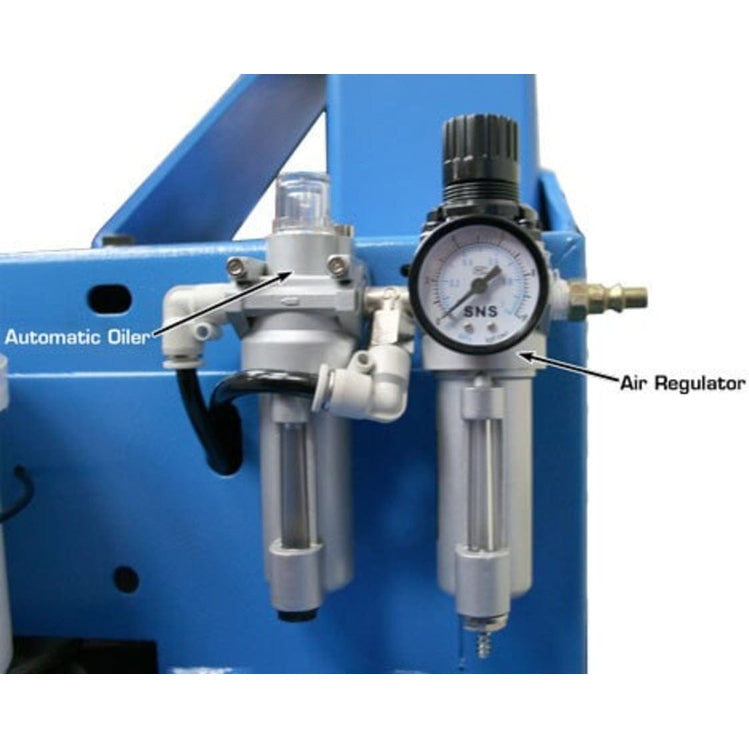

Built-in filter, regulator, and lubricator system
-
Includes 20″ tire tool and lube bucket with brush
-
Large plastic jaw covers and bead breaker shovel protector included
-
Multiple replacement plastic inserts for mount/demount head included
-

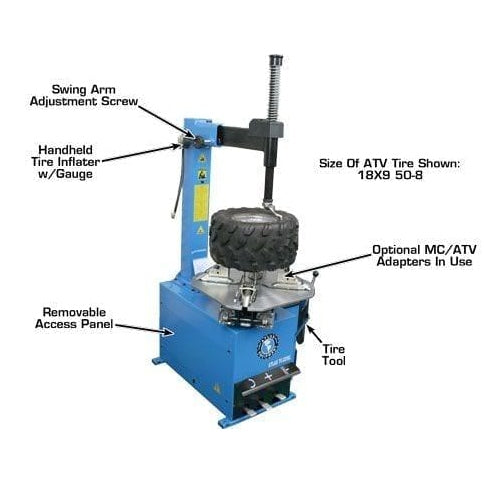

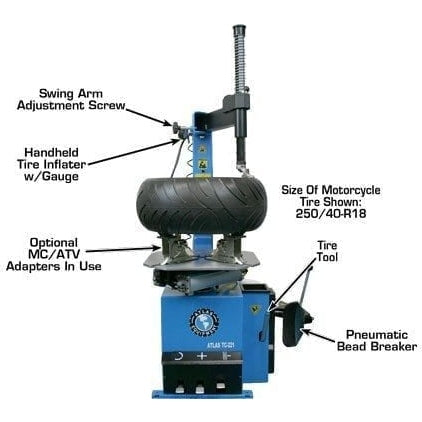

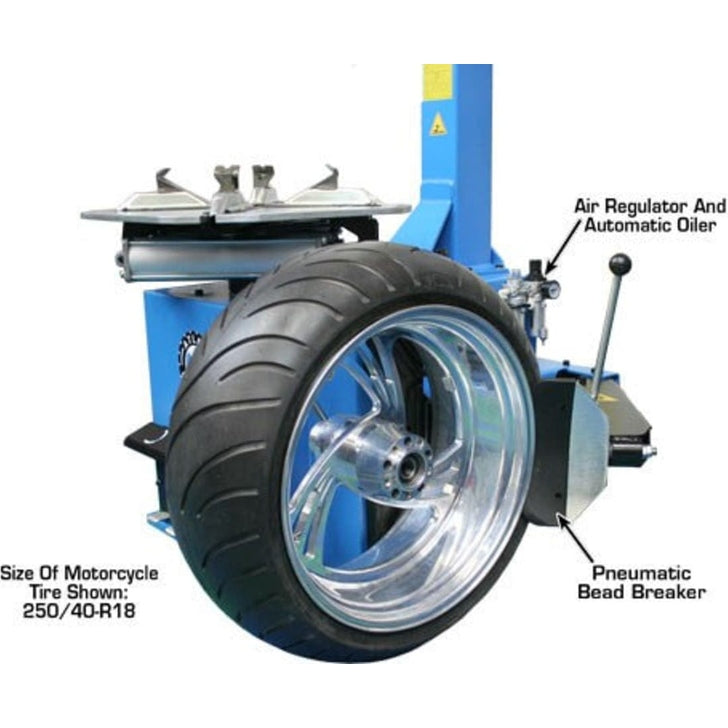

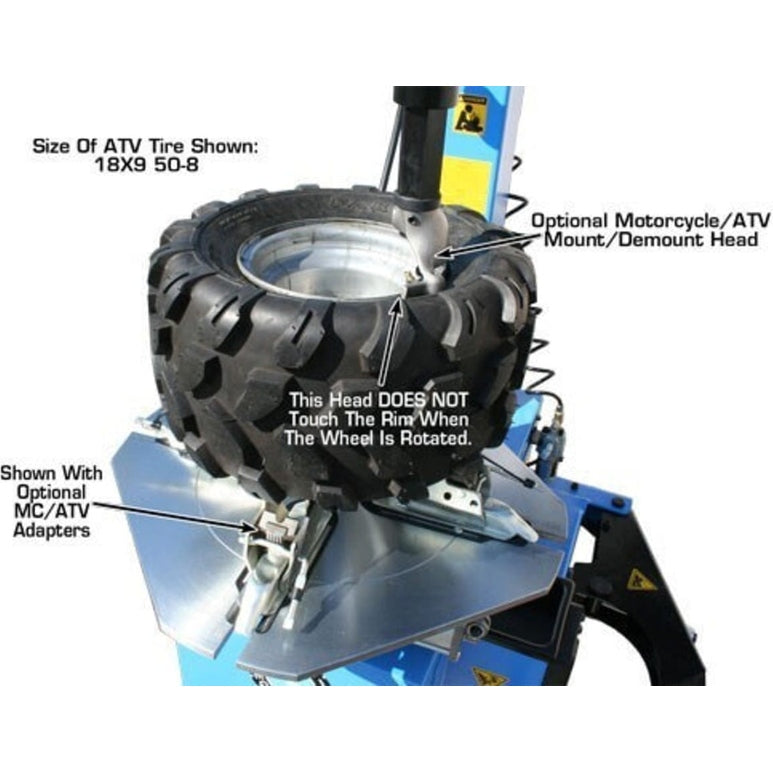

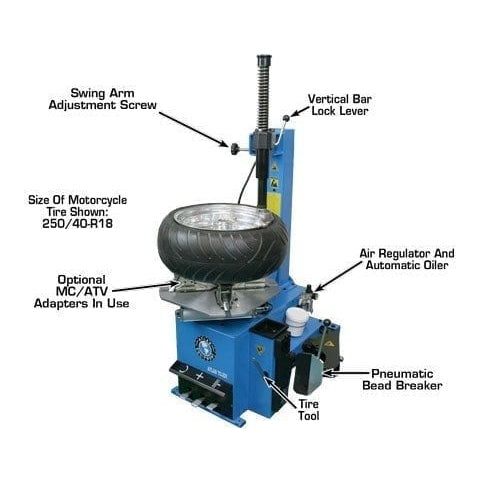

Motorcycle and ATV adapters available (sold separately)
-
Does not include a built-in “Beadblaster” system
-
Replacement parts and wear items readily available
-
1-Year Parts-Only Warranty
Specifications
| Specification | Detail |
|---|---|
| Rims | Steel, Aluminum, Alloy |

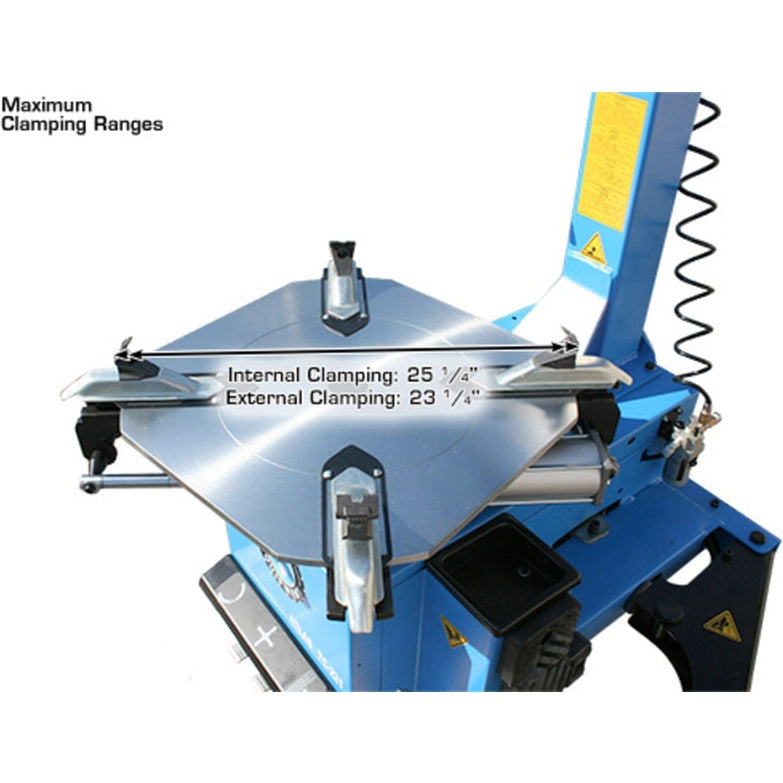

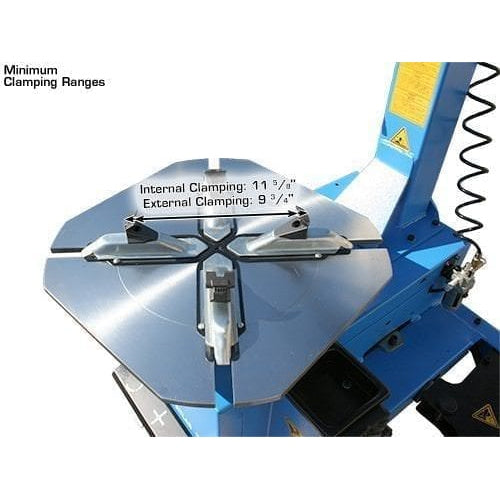

| External Locking Range (3 Positions) | 1) 9 ¾″ – 21 ⅝″ 2) 10 ¾″ – 22 ½″ 3) 11 ⅝″ – 23 ¼″ |
| Internal Locking Range (3 Positions) | 1) 11 ⅝″ – 23 ¼″ 2) 12 ⅝″ – 24 ¼″ 3) 13 ½″ – 25 ¼″ |
| Maximum Tire Diameter | 39″ |
| Maximum Wheel Width (Bead Breaker) | 13″ |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do Not Exceed 140 PSI) |
| Operating Voltage | 110V |

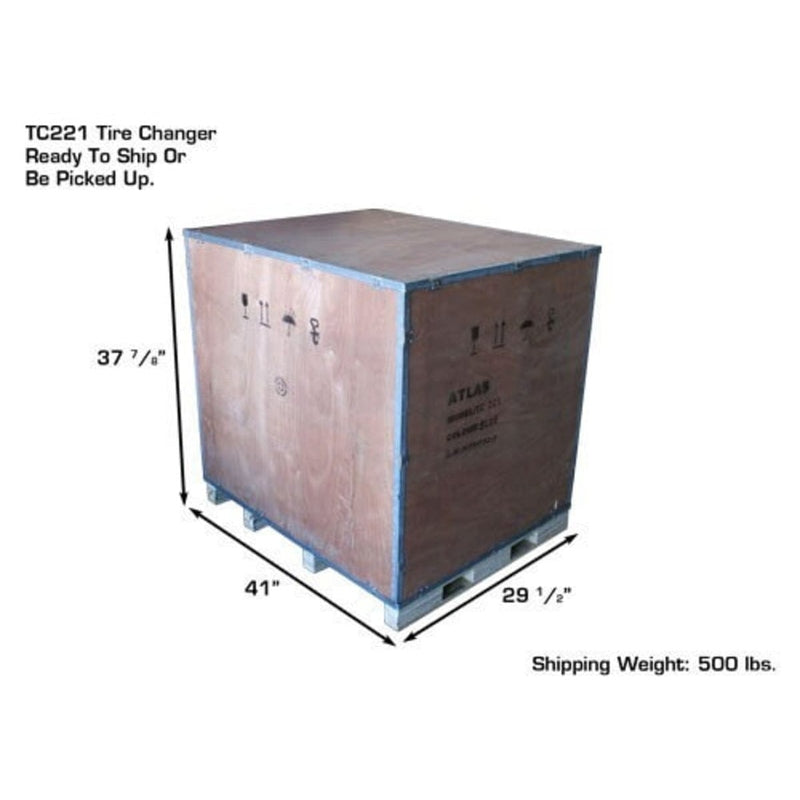

| Shipping Weight | 500 lbs |
