Description
Description

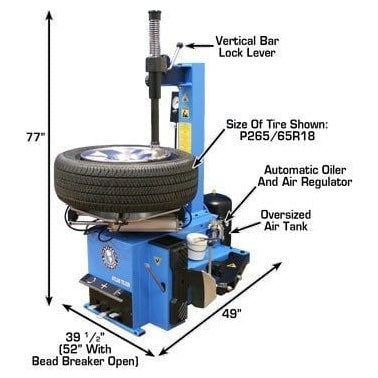

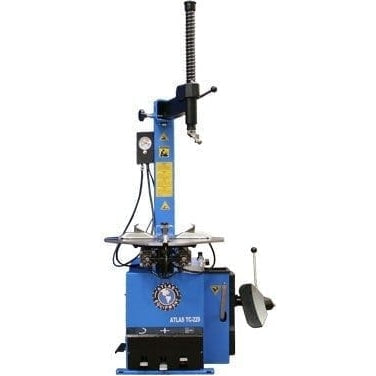

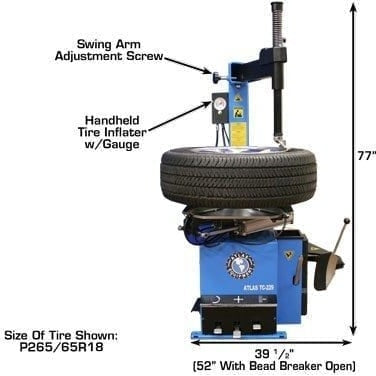

The Atlas® TC229 Rim Clamp Swing Arm Tire Changer is a versatile and reliable machine ideal for homeowners, small automotive shops, and ATV or motorcycle service centers. It offers the same tire-changing capability and clamping range as the Atlas® TC221 but comes equipped with an integrated “Beadblaster” system. This system assists in inflating tough, stiff-sidewall, or otherwise difficult-to-inflate tires efficiently.
For those who expect to service larger pickup trucks (1-ton), large SUVs, or agricultural tires, upgrading to the Atlas® TC289 Tire Changer may be a better long-term option.

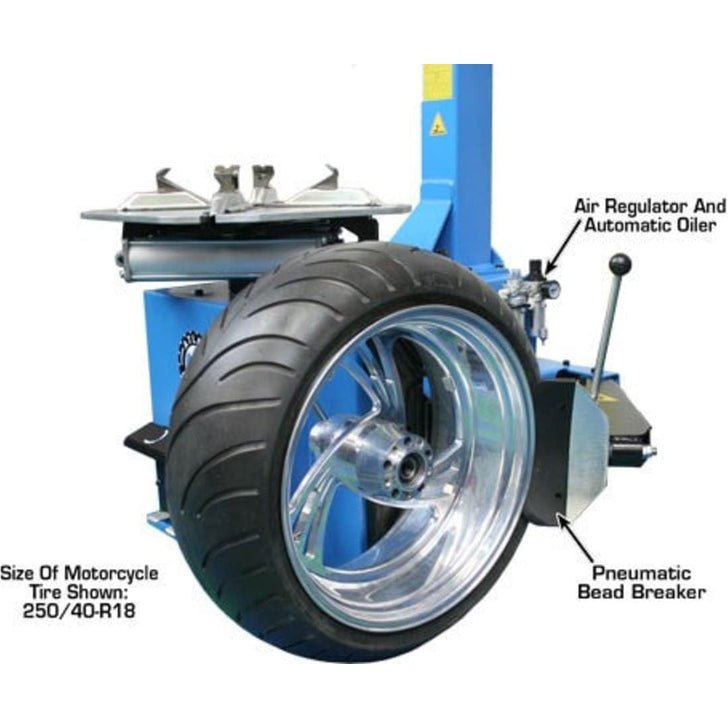

Like all Atlas® wheel clamp tire changers, the TC229 is engineered to handle both high-end alloy and standard steel wheels without causing damage. Its side-mounted bead breaker delivers powerful performance, breaking even rusted or stubborn beads without harming the rim. The turntable jaws, which can be fitted with protective plastic covers, securely grip the wheel while preventing surface damage. These jaws feature three adjustable positions, allowing for a wider range of clamping options and compatibility with various tire sizes.
Some assembly is required upon delivery.
Key Features
-
Rim Clamp / Swing Arm Tire Changer
-
Air-operated jaws and bead breaker (requires external air supply)
-

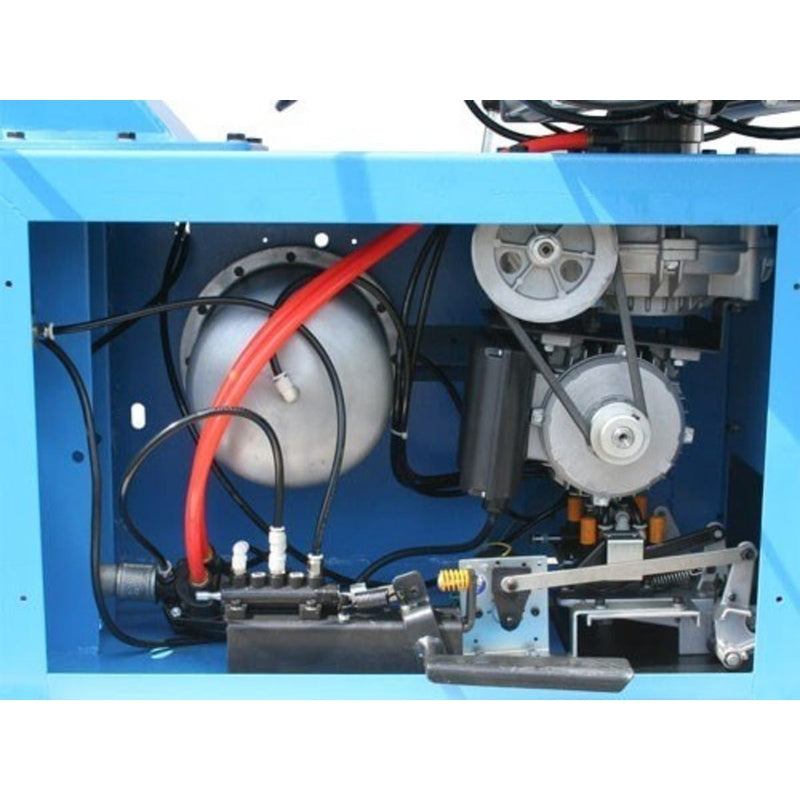

Electric-powered turntable
-

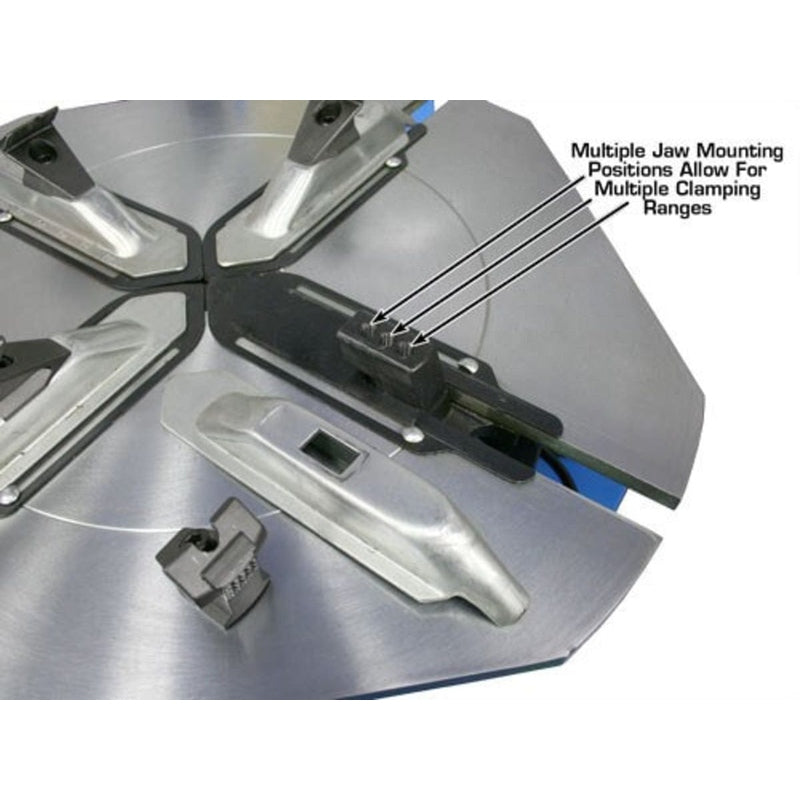

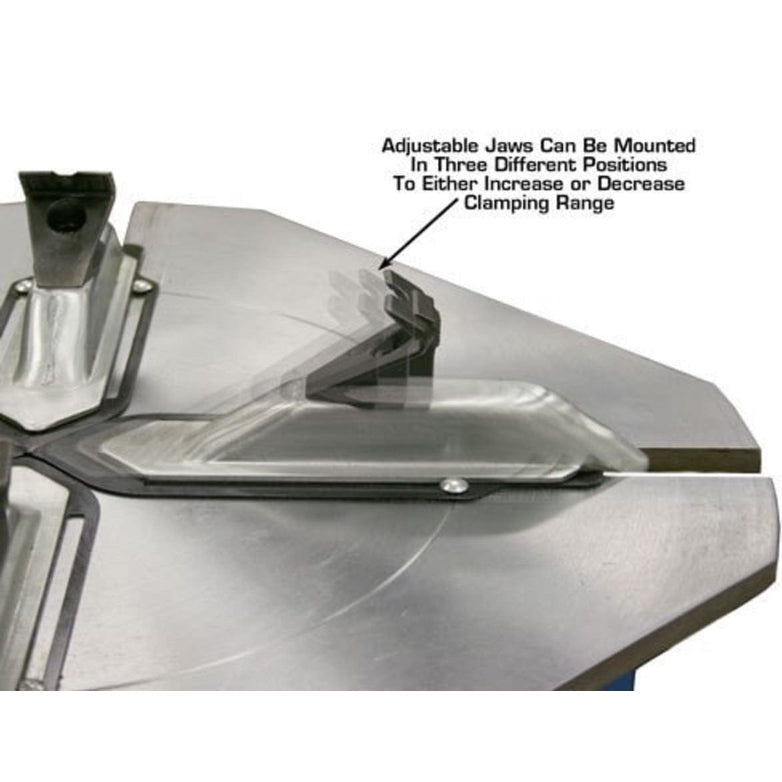

Adjustable jaws with three mounting positions
-

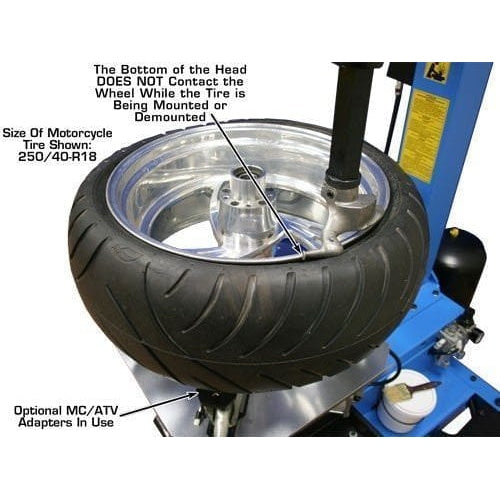

Durable metal mount/demount head with roller or replaceable plastic inserts
-
Column-mounted inflator box with integrated pressure gauge
-

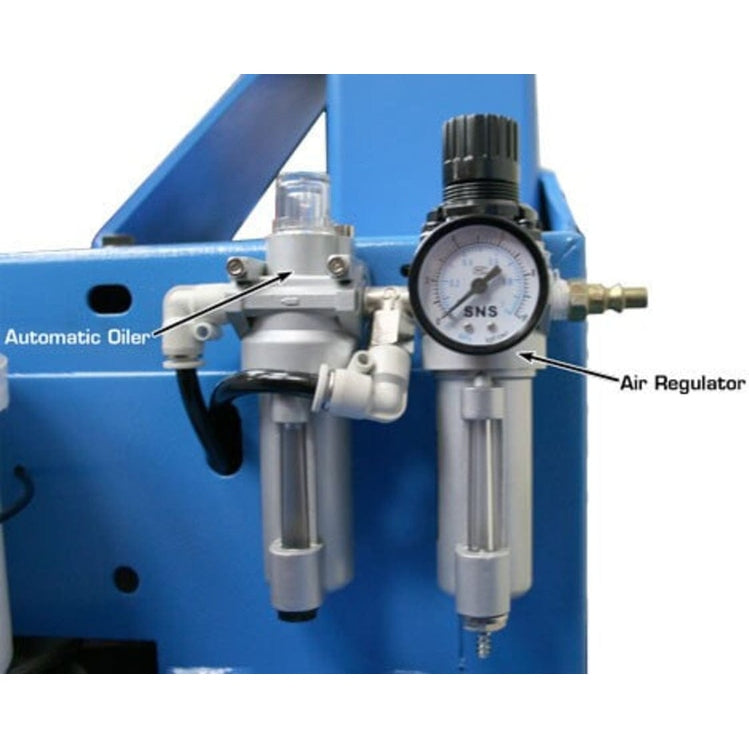

Built-in filter, regulator, and lubricator
-
Includes 20″ tire tool and lube bucket with brush
-
Large plastic jaw covers and bead breaker shovel protector included
-
Multiple replacement plastic inserts for mount/demount head included
-

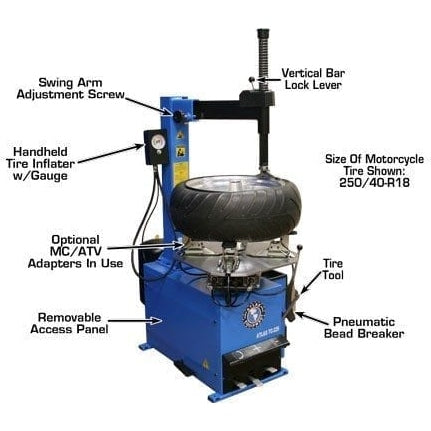

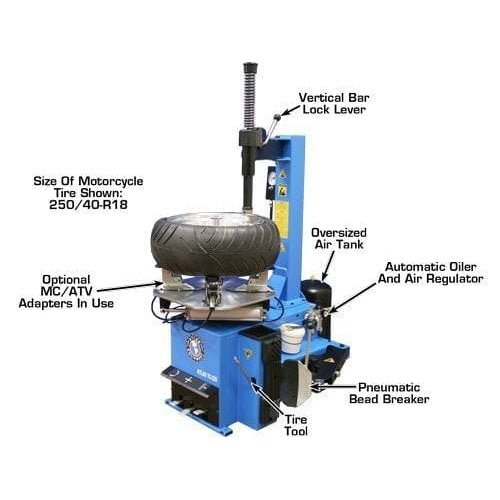

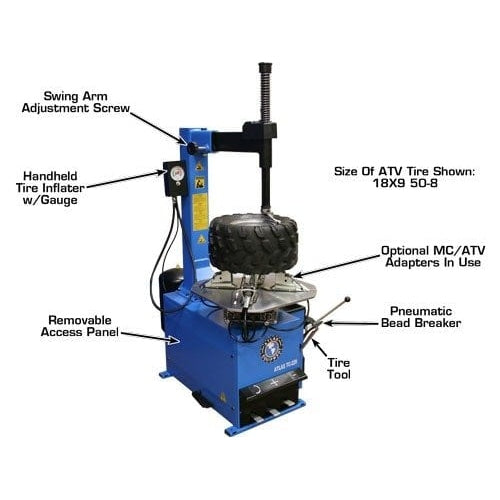

Motorcycle and ATV adapters available (sold separately)
-

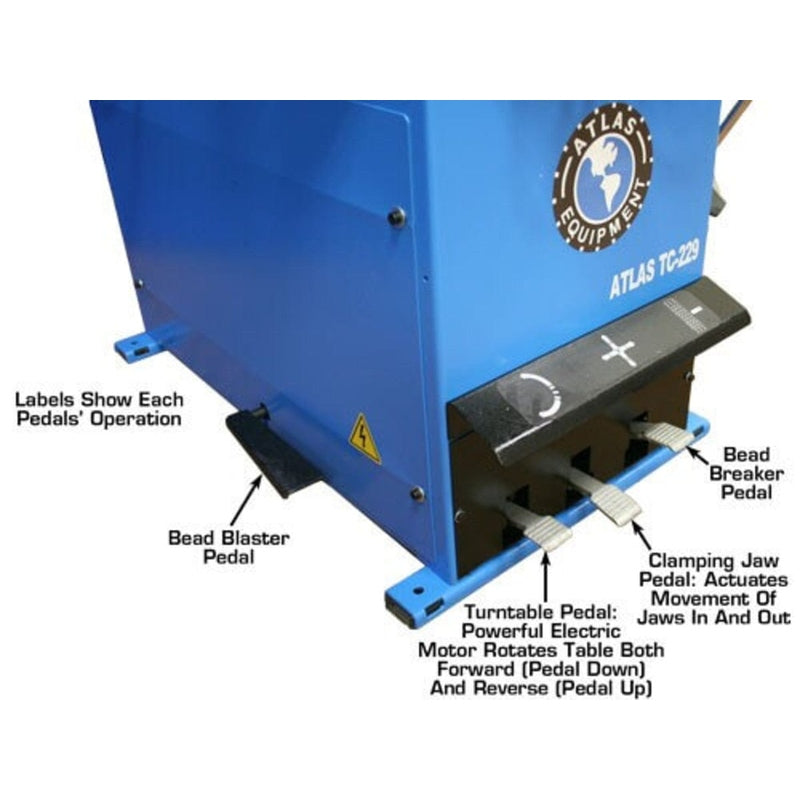

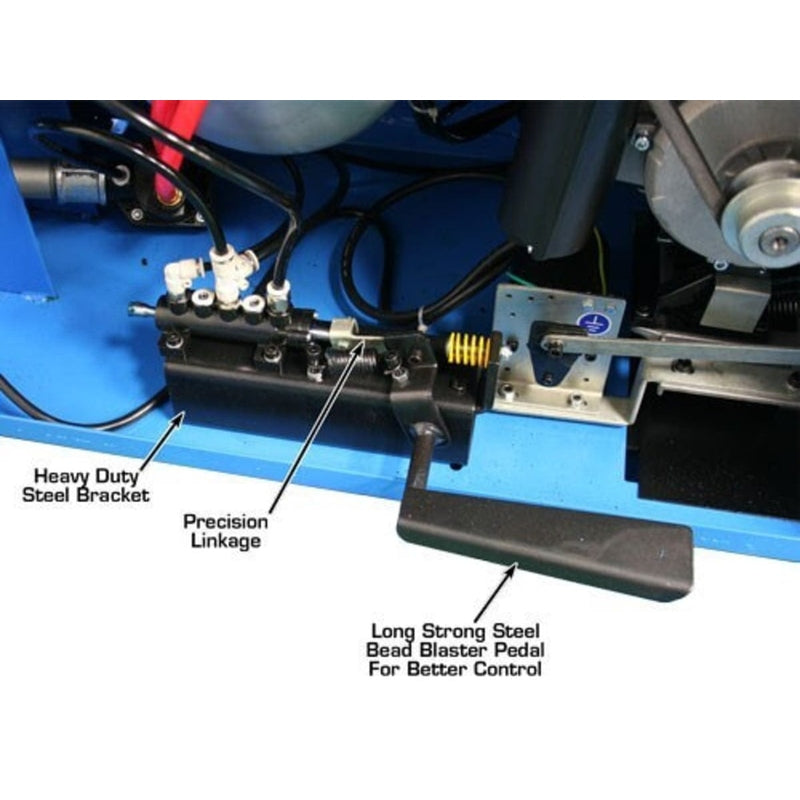

Built-in “Beadblaster” inflation system
-

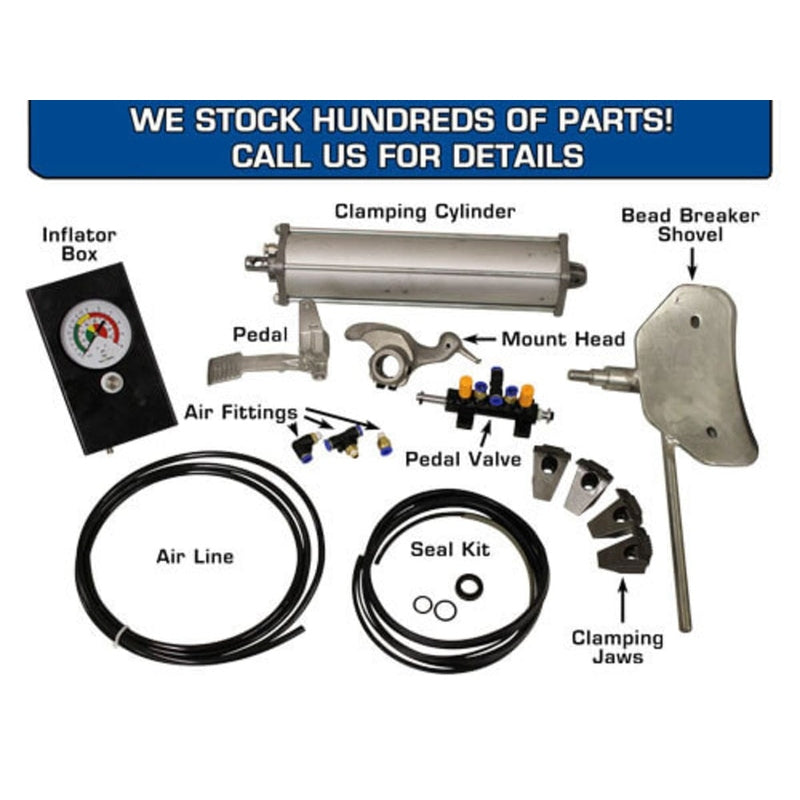

Replacement parts and wear items readily available
-
1-Year Parts-Only Warranty
Specifications
| Specification | Detail |
|---|---|
| Rims | Steel, Aluminum, Alloy |

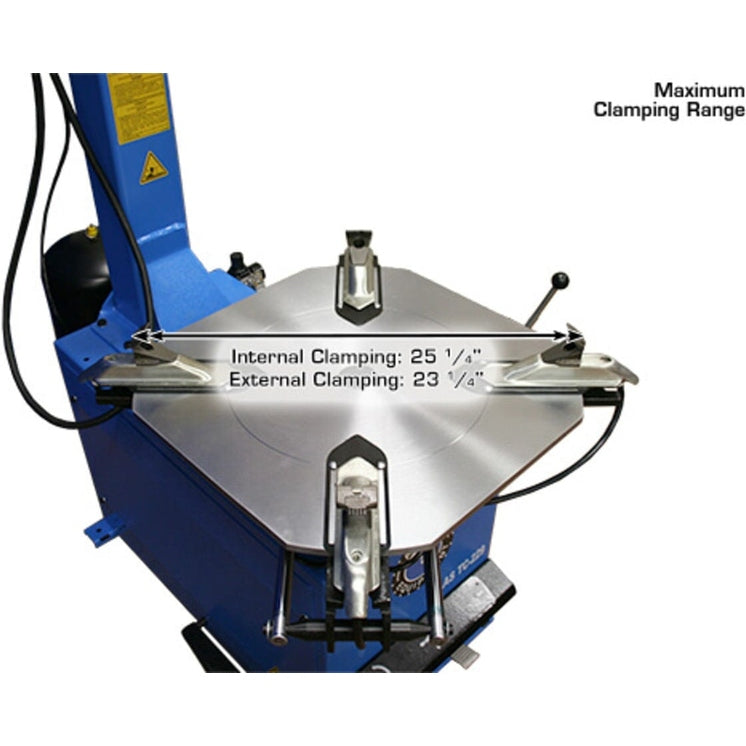

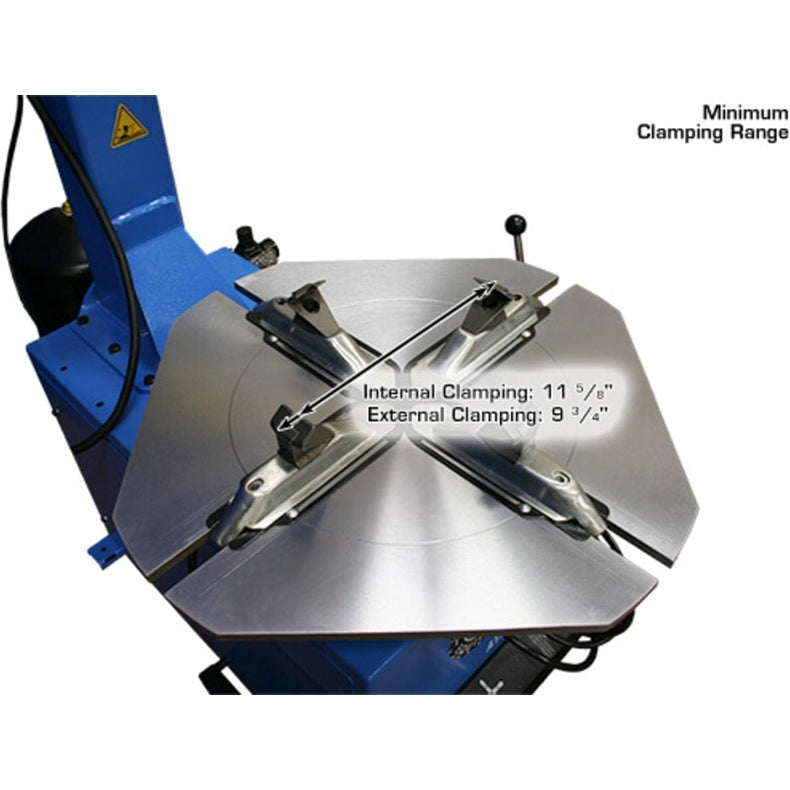

| External Locking Range (3 Positions) | 1) 9 ¾″ – 21 ⅝″ 2) 10 ¾″ – 22 ½″ 3) 11 ⅝″ – 23 ¼″ |
| Internal Locking Range (3 Positions) | 1) 11 ⅝″ – 23 ¼″ 2) 12 ⅝″ – 24 ¼″ 3) 13 ½″ – 25 ¼″ |
| Maximum Tire Diameter | 39″ |
| Maximum Wheel Width (Bead Breaker) | 13″ |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs |
| Bead Breaker Force | 5,500 lbs |
| Air Requirement | 90–110 PSI (Do Not Exceed 140 PSI) |
| Operating Voltage | 110V |

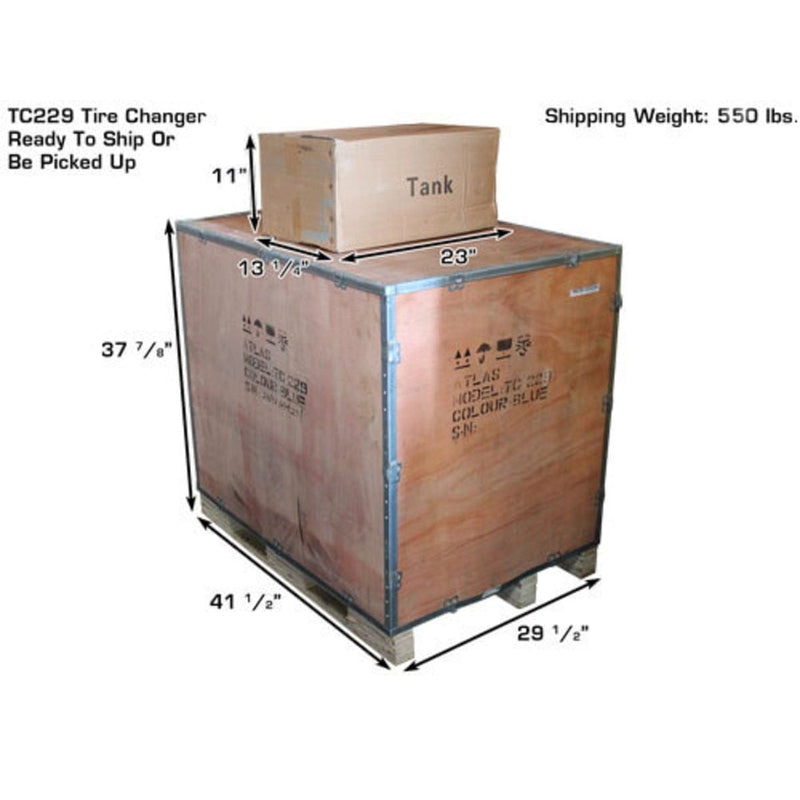

| Shipping Weight | 550 lbs |
