Description
Description

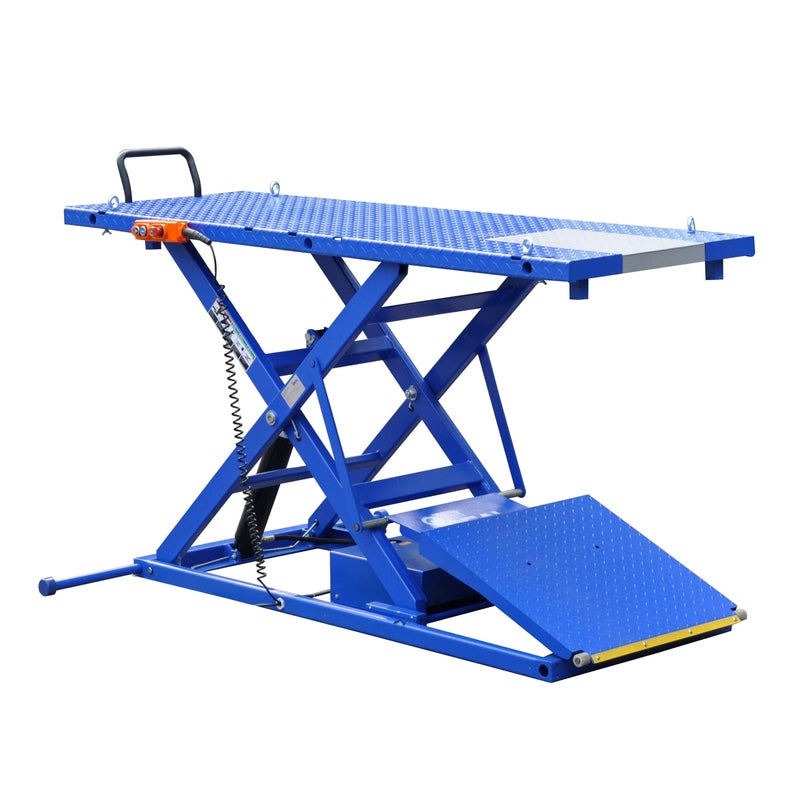

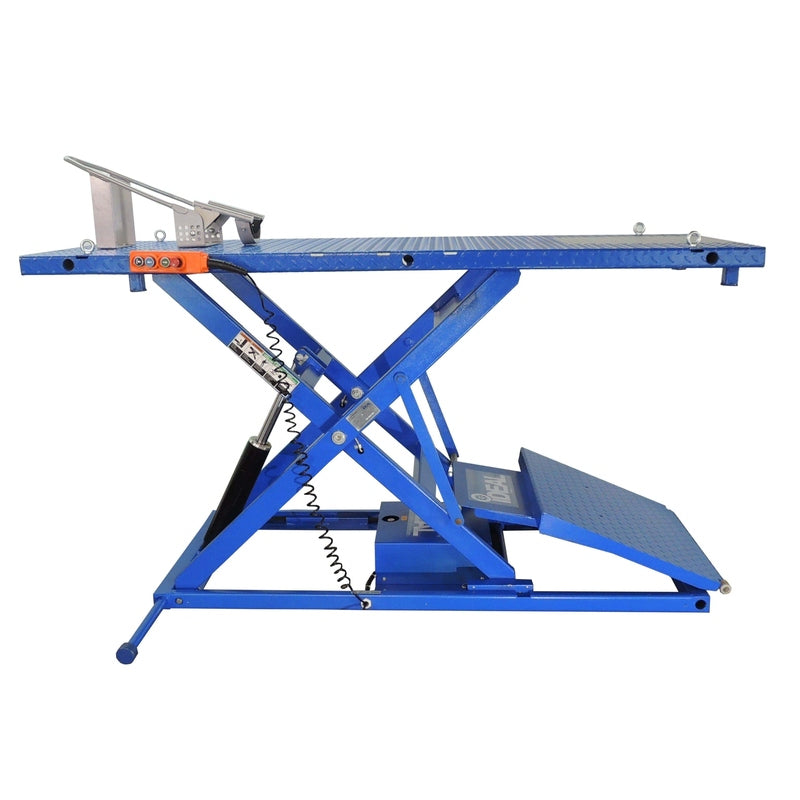

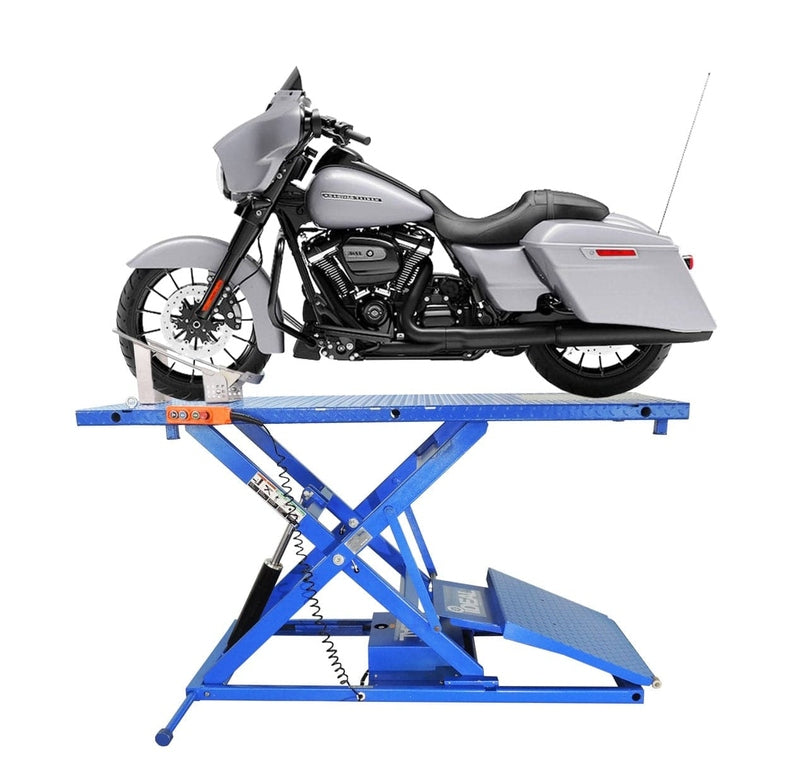

The M-2200IEH-XR Motorcycle lift features our innovative retractable approach ramp system which automatically retracts the approach ramp from the work space while the lift is rising. A spring loaded drop down panel for improved rear wheel service access is integrated into the table. The drop down panel swings out of the way and quickly clips back into place when not in use. We have maintained our hand held pendant for complete operation. No need to put hands or feet in harms way when disengaging safety latches. Vise and Chock sold separately.
Features
- ELECTRIC / HYDRAULIC MOTORCYCLE LIFT BENCH

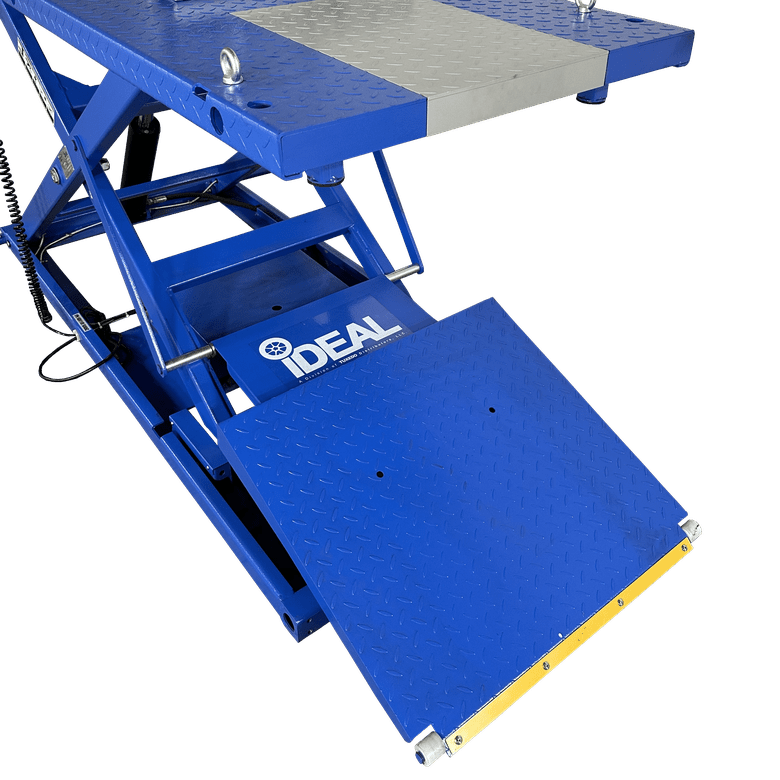

- EXCLUSIVE FULL WIDTH RETRACTABLE RAMP SYSTEM

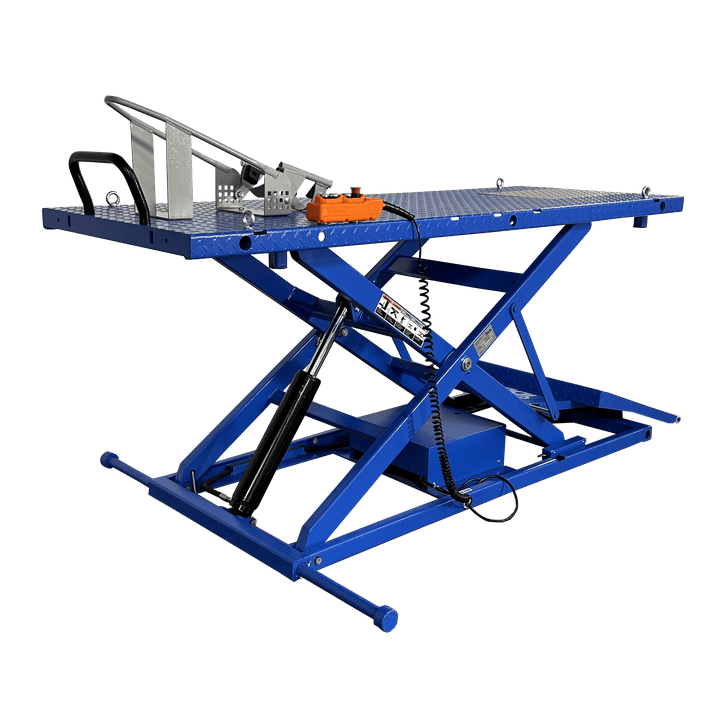

- 2,200 LBS. CAPACITY
- 47" RISE HEIGHT
- 5" X 88.6" PLATFORM SIZE

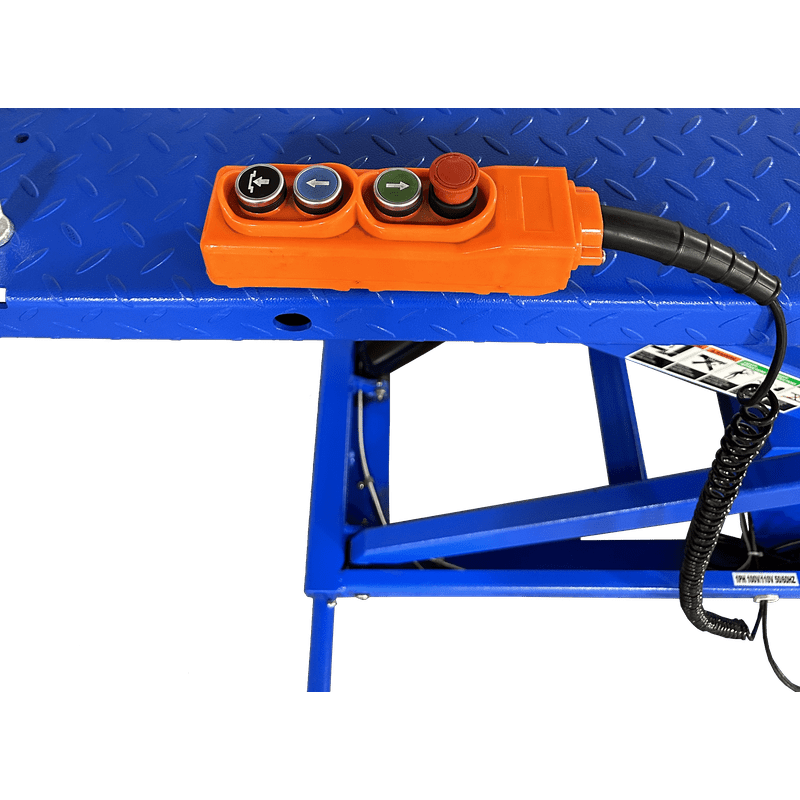

- HAND HELD REMOTE CONTROL PENDANT
- 110V INTEGRATED ELECTRIC / HYDRAULIC POWER UNIT
- MAGNETIC LOCK RELEASE
- SIX LOCKING POSITIONS

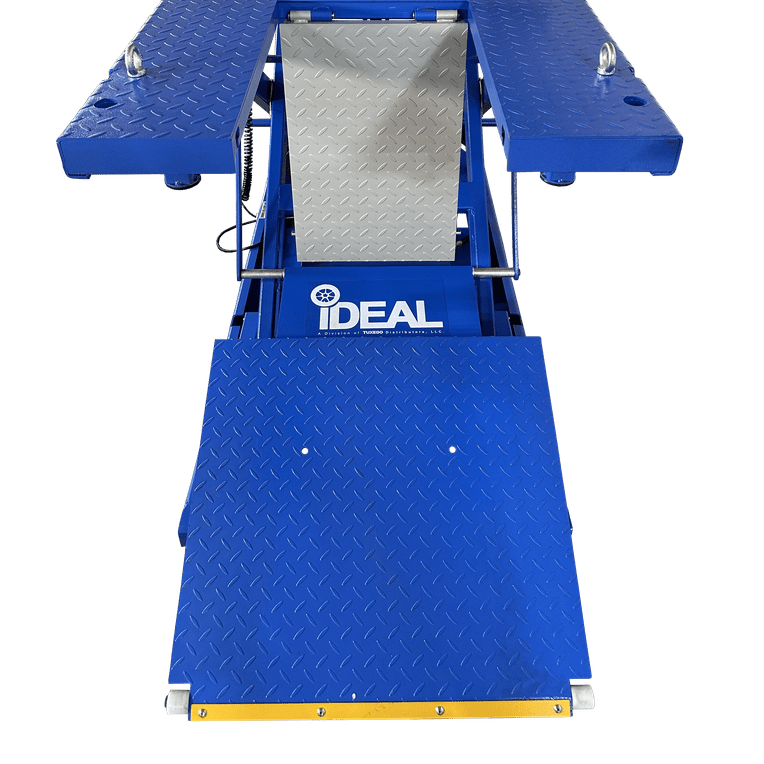

- REAR DROP DOWN SERVICE PANEL
- STABILIZER BAR

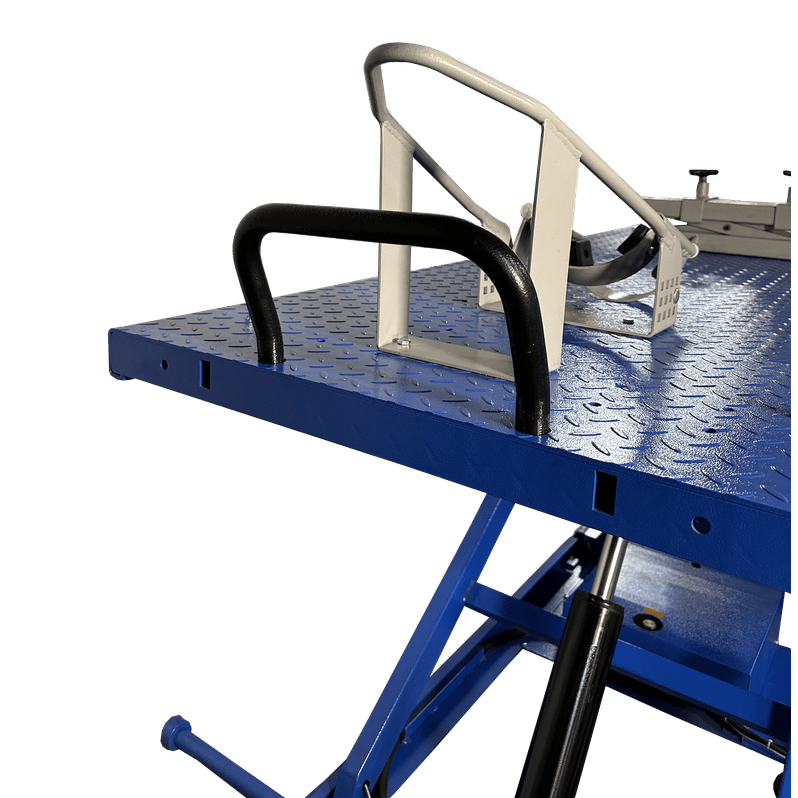

- WHEEL STOP

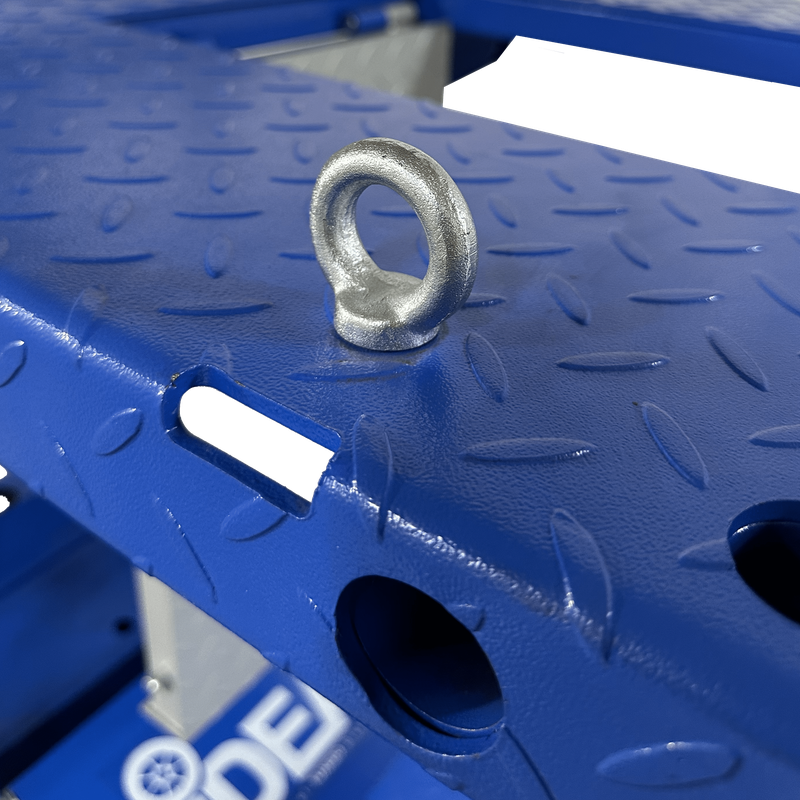

- TIE-DOWN ANCHOR EYE BOLTS

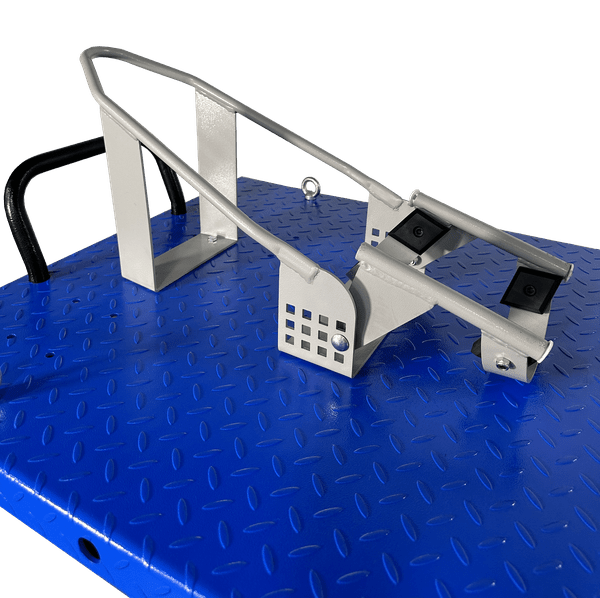

- PLATFORM DESIGNED TO MOUNT OPTIONAL M-VISE OR M-CHOCK

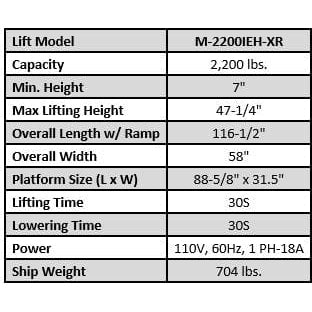

Specifications
| Lift Model | M-2200IEH-XR |
| Capacity | 2,200 lbs |
| Min. Height | 7" |
| Max Lifting Height | 47-1/4" |
| Overall Length w/ Ramp | 116-1/2" |
| Overall Width | 58" |
| Platform Size (L x W) | 88-5/8" x 31.5" |
| Lifting Time | 30S |
| Lowering Time | 30S |
| Power | 110V, 60Hz, 1 PH-18A |
| Ship Weight | 704 lbs |
