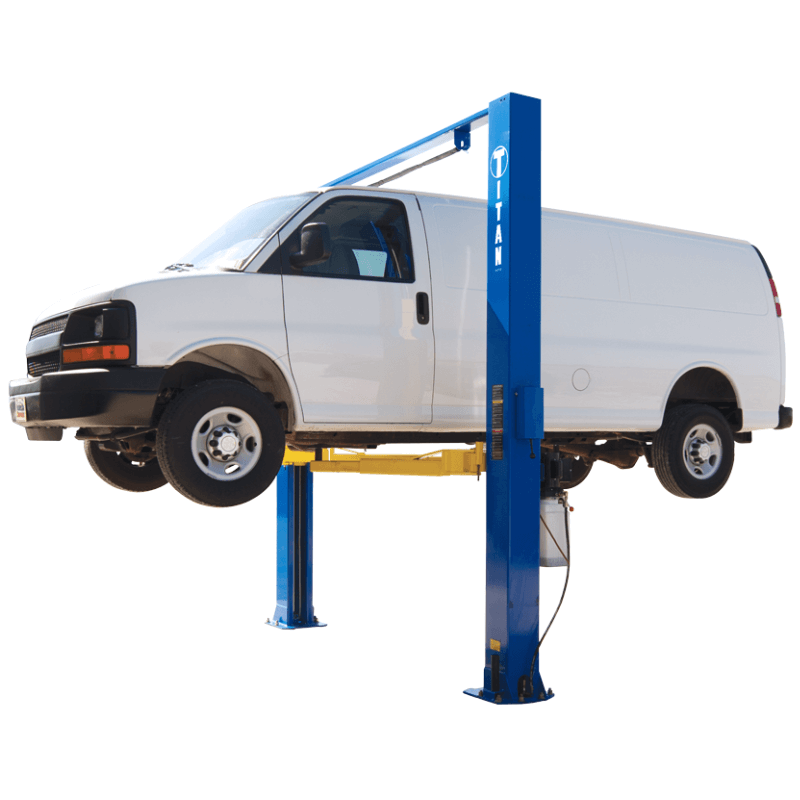

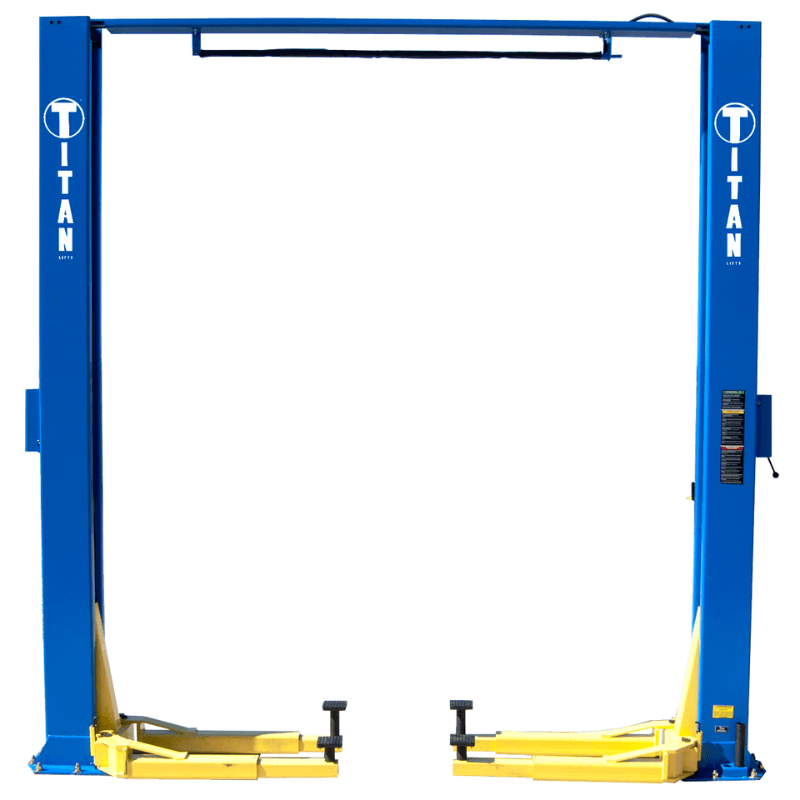

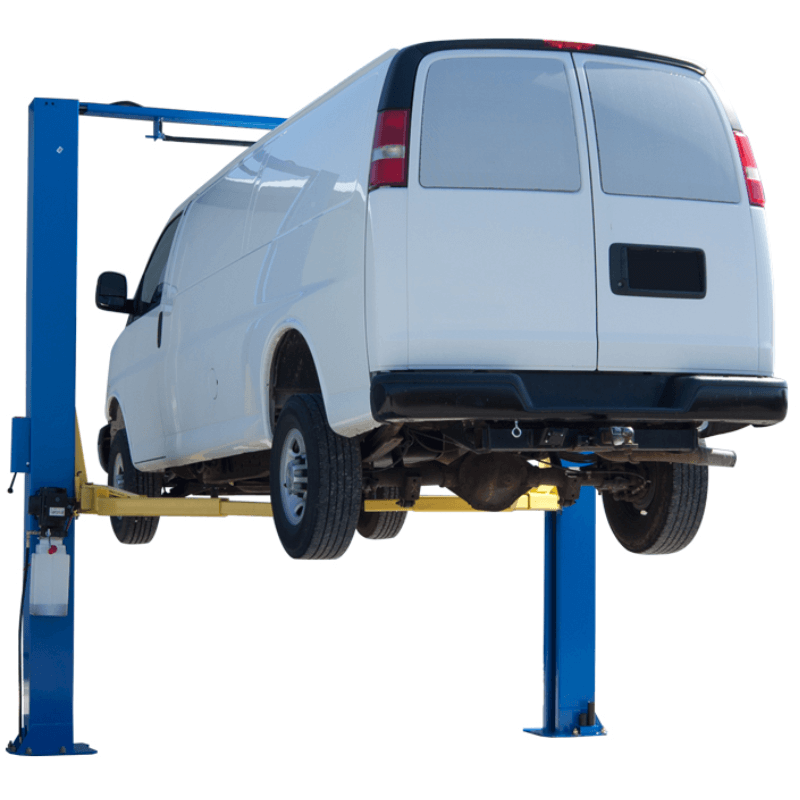

Titan HD2P-10000AC-D 10,000 lb Direct Drive Two-Post Lift
The Titan HD2P-10000AC-D Direct Drive Two-Post Lift is a heavy-duty lifting solution designed for professional repair facilities, commercial garages, and dedicated automotive enthusiasts. Featuring a robust 10,000 lb lifting capacity, this lift delivers the strength and reliability needed to service a wide range of vehicles, from passenger cars to light-duty trucks.
At the heart of the HD2P-10000AC-D is a direct-drive hydraulic lifting system that eliminates many of the components commonly found in chain-over-roller designs. By reducing moving parts, the system provides smoother operation, lower maintenance requirements, and increased long-term reliability. The lift combines an asymmetric arm configuration for easier vehicle entry and exit with a symmetric column design that enhances overall stability during lifting operations.
Designed with safety and convenience in mind, the lift features low-profile automatic arm restraints, a single-point safety release system, and included height adapters for added versatility. Built from commercial-grade materials and protected by a durable powder-coated finish, the HD2P-10000AC-D is engineered to withstand the demands of daily professional use while delivering dependable performance for years to come.
Specifications
- Lifting Capacity: 10,000 lbs
- Overall Height: 144.75"
- Overall Width: 145"
- Width Between Posts: 117.375"
- Drive-Thru Width: 98"
- Minimum Pad Height: 5"
- Maximum Pad Height: 72"
- Lifting Speed: Approximately 75 seconds
- Minimum Concrete Requirement: 4" thick at 3,000 PSI
- Power Unit: 220V, Single-Phase, 60Hz, 20 Amp
- Motor: 3 HP

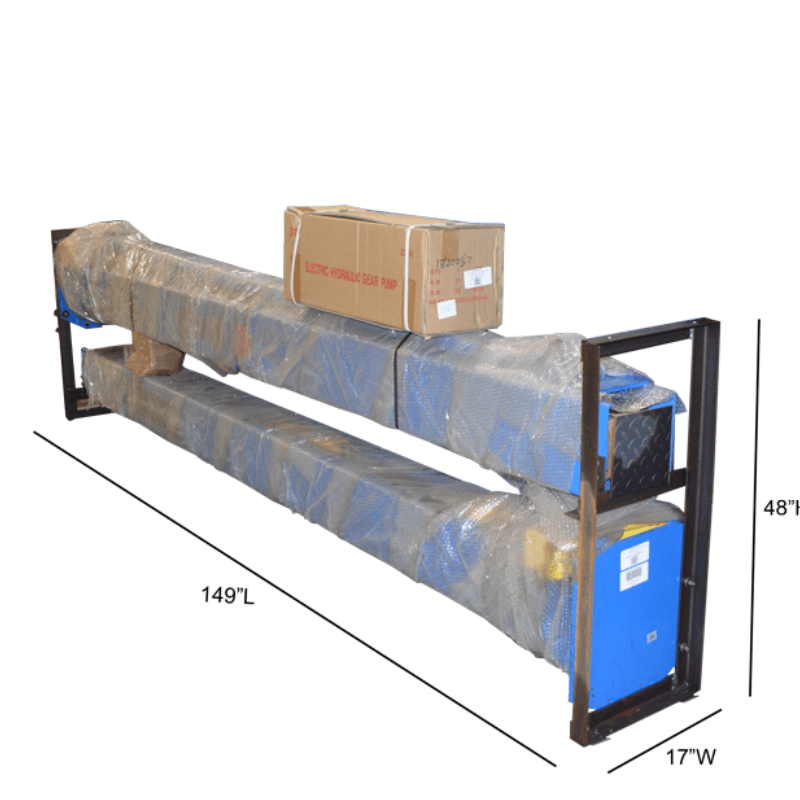

- Shipping Dimensions: 149"L x 17"W x 48"H
- Shipping Weight: 1,850 lbs
Features
- 10,000 lb lifting capacity
- Direct-drive hydraulic lifting system for smooth, efficient operation
- Reduced maintenance compared to traditional chain-over-roller lifts
- Asymmetric arm design for improved vehicle access
- Symmetric column construction for enhanced stability
- Low-profile automatic arm restraints
- Single-point safety release system
- Includes four 5.5" drop-in height adapters
- Durable powder-coated finish for corrosion and wear resistance
- Anchor bolt installation kit included
- Commercial-grade construction designed for daily professional use
Warranty
- 1-Year Electrical and Hydraulic Components Warranty
- 5-Year Structural Warranty
Built for reliability, efficiency, and long-term durability, the Titan HD2P-10000AC-D is an excellent choice for shops seeking a professional-grade two-post lift with the advantages of direct-drive hydraulic technology and minimal maintenance requirements.
