Description

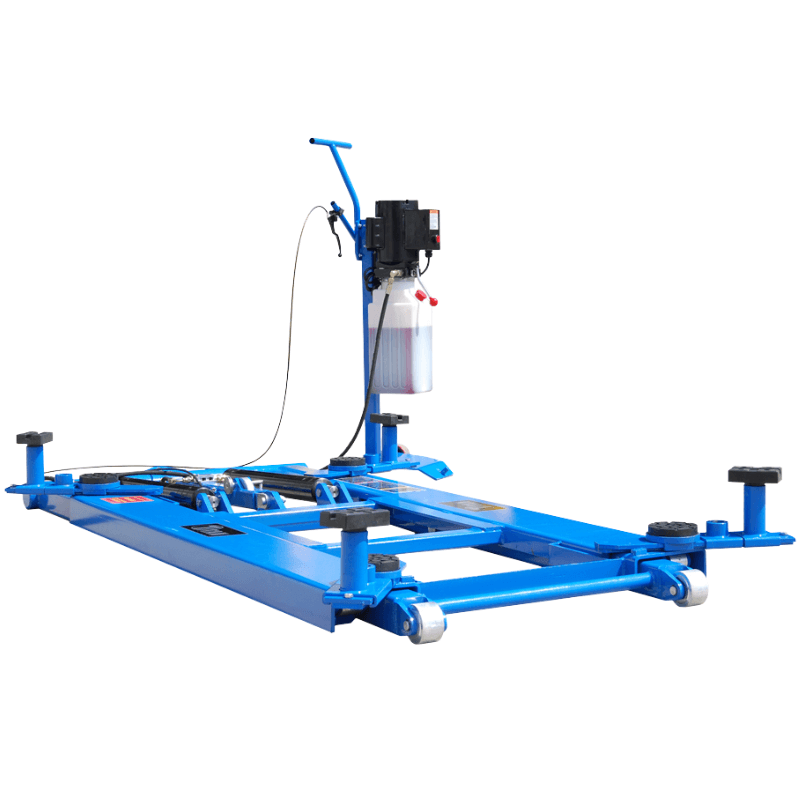

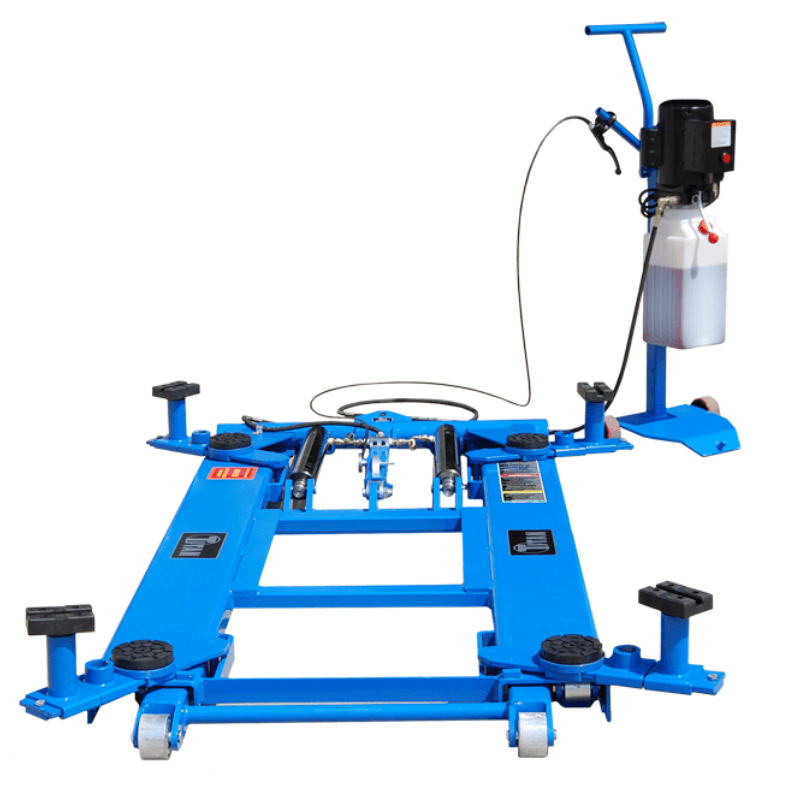

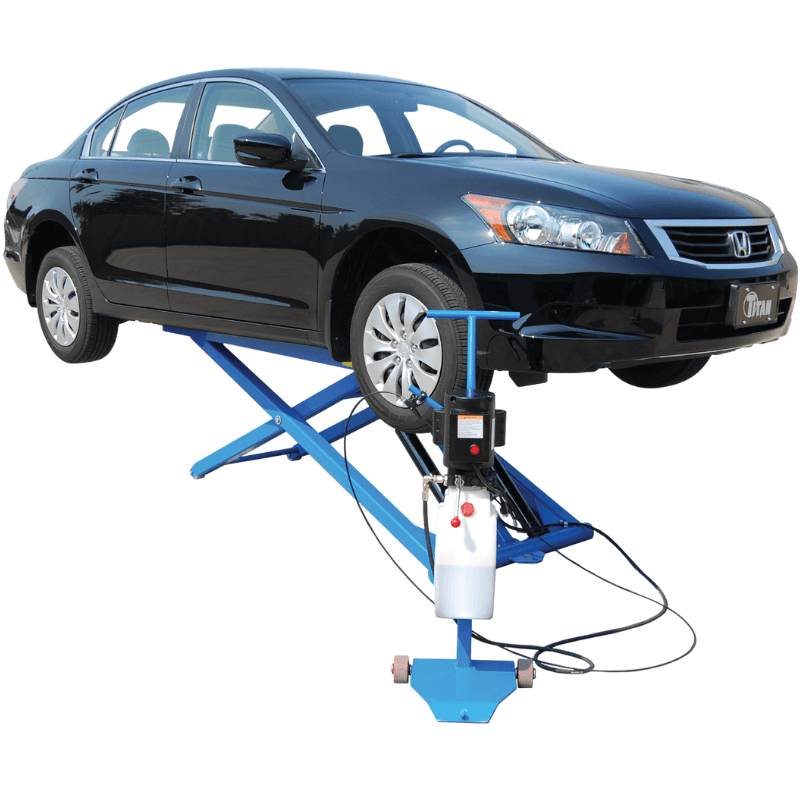

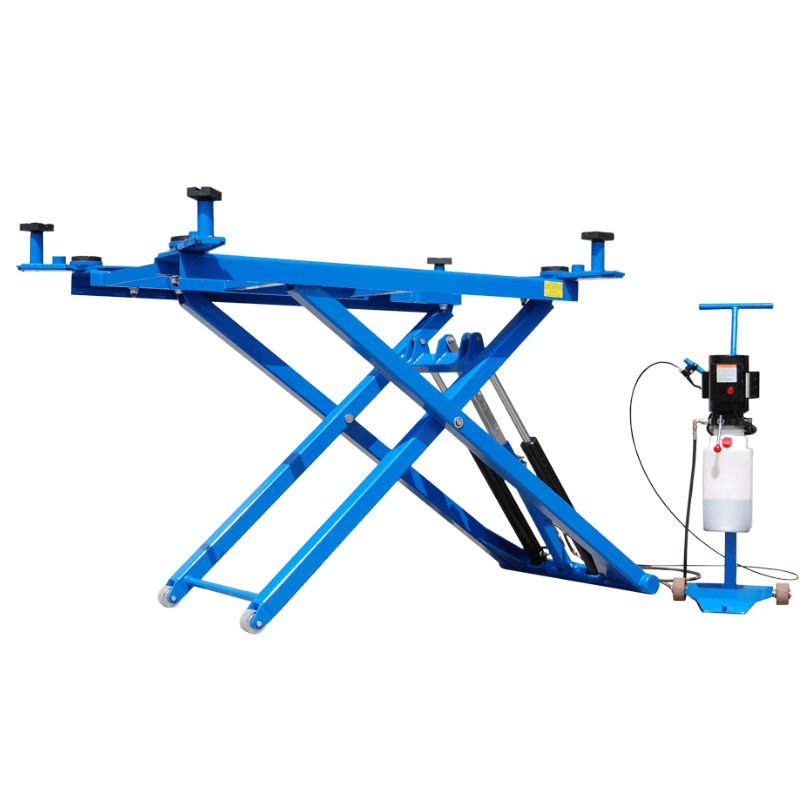

Titan MRL-6000 6,000 lb Mid-Rise Scissor Lift
The Titan MRL-6000 Mid-Rise Scissor Lift is a versatile and dependable lifting solution designed for automotive repair shops, detailing facilities, and home garage enthusiasts. Featuring a robust 6,000 lb lifting capacity, this freestanding scissor lift provides the ideal combination of lifting performance, stability, and convenience for a wide variety of maintenance and service applications.
Constructed from heavy-duty steel and protected by a durable powder-coated finish, the MRL-6000 is built to withstand years of regular use. Its compact footprint and freestanding design allow for easy placement and relocation, while seven locking positions provide added safety and flexibility during operation. Whether you're performing brake work, suspension repairs, wheel service, or vehicle detailing, the MRL-6000 delivers reliable lifting performance and excellent vehicle accessibility.
Equipped with dual 3-inch hydraulic cylinders, adjustable low-profile lift arms, and a portable 110V power unit mounted on a rolling dolly, this lift offers smooth operation and user-friendly functionality for both professional and personal use.
Specifications
Locking Positions (With Tall Adapters)
- Position 1: 27.5"
- Position 2: 34.25"
- Position 3: 40"
- Position 4: 45.375"
- Position 5: 50"
- Position 6: 54.125"
- Position 7: 58.25"
Lift Dimensions
- Platform Width: 40"
- Arm Reach Width: 58"
- Platform Length: 71"
- Roller Travel: 21"
- Overall Length: 100"
- Lowered Height: 5.5"
- Minimum Pad Height: 6"
- Maximum Pad Height: 60"
Performance
- Lifting Capacity: 6,000 lbs
- Power Unit: 110V–120V, 60Hz, Single-Phase
- Motor: 3 HP
- Electrical Requirement: 20 Amp Circuit
- Plug Type: Standard 3-Prong Outlet
Shipping Information

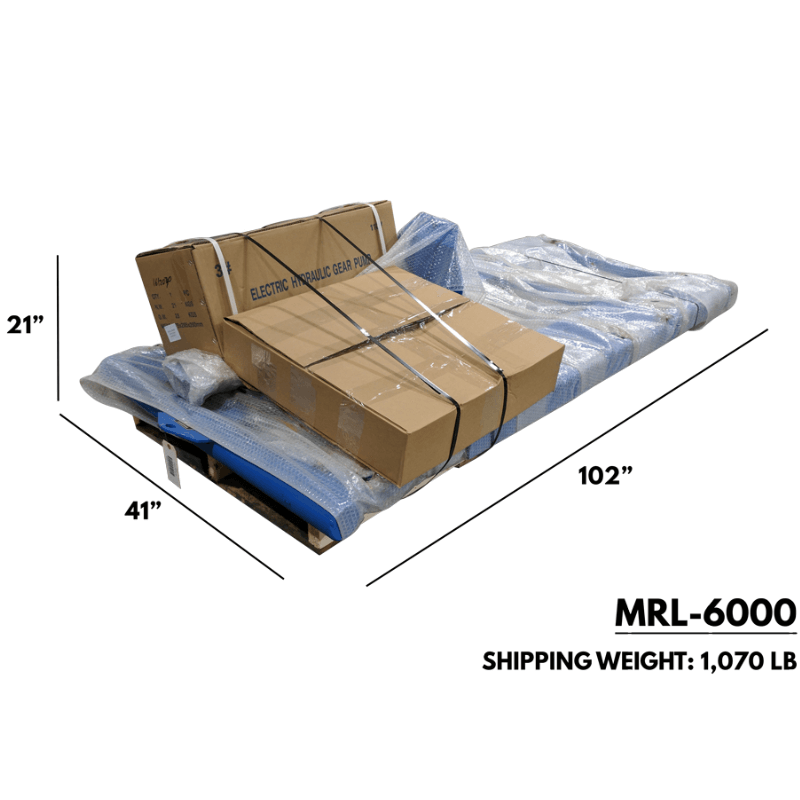

- Shipping Dimensions: 102"L x 42"W x 21"H
- Shipping Weight: 1,070 lbs
- Not Eligible for Lift Gate Delivery
Features
- 6,000 lb lifting capacity
- Heavy-duty solid steel construction
- Durable powder-coated finish for long-term protection
- Seven locking positions for added safety and flexibility
- Adjustable low-profile lift arms
- Dual 3" hydraulic cylinders for smooth and stable lifting
- Wide platform design for improved vehicle support
- Extended arm reach for greater versatility
- Portable 110V power unit mounted on a rolling dolly
- Height adapters included
- Compact freestanding design for easy installation and relocation
- Ideal for brake service, wheel work, detailing, and general maintenance
Warranty
- 5-Year Structural Warranty
- 1-Year Parts Warranty
The Titan MRL-6000 offers a practical combination of lifting power, compact design, and dependable performance. With its freestanding construction, wide lifting range, and user-friendly operation, it is an excellent choice for anyone seeking a versatile mid-rise lift for professional or home garage use.
