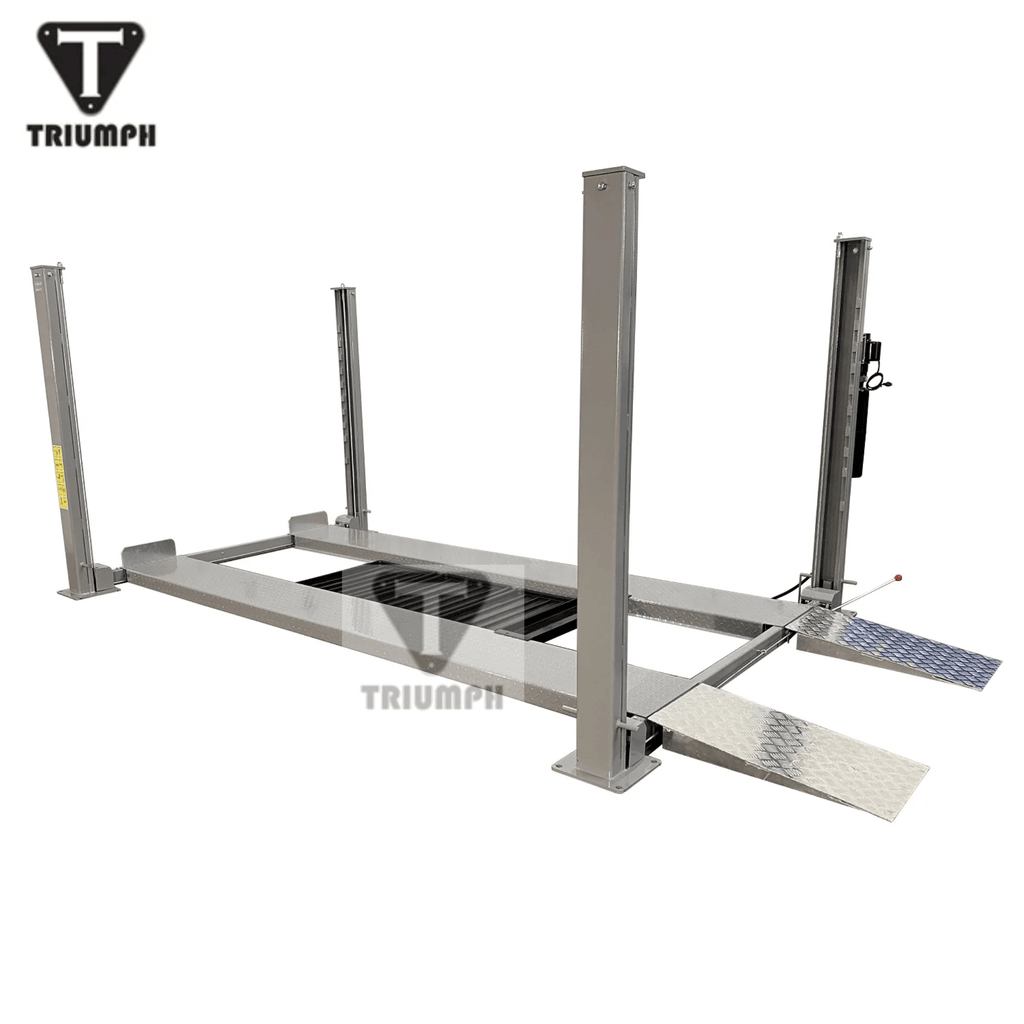

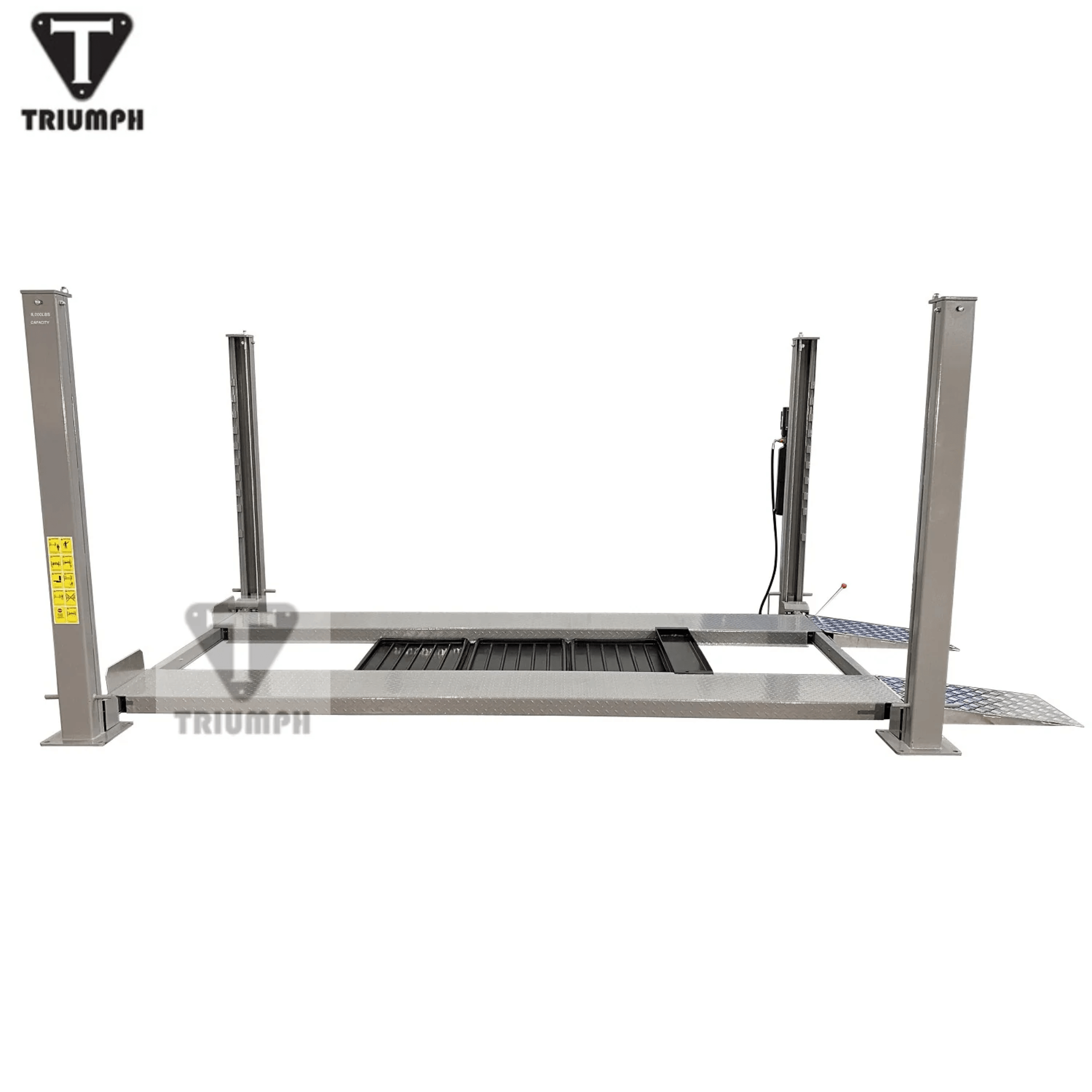

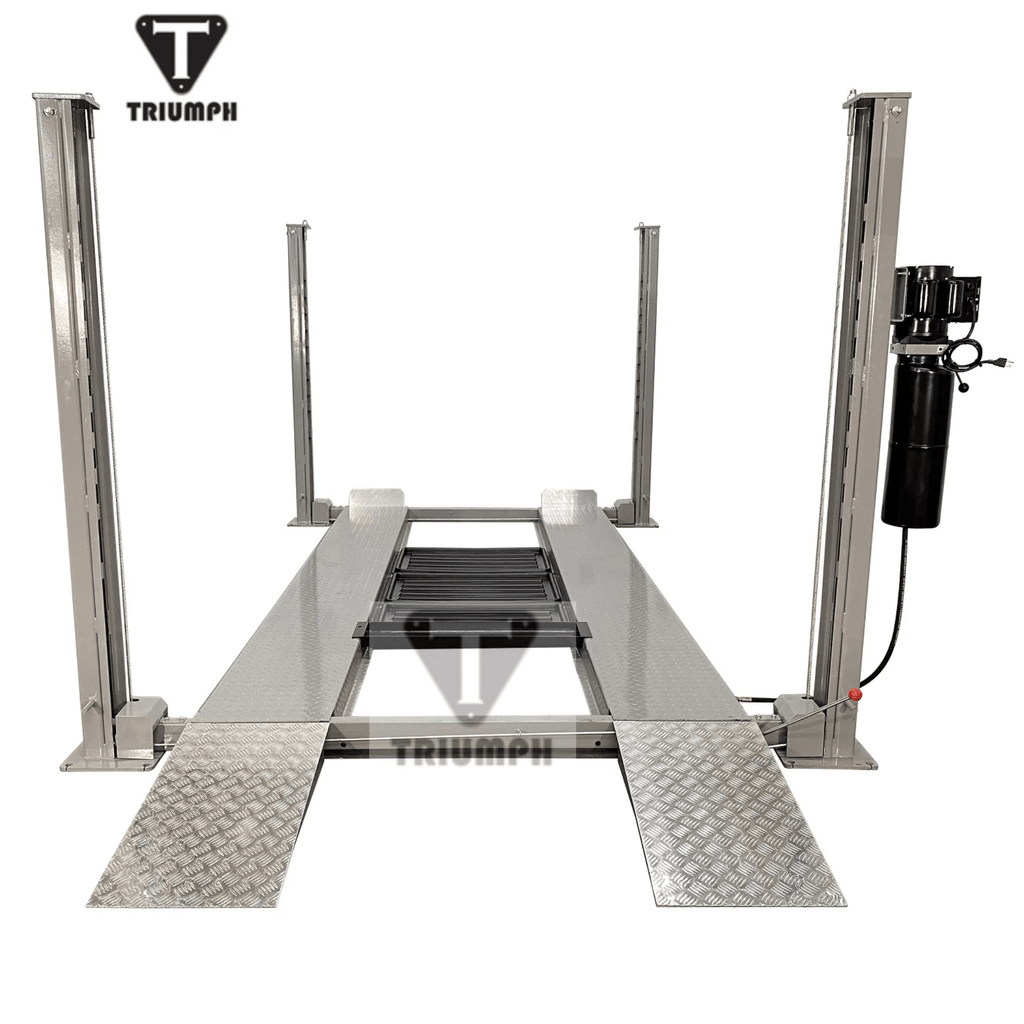

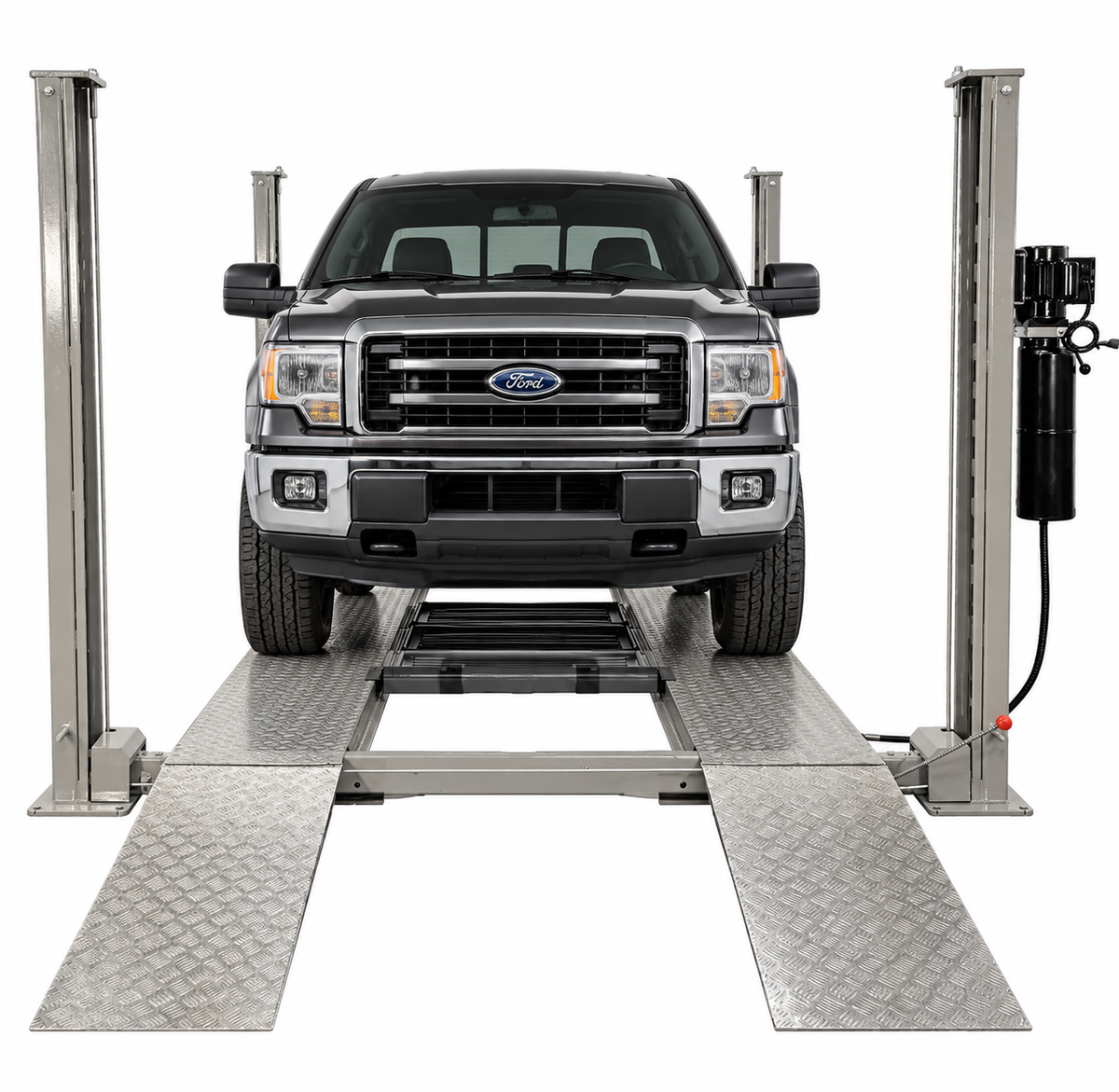

NSS-8XLT 8,000 lb Vehicle Storage Lift by Triumph

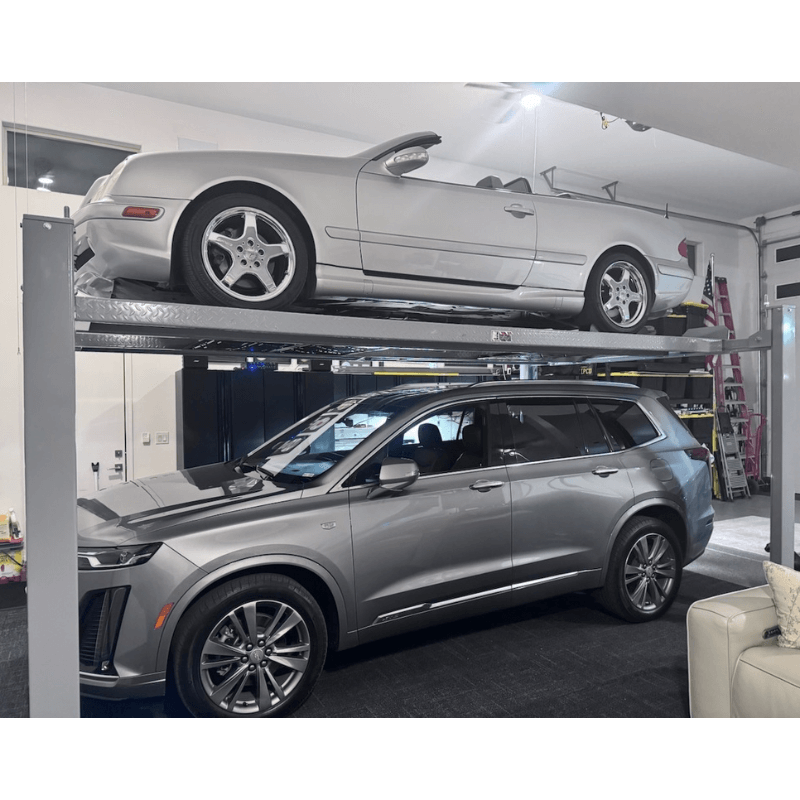

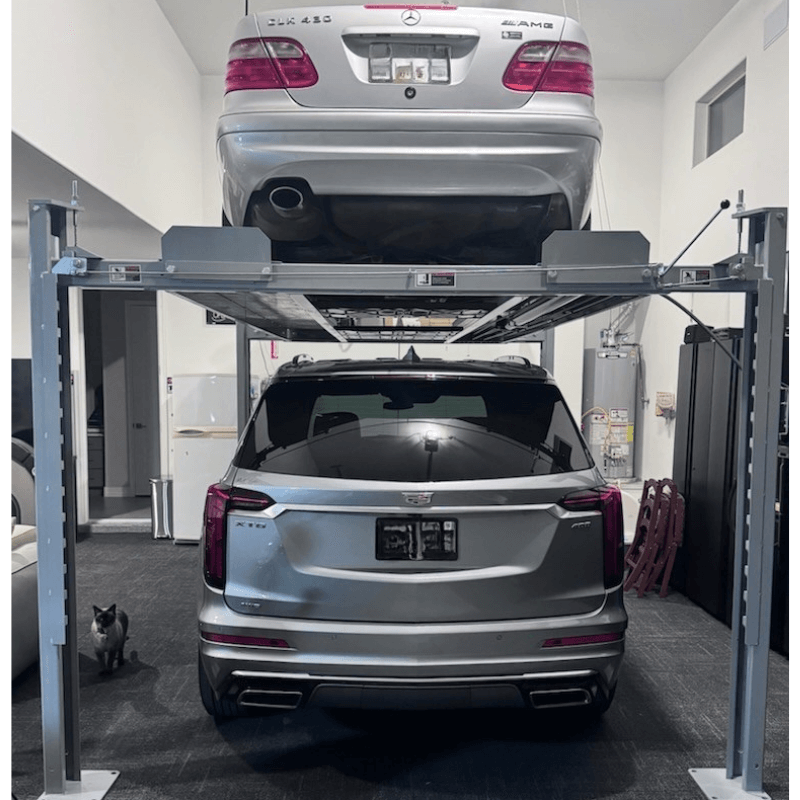

Maximize your garage space with the Triumph NSS-8XLT, an 8,000 lb capacity four-post lift designed to turn a single parking area into a highly efficient two-vehicle setup. Ideal for enthusiasts and homeowners alike, this lift allows you to safely store one vehicle above another—eliminating the need to choose between your daily driver and your weekend vehicle.
With an extended overall height of 94 inches and an impressive 82-inch lifting height, the NSS-8XLT accommodates a wide range of vehicles, from low-profile sports cars to larger trucks. Built for both storage and light service work, it includes a jack tray for maintenance, three drip trays to protect the lower vehicle, and a caster kit for easy mobility within your garage. Ten locking positions and a single-point lock release system ensure safe, stable operation at multiple working heights.
Triumph NSS-8XLT Specifications
-
Lifting Capacity: 8,000 lbs
-
Overall Height: 94"
-
Overall Length (without ramps): 190"
-
Overall Length (with ramps): 210"
-
Overall Width (base plate to base plate): 112"
-
Maximum Lifting Height: 82"
-
Height Under Runway: 79"
-
Runway Length: 180"
-
Drive-Through Width: 99"
-
Runway Width: 18"
-
Width Between Runways: 37"
-
Lowered Height: 5"
-
Locking Positions: 10
-
Base Plate Size: 12" x 12"
-
Lock Release: Single-point
-
Lift Time: 40 seconds
-
Motor: 3 HP
-
Voltage: 110V (30 amp breaker)
-
Shipping Weight: 1,695 lbs
-
Pallet Dimensions: 184" x 21" x 29"
Triumph NSS-8XLT Special Features
-

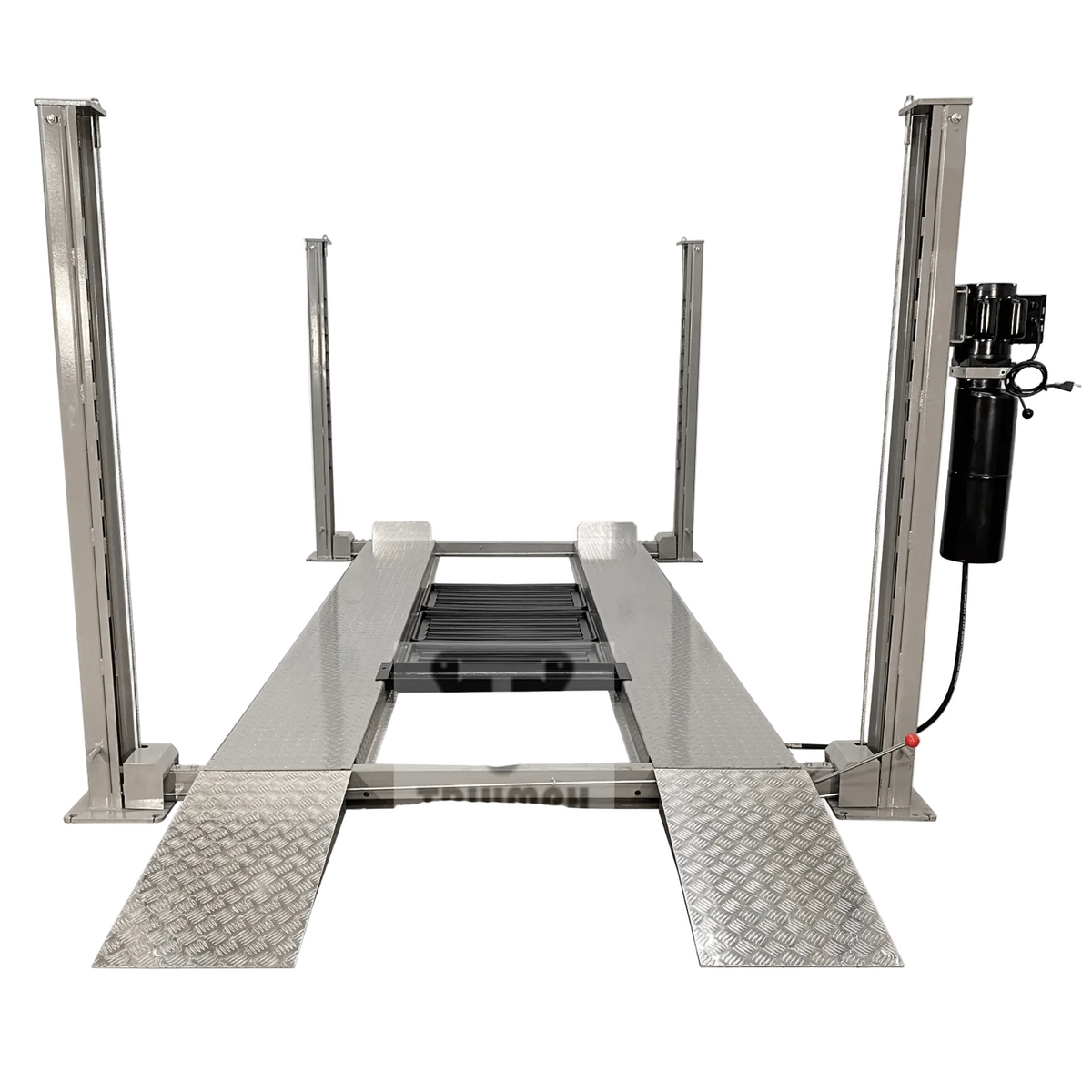

Four-post design provides excellent stability for vehicle storage
-

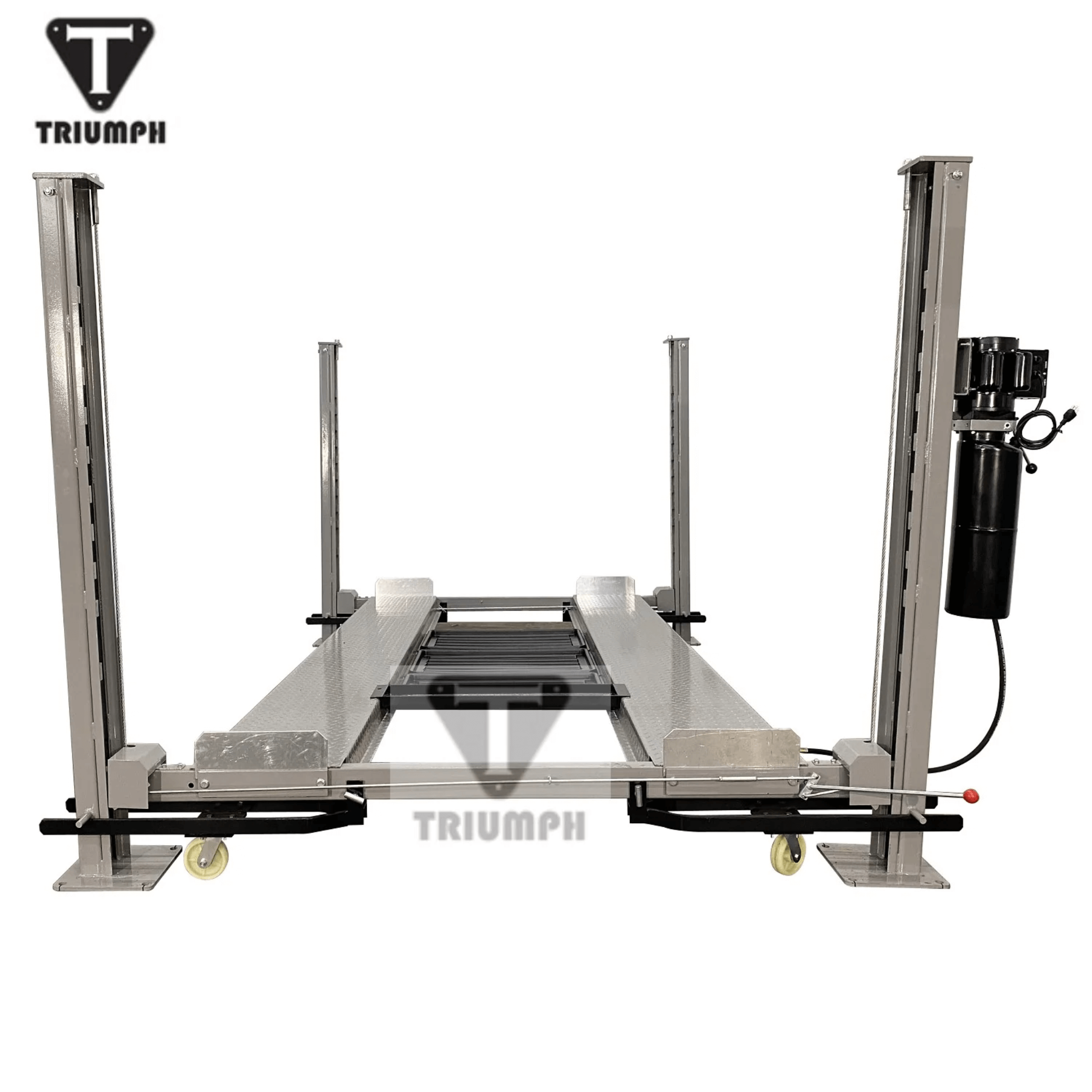

Includes caster kit for easy repositioning within the garage
-

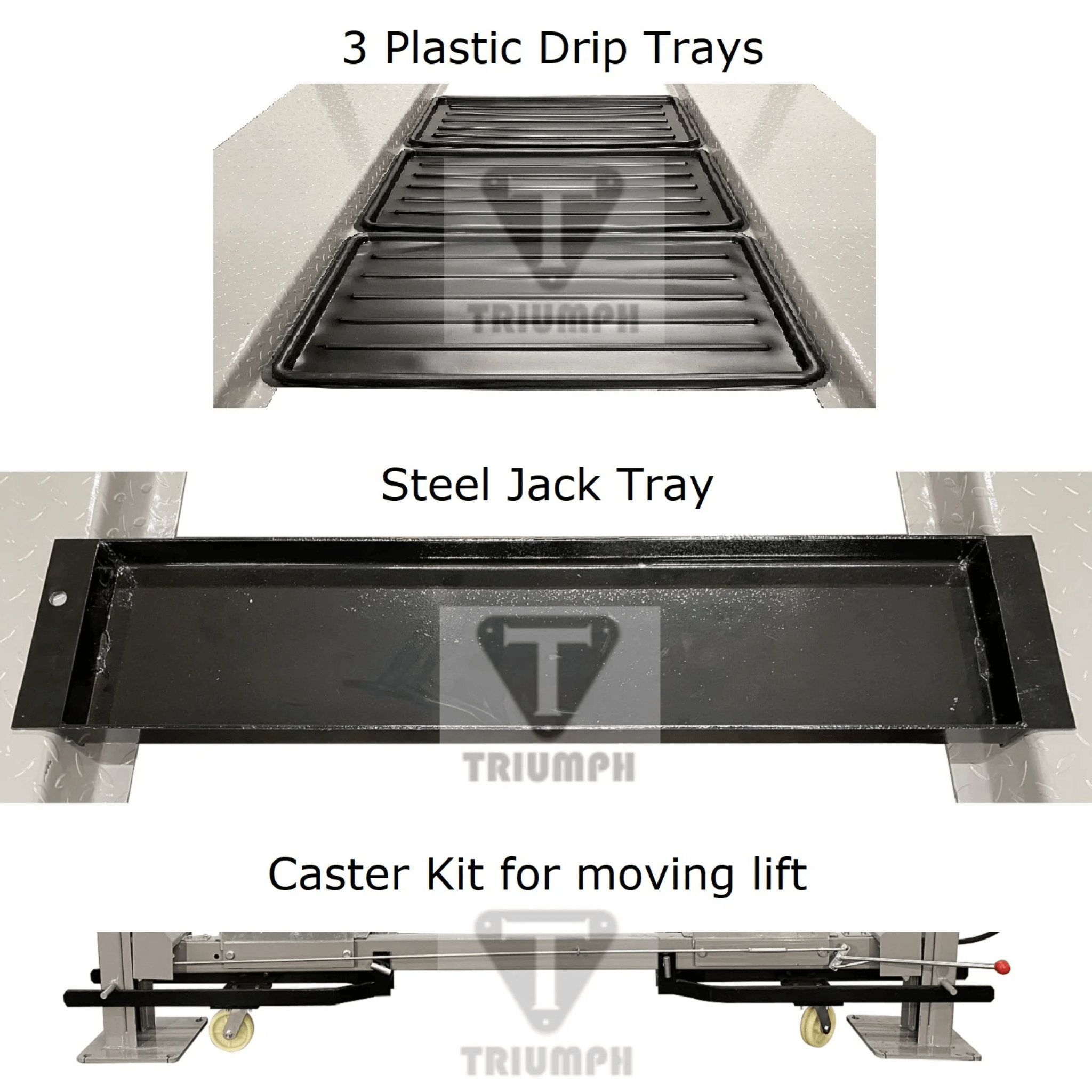

Jack tray allows lifting of one end of the vehicle using a bottle or floor jack
-
Three drip trays help prevent fluid transfer to the lower vehicle
-
Automatic safety locks engage at 10 different height positions
-
Portable design makes it suitable for both storage and light service use
-

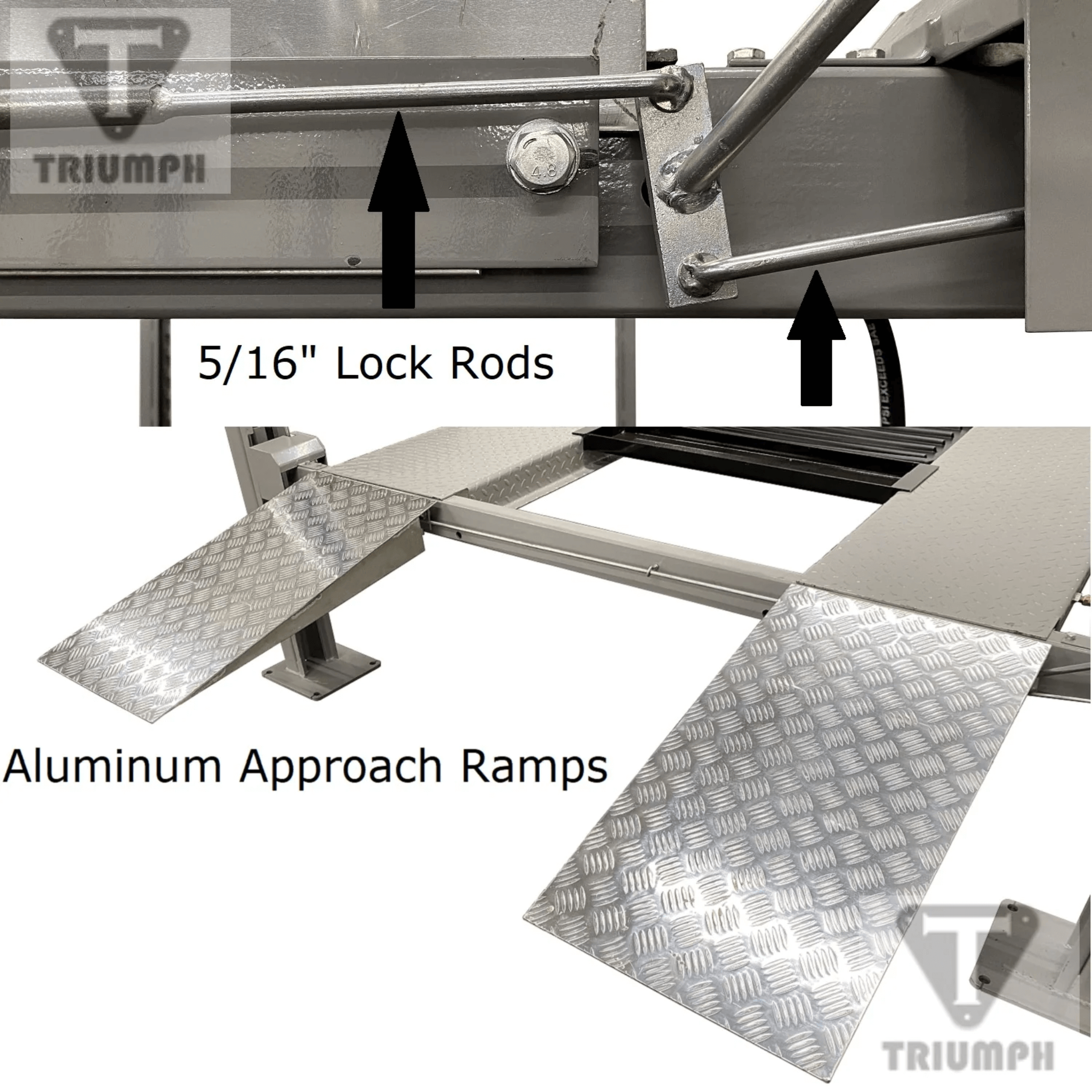

Aluminum approach ramps for easy removal and durability
-
Clean, professional grey finish
-
Warranty: 1-year parts-only
-
Certification: CE Certified and manufactured in ISO9001-certified facilities
Optional Item (Sold Separately)
-
Triumph NSS-8 Storage Lift Bridge Jack (SJ35)**
