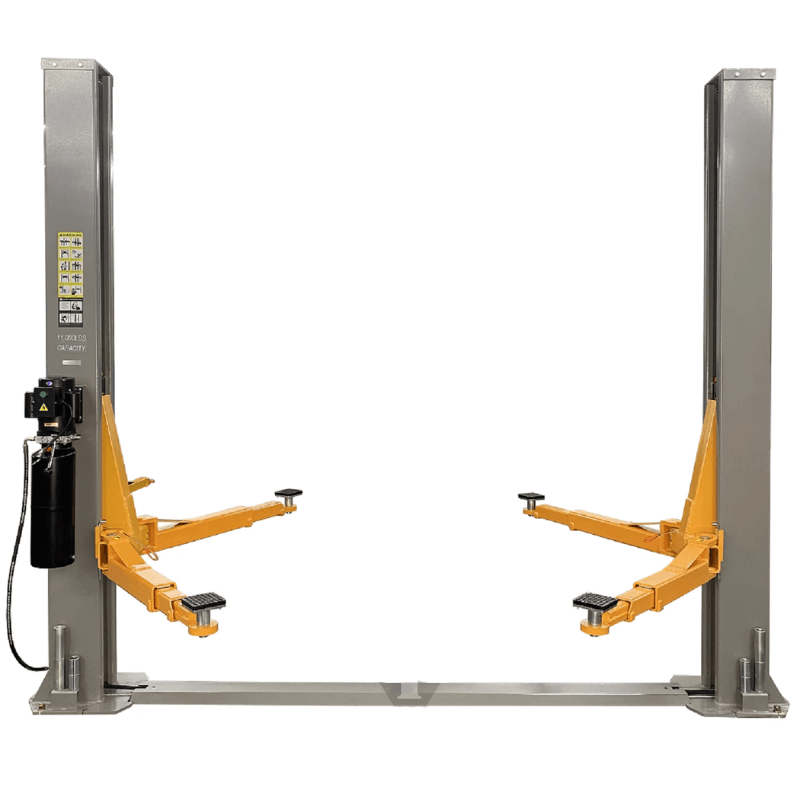

Triumph NT-11 11,000 lb 2 Post Lift

If your current equipment makes routine service work more difficult than necessary, upgrading to the Triumph NT-11 Two Post Lift can help improve both efficiency and working comfort. With an 11,000 lb lifting capacity, this lift is designed to handle a wide range of vehicles including passenger cars, trucks, SUVs, and larger service vehicles.

The NT-11 provides up to 72 inches of lifting height, giving technicians comfortable access to the underside of vehicles for inspections, maintenance, and repair work. By raising the vehicle to a more convenient working height, this lift helps reduce the need to work on the floor while performing common service tasks.

Designed to accommodate larger vehicles, the NT-11 features a 138-inch overall width and 112-inch spacing between posts, allowing ample room for vehicle positioning. Its low 4.5-inch lowered height allows vehicles to be positioned on the lift arms with minimal clearance concerns.

Manufactured in ISO 9001-certified facilities and CE certified, the Triumph NT-11 is built with durability and consistent performance in mind. The lift also includes truck adapters and floor mounting anchors, providing the necessary components for installation in many professional shops and garage environments.

---

Triumph NT-11 Specifications

Capacity: 11,000 lbs
Overall Height: 116 inches
Overall Width: 138 inches
Distance Between Posts: 112 inches (mirror height of vehicle)
Drive-Through Width: 102 inches (tire width on floor)
Lifting Height: 72 inches
Arm Style: Asymmetric

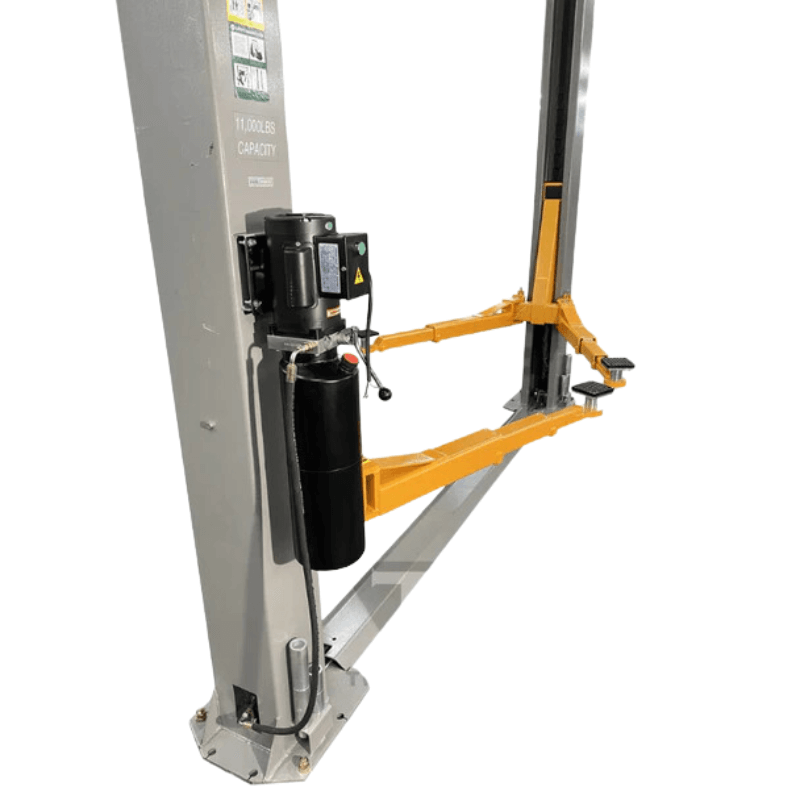

Power: 220V – 3 HP
Lowered Height: 4.5 inches
Shipping Weight: 1,550 lbs
Pallet Dimensions: 120" x 33" x 22"

---

Triumph 11,000 lb 2 Post Lift Features

• Manufactured in ISO 9001-certified facilities and CE certified

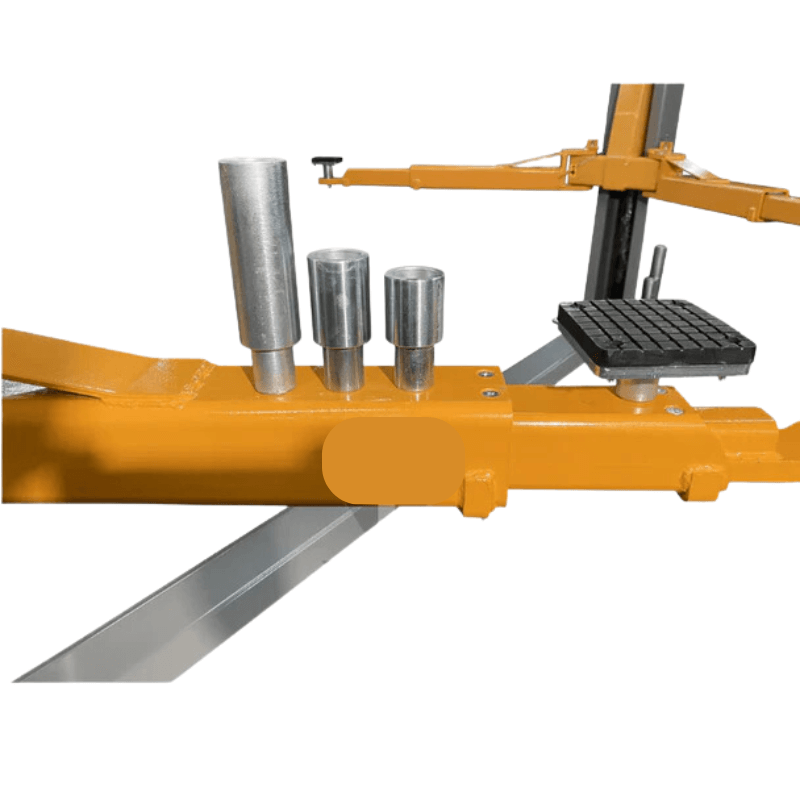

• Includes truck adapters and floor mounting anchors

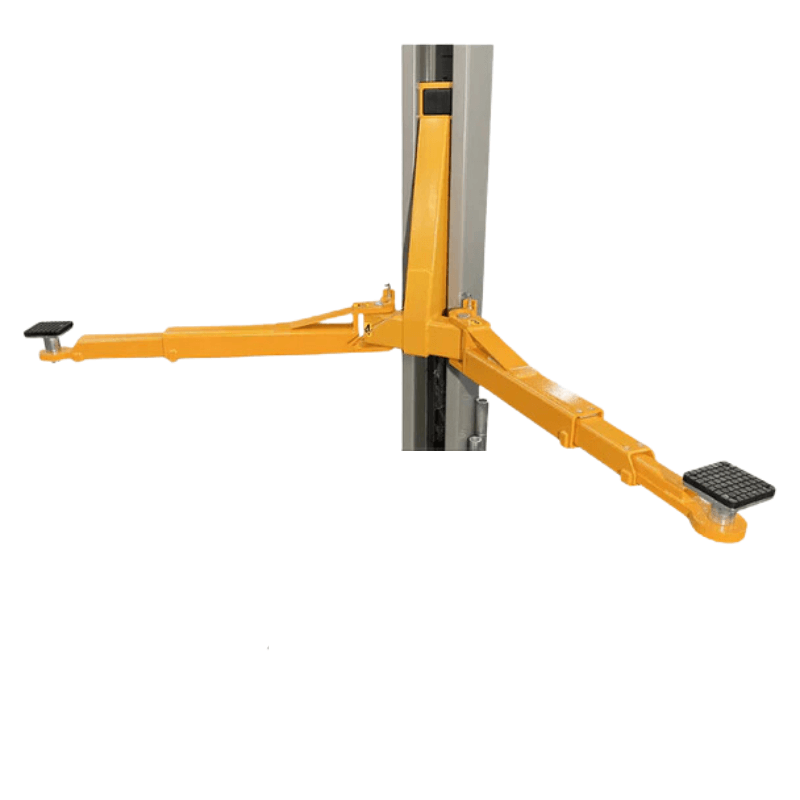

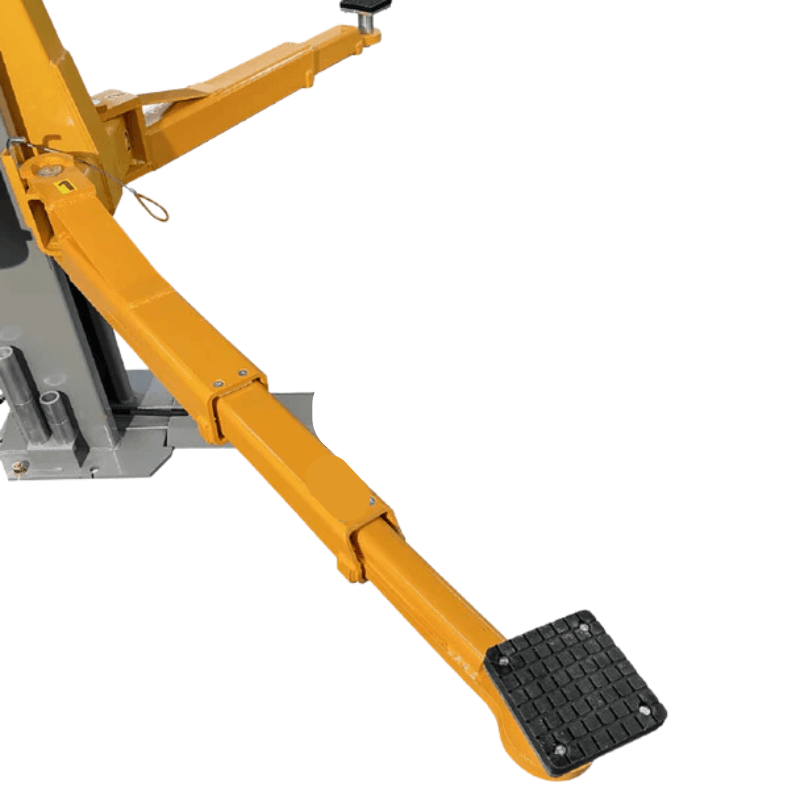

• Asymmetric arm design for flexible vehicle positioning

• Designed to accommodate a wide range of vehicles including cars, trucks, and SUVs

---

Installation Requirements

• 4" thick concrete floor

• Minimum 3000 PSI concrete rating

---

Certification & Warranty

Certification: CE Certified, manufactured in ISO9001-certified factories
Warranty: 1-year parts-only warranty

Triumph NT 11 Installation Manual
