TriumphSKU: NTR-24

At a Glance

  • Overall Length (without ramps): 300"
  • Max Lifting Height: 70.8"
  • Drive-Thru Clearance: 131.8"
Price:
$15,495.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

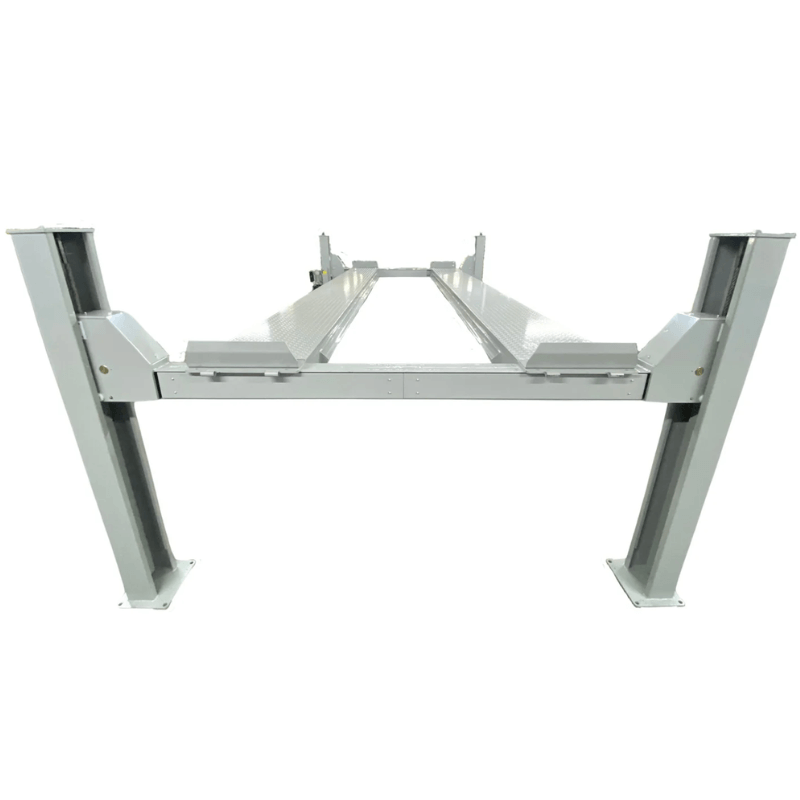

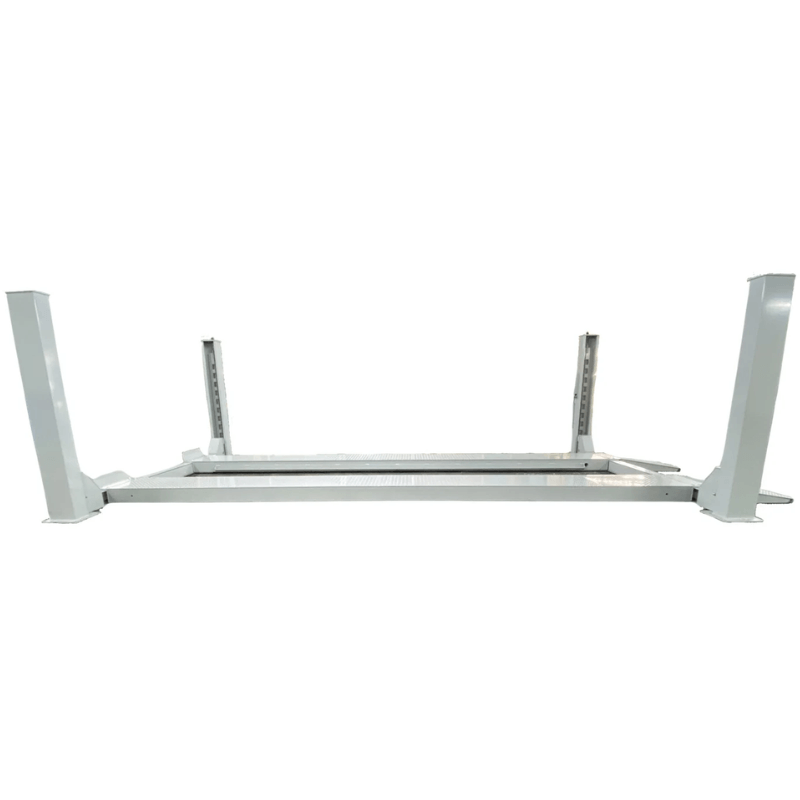

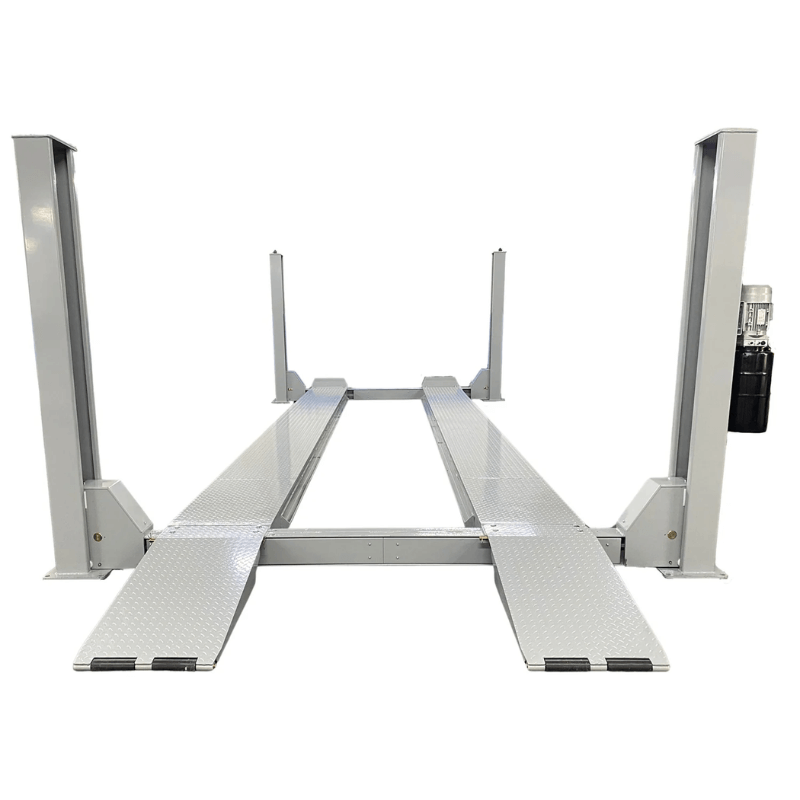

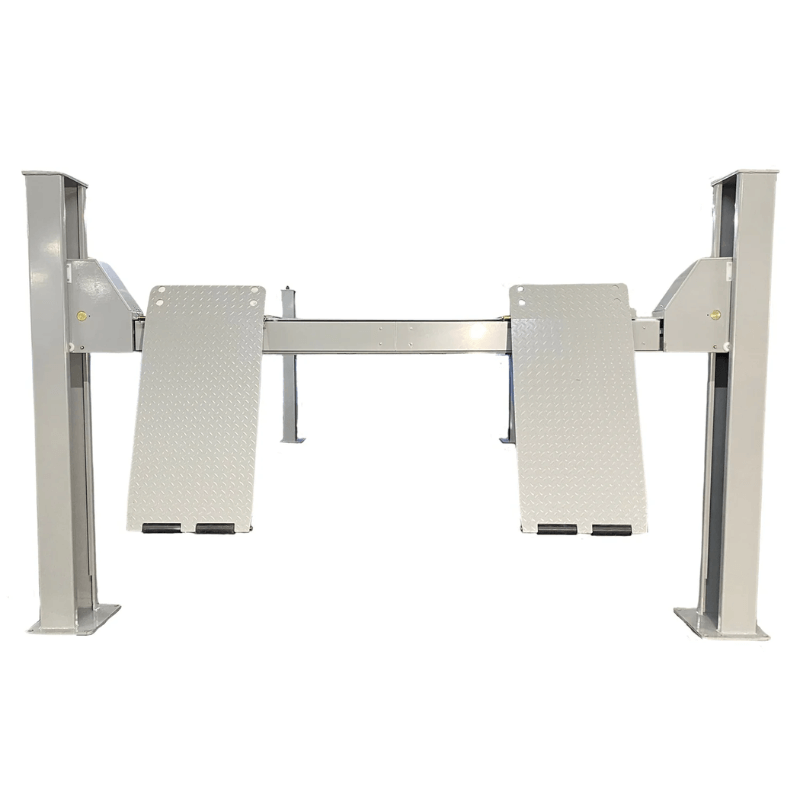

NTR-24 24,000 lb 4-Post Auto Lift by Triumph

The Triumph NTR-24 4-Post Lift is built for serious heavy-duty applications, delivering an impressive 24,000 lb lifting capacity. Designed to handle commercial trucks, buses, and large fleet vehicles, this lift provides the strength and stability required for demanding shop environments.

With a maximum lifting height of 70.8 inches and nine locking positions, the NTR-24 offers both flexibility and secure positioning for a wide range of service tasks. Its wide, adjustable runways (45.3" to 49.2") allow for proper alignment and support of larger vehicles, making maintenance and inspections more efficient.

Engineered for durability, the NTR-24 features a robust steel frame designed for long-term performance under heavy loads. The 220V single-phase electrical system ensures smooth and consistent operation, while the 9-inch minimum runway height allows for easier loading of heavier vehicles. With an overall length of over 338 inches (including ramps) and a substantial build weight of 6,614 lbs, this lift is purpose-built for demanding, real-world use.

NTR-24 Specifications

  • Lifting Capacity: 24,000 lbs

  • Overall Height: 93.1"

  • Overall Length (without ramps): 300"

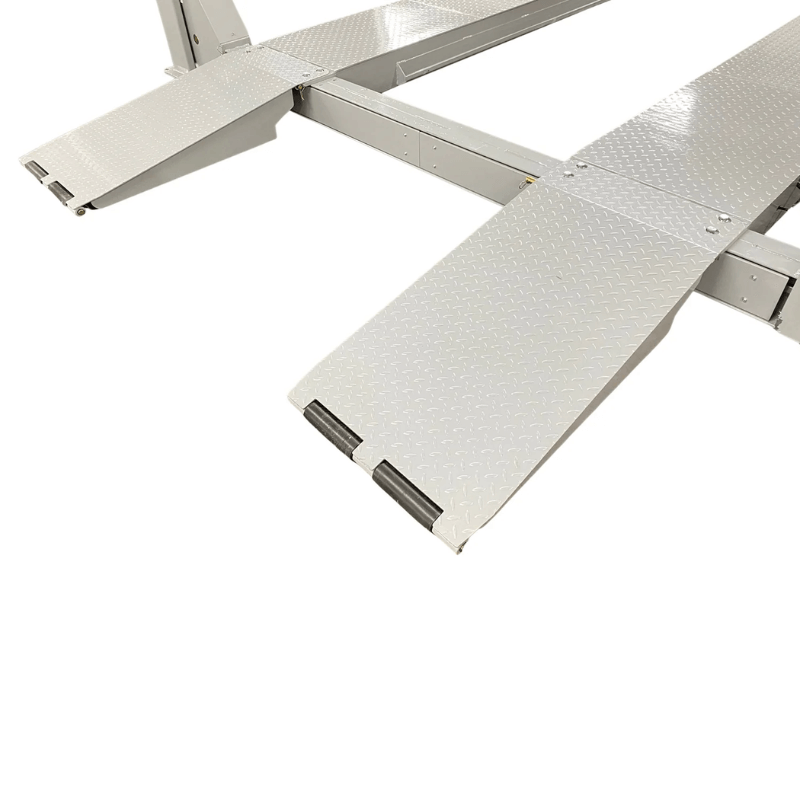

  • Overall Length (with ramps): 338.9"

  • Overall Width: 150.1" (base plate to base plate)

  • Minimum Runway Height: 9"

  • Maximum Lift Height: 70.8"

  • Runway Length: 289.9"

  • Runway Width: 24"

  • Width Between Runways: 45.3" – 49.2"

  • Width Between Columns: 131.8"

  • Lock Positions: 9

  • Power Requirement: 220V, Single Phase

  • Shipping Weight: 6,614 lbs

  • Shipping Dimensions: 295" × 30" × 43"

Special Features

  • Heavy-duty construction designed for commercial vehicles

  • 9 locking positions for secure and adjustable lifting heights

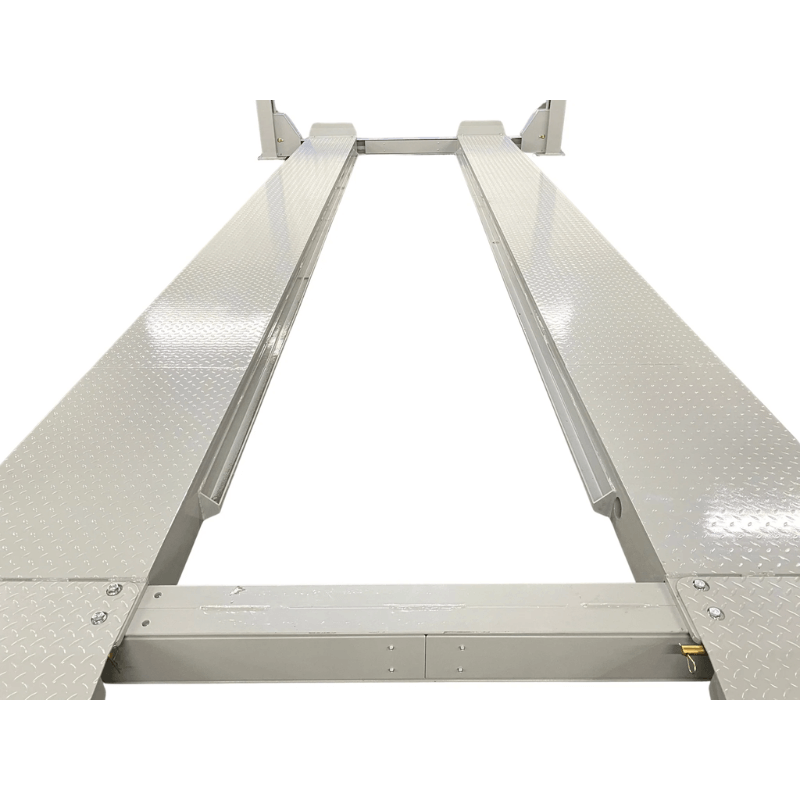

  • Wide 24" runways for trucks and oversized vehicles

  • Adjustable runway spacing for flexible vehicle positioning

  • High-capacity design ideal for fleet maintenance

  • 220V single-phase system for reliable performance

  • Durable steel frame for long-term use

  • Spacious layout for improved technician access and workflow

  • Precision-engineered for smooth, stable, and safe operation

  • CE Certified and manufactured in ISO9001-certified facilities

Optional Upgrade (Sold Separately)

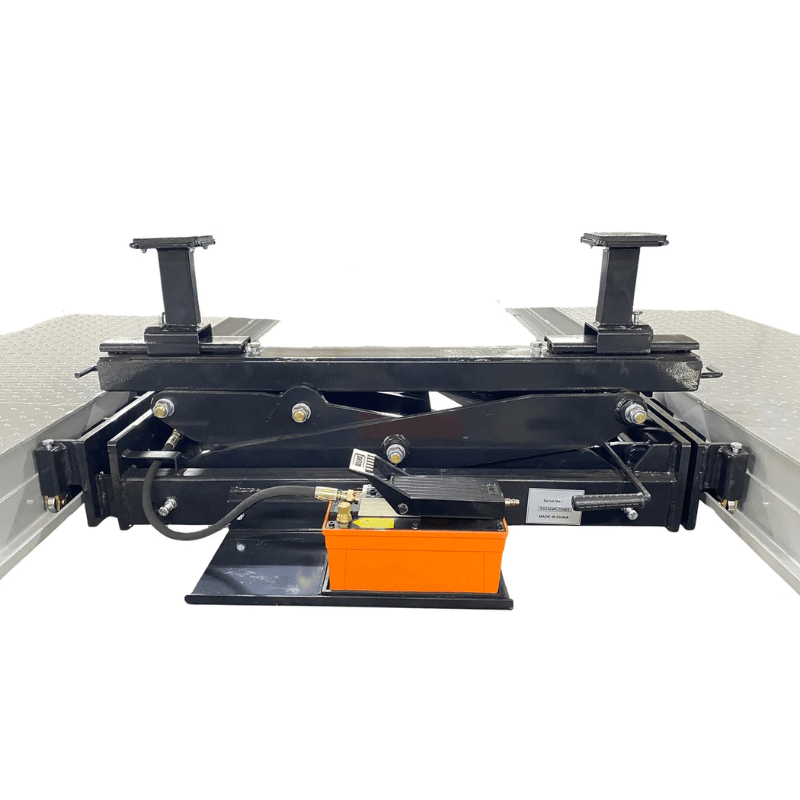

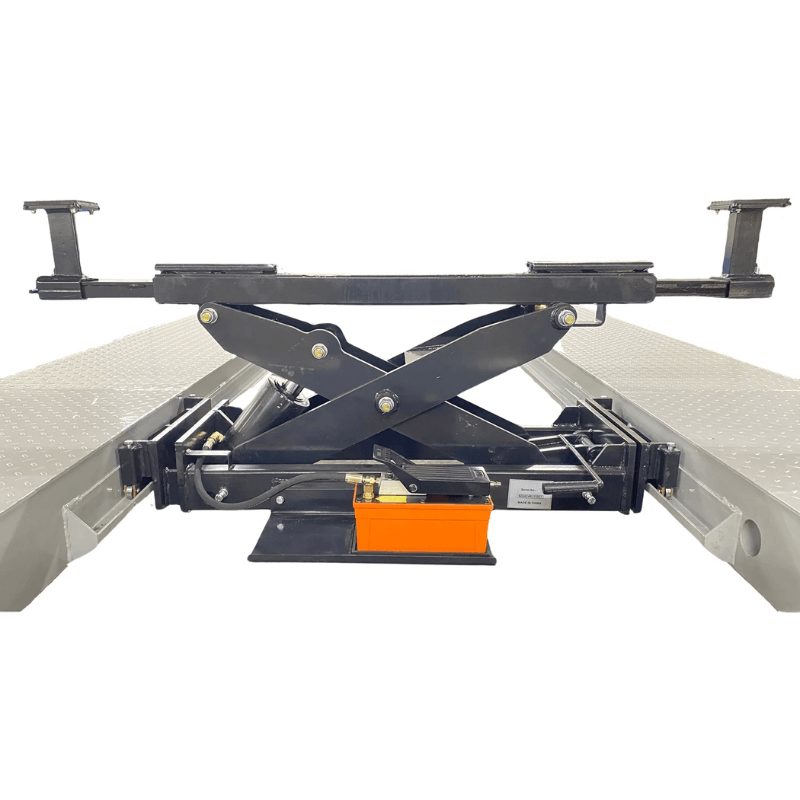

  • RJ-15000 Rolling Bridge Jack – Ideal for axle, brake, and suspension work

Available Combo Option

  • NTR-24 + RJ-15000 Combo Package – Complete lifting system for added service versatility

Final Takeaway

The NTR-24 is designed for shops that require serious lifting capability. With its high capacity, durable construction, and spacious design, it provides a reliable solution for handling large vehicles while maintaining efficiency and safety in demanding work environments.

Warehouse Pickup Locations:

  • Columbus, OH

  • Fort Worth, TX

  • North Las Vegas, NV

Please note: An additional $200 freight surcharge applies to deliveries in Northern CA, SD, ND, MT, and WY. After your initial purchase, a separate payment link will be provided to complete the transaction.

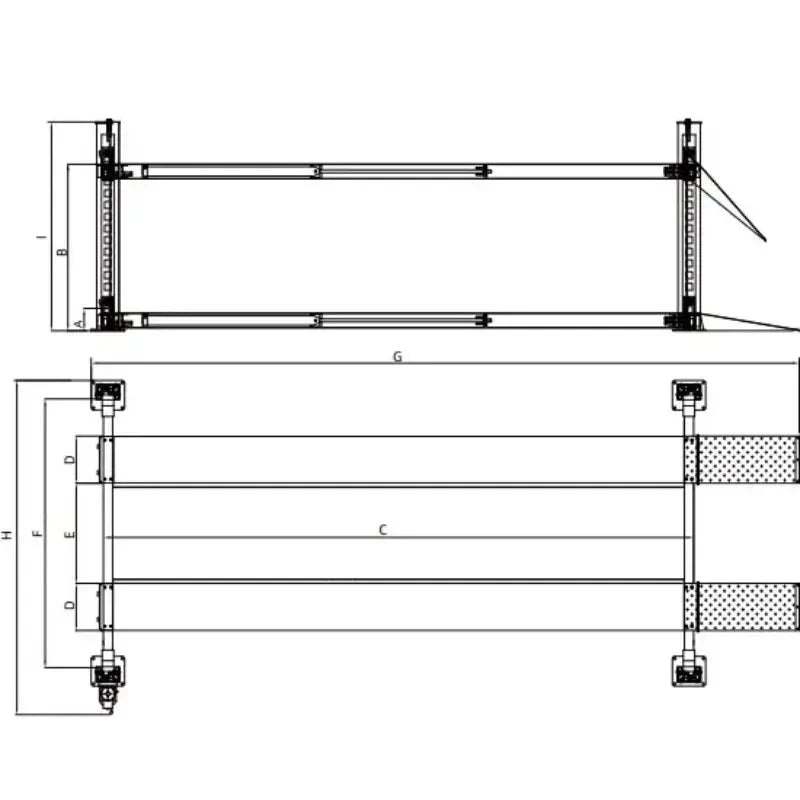

Triumph NTR-24 24,000 lb Four Post Auto Lift Diagram

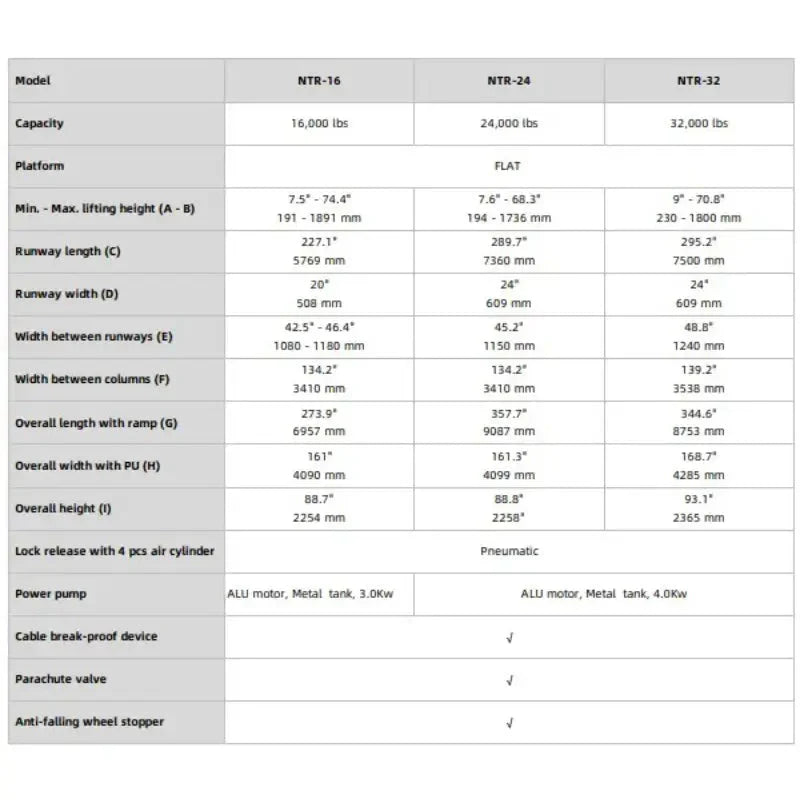

Triumph NTR-24 24,000 lb Four Post Auto Lift Diagram-1
