TuxedoSKU: TP15KCX

At a Glance

  • Twin 3" Chain-Driven Cylinders; Stackable Height Adapters Included
  • Max Lifting Height: 76.5"
  • Drive-Thru Clearance: 109.38"
Price:
$7,350.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

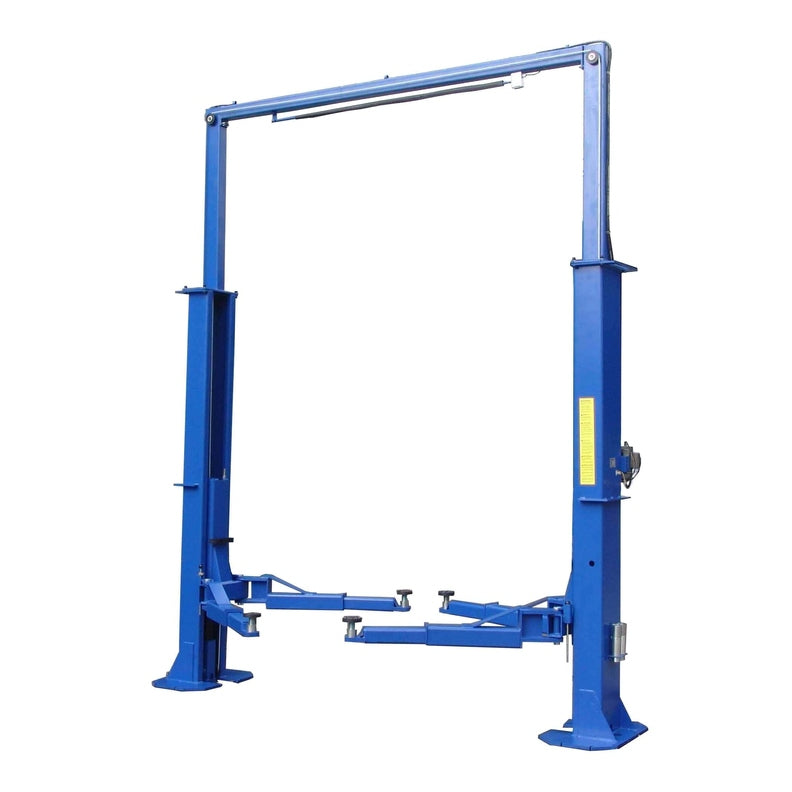

The Tuxedo TP15KCX 15,000 lb Heavy-Duty Two-Post Lift is engineered for exceptional strength, safety, and versatility. Designed to handle large trucks, vans, and commercial vehicles with ease, this professional-grade lift delivers powerful lifting performance while maintaining the flexibility to service smaller passenger cars thanks to its low-profile arms.

Built on a rugged Texas-style clear floor design, the TP15KCX features twin 3" chain-driven cylinders, internal hose routing, and a reinforced “big foot” base plate for superior stability. The lift includes drop-in adjustable swivel pads with height adapters, rubber door guards, and a padded overhead shut-off bar with kill switch for added safety and vehicle protection.

Combining heavy-duty construction with upgraded convenience features, the TP15KCX represents one of the best values in the industry—professional-grade performance at an economical price.

Features

  • 15,000 lb Lifting Capacity — Handles heavy-duty trucks, vans, and large vehicles.

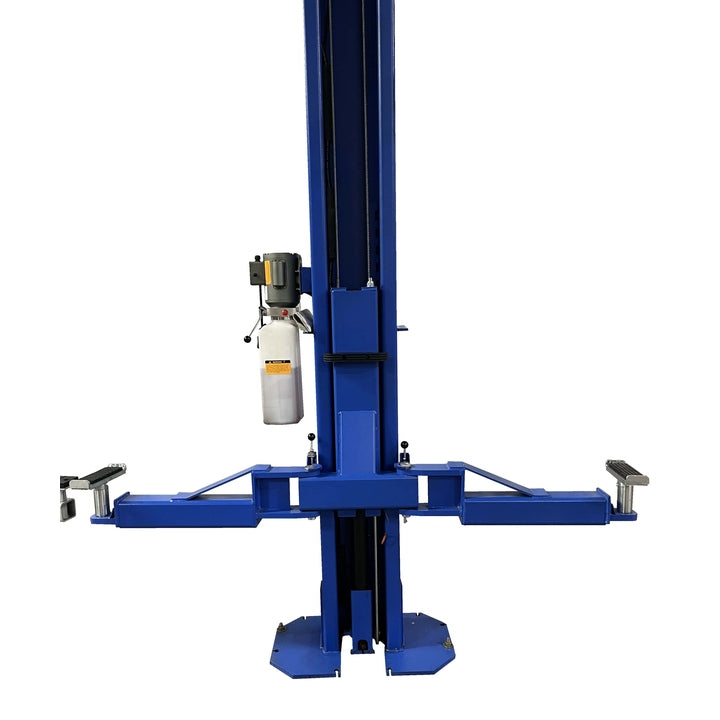

  • Symmetric Arm Design — Provides stable lifting and balanced load support.

  • Twin 3" Chain-Driven Cylinders — Deliver smooth, reliable lifting power.

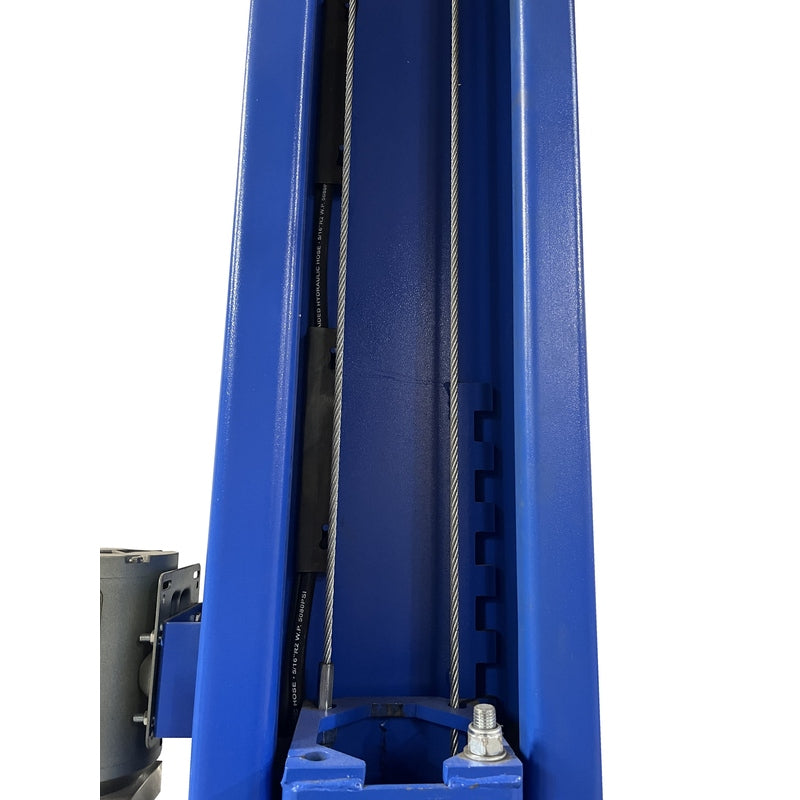

  • Internal Hose Routing — Keeps hydraulic lines protected and workspace tidy.

  • Dual-Point Lock Release — Allows safe and controlled lowering.

  • Automatic Arm Restraint System — Secures arms during lift operation.

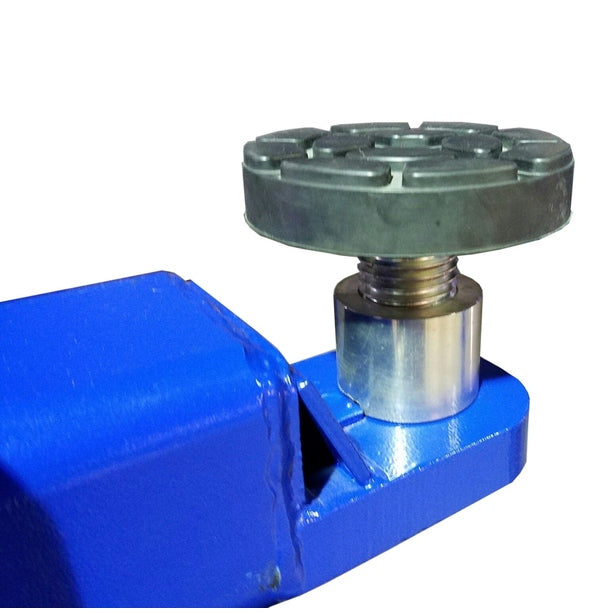

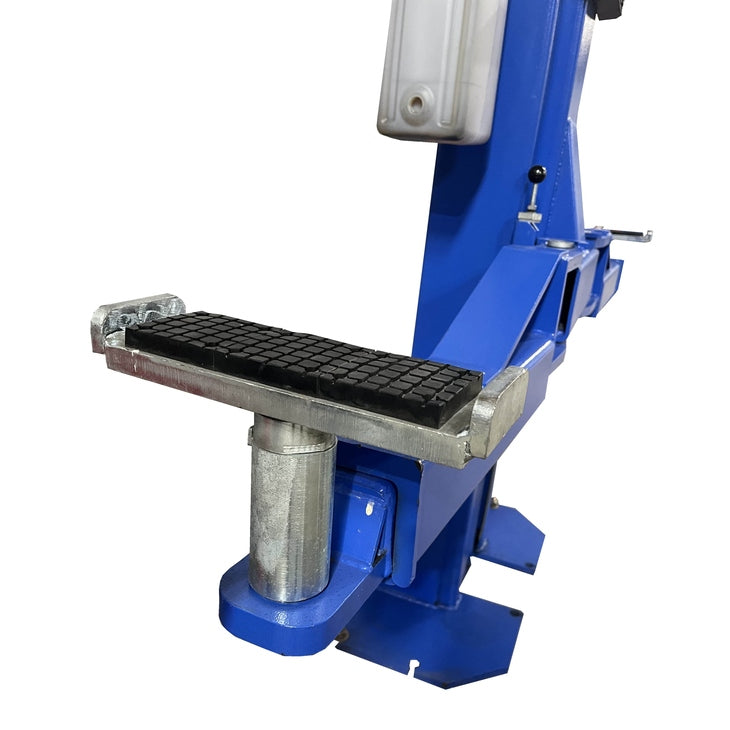

  • Low-Profile Spin-Up Pads — Enable lifting of smaller passenger cars.

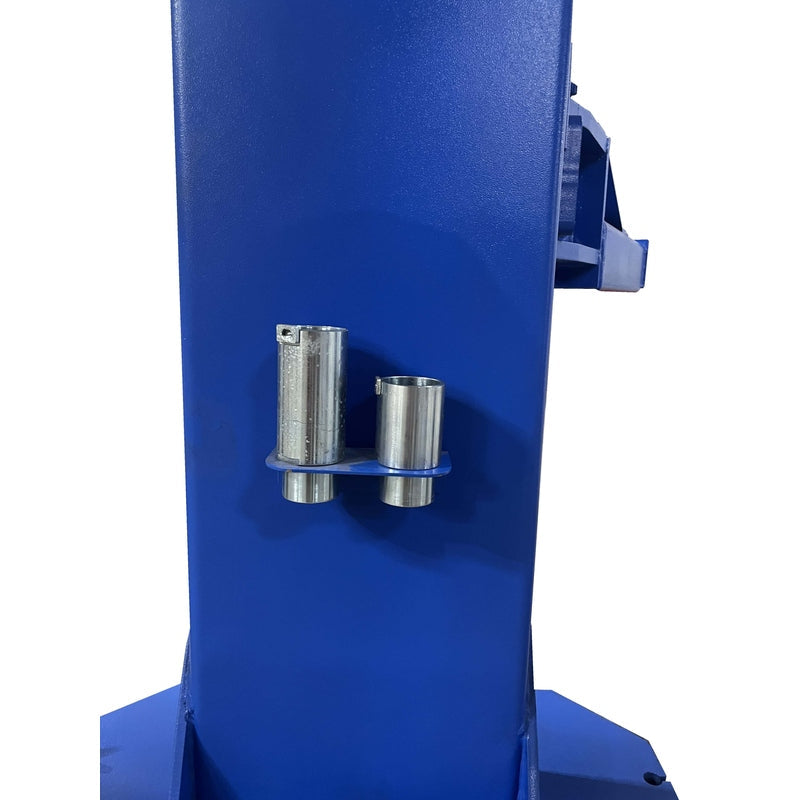

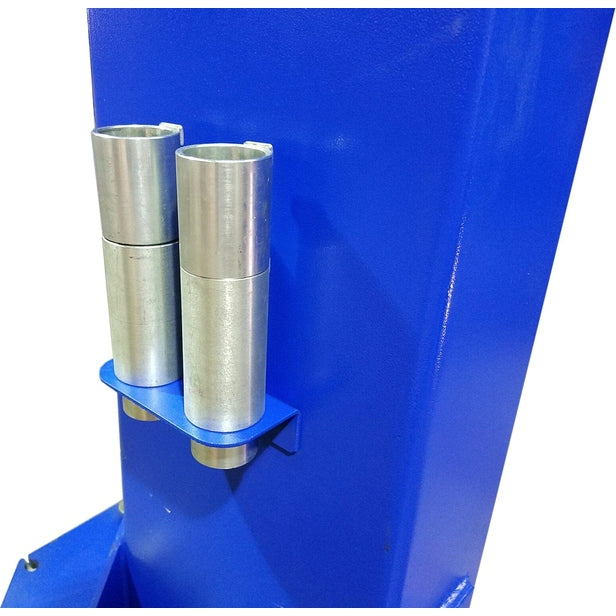

  • Stackable Height Adapters Included — Accommodate a wide range of vehicle lift points.

  • Padded Overhead Shut-Off Bar with Kill Switch — Prevents accidental overhead contact.

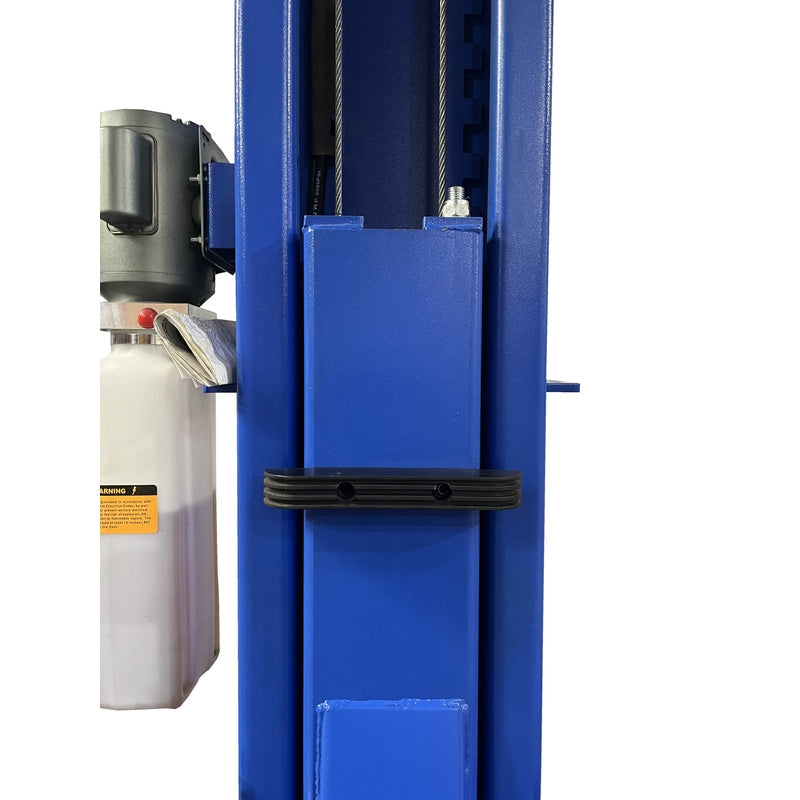

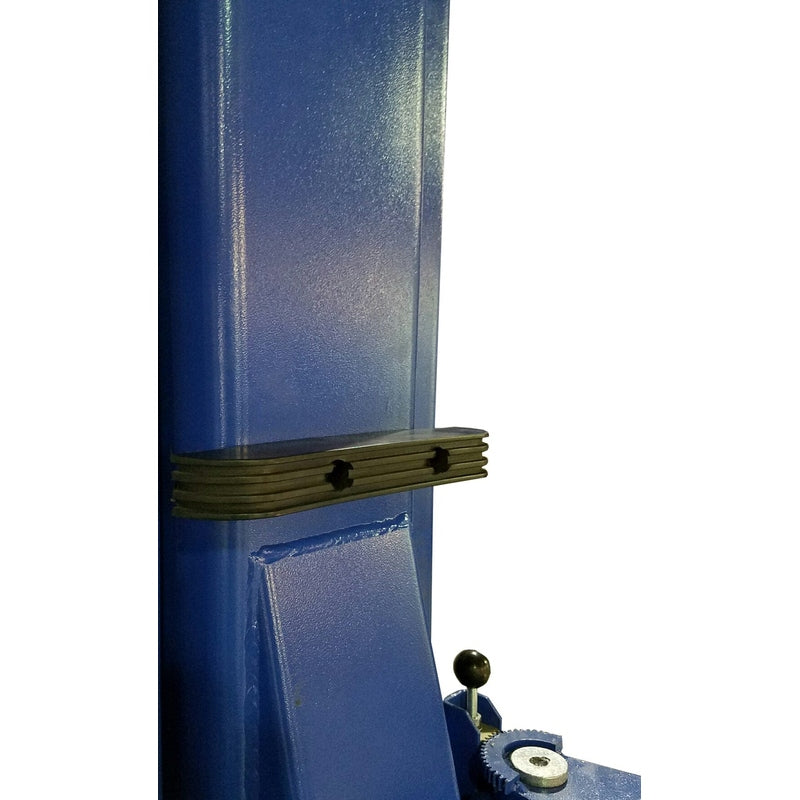

  • Rubber Door Guards — Protect vehicle panels from damage.

  • Heavy-Duty Construction — Reinforced base plates and structure ensure long-term reliability.

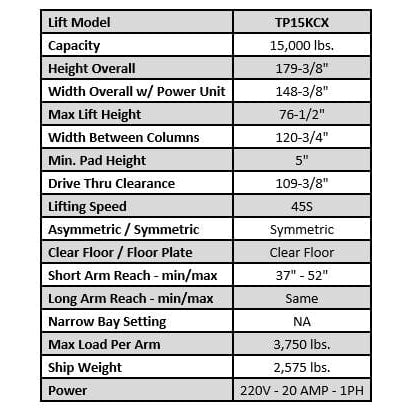

Specifications

Specification Details
Model TP15KCX
Capacity 15,000 lbs

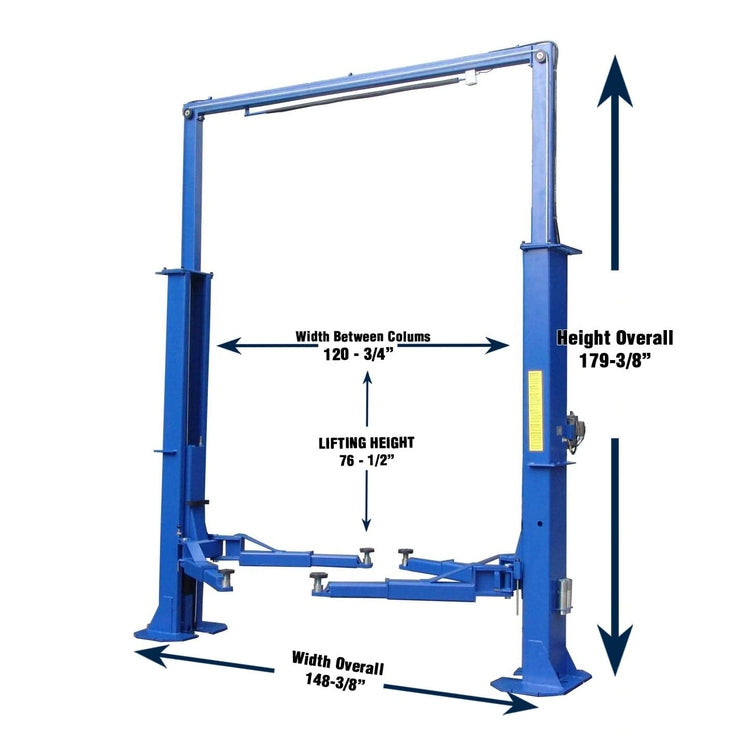

Overall Height 179-3/8"
Overall Width (with Power Unit) 148-3/8"
Maximum Lift Height 76-1/2"
Width Between Columns 120-3/4"
Minimum Pad Height 5"
Drive-Thru Clearance 109-3/8"
Lifting Speed 45 seconds
Arm Type Symmetric
Design Clear Floor
Short Arm Reach (min/max) 37" – 52"
Long Arm Reach (min/max) Same
Maximum Load per Arm 3,750 lbs
Shipping Weight 2,575 lbs

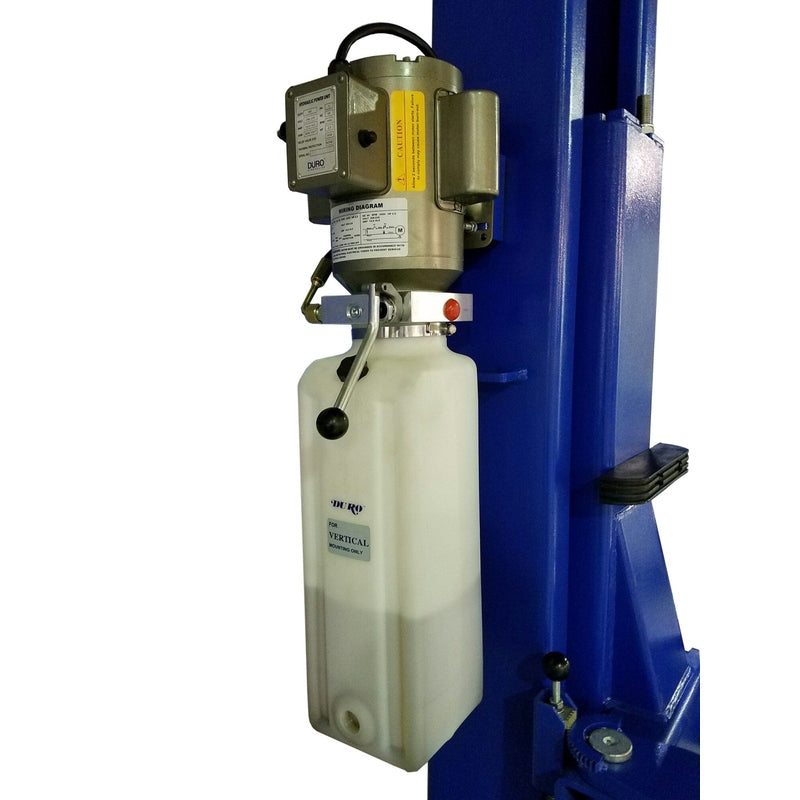

Power 220V / 20 Amp / 1PH

Manual

Tuxedo TP15KCX 15,000 lb Heavy Duty Two Post Lift Manual
