Description

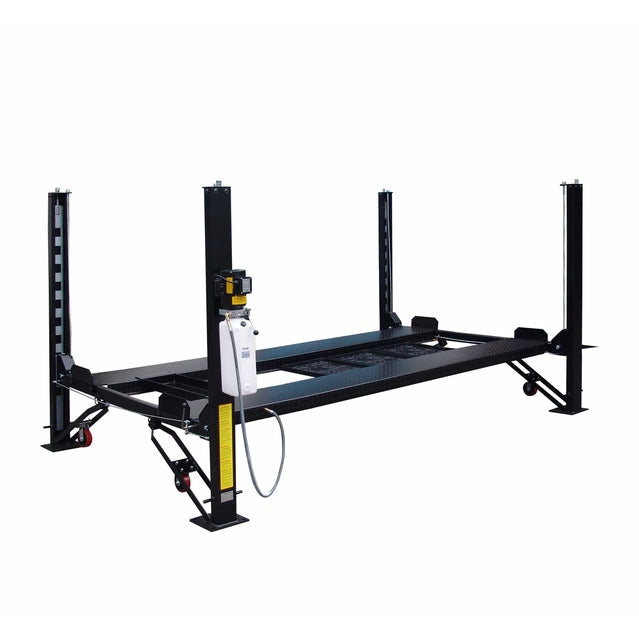

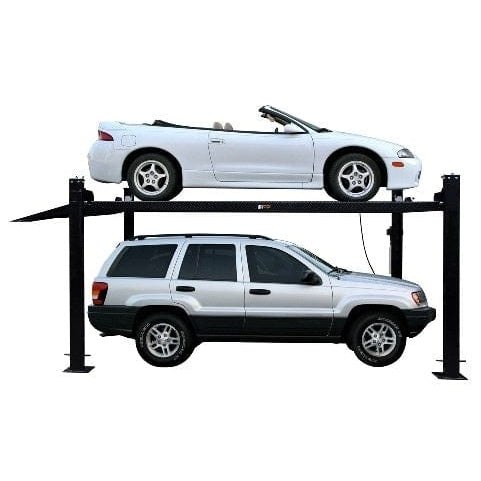

The Tuxedo FP8K-DX-XLT 4-Post Storage Lift delivers exceptional performance, durability, and value for both residential and light commercial use. Designed with an 8,000 lb lifting capacity, this deluxe storage lift provides extended height and length, making it suitable for full-size trucks, SUVs, and larger vehicles.
Equipped with premium features such as poly caster wheels, drip trays, and a jack/tool tray, the FP8K-DX-XLT combines functionality with convenience. Its cable-driven lifting system and single-point manual lock release ensure safe, smooth operation, while adjustable locking positions provide versatility for different vehicle heights.
Perfect for maximizing garage space, this lift allows users to store one vehicle above another, making it a great choice for both collectors and enthusiasts seeking reliable long-term vehicle storage.

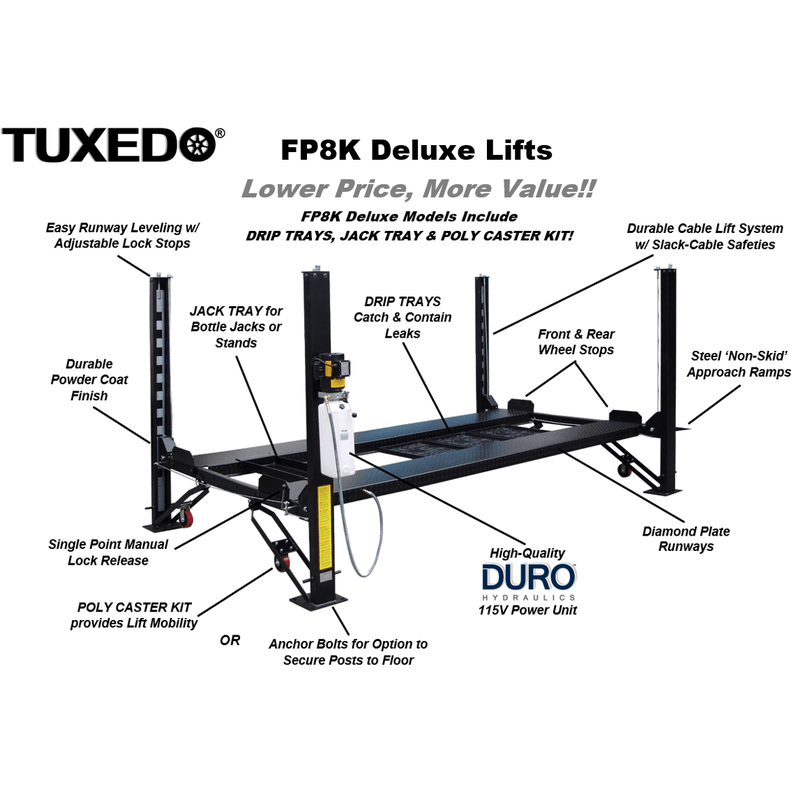

Features
-
8,000 lb Lifting Capacity — Ideal for cars, trucks, and SUVs.
-
Extended Lift Height & Length — Accommodates full-size and long-wheelbase vehicles.
-

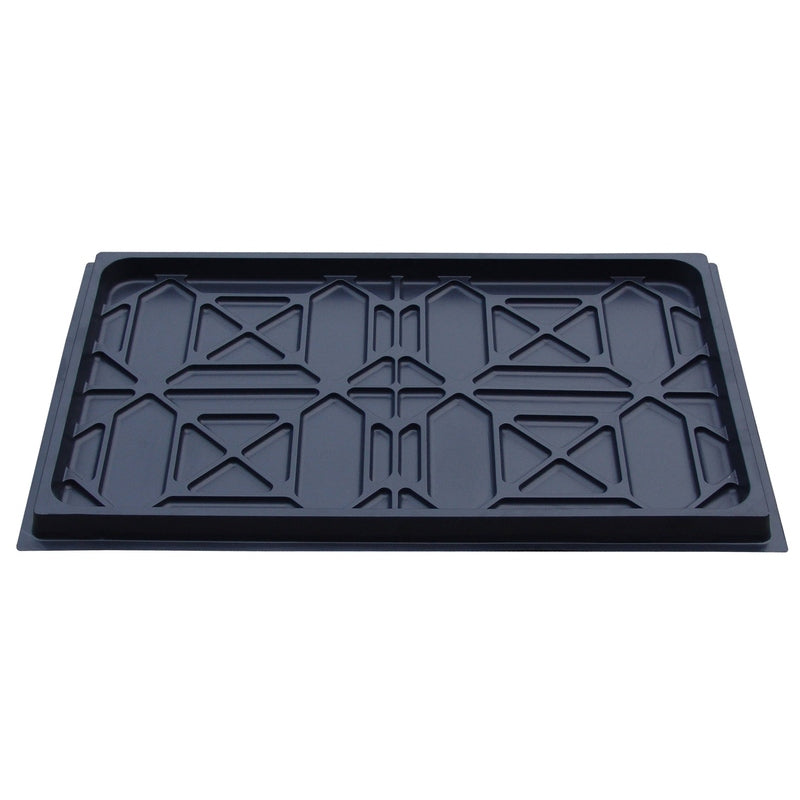

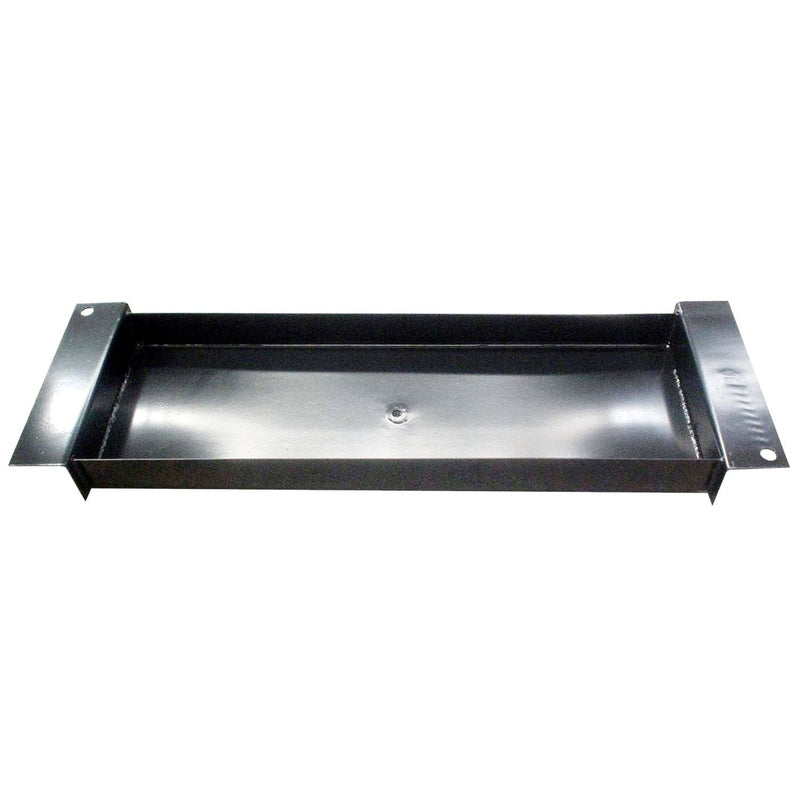

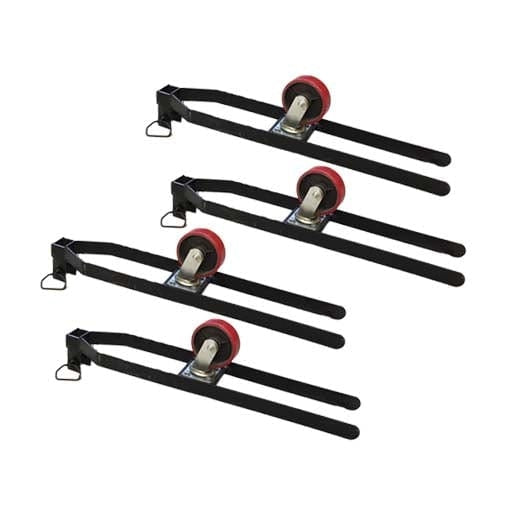

Deluxe Storage Package — Includes poly caster kit, drip trays, and jack/tool tray.
-
Cable-Driven System — Ensures smooth, balanced lifting.
-
Single-Point Manual Lock Release — Simplifies operation and enhances safety.
-
Adjustable Locking Positions — Provides flexibility for various vehicle heights.
-
Slack Cable Safety System — Prevents unintended movement during operation.
-

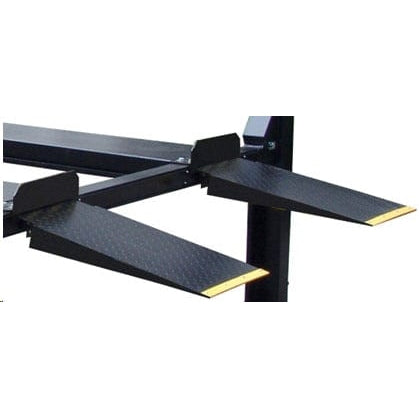

Steel Approach Ramps — Durable and easy to use.
-
Residential Compatibility — Fits in larger home garages and workshops.

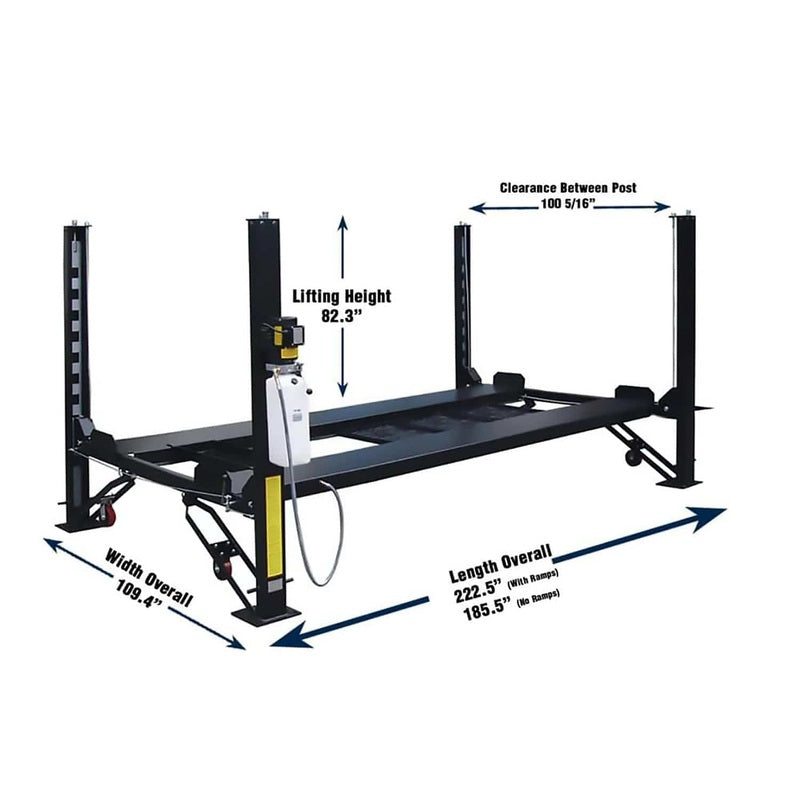

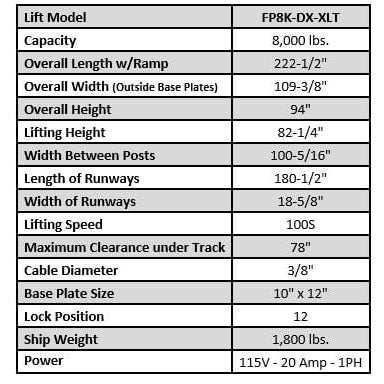

Specifications
| Specification | Details |
|---|---|
| Model | FP8K-DX-XLT |
| Capacity | 8,000 lbs |
| Overall Length (with Ramp) | 222-1/2" |
| Overall Width (Outside Base Plates) | 109-3/8" |
| Overall Height | 94" |
| Lifting Height | 82-1/4" |
| Width Between Posts | 100-5/16" |
| Length of Runways | 180-1/2" |
| Width of Runways | 18-5/8" |
| Maximum Clearance Under Track | 78" |
| Cable Diameter | 3/8" |
| Base Plate Size | 10" × 12" |
| Lock Positions | 12 |
| Lifting Speed | 100 seconds |
| Shipping Weight | 1,800 lbs |
| Power | 115V / 20 Amp / 1PH |
