Description

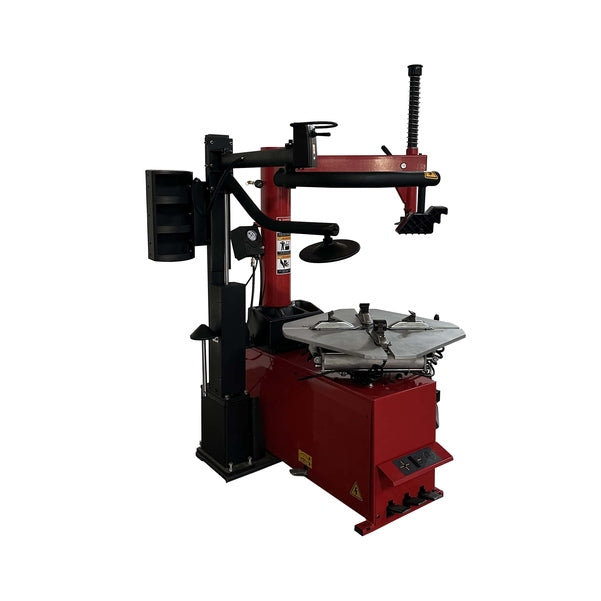

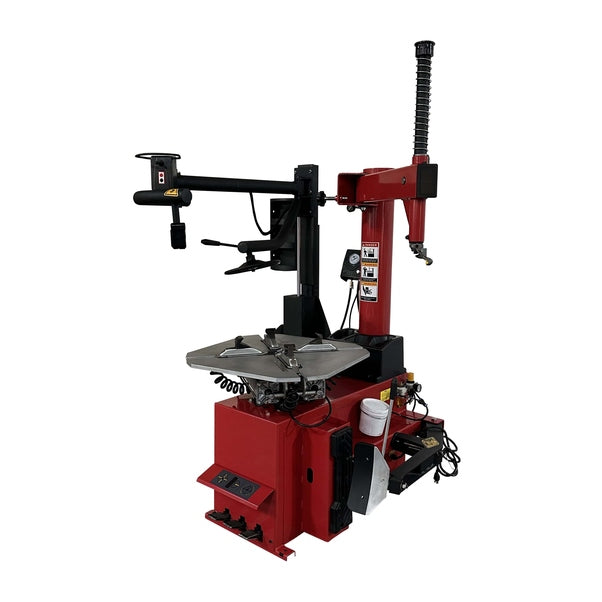

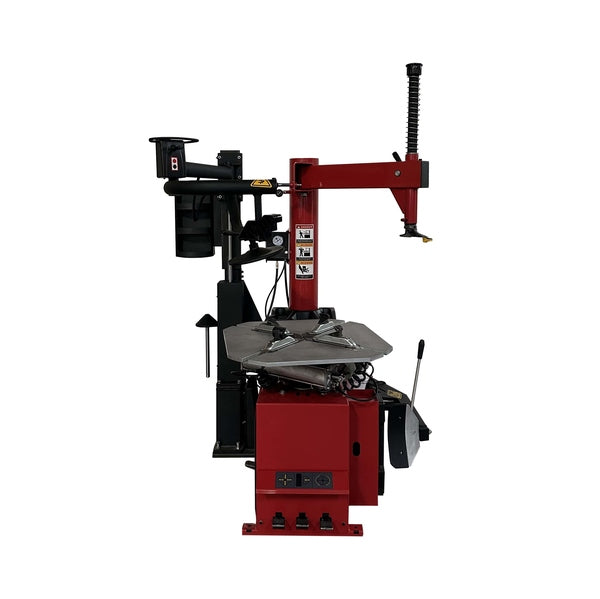

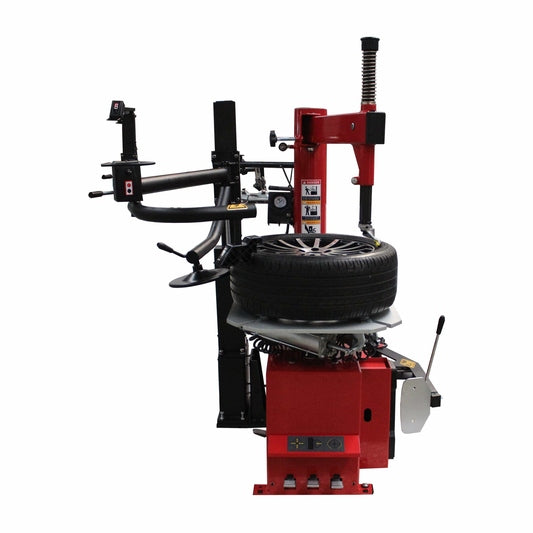

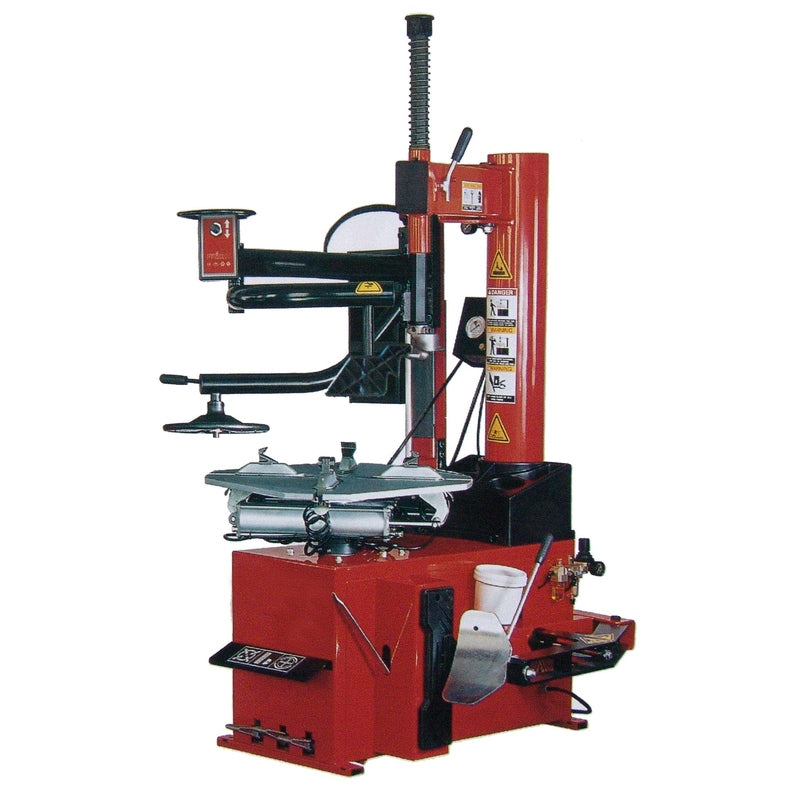

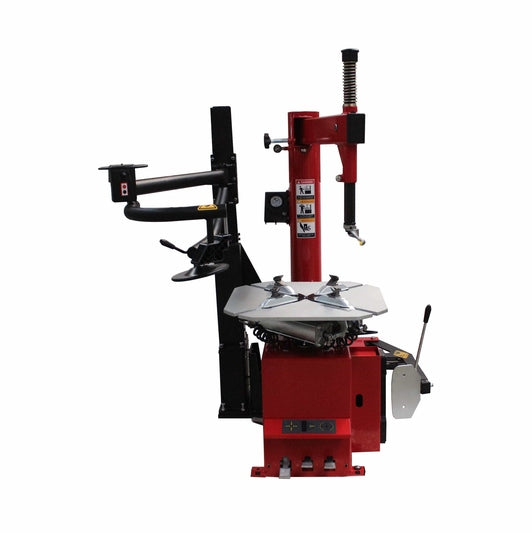

The Tuxedo TC-950-WPA Tire Changer is built for performance, power, and precision. Featuring a durable 26" x 26" square turntable, it easily accommodates wheel diameters up to 47 inches, making it ideal for servicing a wide range of passenger and light truck tires. The integrated left-side press arm provides added assistance when working with low-profile and stiff sidewall tires, ensuring smooth and efficient mounting and demounting.
This model’s swing arm design, combined with four pneumatic clamps and double-acting cylinders, delivers consistent clamping force and stable operation. Additional features, such as bead-seating inflation jets, a side-mounted bead breaker, and a built-in air regulator with oiler and water separator, enhance both performance and longevity. Designed with rim protection in mind, the TC-950-WPA ensures no metal-to-rim contact, keeping wheels safe during service.
Features
-

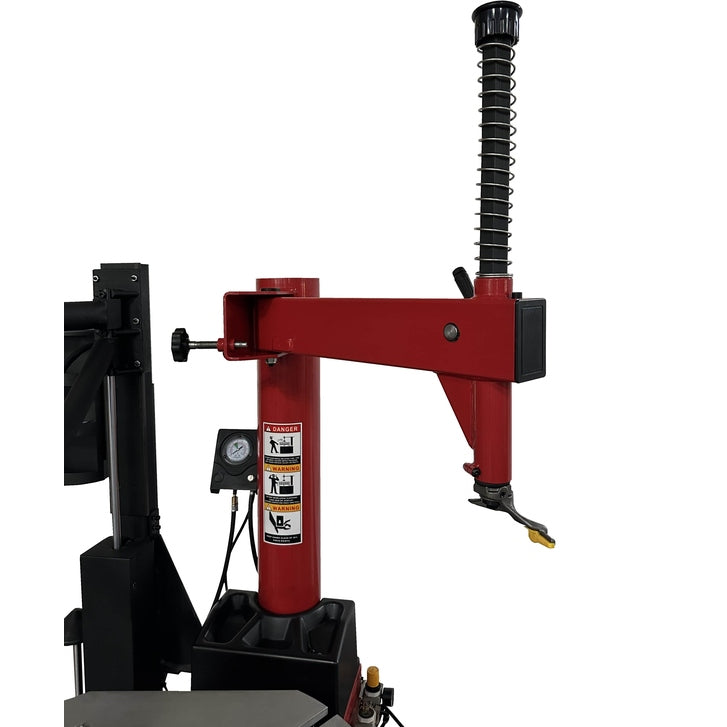

Swing Arm Design for fast setup and reliable operation.
-

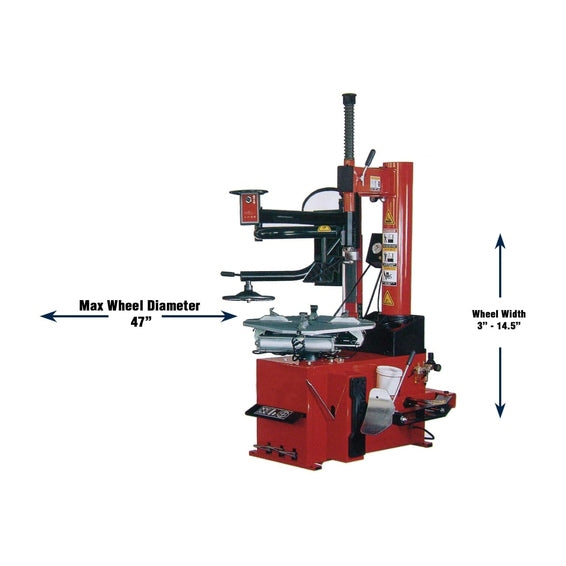

Large Capacity: Handles wheels up to 47" in diameter and rim widths up to 15".
-

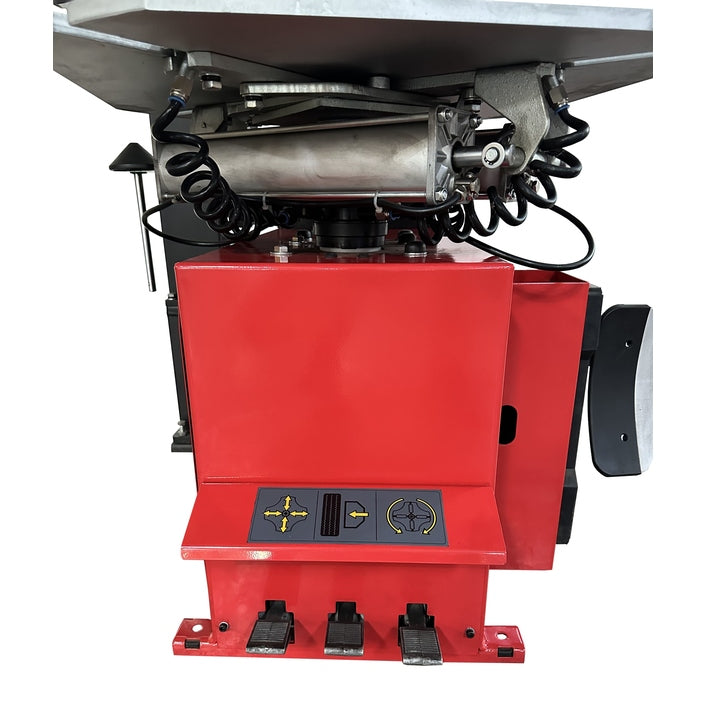

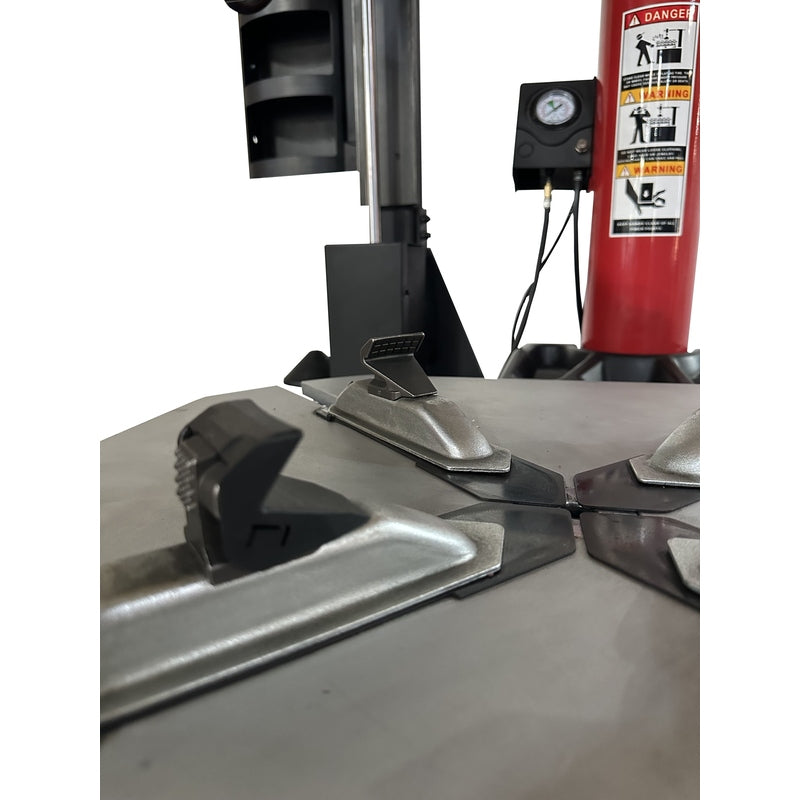

Four Pneumatic Clamps with double-acting cylinders for secure and consistent clamping.
-
Side-Mounted Bead Breaker for efficient tire removal.
-

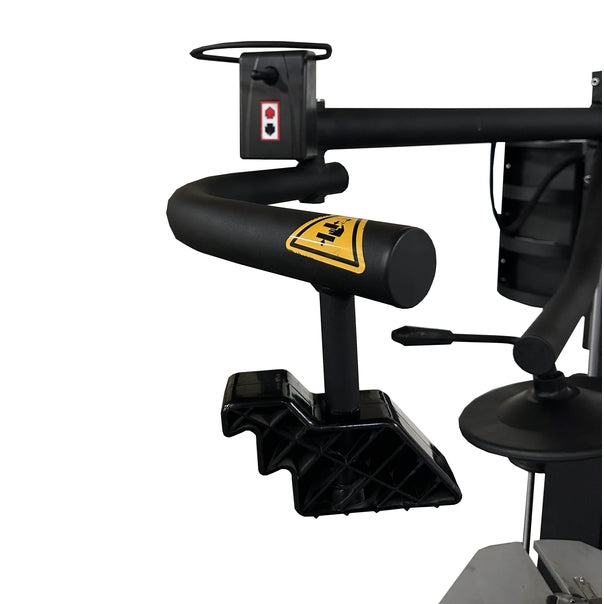

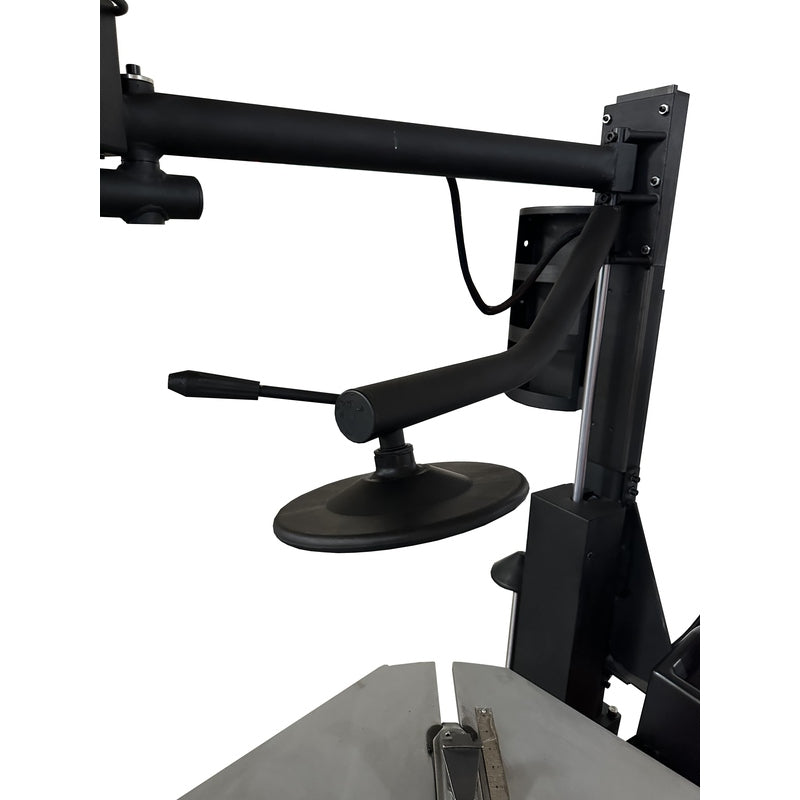

Left-Side Press Arm assists with low-profile and run-flat tires.
-
Bead Seating Inflation Jets built into clamping jaws for precise air delivery.
-

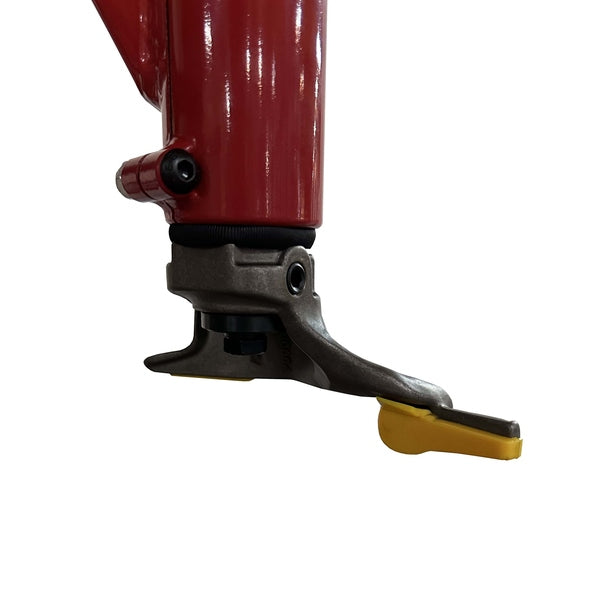

Rim Protection Design: Non-contact operation prevents scratching or damage.
-

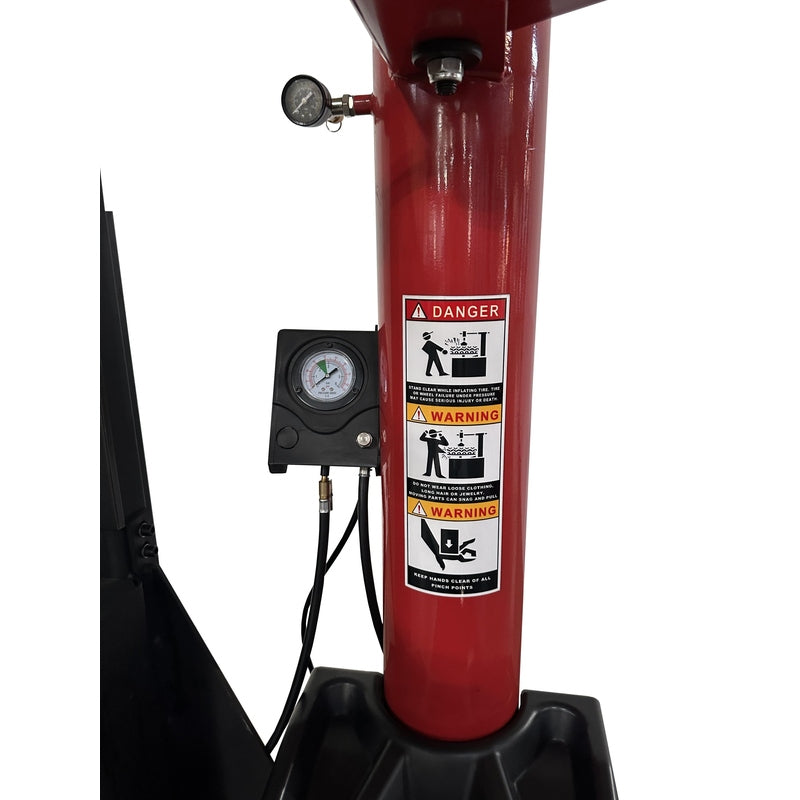

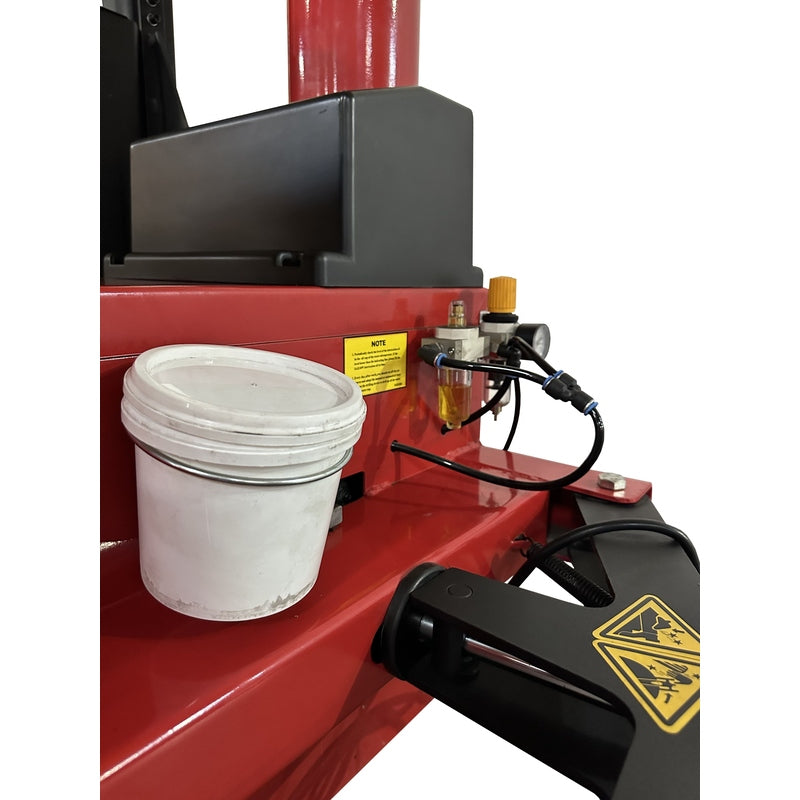

Built-In Air System: Includes pressure regulator, oiler, and water separator for reliable air management.

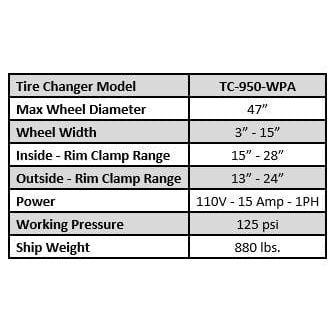

Specifications
| Specification | Details |
|---|---|
| Model | TC-950-WPA |
| Max Wheel Diameter | 47" |
| Wheel Width | 3" – 15" |
| Inside Rim Clamp Range | 15" – 28" |
| Outside Rim Clamp Range | 13" – 24" |
| Power | 110V / 15 Amp / 1PH |
| Working Pressure | 125 PSI |
| Shipping Weight | 880 lbs |
