Tuxedo TP12KFX 12,000 lb Two Post Floor Plate Lift

TuxedoSKU: TP12KFX

At a Glance

  • Rubber Door Guards
  • Max Lifting Height: 76.5"
  • Drive-Thru Clearance: 109"
Price:
$6,840.00
Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

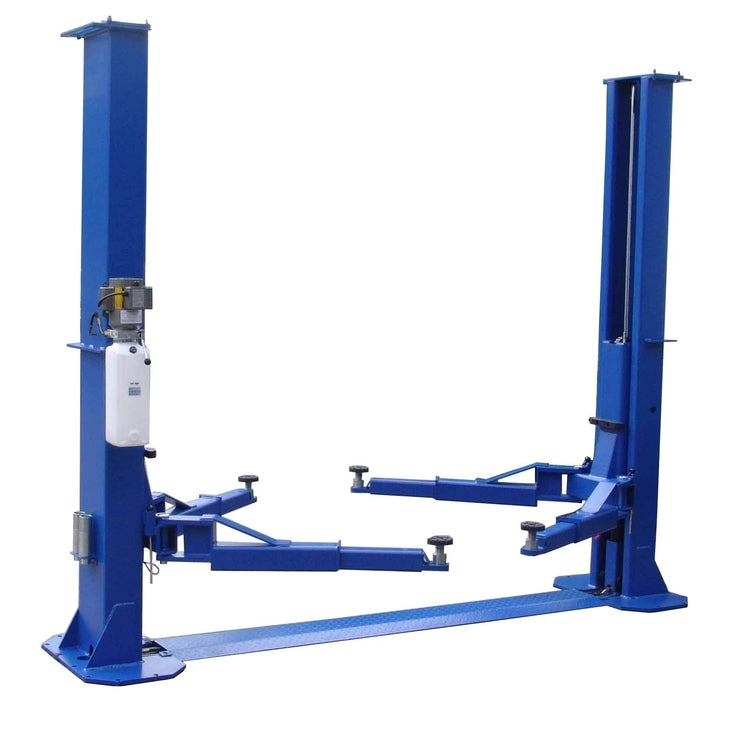

The Tuxedo TP12KFX 12,000 lb Two-Post Floor Plate Lift is part of the new X-HD Series, designed for heavy-duty performance, safety, and versatility. Engineered to handle larger vehicles with ease, this model combines strength and innovation in a space-efficient design suitable for commercial shops and service centers.

The TP12KFX features chain-driven cylinders, internal hose routing, and symmetric lifting arms for balanced support. The low-profile drop-in swivel pads with stackable height adapters accommodate a variety of vehicles, while the rubber door guards help prevent damage during operation. A dual-point lock release and auto arm restraint system provide added safety, and the padded overhead shut-off bar with kill switch enhances protection when lifting taller vehicles.

Built for durability, precision, and operator convenience, the TP12KFX stands as one of the best heavy-duty two-post lift options in its class.

Features

  • 12,000 lb Lifting Capacity — Handles full-size trucks, vans, and commercial vehicles.

  • Symmetric Arm Design — Provides balanced lifting for heavy-duty applications.

  • Chain-Driven Cylinders — Ensure reliable and consistent operation.

  • Dual-Point Lock Release — Allows safe and controlled lowering.

  • Auto Arm Restraint System — Locks arms securely in position during lift cycles.

  • Internal Hose Routing — Keeps the work area clean and free of obstructions.

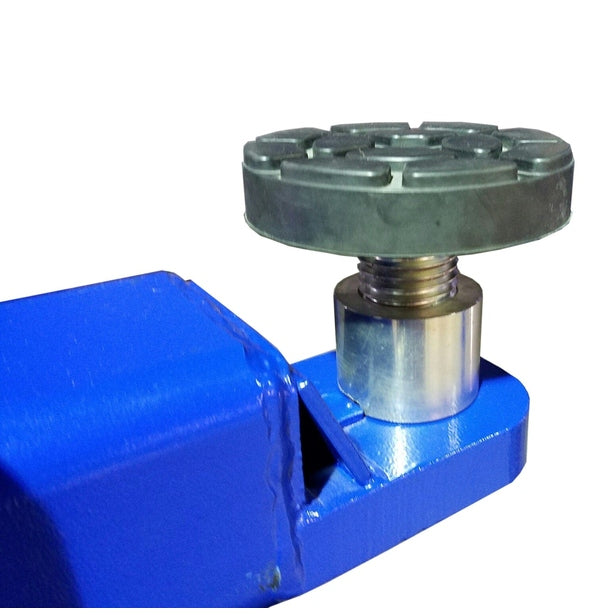

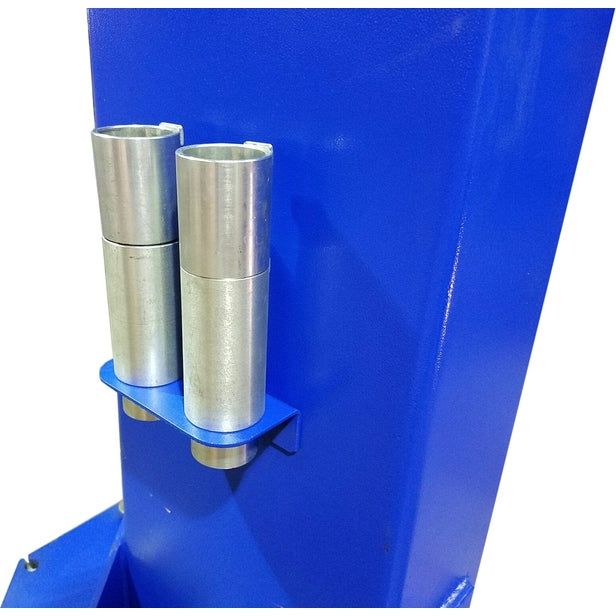

  • Low-Profile Drop-In Swivel Pads — Ideal for low-clearance vehicles; includes stackable adapters.

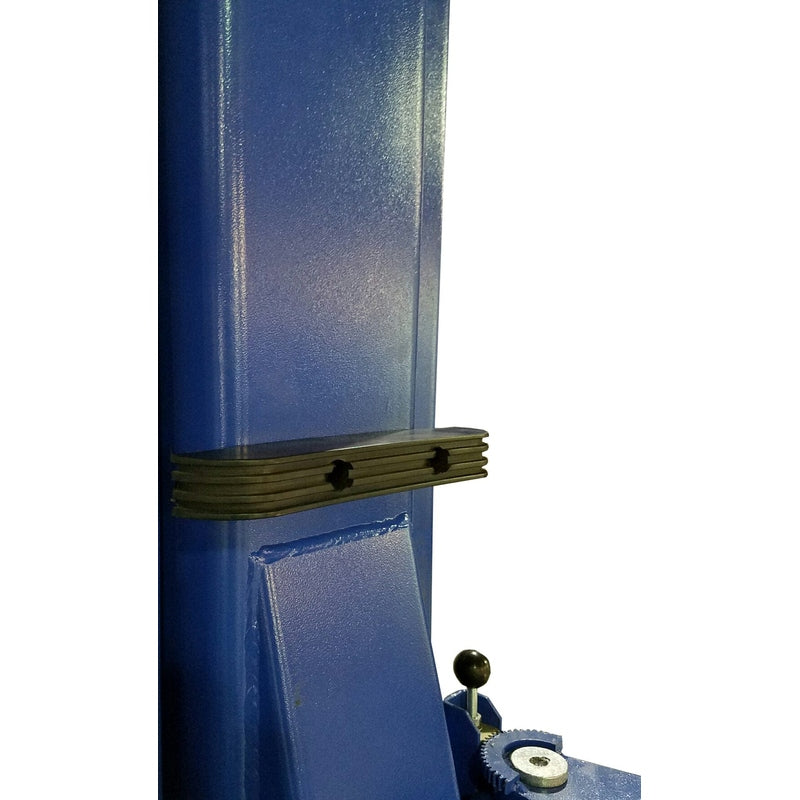

  • Rubber Door Guards — Prevent vehicle door damage.

  • Padded Overhead Shut-Off Bar with Kill Switch — Adds safety when working with taller vehicles.

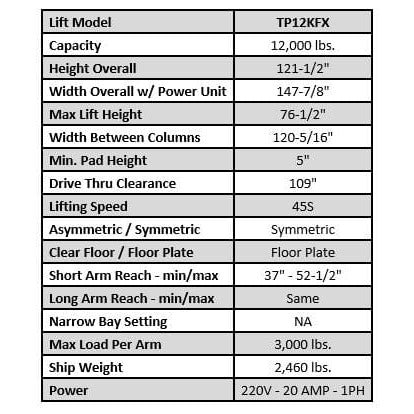

Specifications

Specification Details
Model TP12KFX
Capacity 12,000 lbs

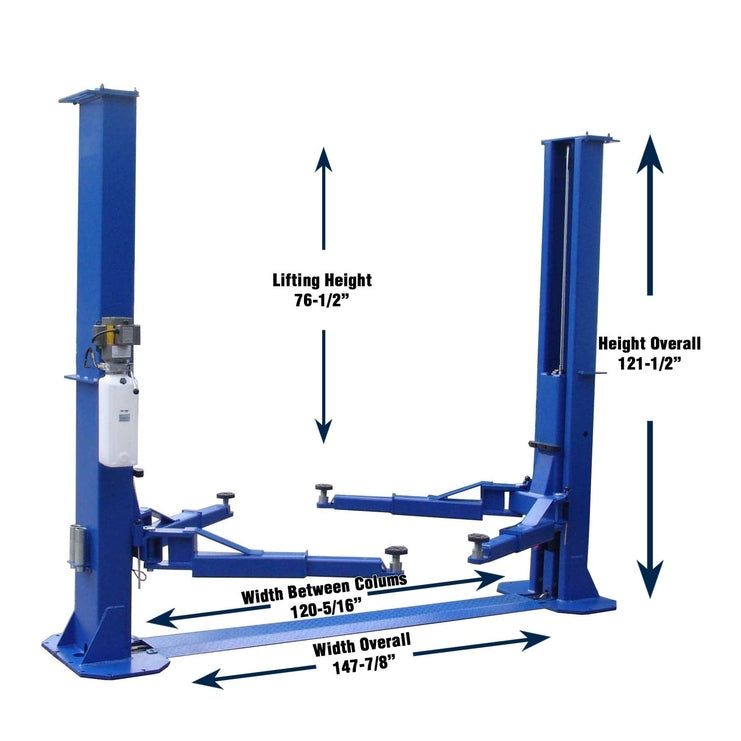

Overall Height 121-1/2"
Overall Width (with Power Unit) 147-7/8"
Maximum Lift Height 76-1/2"
Width Between Columns 120-5/16"
Minimum Pad Height 5"
Drive-Thru Clearance 109"
Lifting Speed 45 seconds
Arm Type Symmetric
Design Floor Plate
Short Arm Reach (min/max) 37" – 52-1/2"
Long Arm Reach (min/max) Same
Maximum Load per Arm 3,000 lbs
Shipping Weight 2,460 lbs

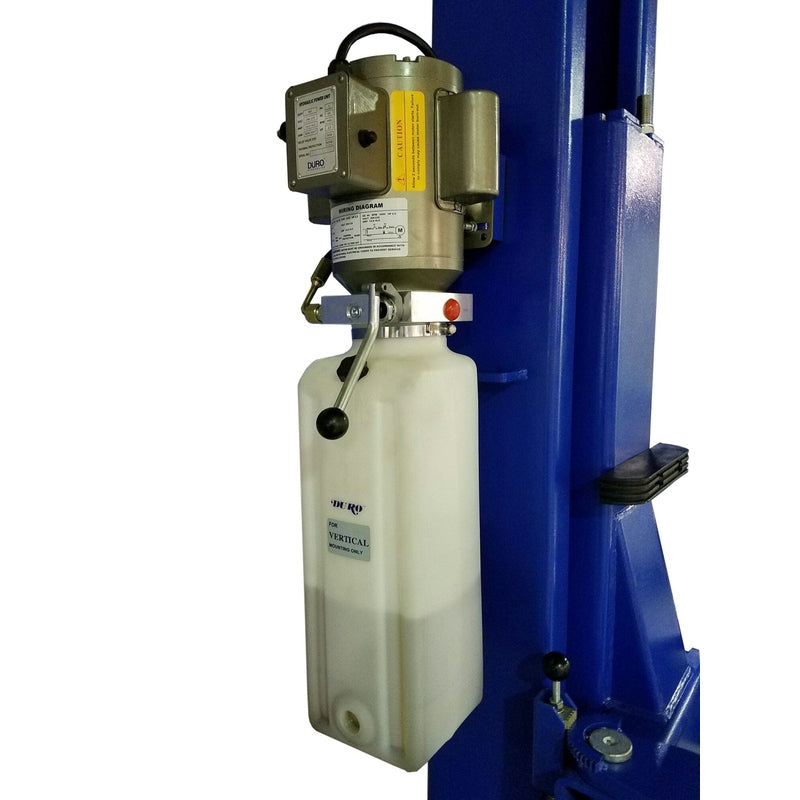

Power 220V / 20 Amp / 1PH

Manual

Tuxedo TP12KFX 12,000 lb Two Post Floor Plate Lift Manual
