Amgo 408-HPX Four Post Boat Storage Lift - Adjustable Width

Roll over image to zoom in Click on image to zoom

Amgo 408-HPX Four Post Boat Storage Lift - Adjustable Width

AmgoSKU: 408-HPX-110v

At a Glance

Adjustable-Width Runways for Boat Trailers; 110 13/16″ Drive-Thru; Single-Point Lock Release, No Air Needed
Max Lifting Height: 87.06"
Drive-Thru Clearance: 110.81"
Lowered Height: 5.69"

Price:

$4,350.00

Quantity:

Loading form…

Please complete and submit the shipping form above to enable Add to Cart.

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.

What to have ready on delivery day

Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

AMGO 408-HPX 8,000 lb Four-Post Boat Storage Lift with Adjustable Width

Please request a shipping quote before placing your order.

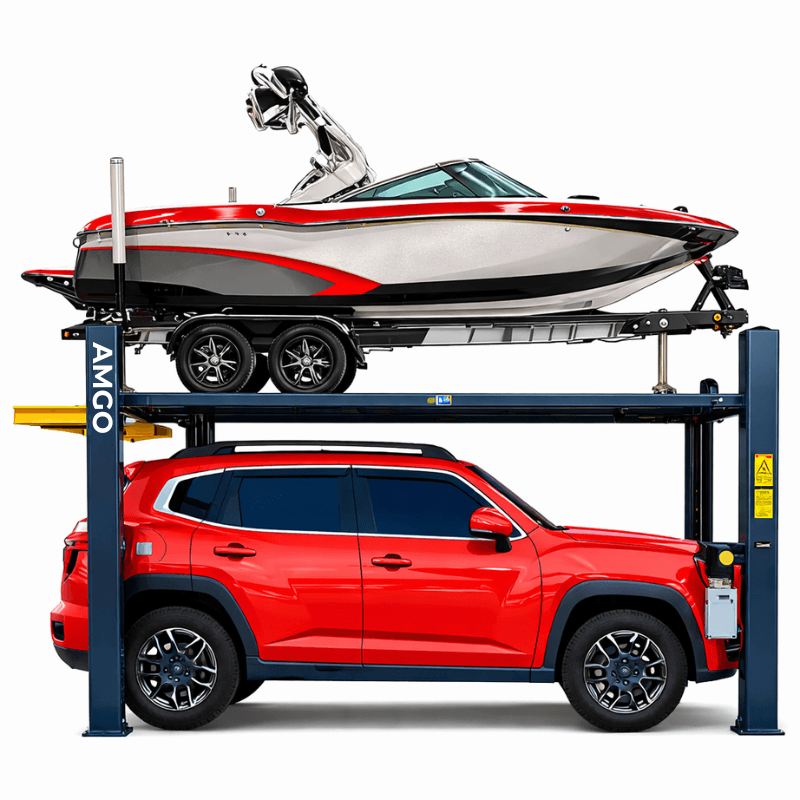

The AMGO 408-HPX is an 8,000 lb four-post storage lift built around boats on trailers. Adjustable-width runways (46 1/2″ to 66 3/16″ apart) and 110 13/16″ of drive-thru clearance between the posts make room for wide trailers, so you can roll a boat on, raise it and park a car or second trailer underneath. It's a smart fit for home garages, pole barns, warehouses and marinas that need more storage without more floor space.

AMGO's patented concealed lock-control system gives you a manual single-point lock release with no shop air required, backed up by primary safety locks and cable-slack protection. Non-skid diamond-plate runways keep tires and trailer wheels planted, the power unit can be mounted on any corner, and an adjustable platform for the trailer jack wheel comes standard.

408-HPX Key Features

8,000 lb lifting capacity for boats, trailers and vehicles
Adjustable-width runways with two platform settings for different trailer sizes
Patented concealed lock-control system (patent no. 2023232158140)
Manual single-point lock release with no air source needed
Dual safety protection: primary safety locks plus cable-slack protection
Non-skid diamond-plate runways for secure trailer positioning
Power unit mounts on any corner for flexible installation
Two foldable drive-on ramps included
Adjustable trailer jack wheel platform (42 3/8″ to 66 3/16″) included
ETL-certified power unit

408-HPX Specifications

Model: 408-HPX
Lift Type: Four-Post Boat Storage Lift
Lifting Capacity: 8,000 lbs
Lifting Time: 46 seconds
Overall Length (including ramps): 222 1/8″
Outside Edge of Crossbeams: 181 1/16″
Overall Width: 131 5/8″
Width Between Posts: 122″
Max Lifting Height: 87 1/16″
Max Locking Height: 84 1/2″
Overall Height: 96 5/8″
Minimum Height: 5 11/16″
Max Underneath Height: 82 11/16″
Max Lock Height Underneath Runway: 79 13/16″
Drive-Thru Clearance: 110 13/16″
Width Between Runways: 46 1/2″ – 66 3/16″
Outside Edge of Runways: 83 7/8″ – 103 3/4″
Motor: 1.0 HP (110V) – requires 30 amp breaker
Concrete Requirements: minimum 4″, 3,000 psi
Shipping Dimensions: 168″ L x 21″ W x 30″ H – 1,585 lbs

Optional Accessories (sold separately)

Motor protective cover with emergency stop switch, for outdoor installation: Kit No. 40810
Trailer extended platform, adds 24″ of length: Kit No. 40818
Extended aluminum alloy drive-in ramps: Kit No. 40814
Aluminum drive-in ramps: No. 40803
Rubber wheel chock: P/N 40811
Caster kit: No. 40801
90-degree installation plate: No. 40802
Drip trays: No. 40806
Adjustable jack tray: No. 40816
AMGO J5H 5,000 lb Rolling Jack (only compatible at the narrowest runway setting)
