Amgo 408-HLX Four Post Boat Storage Lift - Adjustable Width; Extra Tall

Roll over image to zoom in Click on image to zoom

Amgo 408-HLX Four Post Boat Storage Lift - Adjustable Width; Extra Tall

AmgoSKU: 408HLX

At a Glance

Extra-Tall 104 11/16″ Lift Height; Adjustable-Width Runways for Boat Trailers; Single-Point Lock Release, No Air Needed
Max Lifting Height: 104.69"
Drive-Thru Clearance: 111"
Lowered Height: 5.69"

Price:

$4,900.00

Quantity:

Loading form…

Please complete and submit the shipping form above to enable Add to Cart.

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.

What to have ready on delivery day

Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

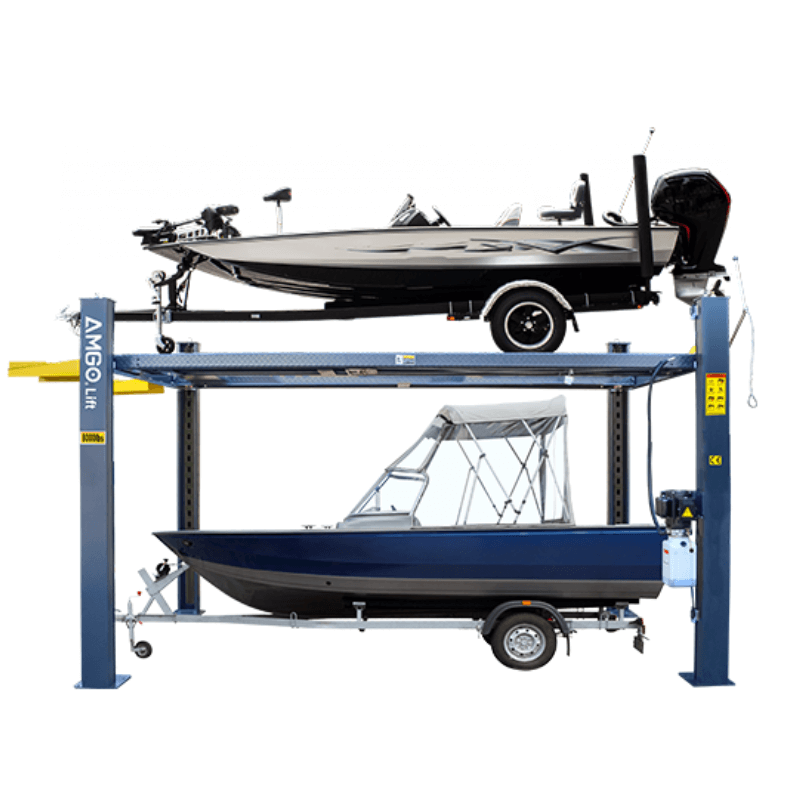

AMGO 408-HLX 8,000 lb Extra-Tall Four-Post Boat Storage Lift

Please request a shipping quote before placing your order.

The AMGO 408-HLX is the extra-tall version of AMGO's adjustable-width boat storage lift. It lifts 15 3/4″ higher than the 408-HPX, to a maximum of 104 11/16″, giving tall boats, wakeboard towers and oversized trailers the clearance they need while leaving more headroom to park underneath. It's built for marinas, storage buildings and high-ceiling garages where vertical space is the best space you have.

Like the 408-HPX, it uses AMGO's concealed lock-control system with a manual single-point release and no air supply needed, plus primary safety locks and cable-slack protection. The diamond-plate runways adjust between two width settings to suit different trailers, foldable drive-in ramps are standard, and the ETL-certified power unit can be mounted on whichever corner suits your layout.

408-HLX Key Features

8,000 lb lifting capacity for over-height boats and trailers
Extra-tall design with 15 3/4″ more lifting height than the 408-HPX
Concealed lock-control system with manual single-point release, no air source required
Dual safety protection: primary safety locks plus cable-slack protection
Non-skid diamond-plate runways for secure trailer positioning
Two runway width settings for different trailer sizes
Power unit mounts on any corner for flexible installation
Foldable drive-in ramps included
Adjustable trailer jack wheel platform (42 3/8″ to 66 3/16″) included
ETL-certified AMGO power unit

408-HLX Specifications

Model: 408HLX
Lift Type: Four-Post Boat Storage Lift
Lifting Capacity: 8,000 lbs
Lifting Time: 54 seconds
Overall Length (including ramps): 222 1/8″
Overall Length (without ramps): 188 9/16″
Overall Width: 131 7/8″
Width Between Posts: 122 3/16″
Max Lifting Height: 104 11/16″
Max Locking Height: 101 15/16″
Overall Height: 113″
Minimum Height: 5 11/16″
Max Underneath Height: 99 15/16″
Max Lock Height Underneath Runway: 97 3/16″
Drive-Thru Clearance: 111″
Width Between Runways: 46 1/2″ – 66 3/8″
Outside Edge of Runways: 83 7/8″ – 103 3/4″
Motor: 1.0 HP (110V) – requires 30 amp breaker
Concrete Requirements: minimum 4″, 3,000 psi
Shipping Dimensions: 168″ x 21″ x 30″ – 1,726 lbs

Optional Accessories (sold separately)

Extended aluminum alloy drive-in ramps: Kit No. 40815 (2 required)
Motor protective cover with emergency stop, for outdoor installation: Kit No. 40810
Rubber wheel chock: P/N 40811
Trailer extended platform, adds 24″ of length: Kit No. 40818
AMGO J5H 5,000 lb Rolling Jack (only compatible at the narrowest runway setting)
