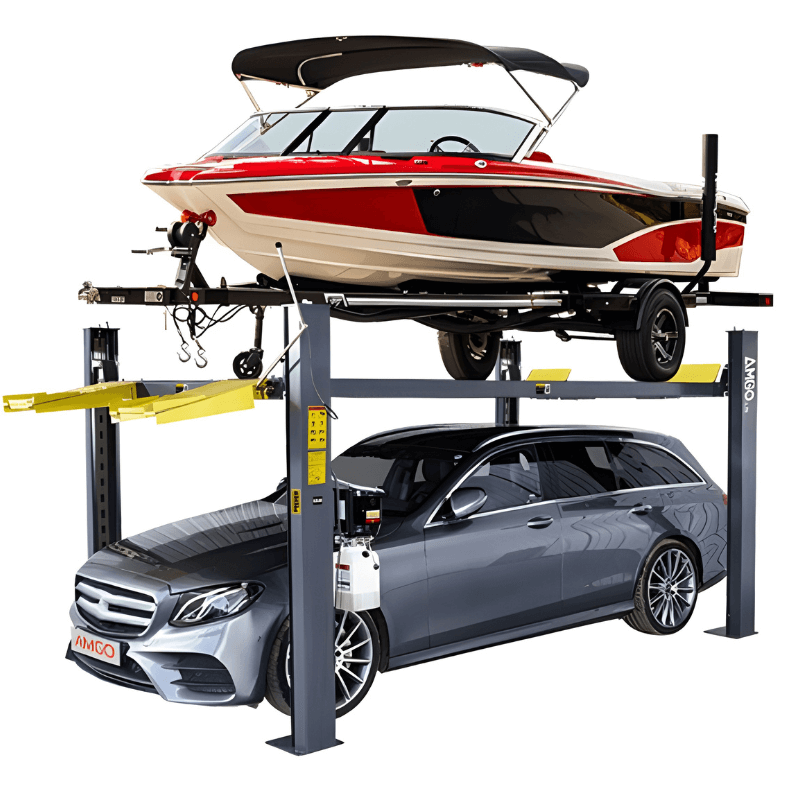

Amgo 409-HPX 9,000lb 4 Post Lift Boat Lift - Extra Wide & Extra Tall

Roll over image to zoom in Click on image to zoom

Amgo 409-HPX 9,000lb 4 Post Lift Boat Lift - Extra Wide & Extra Tall

AmgoSKU: 409-HPX

At a Glance

Extra-Wide & Extra-Tall Frame; 111″ Drive-Thru; Hidden Safety Locks with Anti-Fall Devices
Max Lifting Height: 88.06"
Drive-Thru Clearance: 111"
Lowered Height: 6.13"

Price:

$4,980.00

Quantity:

Loading form…

Please complete and submit the shipping form above to enable Add to Cart.

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.

What to have ready on delivery day

Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

AMGO 409-HPX 9,000 lb Extra-Wide, Extra-Tall 4-Post Lift for Boats & Vehicles

Please request a shipping quote before placing your order.

The AMGO 409-HPX is a 9,000 lb four-post lift with an extra-wide, extra-tall frame for boats on trailers, full-size trucks, SUVs and cars. With 111″ of drive-thru clearance, 122 3/16″ between posts and runways that adjust from 46 1/2″ to 64 15/16″ apart, it handles wide trailers and oversized vehicles that won't fit on a standard parking lift.

Hidden safety locks, multiple lock positions in each column and automatic redundant anti-fall devices keep the load secure in the air. Double-S columns add strength, the non-slip runways keep tires planted, and the pump can be mounted on any corner. Add the optional caster kit to roll it around the shop, and it's all backed by AMGO's 5-3-2 warranty.

409-HPX Key Features

9,000 lb lifting capacity for boats, cars, SUVs and light trucks
Extra-wide, extra-tall frame for oversized vehicles and trailers
Hidden safety locks with multiple lock positions in each column
Automatic redundant anti-fall devices for added protection
Double-S columns for added structural strength
Non-slip runway surface for stable footing
Pump mounts on any corner for flexible installation
Available with a 110V or 220V single-phase motor
Adjustable trailer jack wheel platform (42 3/8″ to 66 3/16″) included
AMGO 5-3-2 warranty

409-HPX Specifications

Model: 409-HPX
Lifting Capacity: 9,000 lbs
Lifting Time: 57 seconds
Overall Length (including ramps): 238 1/8″ (19.84 ft)
Overall Length (without ramps): 204 11/16″
Overall Width: 131 7/8″
Width Between Posts: 122 3/16″
Lifting Height: 88 1/16″
Overall Height: 96 5/8″ (8.05 ft)
Minimum Height: 6 1/8″
Max Underneath Height: 82 9/16″
Max Lock Height Underneath Runway: 79 13/16″
Drive-Thru Clearance: 111″
Width Between Runways: 46 1/2″ – 64 15/16″
Outside Edge of Runways: 86 1/2″ – 104 15/16″
Motor: 1.0 HP (110V) – requires 30 amp breaker
Concrete Requirements: minimum 4″, 3,000 psi
Pallet Dimensions: 203″ x 22″ x 29″ – 2,057 lbs

Optional Accessories (sold separately)

Caster kit: No. 40801
90-degree installation plate: No. 40802
Aluminum drive-in ramps: No. 40803
AMGO J5H 5,000 lb Rolling Jack (only compatible at the narrowest runway setting)
