Amgo BP-12 12,000lb 2 Post Car Lift
Amgo BP-12 12,000lb 2 Post Car Lift
Roll over image to zoom in Click on image to zoom
Amgo BP-12 12,000lb 2 Post Car LiftAmgo BP-12 12,000lb 2 Post Car Lift

Amgo BP-12 12,000lb 2 Post Car Lift

AmgoSKU: BP-12

At a Glance

  • 12,000 lb Base Plate Design; 3-Stage Arms; Single-Point Lock Release; Two Column-Width Settings
  • Max Lifting Height: 73.88"
  • Drive-Thru Clearance: 104.44"
  • Lowered Height: 4.5"
Price:
$4,950.00

Please complete and submit the shipping form above to enable Add to Cart.

Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

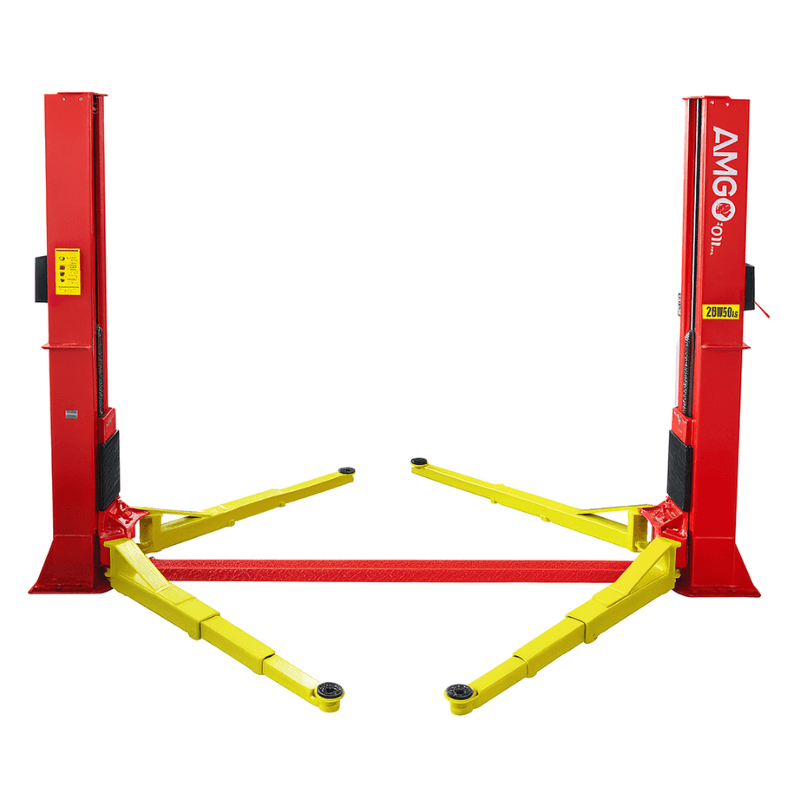

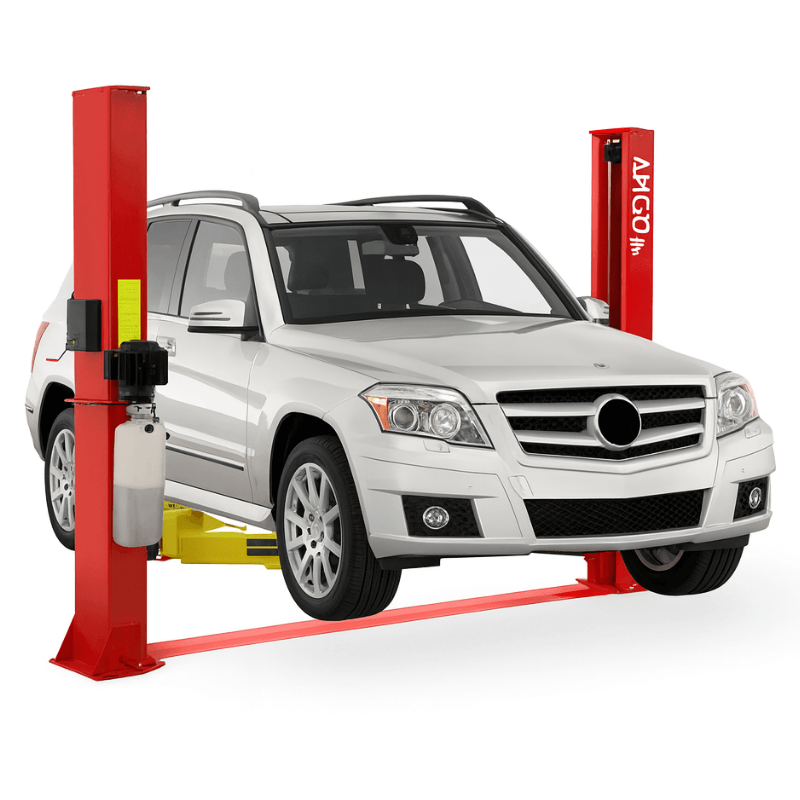

AMGO BP-12 12,000 lb Base Plate 2-Post Car Lift

Please request a shipping quote before placing your order.

The AMGO BP-12 is a heavy-duty 12,000 lb base plate two-post lift for shops that service everything from daily drivers to full-size pickups, vans and wide-body trucks. The hydraulic and synchronization lines run across a floor plate instead of an overhead beam, so there is nothing above the vehicle to limit its height, and the 122 1/2″ column height lets it fit bays that can't take a taller clear-floor lift.

Three-stage retractable arms reach factory lift points on short and long wheelbases alike, and a single-point safety release unlocks both columns from one side. The columns can be set at two different widths (118 1/8″ or 123 1/2″ apart), and the lift comes with 3″ and 6″ extension adapters, saddle adapters, toe guards and tool trays, so it's ready to work as soon as it's installed.

BP-12 Key Features

  • 12,000 lb lifting capacity for cars, SUVs, vans and full-size trucks
  • Base plate design with no overhead beam to limit vehicle height
  • 3-stage retractable arms fit a wide range of wheelbases and lift points
  • Single-point manual lock release frees both columns from one side
  • Two column-spacing options: 118 1/8″ or 123 1/2″ between columns
  • Automatic arm restraints hold the arms in position under load
  • Self-lubricating UHMW polyethylene sliders for smooth, low-maintenance travel
  • Aircraft-grade synchronization cables standard
  • Detachable toe guards and tool trays included
  • Heavy-duty rubber pads, saddle adapters and 3″ / 6″ extension adapters included

BP-12 Specifications

  • Model: BP-12
  • Lift Type: Base Plate Two-Post Lift
  • Lifting Capacity: 12,000 lbs
  • Lifting Time: 65 seconds
  • Max Lifting Height (without extension adapter): 72 1/2″ – 73 7/8″
  • Max Lifting Height (with extension adapter): 81 9/16″ – 82 7/8″
  • Max Lock Height (without extension adapter): 70 9/16″ – 71 7/8″
  • Max Lock Height (with extension adapter): 79 9/16″ – 80 15/16″
  • Overall Height (B): 122 1/2″
  • Overall Width (C): 145 3/8″ (150 3/4″)
  • Drive-Thru Clearance (D): 104 7/16″ (109 13/16″)
  • Width Between Columns (E): 118 1/8″ (123 1/2″)
  • Minimum Pad Height (F): 4 1/2″
  • Gross Weight: 2,238 lbs
  • Motor: 2.0 HP (220V) – requires double 30 amp breaker
  • Container Quantity: 20 units / 20′ GP
  • Concrete Requirements: minimum 5″, 3,500 psi
  • Pallet Dimensions: 115″ L x 23″ W x 39″ H

Measurements in parentheses are for the wider column setting.

Optional Accessories (sold separately)

  • Light Truck Saddle Adapter: No. 20804
  • Heavy-Duty Truck Saddle Adapter: No. 21103

AMGO 5-3-2 Warranty

  • 5 years: steel structure
  • 3 years: hydraulic components, bronze bushings, slider blocks and plastic parts
  • 2 years: electrical components and cables
  • Not covered: rubber pads

BP-12 Manuals & Downloads
