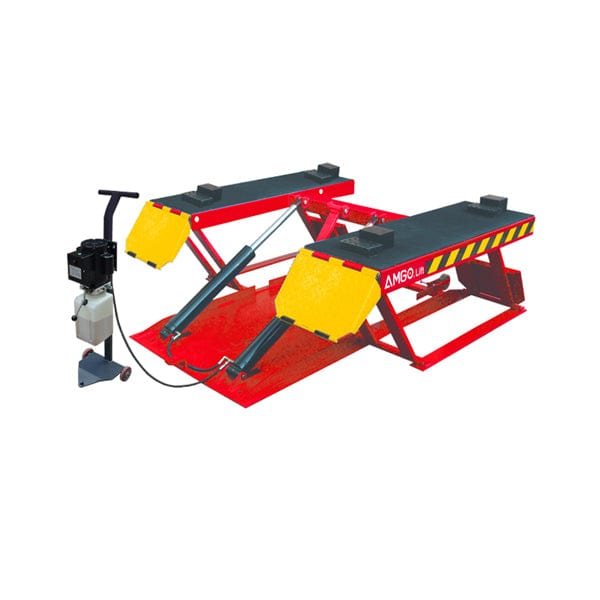

AMGO LR10 Low-Rise Lift

Please REQUEST A SHIPPING FEE QUOTE before placing your order.

The AMGO LR10 Low-Rise Lift is a portable lifting solution designed for workshops with low ceiling heights or for shops that need to add an additional service bay during seasonal increases in workload. This compact lift provides a convenient working height for tire service, brake repairs, and light body work, making it a practical option for quick automotive service tasks.

Easy to operate and highly portable, the LR10 offers reliable lifting performance while maximizing workspace flexibility.

Features

  • Automatic multiple safety locks for secure operation

  • Automatic safety lock release system

  • Portable design for easy movement with the integrated power unit stand

  • Fast lifting speed: raises from 105–600 mm (4 1/8"–23 5/8") in approximately 50 seconds

  • Standard rubber lifting pads included

Specifications

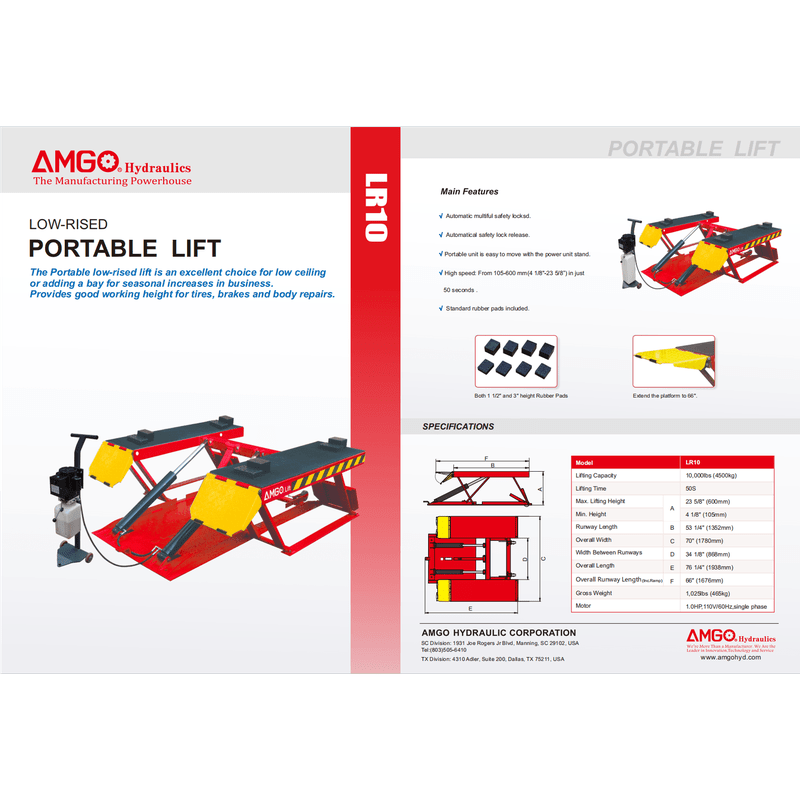

Technical drawing of the AMGO Hydraulics LR10 Low Rise Lift from two perspectives, illustrating dimensions and structural details with a lifting capacity of 10,000lbs.

Model LR10
Lifting Capacity 10,000lbs
Lifting Time 50s
A1: Max. Lifting Height
23 5/8" (600mm)
A2: Minimum Height
4 1/8" (105mm)
B: Runway Length
53 1/4" (1352mm)
C: Overall Width
70" (1780mm)
D: Width Between Runways
34 1/8" (868mm)
E: Overall Length
76 1/4" (1938mm)
F: Overall Runway Length(Inc.Ramp)
66" (1676mm)
Gross Weight
1,025lbs (465kg)
Motor
1.0HP 110V/60Hz, single phase

Detailed Images

The AMGO Hydraulics LR10 Low Rise Lift extends to a maximum height of 66 inches and includes multiple rubber pads with heights of 1.5 and 3 inches, providing a portable and versatile solution for your lifting requirements.

Shipping Information

The AMGO LR10 Low Rise Lift from AMGO Hydraulics is lifting a stack of sacks, a wooden pallet, a power unit box, and a metal part with dimensions labeled in the image, demonstrating its 10,000lbs lifting capacity.

Downloads

AMGO LR10 Low Rise Lift Manual
