Description
Product Overview

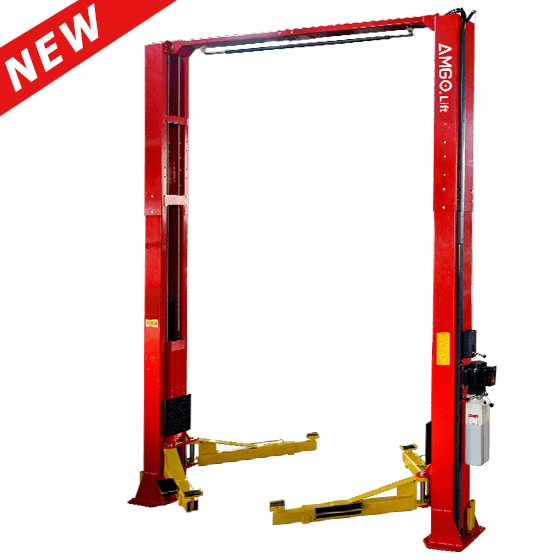

The AMGO OH-18 is a premium heavy-duty two-post lift built to deliver outstanding performance with an impressive 18,000 lb lifting capacity. Designed for professional automotive repair shops, fleet maintenance facilities, and commercial service centers, this lift provides the strength, stability, and reliability required for servicing larger trucks and commercial vehicles.
Equipped with AMGO’s innovative 3-in-1 height adjustment technology and a clearfloor design, the OH-18 provides an open, unobstructed workspace that improves efficiency and technician mobility throughout the shop.

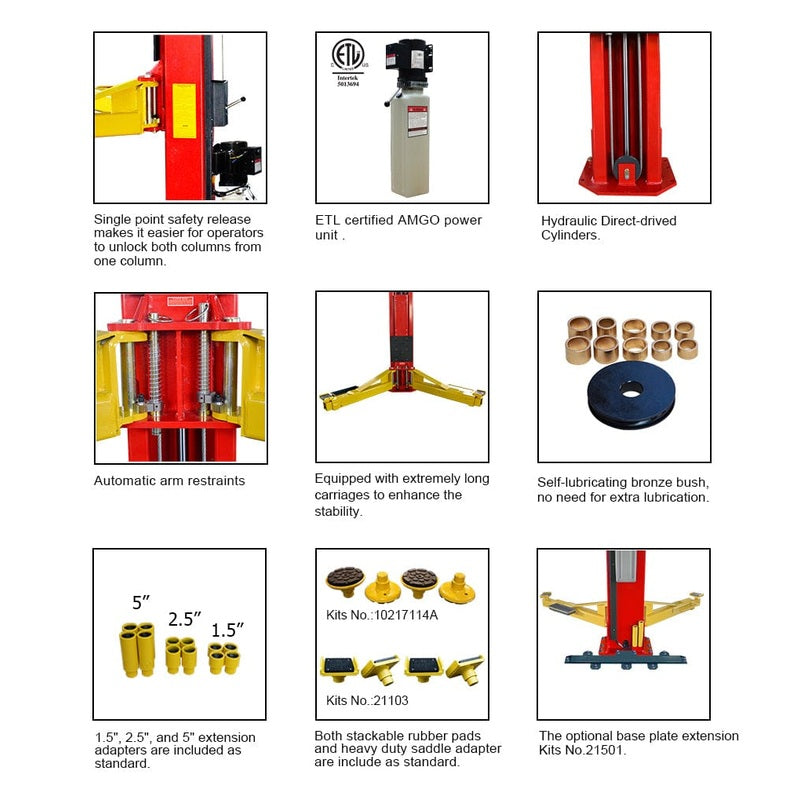

Key Features
18,000 lb Lifting Capacity – Engineered to support heavy-duty vehicles including trucks, commercial vehicles, and fleet equipment.
Clearfloor Design – Maximizes usable floor space for improved movement and workflow within the service bay.
Overhead Safety Shut-Off – Automatically stops the lift at maximum height to help prevent accidental vehicle damage.
Manual Single-Point Safety Release – Allows both columns to be unlocked from one convenient location.
Automatic Arm Restraints – Keeps lift arms securely positioned during operation for enhanced safety and stability.
Heavy-Duty Carriages – Reinforced, extended carriages provide added durability and improved lifting balance.
Dual Hydraulic Cylinders – High-quality hydraulic cylinders with premium seals deliver smooth, consistent lifting performance.
Adjustable Height Settings – Three selectable overall height configurations allow the lift to adapt to a variety of shop ceiling heights.
Standard Accessories Included – Comes equipped with both standard rubber lifting pads and heavy-duty saddle adapters to accommodate a wide range of vehicle types.

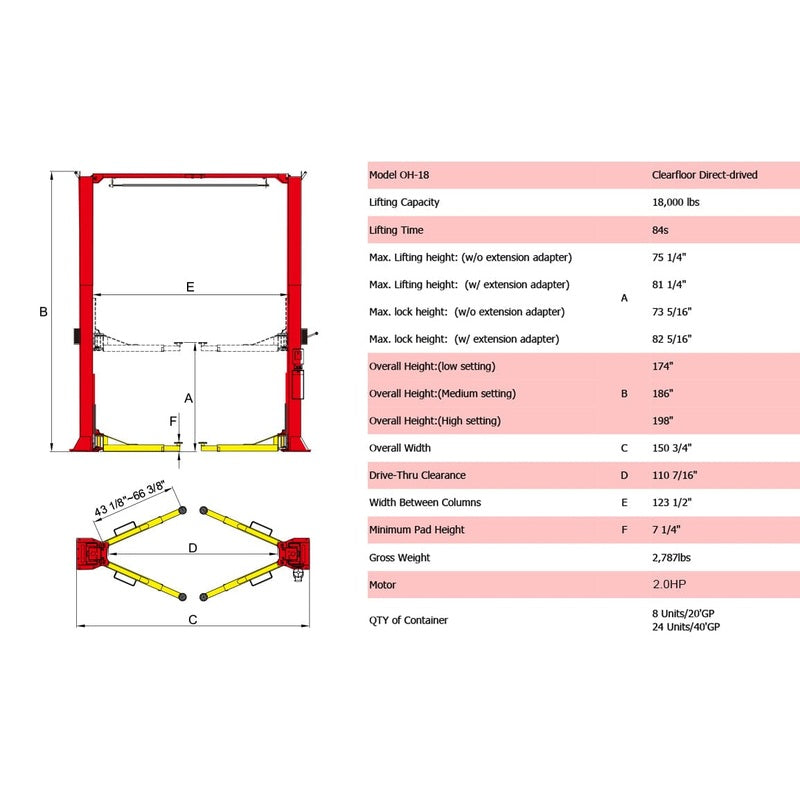

Specifications
| Model | OH-18 |
|---|---|
| Lifting Capacity | 18,000 lbs |
| Lifting Time | 84 seconds |
| Max. Lifting Height (without extension adapters) | 75 1/4" |
| Max. Lifting Height (with extension adapters) | 81 1/4" |
| Max. Lock Height (without extension adapters) | 73 5/16" |
| Max. Lock Height (with extension adapters) | 82 5/16" |
| Overall Height – Low Setting | 174" |
| Overall Height – Medium Setting | 186" |
| Overall Height – High Setting | 198" |
| Overall Width | 150 3/4" |
| Drive-Thru Clearance | 110 7/16" |
| Width Between Columns | 123 1/2" |
| Minimum Pad Height | 7 1/4" |
| Motor | 2.0 HP |
| Gross Weight | 2,787 lbs |
| Container Quantity | 8 Units / 20'GP • 24 Units / 40'GP |
The AMGO OH-18 is an excellent choice for professional technicians working with heavy-duty vehicles. Combining high lifting capacity, advanced safety features, and a durable design, this lift delivers the performance and reliability serious service facilities demand.
