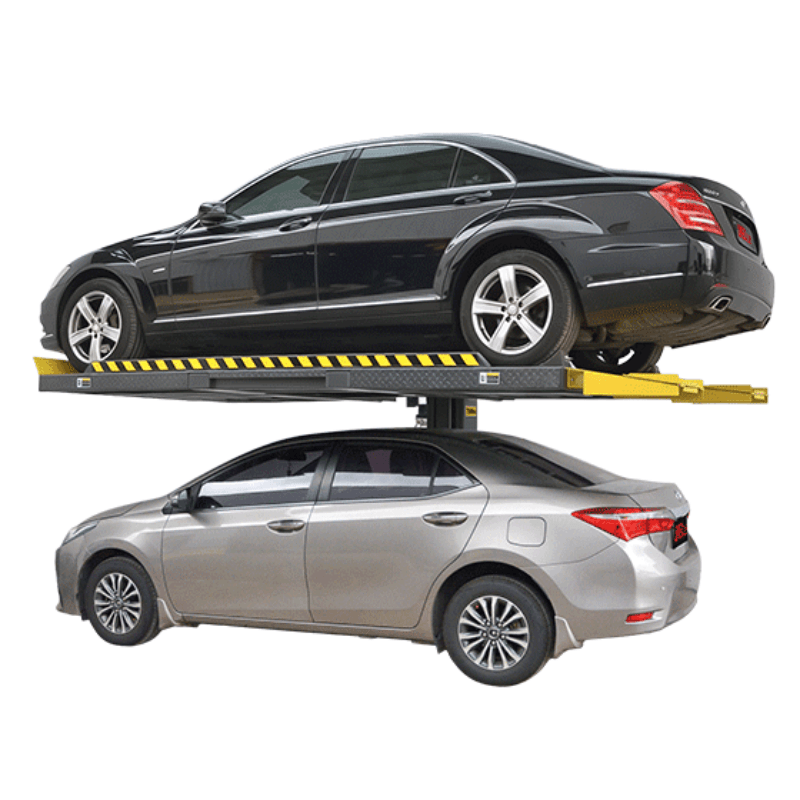

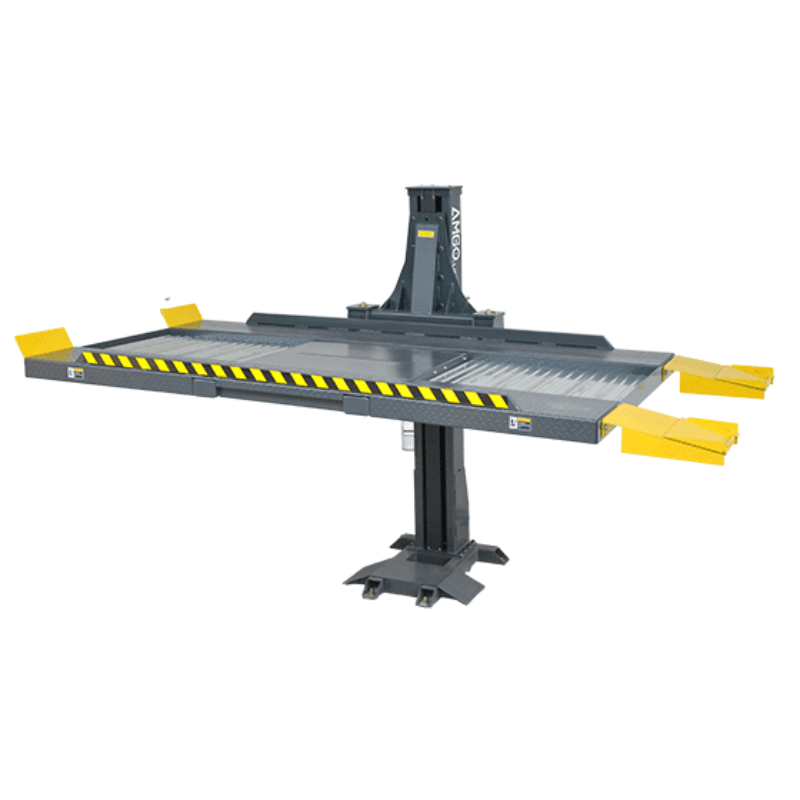

AMGO SPL-7 7,000 lb Single Post Parking Lift
Please request a shipping quote before placing your order.
The AMGO SPL-7 is a 7,000 lb single post parking lift that doubles your parking in a fraction of the floor space a four-post lift needs. With one column carrying the platform, the sides stay open for car doors and walkways, and at 109 7/16″ tall it fits garages with ceilings as low as 110″. It's a commercial-grade storage solution for home garages, collectors and professional shops alike.
Dual safety devices with a single-point lock release (no air supply required) keep daily use simple. Interchangeable H-shaped non-slip platforms, foldable drive-on ramps, a guide ramp and rubber wheel chocks all come standard, and storage wave panels rated for 3,000 lbs turn the platform into usable storage. A fabric chain cover protects the cylinder and keeps the column looking clean.
SPL-7 Key Features
- 7,000 lb lifting capacity for vehicle parking and storage
- Commercial-grade reinforced steel construction
- Compact single-post design saves floor space
- Fits ceilings as low as 110″
- Dual safety devices with a single-point lock release
- No external air source required
- Interchangeable H-shaped non-slip platforms
- Foldable drive-on ramps and guide ramp included
- Storage wave panels (3,000 lb capacity) included as standard
- Rubber wheel chocks included
- Fabric chain cover protects the cylinder
- Optional aluminum alloy drive-in ramp available
SPL-7 Specifications
- Lifting Capacity: 7,000 lbs
- Lifting Time: 84 seconds
- Overall Height: 109 7/16″
- Max Lifting Height: 74″
- Max Lock Height to Top of Runway: 70 3/16″
- Max Height Underneath Runway: 69 5/16″
- Max Lock Height Underneath Runway: 65 1/2″
- Minimum Height: 6 1/8″
- Overall Width: 111″
- Width Between Runways: 42 3/8″
- Overall Length: 192 1/8″
- Drive-Thru Clearance: 79 1/4″
- Motor: 1.0 HP, 110V / 60Hz
- Concrete Requirements: minimum 5″, 3,500 psi
- Shipping Dimensions: 157″ L x 22″ W x 67″ H – 3,027 lbs
