Product Overview

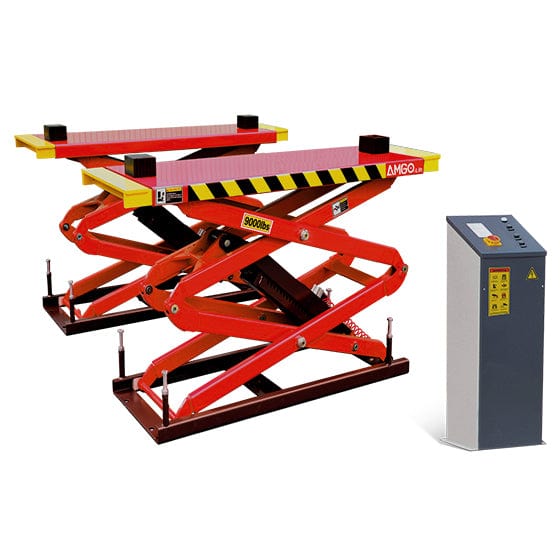

The AMGO XL-9F is a premium flush-mount, full-rise scissor lift designed for professional automotive service facilities that require a clean, unobstructed workspace. Built with a heavy-duty electric/hydraulic lifting system, adjustable extendable platforms, and a 9,000 lb. lifting capacity, this lift is well suited for servicing a wide range of vehicles—from compact cars to light trucks and pickups.
Its flush-mount installation allows the lift to sit level with the shop floor, creating a seamless work area and providing technicians with convenient access underneath the vehicle for improved comfort and efficiency during service.

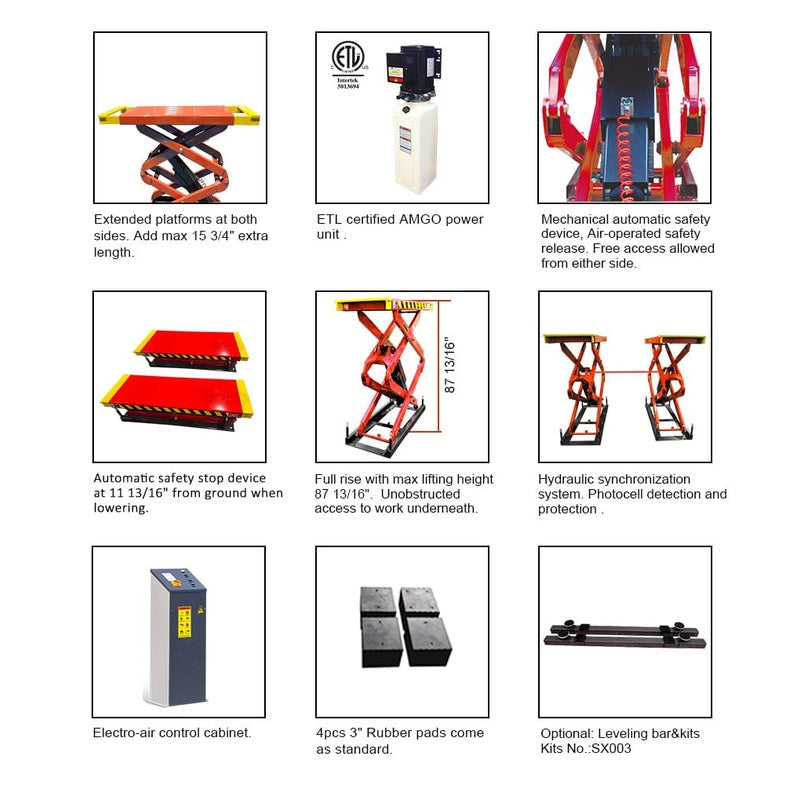

Key Features
-
9,000 lb. lifting capacity – Suitable for cars, light trucks, and pickup trucks
-
Flush-mount design – Creates a clean, unobstructed workshop floor when the lift is lowered
-
Dual synchronous cylinders – Provide smooth, balanced lifting across both platforms
-
Adjustable and extendable platforms – Designed to accommodate a variety of vehicle wheelbases
-
Electric/hydraulic power system – Delivers reliable and consistent lifting performance
-
Mechanical safety locking system – Air-cylinder controlled locks provide added safety and stability
-
Heavy-duty steel construction – Built for durability and long-term reliability in professional service environments
Warranty: 5-Year Warranty on Steel Components, 3-Year Warranty on Hydraulic Parts, and 2-Year Warranty on Electrical Components.

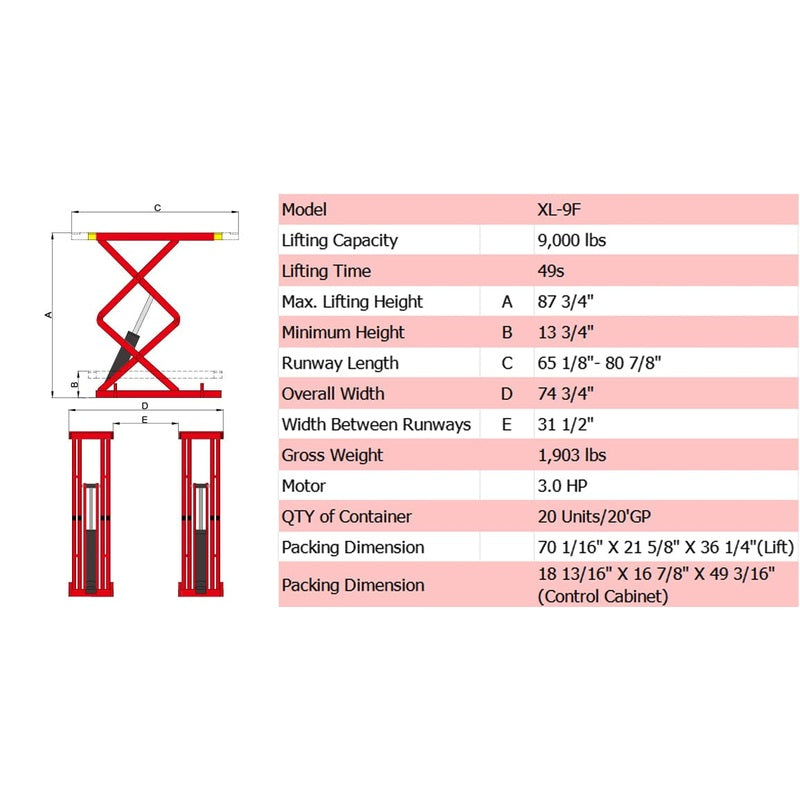

Specifications
| Model | XL-9F |
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 49 seconds |
| Max. Lifting Height | 87 3/4" |
| Minimum Height | 13 3/4" |
| Overall Length | 65 1/8" - 80 7/8" |
| Overall Width | 74 3/4" |
| Width Between Runways | 31 1/2" |
| Gross Weight | 1,903 lbs |
| Motor | 3.0 HP |
| Container Quantity | 20 Units/20'GP |
The Amgo XL-9F Flush Mount Scissor Lift is the perfect choice for professionals looking for a high-performance lift with a seamless, space-saving design.
