Description

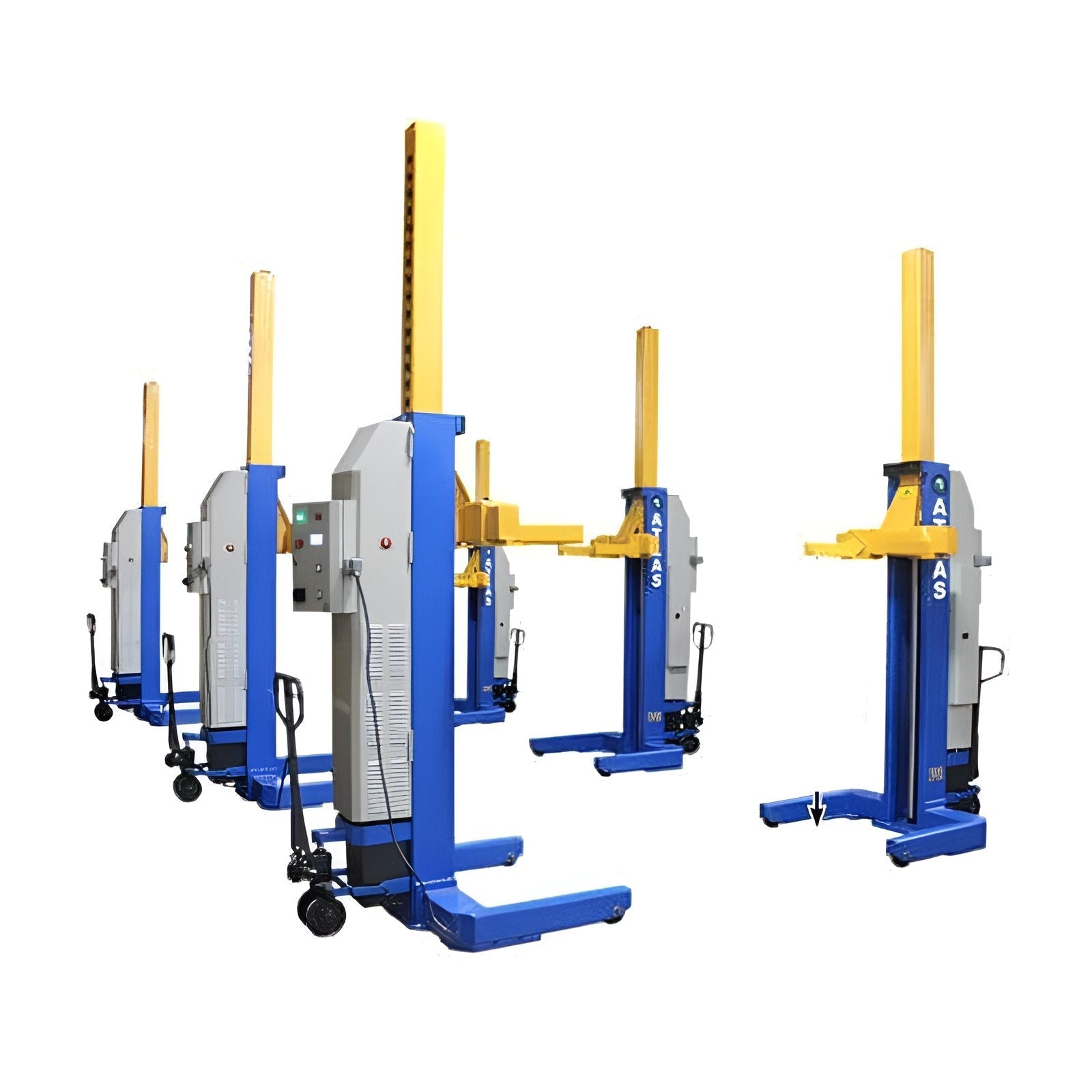

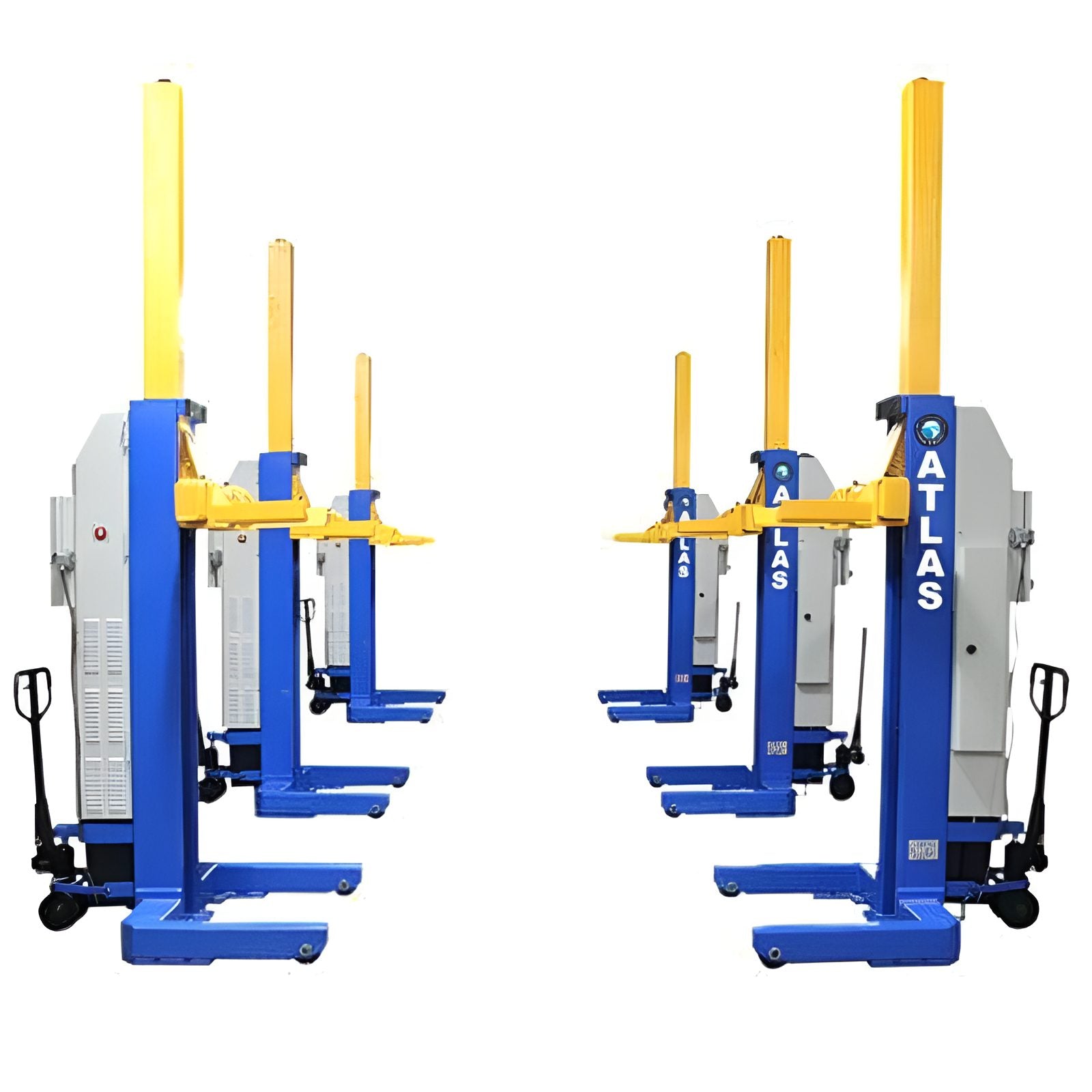

  • Atlas Maxima® ML-6051BC Mobile Column Lift System

    ALI Certified 111,000 lb Mobile Column Lift for Heavy-Duty Fleet & Truck Service

    The Atlas Maxima® ML-6051BC Mobile Column Lift System is engineered for professional heavy-duty repair facilities that require maximum lifting capacity, portability, and flexibility. Featuring six ALI Certified mobile lifting columns, this system delivers a combined lifting capacity of 111,000 pounds, making it ideal for servicing heavy trucks, buses, motorhomes, emergency vehicles, municipal fleets, and other large commercial vehicles. Its portable design eliminates the limitations of fixed lifts, allowing technicians to position the system wherever it's needed—even outdoors on level concrete.

    Each column is powered by a 2.2 kW 24V DC motor with dual rechargeable batteries, providing dependable cordless operation and the freedom to move throughout the shop without permanent installation. An advanced electronic synchronization system ensures every column lifts evenly, while hydraulic flow control and mechanical safety locks provide redundant protection during operation. Integrated LCD displays show the exact lifting height of each column, and emergency stop buttons are conveniently located on every unit for added operator safety.

    Designed to accommodate a wide variety of heavy-duty vehicles, the ML-6051BC features adjustable wheel forks that fit tire diameters from 19 to 44 inches. With hydraulic pallet jack systems for easy positioning and rechargeable batteries capable of multiple lift cycles between charges, this mobile column lift system delivers the versatility, reliability, and productivity today's commercial service facilities demand.


    Atlas ML-6051BC Specifications

    Specification Details
    Lifting Capacity (Per Column) 18,500 lbs
    System Configuration 6 Columns
    Total Lifting Capacity 111,000 lbs
    Maximum Lifting Height 67"
    Overall Height 145"
    Resting Height 88.5"
    Overall Width 43.5"
    Overall Length 55.5"

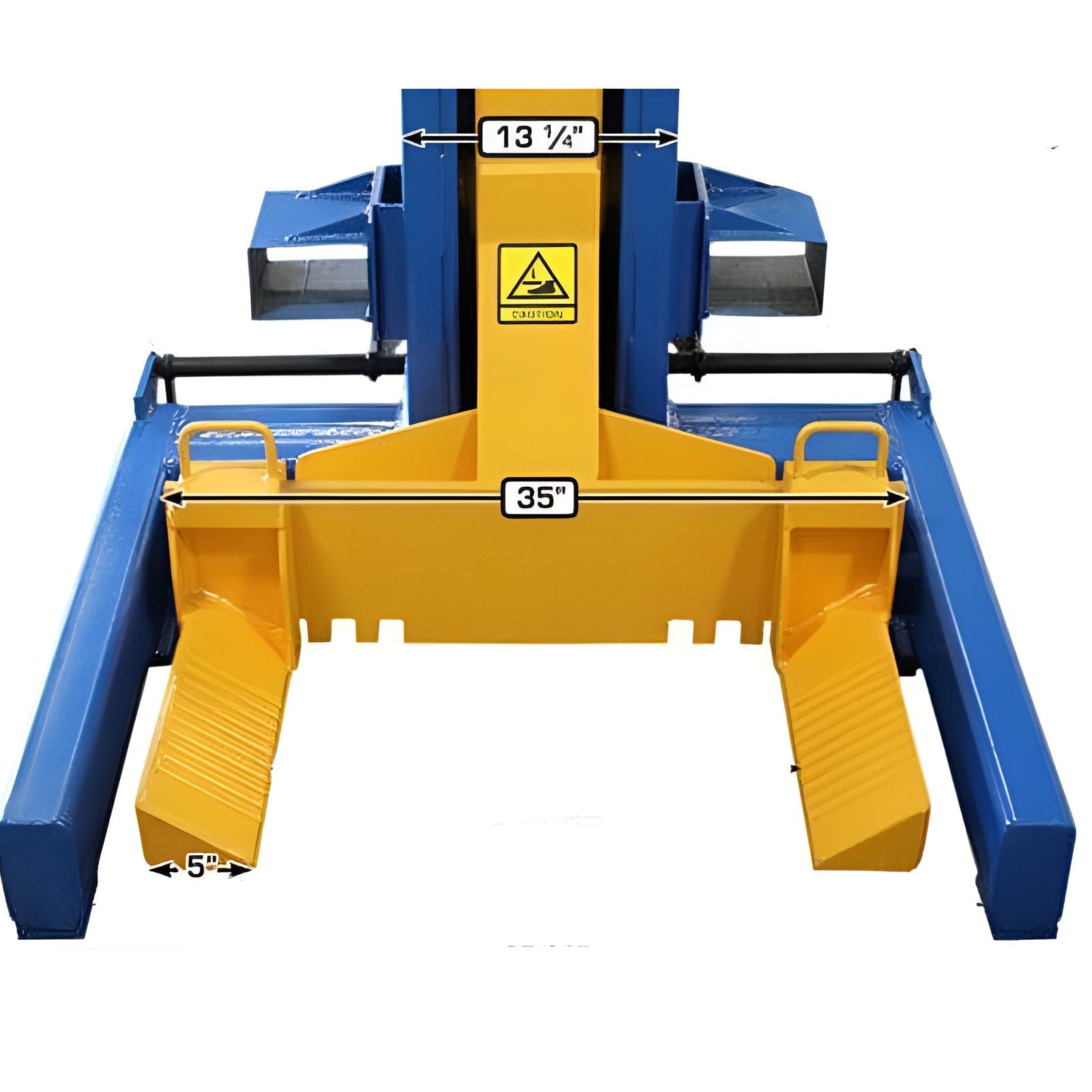

    Column Width 13.25"
    Tire Diameter Range 19" – 44"
    Motor 2.2 kW, 24V DC with Dual Batteries per Column
    Battery Charger Power 110V
    Concrete Requirement Minimum 4" thick, 3,500 PSI
    Warranty 2-Year Limited

    Shipping Information

    • Shipping Weight (Per Column): 1,700 lbs
    • Shipping Weight (Six Columns): 10,200 lbs
    • Shipping Dimensions (Per Column): 49" L × 47" W × 89" H

    Key Features

    • ALI Certified to meet industry-recognized safety and performance standards
    • Six-column mobile lift system with a combined 111,000 lb lifting capacity
    • 18,500 lb lifting capacity per individual column
    • Portable design allows lifting virtually anywhere on level concrete
    • Simultaneous synchronized lifting across all six columns
    • Advanced electronic synchronization system maintains level lifting
    • LCD display on every column provides real-time lifting height information
    • Dual safety protection with hydraulic flow control and mechanical locking systems
    • Emergency stop button located on every column

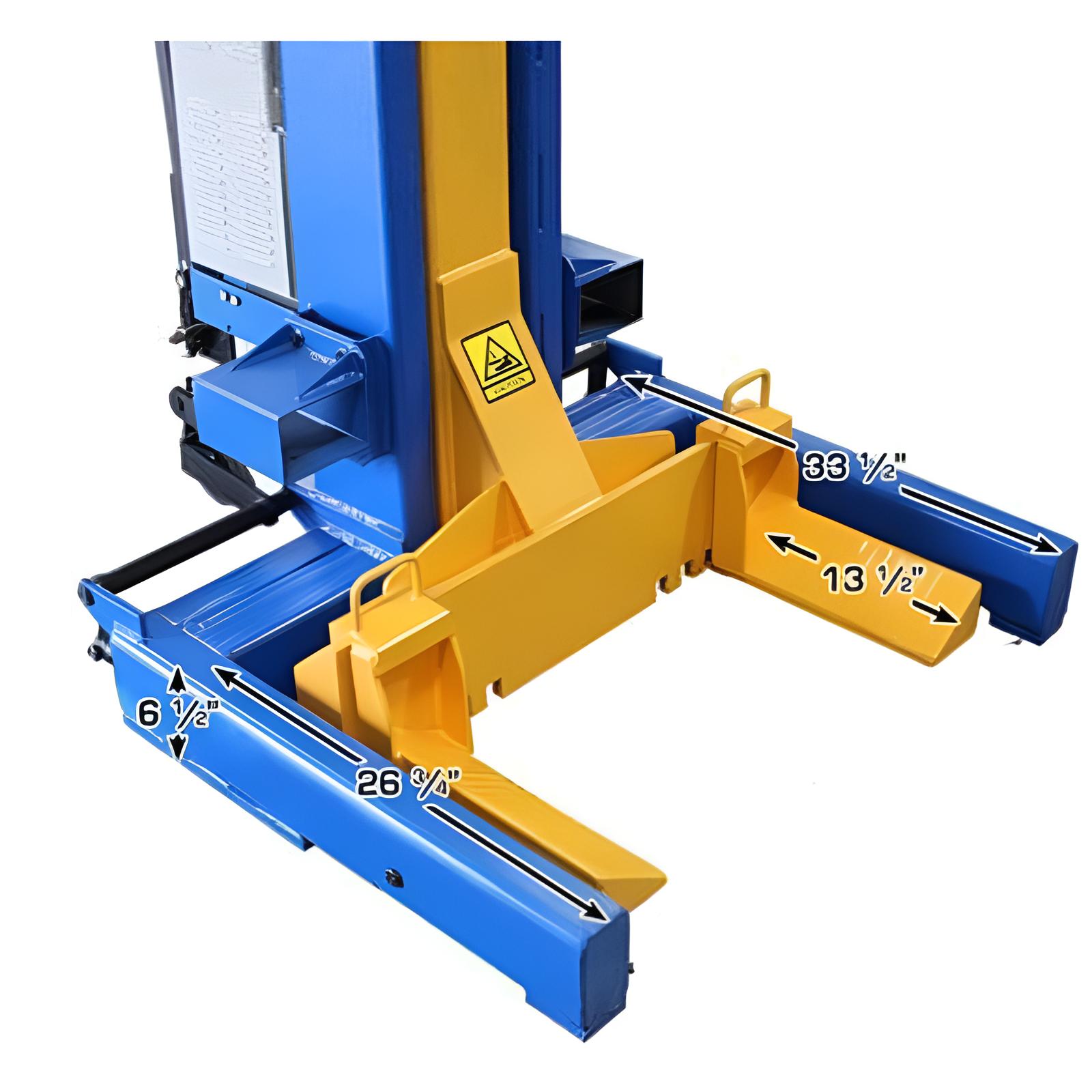

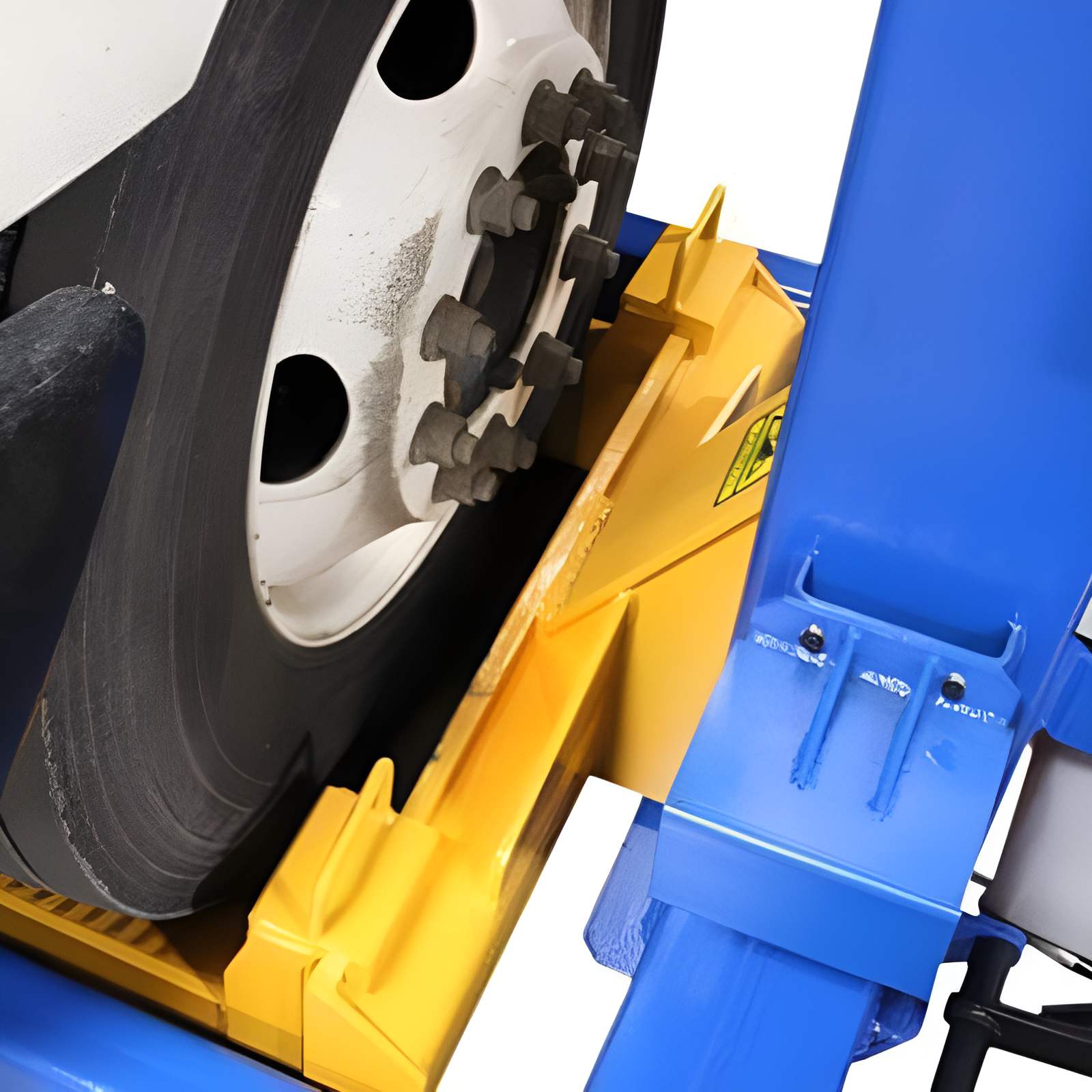

    • Adjustable wheel forks accommodate tire diameters from 19" to 44"
    • Dual rechargeable battery system enables cordless operation
    • Integrated hydraulic pallet jack system for effortless positioning
    • Includes six 32-foot interconnecting cables
    • Ideal for servicing heavy-duty trucks, buses, RVs, municipal fleets, emergency vehicles, and commercial equipment

    Atlas 2-Year Limited Warranty

    The Atlas Maxima® ML-6051BC is backed by a 2-Year Limited Warranty, providing dependable coverage and peace of mind for professional heavy-duty lifting applications.
