Description
Description
The Atlas® 12ASL Alignment Scissor Lift is designed for versatility and efficiency, offering a lifting height of over seven feet, allowing for either floor-mounted or recessed flush-mount installation. Its full-frame construction ensures maximum stability and strength, while the extra-long 53″ approach ramps make it easy to load even low-clearance vehicles.
Built for durability and performance, this lift combines quality craftsmanship, smooth operation, and a long-lasting powder-coated finish, making it a dependable choice for professional and high-volume alignment shops.
For facilities with limited bay space, the Atlas® Alignment System provides exceptional flexibility—accommodating vehicles from compact foreign models to full-size one-ton dual rear-wheel trucks without requiring additional space.

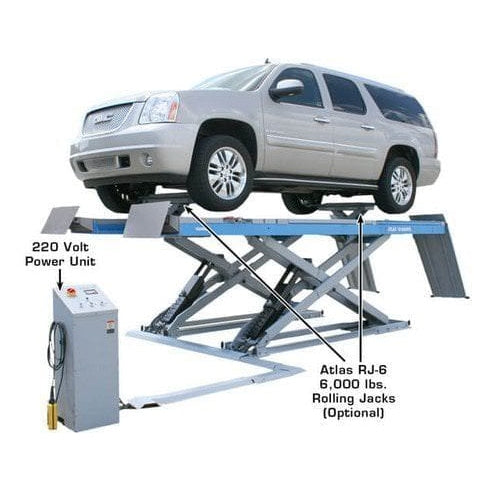

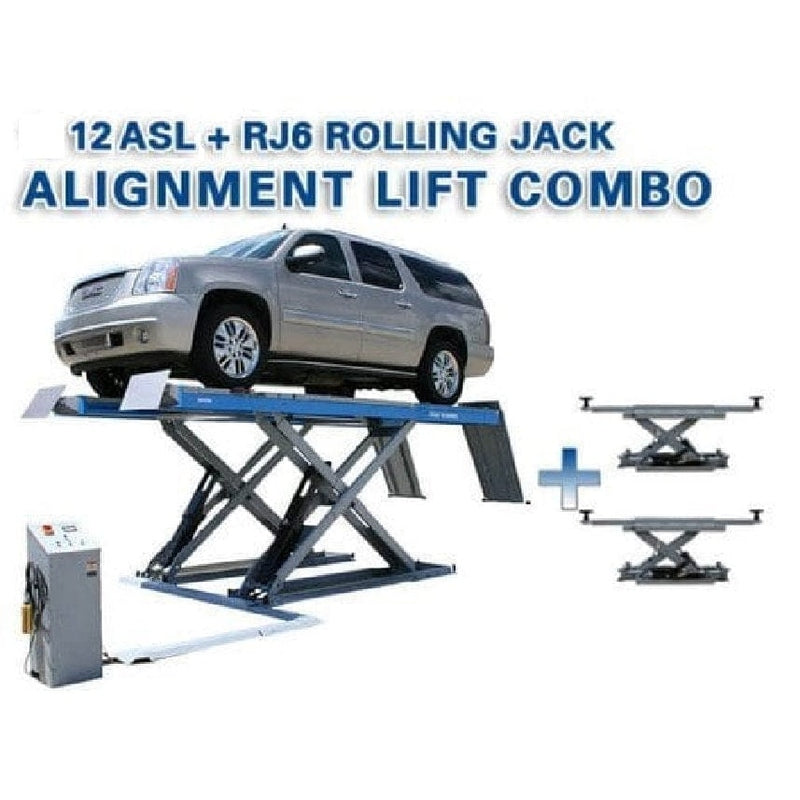

Each lift includes welded rails inside the runways to support the Atlas® RJ-6 (6,000 lb. capacity) air/hydraulic rolling jack system, which allows for efficient wheel service while the vehicle is elevated. The RJ-6 operates on delivered air pressure between 70–105 PSI, ensuring reliable performance during daily operation.
Features
12ASL Alignment Scissor Lift
-
12,000 lb. lifting capacity
-
Commercial-grade construction
-
Scissor-style alignment lift design
-

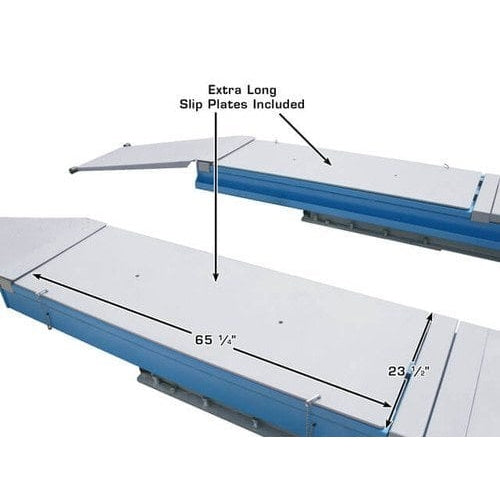

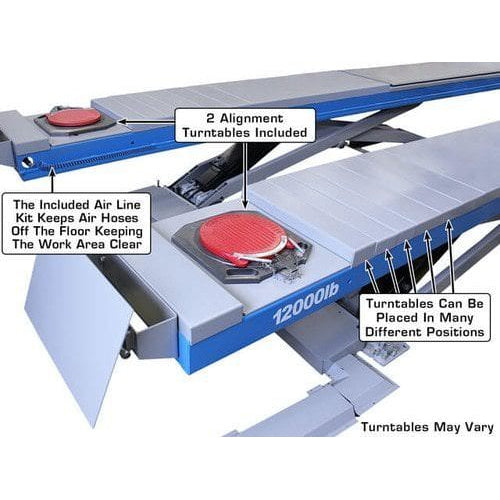

Built-in slip plates and alignment turntables (included)
-

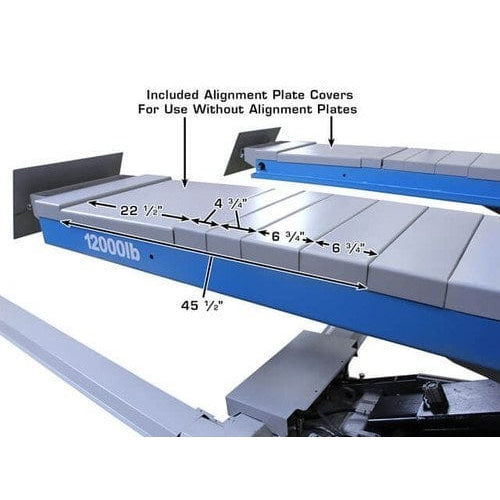

Turntable covers included for protection when not in use
-
Open-center design for easy undercarriage access
-

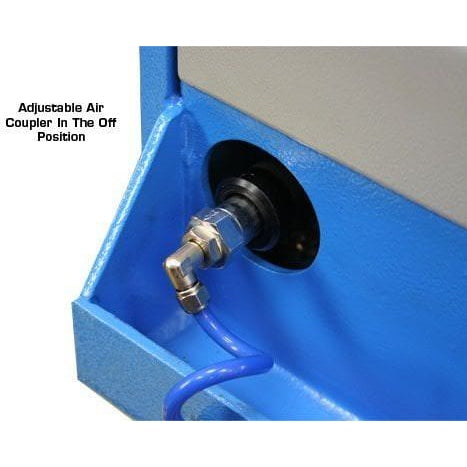

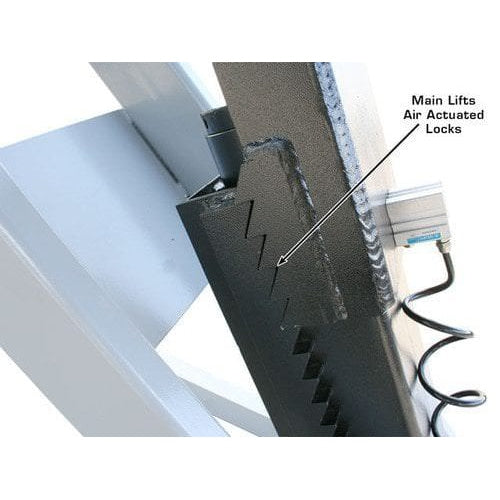

Air-operated single-point lock release (requires external air supply)
-

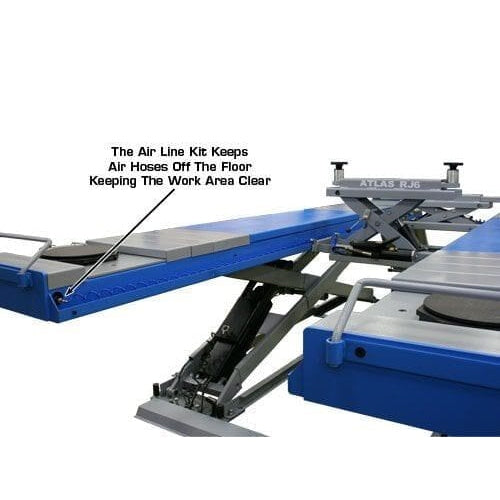

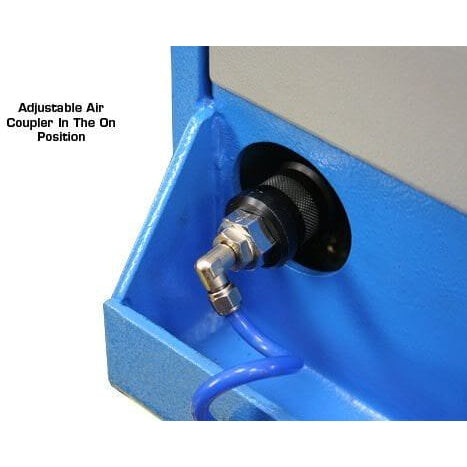

Airline kit included
-

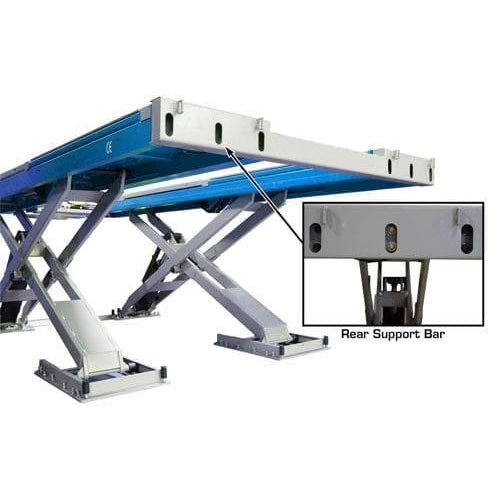

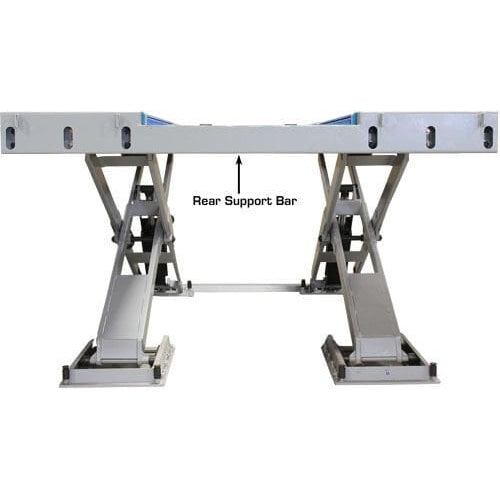

Rear cross beam for enhanced stability
-
Extra-long 72″ approach ramps included
-
Precision platform leveling system for accurate alignment
-
Separate, self-contained control panel for convenient operation
-
Emergency manual pump for lowering
-

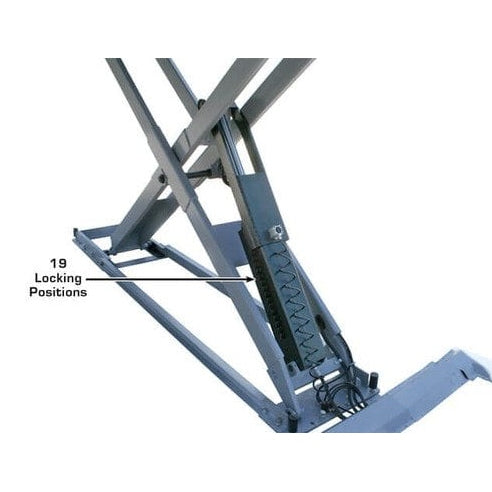

19 locking positions for safety and versatility
-
CE certified for quality and safety compliance
-
Can be installed as a surface-mount or flush-mount lift
-

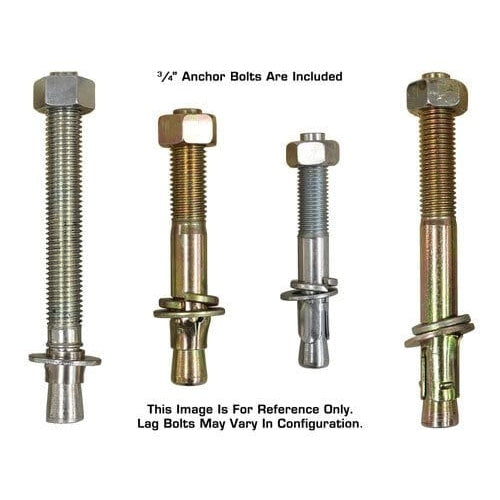

Mounting hardware included
-
220V / single-phase electrical operation (requires 30A breaker)
-

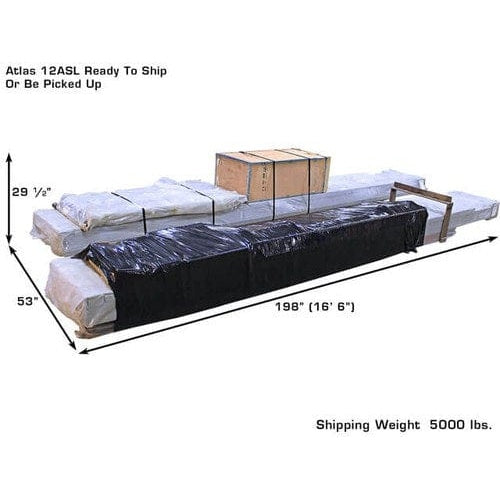

Shipping Weight: 5,000 lbs.
-
Warranty: 2-Year Structural / 1-Year Hydraulic (Parts Only)

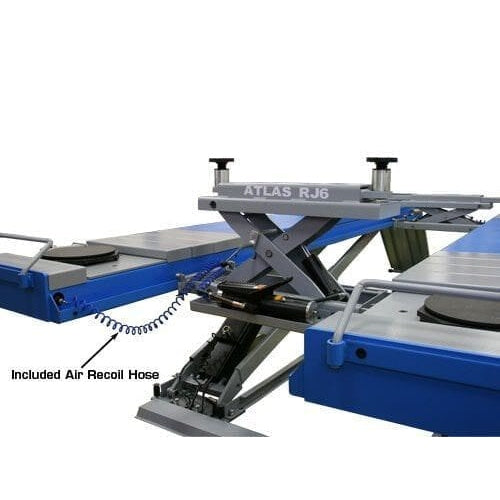

RJ-6 Rolling Jack
-
6,000 lb. lifting capacity
-
Air/hydraulic operation (requires external air supply)
-
Multiple safety lock positions for secure lifting
-
Compact, low-profile design for easy placement
-
Smooth rolling operation for effortless positioning
-
Scissor mechanism for level lifting performance
-
Durable powder-coated finish
-
Includes double screw-up adapters
-

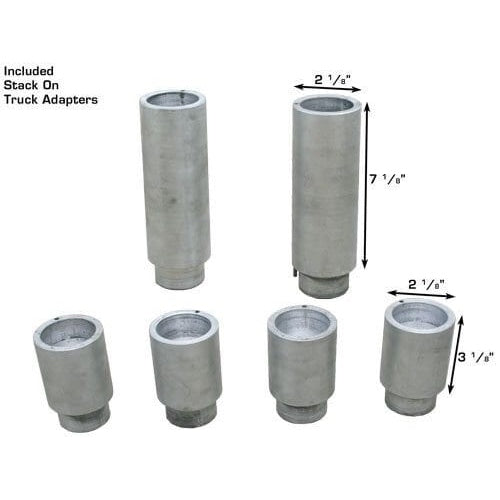

Includes 4-piece truck adapter set
-
Warranty: 1-Year Parts Only
Specifications
| Atlas® 12ASL Alignment Scissor Lift | Details |
|---|---|
| Lifting Capacity | 12,000 lbs |

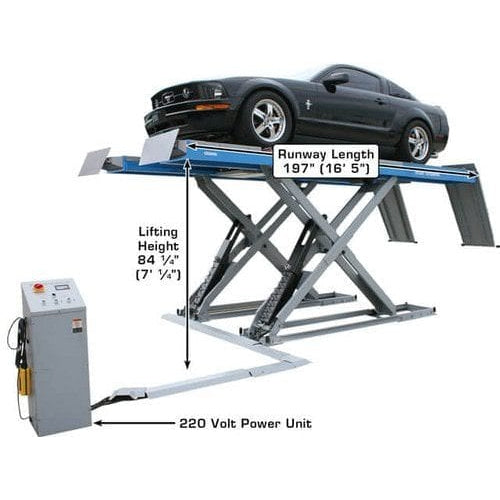

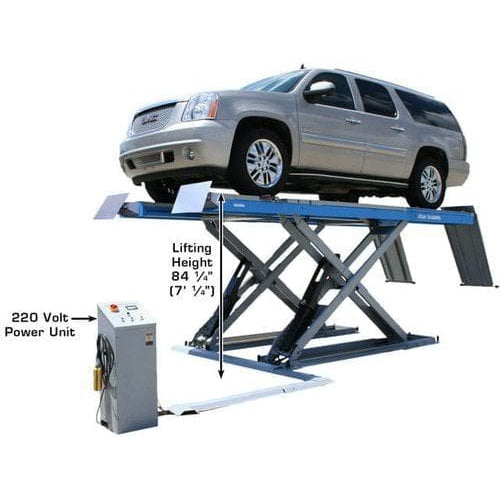

| Lifting Height | 84 ¼″ (7′ ¼″) |

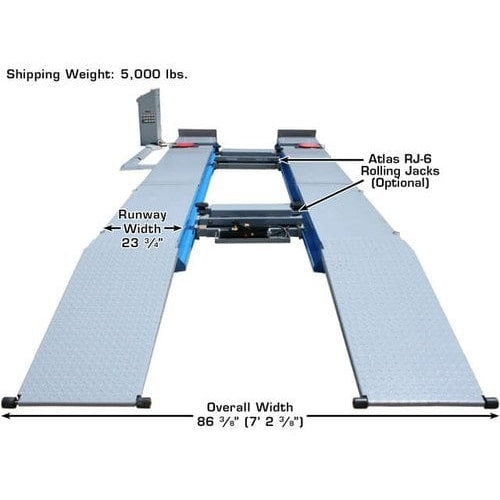

| Overall Width | 86 ⅜″ (7′ 2 ⅜″) |

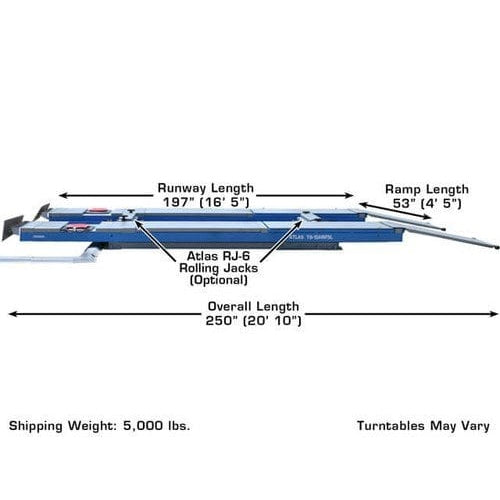

| Overall Length (with Ramps) | 250″ (20′ 10″) |
| Overall Length (without Ramps) | 197″ (16′ 5″) |
| Approach Ramp Length | 53″ (4′ 5″) |
| 4-Wheel Alignment Wheelbase | Max: 168″ • Min: 90″ |
| 2-Wheel Alignment Wheelbase | Max: 172″ • Min: 86″ |
| Runway Width | 23 ¾″ (1′ 11 ¾″) |
| Lowered Height | 11 ½″ |
| Locking Positions | 19 |
| Width Between Runways | 39″ |
| Motor / Electrical Requirement | 220V ±5% (209–231V) Single-Phase • 30A Breaker Required |
| Shipping Weight | 5,000 lbs |

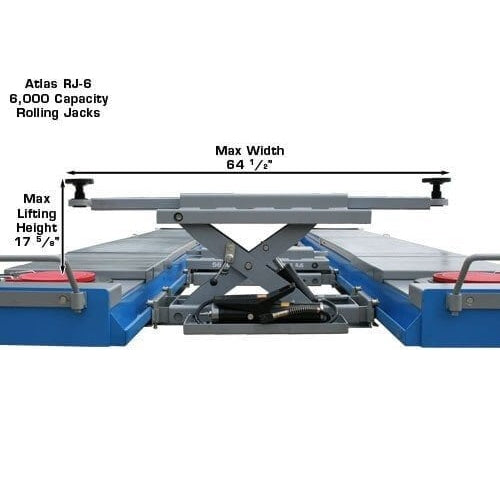

| Atlas® RJ-6 Rolling Jack | Details |
|---|---|
| Maximum Capacity | 6,000 lbs |

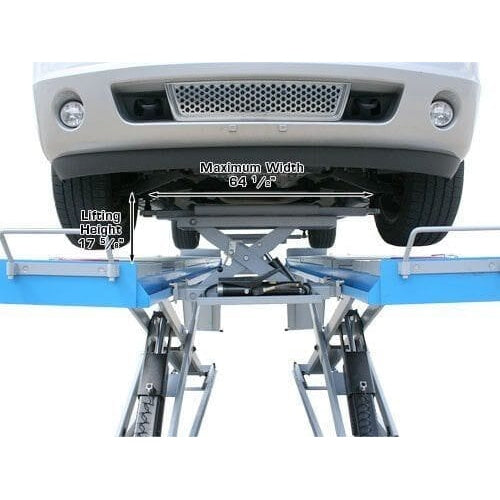

| Maximum Width | 64 ½″ |

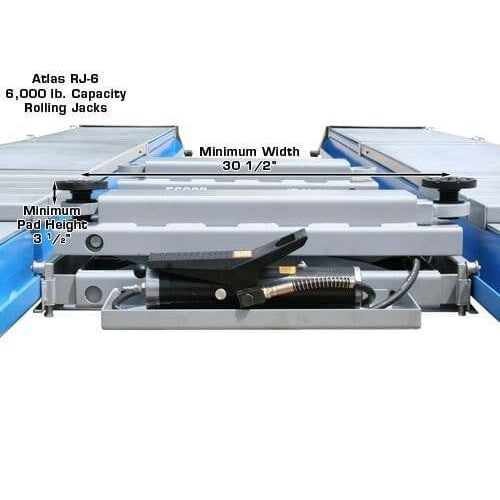

| Minimum Width | 30 ½″ |

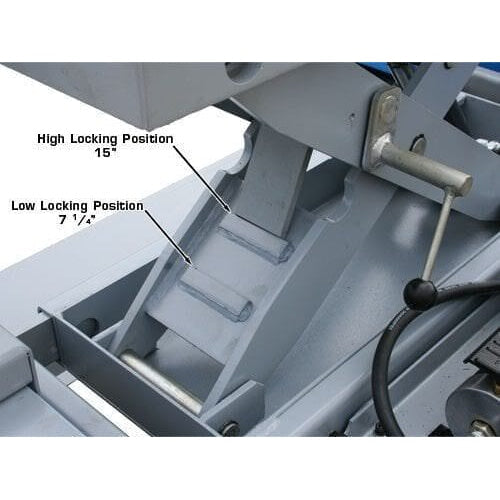

| First Locking Position | 7 ¼″ |
| Second Locking Position | 15″ |
| Minimum Pad Height | 3 ½″ |
| Maximum Lifting Height | 17 ⅝″ |
| Recommended Air Pressure | 70–105 PSI |
| Shipping Weight | 350 lbs |
