Description
Description

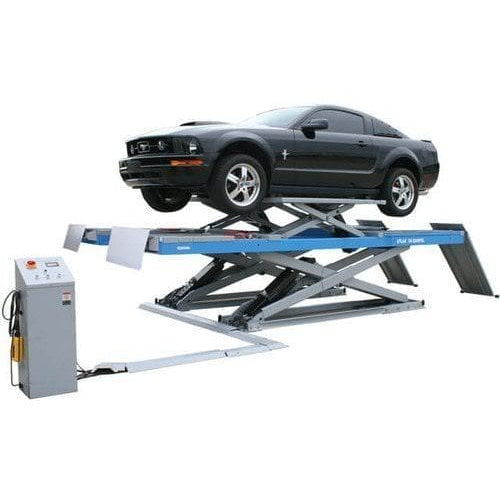

The Atlas® 12AWFSL is a 12,000 lb. capacity heavy-duty scissor alignment lift that represents the perfect blend of Italian engineering excellence and Asian manufacturing efficiency. Developed through a joint venture with one of Italy’s most respected lift manufacturers, this model combines precision design, exceptional build quality, and outstanding value — offering performance equal to or better than similar big-name brands costing two to three times more.

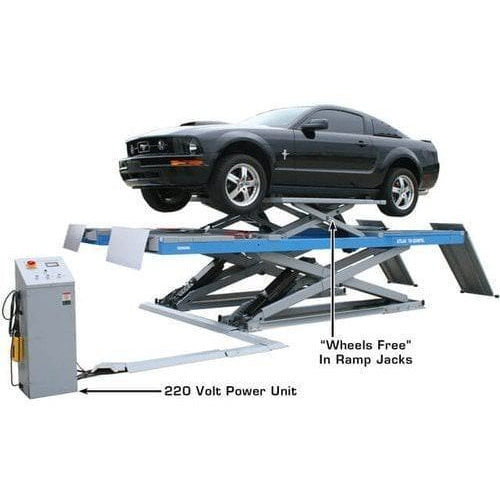

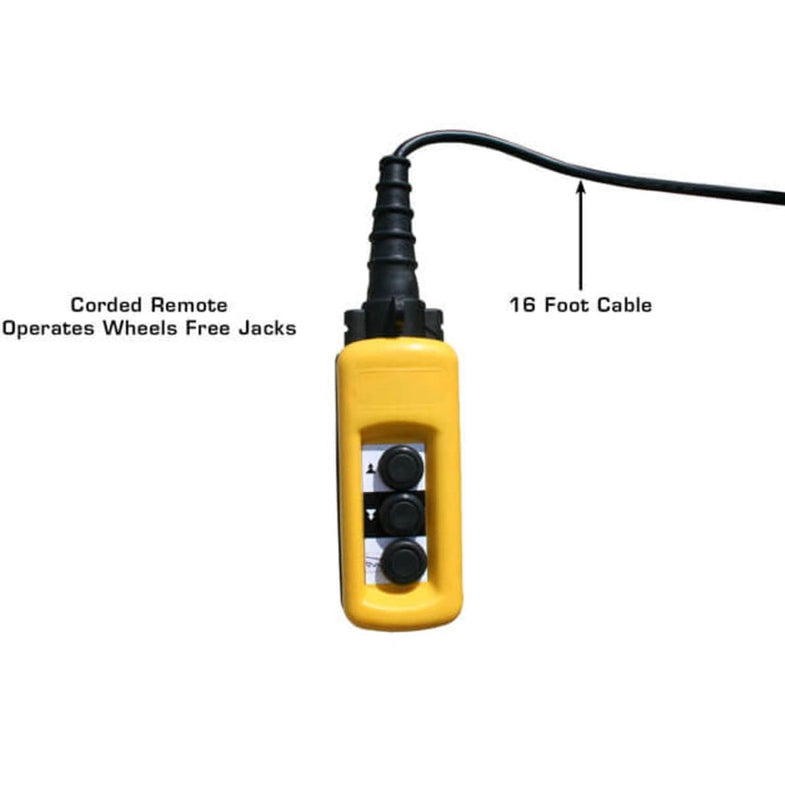

The Atlas® 12AWFSL features all the same specifications as the Atlas® 12ASL, with one key enhancement: the inclusion of built-in runway lifts, known as the “Wheels Free” lifting system. This integrated system allows technicians to raise a vehicle by its frame, lifting the wheels off the runways for effortless wheel service, tire rotation, and alignment work. The Wheels Free jacks are conveniently operated from the lift’s main control console for smooth, efficient workflow.
With a lifting height exceeding seven feet, the 12AWFSL can be surface-mounted or recessed for a flush installation, allowing for a clean, streamlined appearance. A full-frame undercarriage provides superior strength and platform stability during operation.

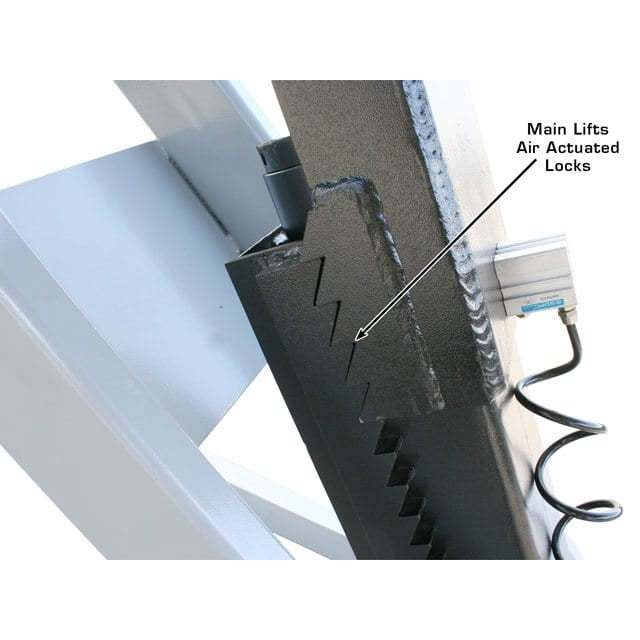

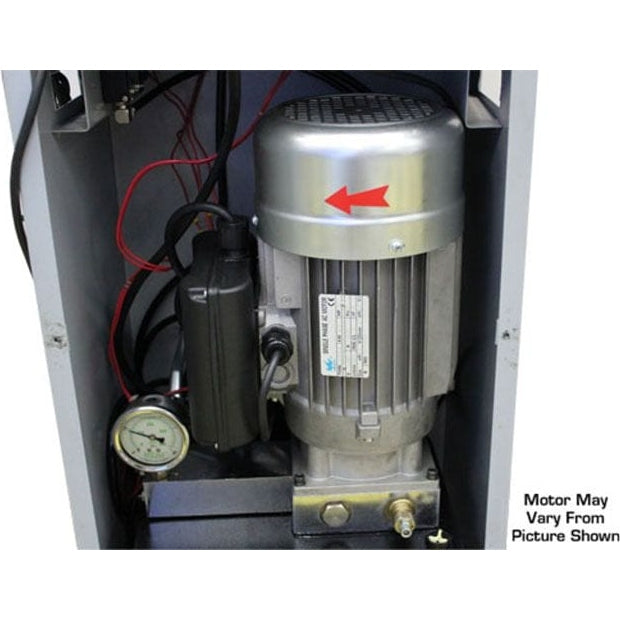

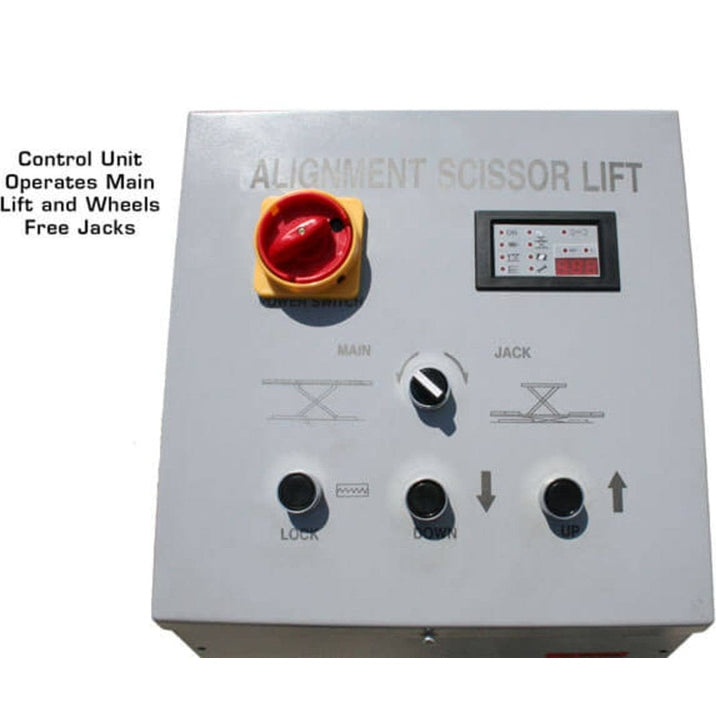

The separate control panel can be positioned for optimal operator access and houses the 220V single-phase electric/hydraulic power unit. Simple push-button controls manage lift operation, while the air-actuated safety lock system automatically engages and disengages during raising and lowering cycles. For added safety, a lowering limit switch pauses descent approximately 10 inches above ground level, requiring the operator to release and re-press the “Down” button to complete the lowering sequence.

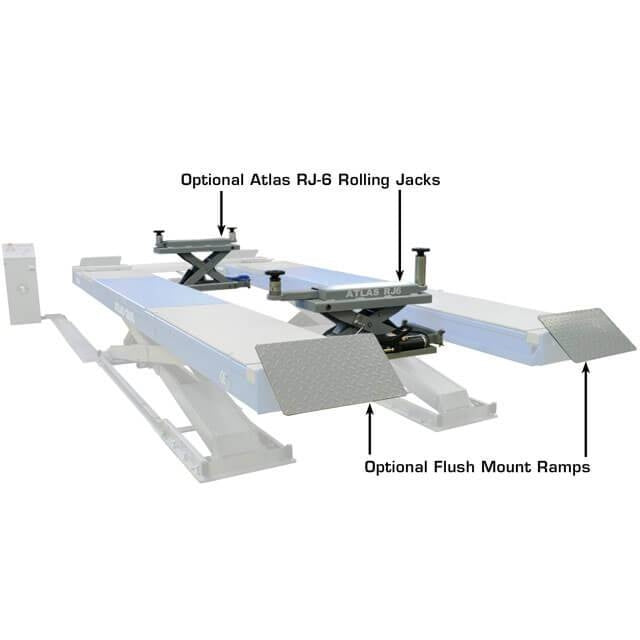

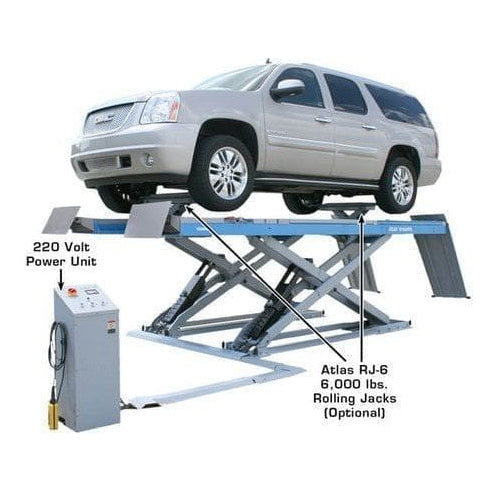

Additional features include welded jack rails along the inside of each runway, allowing the use of optional rolling bridge jacks (such as the Atlas® RJ6). The powder-coated finish, straightforward installation, and precision-crafted construction make the 12AWFSL a professional-grade solution that maximizes shop productivity while maintaining a compact footprint.
Ideal for aligning everything from compact imports to one-ton dually trucks, the Atlas® 12AWFSL delivers commercial-grade performance, superior versatility, and exceptional value — the perfect choice for the professional shop that demands both quality and efficiency.
Features
-
12,000 lb. lifting capacity
-
Heavy-duty commercial-grade construction
-
Scissor-style alignment lift for efficient space use and precision service
-
Integrated Wheels-Free lifting system for convenient tire, brake, and alignment work
-

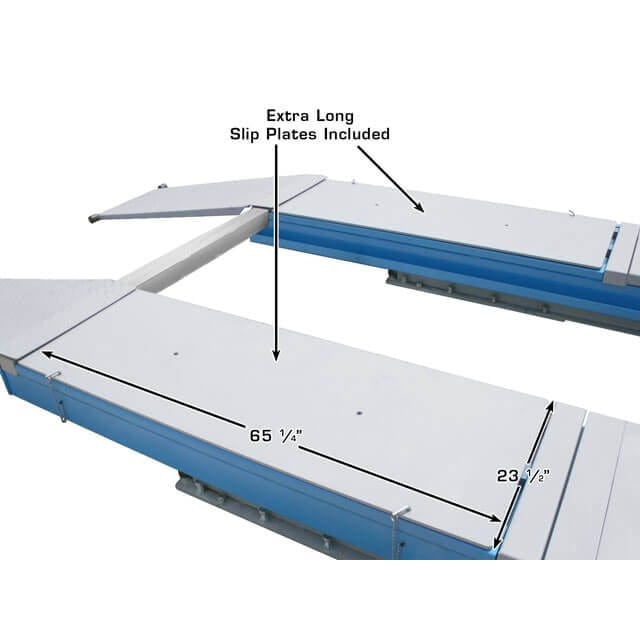

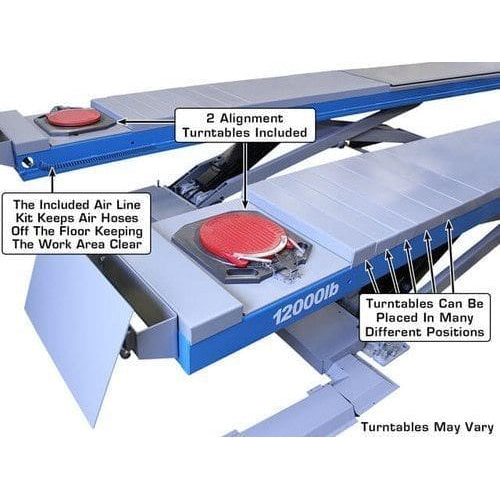

Built-in slip plates and alignment turntables included for accurate adjustments
-

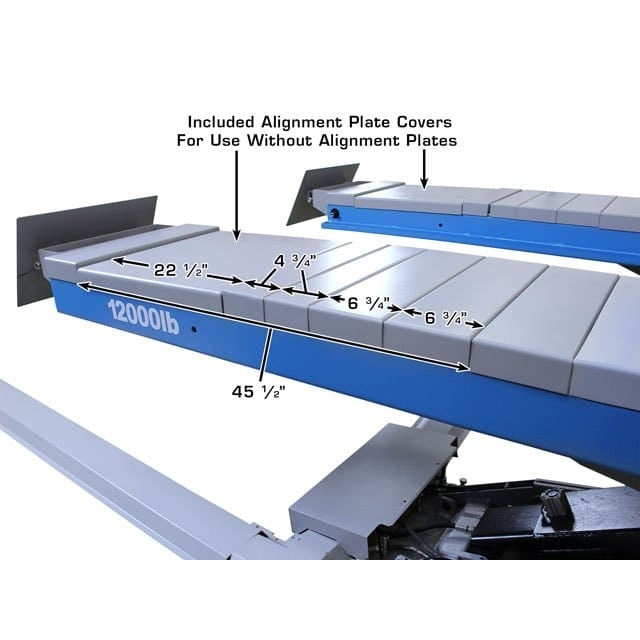

Turntable covers included for non-alignment operations
-
Open-center design provides easy vehicle access for undercarriage service
-

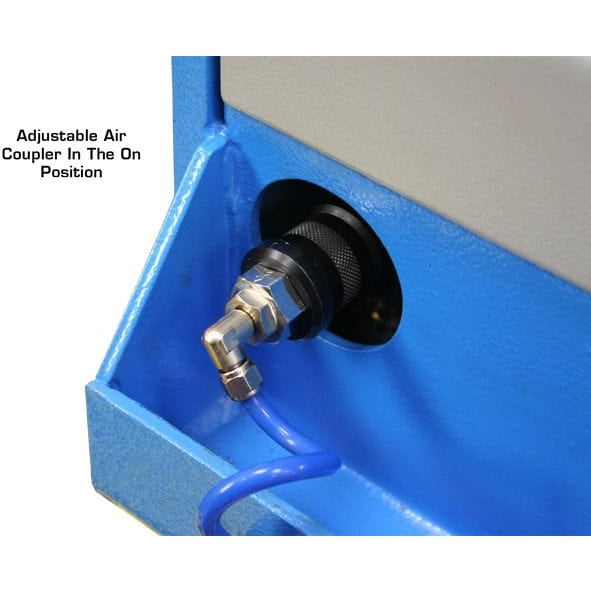

Air-operated single-point lock release (requires external air supply)
-
Airline kit included for clean and organized air management
-

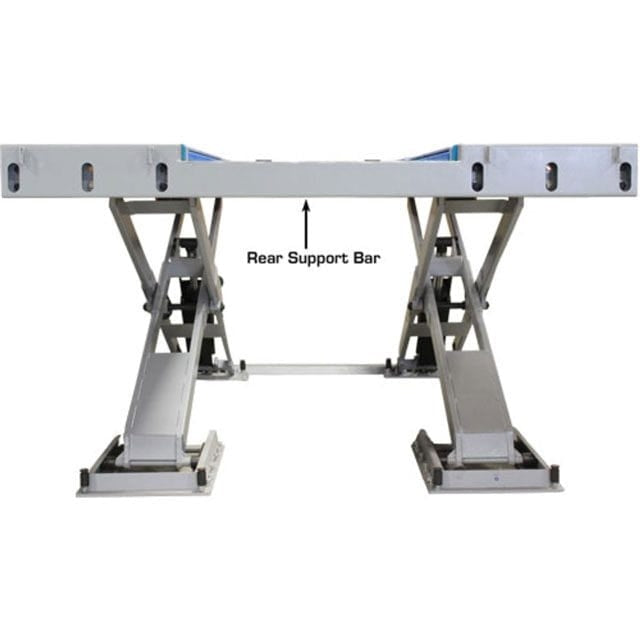

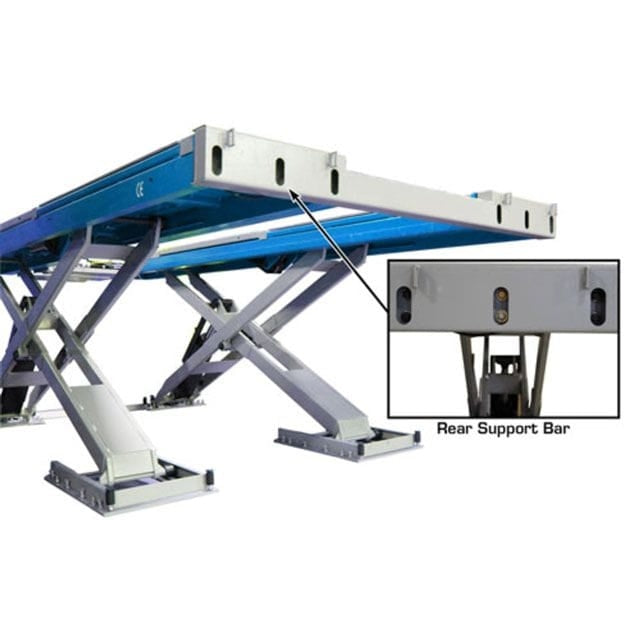

Rear cross beam adds structural stability during lifting
-
Extra-long 72" approach ramps accommodate low-clearance and long-wheelbase vehicles
-
Engineered for precise platform leveling accuracy
-
Separate self-contained control panel for flexible placement and ease of use
-
Emergency manual lowering pump included
-

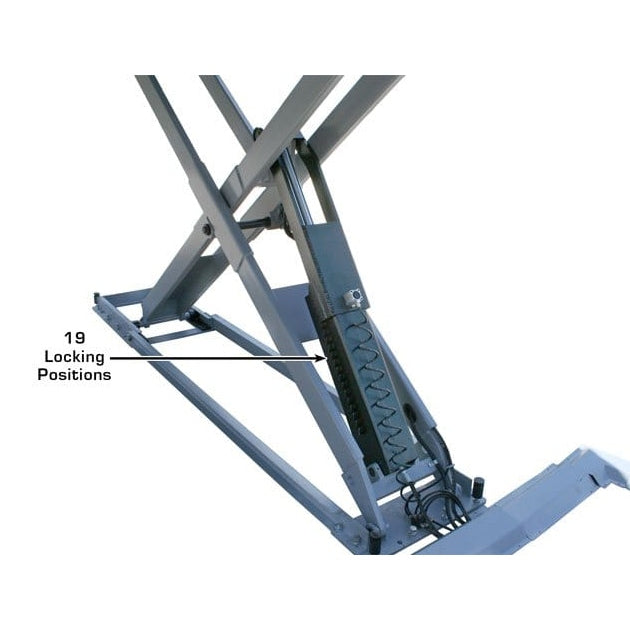

19 locking positions for variable working heights and maximum safety
-
CE certified for quality and safety compliance
-
Can be surface-mounted or flush-mounted for versatile installation
-

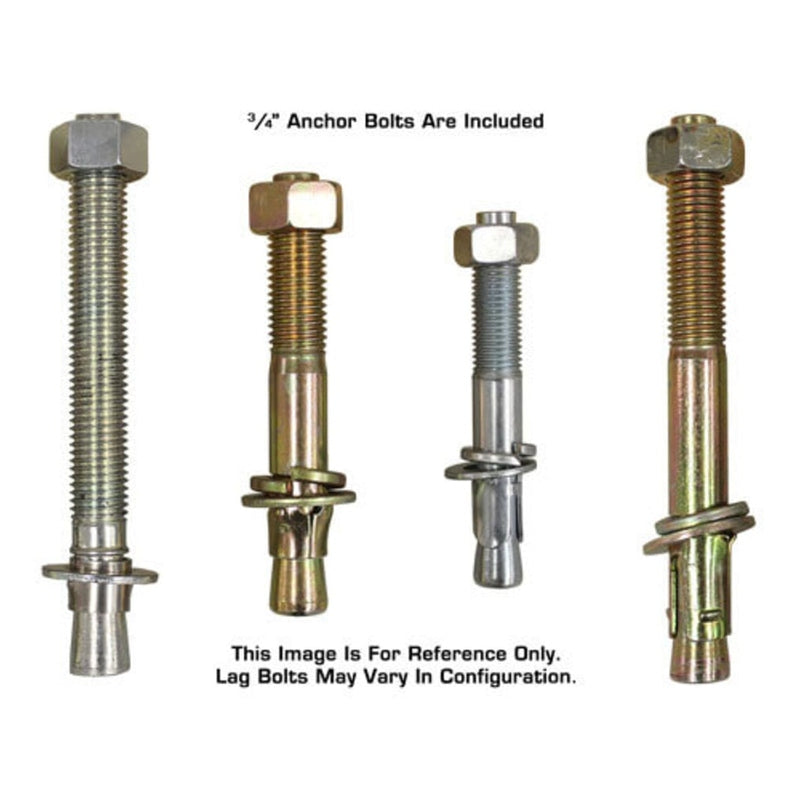

Includes complete mounting hardware
-
220V single-phase electric operation (requires 30-amp breaker)
-

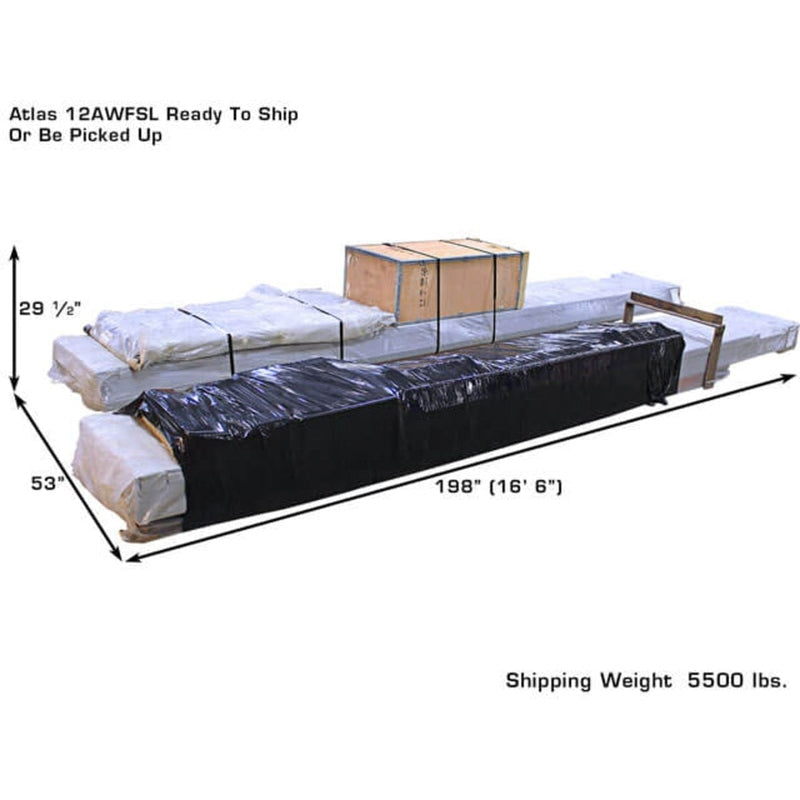

Shipping weight: 5,500 lbs
-
Warranty: 2-year structural / 1-year hydraulic (parts only)
Specifications
Atlas® 12AWFSL-N
| Specification | Measurement |
|---|---|
| Lifting Capacity | 12,000 lbs |

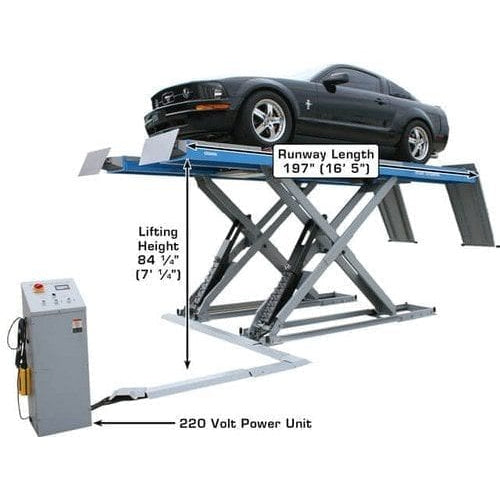

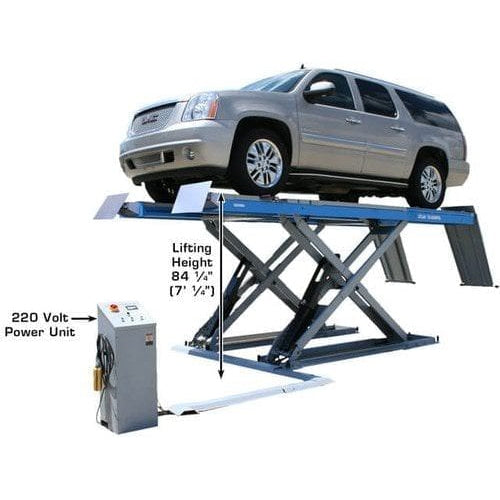

| Maximum Lifting Height (surface mounted) | 84¼" (7' ¼") |

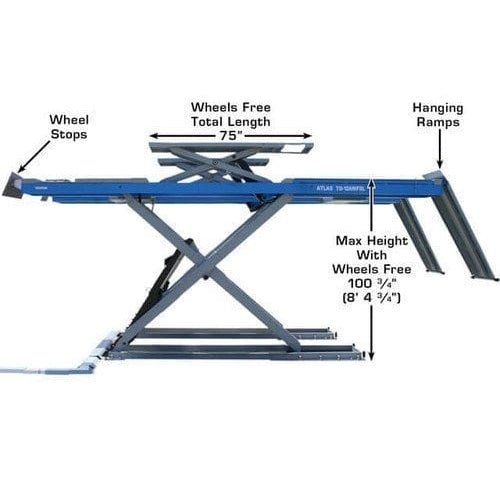

| “Wheels-Free” Lift Height | 17" above runway |
| Minimum Height (lowered) | 11½" |
| Overall Width | 86⅜" (7' 2⅜") |

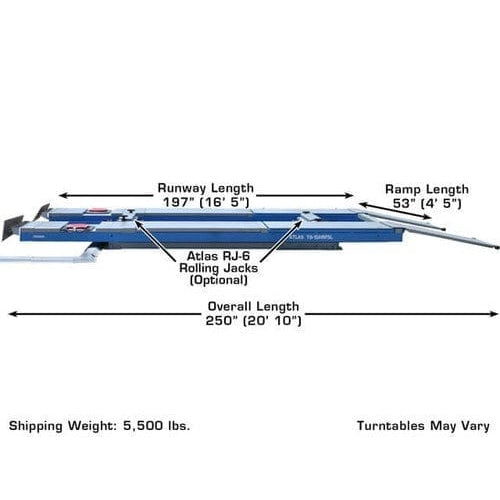

| Overall Length (with approach ramps) | 250" (20' 10") |
| Overall Length (without approach ramps) | 197" (16' 5") |
| Approach Ramp Length | 72" (6') |
| 4-Wheel Alignment Wheelbase | Max: 168" / Min: 90" |
| 2-Wheel Alignment Wheelbase | Max: 172" / Min: 86" |
| Runway Width (including rail) | 23¾" (1' 11¾") |
| Width Between Runways | 39¼" |
| Width Between Runway Rails | 34⅜" |
| Air Requirement | 90–120 PSI |
| Motor / Electrical Requirement | 220V ±5% (209–231V), single-phase — requires 30A breaker |
| Oil Requirement | 3–5 gallons AW32 or AW46 (not included) |
| Shipping Weight | 5,500 lbs |
| Concrete Requirement | Minimum 6" thickness, 3,000 PSI rating |
