The Atlas® 12ASL Alignment Scissor Lift provides a lifting height of over seven feet, offering the flexibility to be floor-mounted or recessed for a flush-mount installation. Its full-frame structure ensures superior strength and stability, while the extra-long 53″ approach ramps make loading low-clearance vehicles quick and simple.
Built for precision and performance, the 12ASL combines quality craftsmanship, smooth operation, and a durable powder-coated finish, making it a dependable choice for professional shops that demand long-lasting reliability.
For those concerned about space, the Atlas® Alignment System efficiently utilizes available bay area, allowing service on a wide range of vehicles—from compact foreign cars to one-ton dual rear-wheel pickup trucks.

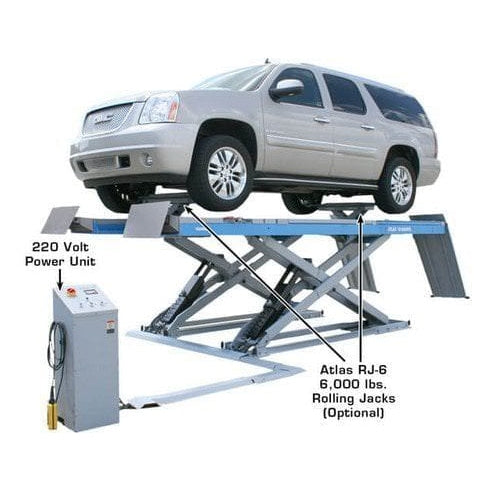

All Atlas® alignment lifts include welded rails inside the runways to accommodate the Atlas® RJ-6 (6,000 lb. capacity) air/hydraulic rolling jack system. This integrated system enhances lift versatility for wheel and suspension service. The RJ-6 operates on delivered air pressure between 70–105 PSI, ensuring consistent performance and durability.
Features

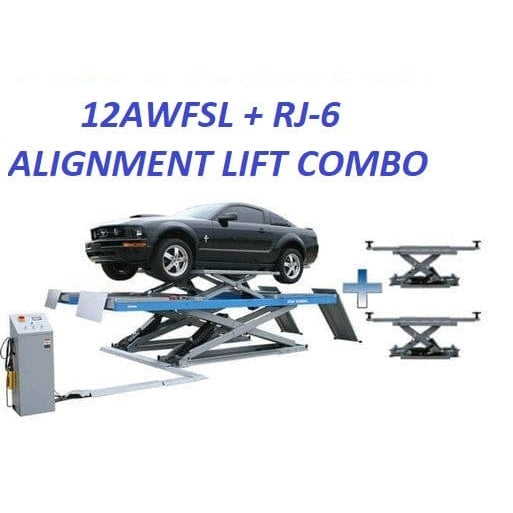

12AWFSL Alignment Scissor Lift
-
12,000 lb. lifting capacity
-
Commercial-grade design for professional use
-

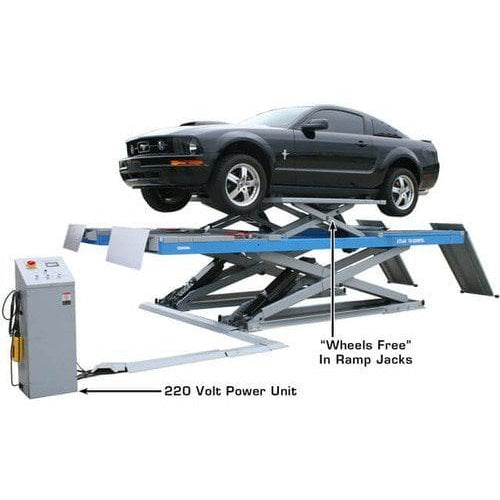

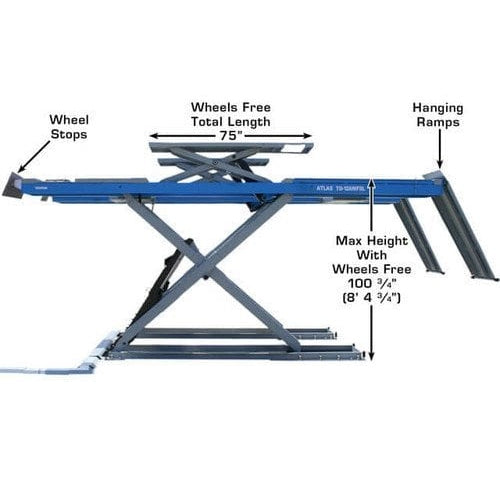

Scissor-style alignment lift with integrated “Wheels-Free” system
-

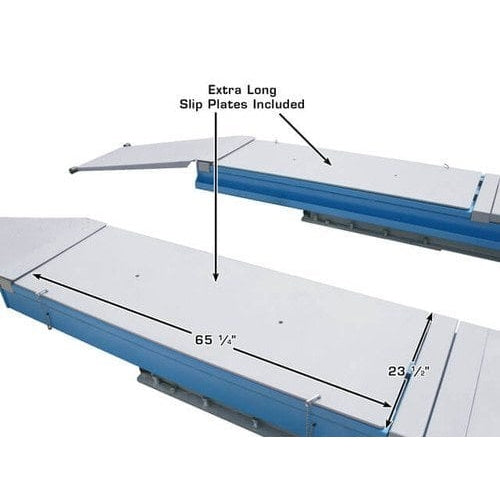

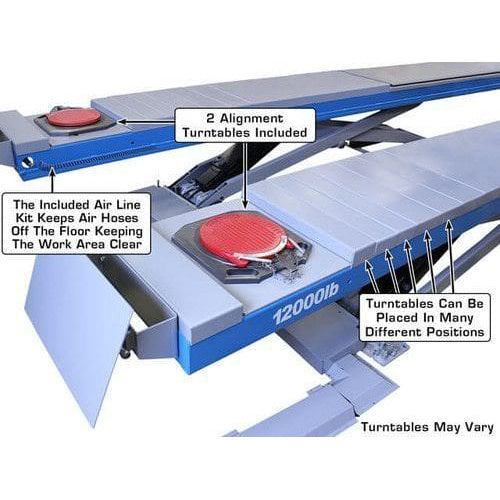

Built-in slip plates and alignment turntables (included)
-

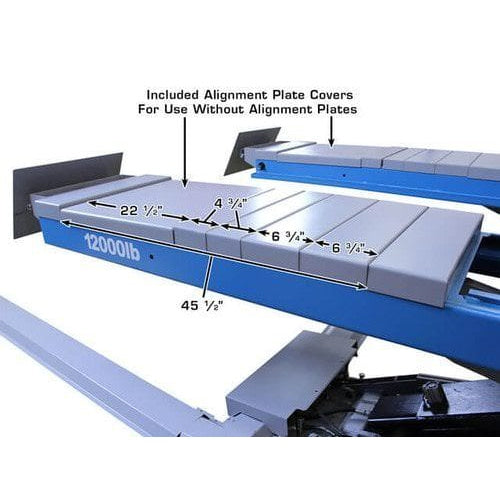

Turntable covers included for added protection
-
Open-center design provides easy undercarriage access
-

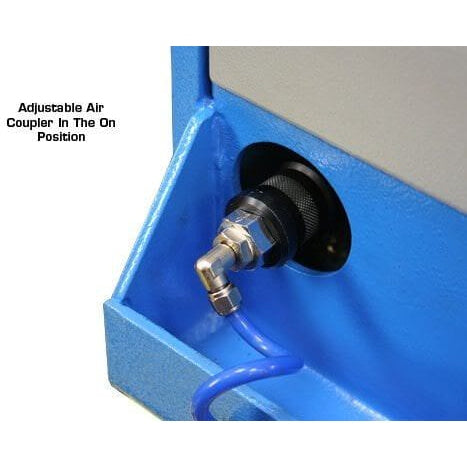

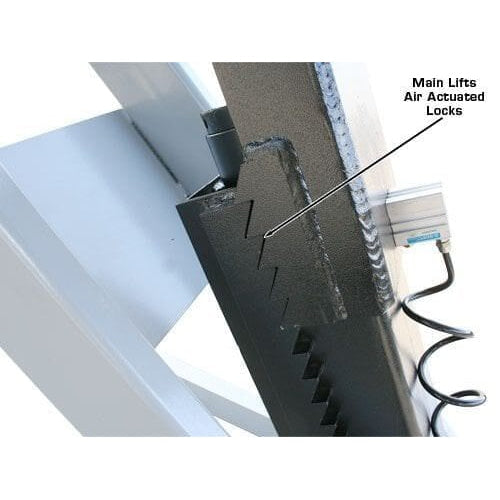

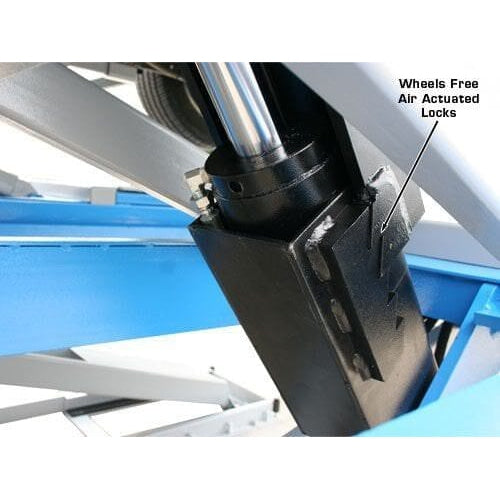

Air-operated single-point lock release (requires external air supply)
-

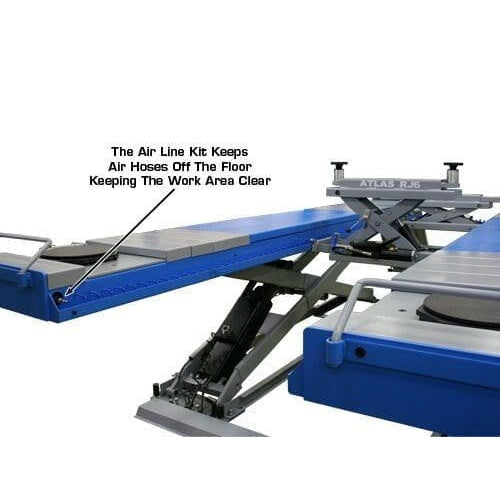

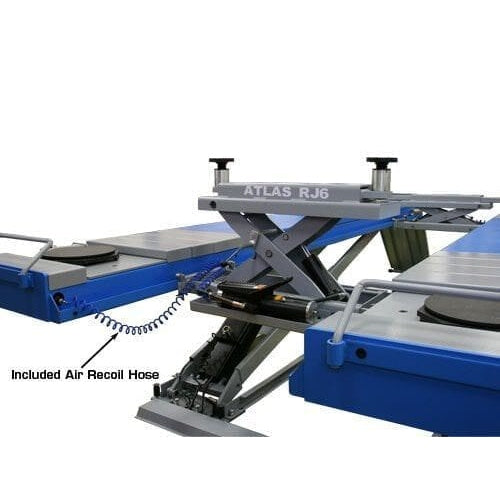

Airline kit included for quick setup
-

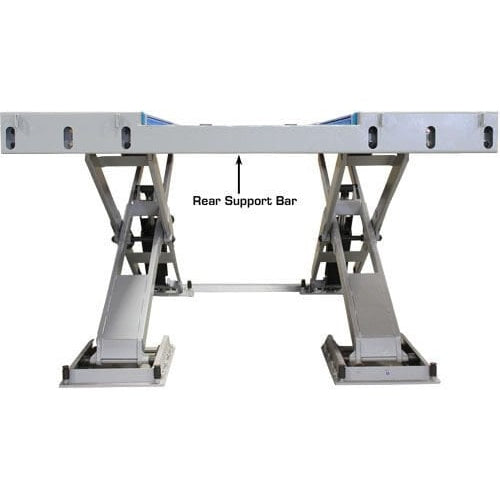

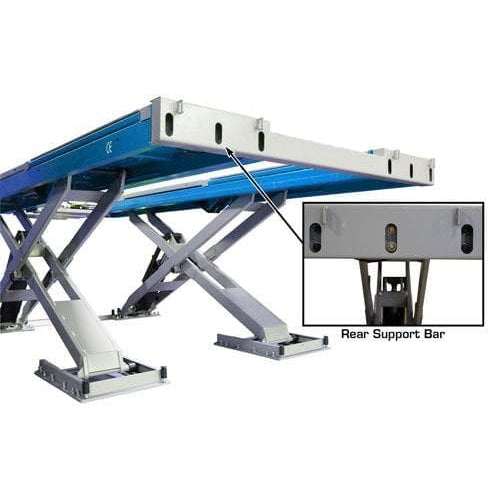

Rear cross beam included for additional structural stability
-
Extra-long 72″ approach ramps standard
-
Precision platform leveling for accurate alignments
-

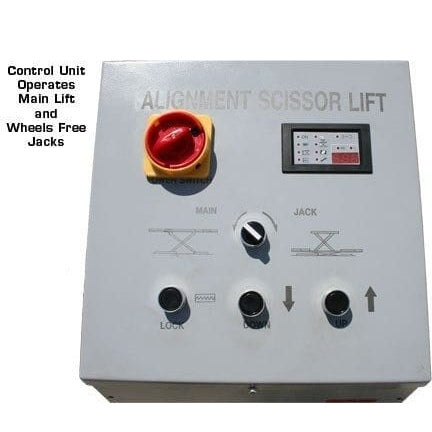

Separate self-contained control panel for convenient operation
-
Emergency manual lowering pump included
-

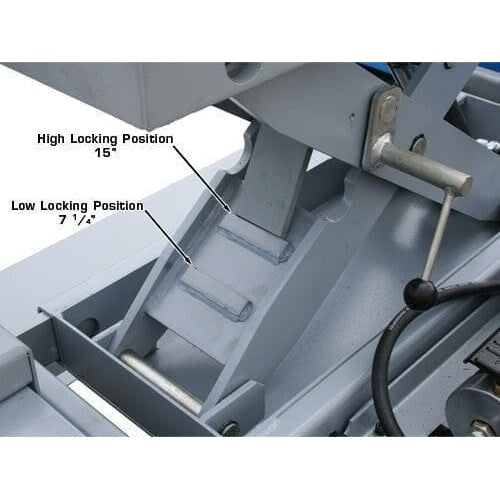

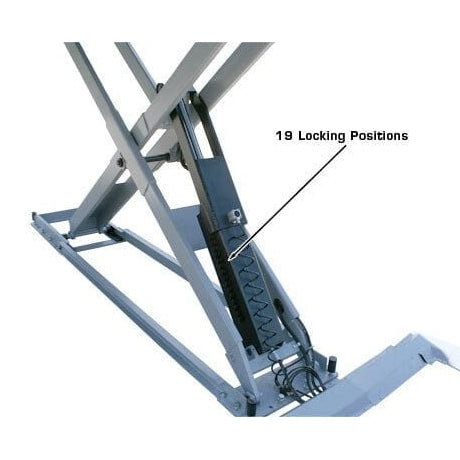

19 mechanical locking positions for safety and versatility
-
CE certified for quality and compliance
-
Can be surface-mounted or flush-mounted
-

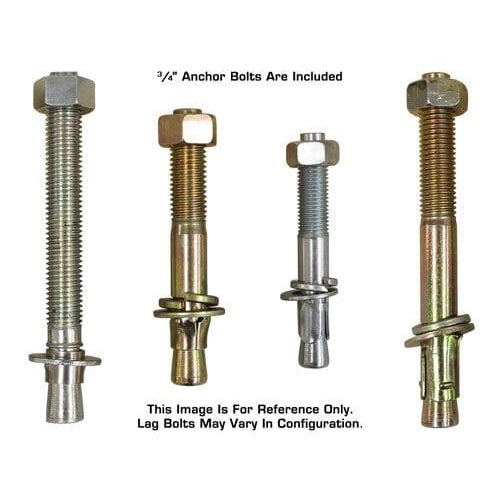

Mounting hardware included
-
220V single-phase operation (requires 30A breaker)
-
Shipping Weight: 5,000 lbs
-
Warranty: 2-Year Structural / 1-Year Hydraulic (Parts Only)
RJ-6 Rolling Jack
-
6,000 lb. lifting capacity
-
Air/hydraulic operation (requires external air supply)
-
Multiple safety lock positions for secure lifting
-
Compact, low-profile design
-
Smooth rolling action for easy positioning
-
Scissor mechanism ensures level lifting
-
Durable powder-coated finish
-
Includes double screw-up adapters
-

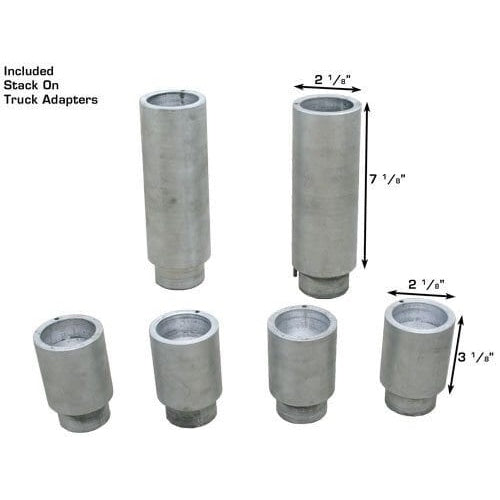

Includes 4-piece truck adapter set
-
Warranty: 1-Year Parts Only
Specifications
| Atlas® 12AWFSL Alignment Scissor Lift | Details |
|---|---|
| Lifting Capacity | 12,000 lbs |

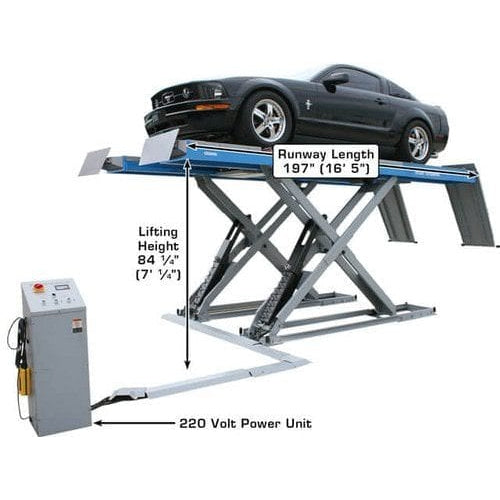

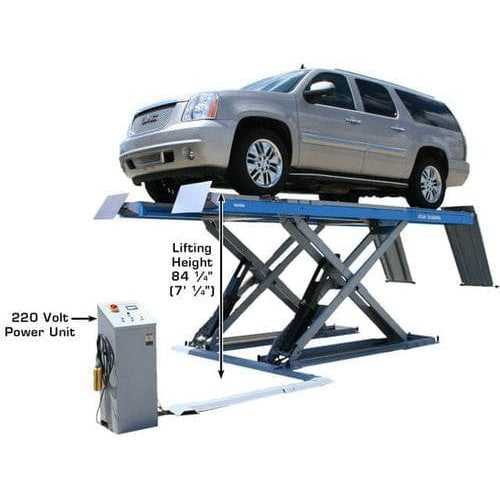

| Lifting Height | 84 ¼″ (7′ ¼″) |
| “Wheels-Free” In-Ramp Jack System Height | 17″ (1′ 5″) |

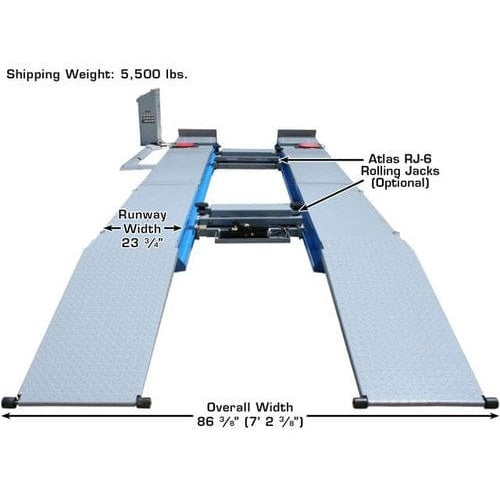

| Overall Width | 86 ⅜″ (7′ 2 ⅜″) |

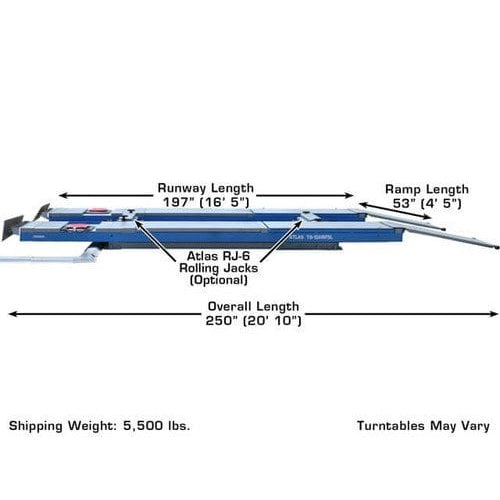

| Overall Length (with Ramps) | 250″ (20′ 10″) |
| Overall Length (without Ramps) | 197″ (16′ 5″) |
| Approach Ramp Length | 53″ (4′ 5″) |
| 4-Wheel Alignment Wheelbase | Max: 168″ • Min: 90″ |
| 2-Wheel Alignment Wheelbase | Max: 172″ • Min: 86″ |
| Runway Width | 23 ¾″ (1′ 11 ¾″) |
| Lowered Height | 11 ½″ |
| Locking Positions | 19 |
| Width Between Runways | 39″ |
| Motor / Electrical Requirement | 220V ±5% (209–231V) Single-Phase • 30A Breaker Required |
| Shipping Weight | 5,500 lbs |
| Atlas® RJ-6 Rolling Jack | Details |
|---|---|
| Maximum Capacity | 6,000 lbs |

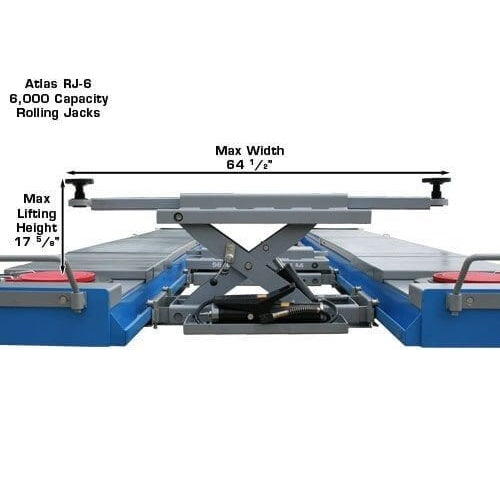

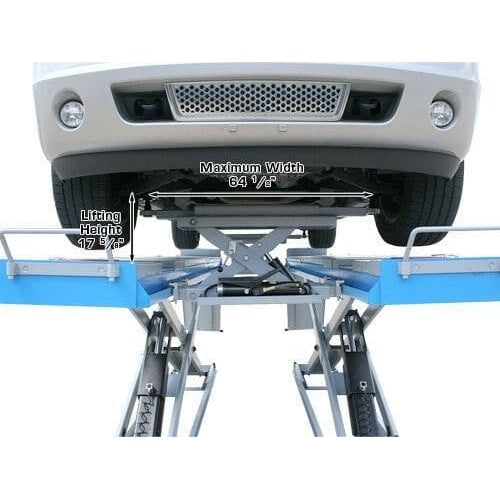

| Maximum Width | 64 ½″ |

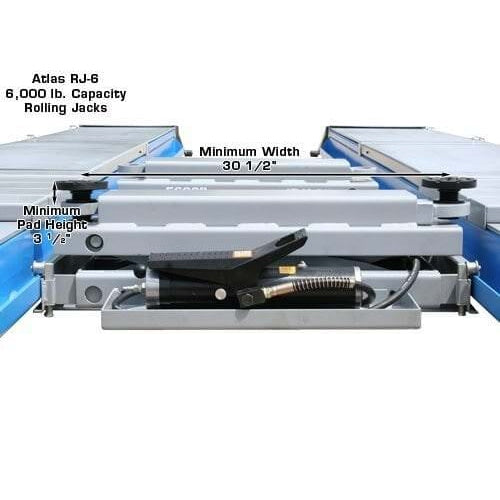

| Minimum Width | 30 ½″ |
| First Locking Position | 7 ¼″ |
| Second Locking Position | 15″ |
| Minimum Pad Height | 3 ½″ |
| Maximum Lifting Height | 17 ⅝″ |
| Recommended Operating Air Pressure | 70–105 PSI |
| Shipping Weight | 350 lbs |
