Description

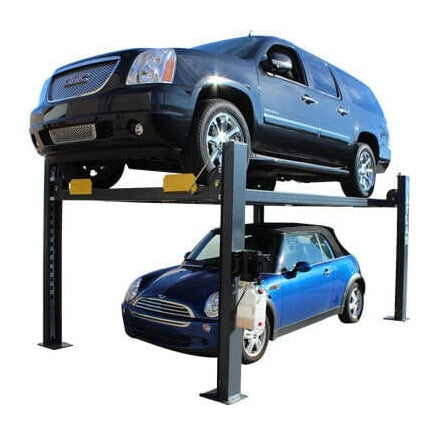

Atlas® 408SL – Deluxe 8,000 lb. Portable Hobbyist 4-Post Lift
The Atlas® 408SL Super Deluxe is a premium 8,000 lb. capacity portable storage and service lift designed for automotive enthusiasts who demand exceptional quality, strength, and appearance. Combining the convenience of a hobbyist lift with the durability of commercial-grade construction, the 408SL represents the top tier of Atlas’s 4-post lift lineup.

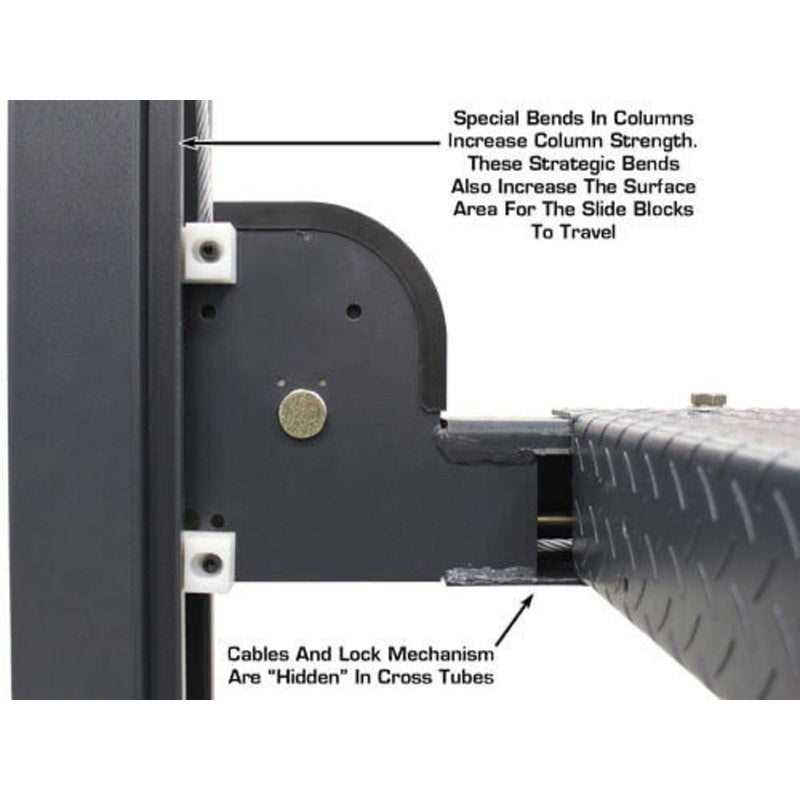

While it shares the core design of the Atlas® Garage PRO Series, the 408SL incorporates numerous professional-grade enhancements typically reserved for Atlas’s commercial 4-post lifts. Each column features dual precision bends that significantly increase column strength and expand the surface area for the slide blocks, ensuring smooth travel and superior stability.

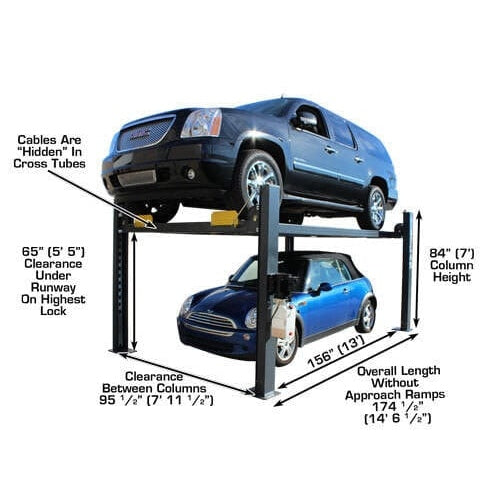

The horizontal cables are neatly concealed within the cross tubes for a clean, professional appearance, and steel wheel covers reduce cable and lock system exposure for added safety and a refined finish. With more steel in its frame, the Atlas® 408SL weighs over 100 lb. more than comparable hobbyist lifts with the same column and runway layout—providing enhanced rigidity and long-term reliability.
Built to the same standards as the Atlas® 412 and Atlas® 414 commercial lifts, the 408SL delivers commercial-grade performance with full portability. Each lift comes standard with a caster kit, allowing quick installation and easy movement between bays or outdoor areas when needed.
For enthusiasts seeking a lift that blends style, strength, and superior craftsmanship, the Atlas® 408SL Super Deluxe stands above other hobbyist storage lifts available in the U.S.

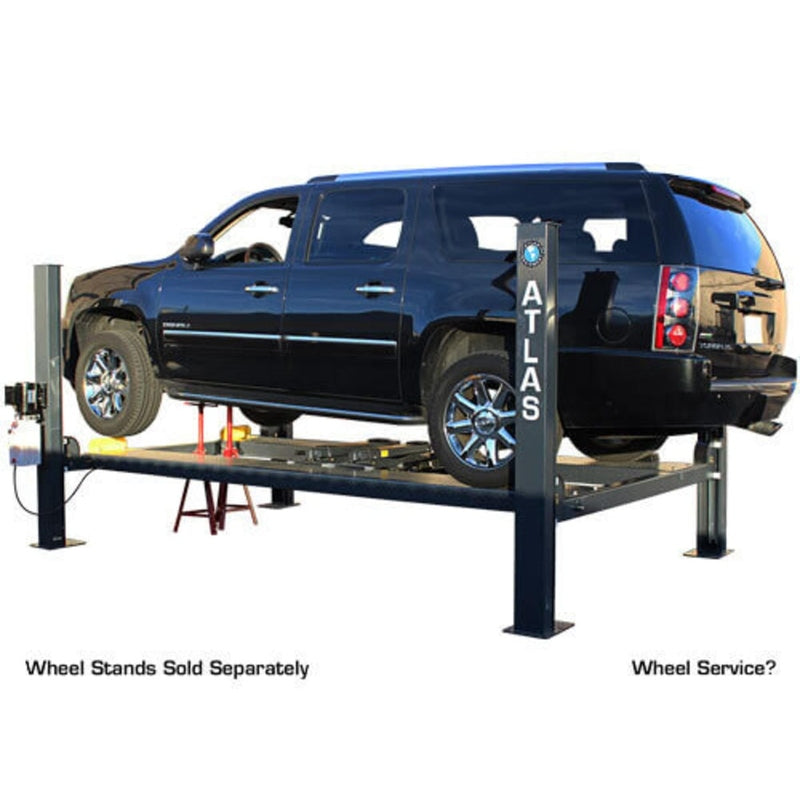

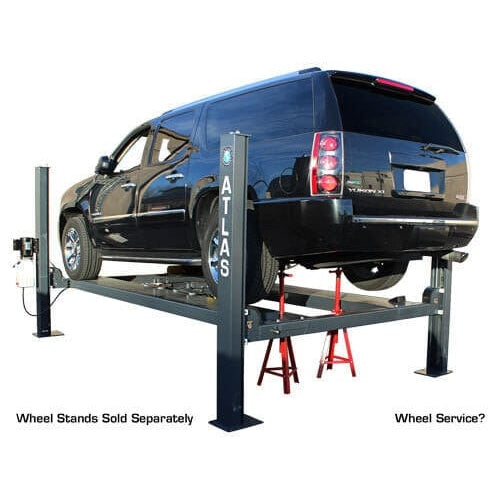

Many customers who purchase this model also add the Atlas® RJ35 Rolling Bridge Jack for wheel-off service and maintenance.
Features
-
8,000 lb. Lifting Capacity
-
Free-Standing, Portable Design for flexible setup and mobility
-
Diamond-Plated Runways for added grip and durability
-
Single-Point Lock Release for easy and safe operation
-

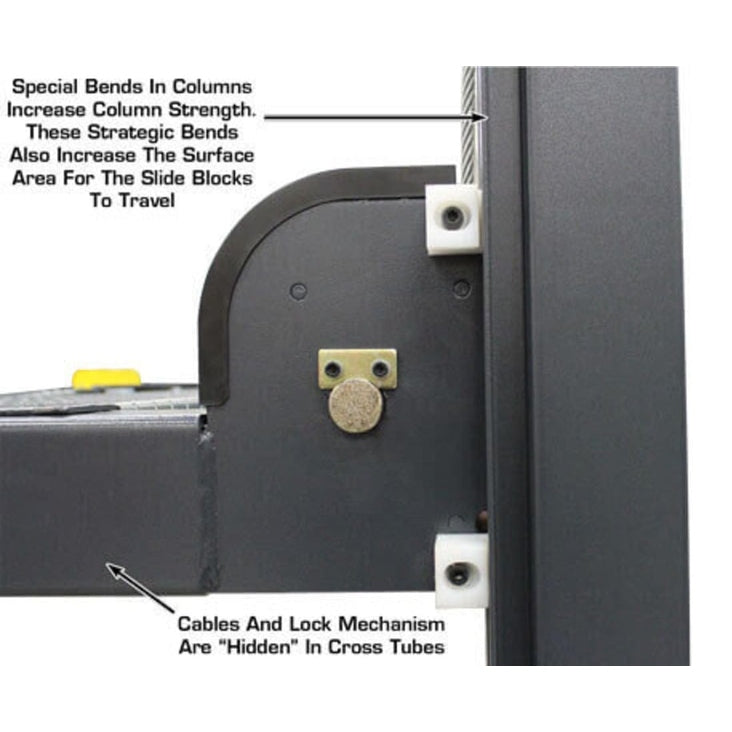

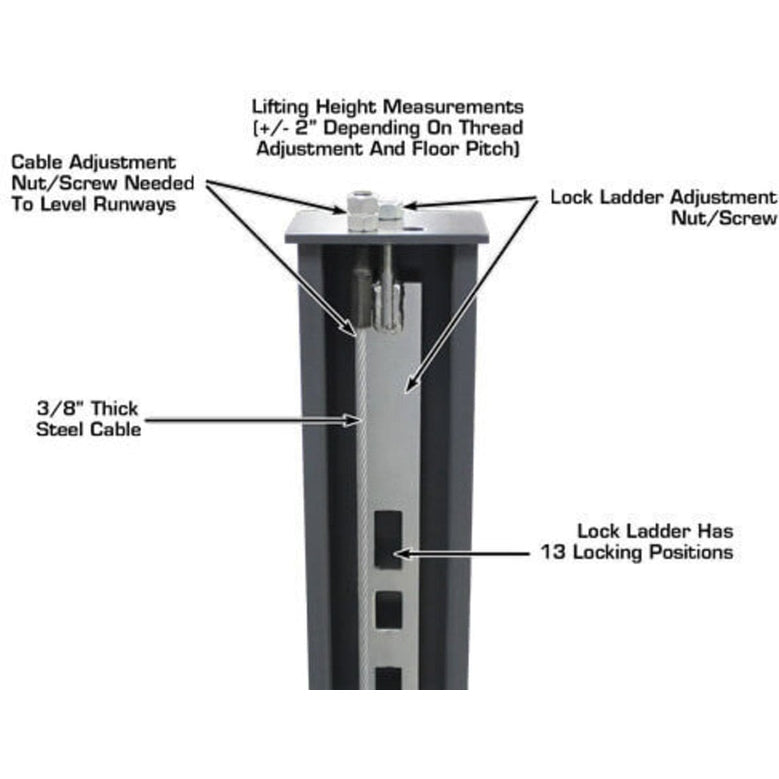

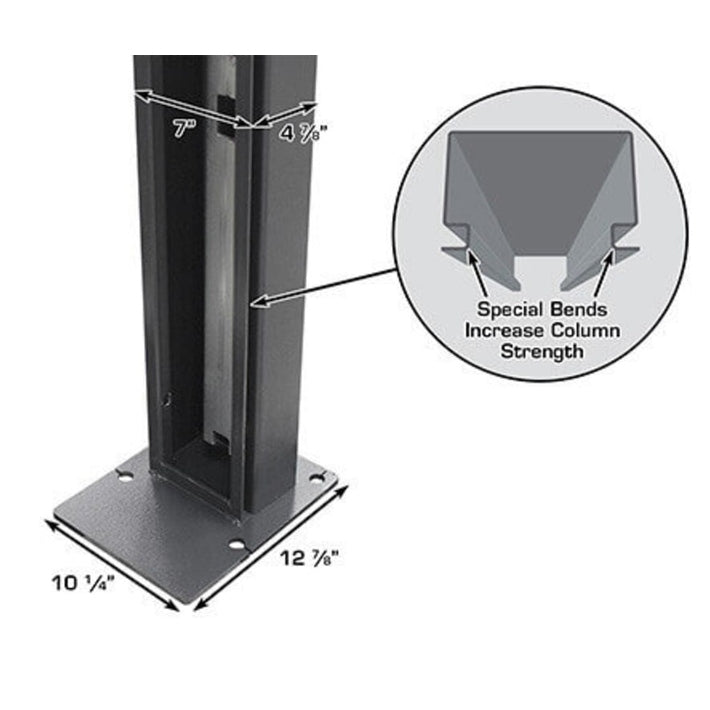

Reinforced Columns featuring dual precision bends for increased structural strength
-
Larger Column Profile for improved stability and load capacity
-
Dual Lock Safety System for enhanced protection at all lifting heights
-
High-Quality Powder-Coated Finish (Steel Gray) for a professional look and corrosion resistance
-

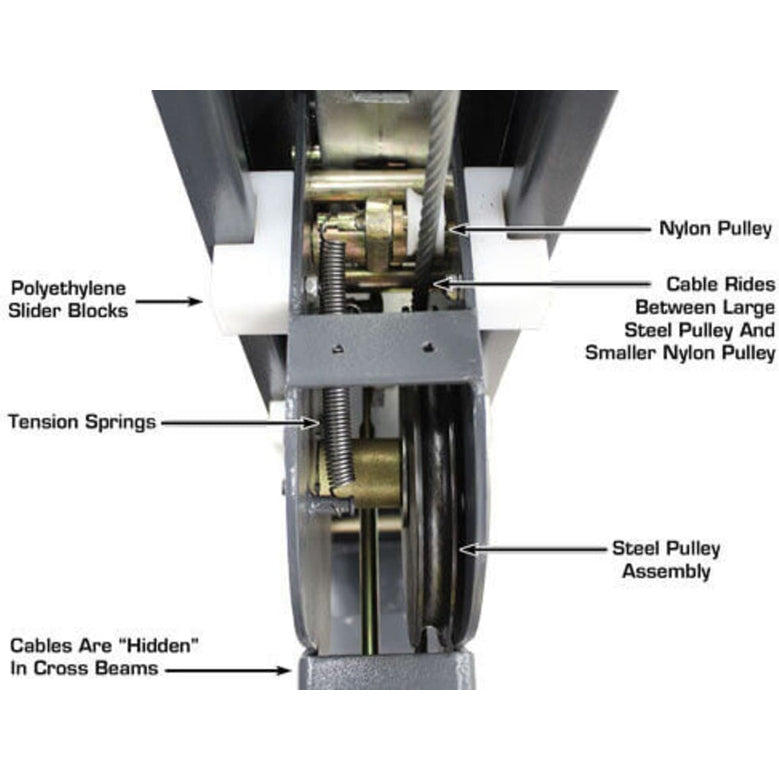

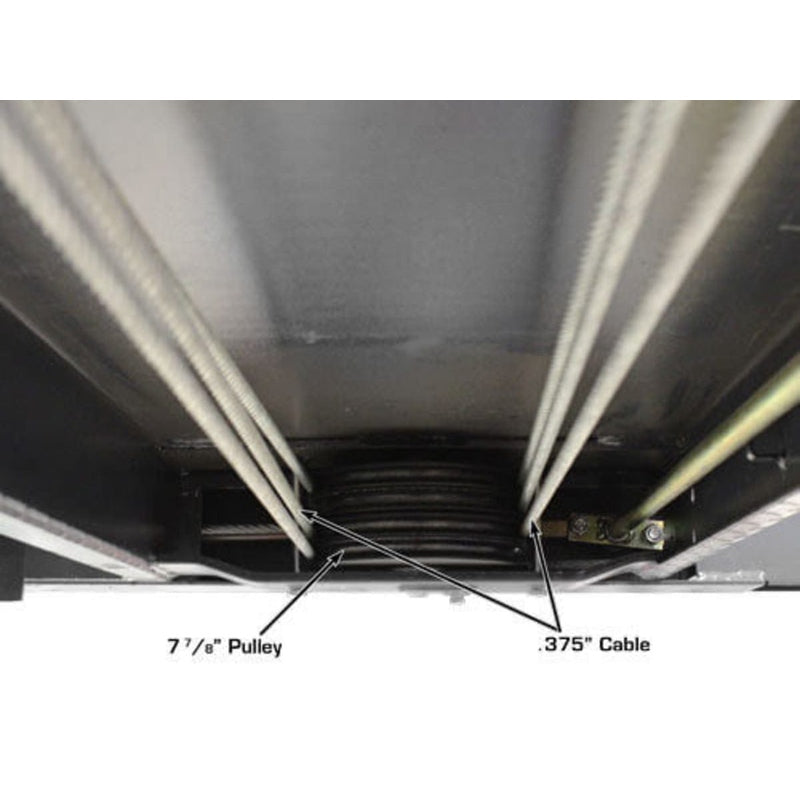

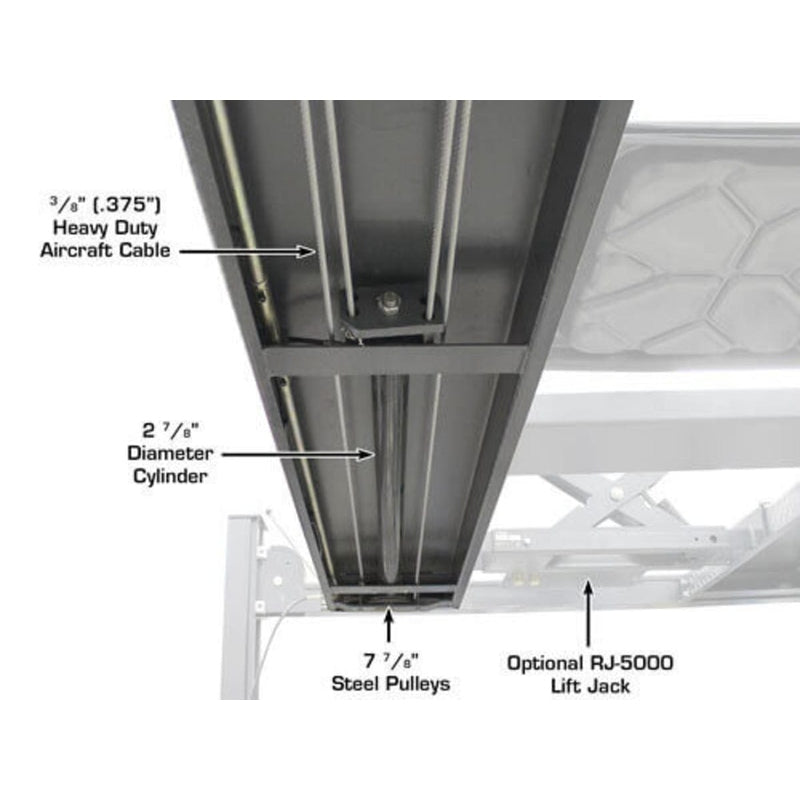

Concealed Cables routed through columns and cross tubes for a clean, streamlined appearance
-
Commercial-Grade Wear Blocks designed for longevity under heavy use
-

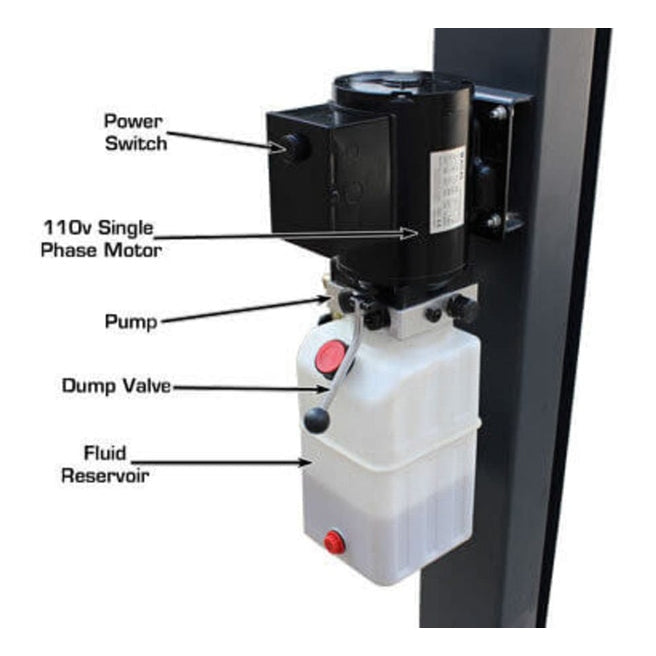

Power Unit Mountable at Any Corner for installation flexibility
-
Wider Runway Spacing for improved undercar access and vehicle clearance
-

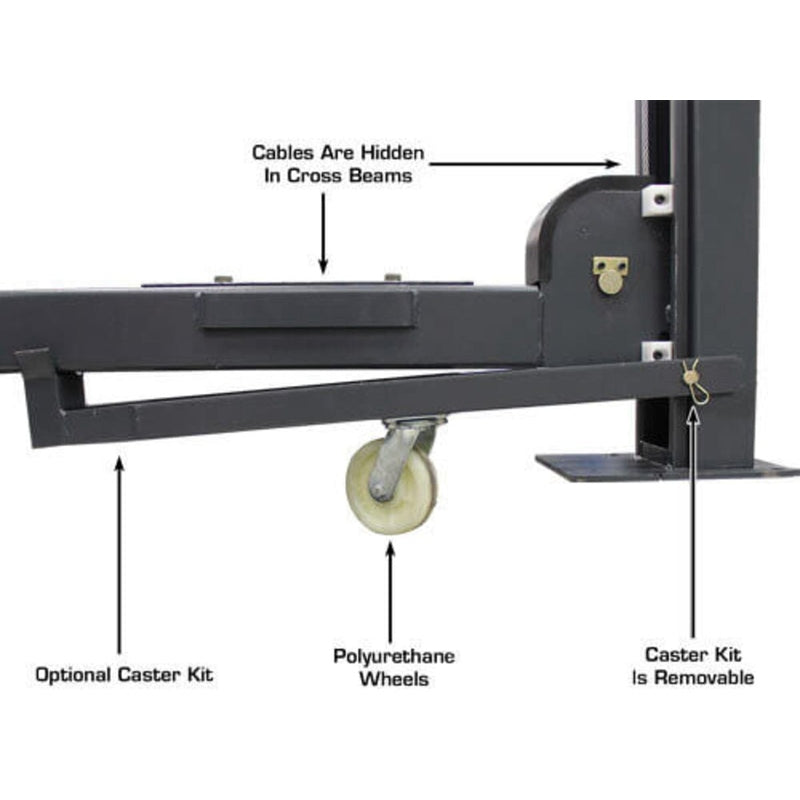

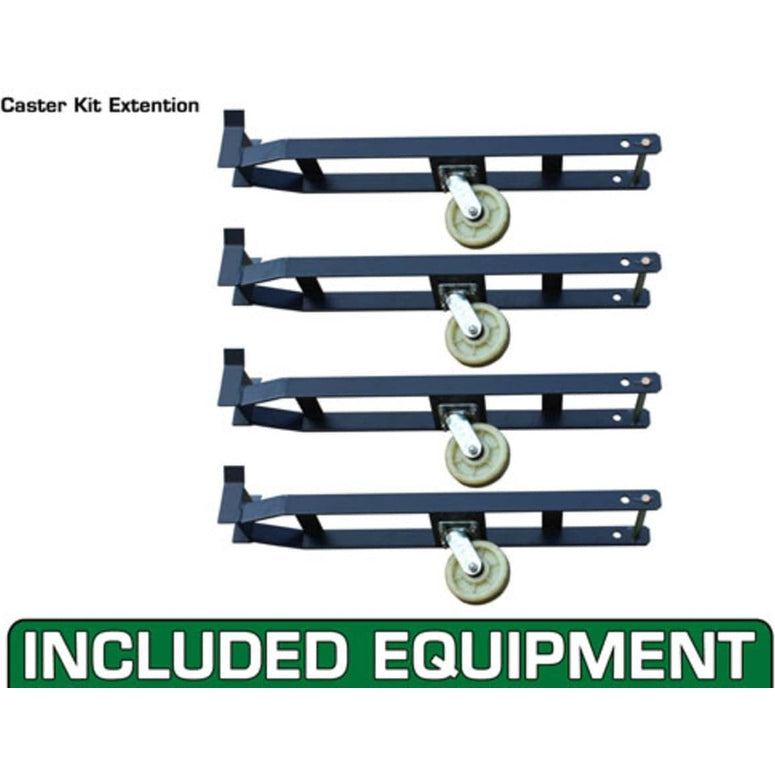

Caster Kit with Polyurethane Wheels (Included) for easy relocation between bays or outdoors
-

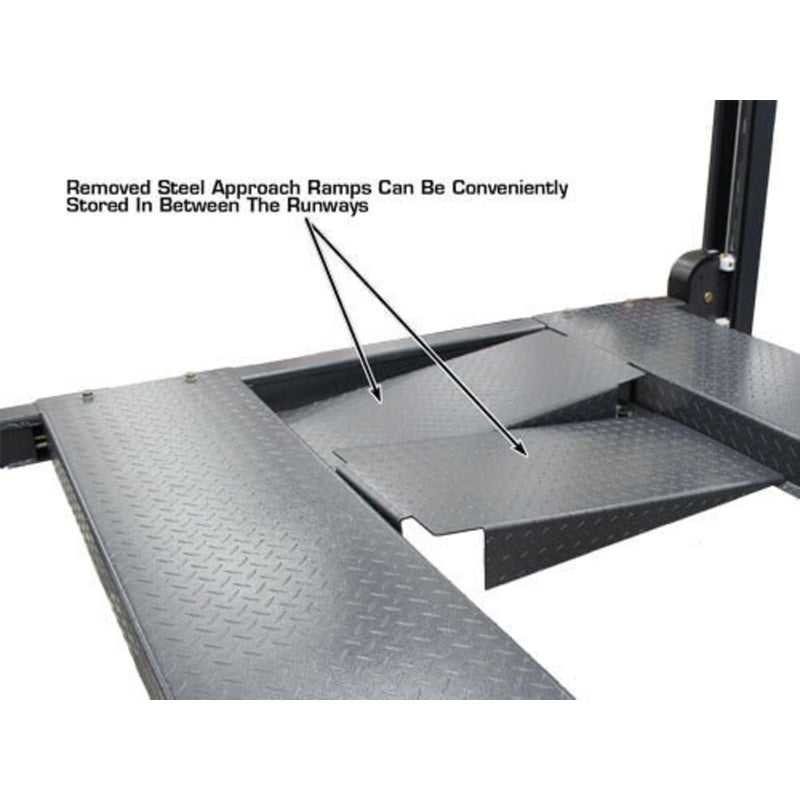

Steel Approach Ramps (Included) for smooth vehicle entry and exit
-

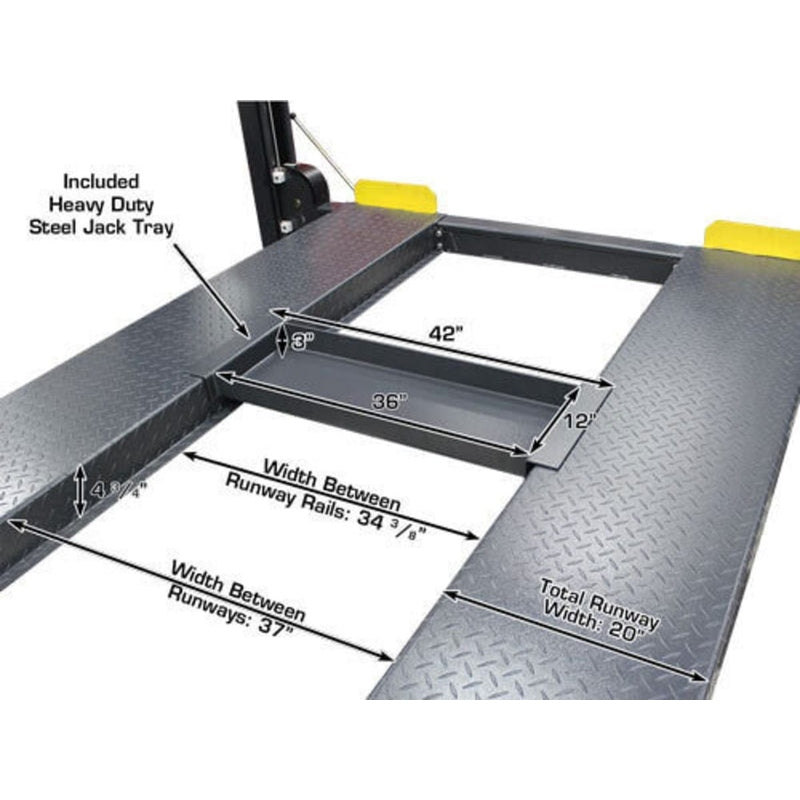

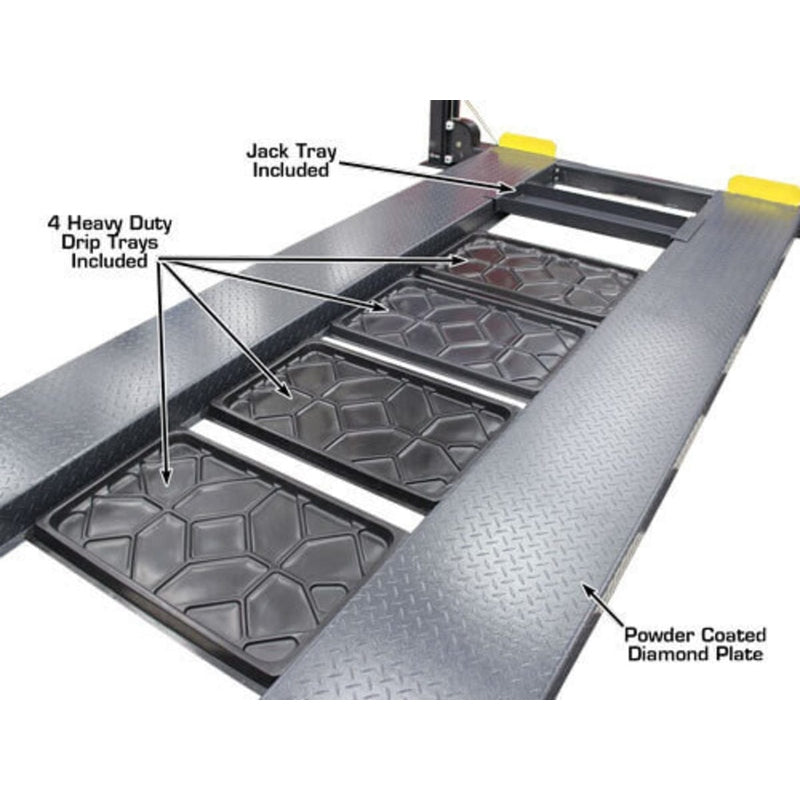

Steel Jack Tray (Included) for wheel-off service and accessory use
-
Four Plastic Drip Trays (Included) to protect your floor from oil and fluid leaks
-

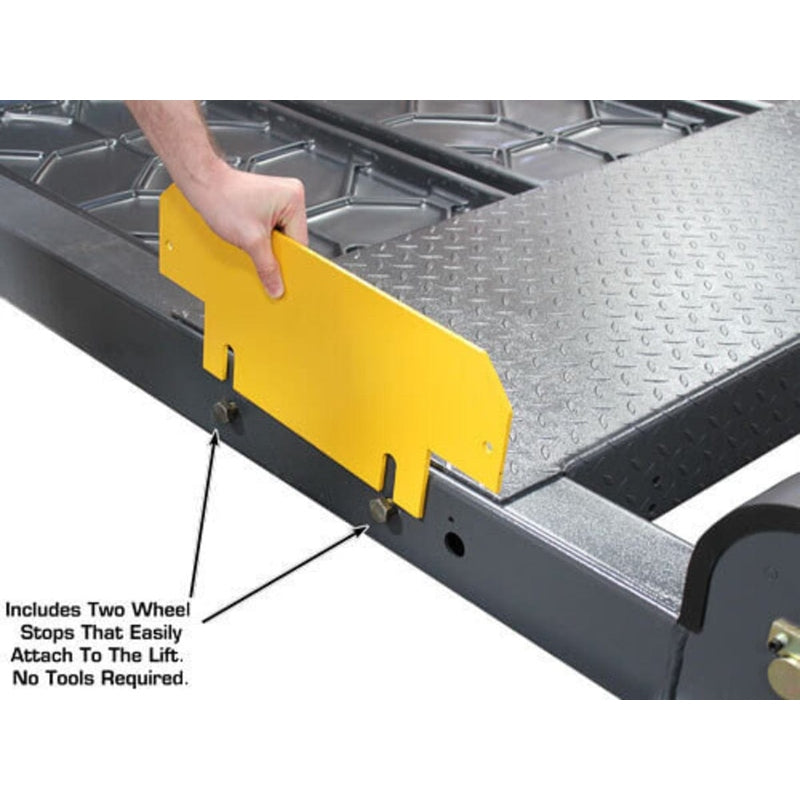

Wheel Stops (Included) for secure parking and positioning
-
Optional Anchor Bolts (Sold Separately) for fixed installation
-
110V Electric Operation (Plug Not Included, Requires 30A Breaker)
-

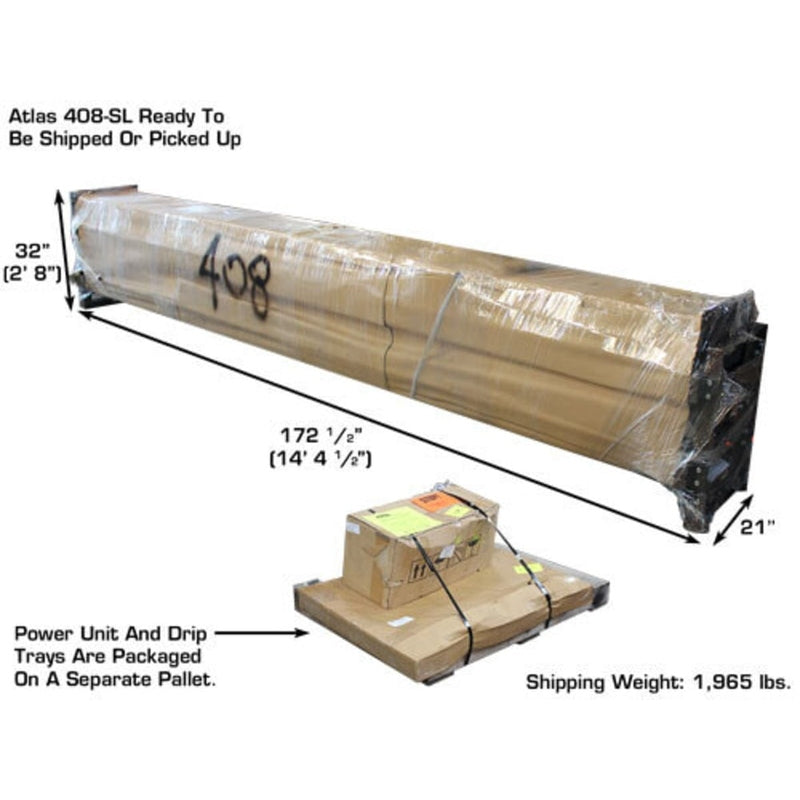

Shipping Weight: 1,965 lb.
-
Warranty: 2-Year Structural | 2-Year Hydraulic (Parts Only)

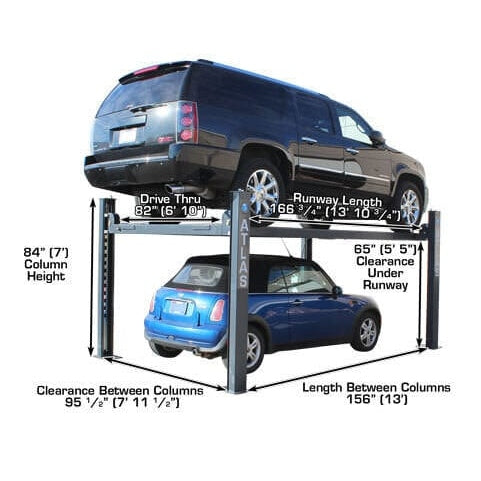

Specifications
| Specification | Measurement |
|---|---|
| Lifting Capacity | 8,000 lb. |
| Lifting Height (to Top of Runway) | 73 ¼" (6' 1 ¼") (Not on Lock) |
| Clearance Under Runways | 68 ½" (5' 8 ½") |
| Height of Columns | 83" (7' 11") |

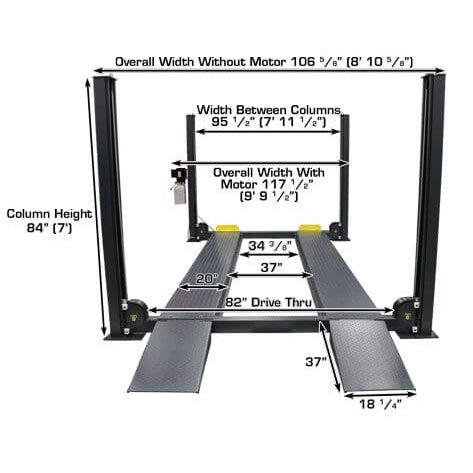

| Overall Width (w/o Motor) | 109 ⅝" (9' 1 ⅝") |
| Overall Width (w/ Motor) | 117 ½" (9' 9 ½") |
| Overall Length (w/ Approach Ramp) | 205 ⅜" (17' 1 ⅜") |
| Approach Ramp Length | 35" (2' 11") |
| Runway Width | 21 ½" (with rails) / 18 ¾" (driving surface) |

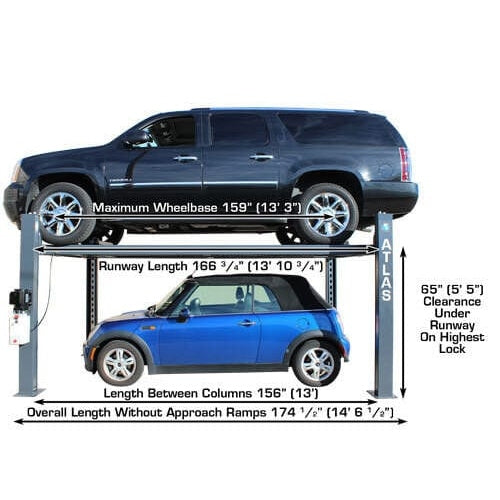

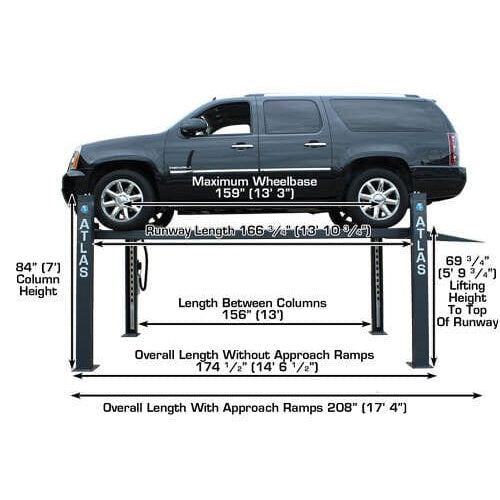

| Runway Length | 166 ¾" (13' 10 ¾") |
| Runway Thickness | 4 ¾" |
| Width Between Runways | 37 ¼" (3' 1 ¼") |
| Width Between Runway Rails | 34 ⅜" (2' 10 ⅜") |
| Outside Runway to Outside Runway | 74 ¾" (6' 2 ¾") |

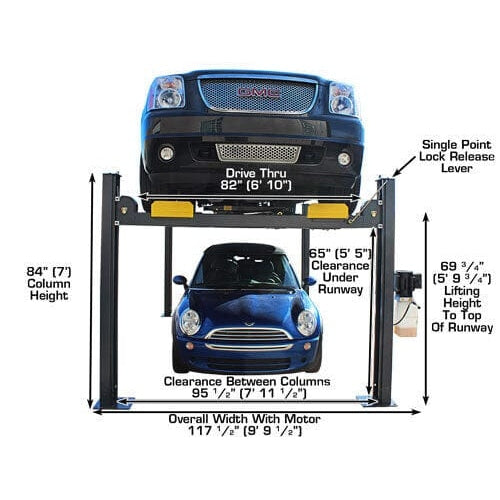

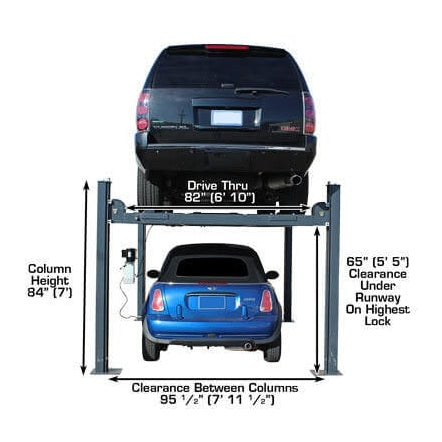

| Clearance Between Columns | 95 ½" (7' 11 ½") |

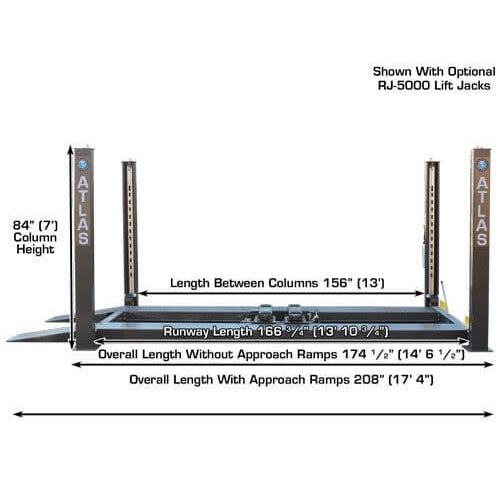

| Length Between Columns | 156" (13') |
| Maximum Wheelbase | 154" (12' 10") |
| Drive-Through Width (Outside of Tires) | 82" (6' 10") |
| Electrical Requirement | 110V, 30A Breaker Required |
| Shipping Weight | 1,965 lb. |
Documents
Atlas 408SL Manual
Atlas 408SL Cylinder Bleeding Procedure (Do this immediately after installation)
