Description

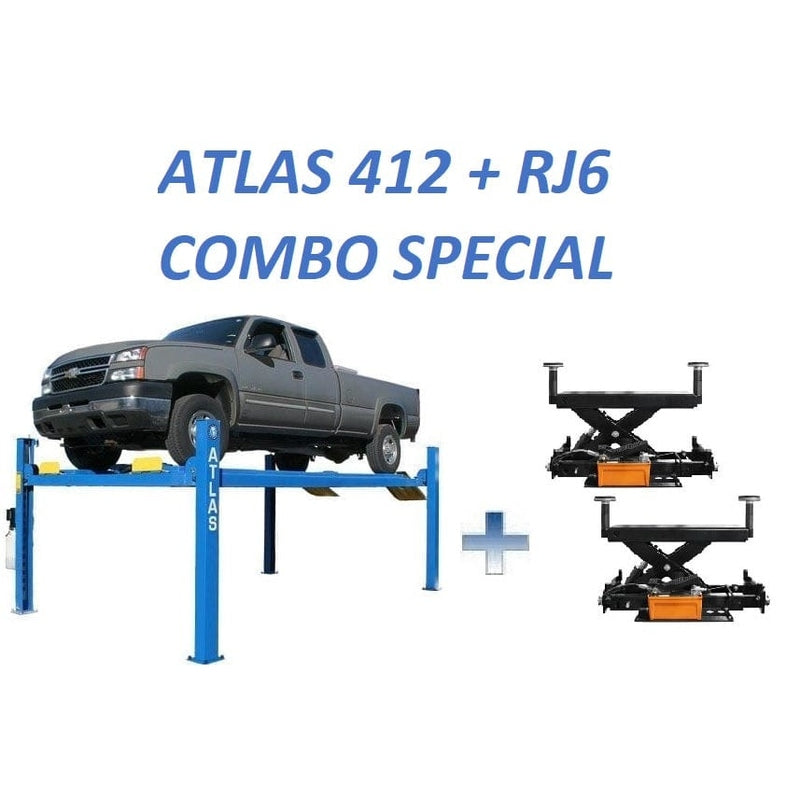

The Atlas® 412 is a 12,000 lb. capacity four-post lift built to commercial-grade standards and engineered for long-term reliability. Designed with both strength and precision in mind, the 412 incorporates premium structural and cosmetic features typically found on lifts costing thousands more.
Each Atlas® 412 lift is rigorously tested to ensure flawless performance at its rated capacity, and it has been manufactured to the same proven specifications for years—making it one of the most dependable options in its class.

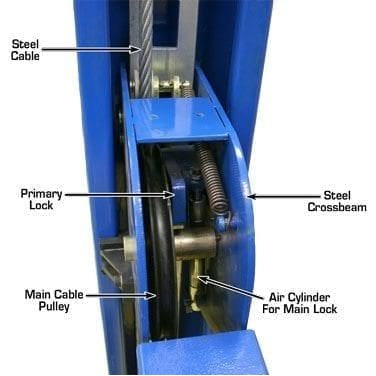

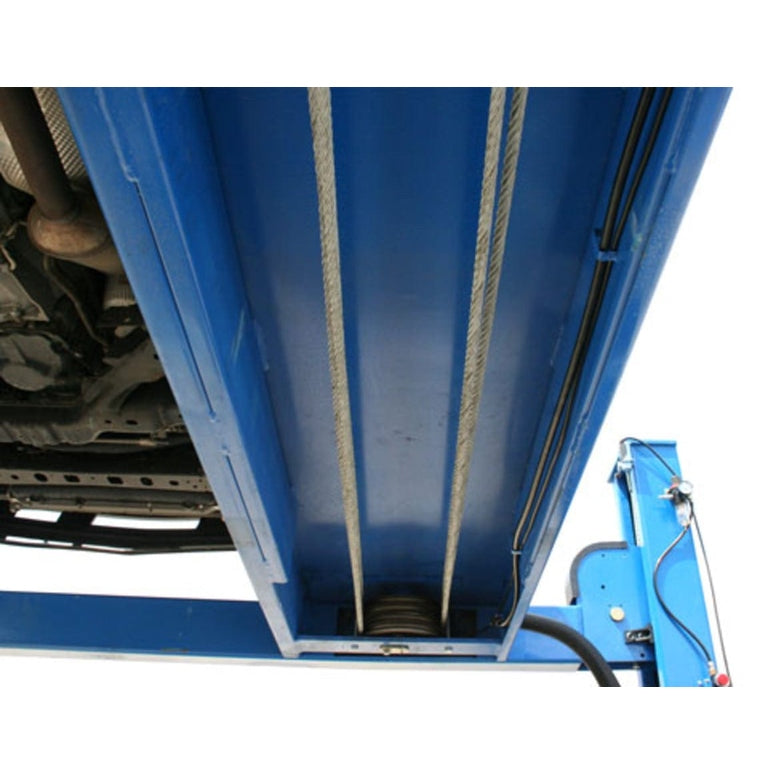

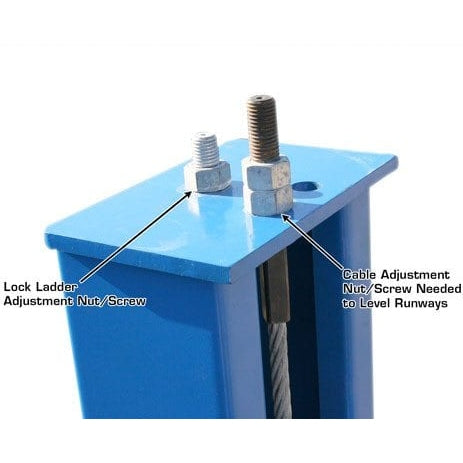

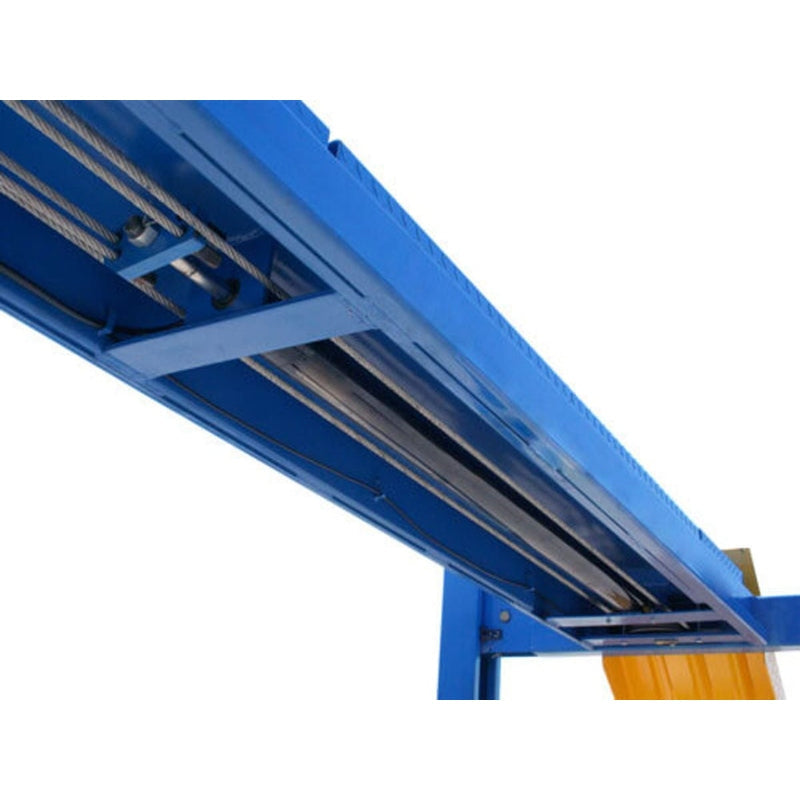

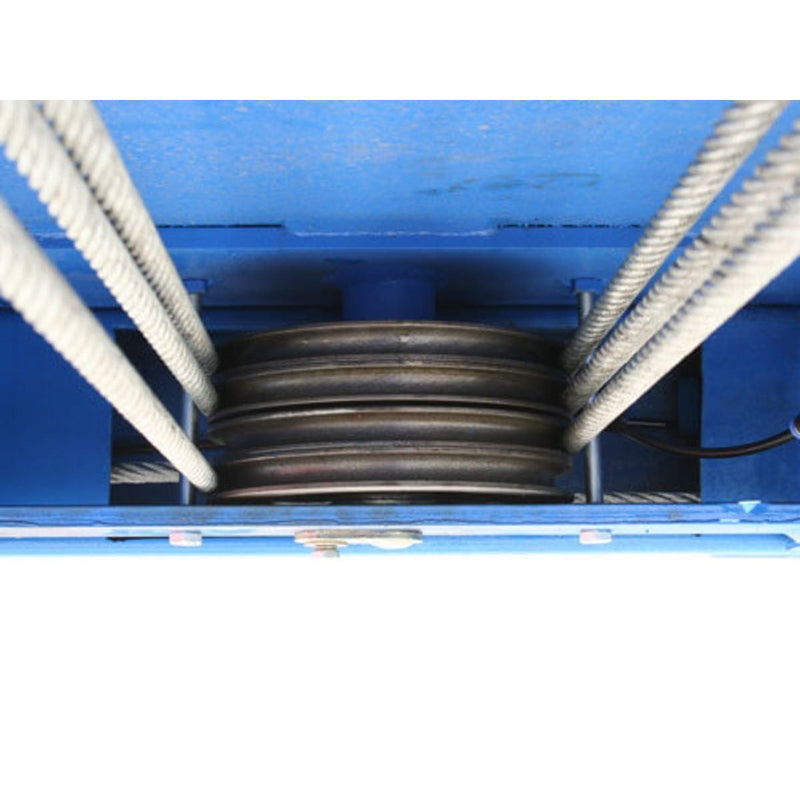

The lift operates using a high-strength cable system paired with an under-runway oversized hydraulic cylinder, powered by a 220V single-phase electric motor. Unlike outdated chain-driven systems with exposed hydraulic cylinders—which can be difficult to level and often cause door dings—the Atlas® 412 offers smooth, balanced lifting with superior safety and reduced maintenance requirements.

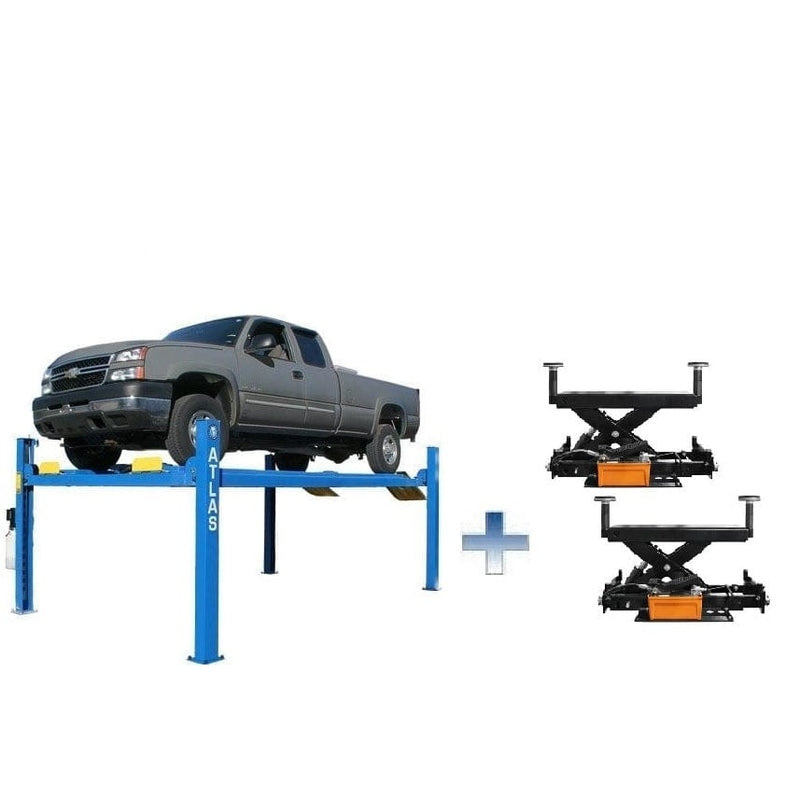

This combo package also includes two Atlas® RJ6 rolling bridge jacks, designed to lift a vehicle’s wheels off the runways for tire, brake, and suspension service, enhancing the lift’s functionality for both professional shops and serious automotive enthusiasts.
Features
Atlas® 412 Lift
-
12,000 lb. lifting capacity
-
Heavy-duty, commercial-grade construction
-
Extra tall, extra wide, and extra long design
-
Diamond-plated runways for enhanced grip and durability
-

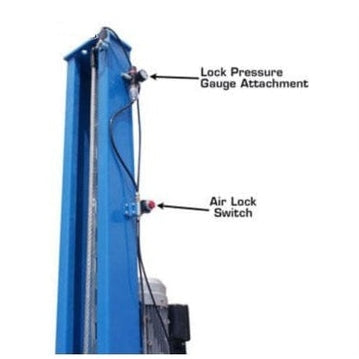

Air-operated single-point lock release (external air supply required)
-

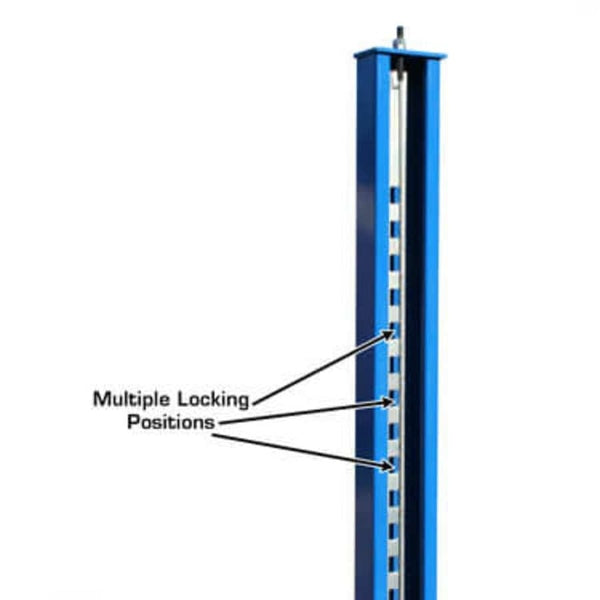

Lock-ladder design with double-lock safety system
-
Durable powder-coated finish for long-lasting protection
-

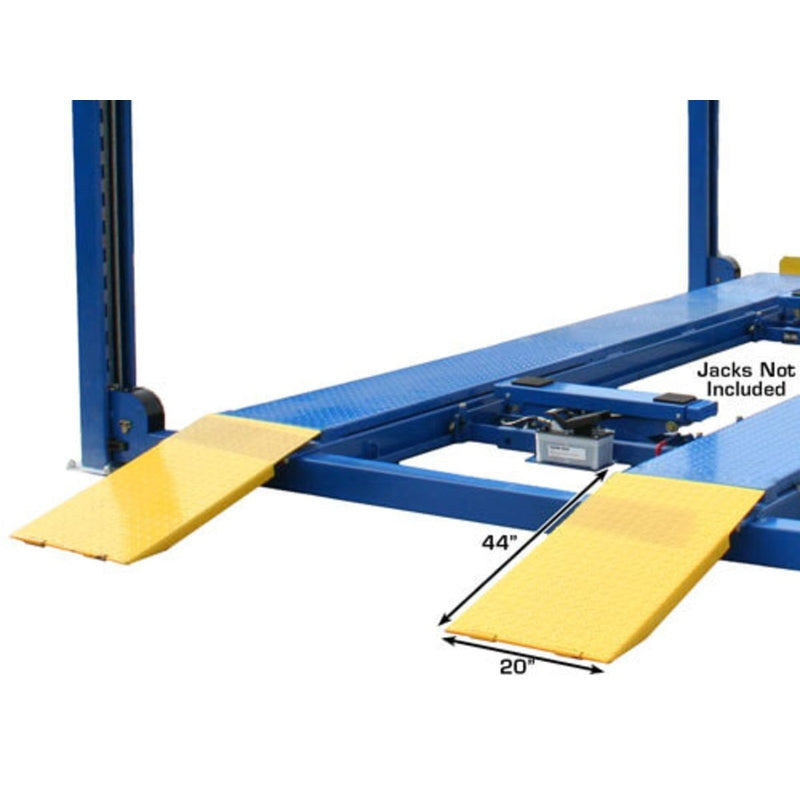

Includes steel approach ramps
-
Optional drive-off ramps and runway extensions available (sold separately)
-

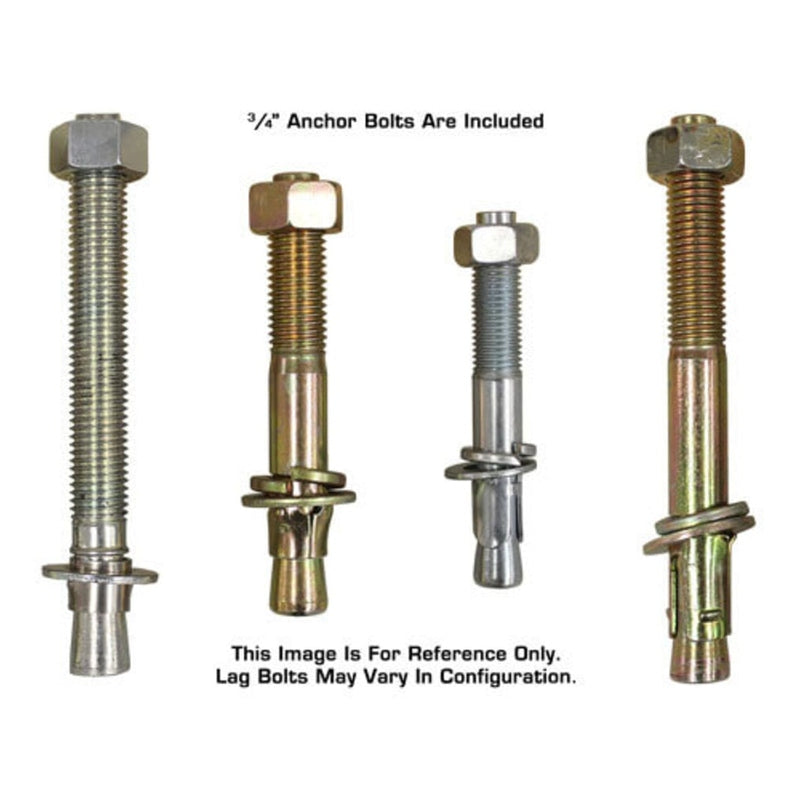

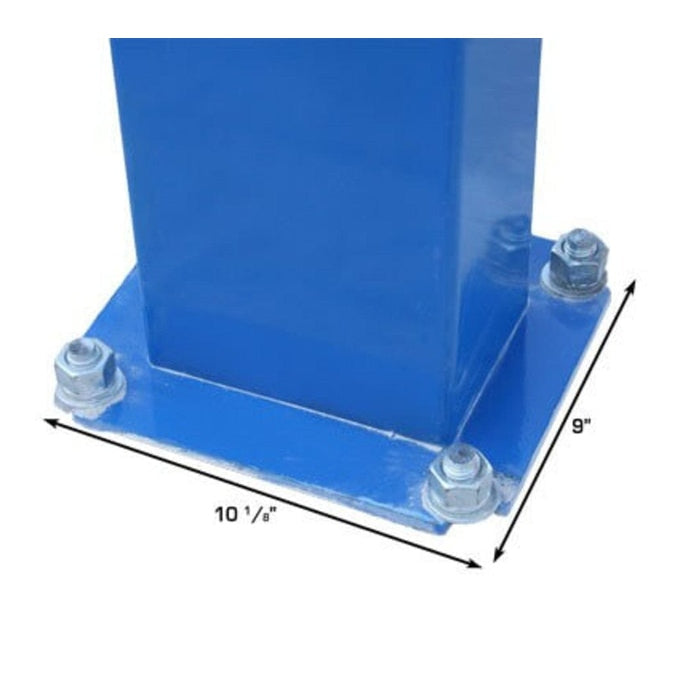

Mounting hardware included
-
220V single-phase electric operation (30-amp breaker required)
-

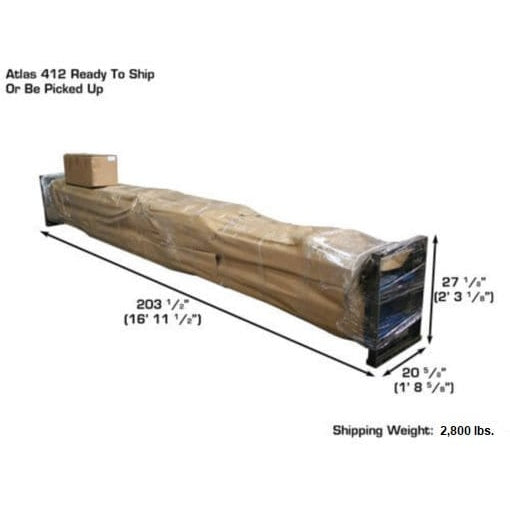

Shipping weight: 2,800 lbs
-
Warranty: 5-year structural / 2-year hydraulic (parts only)

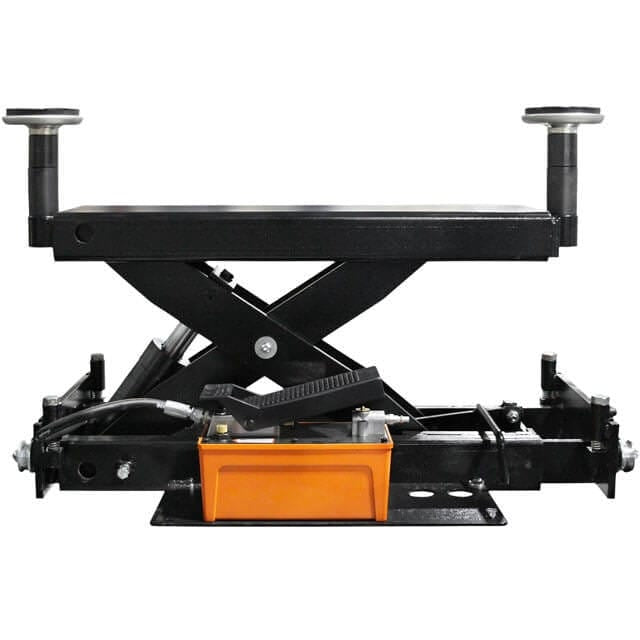

Atlas® RJ6 Rolling Bridge Jack
-
6,000 lb. lifting capacity
-
Air/hydraulic operation (external air supply required)
-

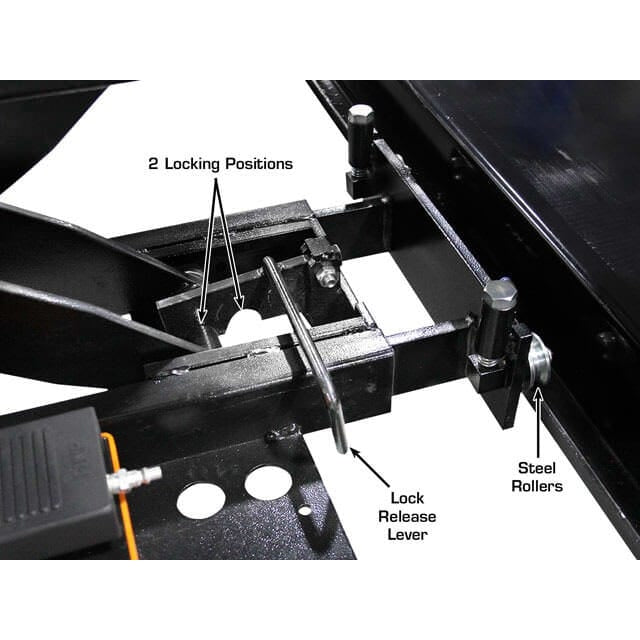

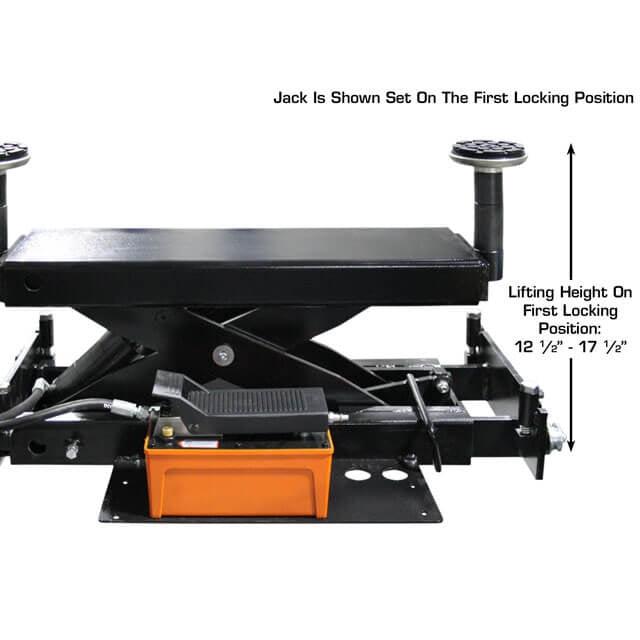

Multiple safety lock positions for secure lifting
-
Compact, low-profile design
-

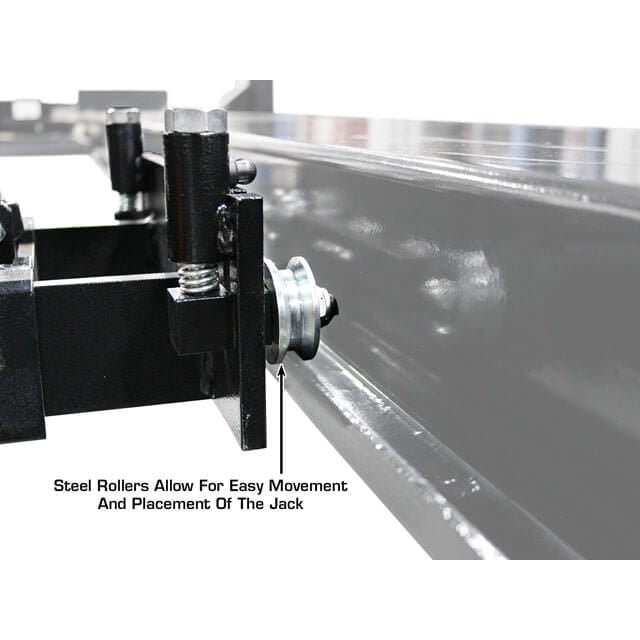

Smooth rolling action for easy movement along the runways
-
Scissor-style mechanism provides level, stable lifting
-
Powder-coated finish for corrosion resistance
-
Includes 4-piece truck adapter set
-
Warranty: 1-year parts only
Specifications

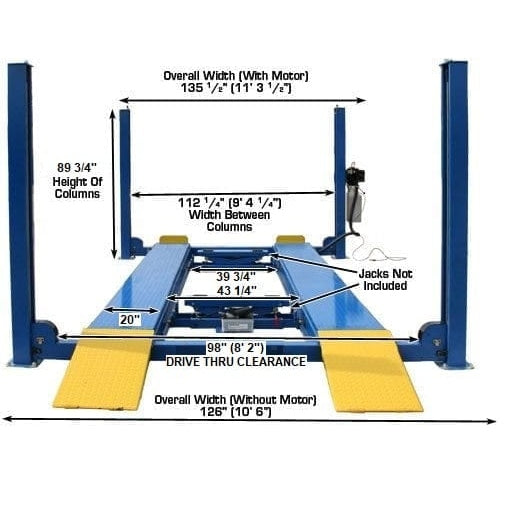

Atlas® 412
| Specification | Measurement |
|---|---|
| Capacity | 12,000 lbs |

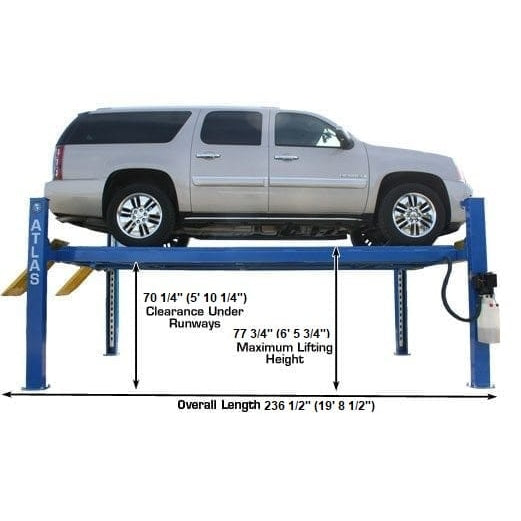

| Lifting Height | 77¾" (6' 5¾") |
| Overall Width (w/o motor) | 126¼" (10' 6¼") |
| Overall Width (w/ motor) | 135¼" (11' 3¼") |

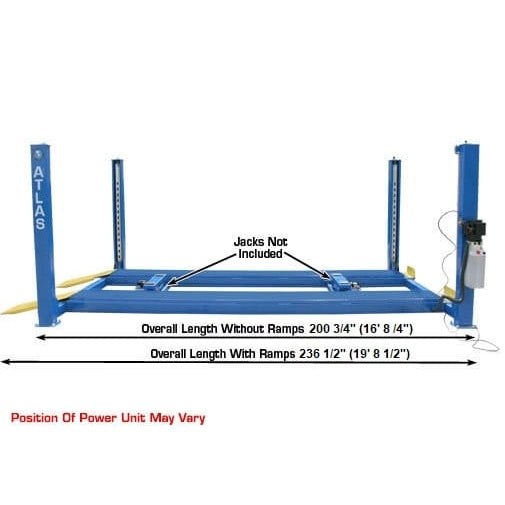

| Overall Length (w/ approach ramps) | 236½" (19' 8½") |
| Length Between Columns | 183¼" (15' 3¼") |
| Runway Length | 194½" (16' 2½") |
| Runway Width | 20" |
| Runway Thickness | 7½" |
| Width Between Runways | 43¼" (with rail: 39¾") |
| Outside Runway to Outside Runway | 83¼" (6' 11¼") |
| Clearance Under Runways | 70¼" (5' 10¼") |
| Clearance Between Columns | 112⅝" (9' 4⅝") |
| Height of Columns | 89¾" (7' 5¾") |
| Maximum Wheelbase | 185" (15' 5") |
| Drive-Through Width | 98" (8' 2") |
| Air Requirement | 85–115 PSI (external air supply required) |
| Motor / Electrical | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32 / AW46 (not included) |
| Shipping Weight | 2,800 lbs |
| Concrete Requirement | Minimum 6" thick, 3,000 PSI rating |
Atlas® RJ6 Rolling Bridge Jack
| Specification | Measurement |
|---|---|
| Capacity | 6,000 lbs |
| Maximum Width | 55" (4' 7") |
| Minimum Width | 35" (2' 11") |
| Runway Compatibility | 32" – 52" |

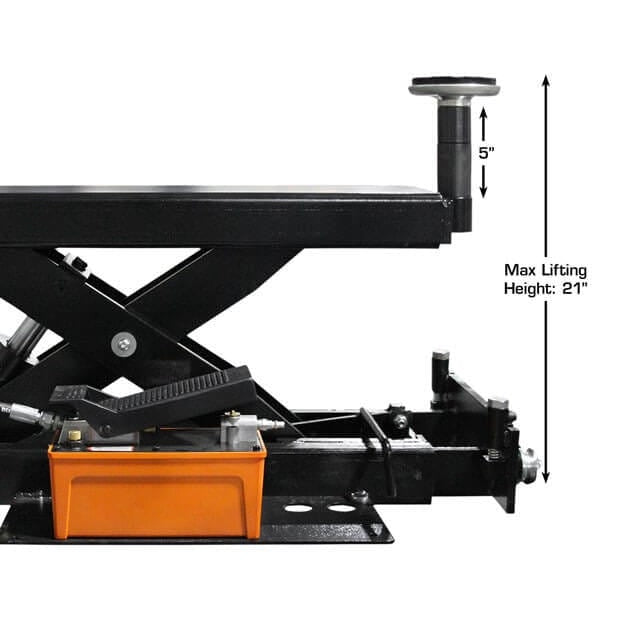

| Maximum Lifting Height (with adapters) | 21" (1' 9") |
| Air Requirement | 70–115 PSI |

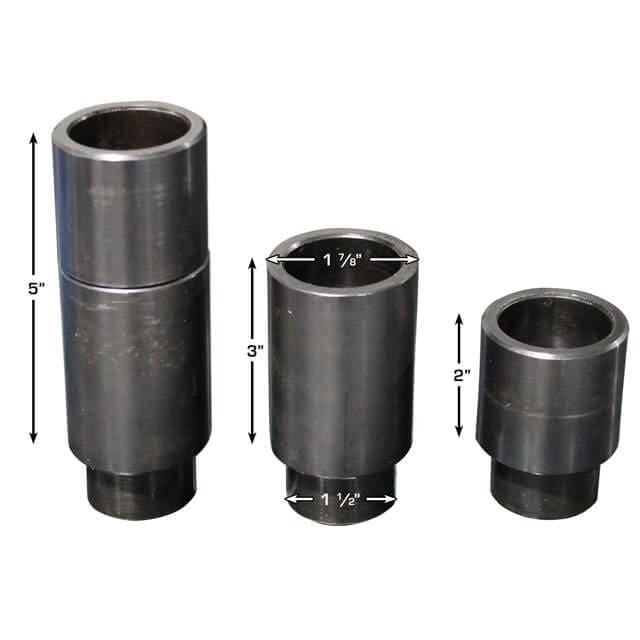

| Adapter Heights | (2) each – 2", 3" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Shipping Weight | 350 lbs |
