Atlas 412 12,000 lb Commercial 4-Post Lift

Save $1,400.00
Atlas Automotive EquipmentSKU: ATEATTD-412
Price:
$6,799.00 $8,199.00

Why Shop with Us?

  • Free shipping and No Sales Tax* Certain products qualify for free shipping. No sales tax except for CT residents.
  • Competitive Pricing is Our Goal; Committed to competitive pricing and matching lower prices on identical products when found.
  • Expert and Responsive Customer Service Team; chat, email, phone available Monday - Friday 9 a.m. - 5.p.m.
  • Secure Encrypted Checkout; your information is 100% secure.

Description

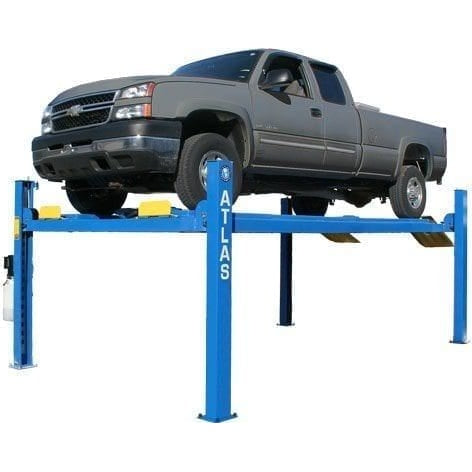

Atlas 12,000 Lb. Commercial Grade 4 Post Lift

The Atlas 412 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas 412 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas 412 has been manufactured to the same exacting specifications for many years.

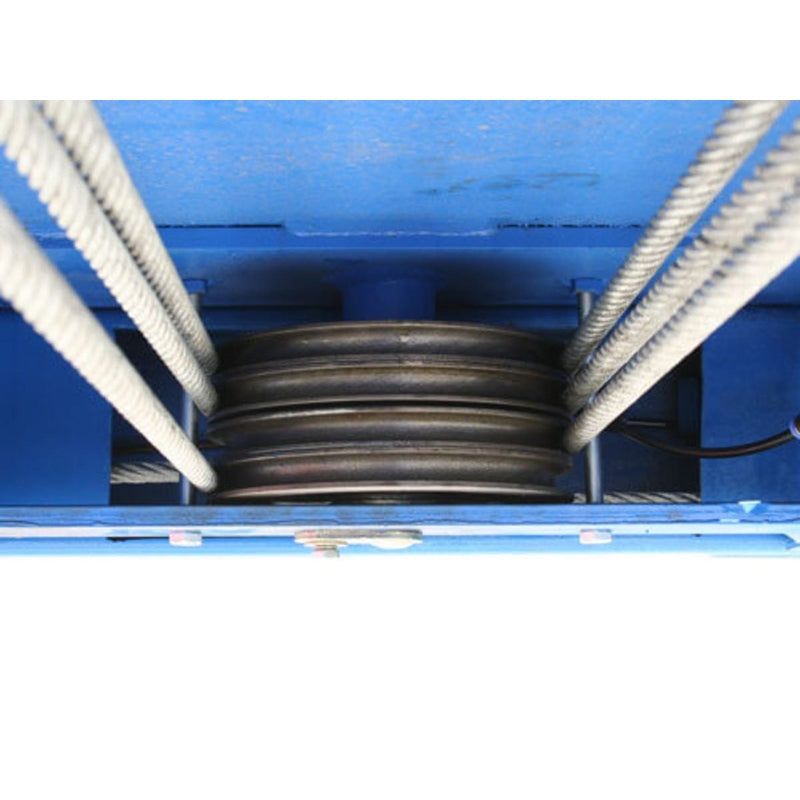

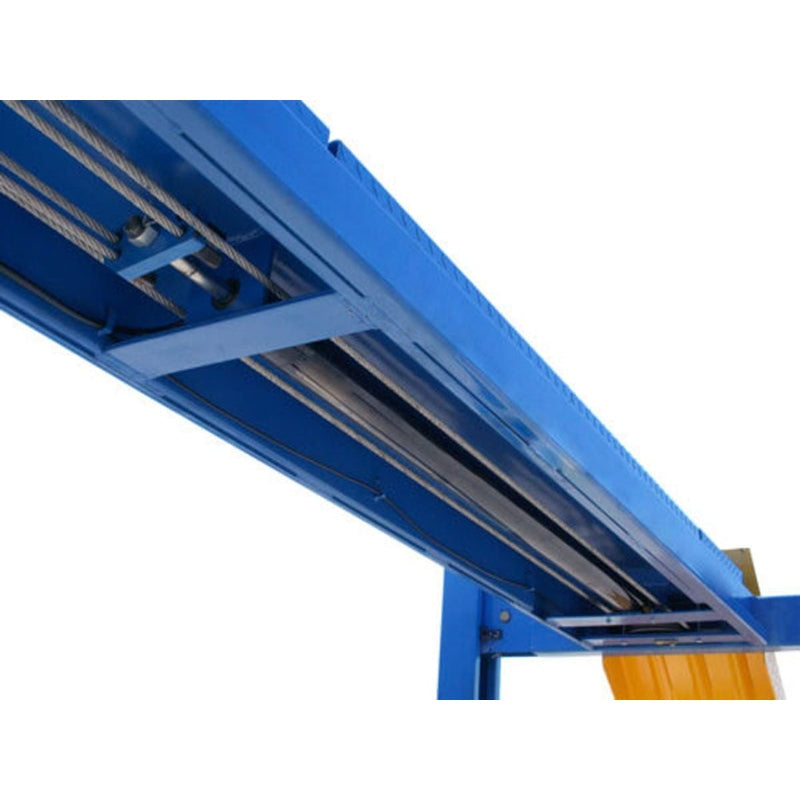

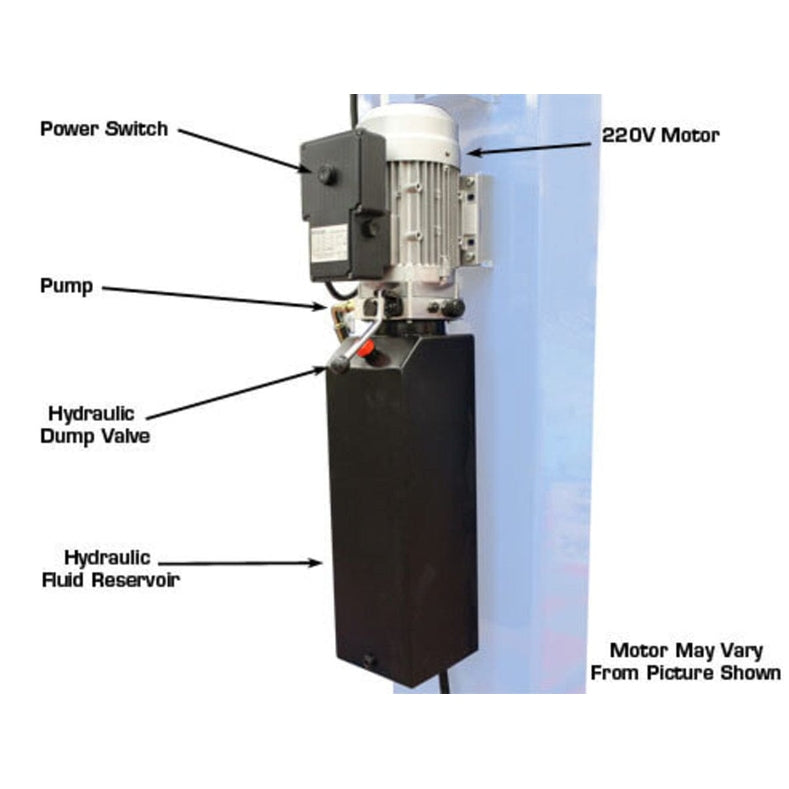

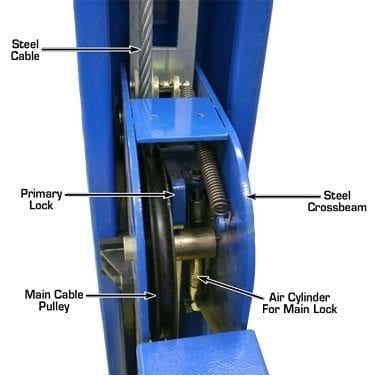

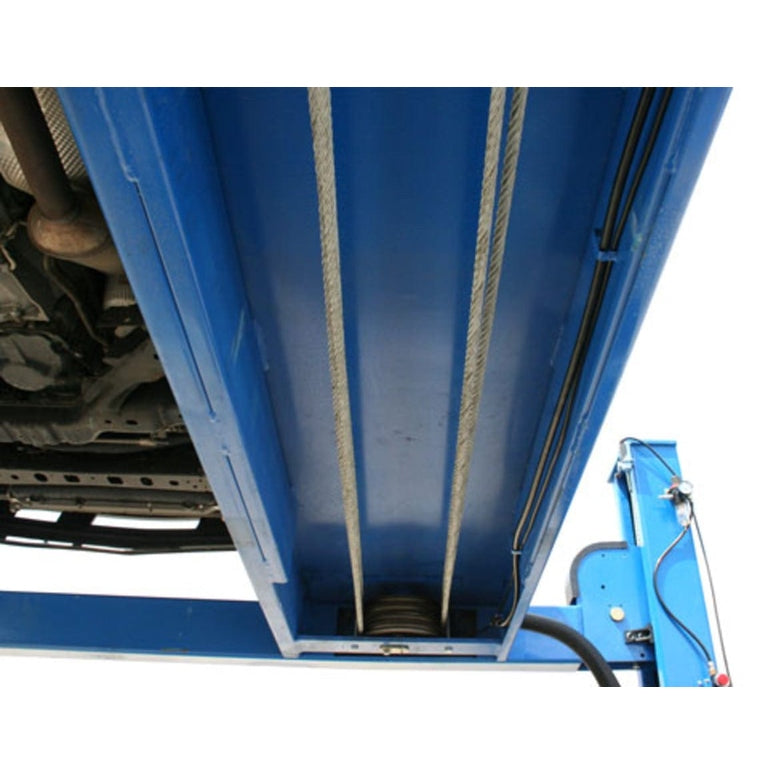

The Atlas 412 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an old style chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to level properly and the exposed hydraulic cylinder is responsible for numerous door dings.

Finally, the Atlas 412 features tracks between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ6BK) on the lift. Rolling jacks sold separately.

Features

  • 12,000 lb. Lifting Capacity

  • Heavy-Duty, Commercial-Grade Construction built for professional use

  • Extra Tall, Extra Wide, and Extra Long Design to accommodate a wide range of vehicles

  • Diamond-Plated Runways for enhanced traction and durability

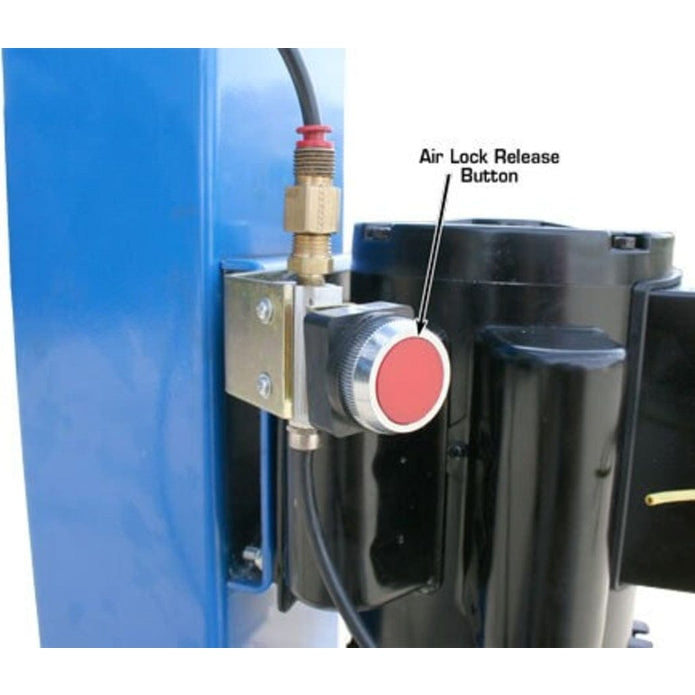

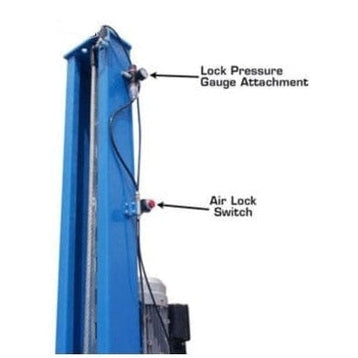

  • Air-Operated Single-Point Lock Release (requires external air supply) for efficient and synchronized operation

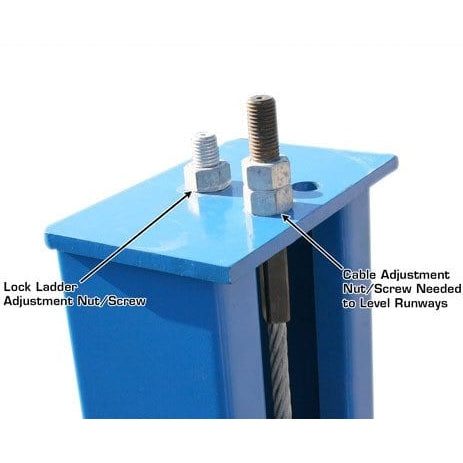

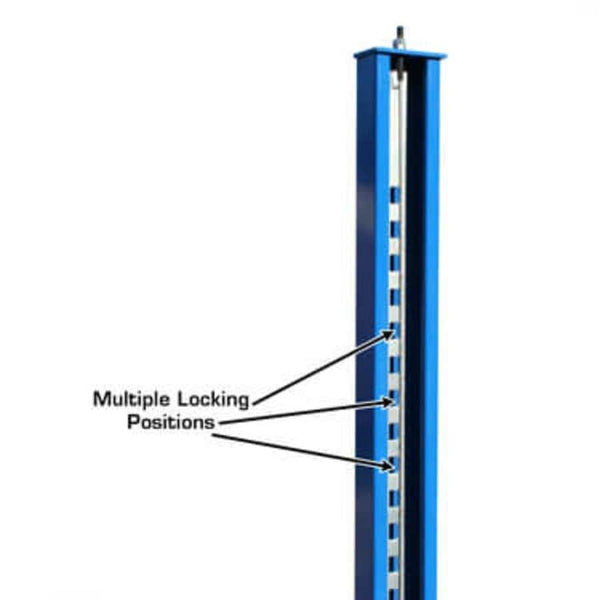

  • Lock Ladder Design for consistent leveling and secure positioning

  • Dual Lock Safety System for added protection and stability

  • Durable Powder-Coated Finish for long-lasting corrosion resistance

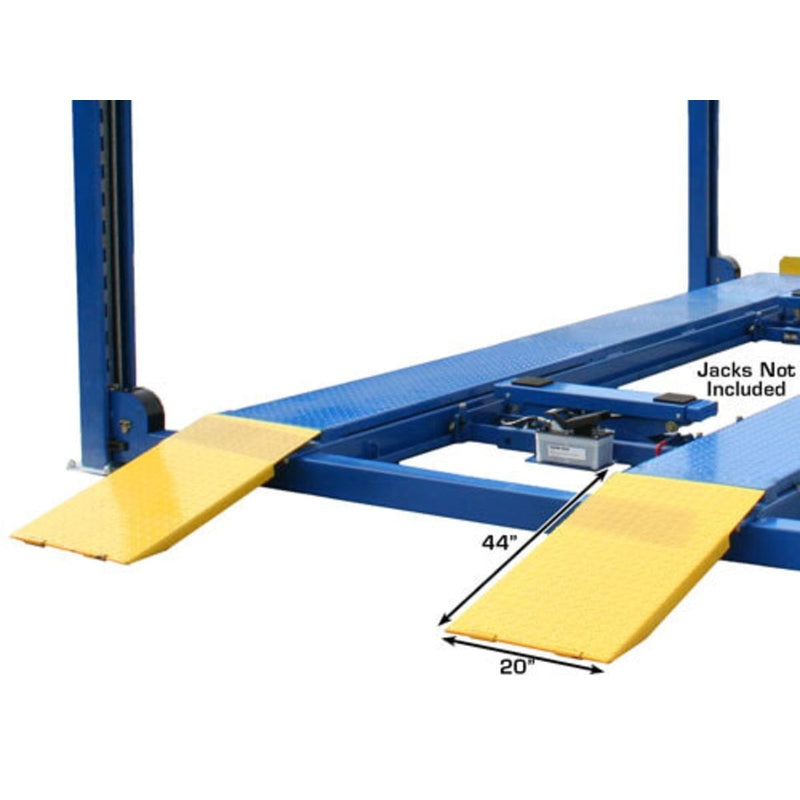

  • Steel Approach Ramps (Included) for smooth vehicle access

  • Optional Drive-Off Ramps available (sold separately)

  • Optional Runway Extensions available (sold separately)

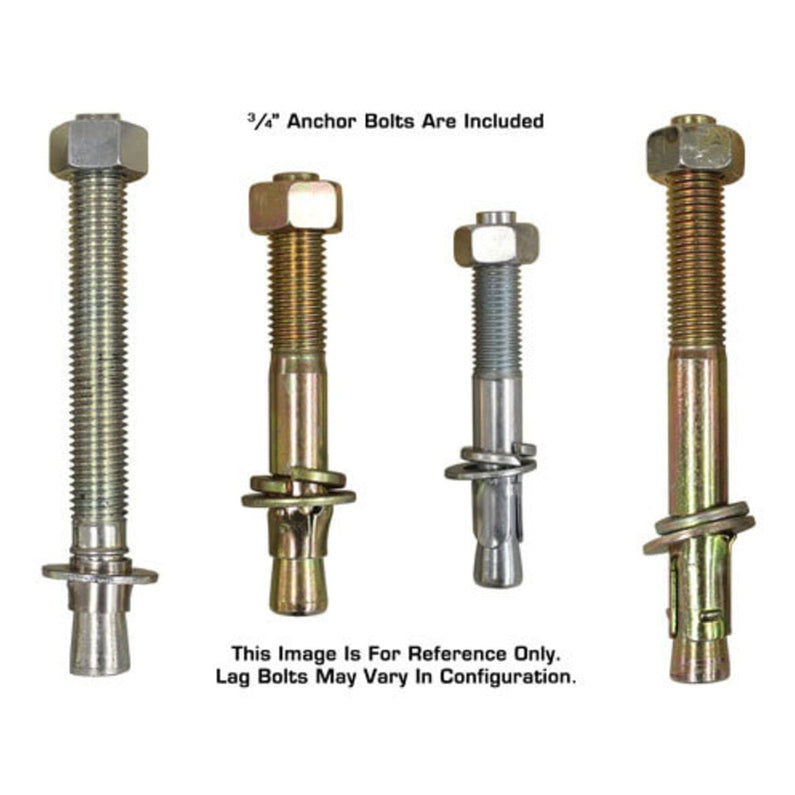

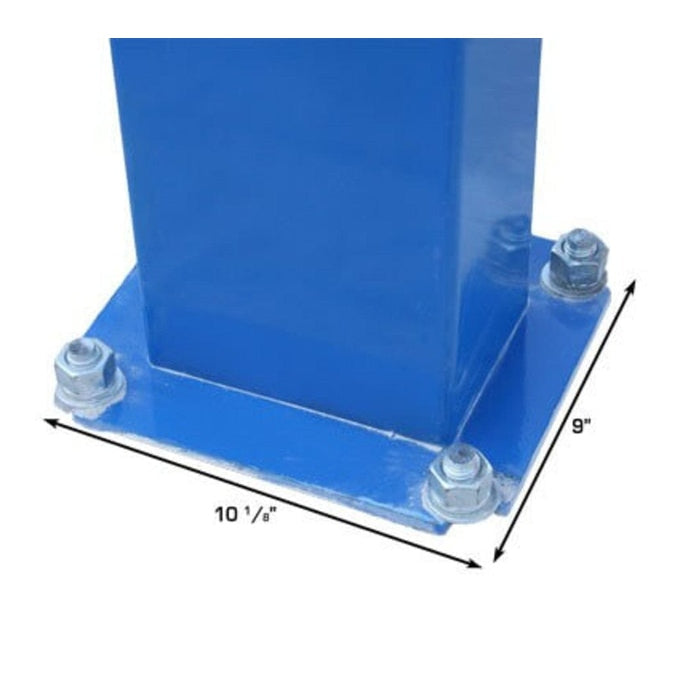

  • Mounting Hardware (Included) for secure installation

  • 220V / Single-Phase Electric Operation (requires 30A breaker)

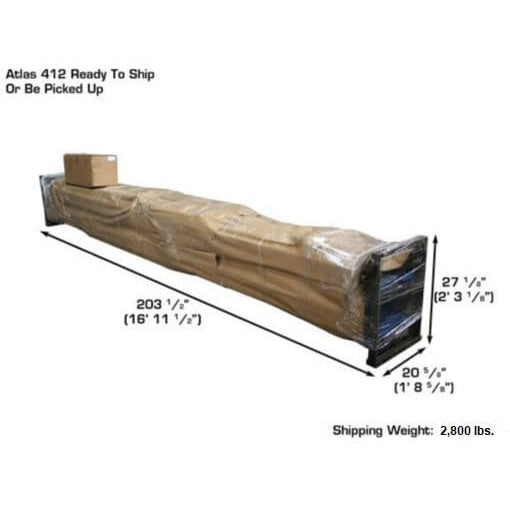

  • Shipping Weight: 2,800 lb.

  • Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)

Specifications

Specification Measurement
Lifting Capacity 12,000 lb.
Lifting Height 77 ¾" (6' 5 ¾")

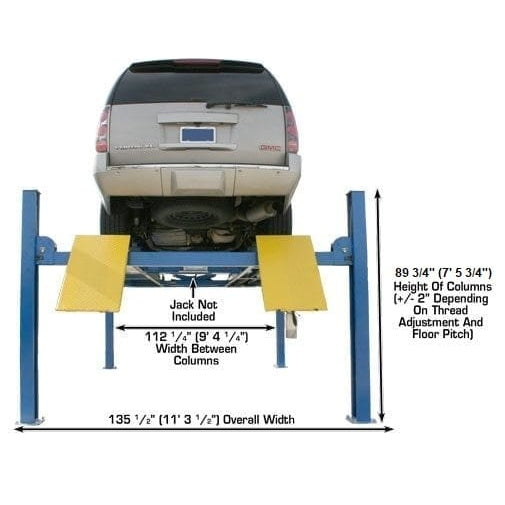

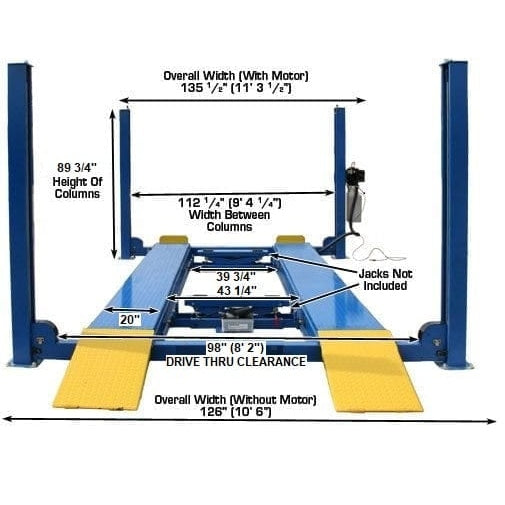

Overall Width (w/o Motor) 126 ¼" (10' 6 ¼")
Overall Width (w/ Motor) 135 ¼" (11' 3 ¼")

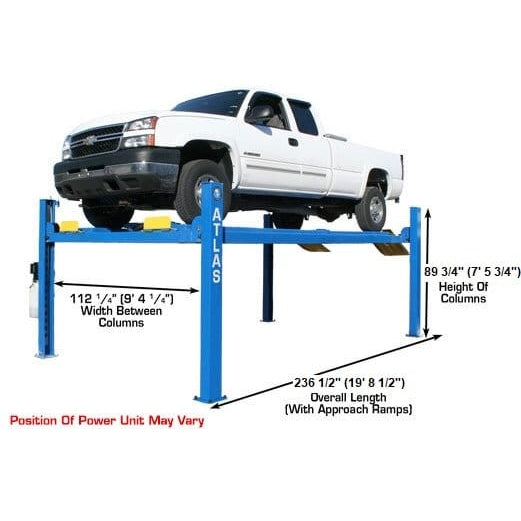

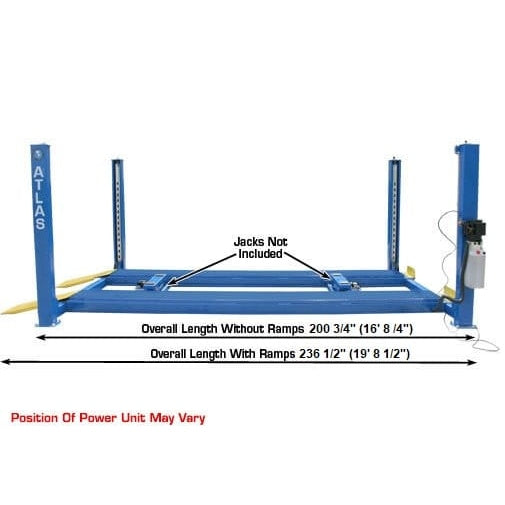

Overall Length (w/ Approach Ramp) 236 ½" (19' 8 ½")
Length Between Columns 183 ¼" (15' 3 ¼")
Runway Length 194 ½" (16' 2 ½")
Runway Width 20"
Runway Thickness 7 ½"
Width Between Runways 43 ¼" (39 ¾" with rail)
Outside Runway to Outside Runway 83 ¼" (6' 11 ¼")

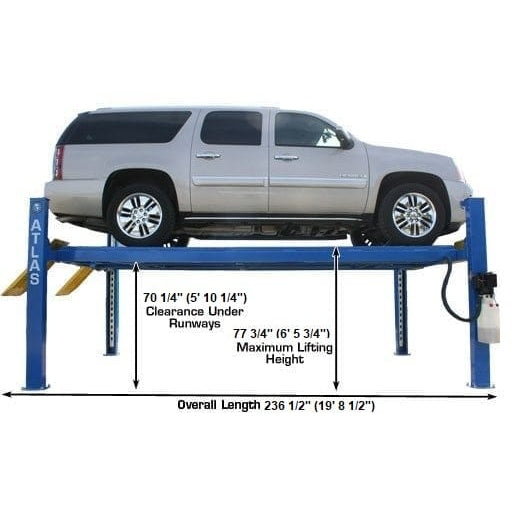

Clearance Under Runways 70 ¼" (5' 10 ¼")

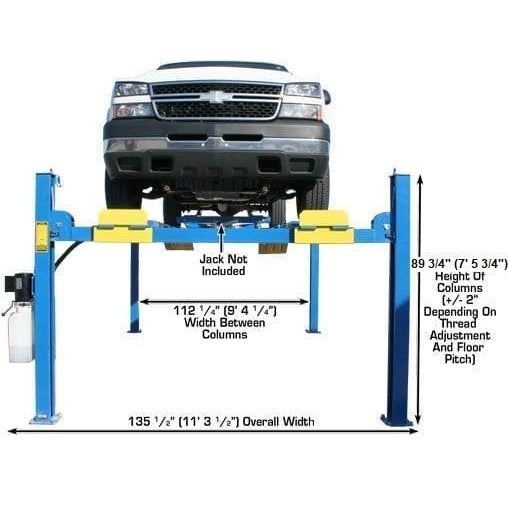

Clearance Between Columns 112 ⅝" (9' 4 ⅝")
Height of Columns 89 ¾" (7' 5 ¾")
Maximum Wheelbase 185" (15' 5")
Drive-Through Width 98" (8' 2")
Air Requirement 85–115 PSI (external air supply required)
Electrical Requirement 220V single-phase (30A breaker recommended)
Oil Requirement 3–5 gallons AW32/AW46 (not included)
Shipping Weight 2,800 lb.
Concrete Requirement Minimum 6" thick slab rated at 3,000 PSI

Documents

Atlas ATTD-412 Manual

Atlas 412 Cylinder Bleeding Procedure (Do this immediately after installation)
