Description

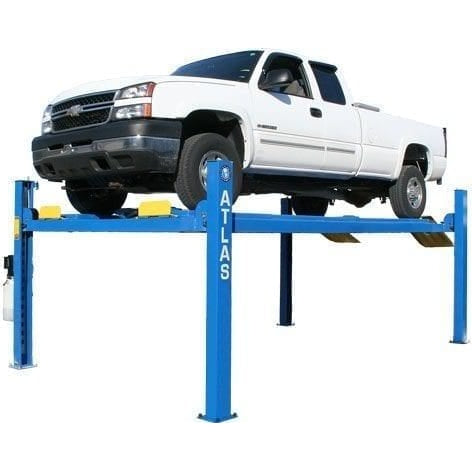

Atlas® 412A – Commercial-Grade 12,000 lb. 4-Post Alignment Lift

The Atlas® 412A is a commercial-grade, 12,000 lb. capacity four-post alignment lift designed for professional service centers and high-volume automotive shops. Built to exceed industry standards, the 412A delivers exceptional strength, reliability, and performance for years of dependable operation.

Engineered with structural and cosmetic refinements typically found in lifts costing thousands more, the Atlas® 412A stands out as one of the best values in its class. Each unit is rigorously tested to ensure flawless operation at full rated capacity, meeting the needs of alignment technicians and general repair professionals alike.

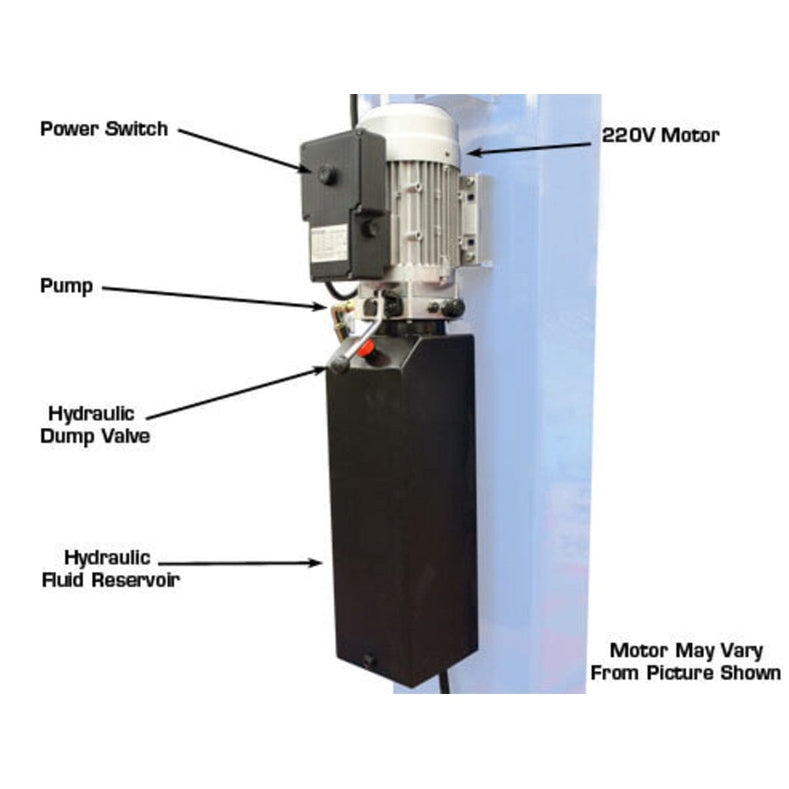

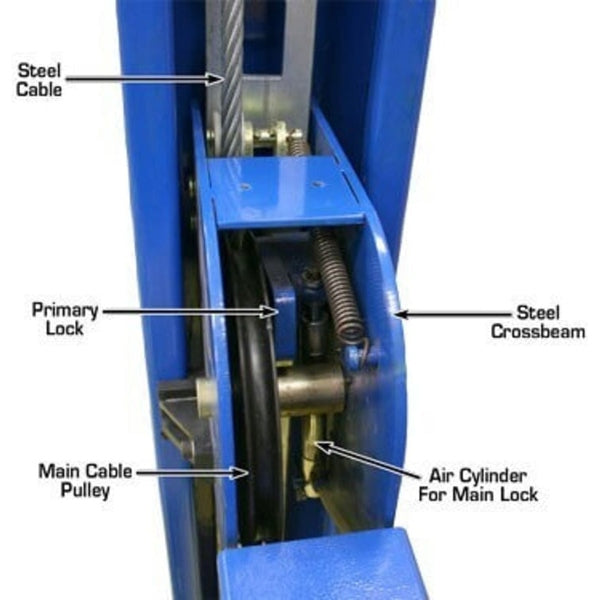

The lift utilizes a high-strength cable system combined with an oversized hydraulic cylinder mounted beneath the runways, powered by a 220V single-phase power unit. This modern configuration offers smooth and precise lifting while minimizing maintenance. Unlike older chain-lift systems with exposed hydraulic cylinders—which are prone to leveling issues and potential vehicle door damage—the Atlas® 412A ensures a safer, more balanced lifting experience.

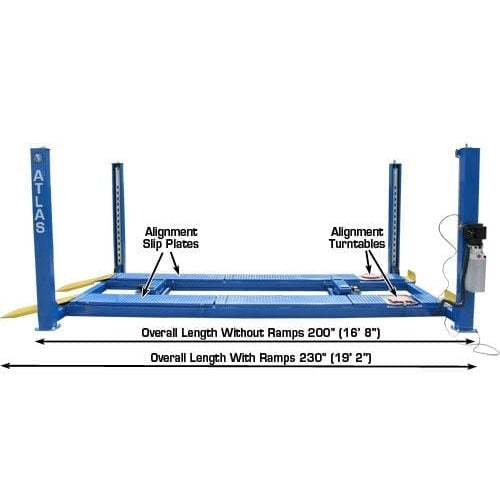

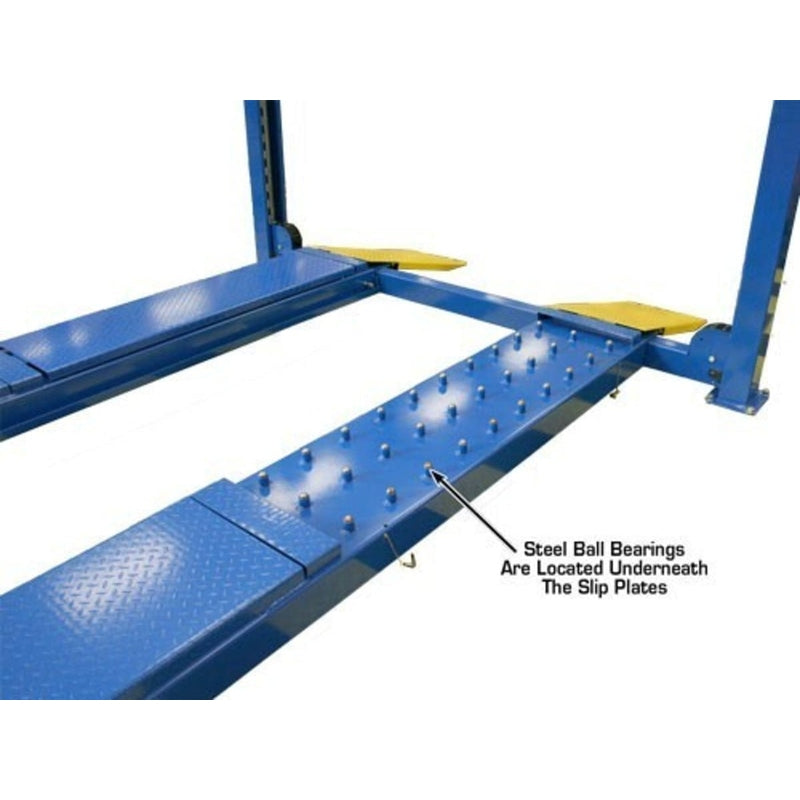

In addition to the heavy-duty features found on the Atlas® 412, the 412A includes precision alignment components such as built-in slip plates and adjustable turntables. The slip plates are perfectly leveled with the turntables, allowing for accurate wheel alignment on a wide range of vehicles. The turntables can be repositioned along the runway to accommodate various wheelbase lengths, and removable steel cover plates are included to convert the lift for general service use when alignment functionality isn’t needed.

The runways are also equipped with integrated tracks designed to accept rolling bridge jacks (recommended: Atlas® RJ6BK, sold separately), providing additional versatility for wheel-off service such as brake, tire, and suspension work.

With its blend of commercial durability, advanced engineering, and multipurpose capability, the Atlas® 412A is a top-tier solution for shops seeking a professional alignment lift that can handle both heavy-duty performance and everyday service efficiency.

Features

  • 12,000 lb. Lifting Capacity

  • Heavy-Duty, Commercial-Grade Construction for professional use

  • Extra Tall, Wide, and Long Design to accommodate a broad range of vehicles

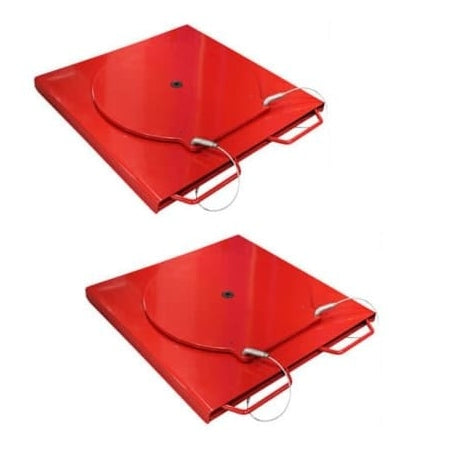

  • Built-In Slip Plates and Alignment Turntables (Included) for precise wheel alignment

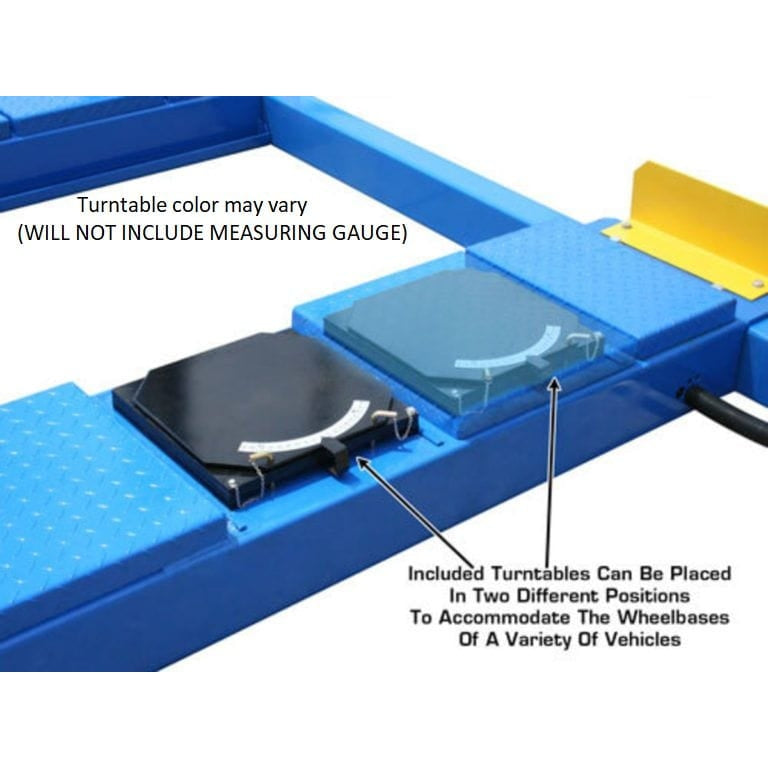

  • Adjustable Turntable Positions to fit various wheelbase lengths

  • Steel Runway Covers (Included) for use when turntables are removed

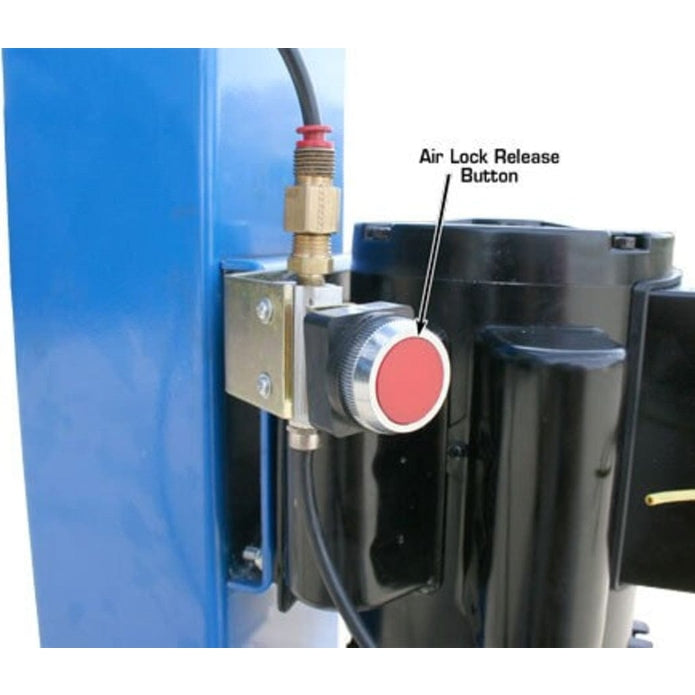

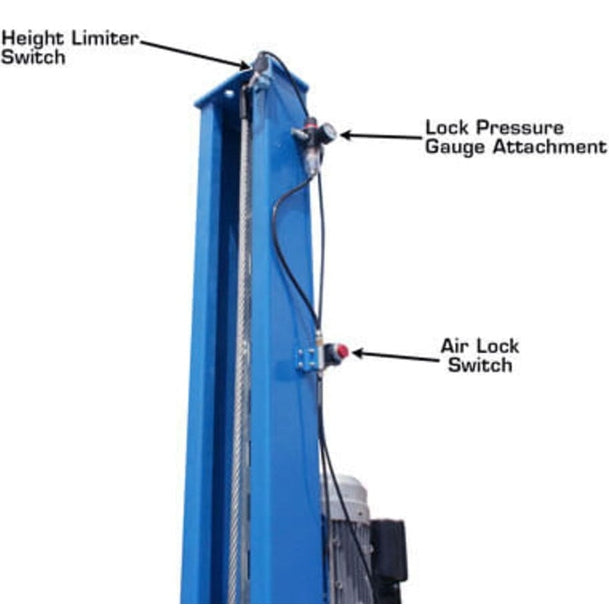

  • Air-Operated Single-Point Lock Release (requires external air supply)

  • Lock Ladder Design for accurate height adjustment

  • Dual Lock Safety System ensures secure and stable lifting

  • Durable Powder-Coated Finish for long-lasting protection

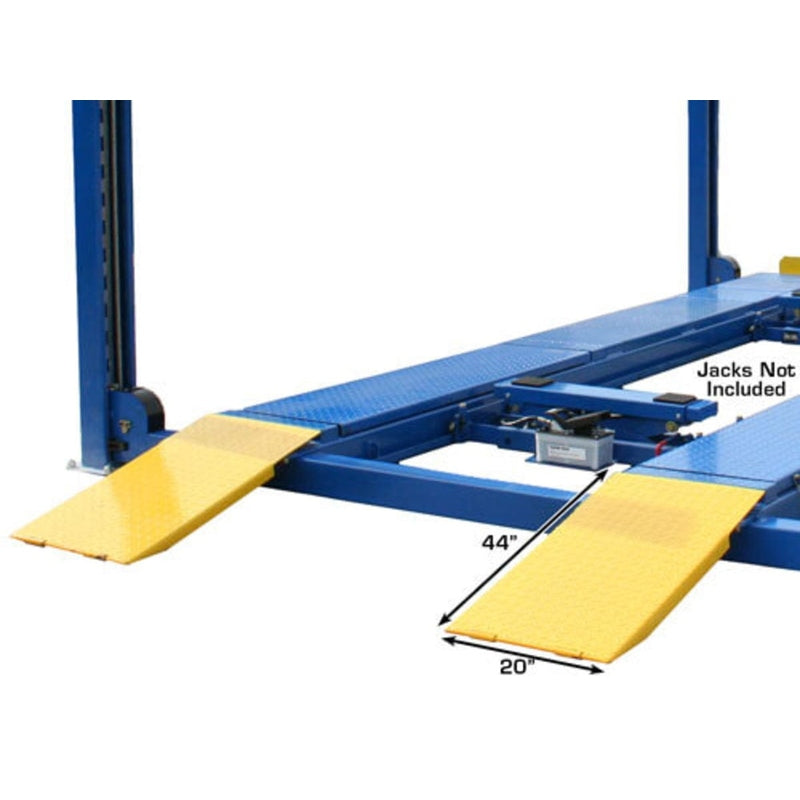

  • Steel Approach Ramps (Included) for easy drive-on access

  • Optional Drive-Off Ramps available (sold separately)

  • Optional Runway Extensions available (sold separately)

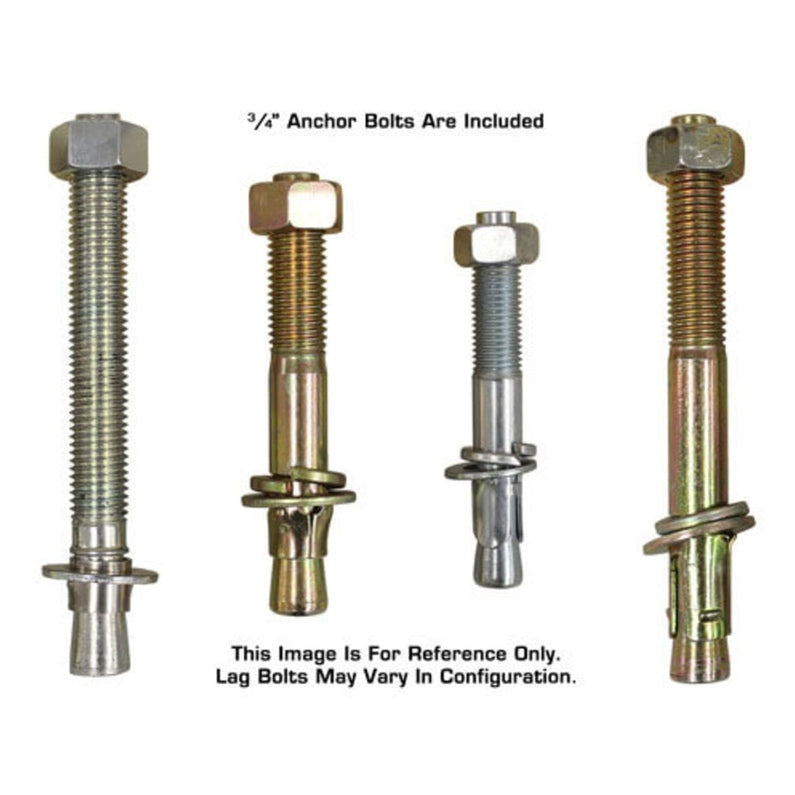

  • Mounting Hardware (Included) for simple installation

  • 220V / 1-Phase Electric Operation (requires 30A breaker)

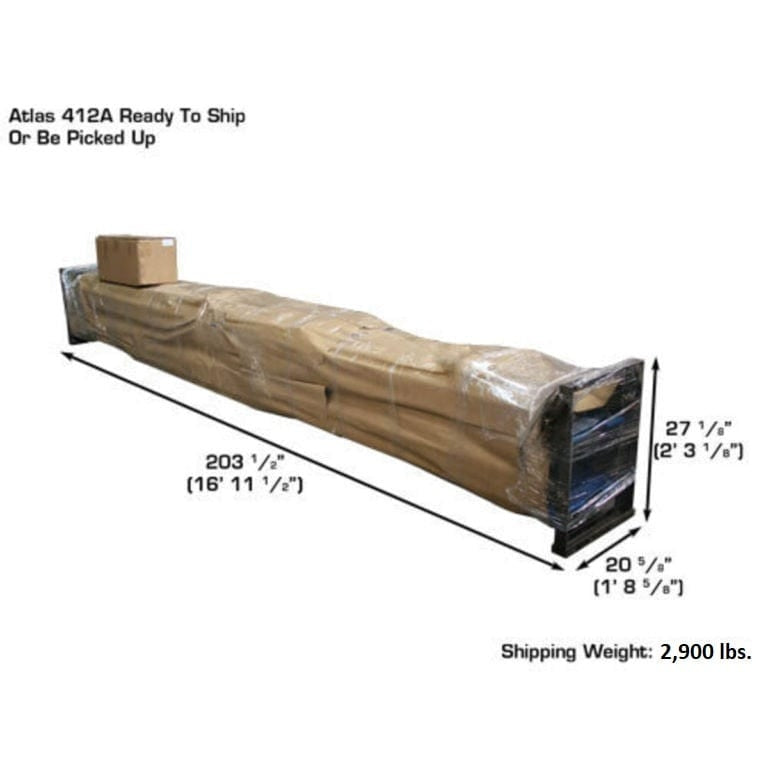

  • Shipping Weight: 2,900 lb.

  • Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)

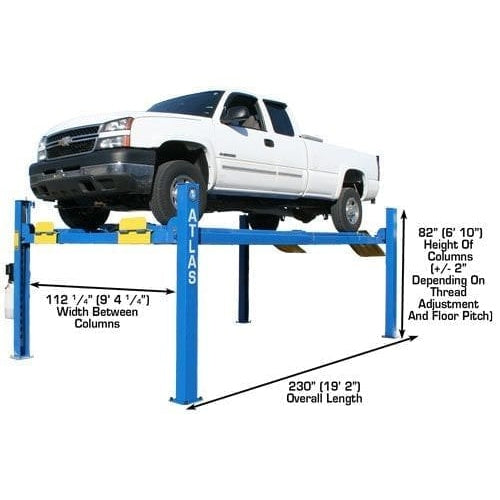

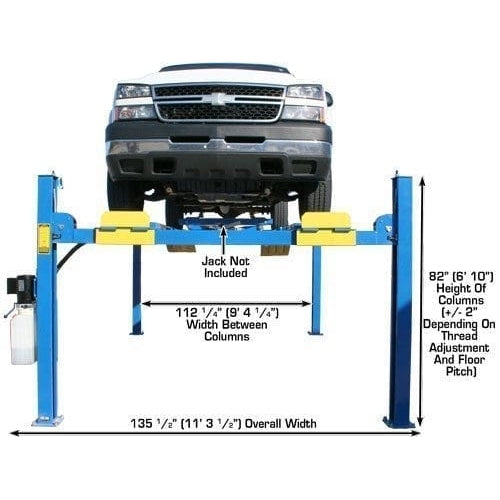

Specifications

Specification Measurement
Lifting Capacity 12,000 lb.
Lifting Height 77 ¾" (6' 5 ¾")
Overall Width (w/o Motor) 126 ¼" (10' 6 ¼")
Overall Width (w/ Motor) 135 ¼" (11' 3 ¼")
Overall Length (w/ Approach Ramp) 236 ½" (19' 8 ½")
Length Between Columns 183 ¼" (15' 3 ¼")
Runway Length 194 ½" (16' 2 ½")
Runway Width 20"
Runway Thickness 7 ½"
Width Between Runways 43 ¼" (39 ¾" with rail)
Outside Runway to Outside Runway 83 ¼" (6' 11 ¼")
Clearance Under Runways 70 ¼" (5' 10 ¼")

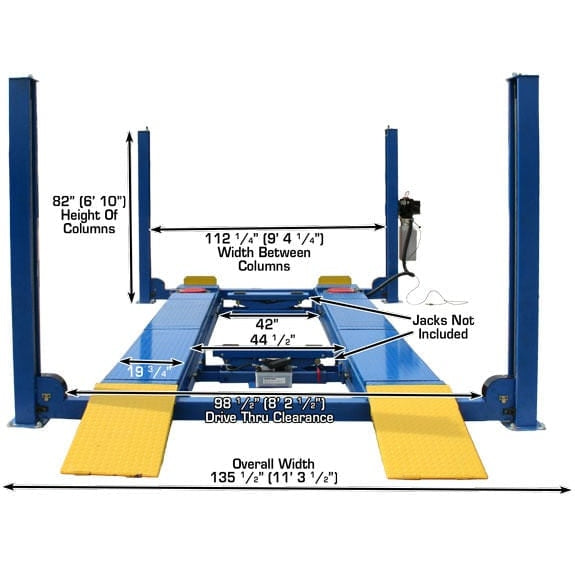

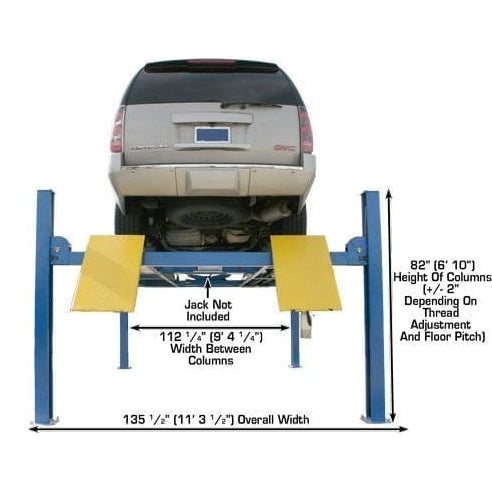

Clearance Between Columns 112 ⅝" (9' 4 ⅝")
Height of Columns 89 ¾" (7' 5 ¾")

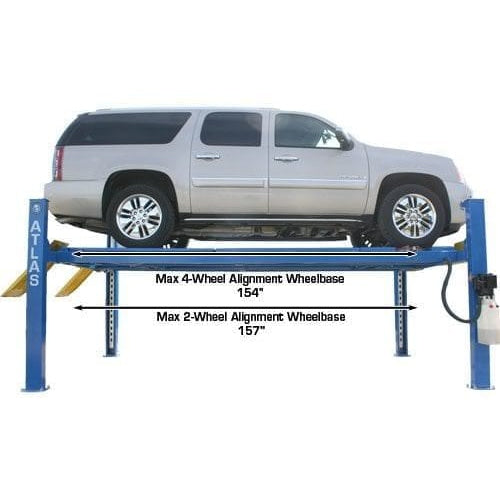

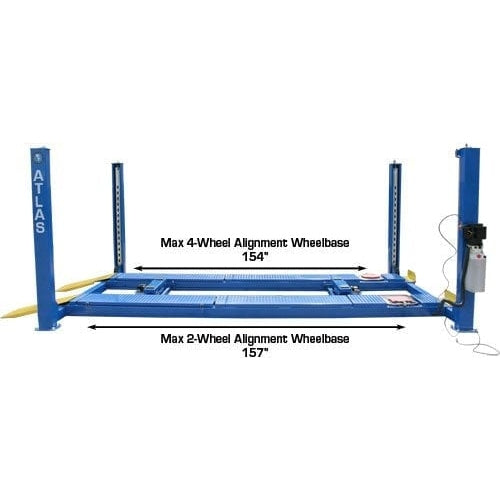

Maximum Wheelbase 185" (15' 5")
Drive-Through Width 98" (8' 2")
Air Requirement 85–115 PSI (external air supply required)
Electrical Requirement 220V single-phase (30A breaker recommended)
Oil Requirement 3–5 gallons AW32/AW46 (not included)
Shipping Weight 2,900 lb.
Concrete Requirement Minimum 6" thick slab, rated at 3,000 PSI

Documents

Atlas ATTD-412A Manual

Atlas 412A Cylinder Bleeding Procedure (Do this immediately after installation)
