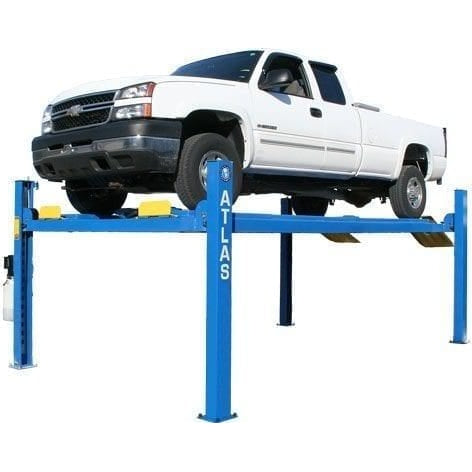

The Atlas® 412A is a 12,000 lb. capacity, four-post alignment lift engineered to commercial-grade standards for professional automotive service facilities. Built for durability and precision, this lift delivers years of dependable operation and includes a range of premium features that set it apart from competing models in its class.
The Atlas® 412A incorporates both structural and cosmetic enhancements typically found on lifts costing thousands more. Each unit is thoroughly tested to ensure smooth and reliable performance at its rated capacity, giving shop owners the confidence of professional-grade lifting power.

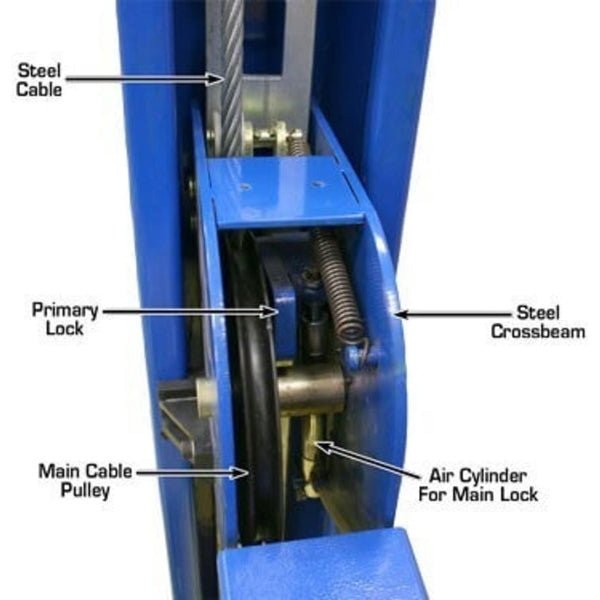

This lift utilizes a high-strength cable system with an under-runway oversized hydraulic cylinder, powered by a 220V single-phase motor for smooth raising and lowering. Unlike outdated chain-drive systems with exposed hydraulic cylinders—which are prone to uneven leveling and door damage—the 412A offers a cleaner, safer, and more efficient operation.
In addition to the heavy-duty construction found on the standard Atlas® 412, the 412A includes built-in slip plates and precision alignment turntables, ensuring accurate and level wheel alignment capability. The turntables can be adjusted to multiple positions to accommodate various wheelbases, and the included metal cover plates allow the lift to be used for general service when the alignment features are not in use.
This combo package also includes two Atlas® RJ6 rolling bridge jacks, ideal for raising vehicle wheels off the runways for tire, brake, and suspension work.
Features
Atlas® 412A Lift
-
12,000 lb. lifting capacity
-
Heavy-duty, commercial-grade construction
-
Extra tall, extra wide, and extra long design
-

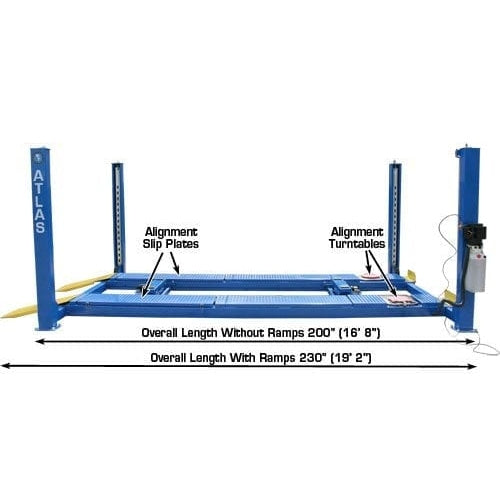

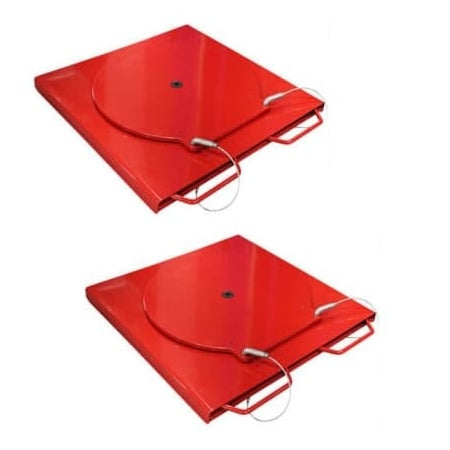

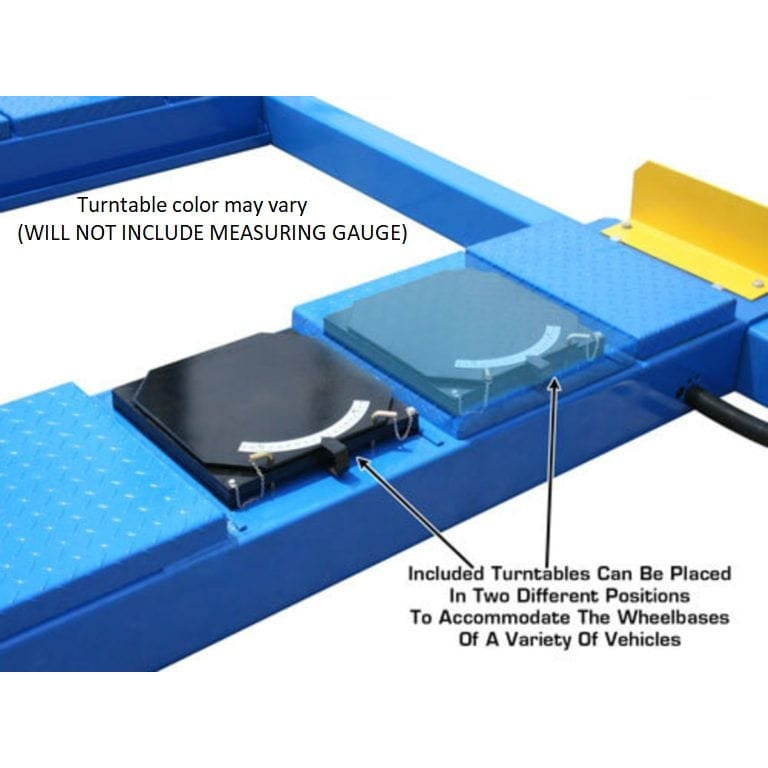

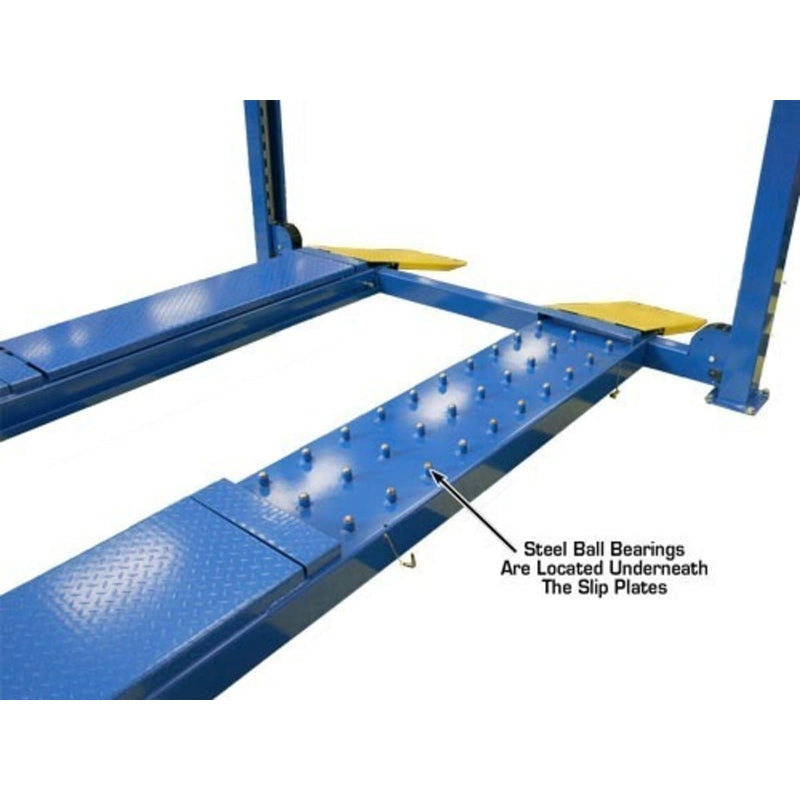

Built-in slip plates and alignment turntables included
-
Adjustable turntable positions to fit various wheelbases
-
Runway cover plates included for general service use when turntables are removed
-

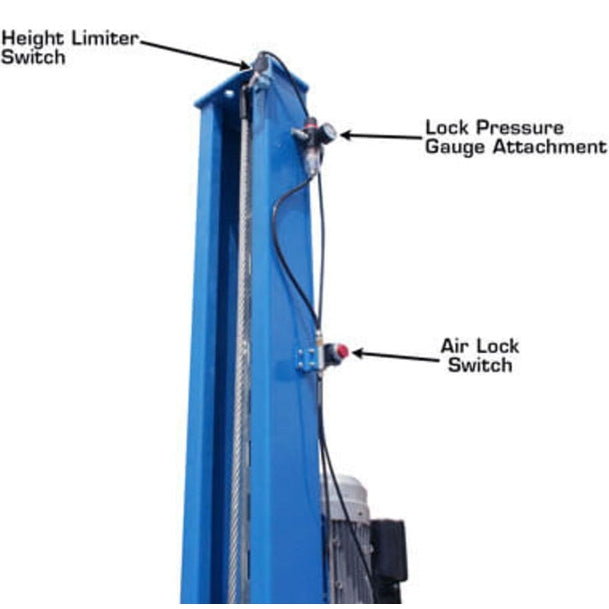

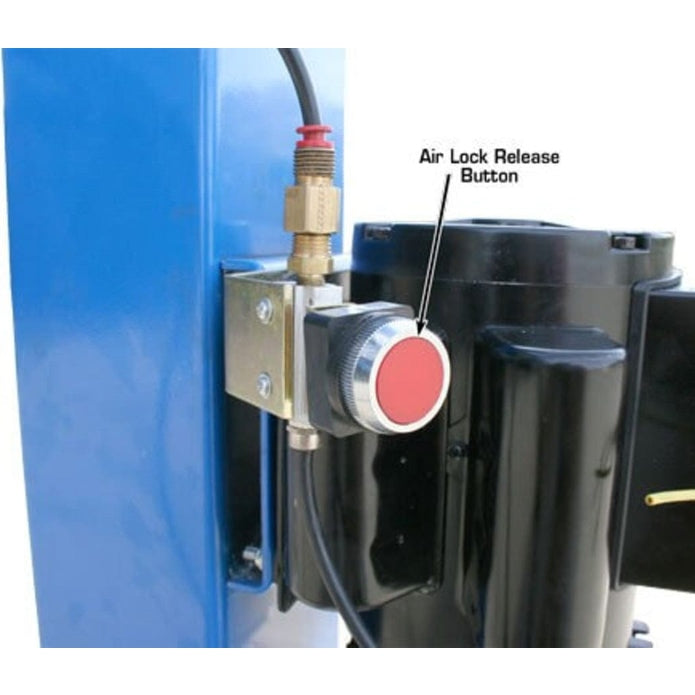

Air-operated single-point lock release (external air supply required)
-
Lock-ladder design with double-lock safety system
-
Durable powder-coated finish for corrosion resistance
-

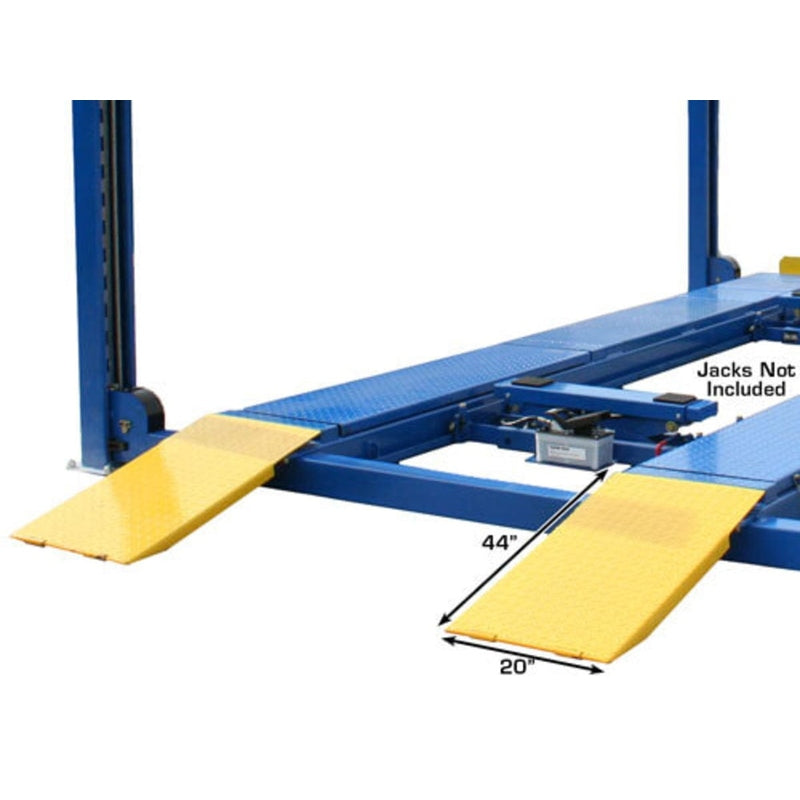

Steel approach ramps included
-
Optional accessories available: drive-off ramps and runway extensions (sold separately)
-

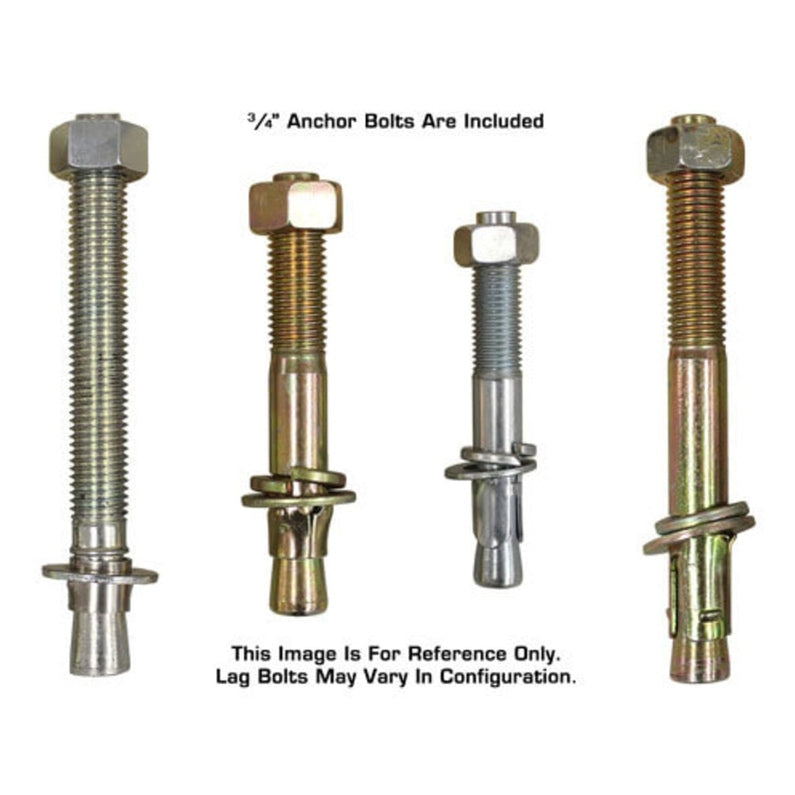

Mounting hardware included
-

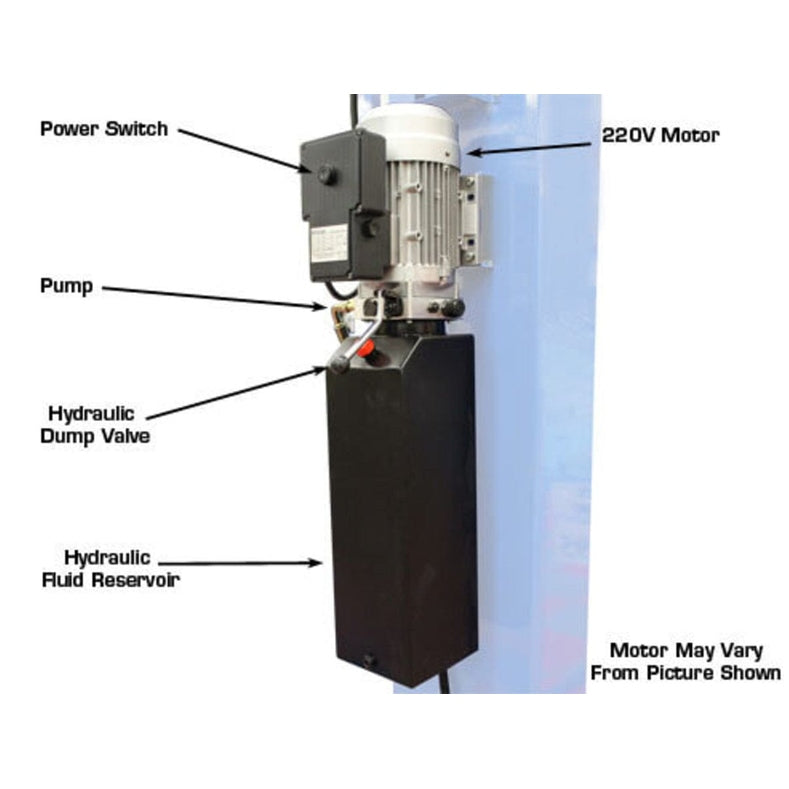

220V / single-phase electric operation (30-amp breaker required)
-

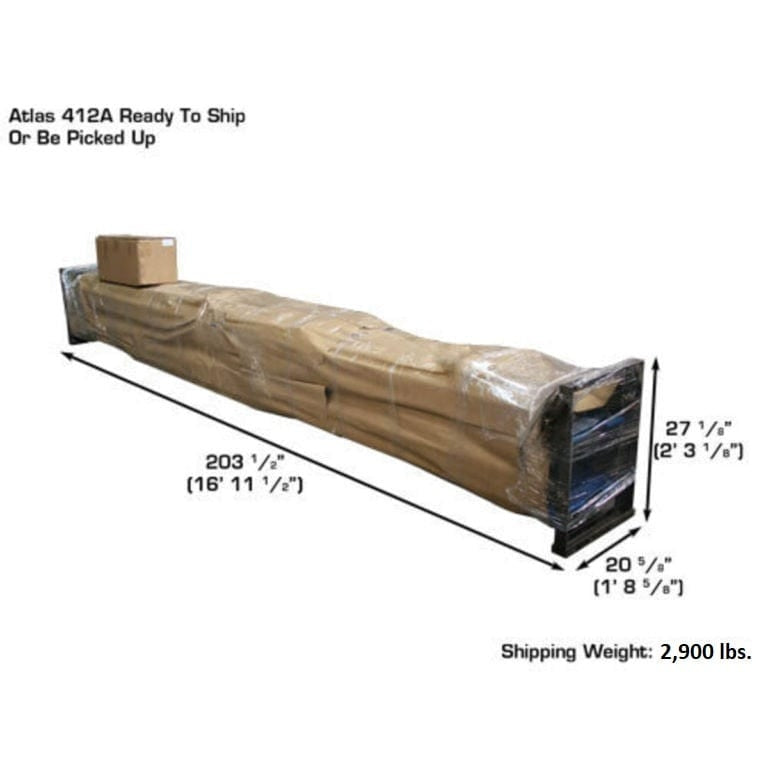

Shipping weight: 2,900 lbs
-
Warranty: 5-year structural / 2-year hydraulic (parts only)

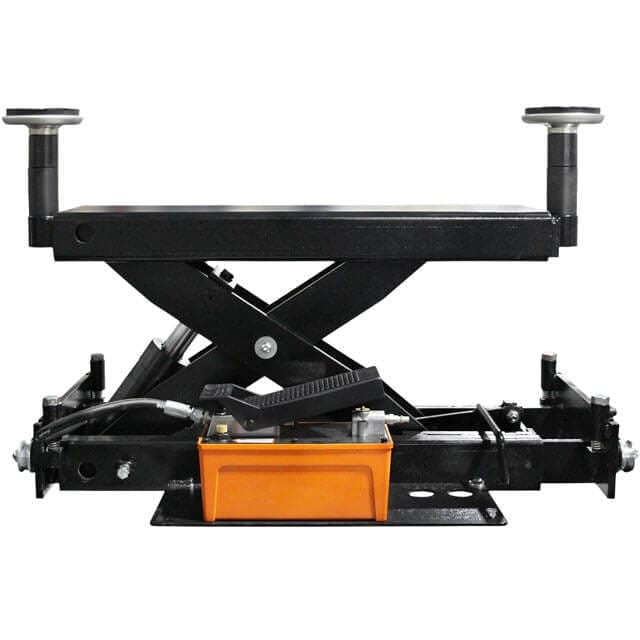

Atlas® RJ6 Rolling Bridge Jack
-
6,000 lb. lifting capacity
-
Air/hydraulic operation (external air supply required)
-

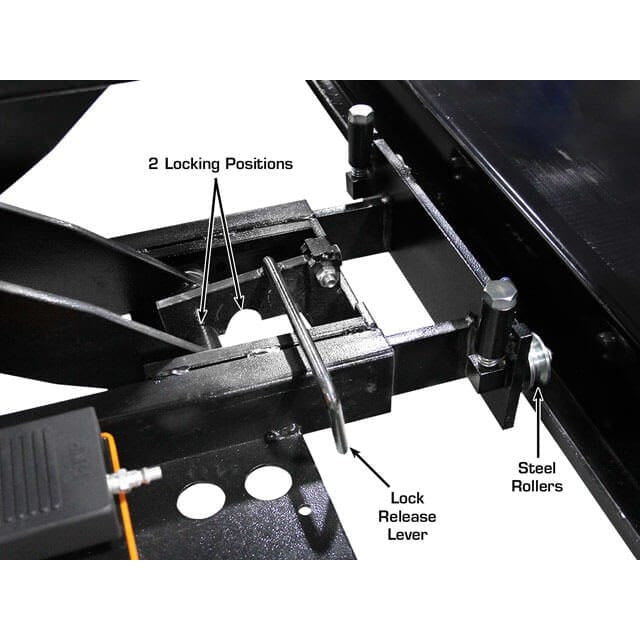

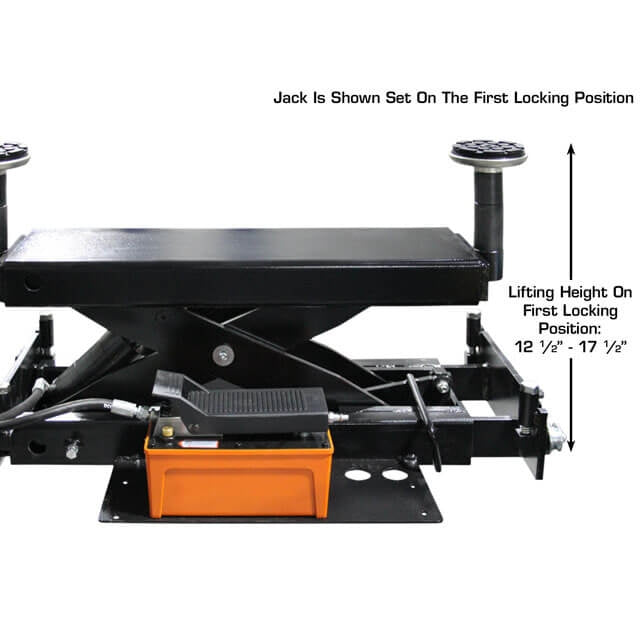

Multiple safety lock positions for secure operation
-
Compact, low-profile design
-

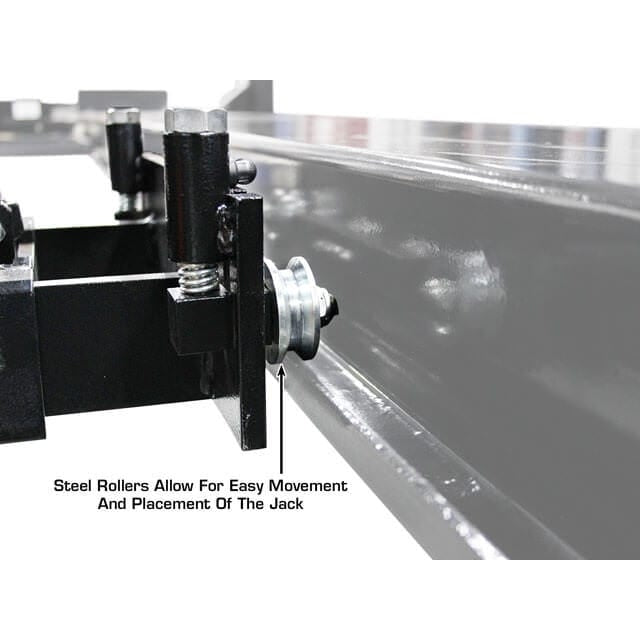

Smooth rolling action for easy positioning
-
Scissor mechanism for level, stable lifting
-
Powder-coated finish for durability
-
Includes 4-piece truck adapter set
-
Warranty: 1-year parts only
Specifications

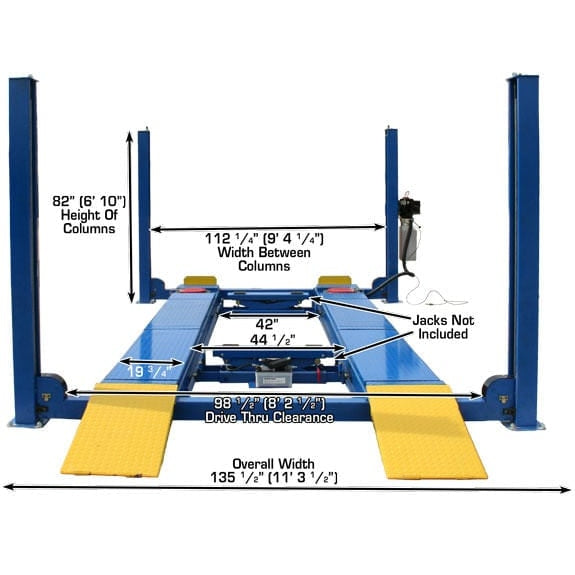

Atlas® 412A
| Specification | Measurement |
|---|---|
| Capacity | 12,000 lbs |
| Lifting Height | 77¾" (6' 5¾") |

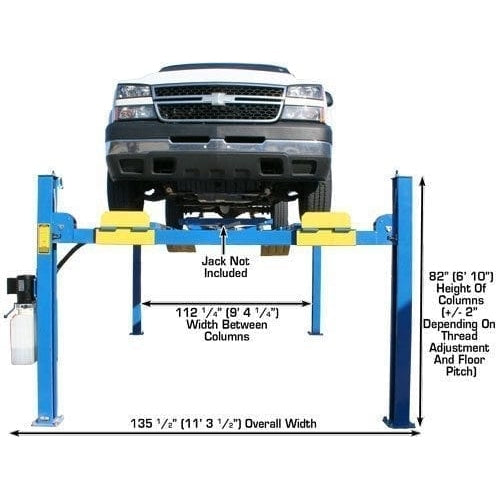

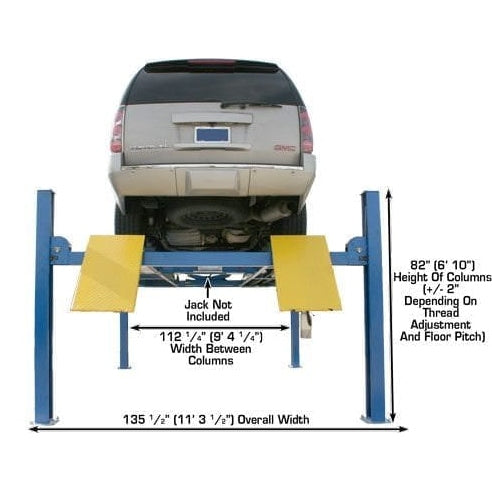

| Overall Width (w/o motor) | 126¼" (10' 6¼") |
| Overall Width (w/ motor) | 135¼" (11' 3¼") |

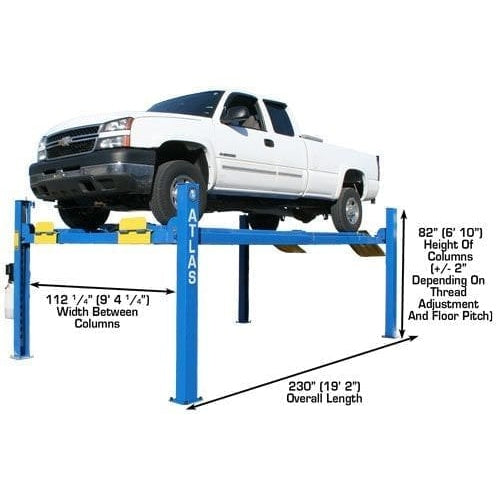

| Overall Length (w/ approach ramps) | 236½" (19' 8½") |
| Length Between Columns | 183¼" (15' 3¼") |
| Runway Length | 194½" (16' 2½") |
| Runway Width | 20" |
| Runway Thickness | 7½" |
| Width Between Runways | 43¼" (with rail: 39¾") |
| Outside Runway to Outside Runway | 83¼" (6' 11¼") |
| Clearance Under Runways | 70¼" (5' 10¼") |
| Clearance Between Columns | 112⅝" (9' 4⅝") |
| Height of Columns | 89¾" (7' 5¾") |

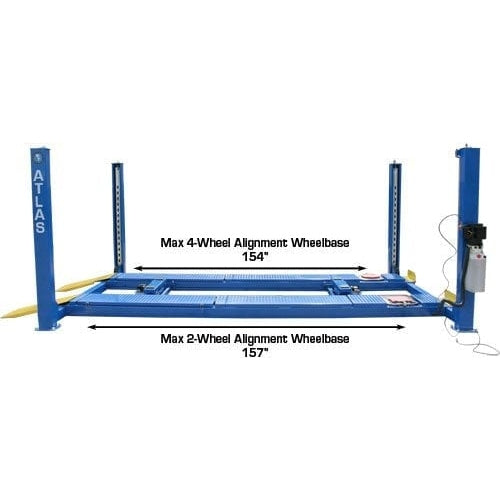

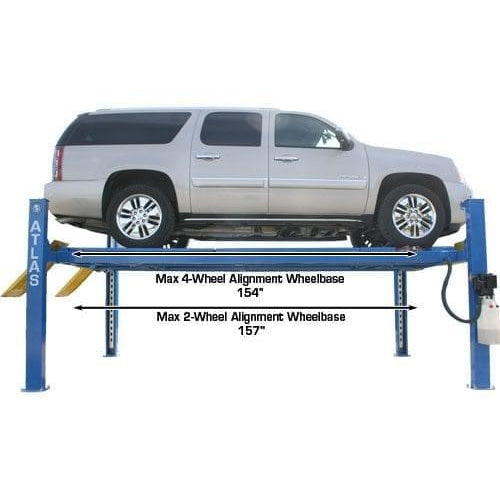

| Maximum Wheelbase | 185" (15' 5") |
| Drive-Through Width | 98" (8' 2") |
| Air Requirement | 85–115 PSI (external air supply required) |
| Motor / Electrical | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32 / AW46 (not included) |
| Shipping Weight | 2,900 lbs |
| Concrete Requirement | Minimum 6" thick, 3,000 PSI rating |
Atlas® RJ6
| Specification | Measurement |
|---|---|
| Capacity | 6,000 lbs |
| Maximum Width | 55" (4' 7") |
| Minimum Width | 35" (2' 11") |
| Runway Compatibility | 32" – 52" |

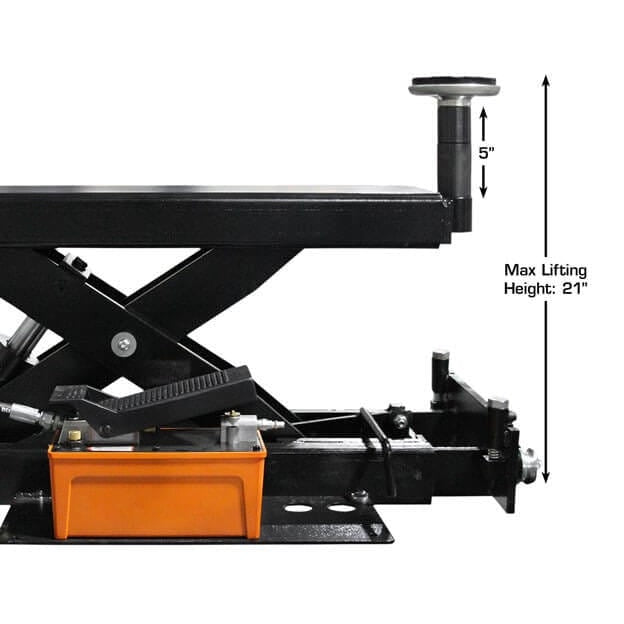

| Maximum Lifting Height (with adapters) | 21" (1' 9") |
| Air Requirement | 70–115 PSI |

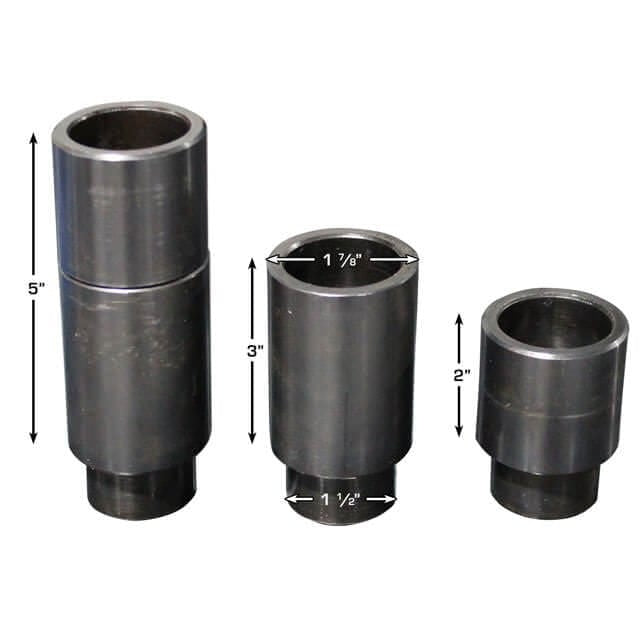

| Adapter Heights | (2) each – 2", 3" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Shipping Weight | 350 lbs |
Documents
Atlas® 412A Cylinder Bleeding Procedure (Do this immediately after installation)
