Description
The Atlas® 414 is a 14,000 lb. capacity heavy-duty four-post lift engineered to commercial-grade standards for professional automotive service environments. Built for strength, stability, and longevity, this lift delivers years of reliable performance while incorporating premium design features typically found on higher-priced models.
Like all Atlas® equipment, the 414 is constructed with precision and rigorously tested to ensure flawless operation at full rated capacity. It has been manufactured to the same exacting standards for years, earning a reputation for dependability in both shop and fleet service applications.

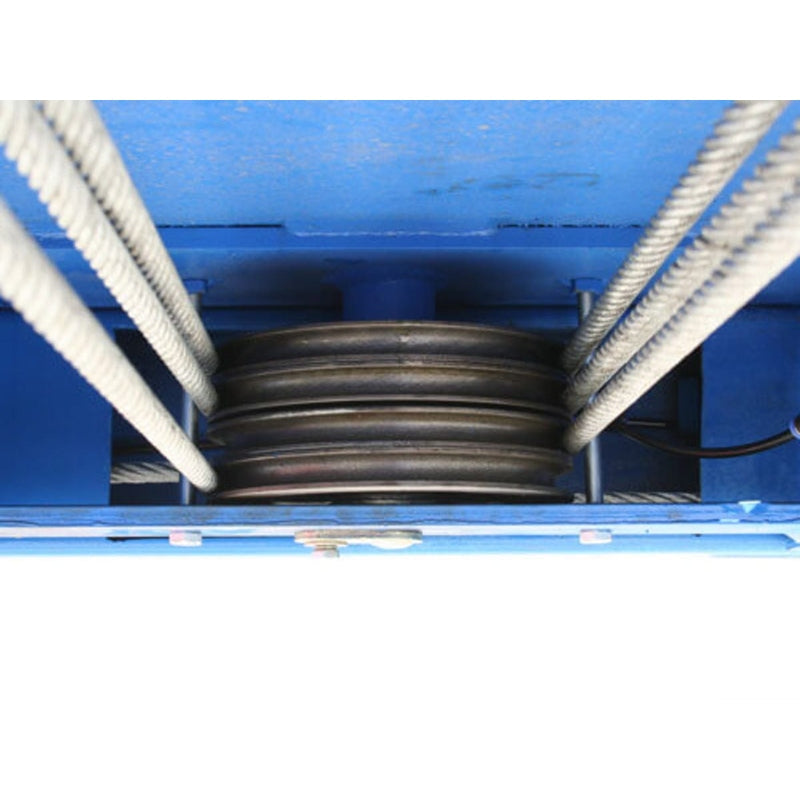

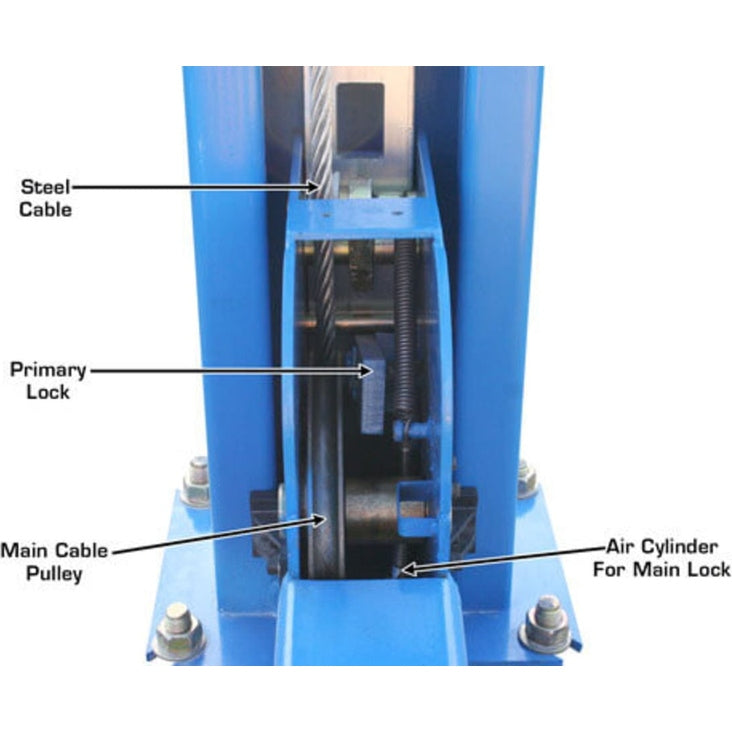

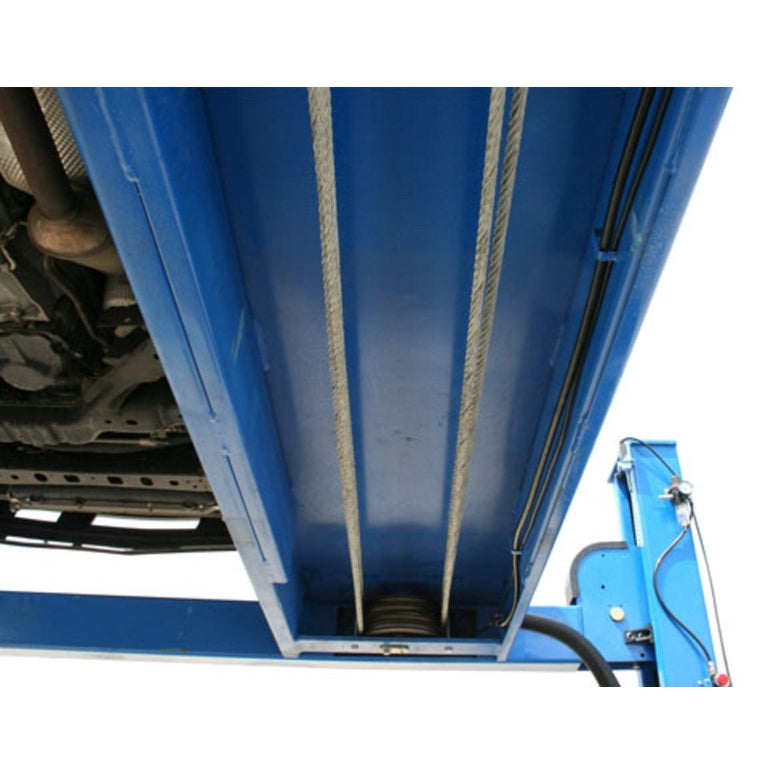

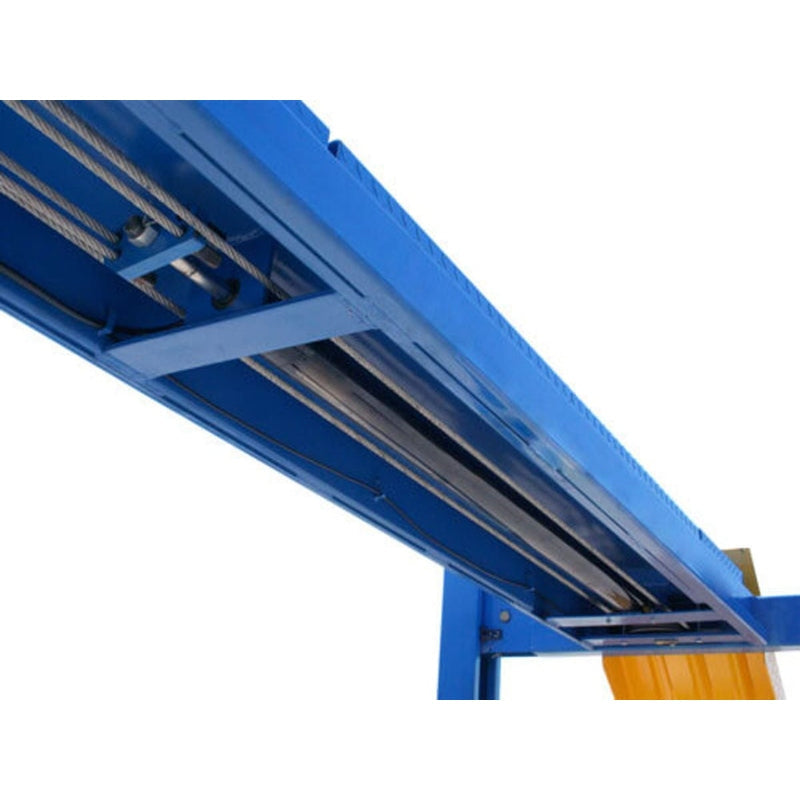

The lift operates via a high-strength cable system paired with an under-runway oversized hydraulic cylinder, powered by a 220-volt, single-phase power unit for smooth, balanced lifting and lowering. Unlike older chain-driven systems with exposed hydraulic cylinders—which can be difficult to level and are prone to causing door dings—the Atlas® 414 features a safer, cleaner design that enhances both performance and operator safety.

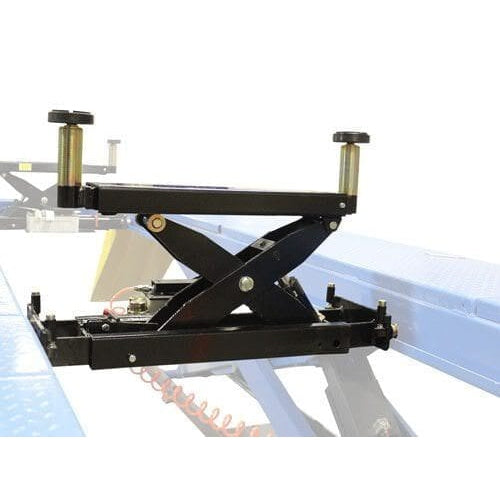

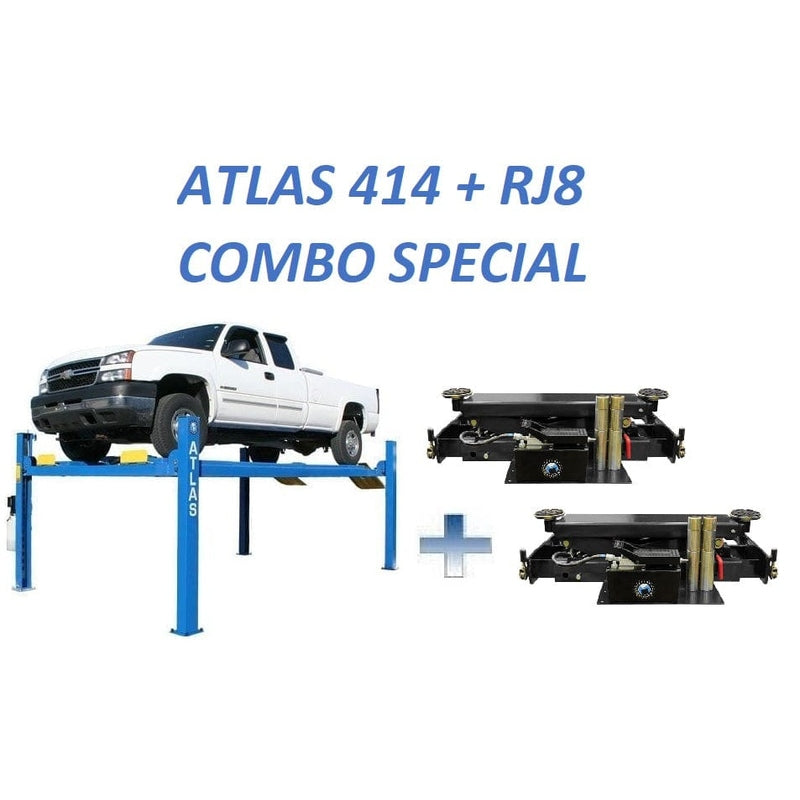

This combo package also includes two Atlas® RJ8 rolling bridge jacks, ideal for lifting vehicle wheels off the runways to perform tire, brake, and suspension work with ease.
Features
Atlas® 414 Lift
-
14,000 lb. lifting capacity
-
Heavy-duty, commercial-grade construction
-
Extra tall, extra wide, and extra long configuration
-
Diamond-plated runways for enhanced traction and durability
-

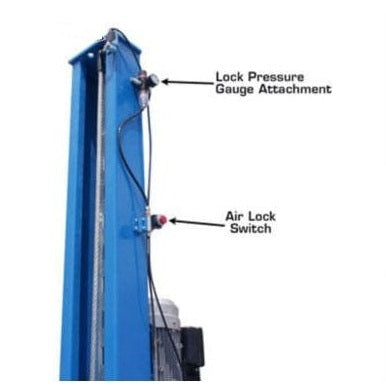

Air-operated single-point lock release (external air supply required)
-

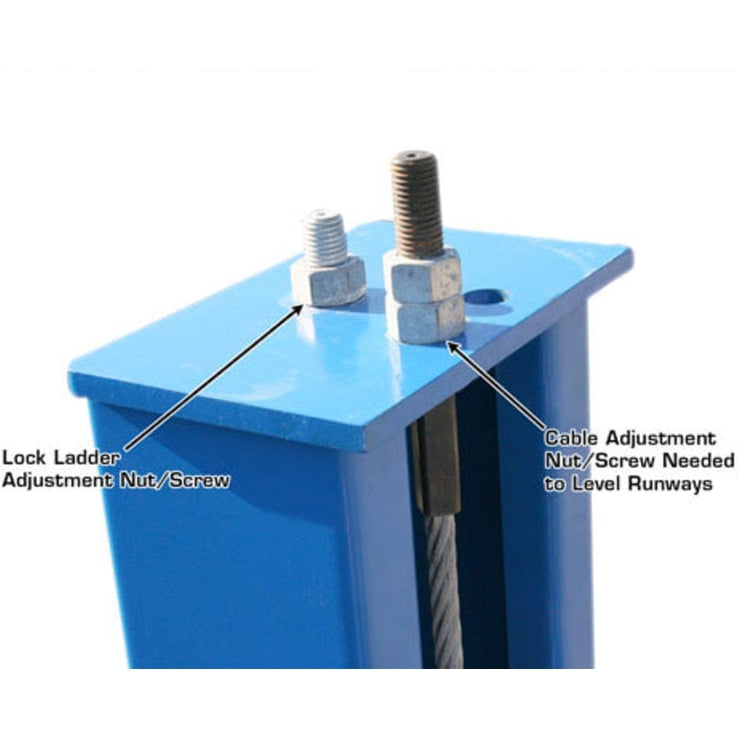

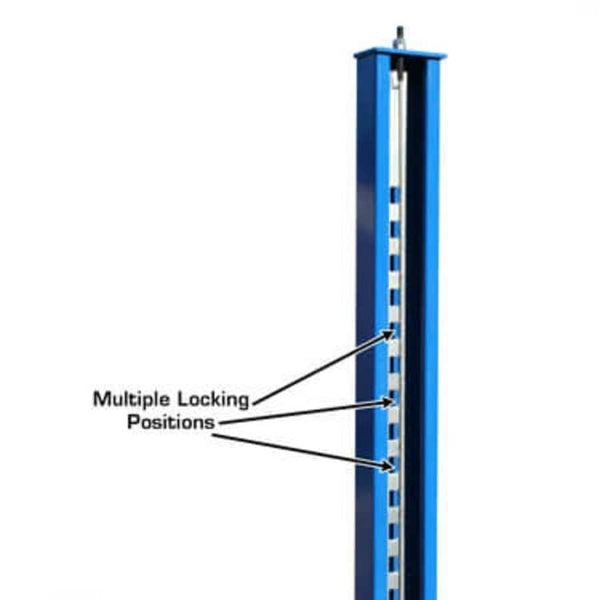

Lock-ladder design with double-lock safety system
-
Durable powder-coated finish for corrosion resistance
-

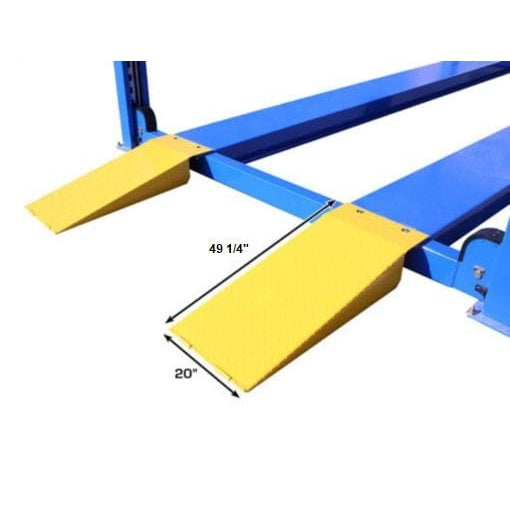

Includes steel approach ramps
-
Optional accessories: drive-off ramps and runway extensions (sold separately)
-

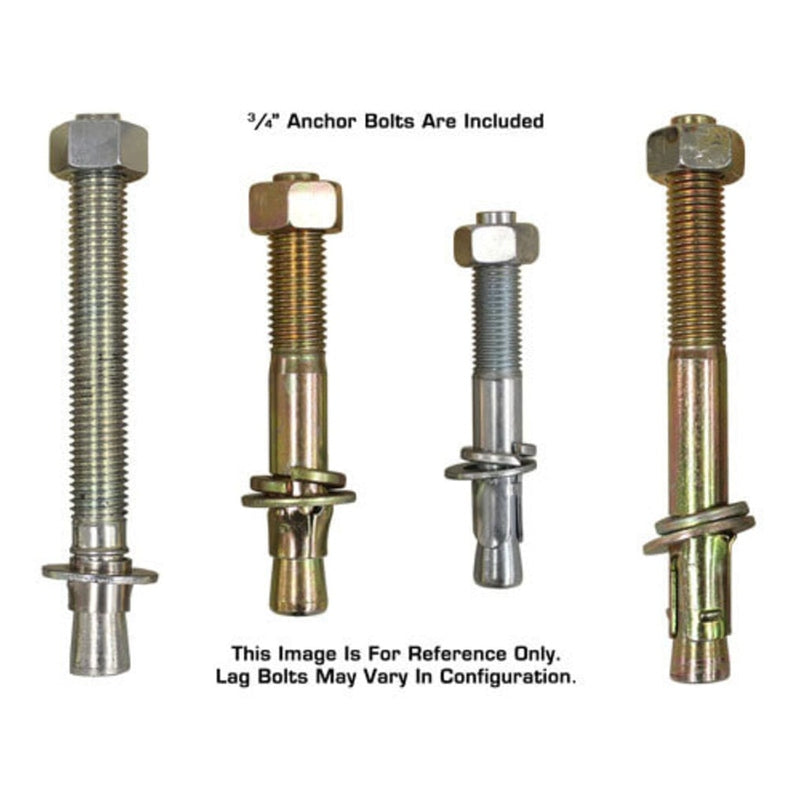

Mounting hardware included
-
220V / single-phase electric operation (30-amp breaker required)
-
Shipping weight: 3,100 lbs
-
Warranty: 5-year structural / 2-year hydraulic (parts only)

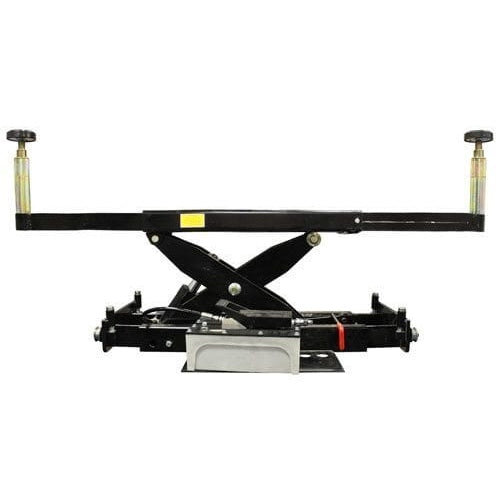

Atlas® RJ8 Rolling Bridge Jack
-
8,000 lb. lifting capacity
-

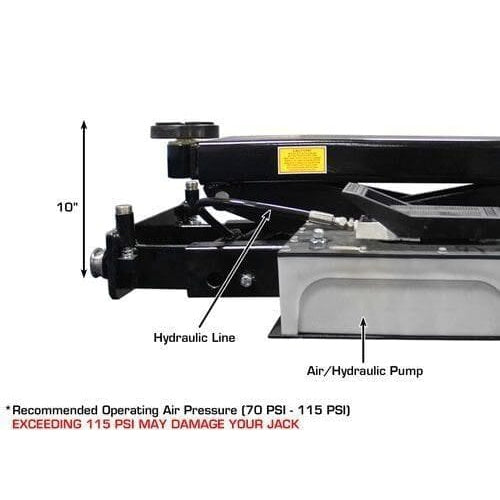

Air/hydraulic operation (external air supply required)
-

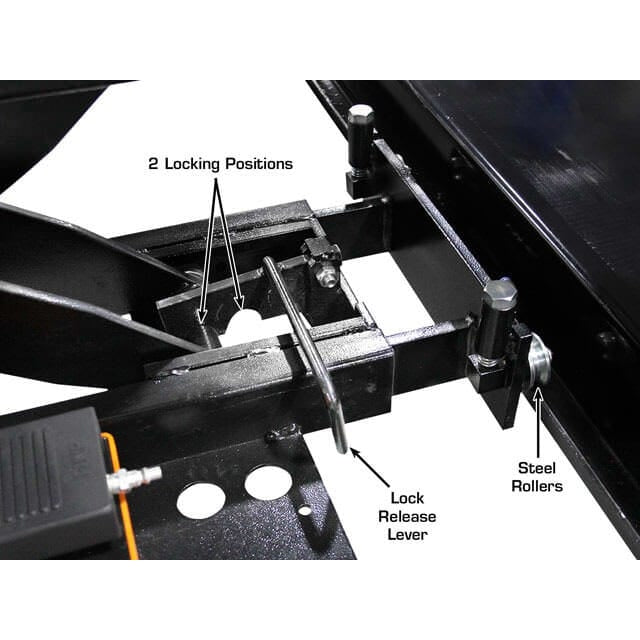

Multiple safety lock positions
-
Compact, low-profile design for versatility
-

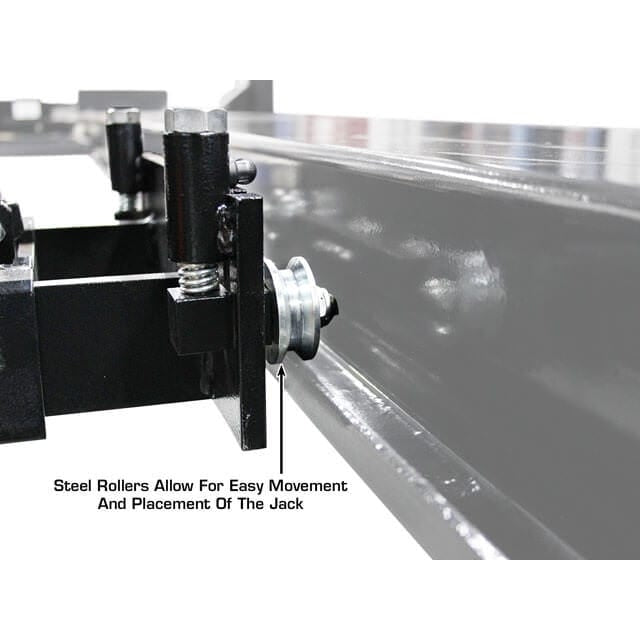

Smooth rolling action for easy positioning
-
Scissor-style lifting mechanism for level, stable raising
-
Powder-coated finish for added durability
-

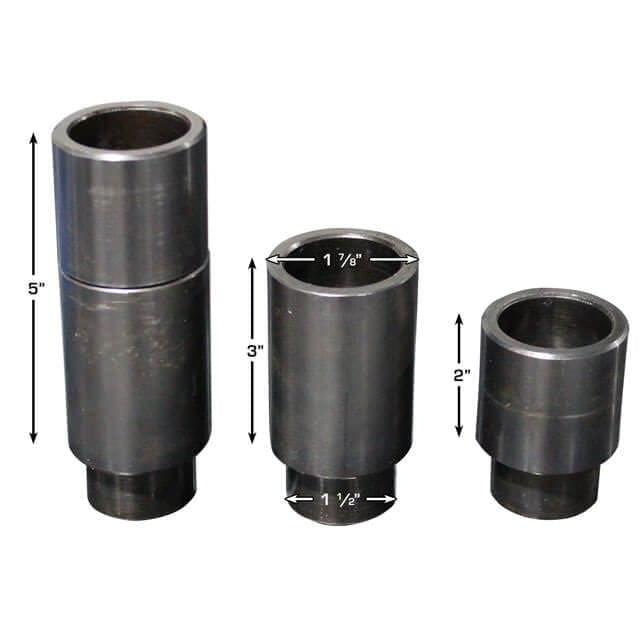

Includes 4-piece truck adapter set
-
Warranty: 1-year parts only
Specifications

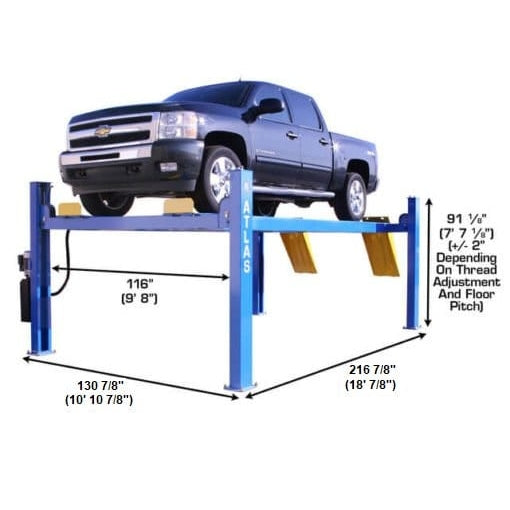

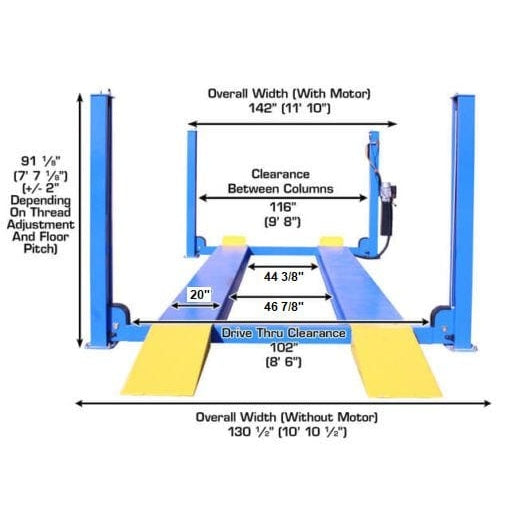

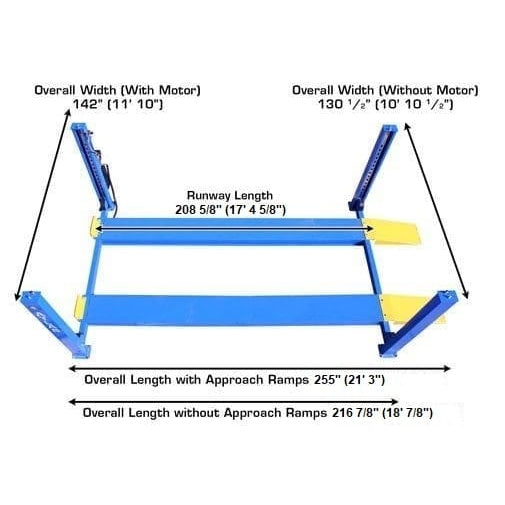

Atlas® 414
| Specification | Measurement |
|---|---|
| Capacity | 14,000 lbs |

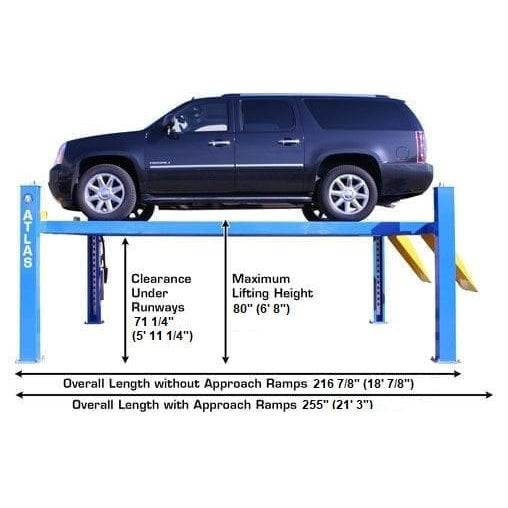

| Lifting Height | 80" (6' 8") |

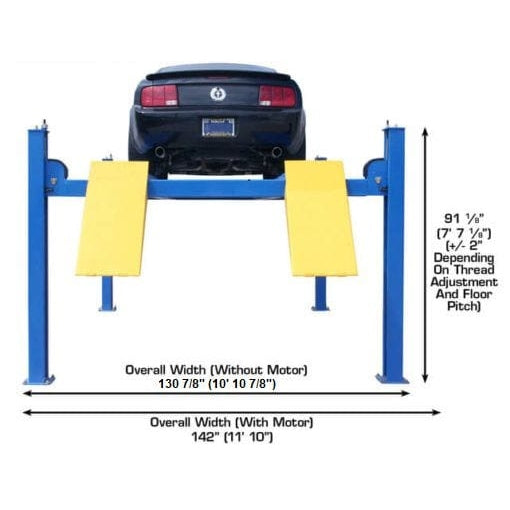

| Overall Width (w/o motor) | 130⅞" (10' 10⅞") |
| Overall Width (w/ motor) | 138⅞" (11' 6⅞") |
| Overall Length (w/ approach ramps) | 255" (21' 3") |
| Length Between Columns | 197¼" (16' 5¼") |
| Runway Length | 208⅝" (17' 4⅝") |
| Runway Width | 20" |
| Runway Thickness | 8¾" |

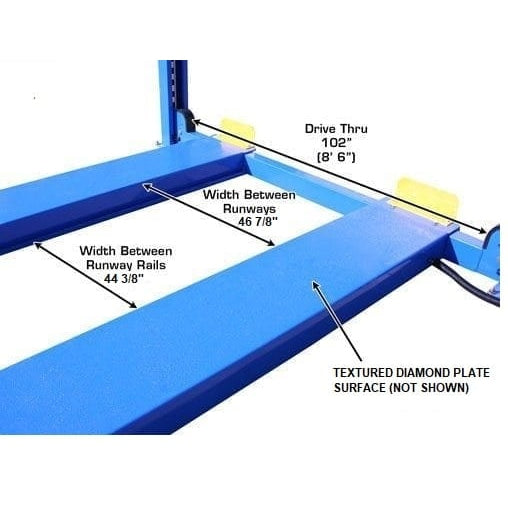

| Width Between Runways | 46⅞" (with rail: 44⅜") |
| Outside Runway to Outside Runway | 86⅞" (7' 2⅞") |

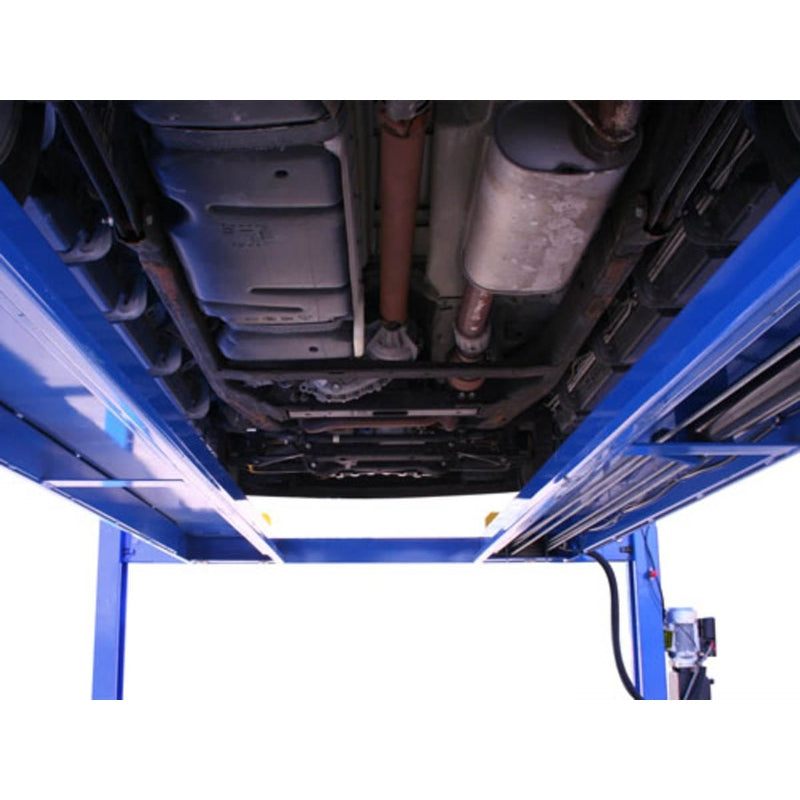

| Clearance Under Runways | 71¼" (5' 11¼") |
| Clearance Between Columns | 116" (9' 8") |
| Height of Columns | 91⅛" (7' 7⅛") |
| Maximum Wheelbase | 197" (16' 5") |
| Drive-Through Width | 102⅛" (8' 6⅛") |
| Air Requirement | 85–115 PSI (external air supply required) |
| Motor / Electrical | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32 / AW46 (not included) |

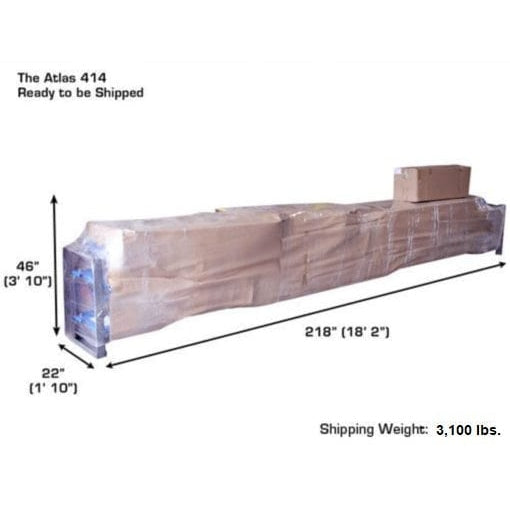

| Shipping Weight | 3,100 lbs |
| Concrete Requirement | Minimum 6" thickness, 3,000 PSI rating |

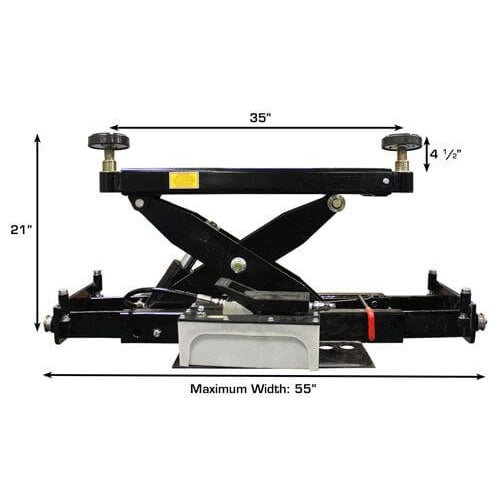

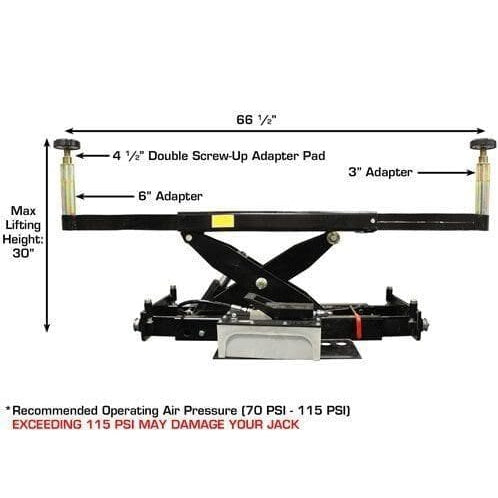

Atlas® RJ8 Rolling Bridge Jack
| Specification | Measurement |
|---|---|
| Capacity | 8,000 lbs |
| Maximum Width | 66½" (5' 6½") |
| Minimum Width | 40" (3' 4") |
| Runway Compatibility | 34½" – 55" |

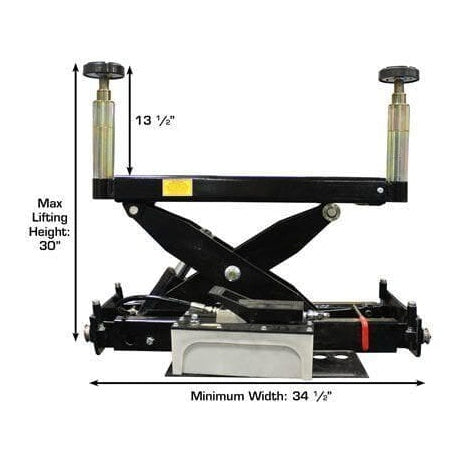

| Maximum Lifting Height (with adapters) | 30" |

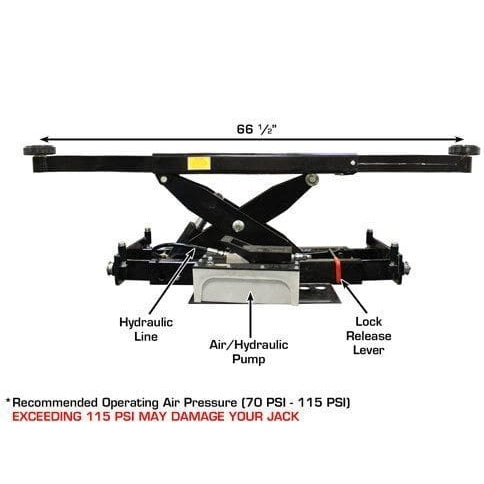

| Air Requirement | 70–115 PSI |
| Adapter Heights | (2) each – 2", 3" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Shipping Weight | 390 lbs |
