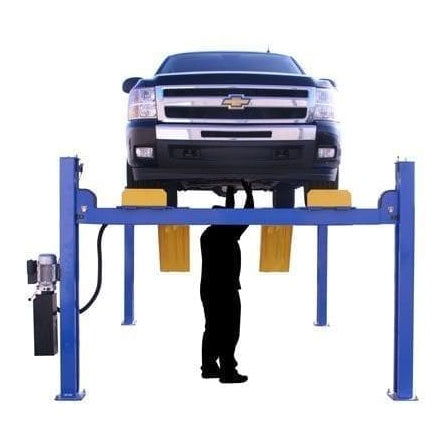

Atlas® 414 – 14,000 lb. Capacity Commercial 4-Post Lift
The Atlas® 414 is a heavy-duty, 14,000 lb. capacity four-post lift engineered to meet true commercial-grade standards. Designed for professional automotive service centers, fleet operators, and high-volume repair facilities, this lift delivers exceptional strength, reliability, and long-term durability.
Built with structural and cosmetic refinements typically found in lifts costing thousands more, the Atlas® 414 has been manufactured to the same exacting specifications for many years, ensuring consistent quality and performance. Every lift is rigorously tested to guarantee smooth, precise operation at full rated capacity.

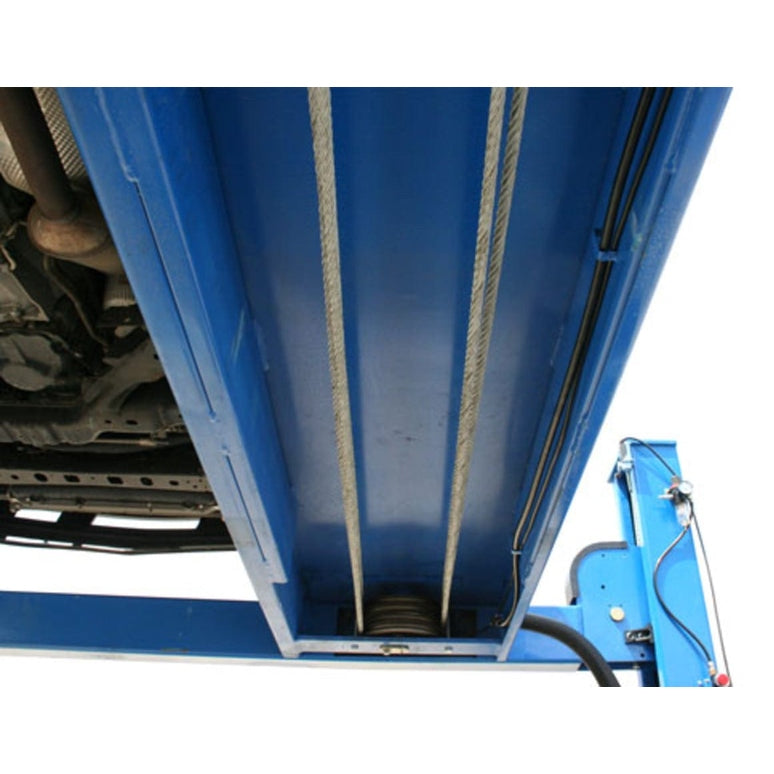

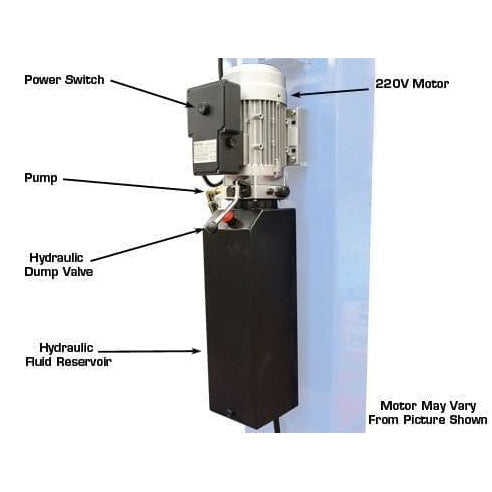

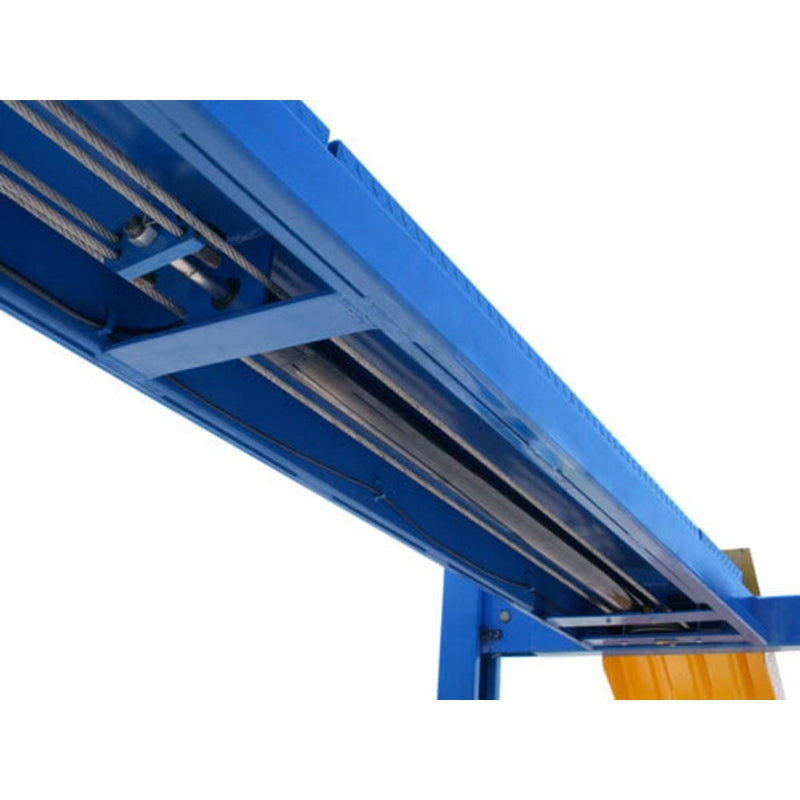

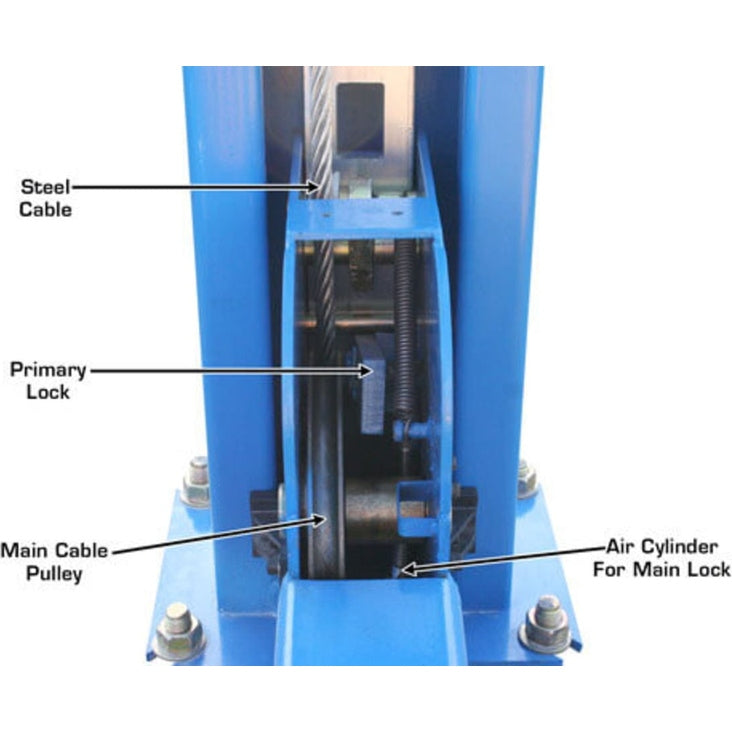

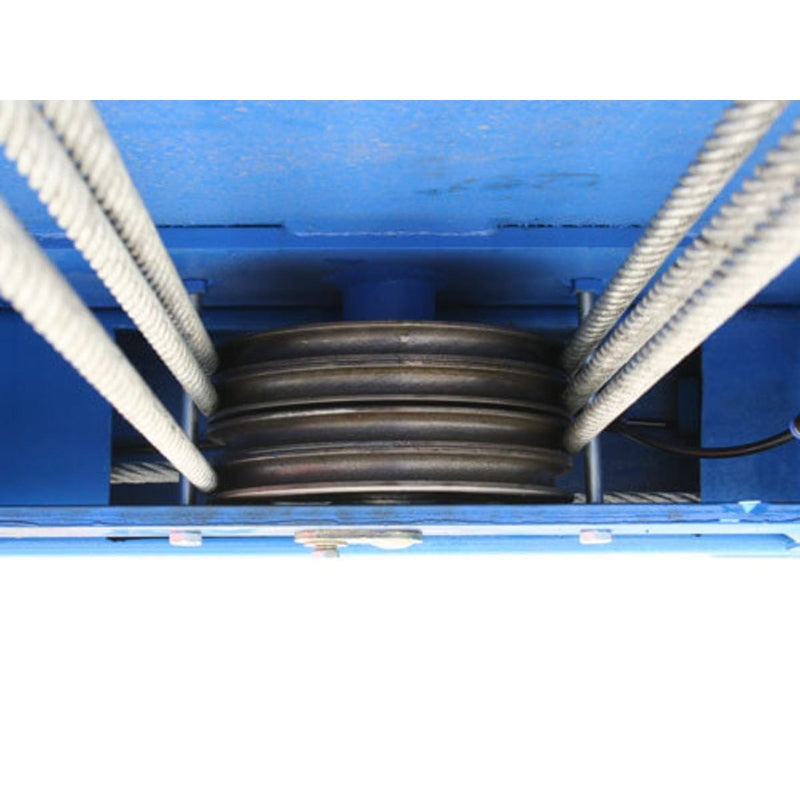

The 414 operates on a high-strength cable system paired with a large hydraulic cylinder mounted beneath the runways, powered by a 220V single-phase power unit. This design provides steady, level lifting and reduces maintenance demands. Unlike older chain-driven systems with exposed hydraulic cylinders — which are harder to level and can cause vehicle door damage — the Atlas® 414 offers safer operation, smoother motion, and greater reliability.
For added functionality, the Atlas® 414 includes integrated runway tracks that accommodate rolling bridge jacks (recommended: Atlas® RJ8000BK, sold separately), allowing technicians to perform efficient wheel-off services such as brake, suspension, and tire work.
With its combination of commercial strength, precision engineering, and proven dependability, the Atlas® 414 is an outstanding choice for professional shops seeking maximum lifting capacity and long-term value.
Features
-
14,000 lb. Lifting Capacity
-
Heavy-Duty, Commercial-Grade Construction for professional automotive use
-
Extra Tall, Extra Wide, and Extra Long Design accommodates a broad range of vehicles
-
Diamond-Plated Runways for superior traction and durability
-

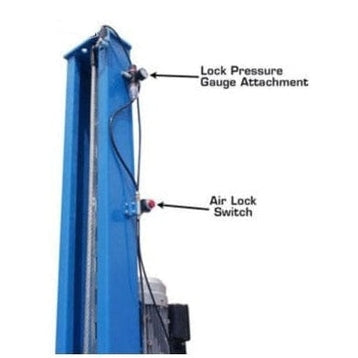

Air-Operated Single-Point Lock Release (requires external air supply) for easy, synchronized operation
-

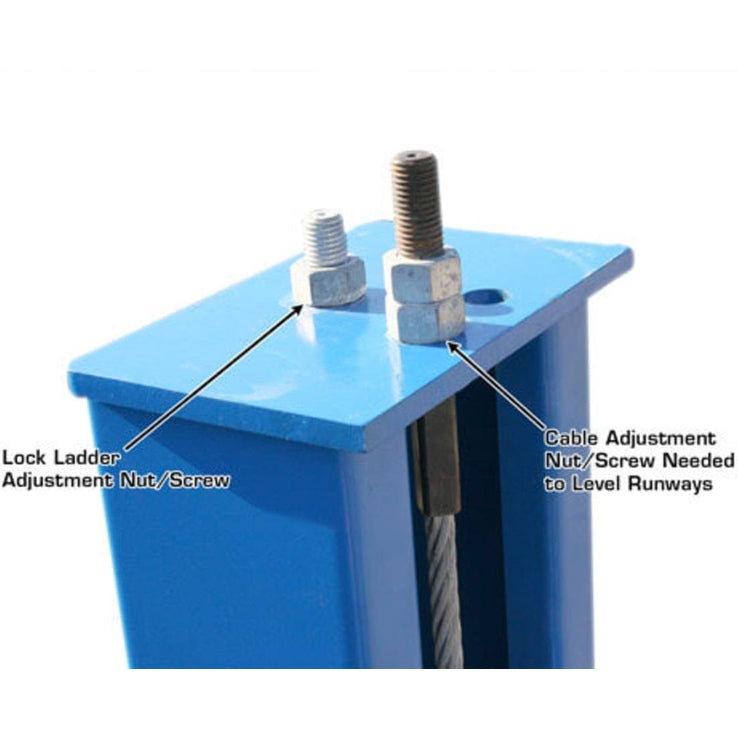

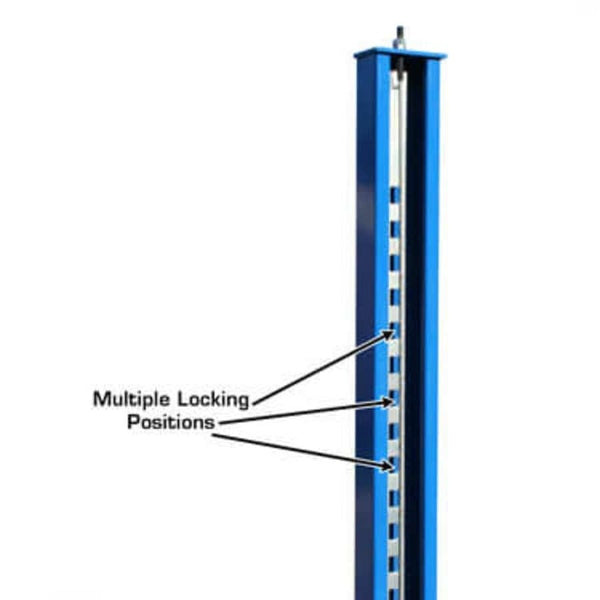

Lock Ladder Design for precise leveling and secure positioning
-
Dual Lock Safety System provides added security during lift operation
-
Durable Powder-Coated Finish for corrosion resistance and long-lasting appearance
-

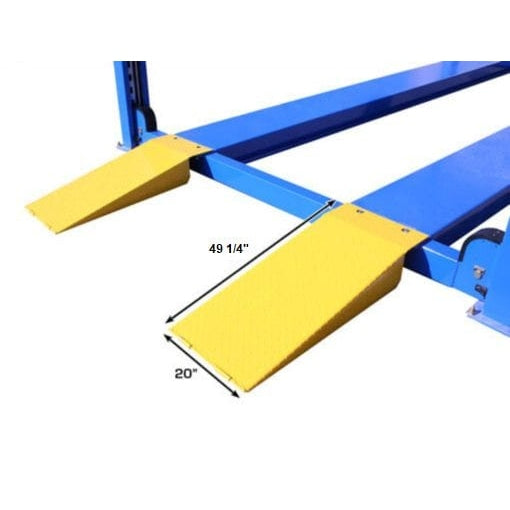

Steel Approach Ramps (Included) for smooth vehicle access
-
Optional Drive-Off Ramps available (sold separately)
-
Optional Runway Extensions available (sold separately)
-

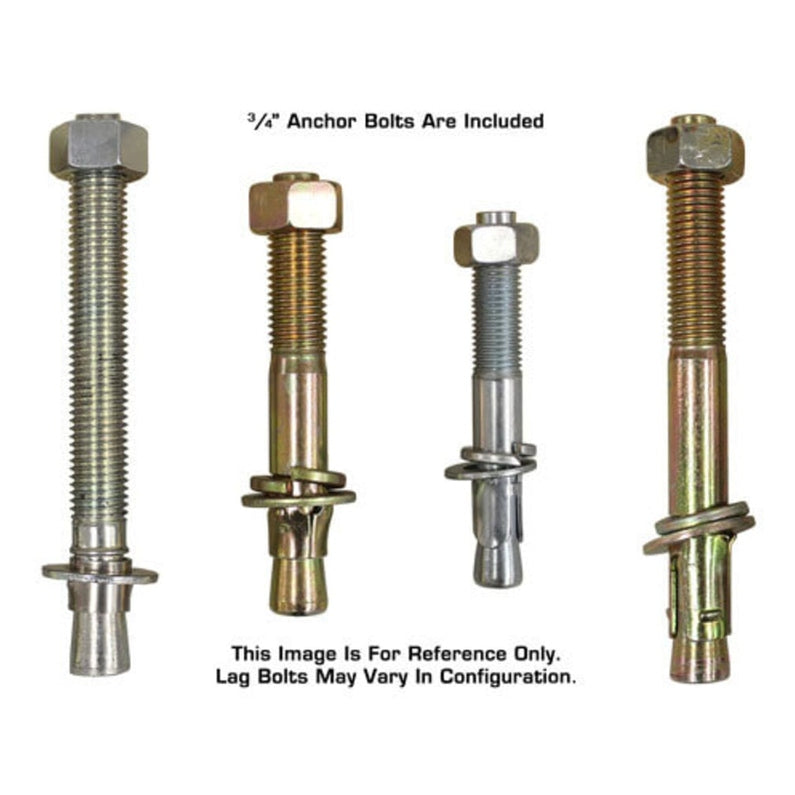

Mounting Hardware (Included) for stable installation
-
220V / 1-Phase Electric Operation (requires 30A breaker)
-

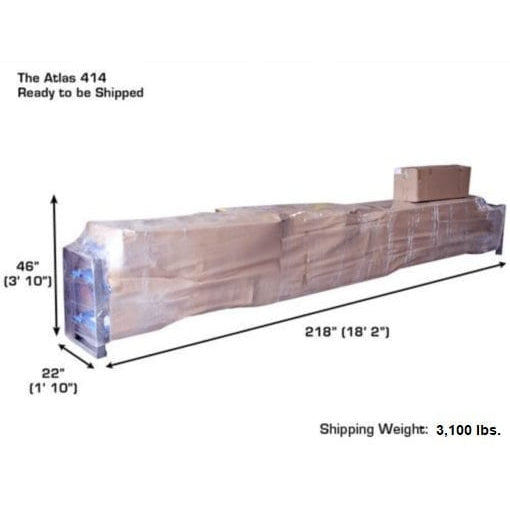

Shipping Weight: 3,100 lb.
-
Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)
Specifications
| Specification | Measurement |
|---|---|
| Lifting Capacity | 14,000 lb. |
| Lifting Height | 80" (6' 8") |

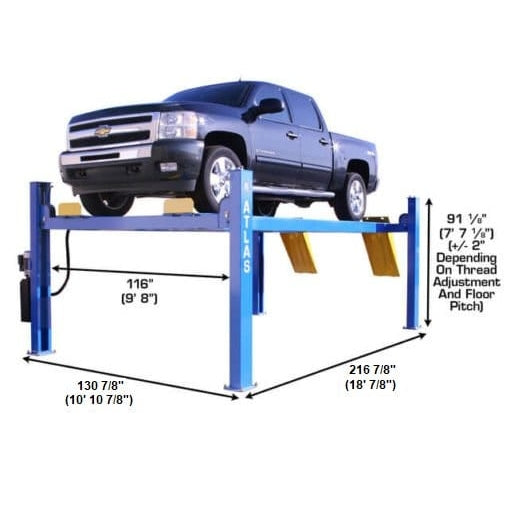

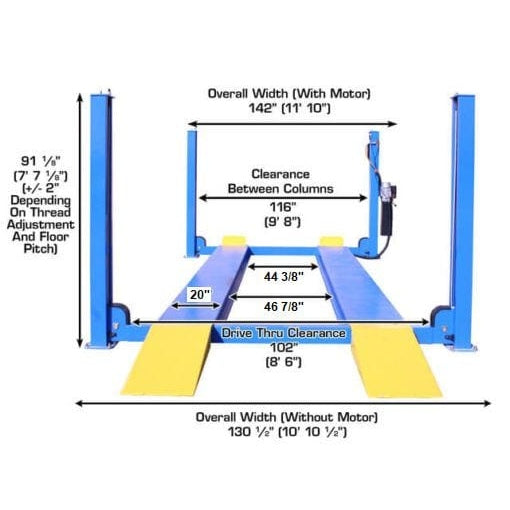

| Overall Width (w/o Motor) | 130 ⅞" (10' 10 ⅞") |
| Overall Width (w/ Motor) | 138 ⅞" (11' 6 ⅞") |
| Overall Length (w/ Approach Ramp) | 255" (21' 3") |
| Length Between Columns | 197 ¼" (16' 5 ¼") |
| Runway Length | 208 ⅝" (17' 4 ⅝") |
| Runway Width | 20" |
| Runway Thickness | 8 ¾" |

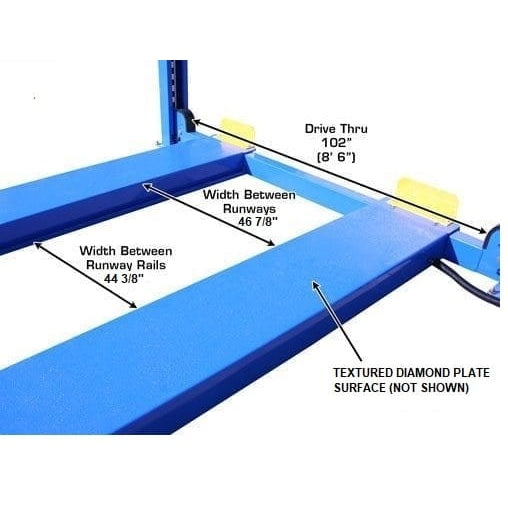

| Width Between Runways | 46 ⅞" (44 ⅜" with rail) |
| Outside Runway to Outside Runway | 86 ⅞" (7' 2 ⅞") |

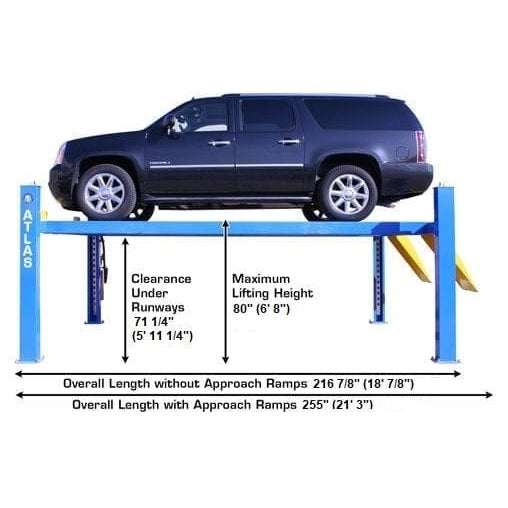

| Clearance Under Runways | 71 ¼" (5' 11 ¼") |
| Clearance Between Columns | 116" (9' 8") |
| Height of Columns | 91 ⅛" (7' 7 ⅛") |
| Maximum Wheelbase | 197" (16' 5") |
| Drive-Through Width | 102 ⅛" (8' 6 ⅛") |
| Air Requirement | 85–115 PSI (external air supply required) |
| Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 3,100 lb. |
| Concrete Requirement | Minimum 6" thick slab rated at 3,000 PSI |
Documents
Atlas ATTD-414 Manual
Atlas 414 Cylinder Bleeding Procedure (Do this immediately after installation)
