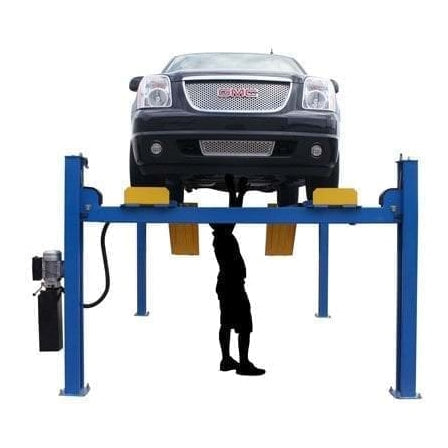

Atlas® 414A – 14,000 lb. Capacity Commercial-Grade Alignment Lift

The Atlas® 414A is a heavy-duty, 14,000 lb. capacity four-post alignment lift built to true commercial-grade standards for professional service facilities and alignment shops. Designed for long-term reliability and precision, this lift delivers the same robust engineering found in models costing significantly more. Each unit is thoroughly tested to ensure flawless operation at full rated capacity.

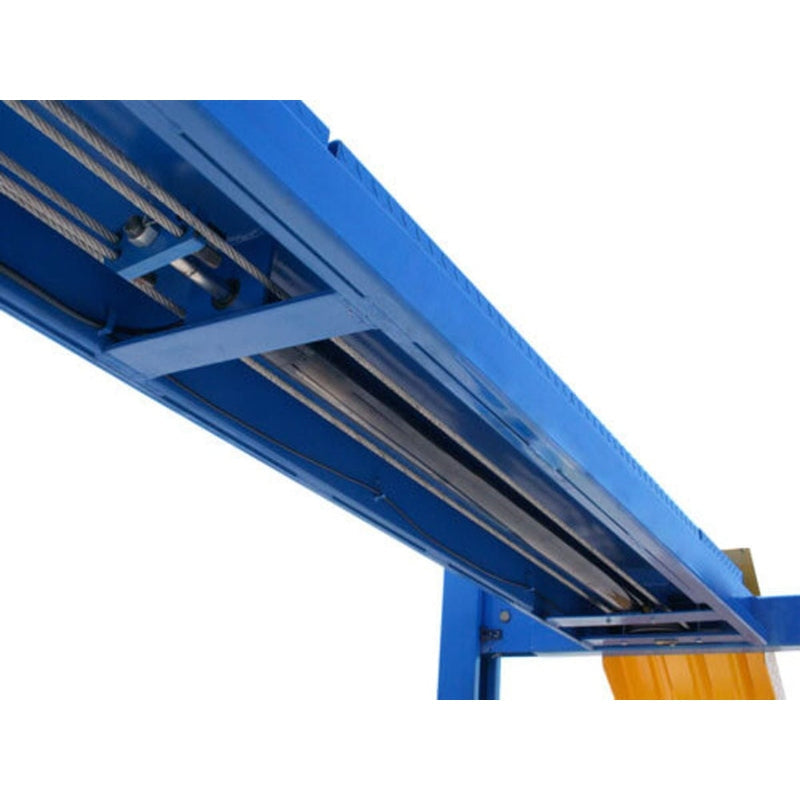

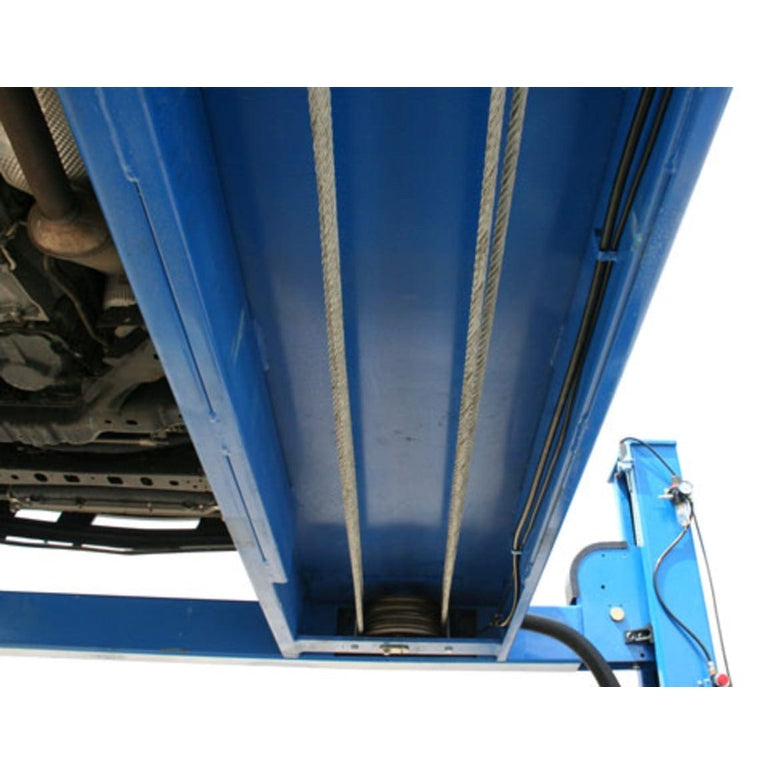

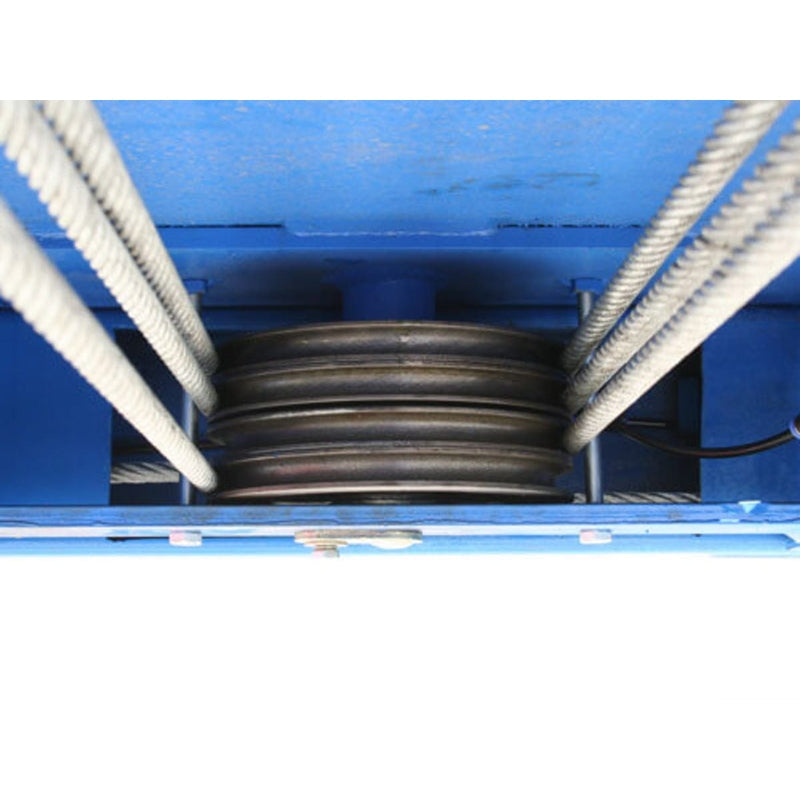

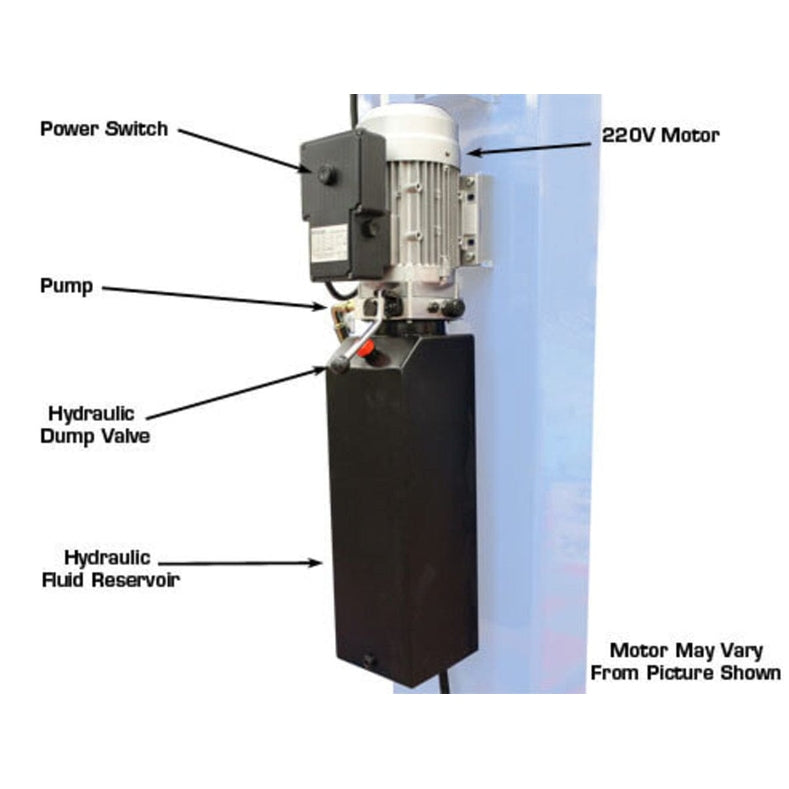

The 414A utilizes a high-strength cable system paired with an oversized hydraulic cylinder located beneath the runways, powered by a 220V single-phase power unit. This configuration provides smooth, controlled lifting action and minimizes maintenance requirements. Unlike older chain-driven systems with exposed hydraulic cylinders — which can be difficult to level and may cause vehicle door damage — the Atlas® 414A ensures clean operation, precise leveling, and safer performance.

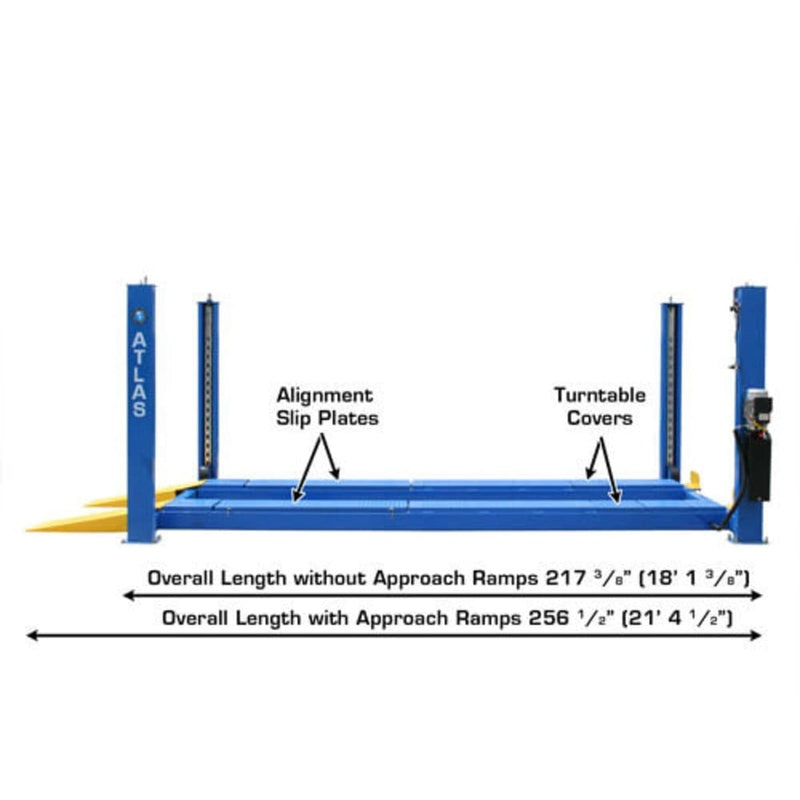

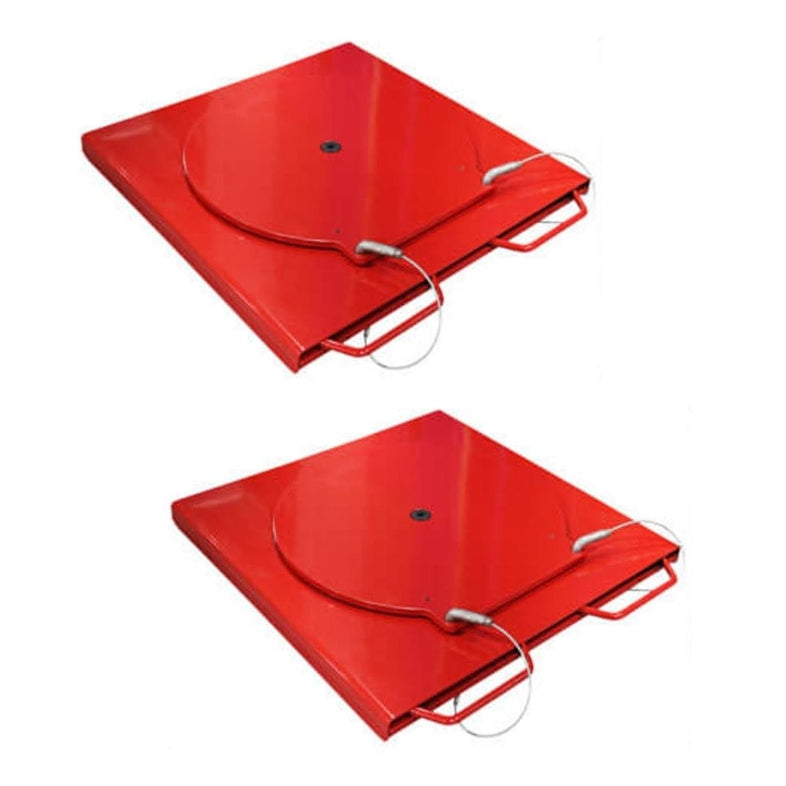

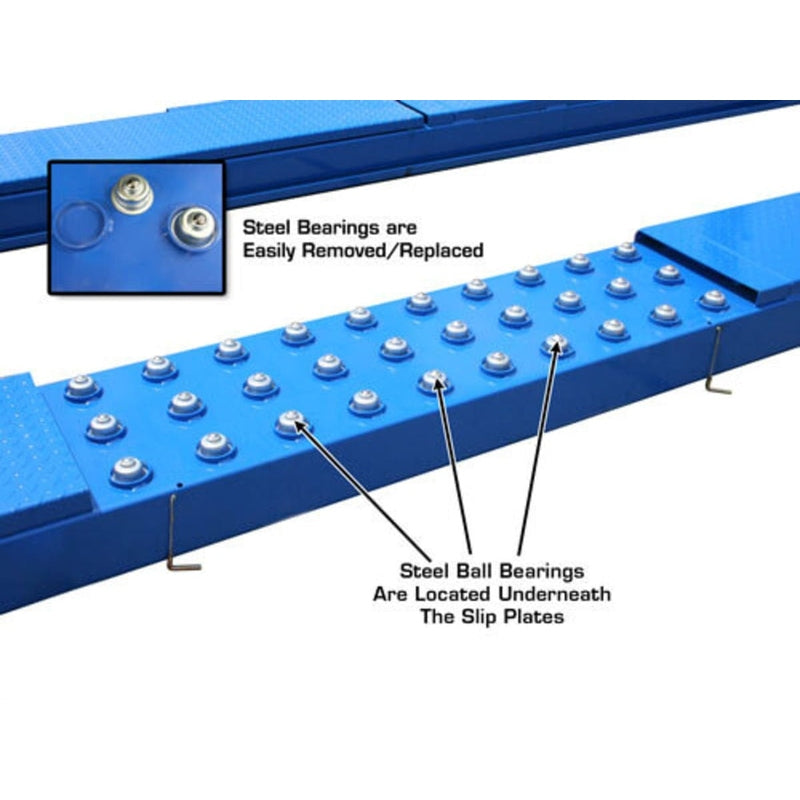

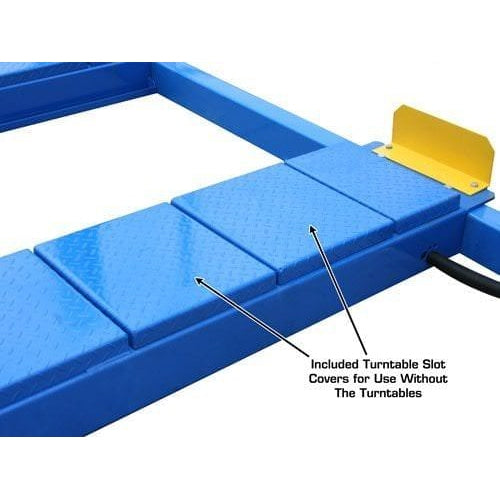

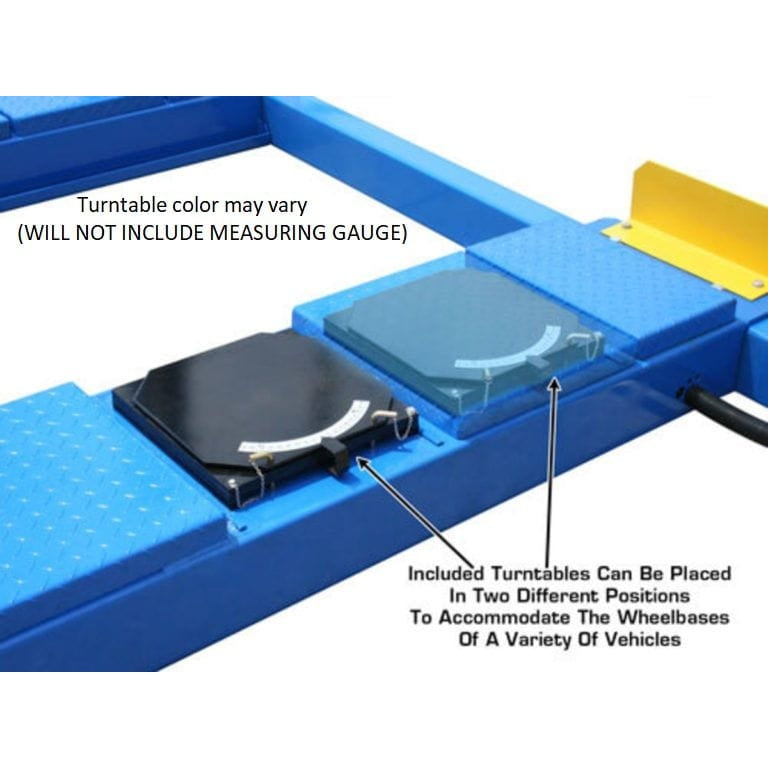

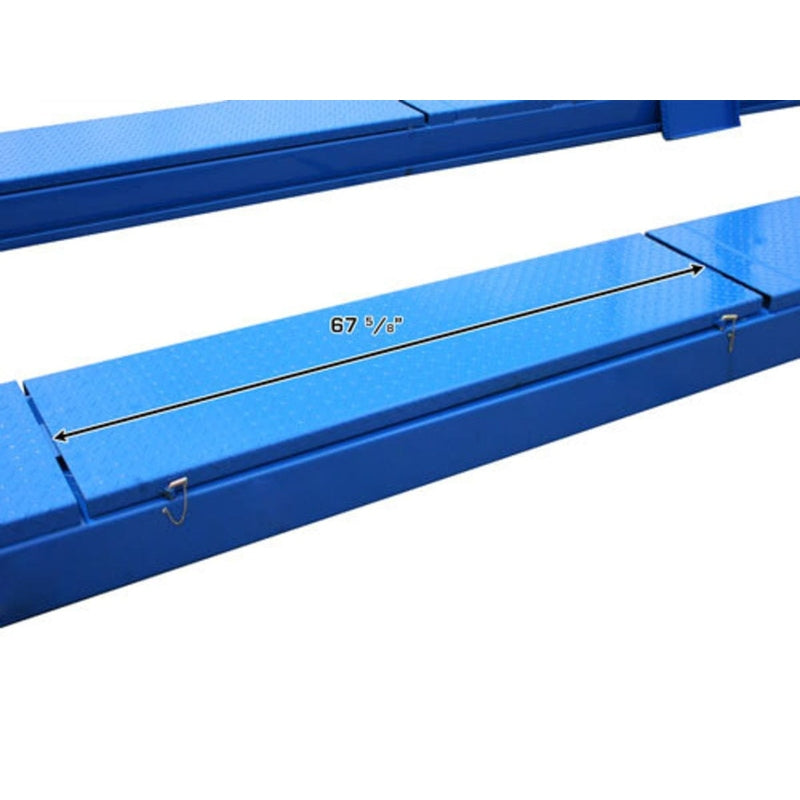

In addition to the heavy-duty features of the standard Atlas® 414, this alignment model comes equipped with built-in slip plates and precision alignment turntables. The slip plates are factory-leveled to match the turntables, ensuring maximum alignment accuracy. The turntables can be adjusted to multiple positions on the runways to accommodate a wide range of wheelbases, while steel cover plates are included to convert the lift for general service use when the turntables are not in operation.

The Atlas® 414A also features integrated runway tracks to support rolling bridge jacks (recommended: Atlas® RJ8000BK, sold separately), providing the ability to perform wheel-off services such as brake, tire, and suspension work.

Built for strength, accuracy, and versatility, the Atlas® 414A is the ideal choice for professional alignment shops and commercial garages that require dependable performance and premium build quality.

Key Features

  • 14,000 lb. Lifting Capacity

  • Heavy-Duty, Commercial-Grade Design

  • Extra Tall, Extra Wide, and Extra Long Configuration

  • Built-In Slip Plates and Alignment Turntables (Included)

  • Adjustable Turntable Positions to fit various wheelbase lengths

  • Steel Runway Covers (Included) for non-alignment use

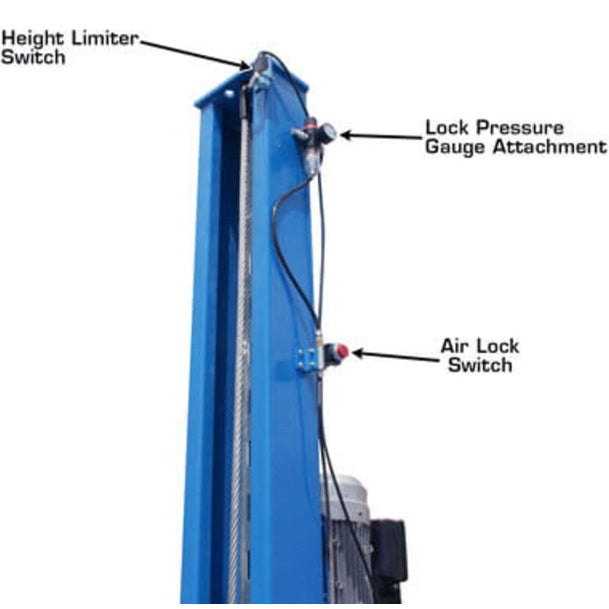

  • Air-Operated Single-Point Lock Release (requires external air supply)

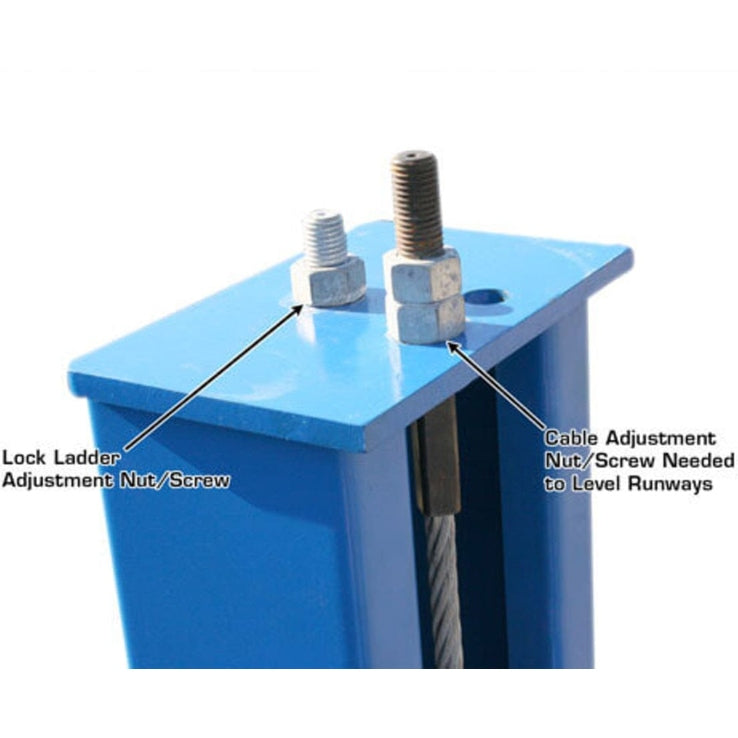

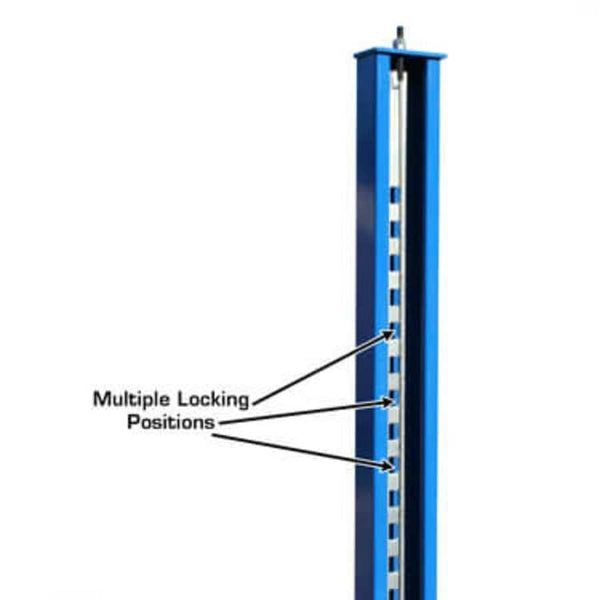

  • Lock Ladder Design for precise leveling

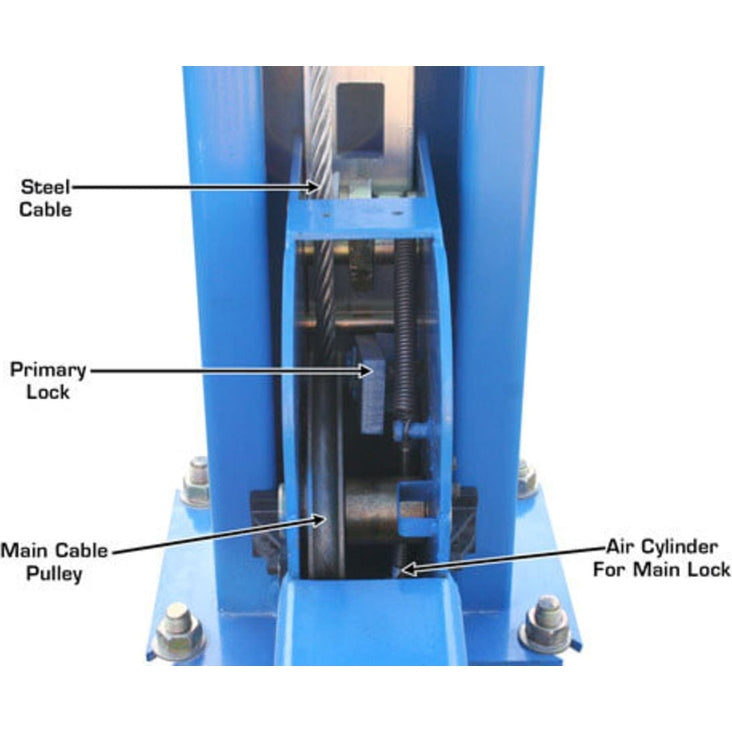

  • Dual Lock Safety System for enhanced safety

  • Durable Powder-Coated Finish

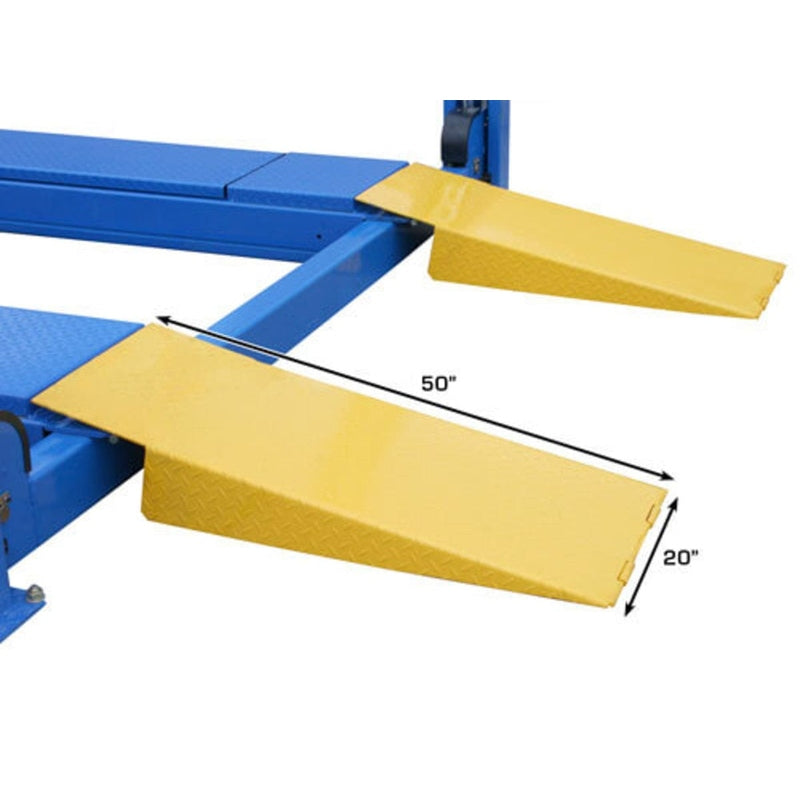

  • Steel Approach Ramps (Included)

  • Optional Drive-Off Ramps and Runway Extensions available (sold separately)

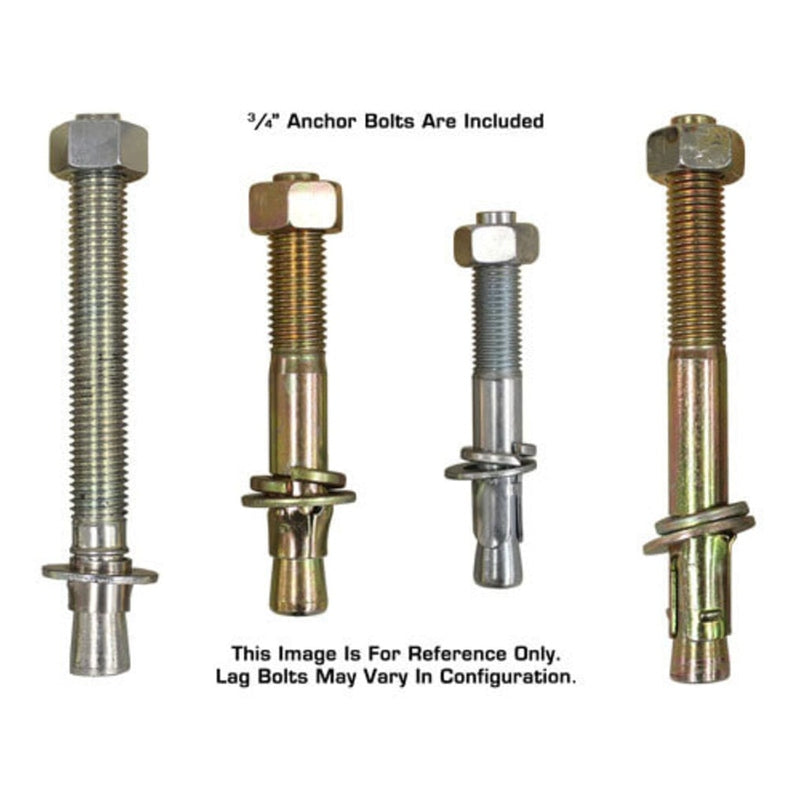

  • Mounting Hardware (Included)

  • 220V / Single-Phase Electric Operation (requires 30A breaker)

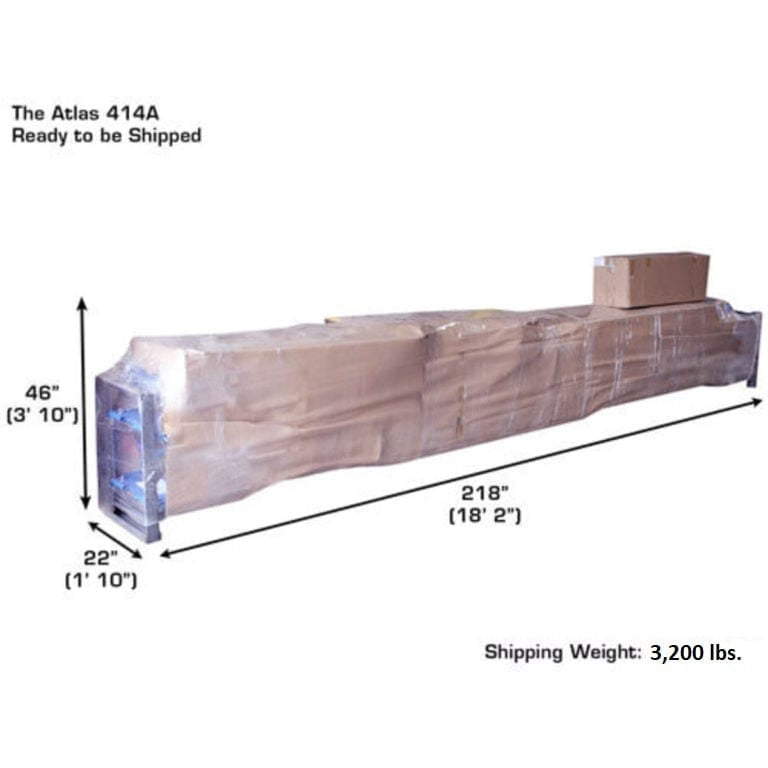

  • Shipping Weight: 3,200 lb.

  • Warranty: 5-Year Structural | 2-Year Hydraulic (Parts Only)

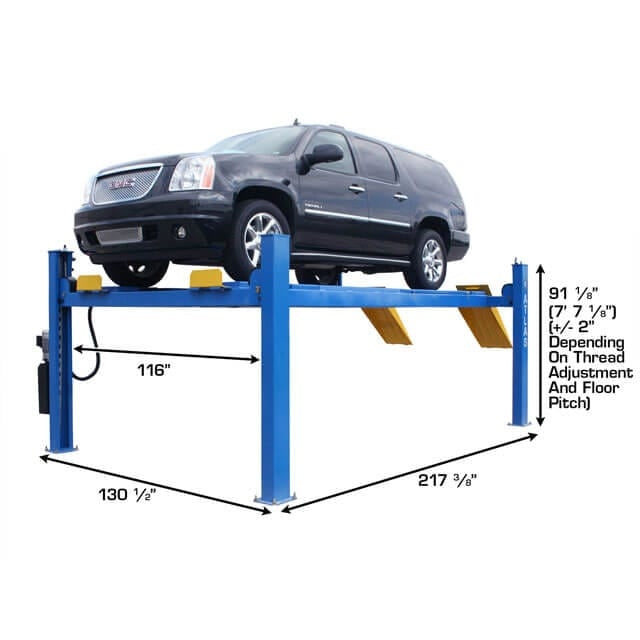

Specifications

Specification Measurement
Lifting Capacity 14,000 lb.
Lifting Height 80" (6' 8")

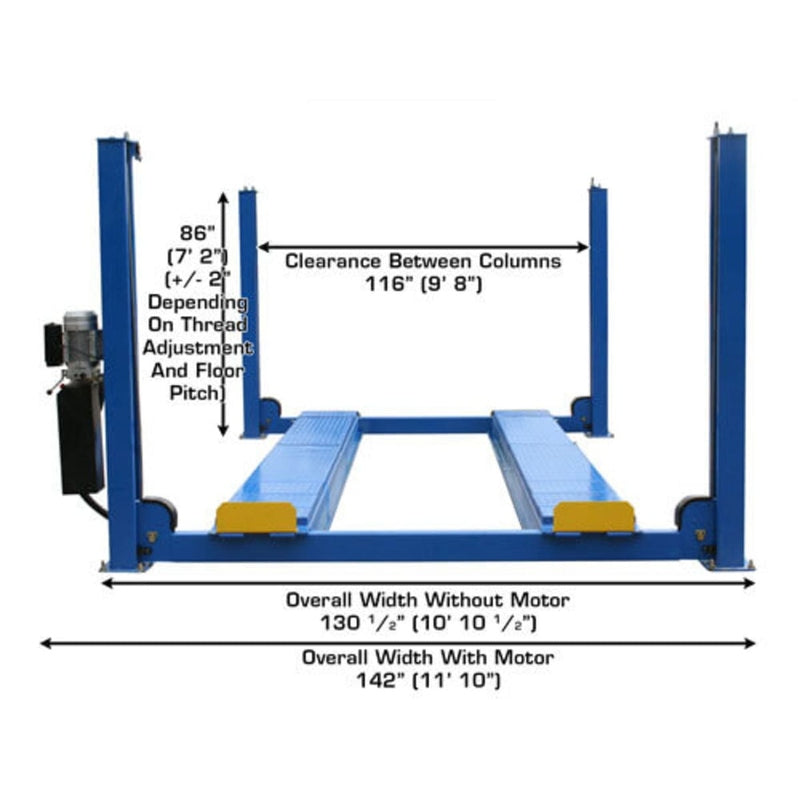

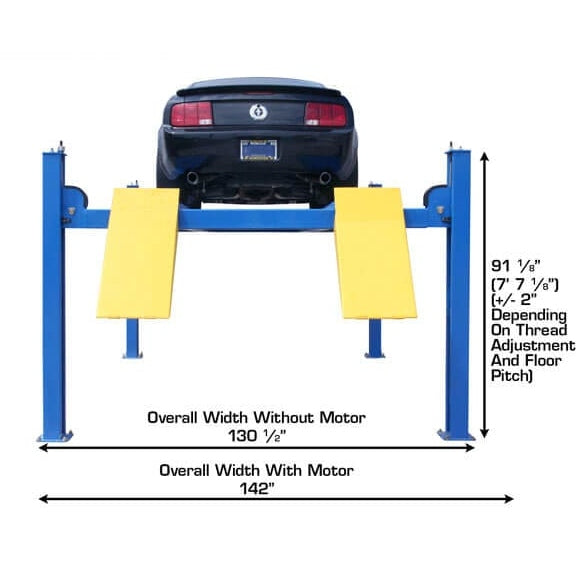

Overall Width (w/o Motor) 130 ⅞" (10' 10 ⅞")
Overall Width (w/ Motor) 138 ⅞" (11' 6 ⅞")
Overall Length (w/ Approach Ramp) 255" (21' 3")
Length Between Columns 197 ¼" (16' 5 ¼")
Runway Length 208 ⅝" (17' 4 ⅝")
Runway Width 20"
Runway Thickness 8 ¾"

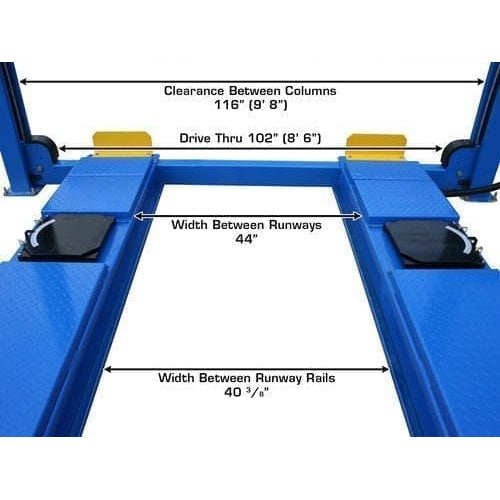

Width Between Runways 46 ⅞" (44 ⅜" with rail)
Outside Runway to Outside Runway 86 ⅞" (7' 2 ⅞")

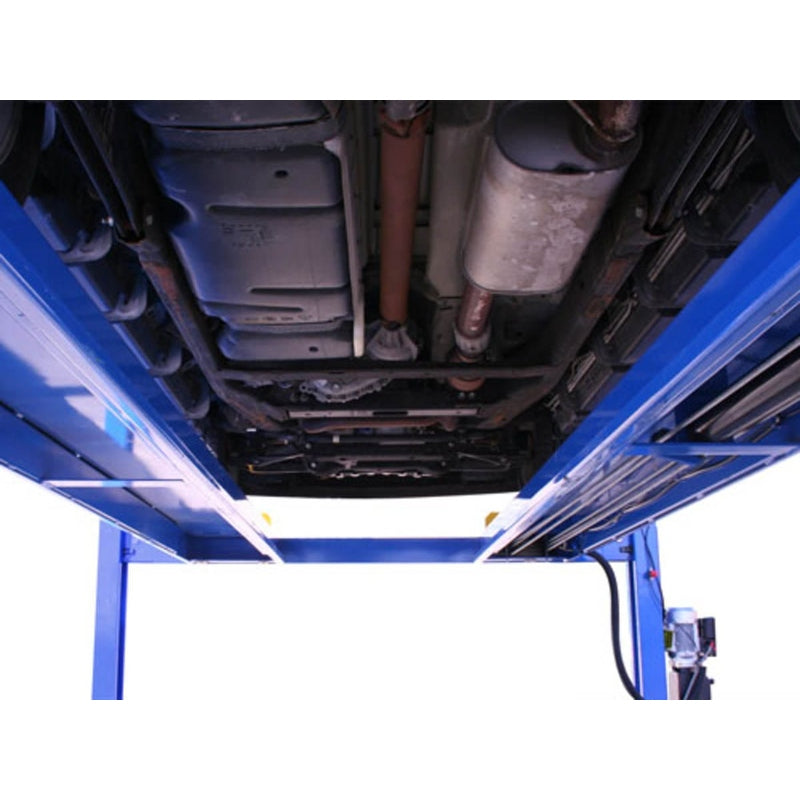

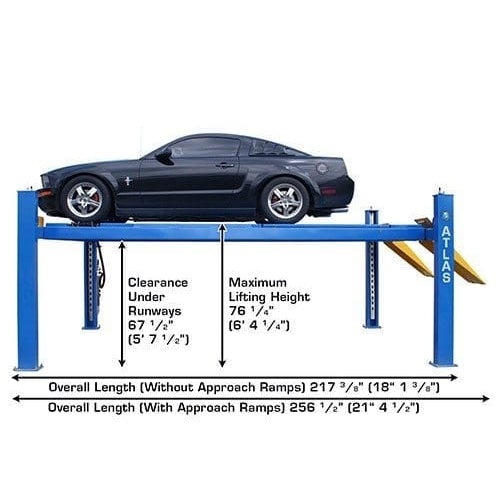

Clearance Under Runways 71 ¼" (5' 11 ¼")

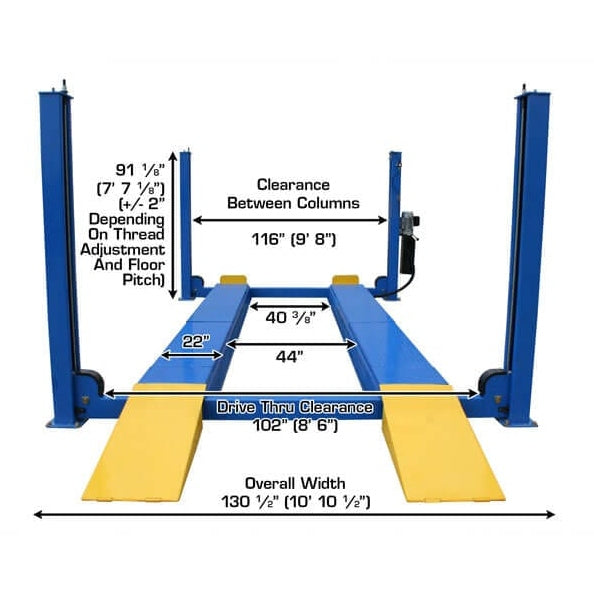

Clearance Between Columns 116" (9' 8")

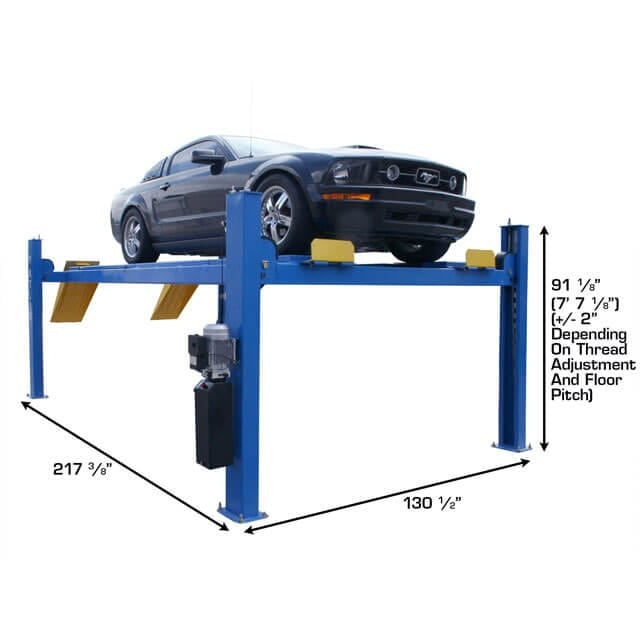

Height of Columns 91 ⅛" (7' 7 ⅛")

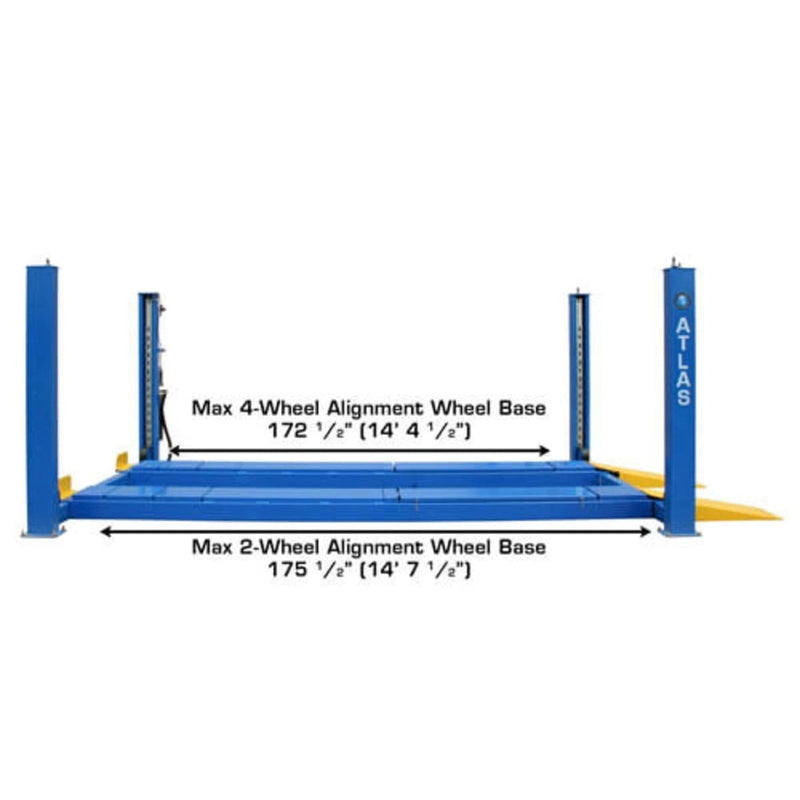

Maximum Wheelbase 197" (16' 5")
Drive-Through Width 102 ⅛" (8' 6 ⅛")
Air Requirement 85–115 PSI (external air supply required)
Electrical Requirement 220V single-phase (30A breaker recommended)
Oil Requirement 3–5 gallons AW32/AW46 (not included)
Shipping Weight 3,200 lb.
Concrete Requirement Minimum 6" thick slab rated at 3,000 PSI

Documents

Atlas ATTD-414A Manual

Atlas 414A Cylinder Bleeding Procedure (Do this immediately after installation)
