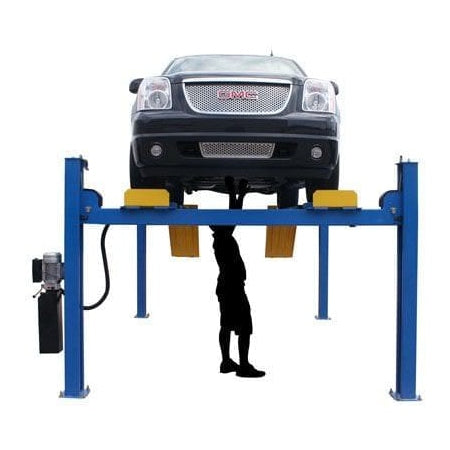

The Atlas® 414A is a 14,000 lb. capacity four-post alignment lift engineered to commercial-grade standards for professional automotive shops. Built for durability, strength, and long-term performance, the 414A provides reliable service for years and includes advanced design features not found on many competing lifts.
The Atlas® 414A incorporates both structural and cosmetic enhancements typically seen on lifts costing thousands more. Each unit is thoroughly tested to ensure it performs flawlessly at its rated capacity, offering smooth and consistent operation.

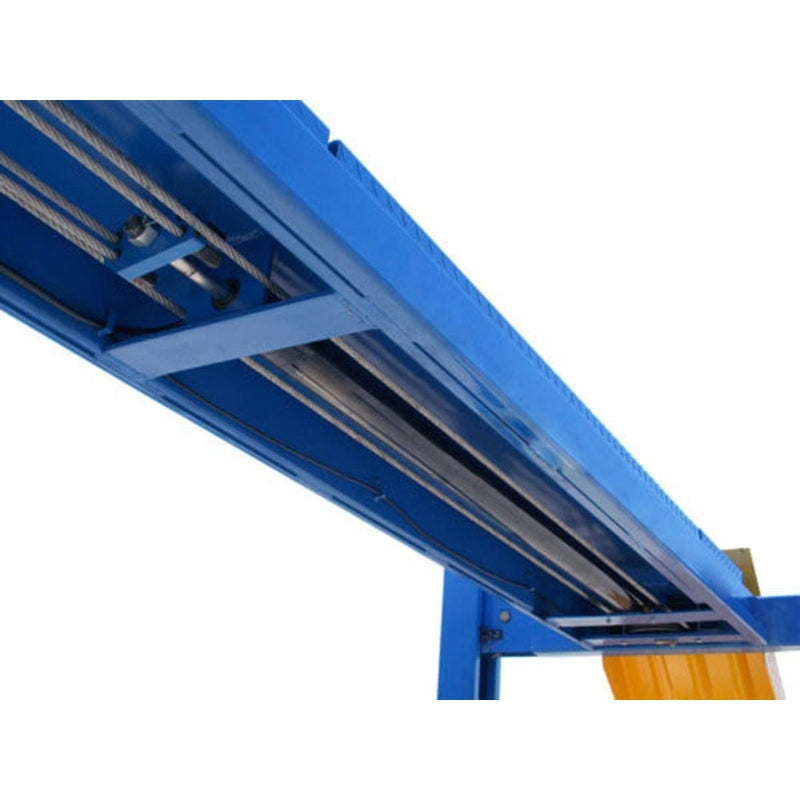

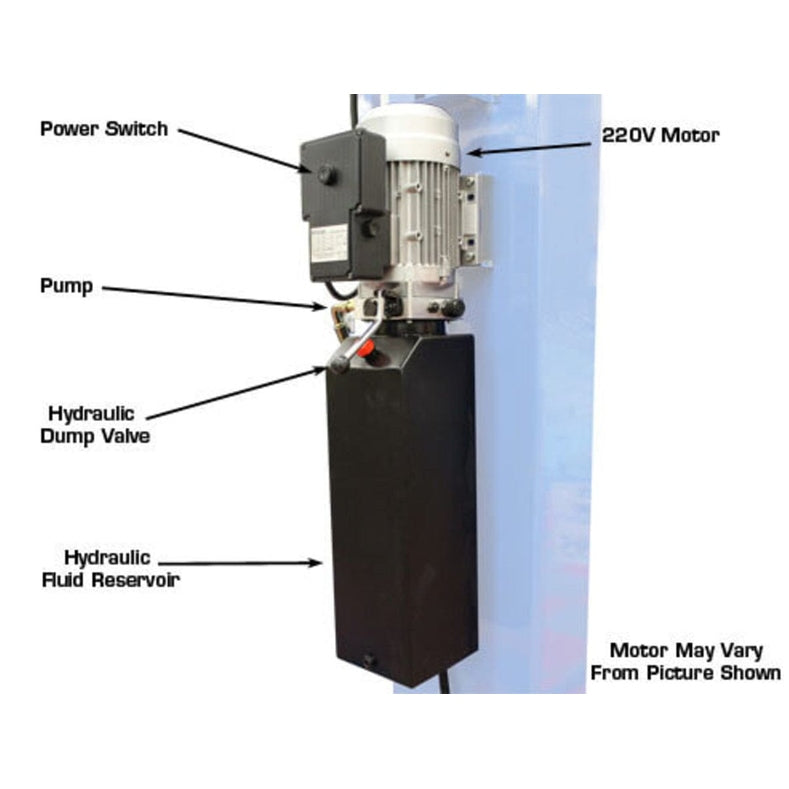

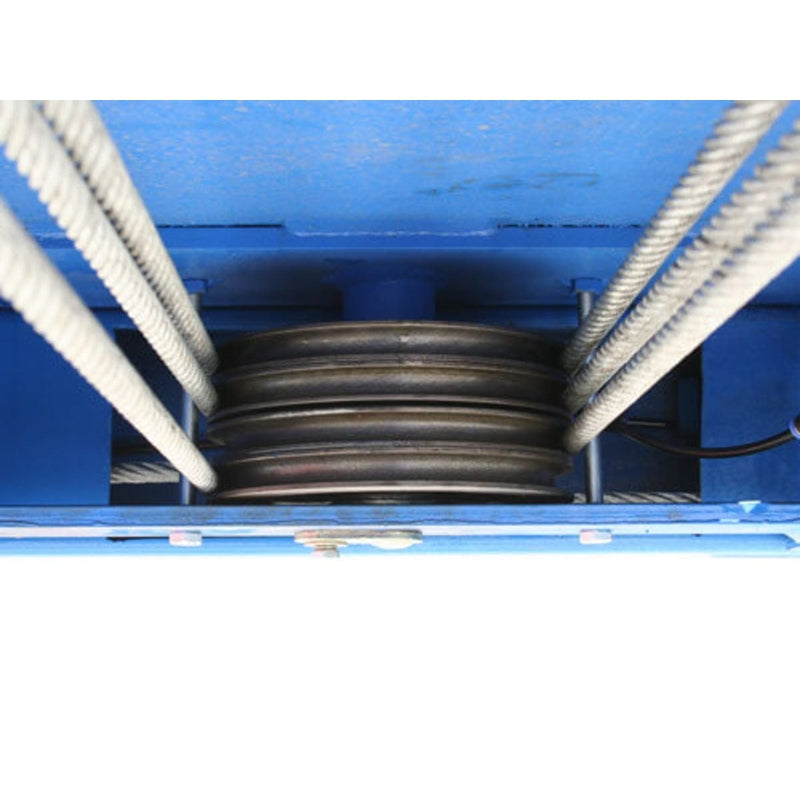

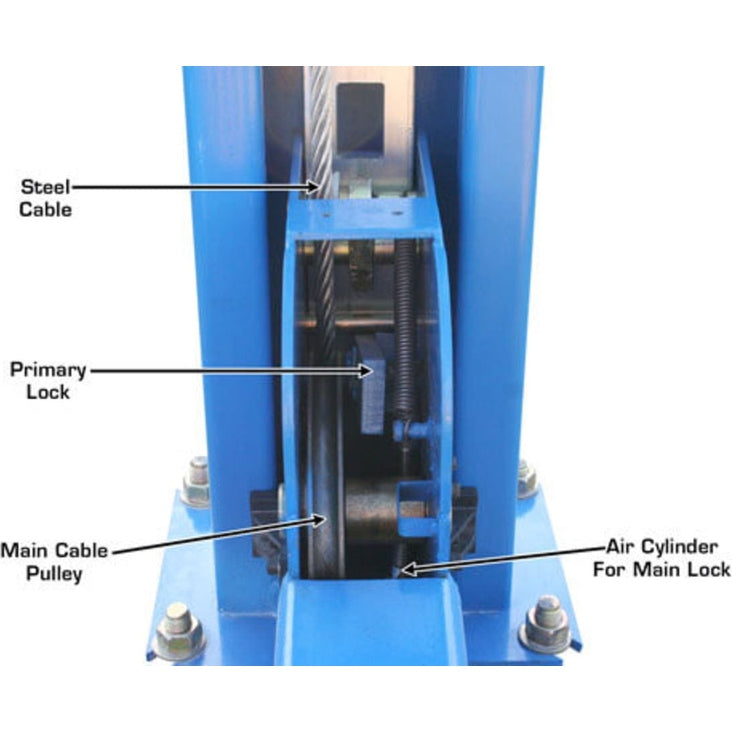

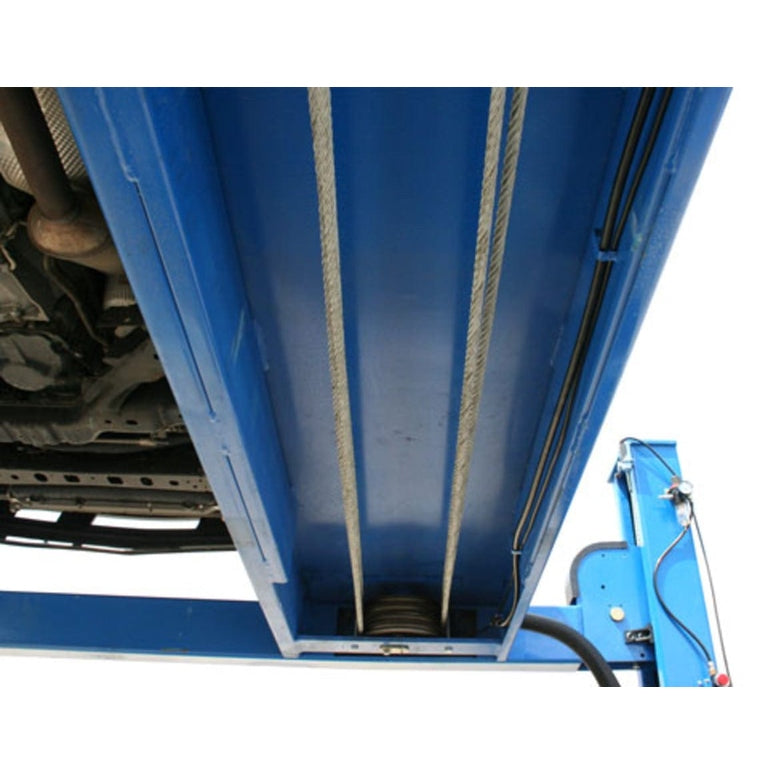

This model uses a high-strength cable lifting system with an under-runway oversized hydraulic cylinder, powered by a 220V single-phase power unit. Unlike older chain-driven systems with exposed hydraulic cylinders—which can be difficult to level and are prone to causing door damage—the 414A’s enclosed design ensures safer, quieter, and more stable operation.

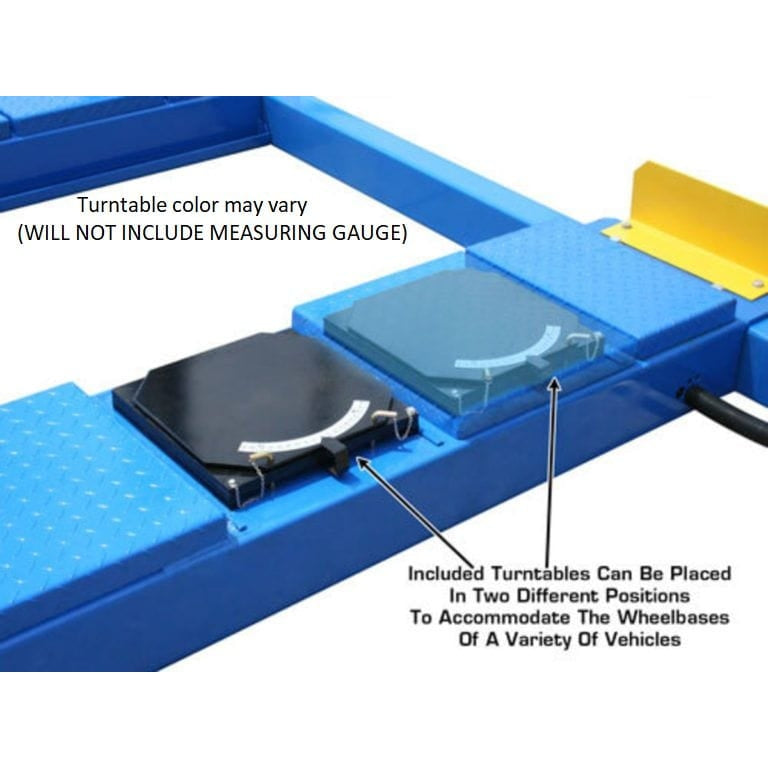

Building on the heavy-duty foundation of the Atlas® 414, the 414A includes built-in slip plates and alignment turntables designed for precise wheel alignment. The turntables can be positioned in multiple locations to accommodate different wheelbases, while metal cover plates allow the lift to function as a general-purpose service platform when alignment features are not in use.
This combo package also includes two Atlas® RJ8 rolling bridge jacks, which make it easy to lift vehicle wheels off the runways for tire, brake, and suspension service.
Features
Atlas® 414A Lift
-
14,000 lb. lifting capacity
-
Heavy-duty, commercial-grade construction
-
Extra tall, extra wide, and extra long configuration
-

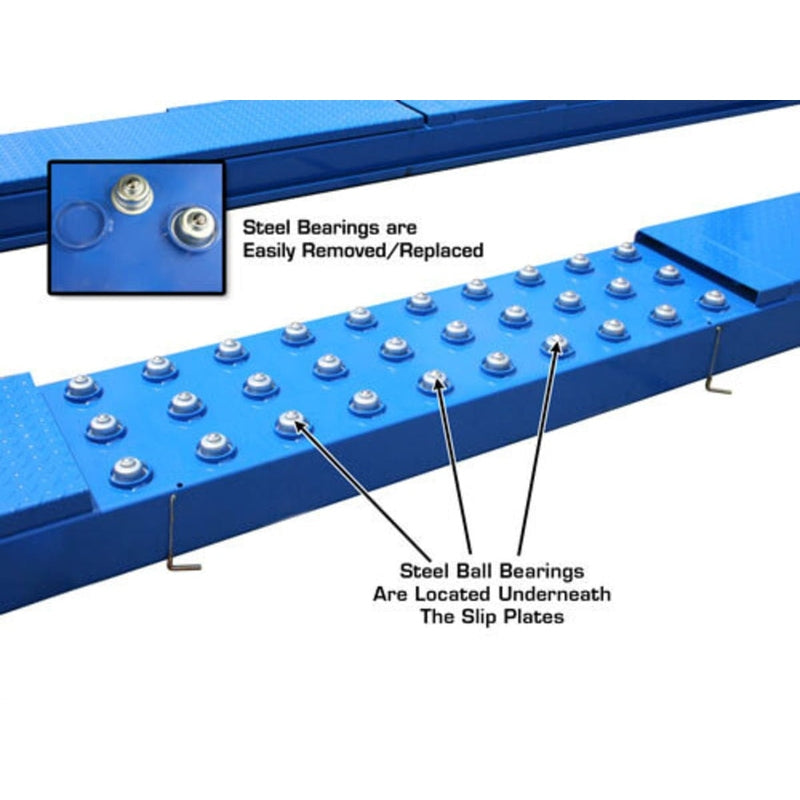

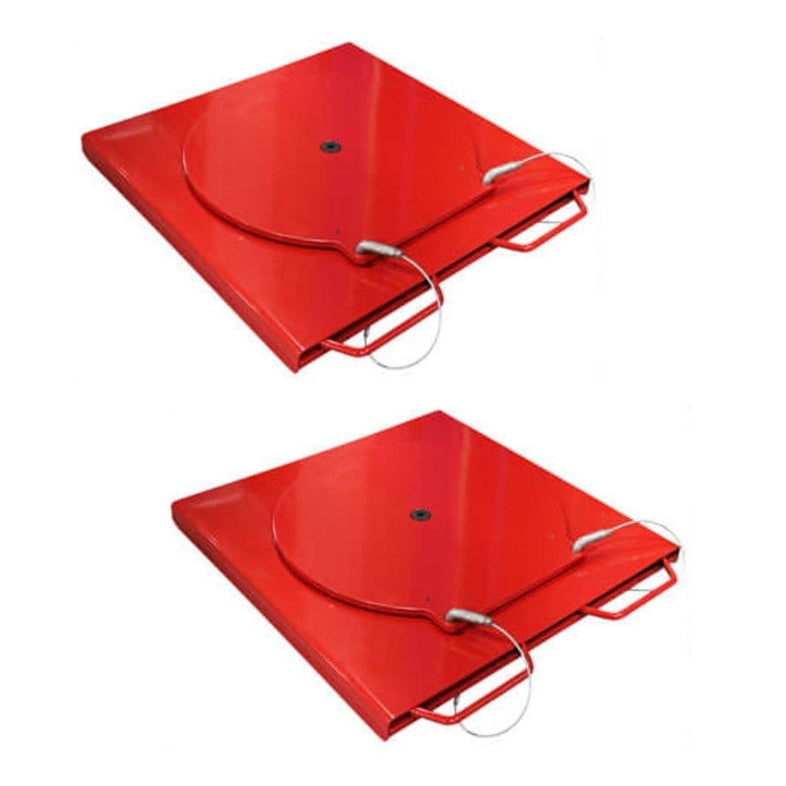

Built-in slip plates and alignment turntables included
-
Adjustable turntable positions for various wheelbases
-

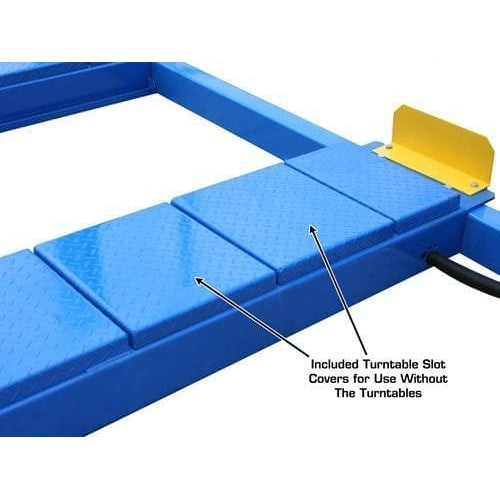

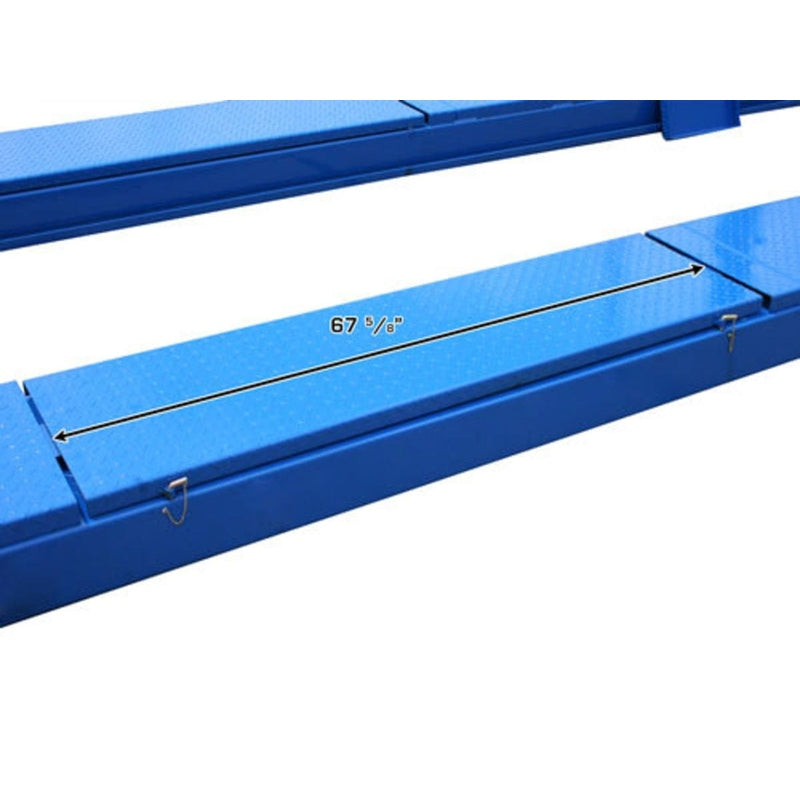

Runway cover plates included (for non-alignment service use)
-

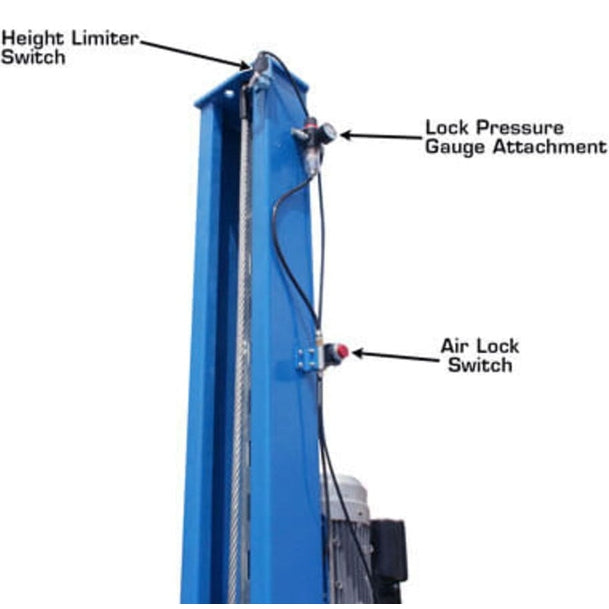

Air-operated single-point lock release (external air supply required)
-

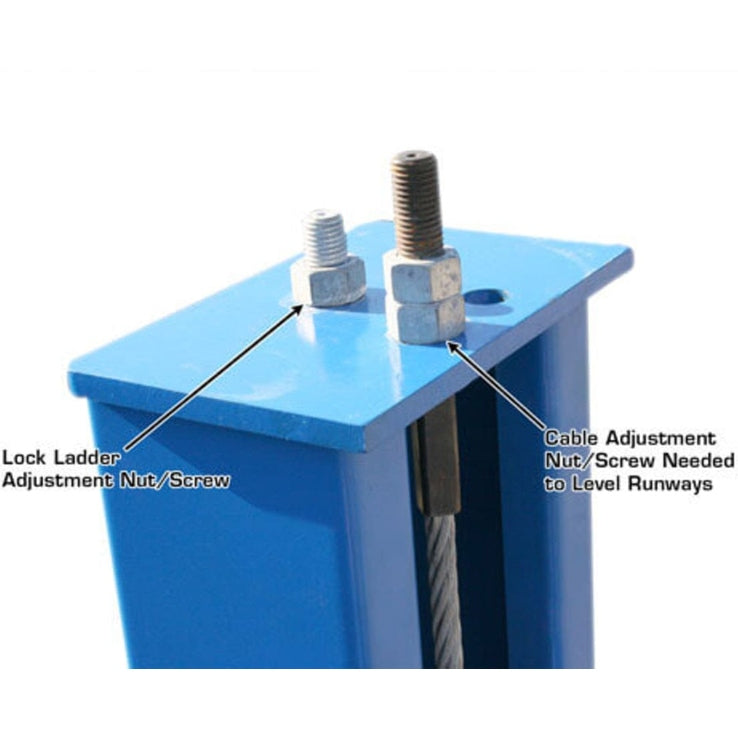

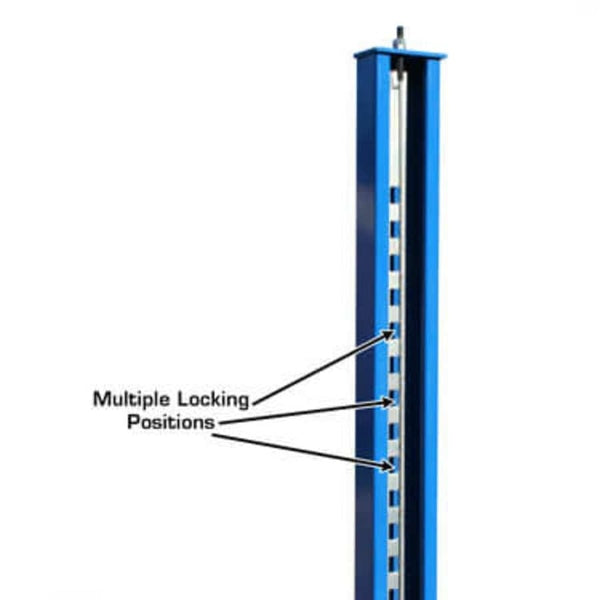

Lock-ladder design with double-lock safety system
-
Powder-coated finish for corrosion resistance
-

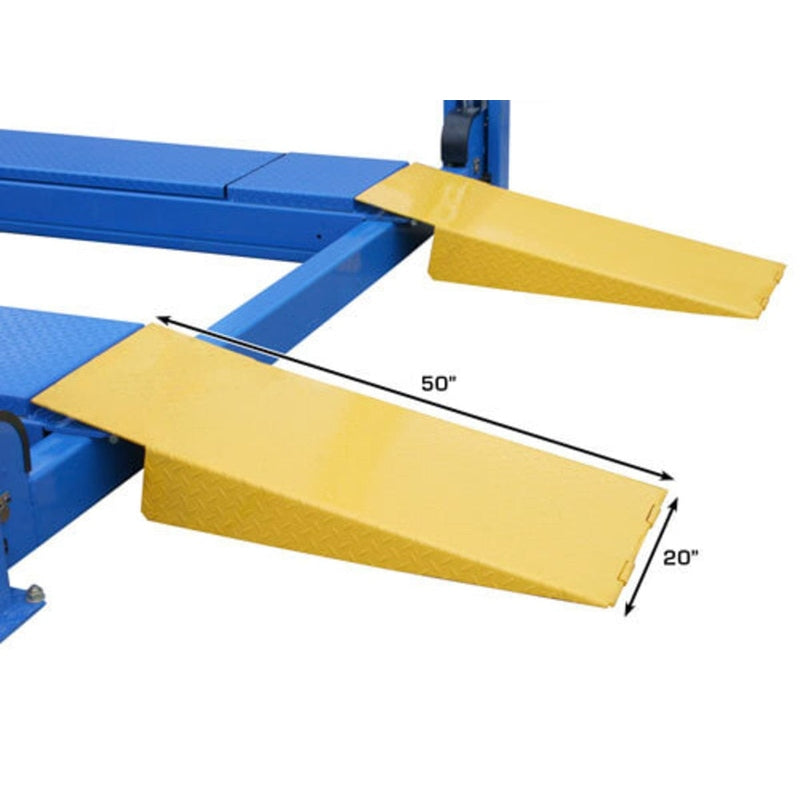

Includes steel approach ramps
-
Optional accessories: drive-off ramps and runway extensions (sold separately)
-

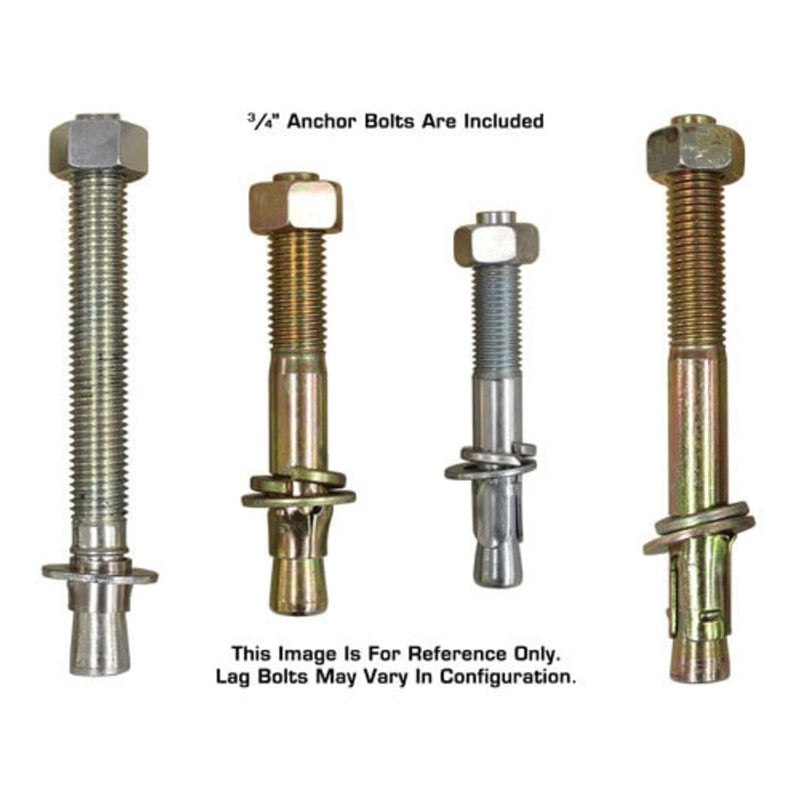

Mounting hardware included
-
220V single-phase electric operation (30-amp breaker required)
-

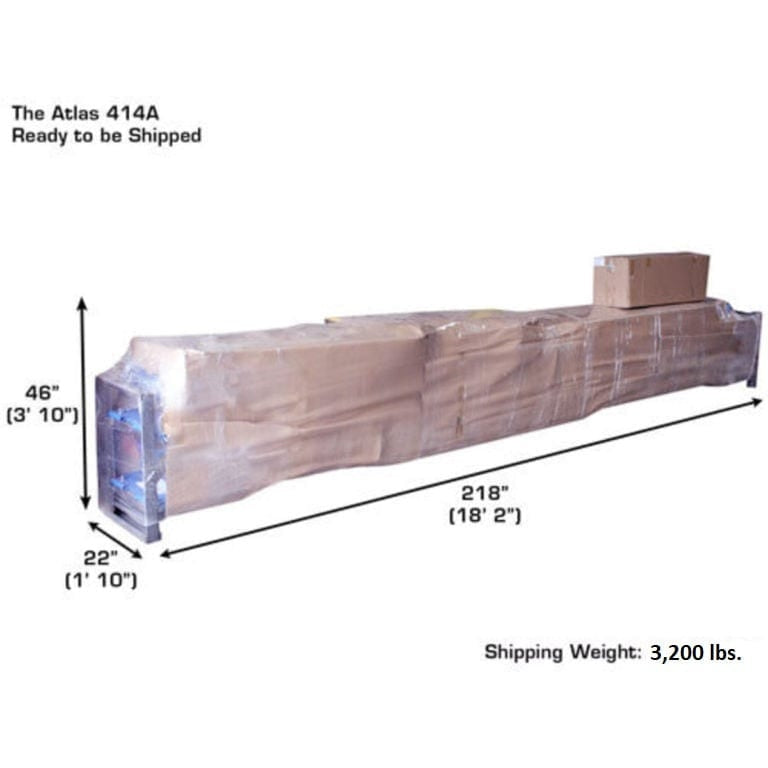

Shipping weight: 3,200 lbs
-
Warranty: 5-year structural / 2-year hydraulic (parts only)

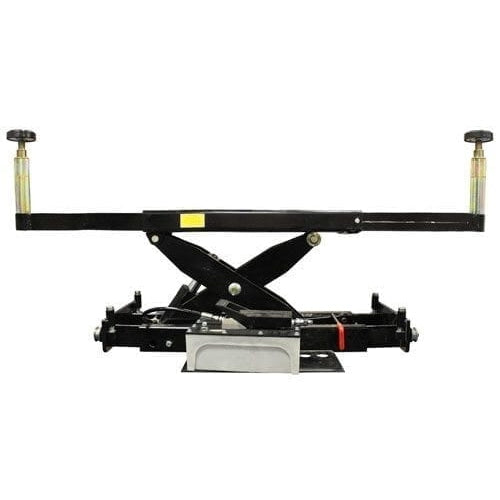

Atlas® RJ8 Rolling Bridge Jack
-
8,000 lb. lifting capacity
-

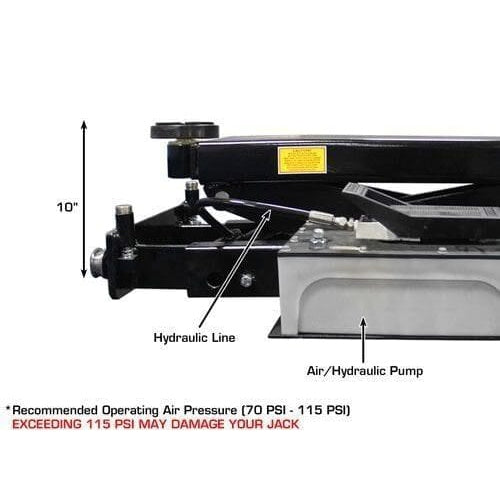

Air/hydraulic operation (external air supply required)
-

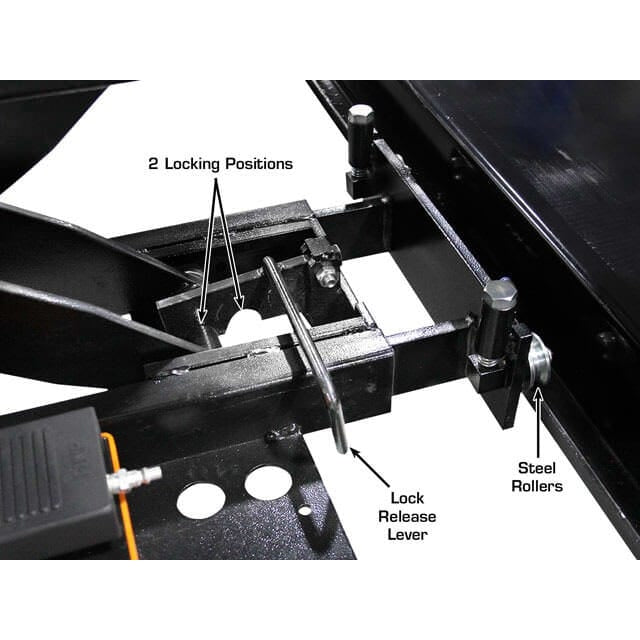

Multiple safety lock positions for secure use
-
Compact, low-profile design
-

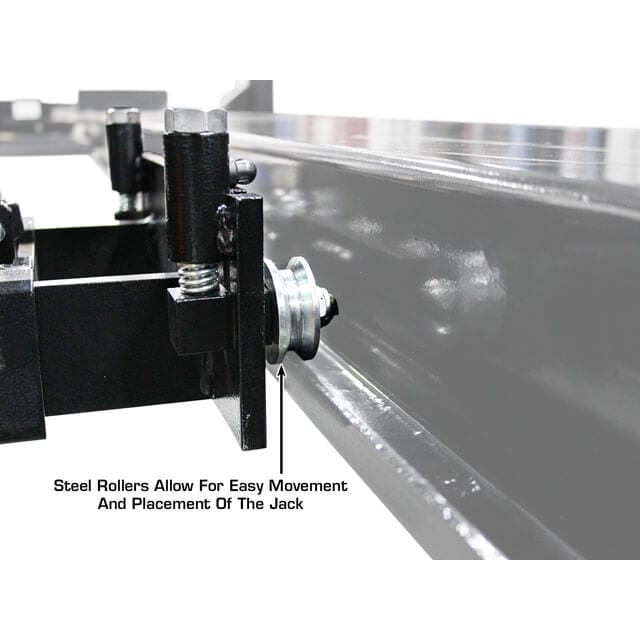

Smooth rolling action for easy positioning
-
Scissor mechanism for stable, level lifting
-
Powder-coated finish for long-lasting durability
-

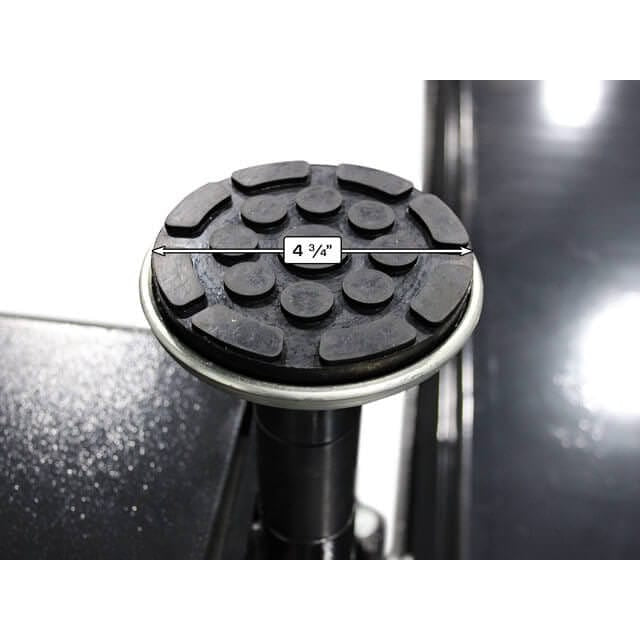

Includes 4-piece truck adapter set
-
Warranty: 1-year parts only
Specifications

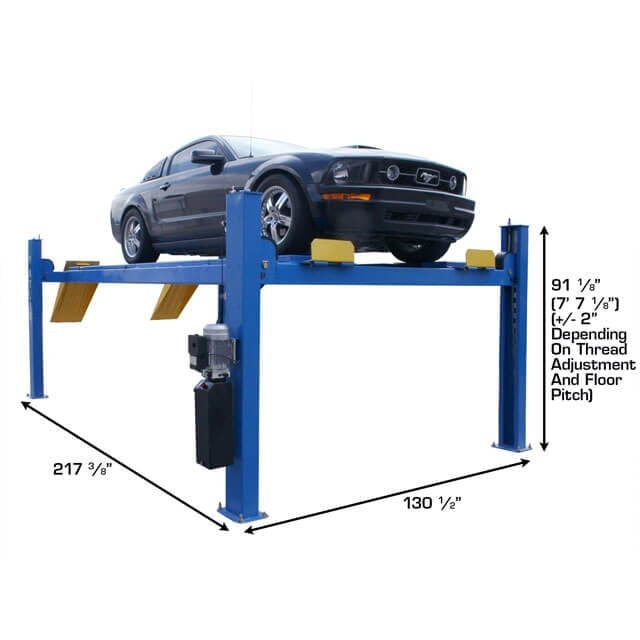

Atlas® 414A

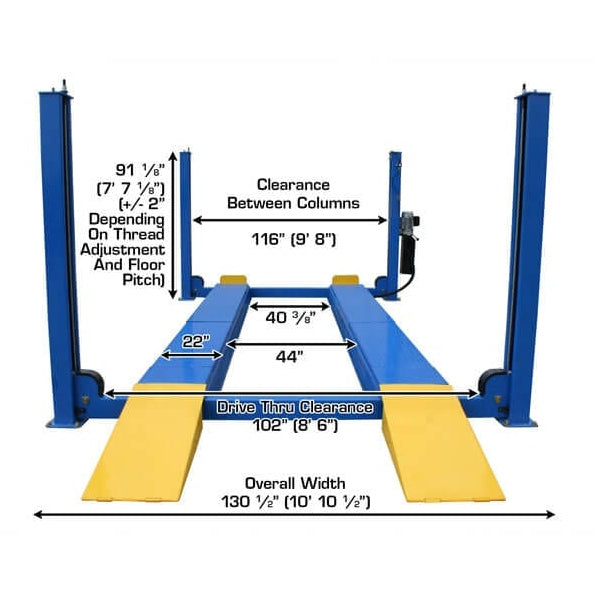

| Specification | Measurement |
|---|---|
| Capacity | 14,000 lbs |
| Lifting Height | 80" (6' 8") |

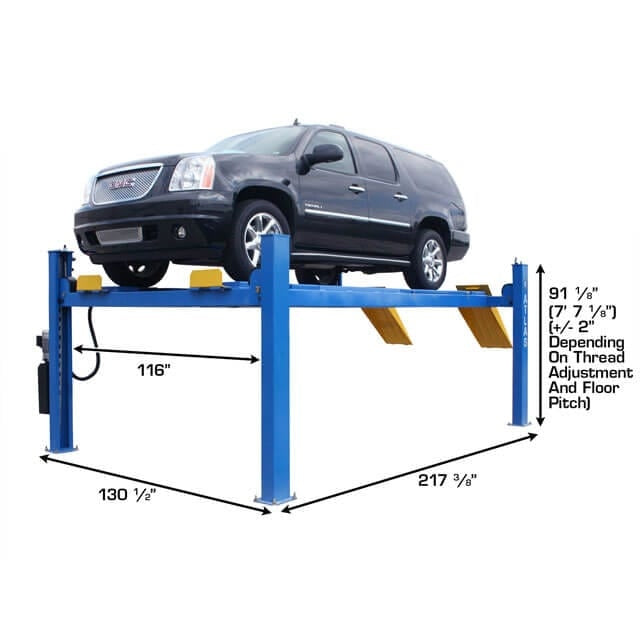

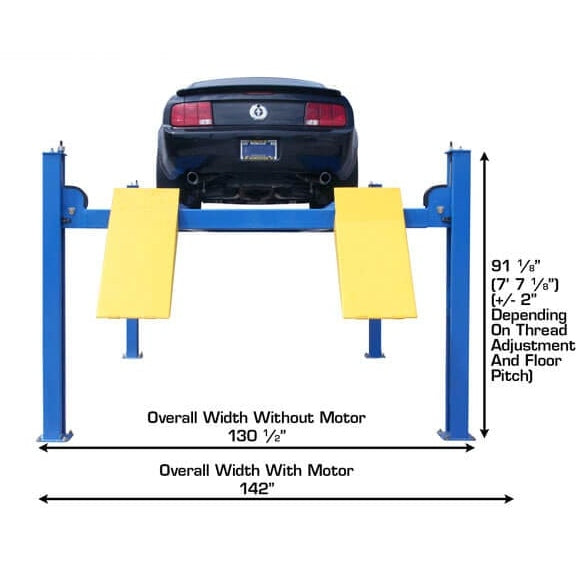

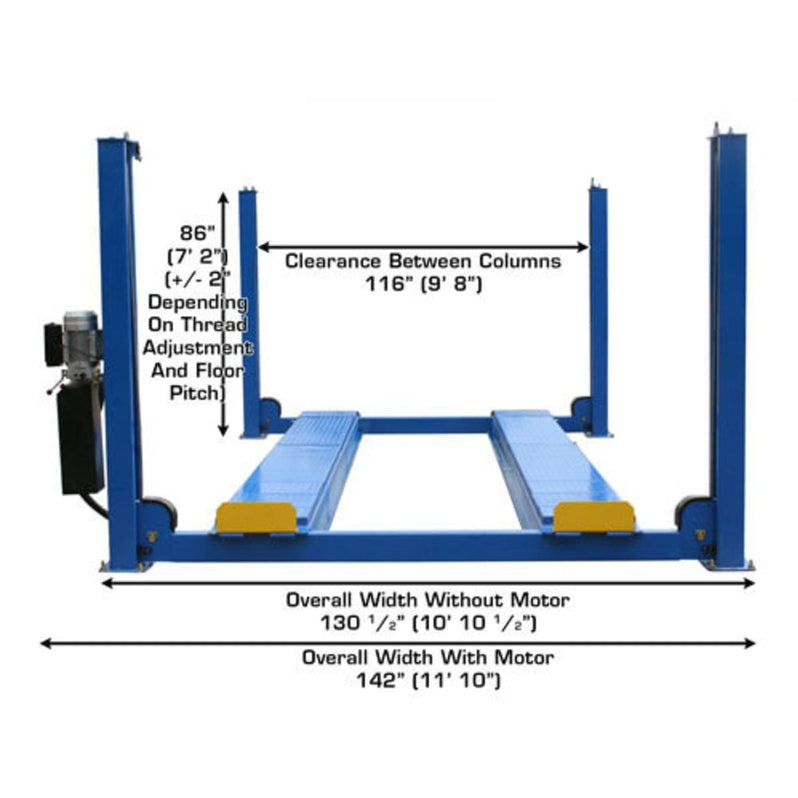

| Overall Width (w/o motor) | 130⅞" (10' 10⅞") |
| Overall Width (w/ motor) | 138⅞" (11' 6⅞") |

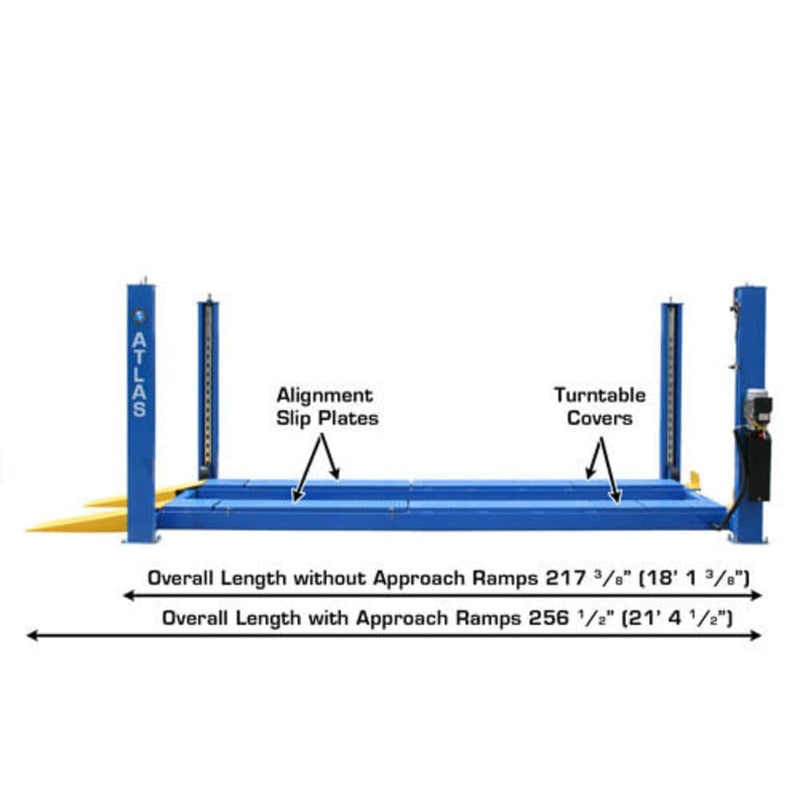

| Overall Length (w/ approach ramps) | 255" (21' 3") |
| Length Between Columns | 197¼" (16' 5¼") |
| Runway Length | 208⅝" (17' 4⅝") |
| Runway Width | 20" |
| Runway Thickness | 8¾" |

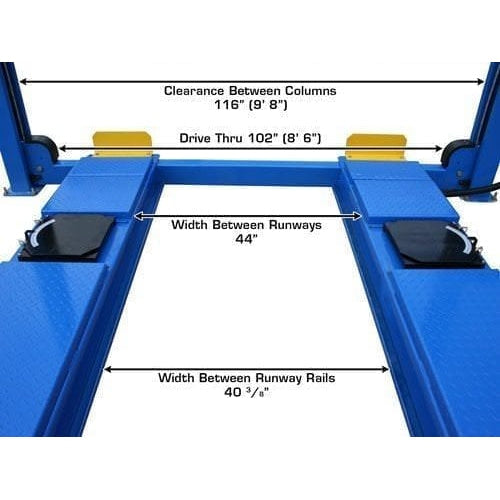

| Width Between Runways | 46⅞" (with rail: 44⅜") |
| Outside Runway to Outside Runway | 86⅞" (7' 2⅞") |

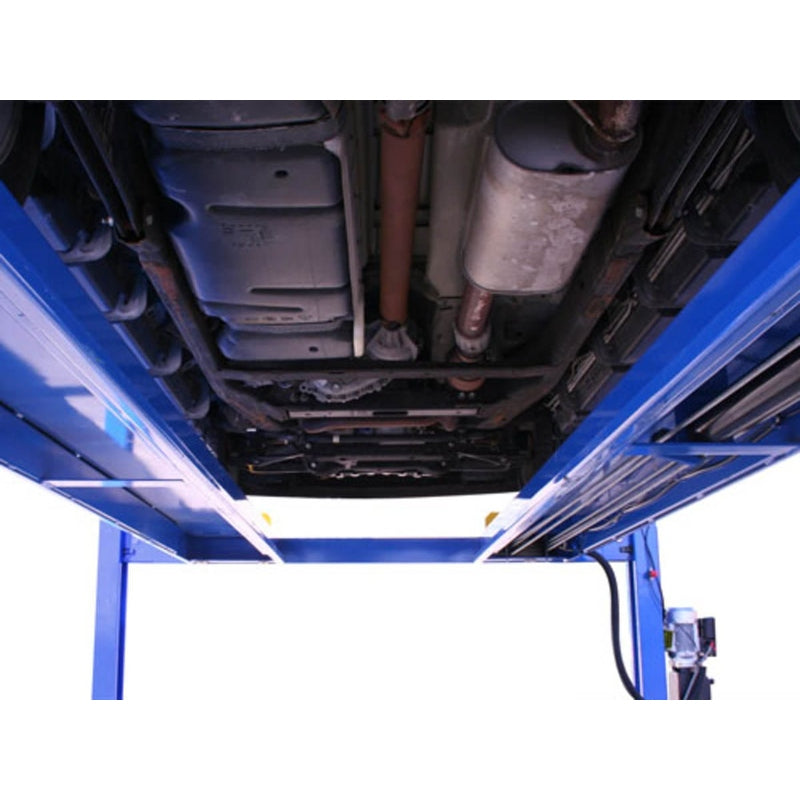

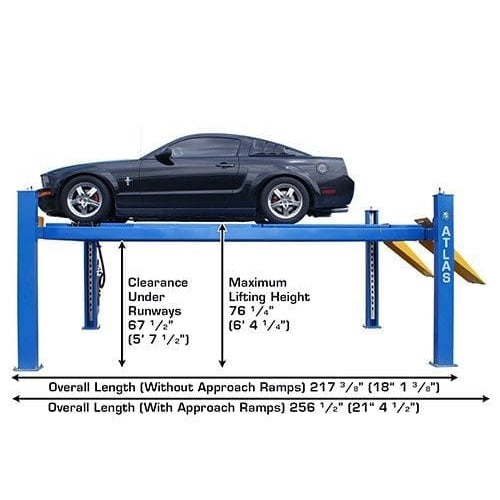

| Clearance Under Runways | 71¼" (5' 11¼") |
| Clearance Between Columns | 116" (9' 8") |
| Height of Columns | 91⅛" (7' 7⅛") |

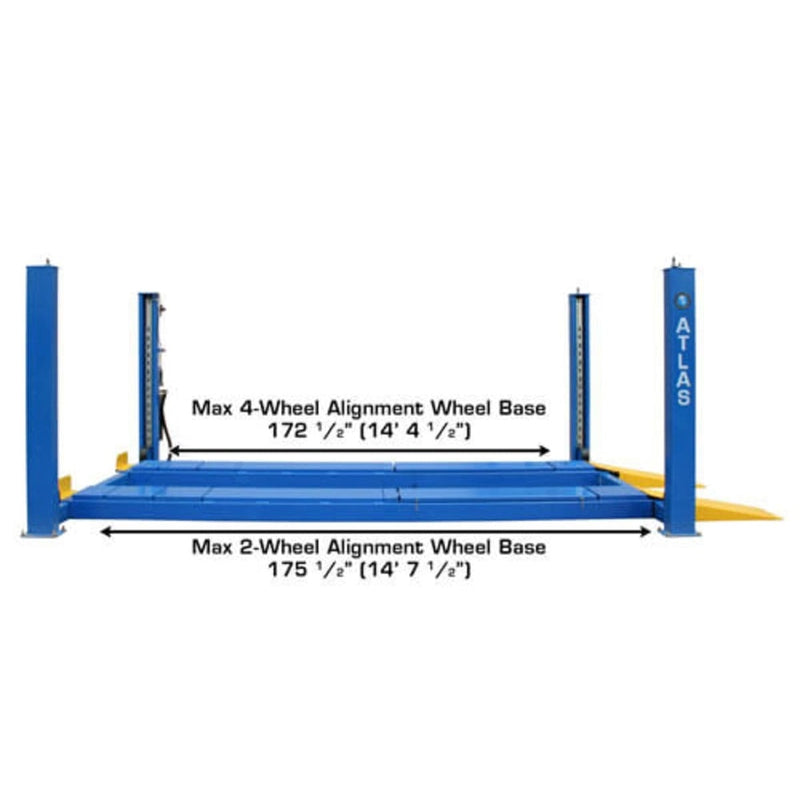

| Maximum Wheelbase | 197" (16' 5") |
| Drive-Through Width | 102⅛" (8' 6⅛") |
| Air Requirement | 85–115 PSI (external air supply required) |
| Motor / Electrical | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32 / AW46 (not included) |
| Shipping Weight | 3,200 lbs |
| Concrete Requirement | Minimum 6" thickness at 3,000 PSI rating |

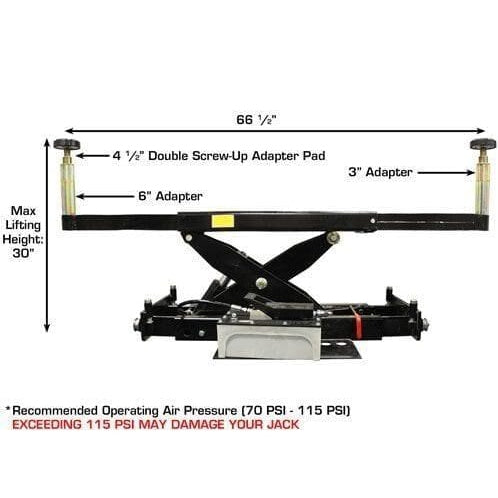

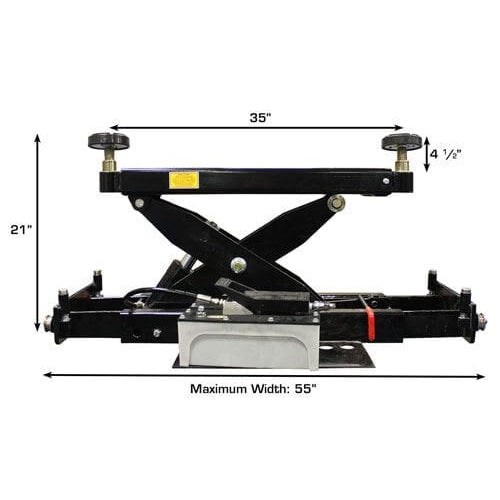

Atlas® RJ8 Rolling Bridge Jack
| Specification | Measurement |
|---|---|
| Capacity | 8,000 lbs |

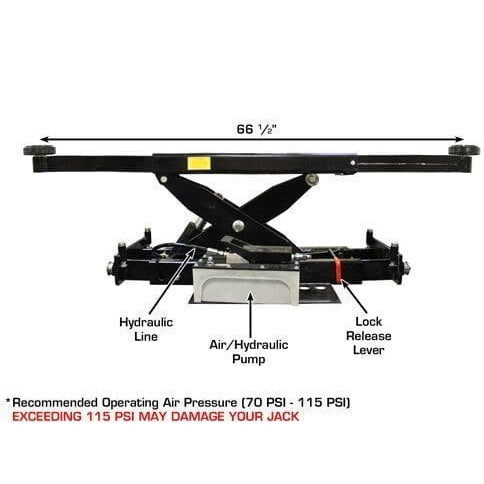

| Maximum Width | 66½" (5' 6½") |
| Minimum Width | 40" (3' 4") |
| Runway Compatibility | 34½" – 55" |

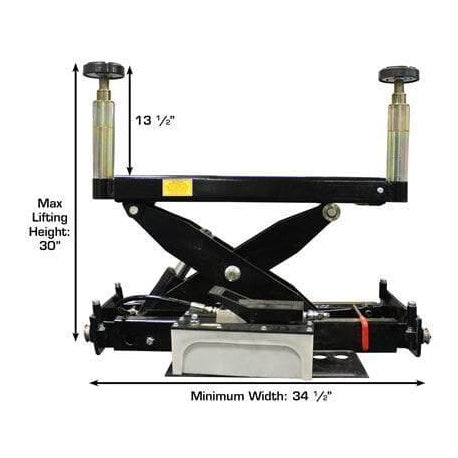

| Maximum Lifting Height (with adapters) | 30" |
| Air Requirement | 70–115 PSI |

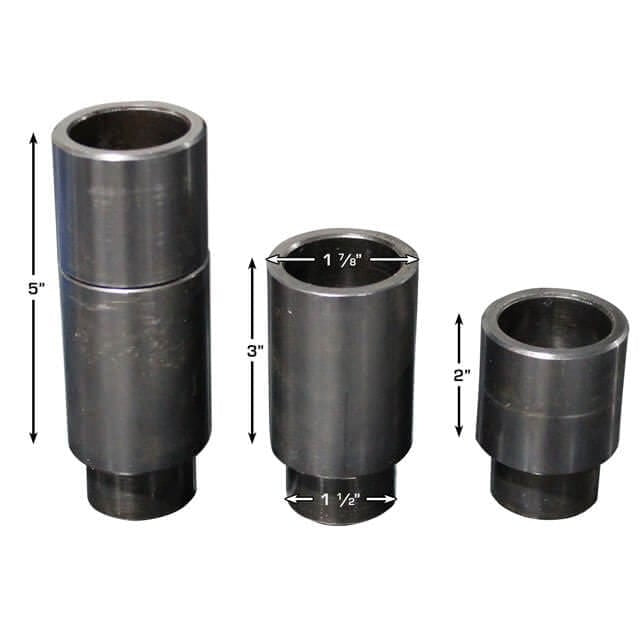

| Adapter Heights | (2) each – 2", 3" |
| Arm Hole / Adapter Peg Size | 1.5" |
| Shipping Weight | 390 lbs |
Documents
Atlas® 414A Cylinder Bleeding Procedure (Do this immediately after installation)
