Description

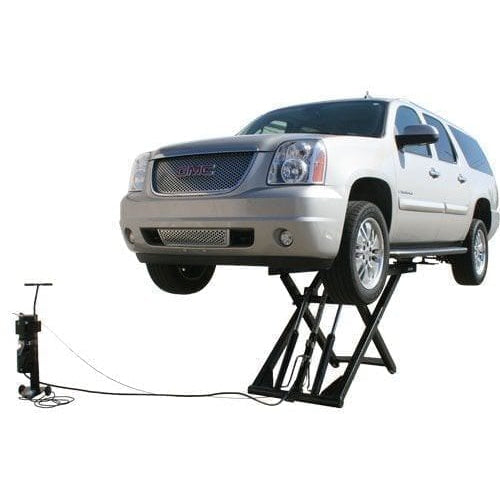

The Atlas® 6MR is a 6,000 lb. capacity, free-standing mid-rise scissor lift designed for professional shops and service technicians who need both portability and extra lifting height. Ideal for body repair, tire, and wheel service applications, the 6MR provides a safe, stable, and convenient solution for raising vehicles to a comfortable working level.
Its unique platform design allows greater access to critical underside areas of the vehicle—spots that are often difficult to reach with other portable lifts. The dual hydraulic cylinders and solid safety lock bar (featuring multiple locking positions) ensure secure lifting at every height, making the Atlas® 6MR one of the most popular mid-rise lifts in North America.

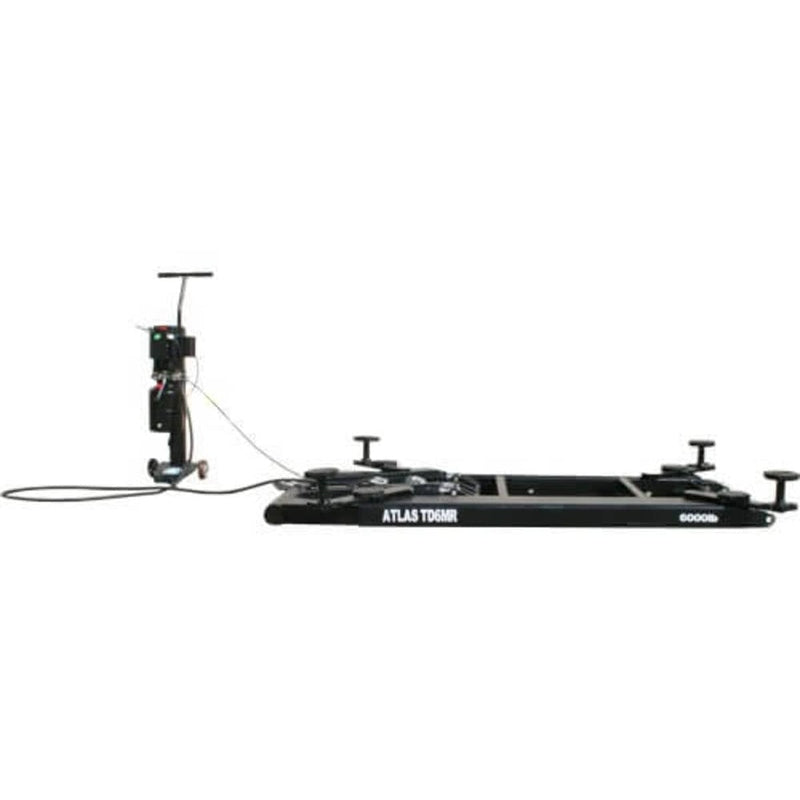

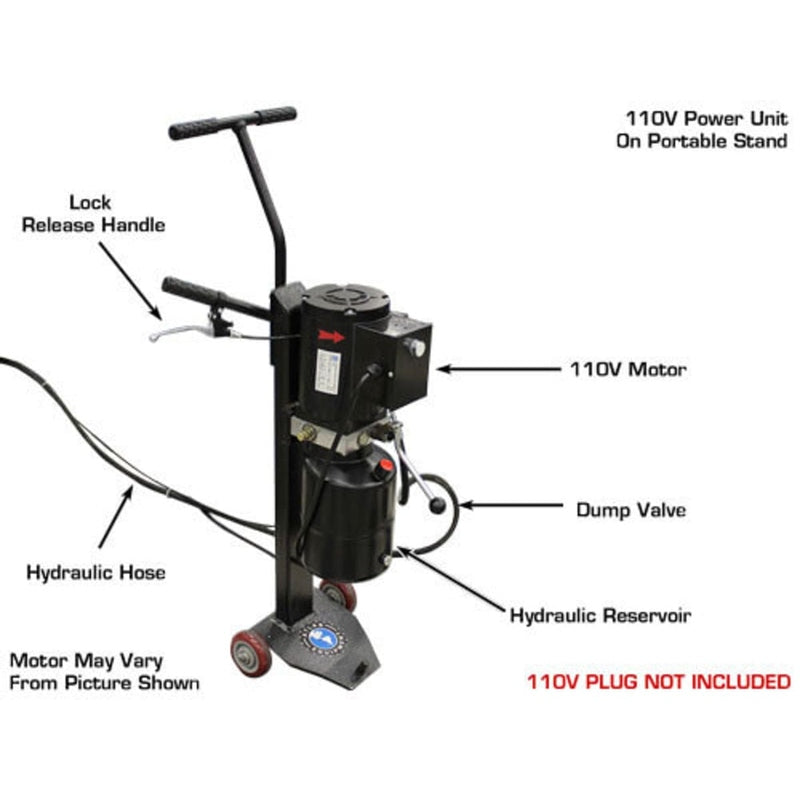

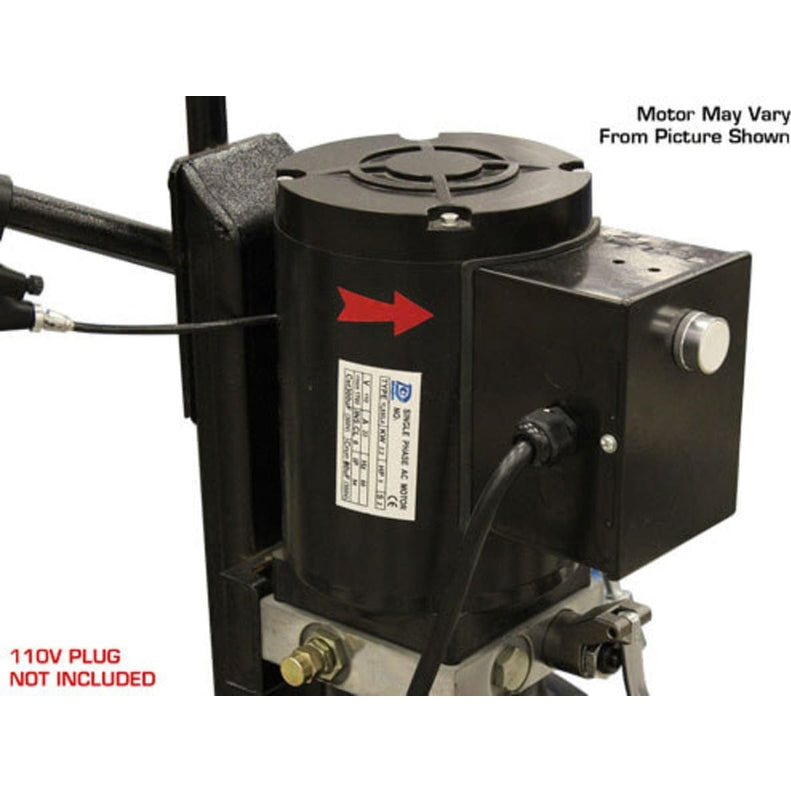

The lift operates using a 110V electric-hydraulic power unit mounted on a portable wheeled cart, which allows you to easily reposition the lift or roll it between work areas. The power unit can also be placed remotely for maximum convenience and workspace efficiency. The included mobility kit makes it simple to move the lift from an indoor bay to an outdoor concrete surface as needed.

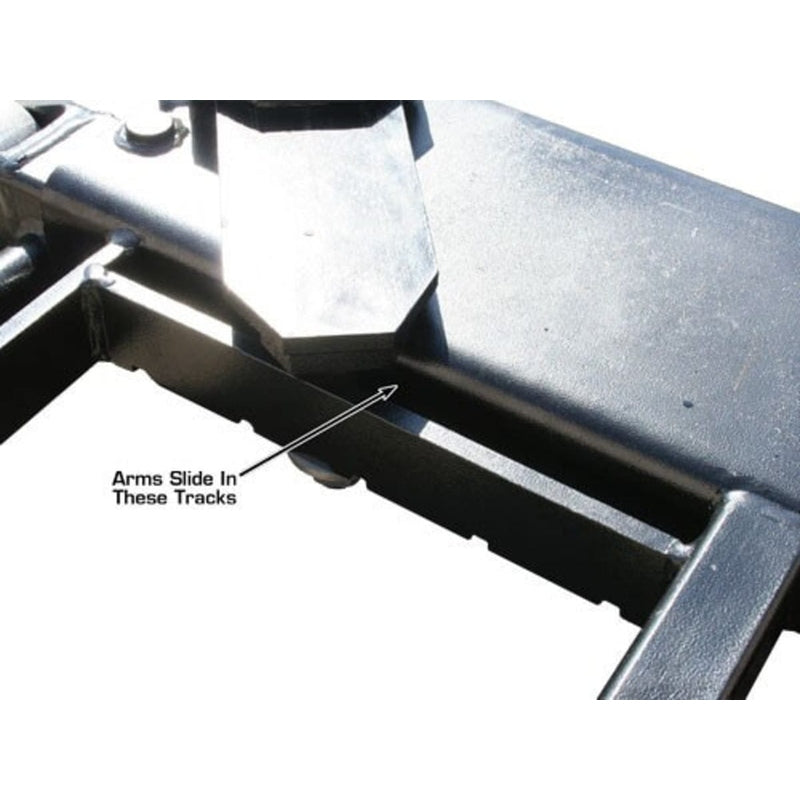

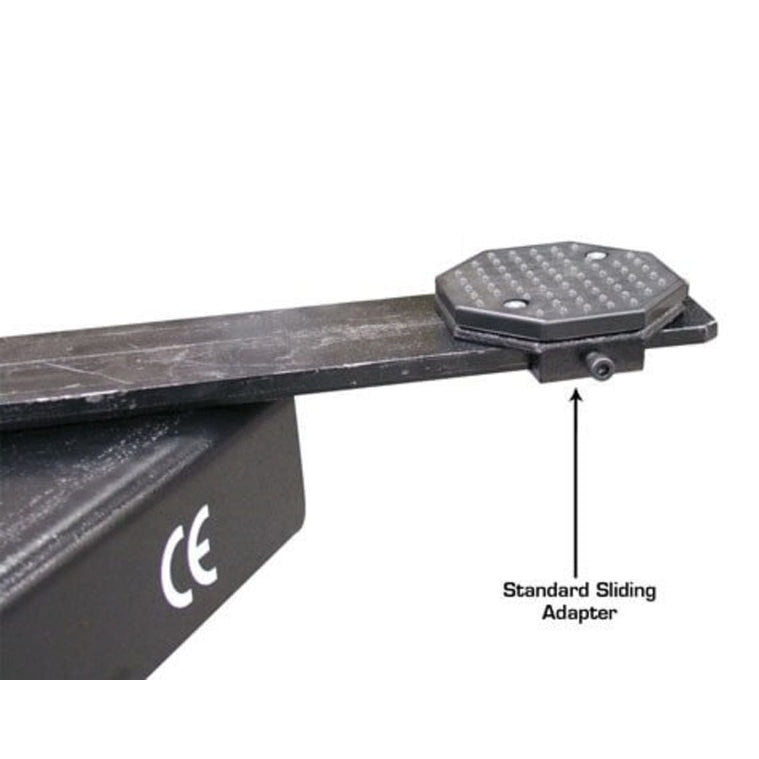

The Atlas® 6MR package includes two complete adapter sets—a set of four truck adapters and a set of sliding car adapters—providing flexible lifting solutions for vehicles with unique or offset lifting points. Each arm is fully adjustable for precision placement.

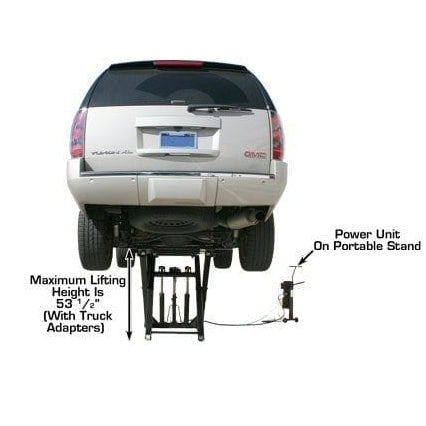

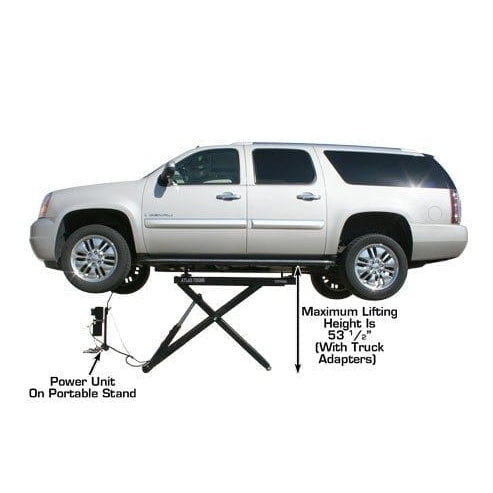

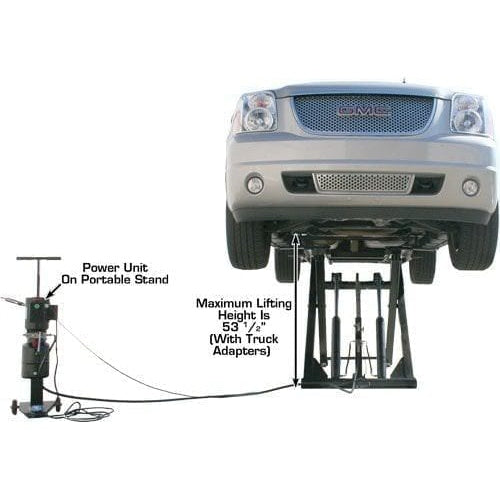

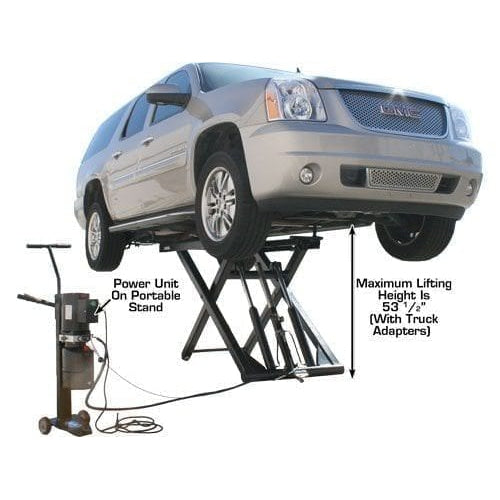

With a lifting height of over 53 inches and a wide, stable footprint, the Atlas® 6MR delivers exceptional balance and rigidity at every locking position.
For proper operation, due to its horizontal cylinder configuration, it is important to maintain a 2–6 inch clearance between the lifting surface and the vehicle’s lifting points.
Durable, versatile, and mobile, the Atlas® 6MR is a professional-grade lift that combines performance, safety, and flexibility—perfect for busy service shops or garage environments where portability and lifting height matter most.
Features
-
6,000 lb. lifting capacity
-
Heavy-duty commercial-grade construction
-
Durable powder-coated finish for corrosion resistance
-
Single-point manual lock release for quick and safe operation
-
Free-standing, portable design for flexible use indoors or outdoors
-

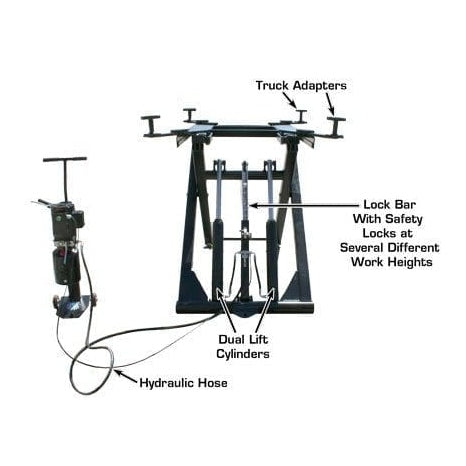

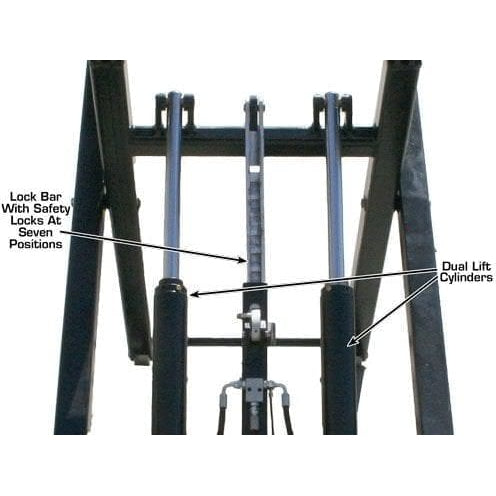

Dual hydraulic cylinders for smooth and balanced lifting
-
Seven mechanical locking positions for secure elevation control
-

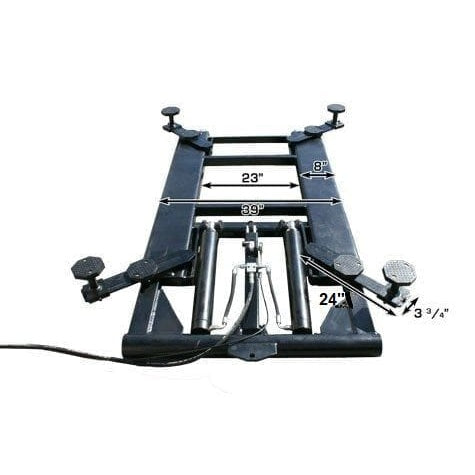

Now equipped with extended 24" arms for improved reach and versatility
-

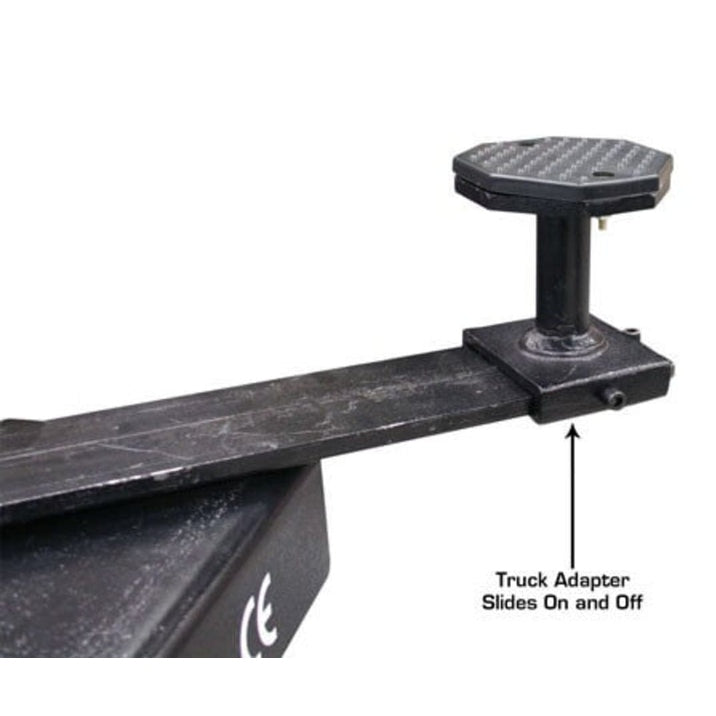

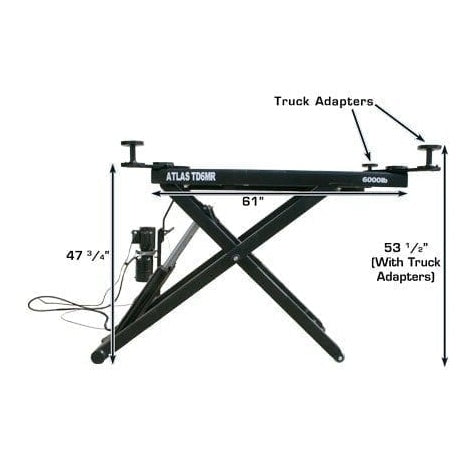

Truck adapter set included for lifting higher-profile vehicles
-

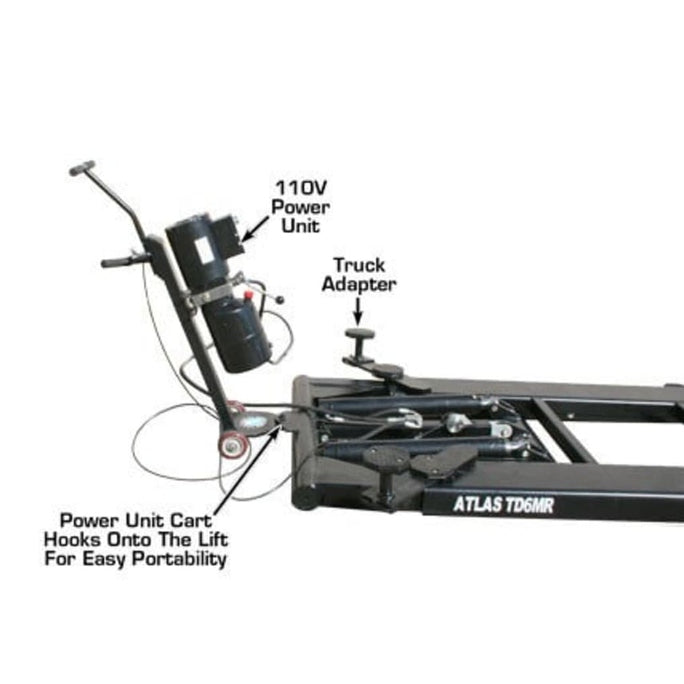

Includes separate motor stand for convenient placement and mobility
-
110V electric operation (plug not included)
-

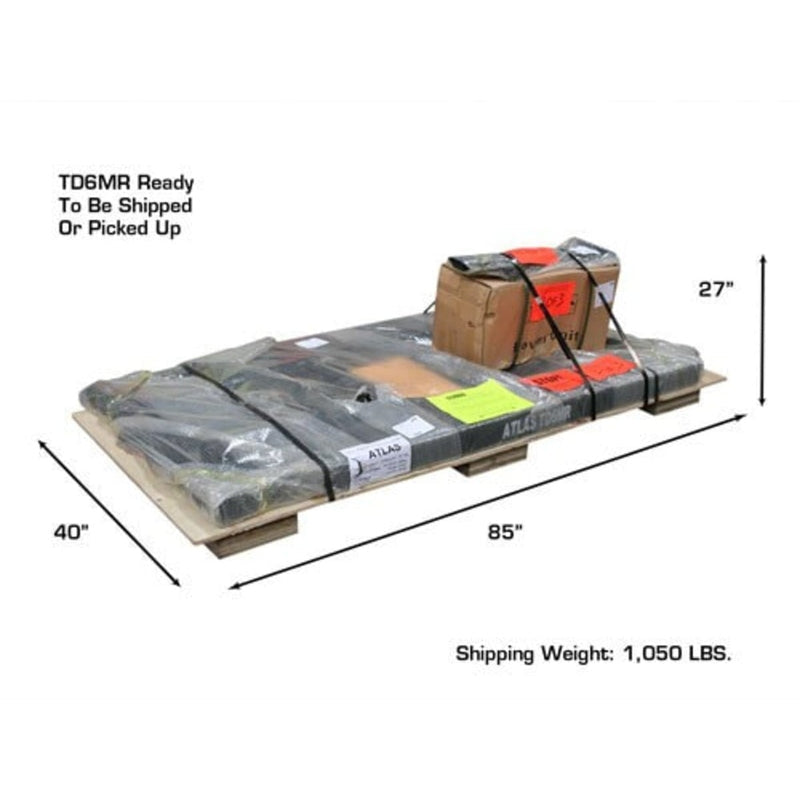

Shipping weight: 1,050 lbs
-
Warranty: 2-year structural / 2-year hydraulic (parts only)
Specifications
Atlas® TD6MR
| Specification | Measurement |
|---|---|
| Lifting Capacity | 6,000 lbs |
| Maximum Lifting Height (with adapters) | 53½" (4' 5½") |

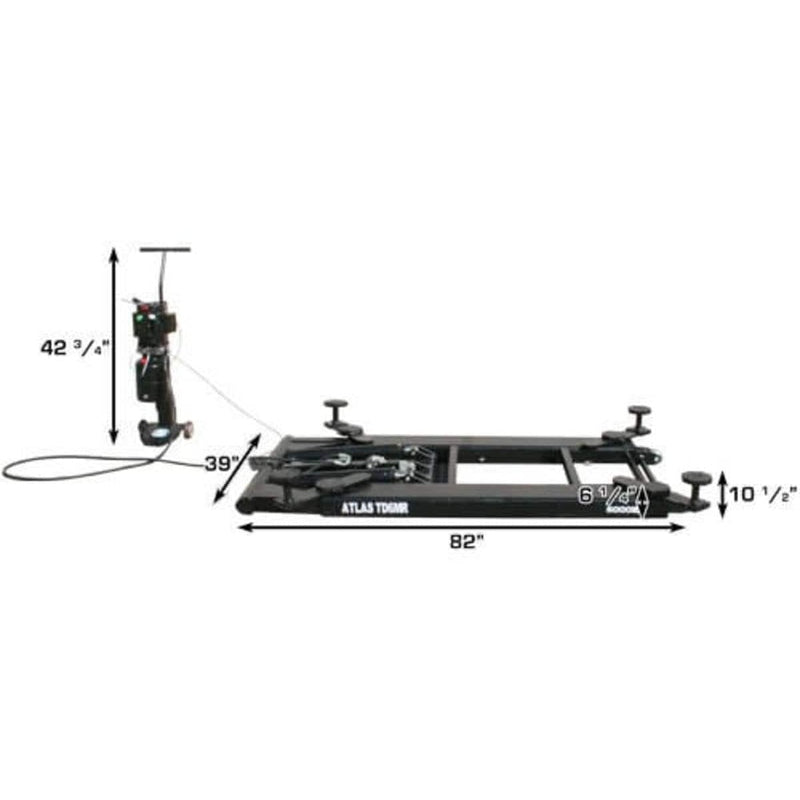

| Platform Length | 82" (6' 10") |
| Structure Width | 39" |

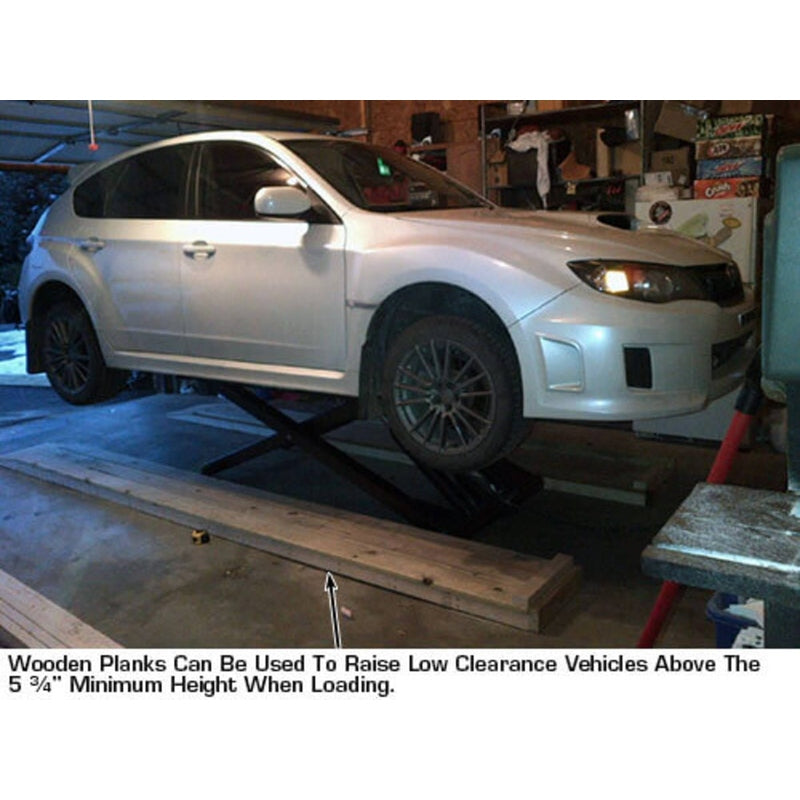

| Lowered Height | 5¾" (with arms, without adapters) |
| Short Adapter Height | 1½" |
| Tall Truck Adapter Height | 5¾" |
| Motor / Electrical Requirement | 110V (plug not included) |
| Oil Requirement | 1.5–2 gallons AW32 or AW46 (not included) |
| Shipping Weight | 1,050 lbs |
