Atlas 6PL 6,000 lb Open Center Low Rise Lift

Atlas Automotive EquipmentSKU: ATEATTD-6PL

At a Glance

  • Open-Center for Full Undercarriage Access; Four Rubber Pads and Four Lifting Blocks Included; 110V
  • Max Lifting Height: 26"
  • Lowered Height: 4.5"
Price:
$2,999.00

Please complete and submit the shipping form above to enable Add to Cart.

Call an Expert — (959) 500-6434

Monday–Friday, 9 a.m.–5 p.m. EST

Delivery — What to Expect

6–12 days from order to your driveway.

  1. Day 0 You place the order We confirm stock with the manufacturer straight away. If anything is on backorder, we email you before the payment is taken.
  2. Business days 1–5 It leaves the warehouse Your tracking number is emailed within 24 hours of the unit shipping.
  3. Then 5–7 days In transit by freight It travels strapped to a pallet with a freight carrier — not UPS or FedEx.
  4. Day 6–12 Delivered to your curb The freight company phones ahead to book a delivery window with you first.
What to have ready on delivery day
  • Curbside means curbside The driver unloads at the end of your driveway. Moving it inside and installing it aren’t part of freight delivery.
  • Plan how you’ll move it A forklift, a tractor with forks, or a few strong people and an engine hoist. Tell us before it ships if you need a liftgate on the truck.
  • Someone needs to sign for it The carrier books an appointment window, so plan for an adult to be on site when the truck arrives.
  • Inspect it before you sign Walk the pallet, check for crushed corners or torn wrap, and write any damage on the delivery receipt before the driver leaves. Signing a clean receipt makes a damage claim much harder to win.

Picking it up instead? Choose Warehouse Pick Up above — no freight charge and no appointment to wait on.

Why Shop With Us

  • Authorized Dealer — Every Brand We Sell Bought direct from the manufacturer, so your full warranty is valid and registered in your name.
  • Fast Shipping Most orders delivered in 6–12 days, with tracking emailed within 24 hours of dispatch.
  • Price Match Guarantee Find the identical product cheaper elsewhere and we’ll match it.
  • Talk to a Real Person Chat, email or phone. Monday–Friday, 9 a.m.–5 p.m. EST.
  • Secure Encrypted Checkout Your payment and personal details are encrypted end to end.

Description

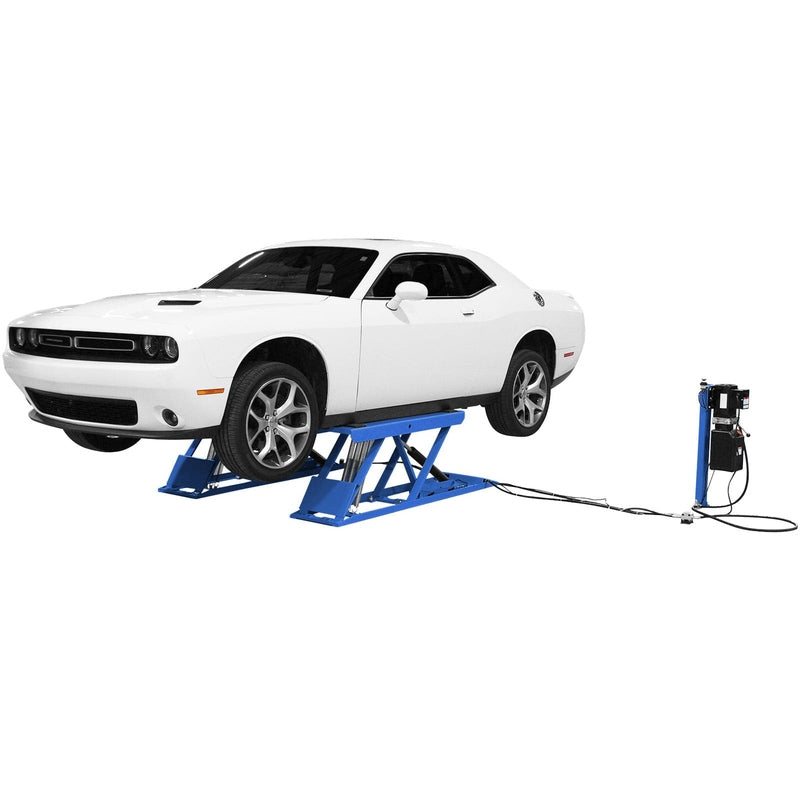

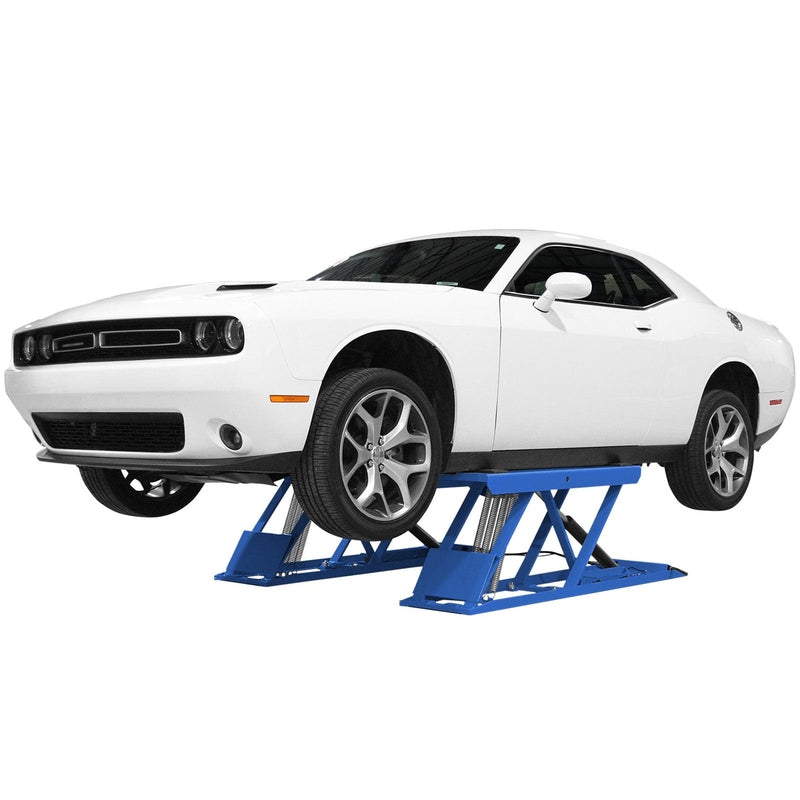

The Atlas® 6PL is a 6,000 lb. capacity low-rise lift engineered for quick, efficient tire, brake, and light service work. Its open-center design provides convenient access to the underside of vehicles, making it an excellent choice for both professional repair facilities and home garages that demand commercial-grade performance.

This lift comes equipped with four non-slip rubber pads for secure vehicle positioning and four heavy-duty rubber lifting blocks to protect factory lifting points on most vehicles. The low-profile design allows vehicles to easily drive over and onto the lift, ensuring fast setup for service operations.

Operating the lift is simple — just drive the vehicle into position, place the rubber blocks as needed, and press the control button to raise it to your desired working height. To lower, press the dump valve lever to bring the lift down safely to the nearest locking position.

Because of the horizontal cylinder configuration, a 2–6 inch gap between the lifting surface and the vehicle’s lifting points is recommended to ensure proper balance and operation.

Note: The Atlas® 6PL lift is finished in blue.

Features

  • 6,000 lb. lifting capacity

  • Open-center design for full undercarriage access

  • Built with commercial-grade quality and materials

  • Includes 4 non-slip rubber pads for secure contact

  • Drive-over ramps for easy vehicle positioning

  • Ideal for tire, brake, and general quick service work

  • Includes heavy-duty rubber lifting blocks for protection and versatility

  • Mounting hardware included

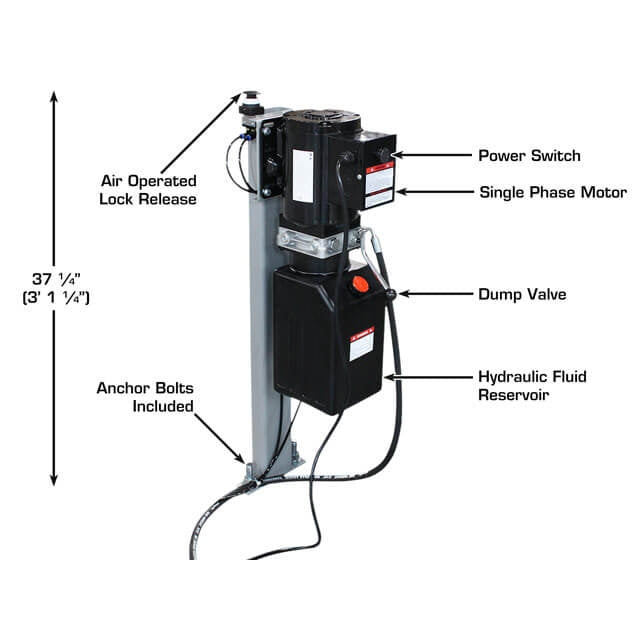

  • Air-operated single-point lock release (requires external air supply)

  • 110V electric operation for convenient setup

  • Shipping weight: 850 lbs

  • Warranty: 2-year structural / 1-year hydraulic (parts only)

Specifications

Atlas® 6PL Low-Rise Lift

Specification Measurement
Capacity 6,000 lbs

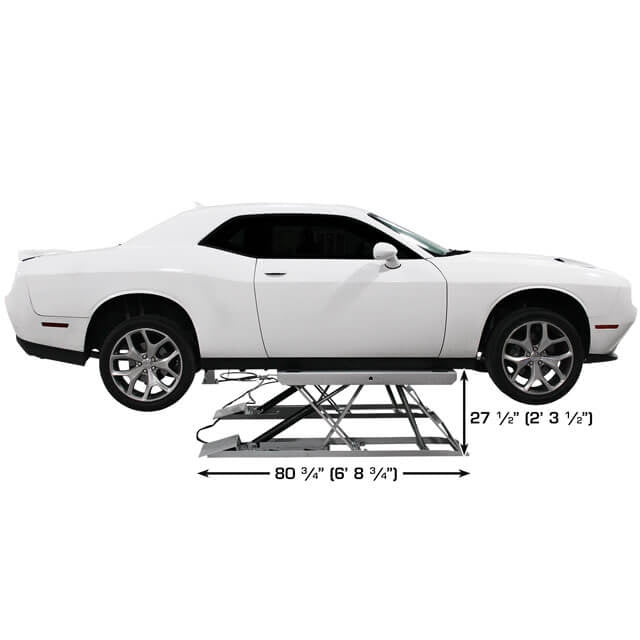

Maximum Lifting Height (with blocks) 26" (2' 2")

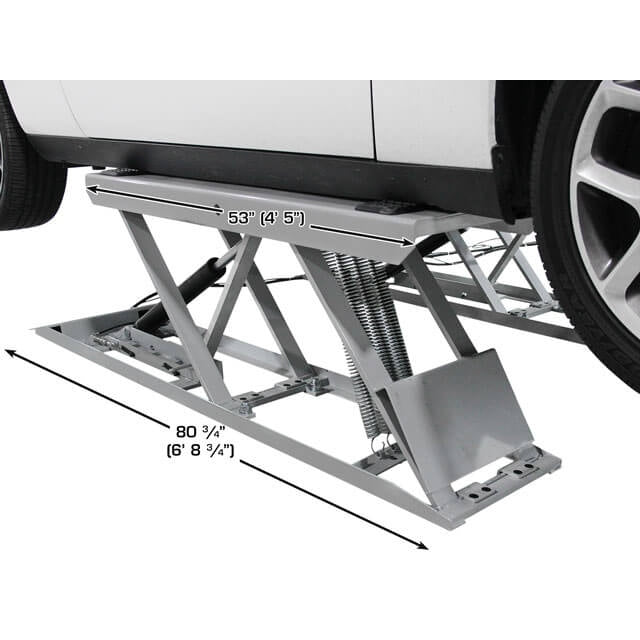

Platform Dimensions 53" × 18"

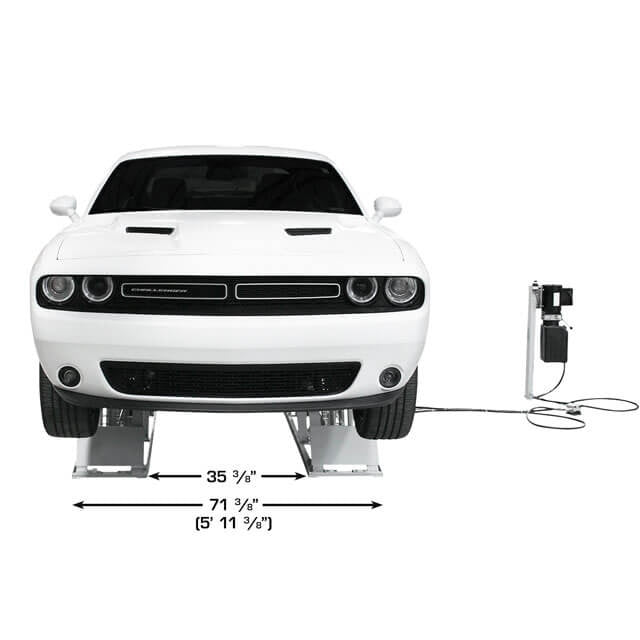

Overall Width 71" (5' 11") — adjustable closer if desired
Lowered Height 4½"
Air Requirement 90–125 PSI
Motor / Electrical Requirement 110V
Oil Requirement 1.5–2 gallons AW32 or AW46 (not included)
Shipping Weight 850 lbs
