Atlas® 9KBPX – 9,000 lb. Capacity Baseplate 2-Post Lift

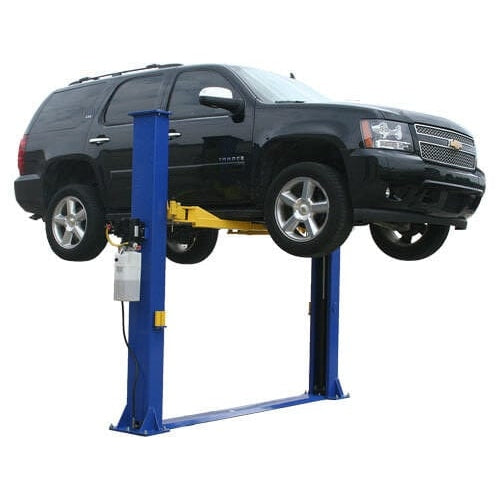

The Atlas® 9KBPX is a baseplate-style two-post lift engineered for low-ceiling garages and professional or home use. Standing at just 111½″ (9′ 3½″) tall, this model can be installed in spaces with ceilings as low as 9′ 6″, making it the ideal choice for workshops with limited vertical clearance.

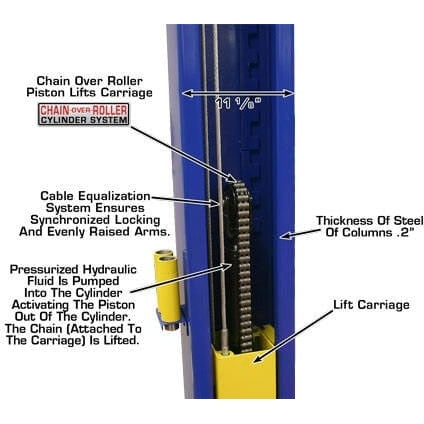

Designed for reliability and safety, the 9KBPX features a chain-over-roller lifting system powered by dual hydraulic cylinders, ensuring smooth and consistent performance. Its spring-loaded Secondary Lock System (SLS) automatically engages in the event of chain slack or failure, providing an additional layer of operator protection.
Equipped with symmetric arms, automatic arm restraints, and a dual-point lock release, this lift is both easy to operate and secure in daily use. The Atlas® 9KBPX is perfect for homeowners or small commercial shops servicing cars, SUVs, and light-duty trucks. (Not recommended for Diesel Duallys or oversized commercial vehicles.)
Key Features
-
9,000 lb. Lifting Capacity
-
Baseplate, Open-Top Design for low-ceiling installations
-
Ideal for Ceiling Heights as Low as 9′ 6″
-

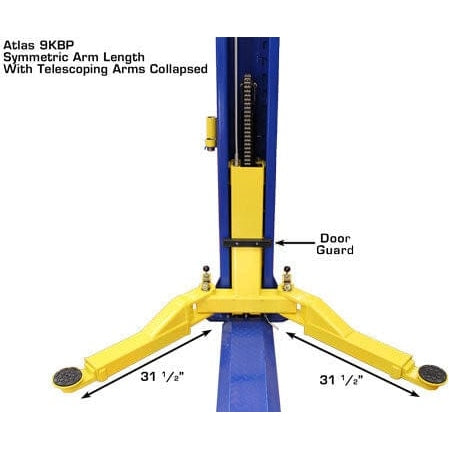

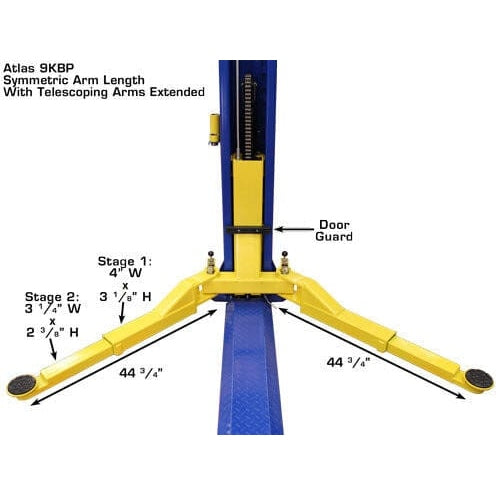

Symmetric Arm Configuration for balanced vehicle lifting
-
Dual Hydraulic Chain-Drive Cylinders for dependable performance
-
Spring-Loaded Secondary Lock System (SLS) for added safety
-

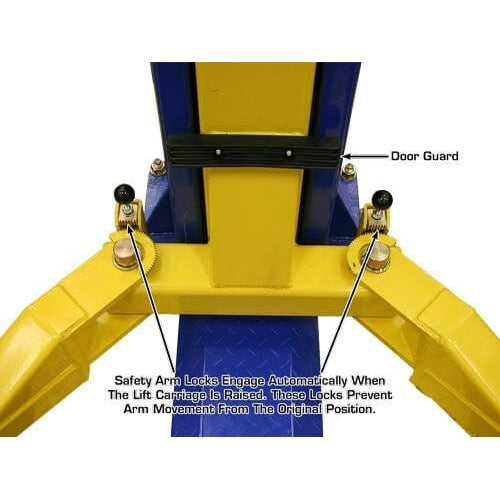

Automatic Arm Restraints to prevent arm movement during use
-

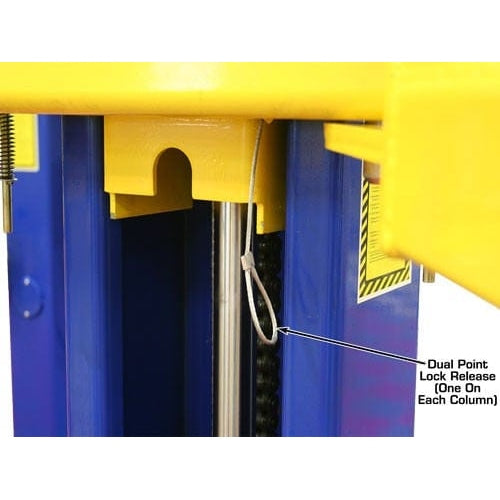

Dual-Point Lock Release for simple operation
-

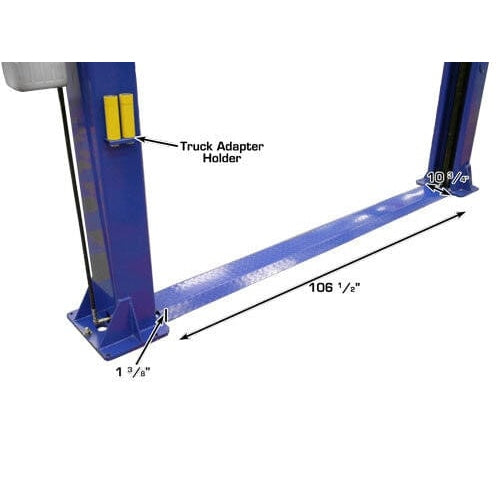

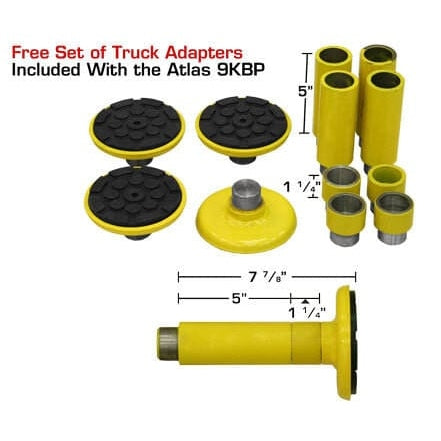

Includes Free 8-Piece Truck Adapter Set
-

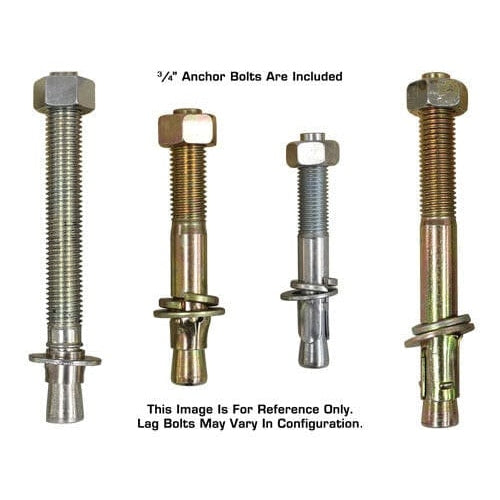

Mounting Hardware Included
-

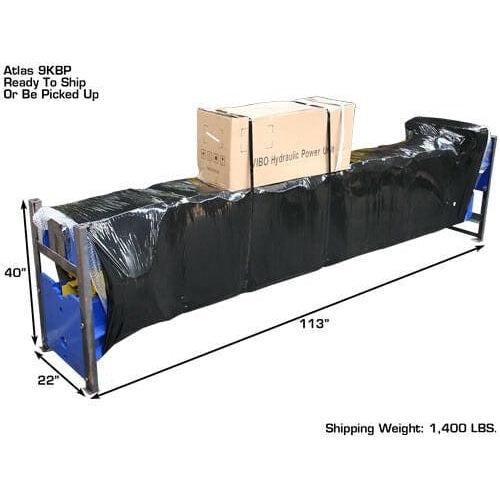

Shipping Weight: 1,400 lb.
-
Warranty: 2-Year Structural | 1-Year Hydraulic (Parts Only)
Specifications
| Specification | Measurement |
|---|---|
| Lifting Capacity | 9,000 lb. |

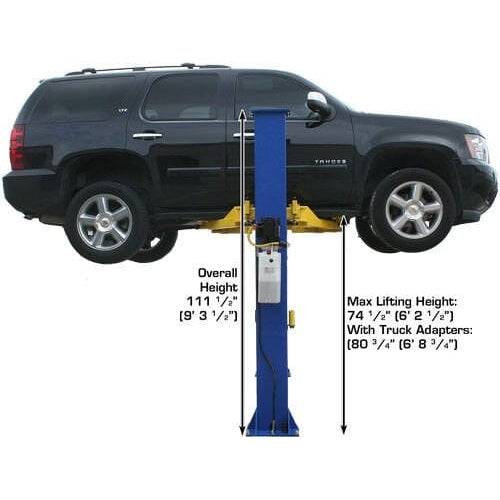

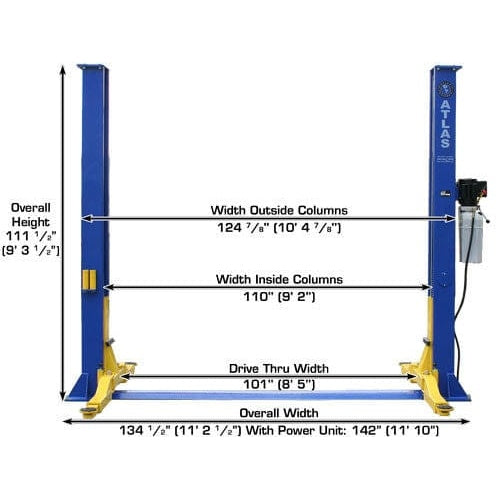

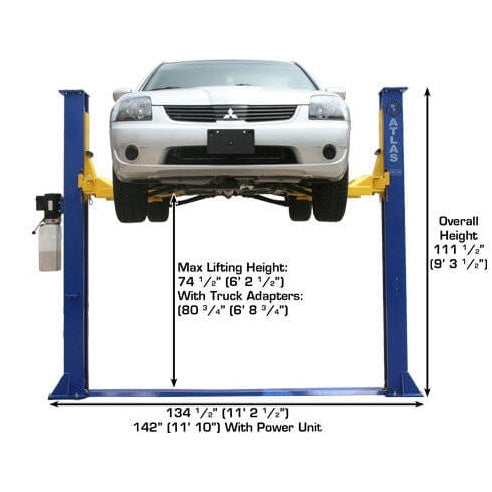

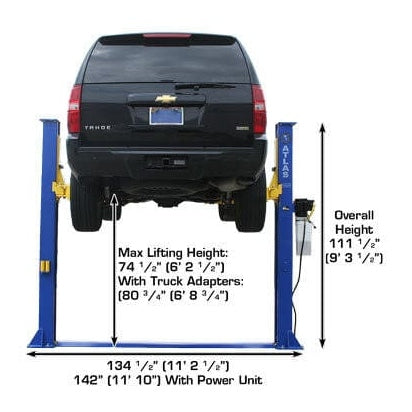

| Overall Height | 111 ½″ (9′ 3 ½″) |
| Overall Floor Width | 134 ½″ (11′ 2 ½″) |
| Outside Column to Outside Column | 124 ⅞″ (10′ 4 ⅞″) |

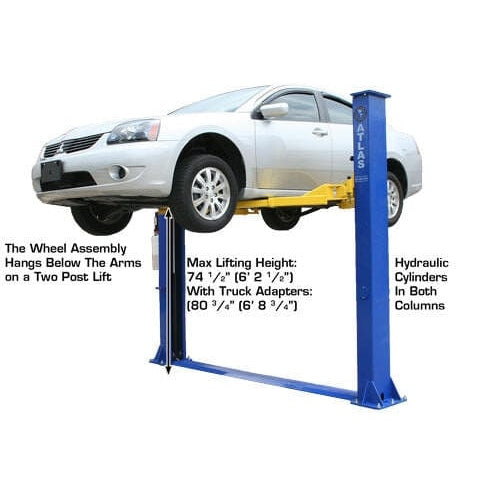

| Maximum Lift Height (Without Adapters) | 74 ½″ |
| Maximum Lift Height (With Adapters) | 81″ |
| Minimum Arm Height | 4″ |
| Inside Column Width | 110″ (9′ 2″) |
| Drive-Through Clearance | 101″ (8′ 5″) |

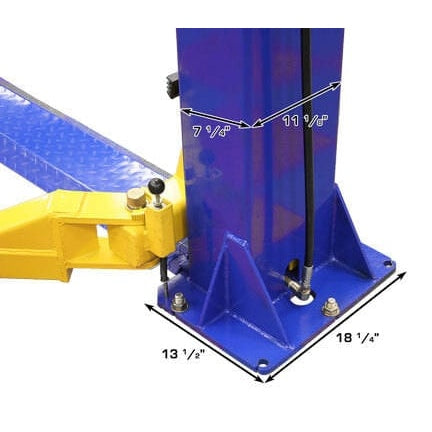

| Column Size | 7 ¼″ × 11″ |
| Column Steel Thickness | 5 mm |
| Base Plate Dimensions | 14 ¼″ × 18 ¼″ |

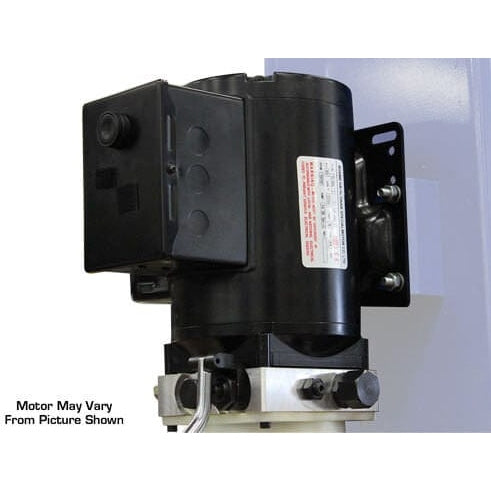

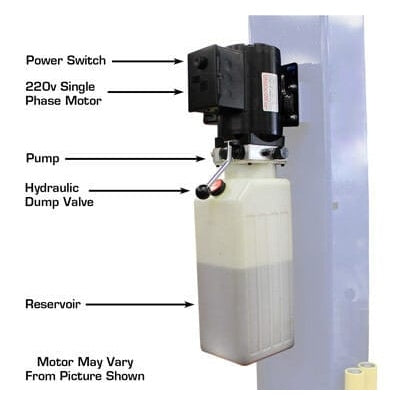

| Electrical Requirement | 220V single-phase (30A breaker recommended) |
| Oil Requirement | 3–5 gallons AW32/AW46 (not included) |
| Shipping Weight | 1,400 lb. |

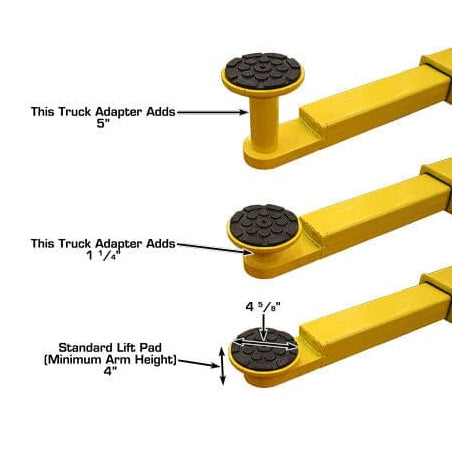

| Adapter Heights | Four each: 1.5″ and 5″ |
| Arm Hole/Adapter Peg Size | 1.5″ |
| Concrete Requirement | Minimum 4″ thick slab rated at 3,000 PSI |
Documents
Atlas 9KBPX Cylinder Bleeding Procedure (Do this immediately after installation)
